Model Electrolux FAC085M7A1 ROOM AIR CONDITIONER – Common Parts & Diagrams

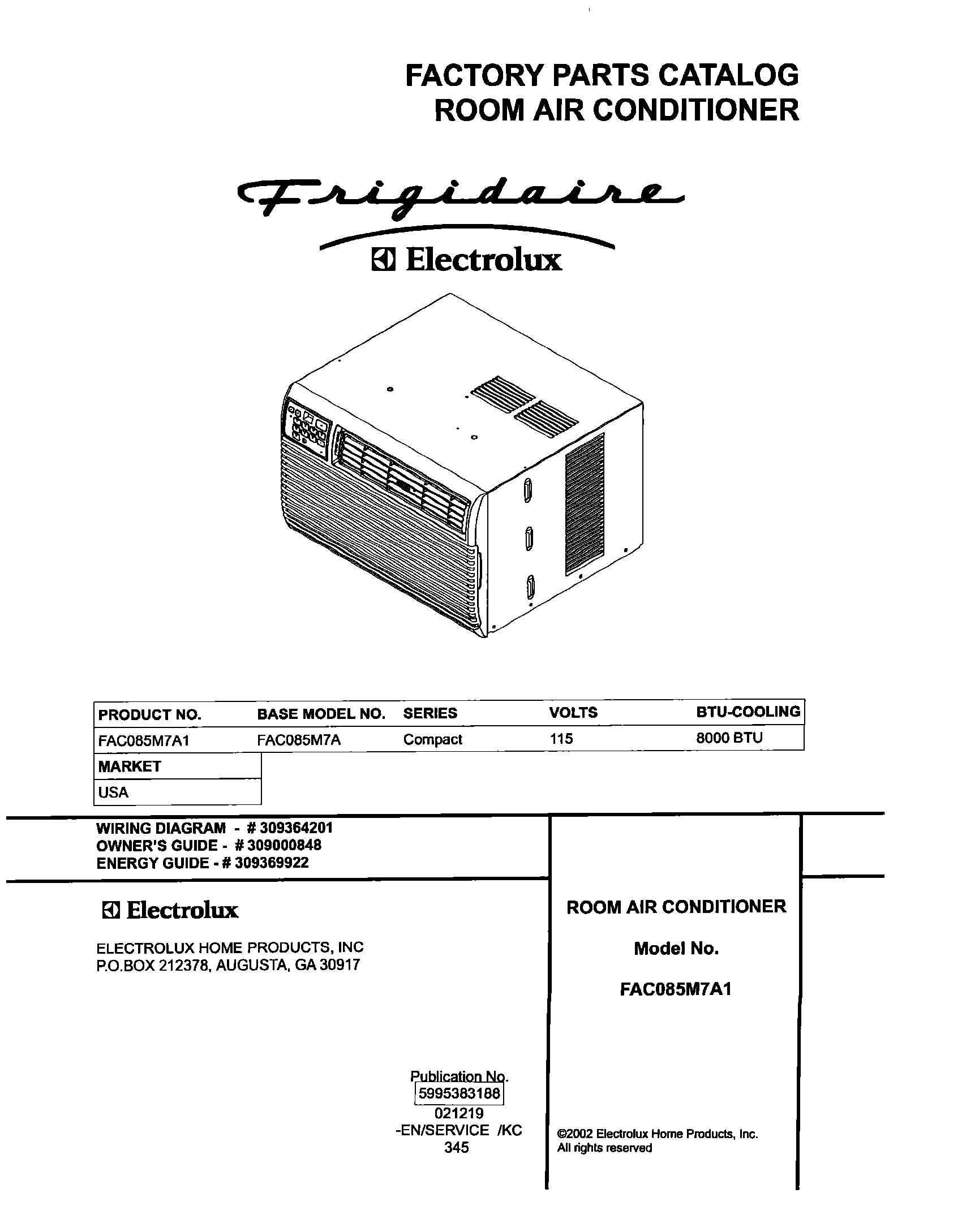

01 - COVER

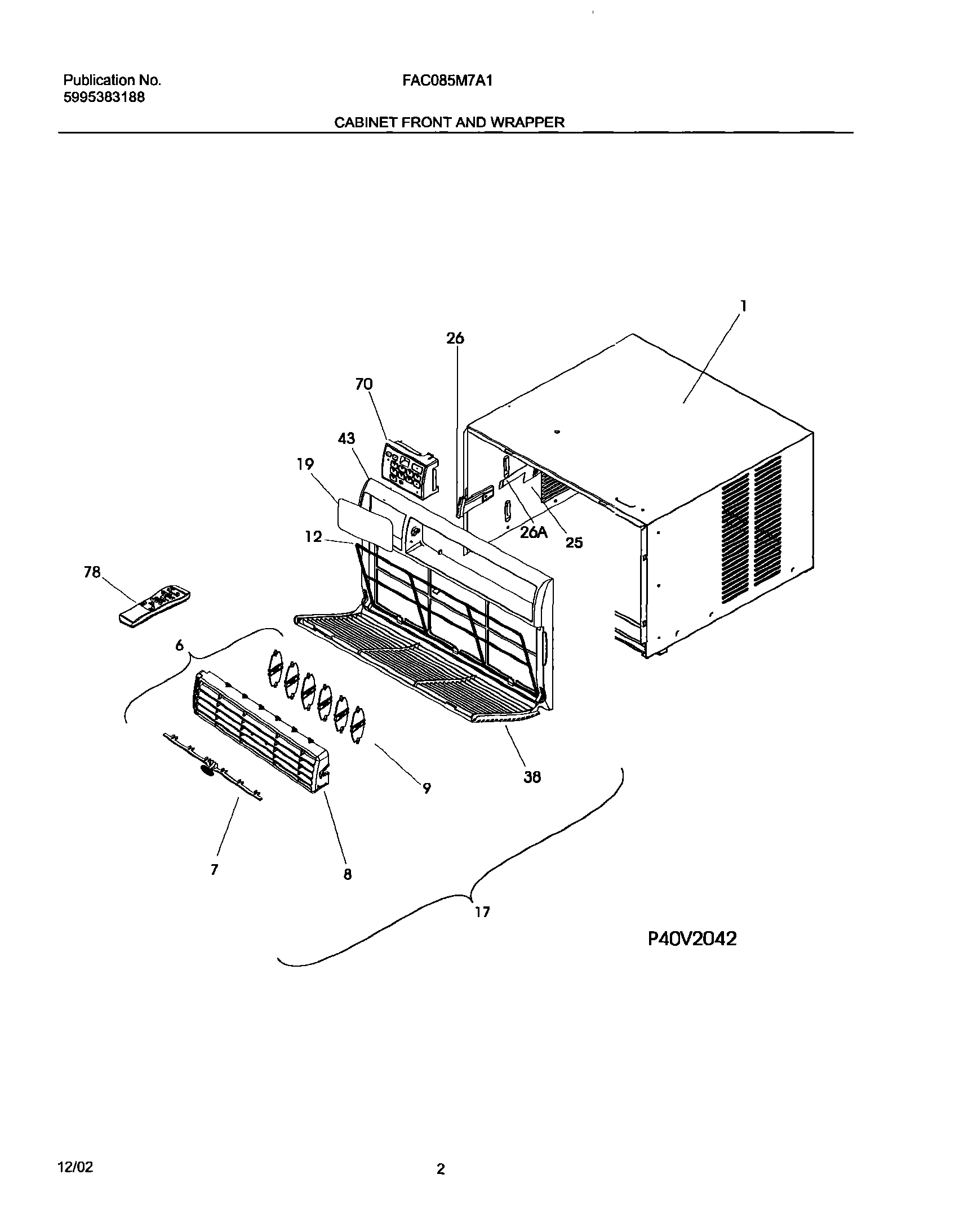

03 - CABINET FRONT AND WRAPPER

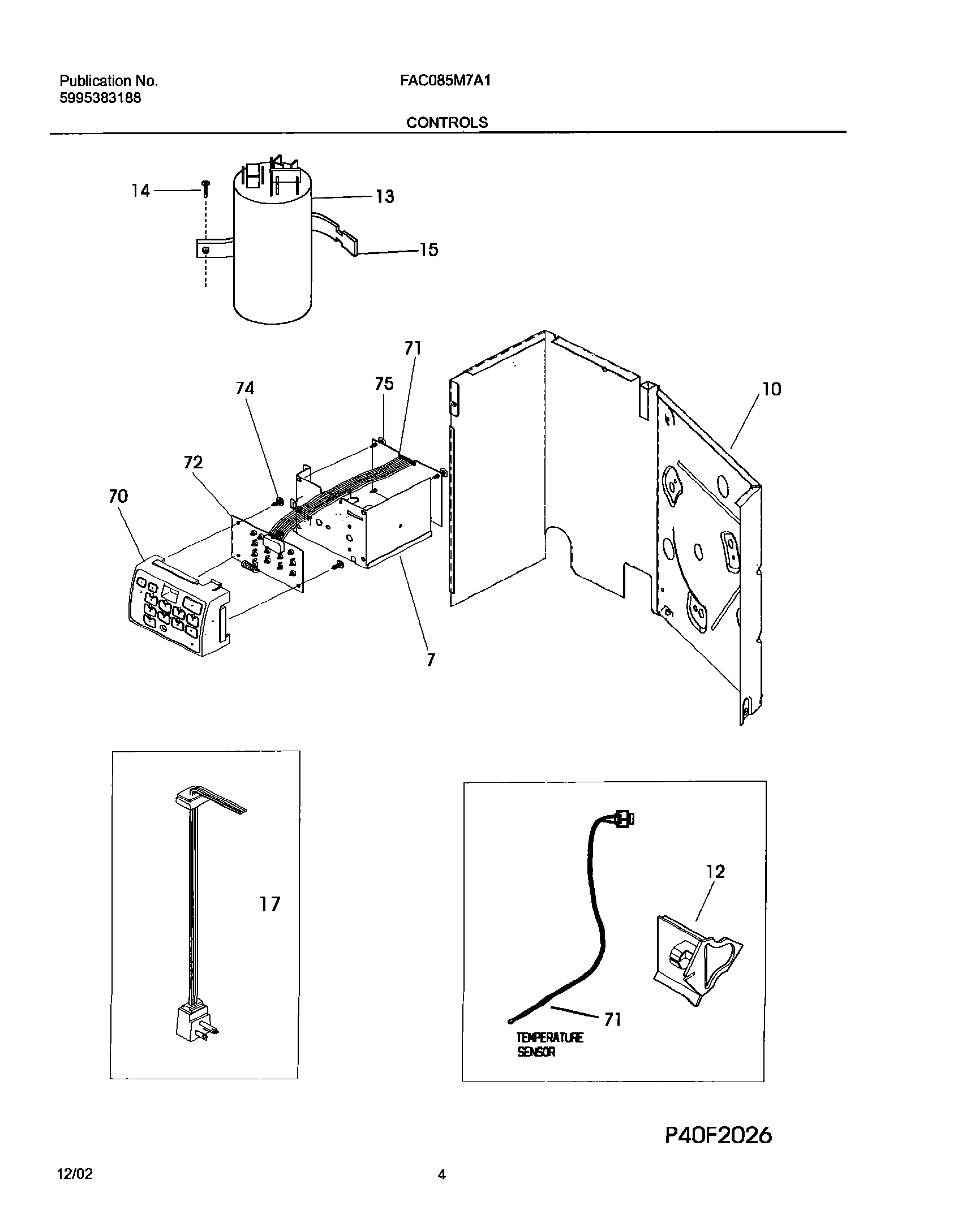

05 - CONTROLS

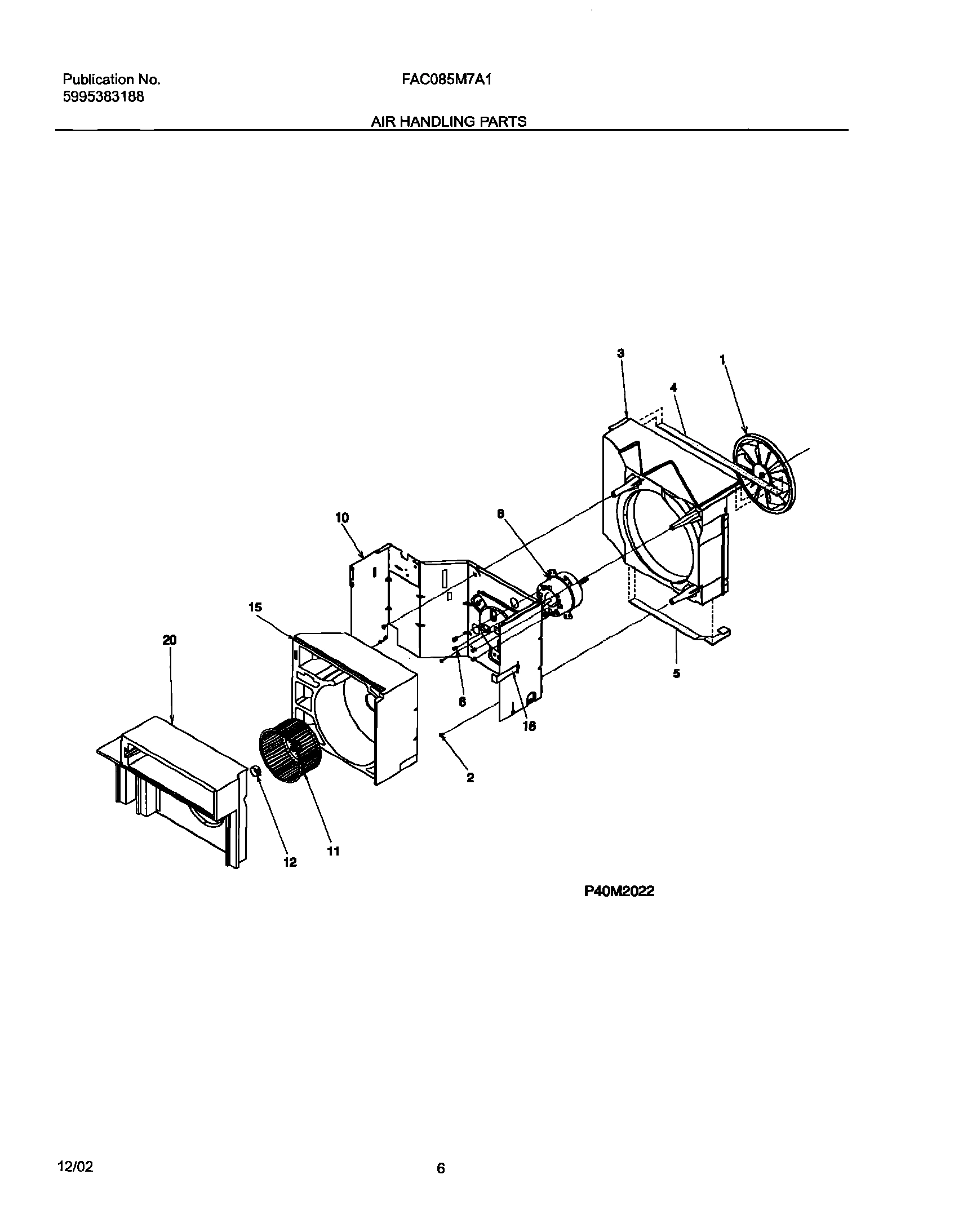

07 - AIR HANDLING PARTS

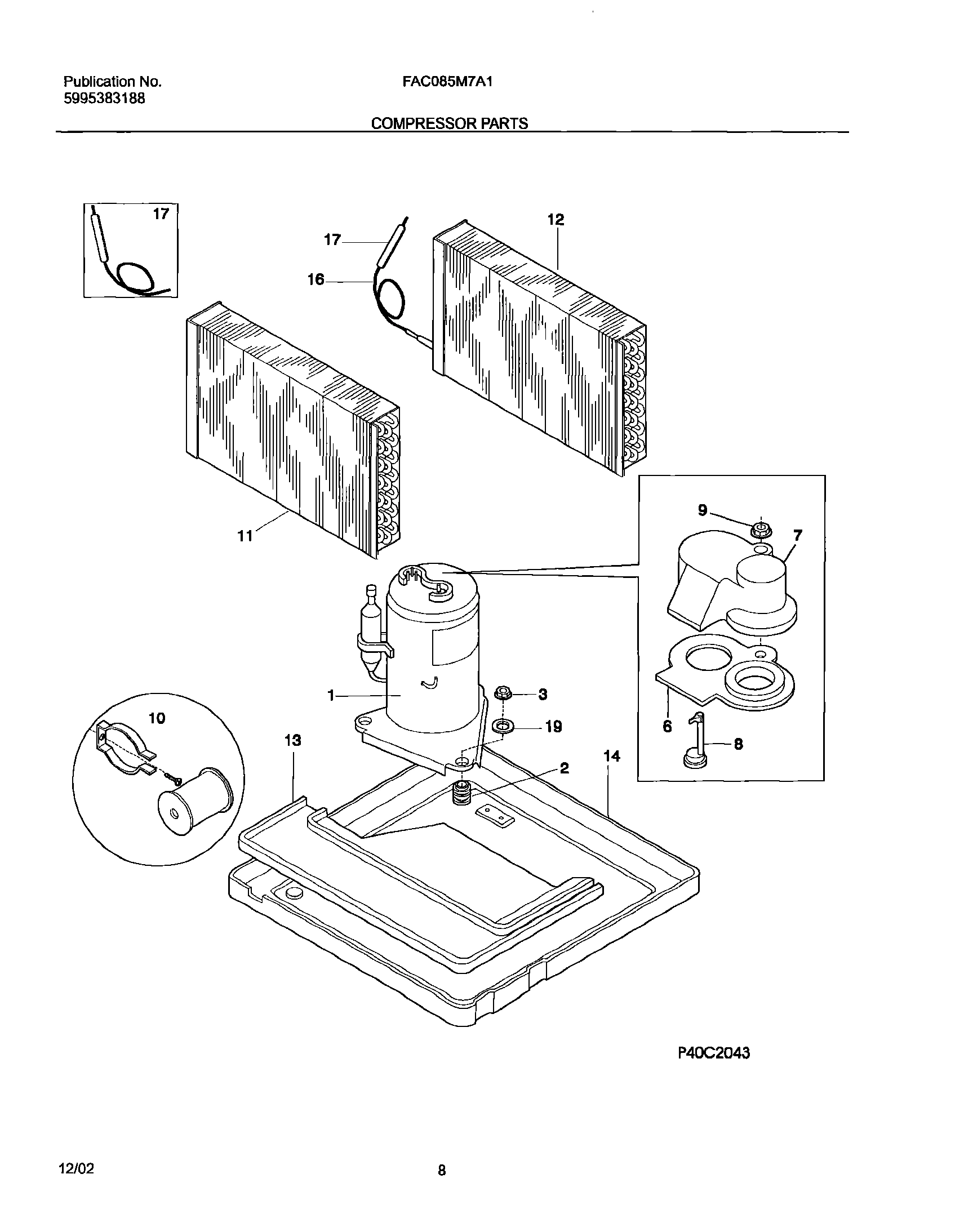

09 - COMPRESSOR PARTS

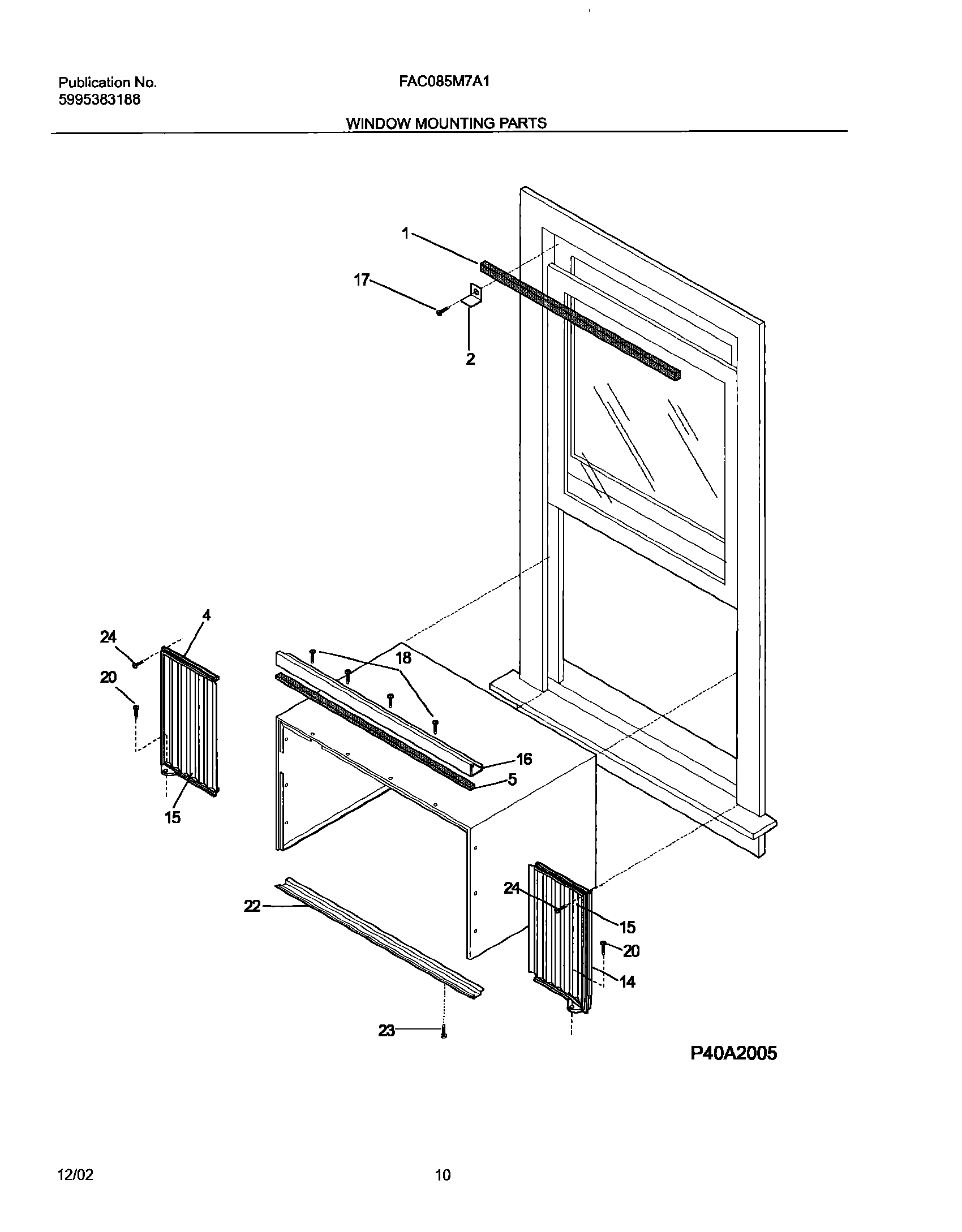

11 - WINDOW MOUNTING PARTS

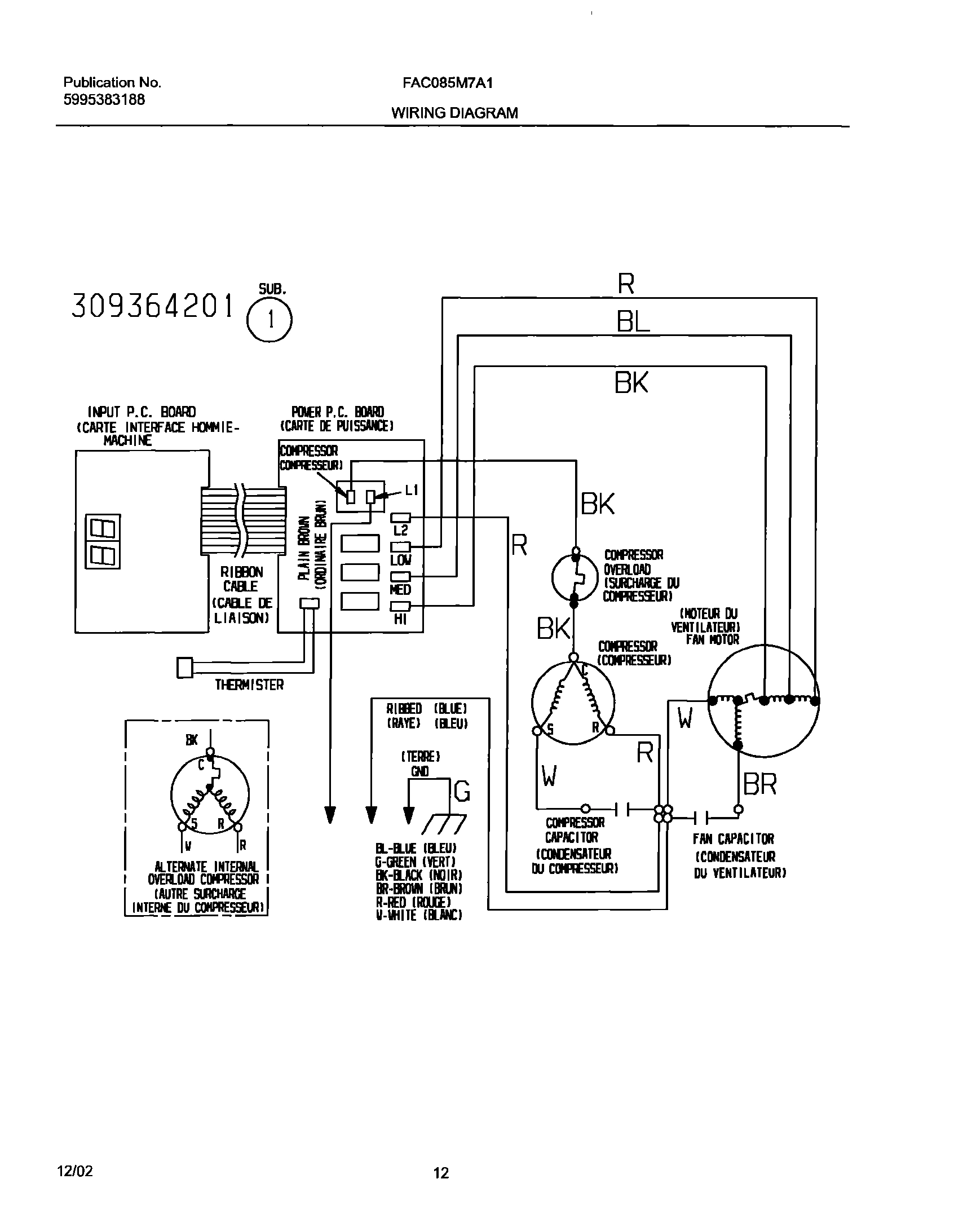

12 - WIRING DIAGRAM
Common parts from model Electrolux FAC085M7A1 ROOM AIR CONDITIONER
1
WCI 309645702 WCI 309645702 Contact Us For Availability
1
WCI 309616919 WCI 309616919 Contact Us For Availability
2
BRACKET-SASH LOCK WCI 5303211056 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
3
Housing-fan,shroud WCI 309643901 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
4
WCI 5304421913 WCI 5304421913 Contact Us For Availability
4
WCI 309644902 WCI 309644902 Contact Us For Availability
4
WCI 5304423372 WCI 5304423372 Contact Us For Availability
5
WCI 5303303759 WCI 5303303759 Contact Us For Availability
5
Seal,top rail/cab WCI 08016226 Contact Us For Availability
6
WCI 08007481 WCI 08007481 Contact Us For Availability
6
GASKET - TERMINAL COVER WCI 3201668 Contact Us For Availability
7
WCI 309643801 WCI 309643801 Contact Us For Availability
7
WCI 5304405245 WCI 5304405245 Contact Us For Availability
8
WCI 309644302 WCI 309644302 Contact Us For Availability
8
WCI 5303317553 WCI 5303317553 Contact Us For Availability
9
WCI 309342001 WCI 309342001 Contact Us For Availability
9
NUT,TERMINAL COVER WCI 3201670 Contact Us For Availability
10
WCI 309643702 WCI 309643702 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
11
WCI 309631701 WCI 309631701 Contact Us For Availability
11
WCI 309619317 WCI 309619317 Contact Us For Availability
12
WCI 309343501 WCI 309343501 Contact Us For Availability
12
WCI 5304413782 WCI 5304413782 Contact Us For Availability
12
Clamp,blower wheel mt ,compression WCI 309112101 Contact Us For Availability
12
WCI 5303303197 WCI 5303303197 Contact Us For Availability
13
WCI 5304426336 WCI 5304426336 Contact Us For Availability
13
Tray,evap drip WCI 309642801 Contact Us For Availability
14
Base,compressor mt. ,with studs WCI 309644003 Contact Us For Availability
14
WCI 5304423373 WCI 5304423373 Contact Us For Availability
15
WCI 309645501 WCI 309645501 Contact Us For Availability
15
Strap,capacitor mtg. WCI 309351901 Contact Us For Availability
15
Housing,blower scroll ,Extended WCI 309642901 Contact Us For Availability
16
Clip,evap/bulkhead WCI 309100201 Contact Us For Availability
16
WCI 5304417586 WCI 5304417586 Contact Us For Availability
16
Rail,retainer ,top WCI 5304417362 Contact Us For Availability
17
WCI 309640104 WCI 309640104 Contact Us For Availability
17
WCI 309343122 WCI 309343122 Contact Us For Availability
17
SCREW,WOOD, TYPE 17 ,10-12 X 0.750 WCI 3002803 Contact Us For Availability
19
WCI 309359903 WCI 309359903 Contact Us For Availability
19
WCI 309112501 WCI 309112501 Contact Us For Availability
20
Plate,scroll cover WCI 309643002 Contact Us For Availability
22
WCI 5304403252 WCI 5304403252 Contact Us For Availability
23
SCREW,23(T) ,10-32 X 0.310 WCI 3001806 Contact Us For Availability
24
SCREW,WOOD, TYPE 17 ,8-15 X 0.500 WCI 5308002974 Contact Us For Availability
25
WCI 309328603 WCI 309328603 Contact Us For Availability
26
WCI 309638201 WCI 309638201 Contact Us For Availability
26A
WCI 309330201 WCI 309330201 Contact Us For Availability
38
WCI 309646301 WCI 309646301 Contact Us For Availability
43
WCI 309646401 WCI 309646401 Contact Us For Availability
70
WCI 309369501 WCI 309369501 Contact Us For Availability
71
WCI 309350404 WCI 309350404 Contact Us For Availability
72
WCI 309350406 WCI 309350406 Contact Us For Availability
75
Support-pc board WCI 5304413781 Contact Us For Availability
78
WCI 309342607 WCI 309342607 Contact Us For Availability
NI
WCI 309369922 WCI 309369922 Contact Us For Availability
NI
WCI 309111201 WCI 309111201 Contact Us For Availability
NI
Screw,Ph truss hd ,8-18 x 0.38 ,grounding WCI 5303285199 Contact Us For Availability
NI
WCI 5304417643 WCI 5304417643 Contact Us For Availability
× ![]()
