Model Electrolux FAC084K7A2 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
03 - WINDOW MOUNTING

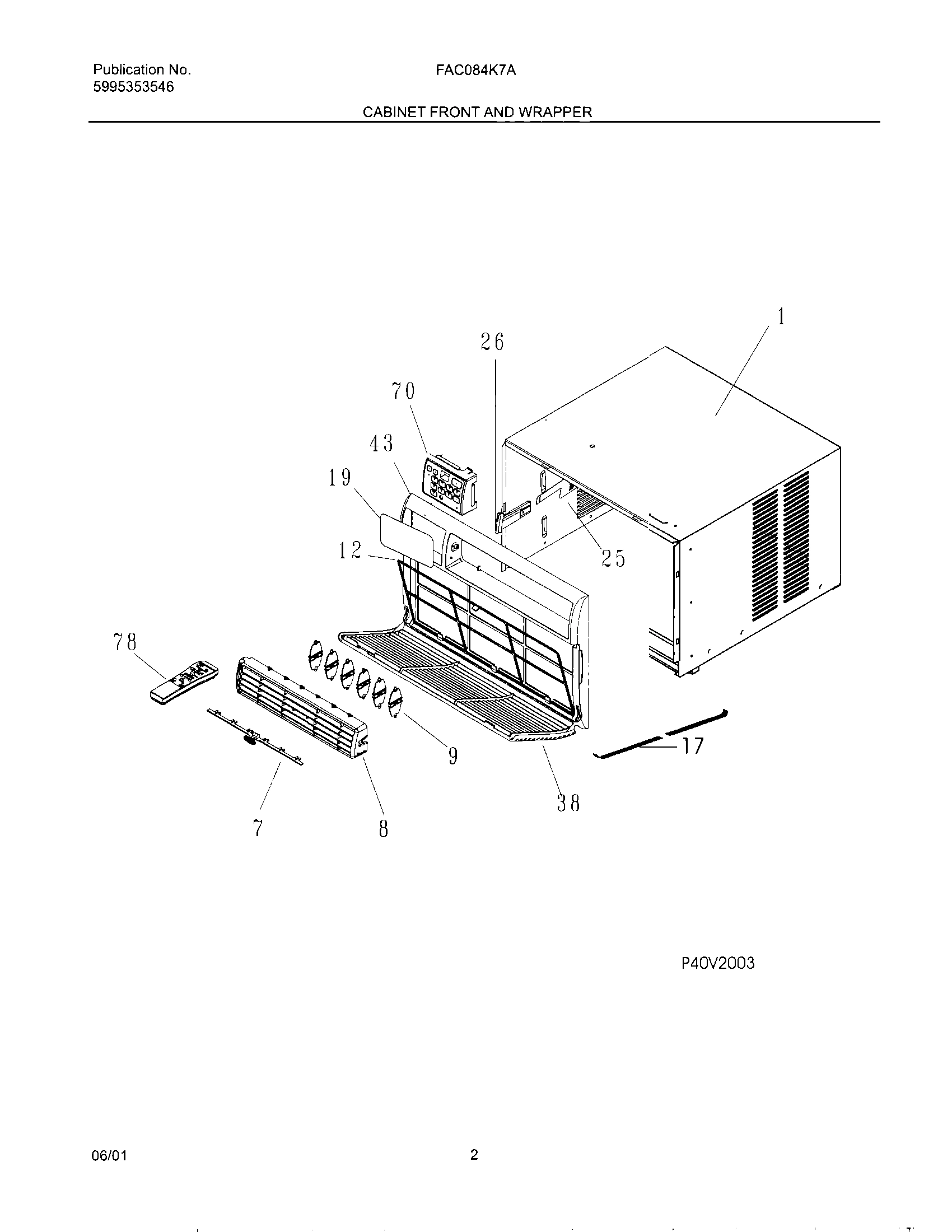

05 - WRAPPER

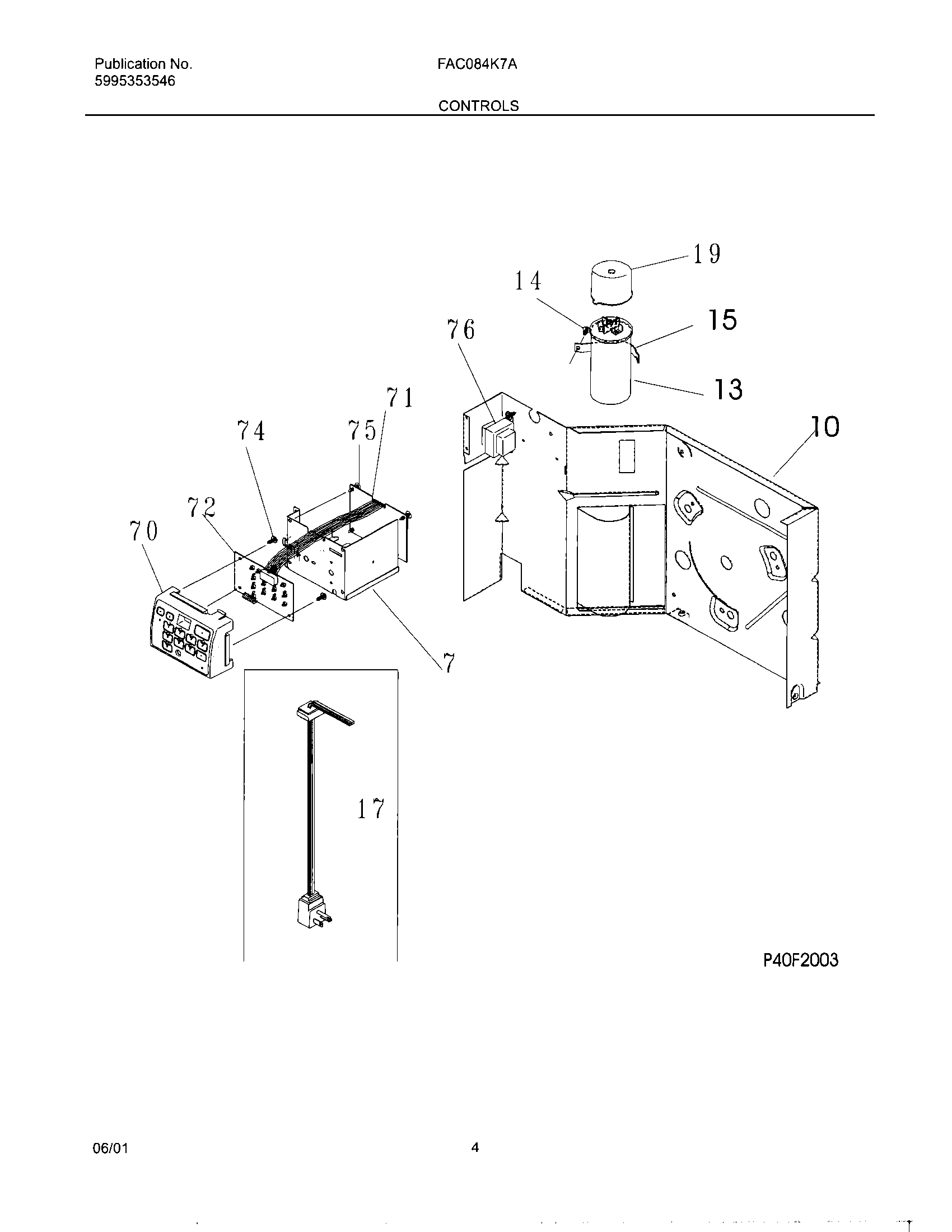

07 - CONTROLS

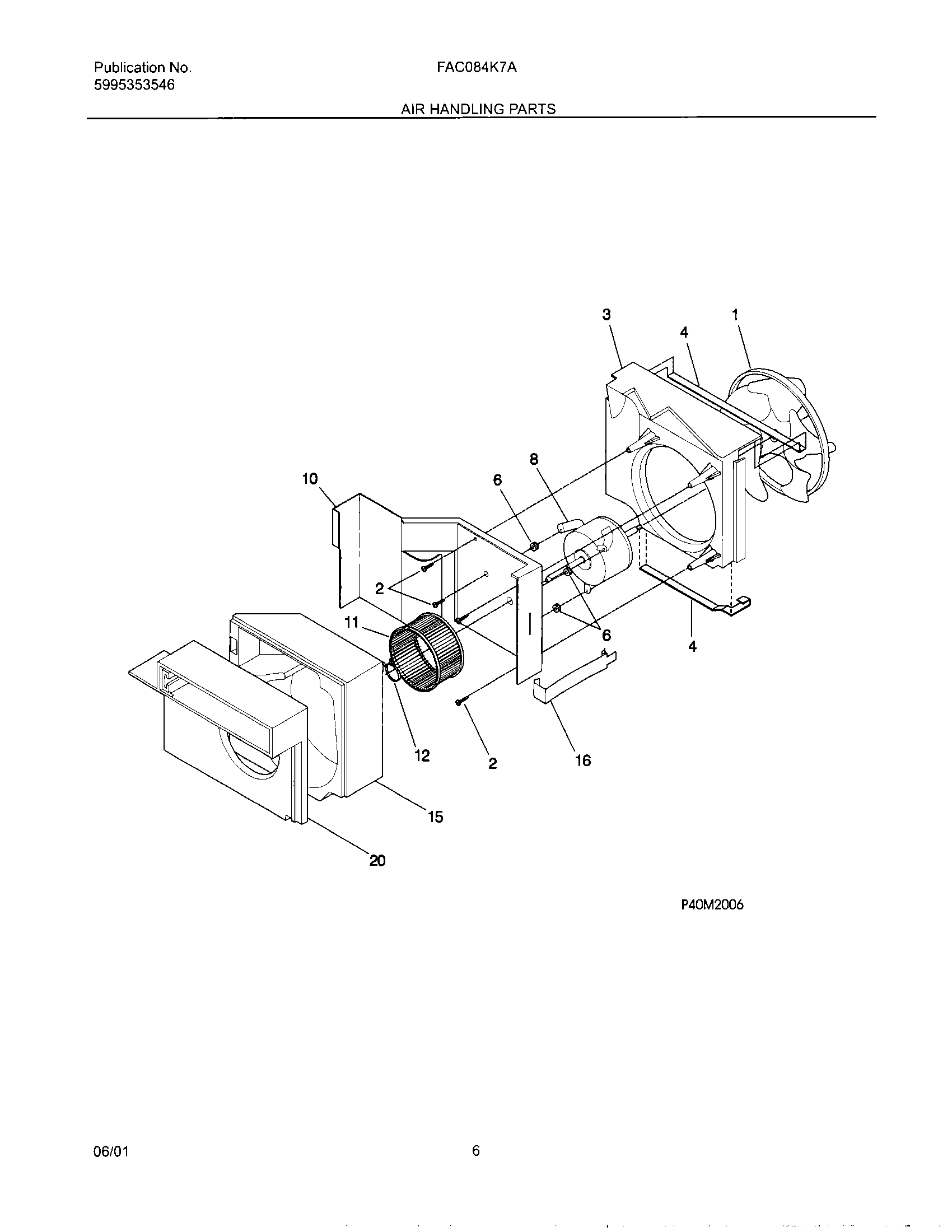

09 - AIR HANDLING

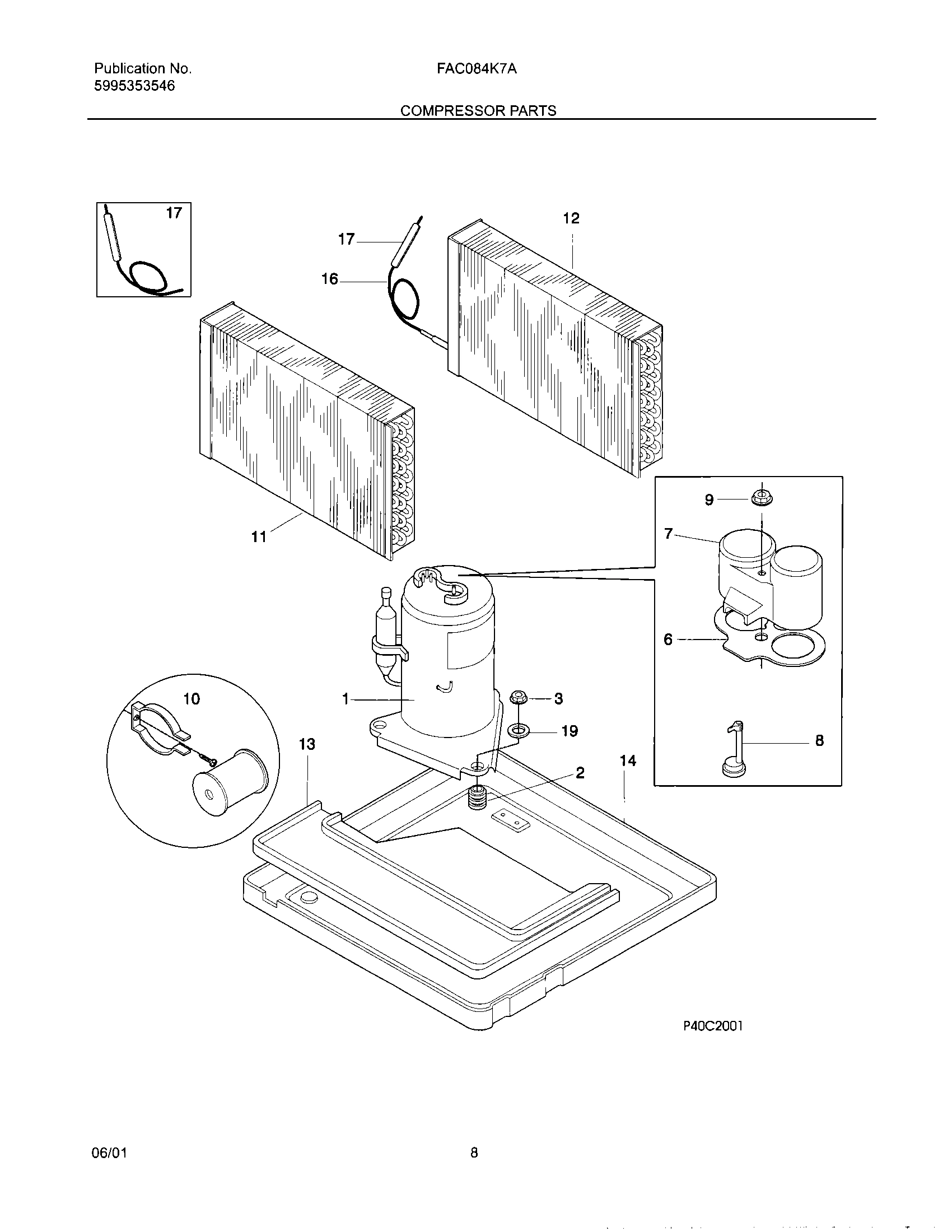

11 - COMPRESSOR

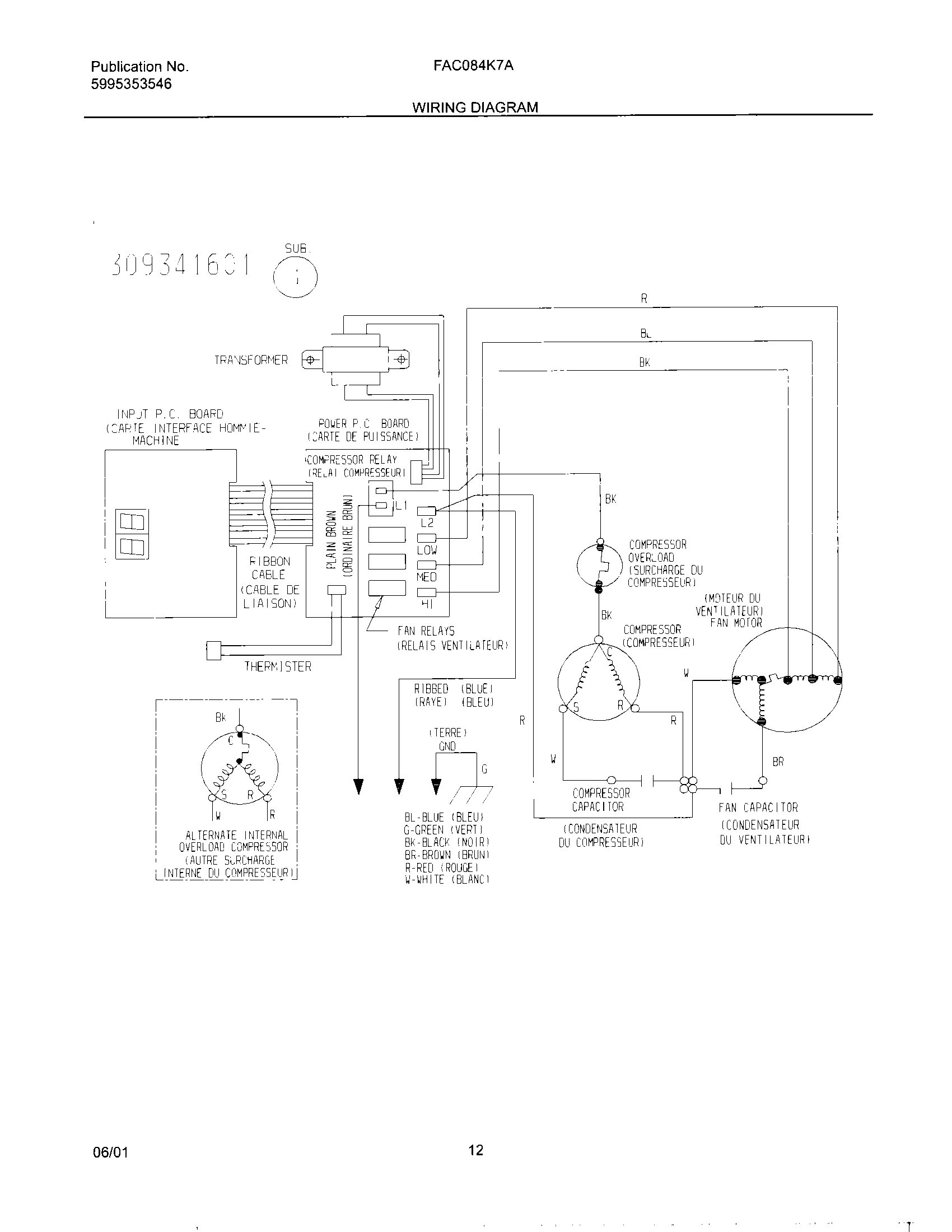

12 - WIRING DIAGRAM
Common parts from model Electrolux FAC084K7A2 ROOM AIR CONDITIONER
1
WCI 5304413783 WCI 5304413783 Contact Us For Availability
1
WCI 309624502 WCI 309624502 Contact Us For Availability
1
WCI 5304420272 WCI 5304420272 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
3
WCI 309624201 WCI 309624201 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
4
SEAL, CONDENSER WCI 5303270043 Contact Us For Availability
6
GROMMET-MOTOR, (3) WCI 5300105402 Contact Us For Availability
6
Gasket,terminal cover WCI 5303291330 Contact Us For Availability
7
Link,vertical louver ,with handle WCI 309638001 Contact Us For Availability
7
Control Box WCI 309350301 Contact Us For Availability
7
Cover-terminal,compressor WCI 5304416126 Contact Us For Availability
8
WCI 309642401 WCI 309642401 Contact Us For Availability
8
WCI 309639301 WCI 309639301 Contact Us For Availability
8
WCI 5304420271 WCI 5304420271 Contact Us For Availability
9
WCI 309342001 WCI 309342001 Contact Us For Availability
9
Nut-terminal cover WCI 5303294292 Contact Us For Availability
10
WCI 309602404 WCI 309602404 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
11
WCI 309603301 WCI 309603301 Contact Us For Availability
11
WCI 309619303 WCI 309619303 Contact Us For Availability
12
WCI 309343501 WCI 309343501 Contact Us For Availability
12
Holder-thermistor,assy with seal WCI 5304413782 Contact Us For Availability
12
WCI 309112101 WCI 309112101 Contact Us For Availability
12
WCI 5303303195 WCI 5303303195 Contact Us For Availability
13
WCI 5303318963 WCI 5303318963 Contact Us For Availability
13
WCI 5303302849 WCI 5303302849 Contact Us For Availability
14
Extension-frame,RH ,with accordian WCI 5304414121 Contact Us For Availability
14
WCI 5304413780 WCI 5304413780 Contact Us For Availability
15
Closure,accordian type ,window mount WCI 309626504 Contact Us For Availability
15
WCI 5303303086 WCI 5303303086 Contact Us For Availability
15
WCI 5304407653 WCI 5304407653 Contact Us For Availability
16
WCI 5304417362 WCI 5304417362 Contact Us For Availability
16
WCI 309100201 WCI 309100201 Contact Us For Availability
16
WCI 5304409280 WCI 5304409280 Contact Us For Availability
17
SCREW,WOOD, TYPE 17 ,10-12 X 0.750 WCI 3002803 Contact Us For Availability
17
Front-cabinet,4 way ,complete assy WCI 309640102 Contact Us For Availability
17
WCI 309343101 WCI 309343101 Contact Us For Availability
17
WCI 5304417516 WCI 5304417516 Contact Us For Availability
19
Overlay WCI 309340803 Contact Us For Availability
19
WCI 5303302855 WCI 5303302855 Contact Us For Availability
19
WASHER,COMPRESSOR MTG WCI 5303002664 Contact Us For Availability
20
SCREW,PAN HEAD ,8-18 X 0.750 WCI 5303295750 Contact Us For Availability
20
PLATE-BLOWER HOUSING,SCROLL PLATE WCI 5304407654 Contact Us For Availability
22
RETAINER,BOTTOM WCI 5304403252 Contact Us For Availability
23
SCREW,23(T) ,10-32 X 0.310 WCI 3001806 Contact Us For Availability
24
SCREW,WOOD, TYPE 17 ,8-15 X 0.500 WCI 5308002974 Contact Us For Availability
25
WCI 309328601 WCI 309328601 Contact Us For Availability
26
WCI 309638201 WCI 309638201 Contact Us For Availability
38
WCI 309639201 WCI 309639201 Contact Us For Availability
43
WCI 309639101 WCI 309639101 Contact Us For Availability
70
Enclosure,elec control mt WCI 309342201 Contact Us For Availability
71
PC Board,power,Sagem WCI 309350401 Contact Us For Availability
72
WCI 309350402 WCI 309350402 Contact Us For Availability
75
Support-pc board WCI 5304413781 Contact Us For Availability
76
Transformer,120/12 Volt WCI 309111601 Contact Us For Availability
78
WCI 309350502 WCI 309350502 Contact Us For Availability
NI
Frame,LH ,w/o accordian WCI 5304413847 Contact Us For Availability
NI
Frame,RH ,w/o accordian WCI 5304413848 Contact Us For Availability
NI
Extension-frame,LH ,w/accordian WCI 5304414120 Contact Us For Availability
NI
WCI 309330201 WCI 309330201 Contact Us For Availability
NI
Louver Assy,horizontal ,Incl-7,8,9 WCI 309640202 Contact Us For Availability
NI
Wiring diagram WCI 309341601 Contact Us For Availability
NI
Holder-thermistor,without seal WCI 5304414108 Contact Us For Availability
NI
WCI 5304417643 WCI 5304417643 Contact Us For Availability
NI
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
NI
WCI 309112501 WCI 309112501 Contact Us For Availability
× ![]()
