Model Electrolux FAC083K7A4 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
03 - CABINET FRONT AND WRAPPER

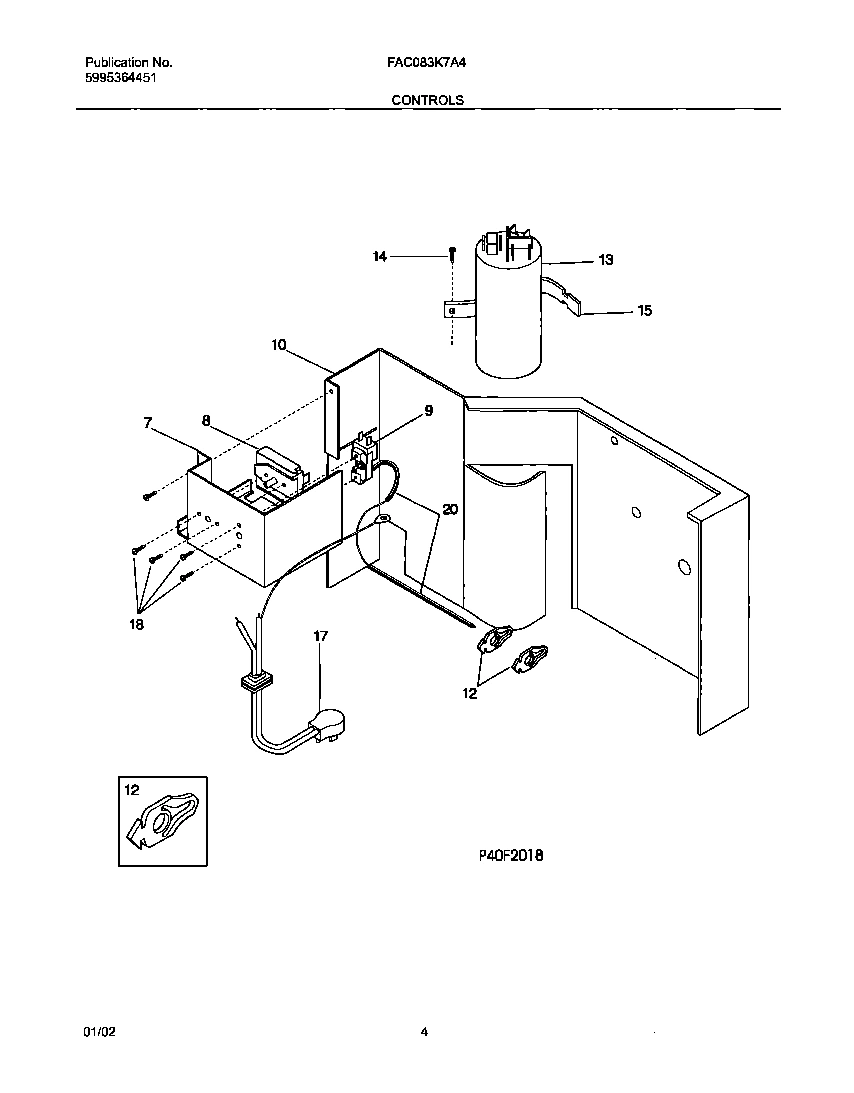

05 - CONTROLS

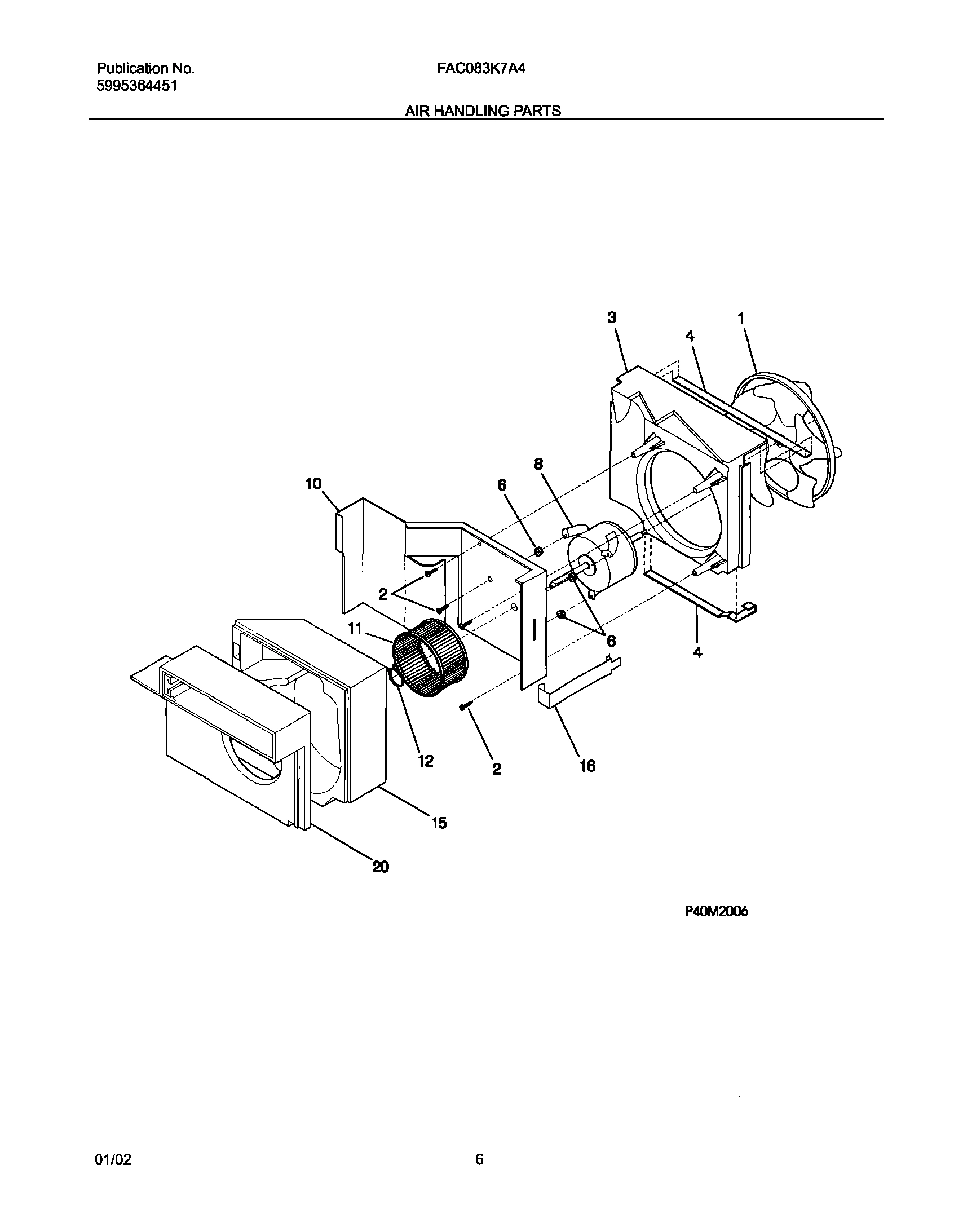

07 - AIR HANDLING PARTS

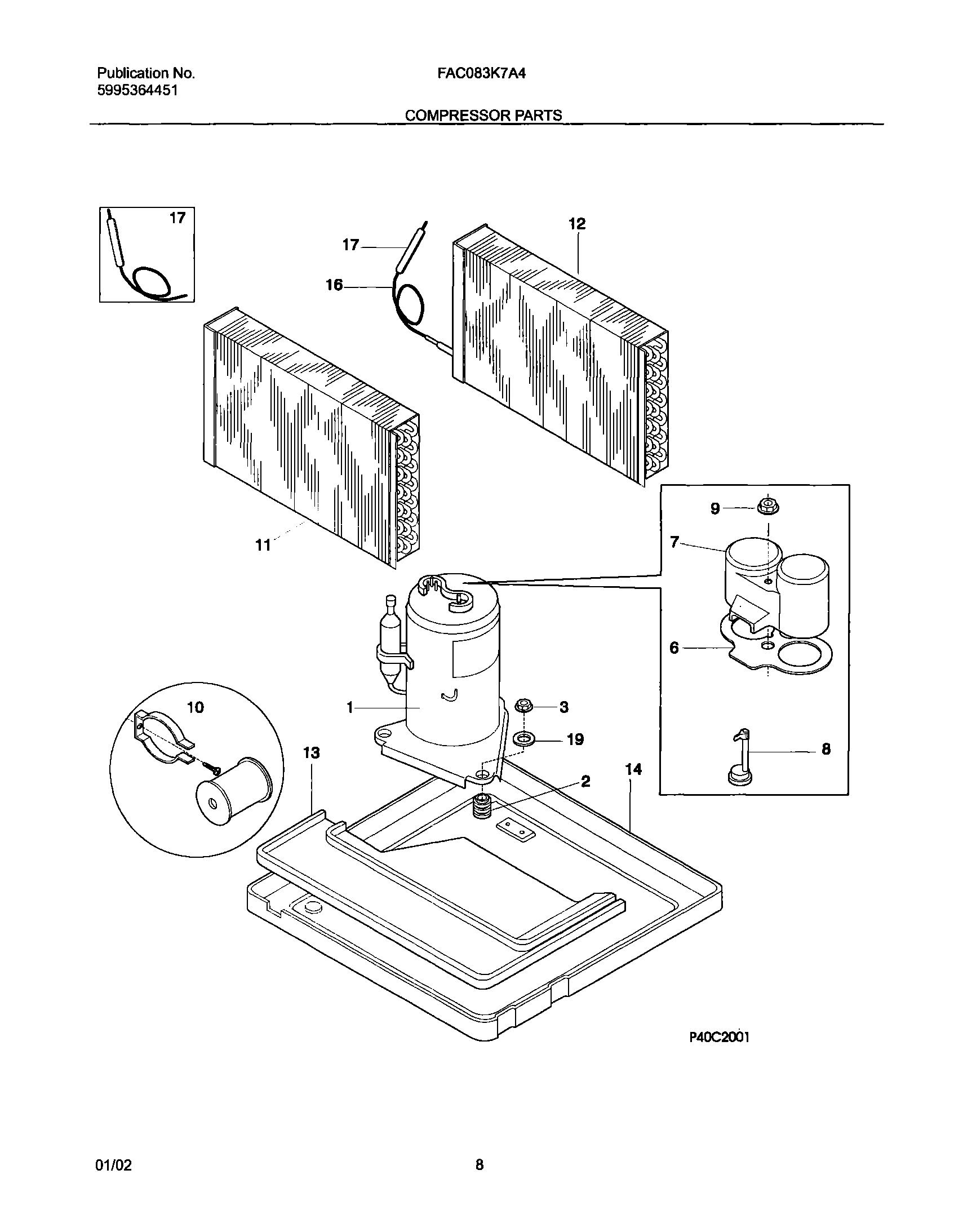

09 - COMPRESSOR PARTS

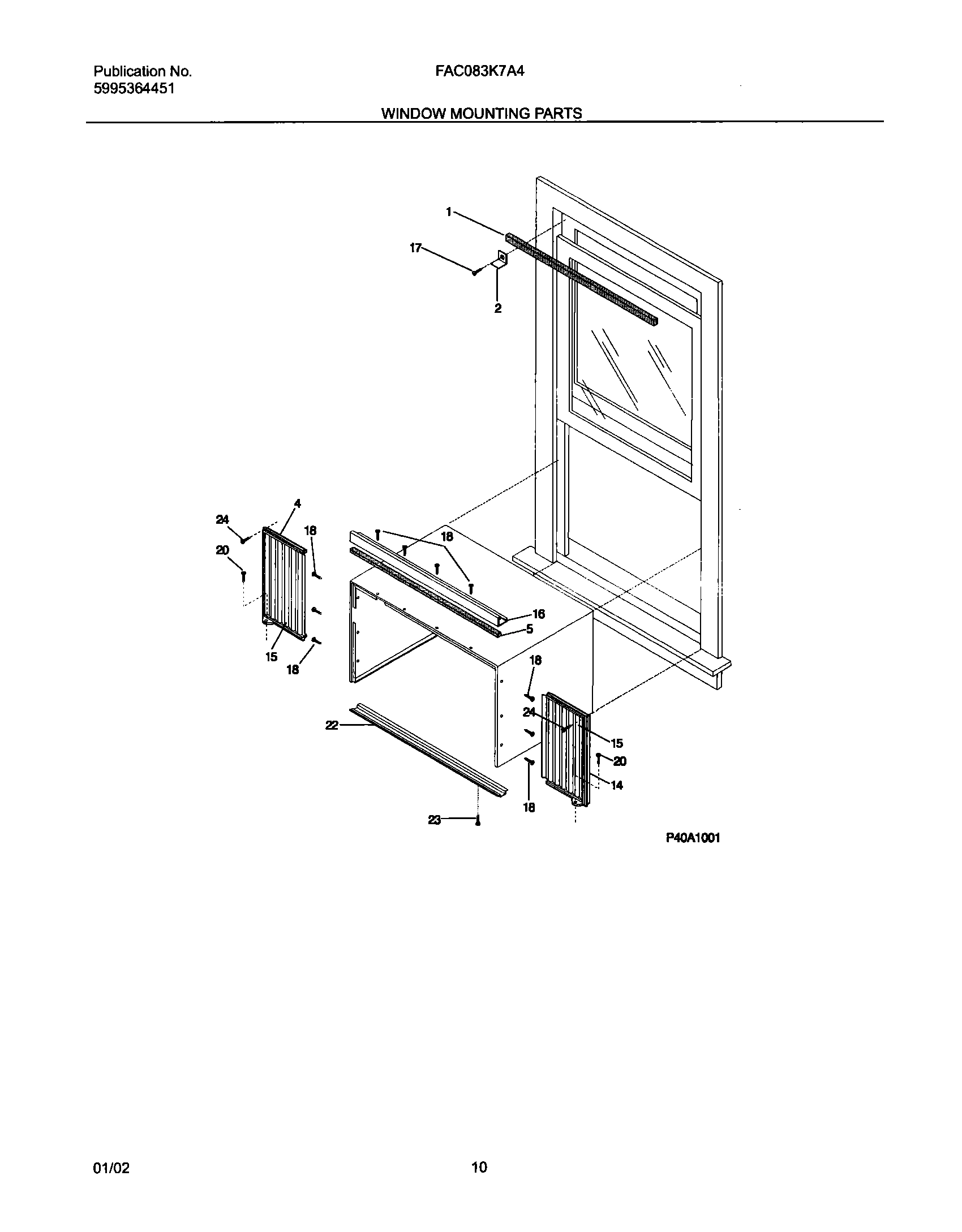

11 - WINDOW MOUNTING PARTS

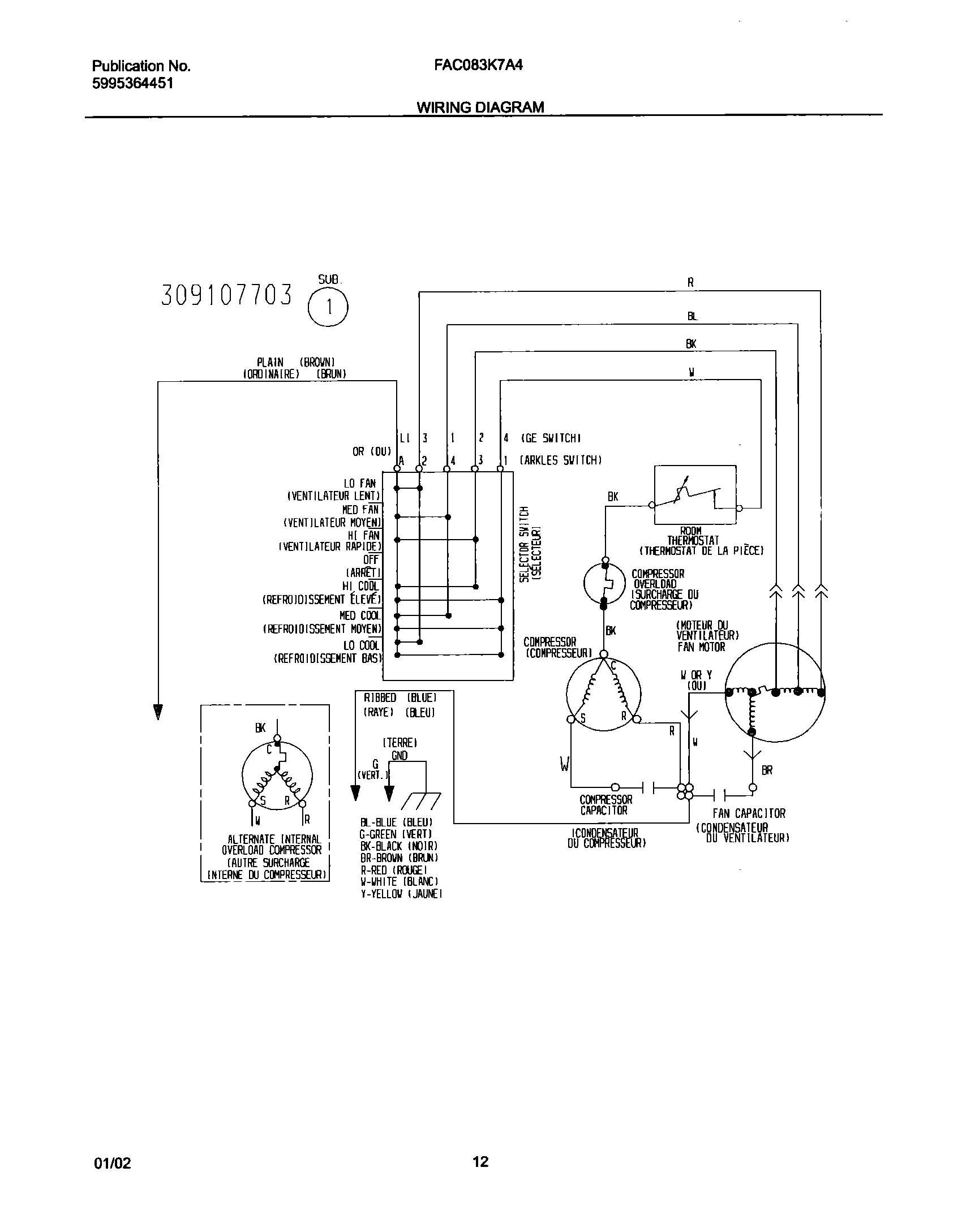

12 - WIRING DIAGRAM
Common parts from model Electrolux FAC083K7A4 ROOM AIR CONDITIONER
1
WCI 309624502 WCI 309624502 Contact Us For Availability
1
WCI 309616918 WCI 309616918 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
3
Housing-fan,shroud WCI 309643901 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
4
WCI 5303303759 WCI 5303303759 Contact Us For Availability
4
WCI 5304421913 WCI 5304421913 Contact Us For Availability
4
Frame Extension Kit,accordian ,LH & RH ,incl. WCI 309644901 Contact Us For Availability
4
Extension-frame,LH ,w/accordian WCI 5304414120 Contact Us For Availability
5
SEAL, TOP RAIL WCI 08016226 Contact Us For Availability
6
WCI 08007481 WCI 08007481 Contact Us For Availability
6
GASKET - TERMINAL COVER WCI 3201668 Contact Us For Availability
7
WCI 309643802 WCI 309643802 Contact Us For Availability
7
Cover-terminal,compressor WCI 5304405245 Contact Us For Availability
8
WCI 309644302 WCI 309644302 Contact Us For Availability
8
WCI 309639301 WCI 309639301 Contact Us For Availability
8
Louver Assy,horizontal ,Incl-7,8,9 WCI 309640202 Contact Us For Availability
8
WCI 5303323284 WCI 5303323284 Contact Us For Availability
8
WCI 5304402840 WCI 5304402840 Contact Us For Availability
9
WCI 309342001 WCI 309342001 Contact Us For Availability
9
WCI 5304402838 WCI 5304402838 Contact Us For Availability
9
NUT,TERMINAL COVER WCI 3201670 Contact Us For Availability
10
WCI 309643702 WCI 309643702 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
11
WCI 309631701 WCI 309631701 Contact Us For Availability
11
WCI 309619313 WCI 309619313 Contact Us For Availability
12
WCI 309343501 WCI 309343501 Contact Us For Availability
12
Clip,retainer ,temp sensor ,(2) WCI 309101202 Contact Us For Availability
12
WCI 309112101 WCI 309112101 Contact Us For Availability
12
WCI 5303307226 WCI 5303307226 Contact Us For Availability
13
WCI 5304426450 WCI 5304426450 Contact Us For Availability
13
WCI 309642801 WCI 309642801 Contact Us For Availability
14
WCI 309644003 WCI 309644003 Contact Us For Availability
14
Extension-frame,RH ,with accordian WCI 5304414121 Contact Us For Availability
15
WCI 309351901 WCI 309351901 Contact Us For Availability
15
WCI 309642901 WCI 309642901 Contact Us For Availability
15
Closure,accordian type ,window mount WCI 309626504 Contact Us For Availability
16
Clip,evap/bulkhead WCI 309100201 Contact Us For Availability
16
WCI 5304409280 WCI 5304409280 Contact Us For Availability
16
Rail,retainer ,top WCI 5304417362 Contact Us For Availability
17
Front-cabinet,4 way ,complete assy WCI 309640104 Contact Us For Availability
17
WCI 309343101 WCI 309343101 Contact Us For Availability
17
WCI 5304417516 WCI 5304417516 Contact Us For Availability
17
SCREW,WOOD, TYPE 17 ,10-12 X 0.750 WCI 3002803 Contact Us For Availability
18
SCREW,6-32 X 0.188 WCI 5303007754 Contact Us For Availability
19
Dial Plate WCI 309342903 Contact Us For Availability
19
WASHER,COMPRESSOR MTG WCI 5303002664 Contact Us For Availability
20
Knob-control,rotary WCI 309306811 Contact Us For Availability
20
WCI 5304417582 WCI 5304417582 Contact Us For Availability
20
Plate-blower housing,scroll plate WCI 309643002 Contact Us For Availability
22
WCI 5304403252 WCI 5304403252 Contact Us For Availability
23
SCREW,23(T) ,10-32 X 0.310 WCI 3001806 Contact Us For Availability
24
SCREW,WOOD, TYPE 17 ,8-15 X 0.500 WCI 5308002974 Contact Us For Availability
25
Door-vent,fresh air WCI 309328603 Contact Us For Availability
26
WCI 309638201 WCI 309638201 Contact Us For Availability
38
WCI 309646301 WCI 309646301 Contact Us For Availability
43
WCI 309646401 WCI 309646401 Contact Us For Availability
NI
WCI 309330201 WCI 309330201 Contact Us For Availability
NI
SPACER - DIAL PLATE WCI 5303001775 Contact Us For Availability
NI
WCI 309111201 WCI 309111201 Contact Us For Availability
NI
WCI 309112501 WCI 309112501 Contact Us For Availability
× ![]()
