Model Electrolux FAC083K7A1 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
03 - WRAPR

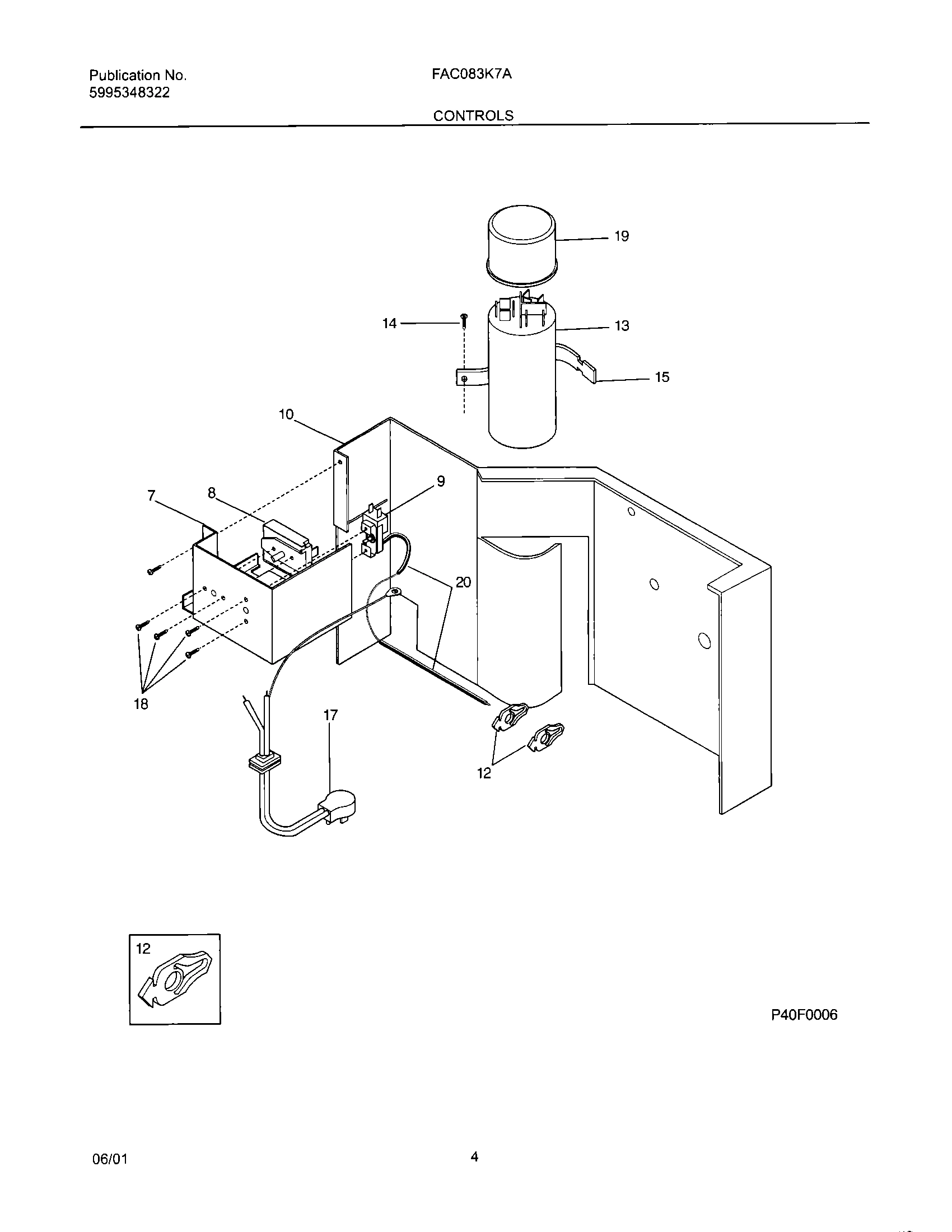

05 - CONTROL

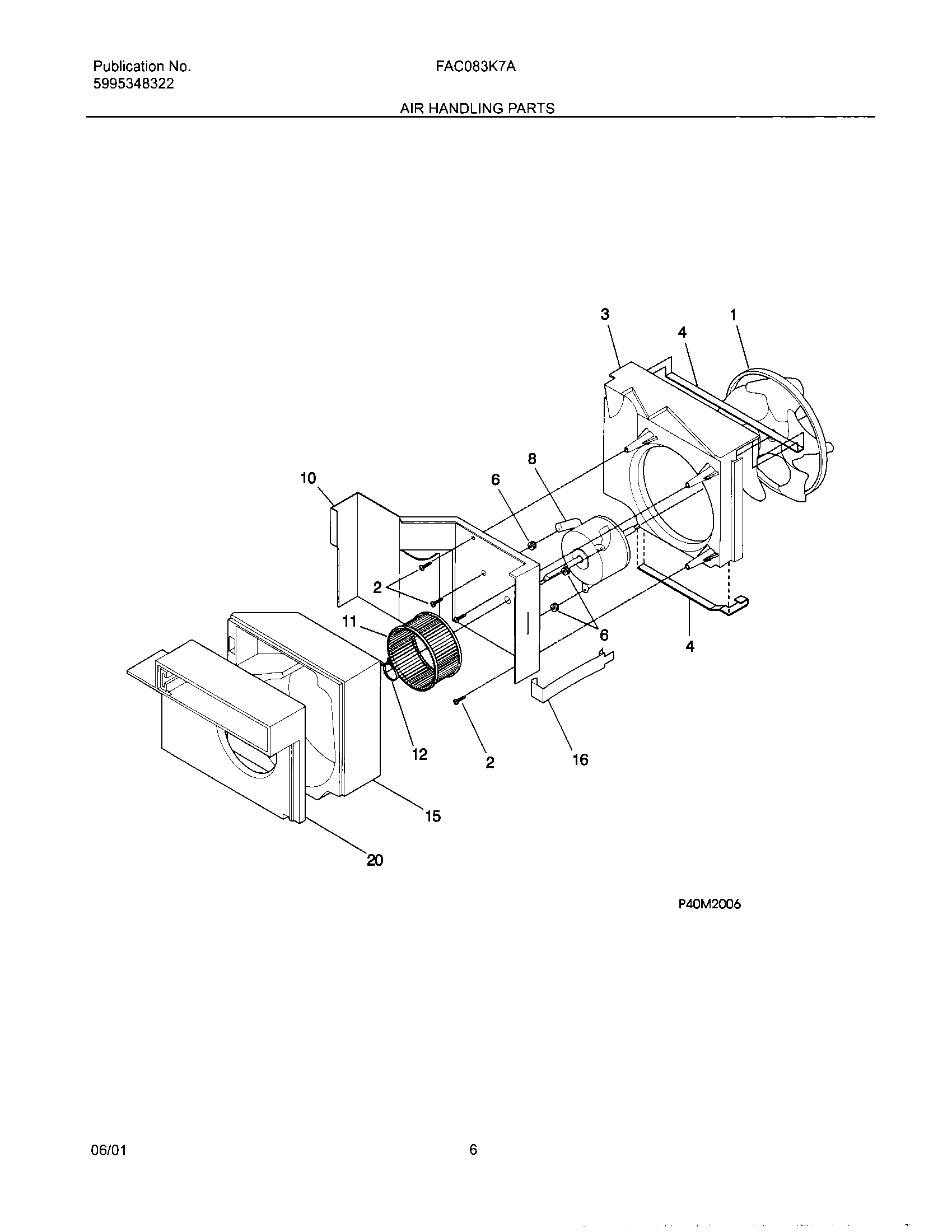

07 - AIR HANDLER

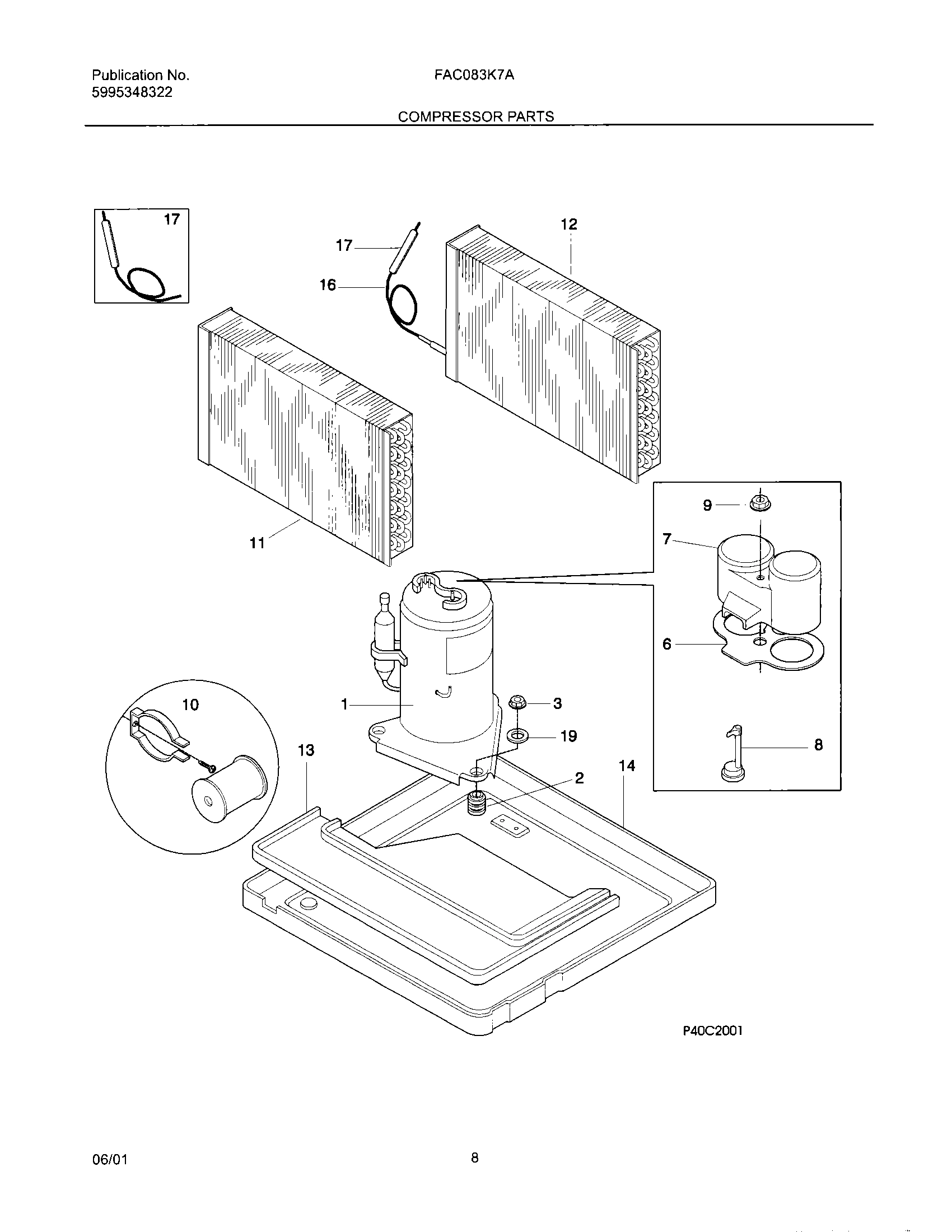

09 - SYSTEM

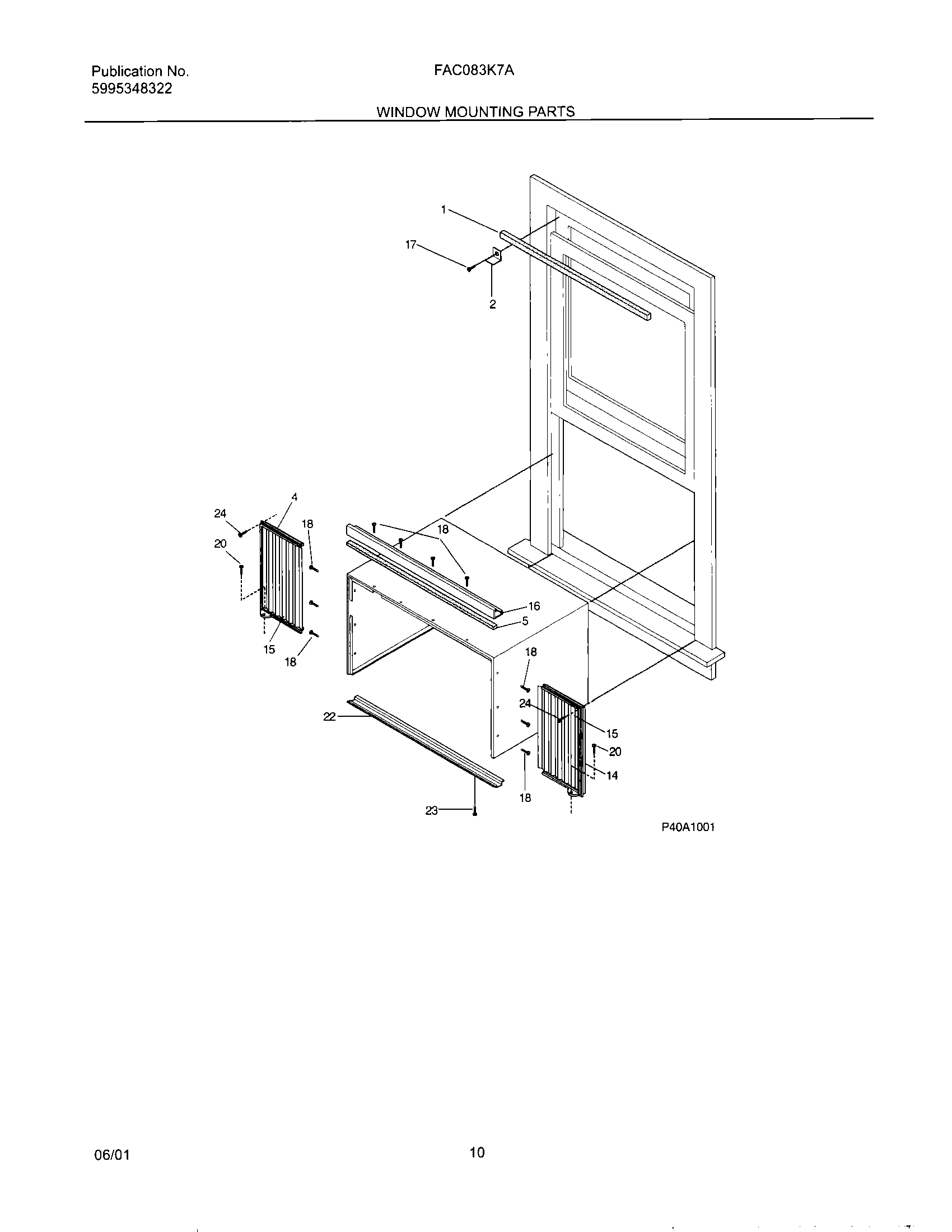

11 - MOUNTING

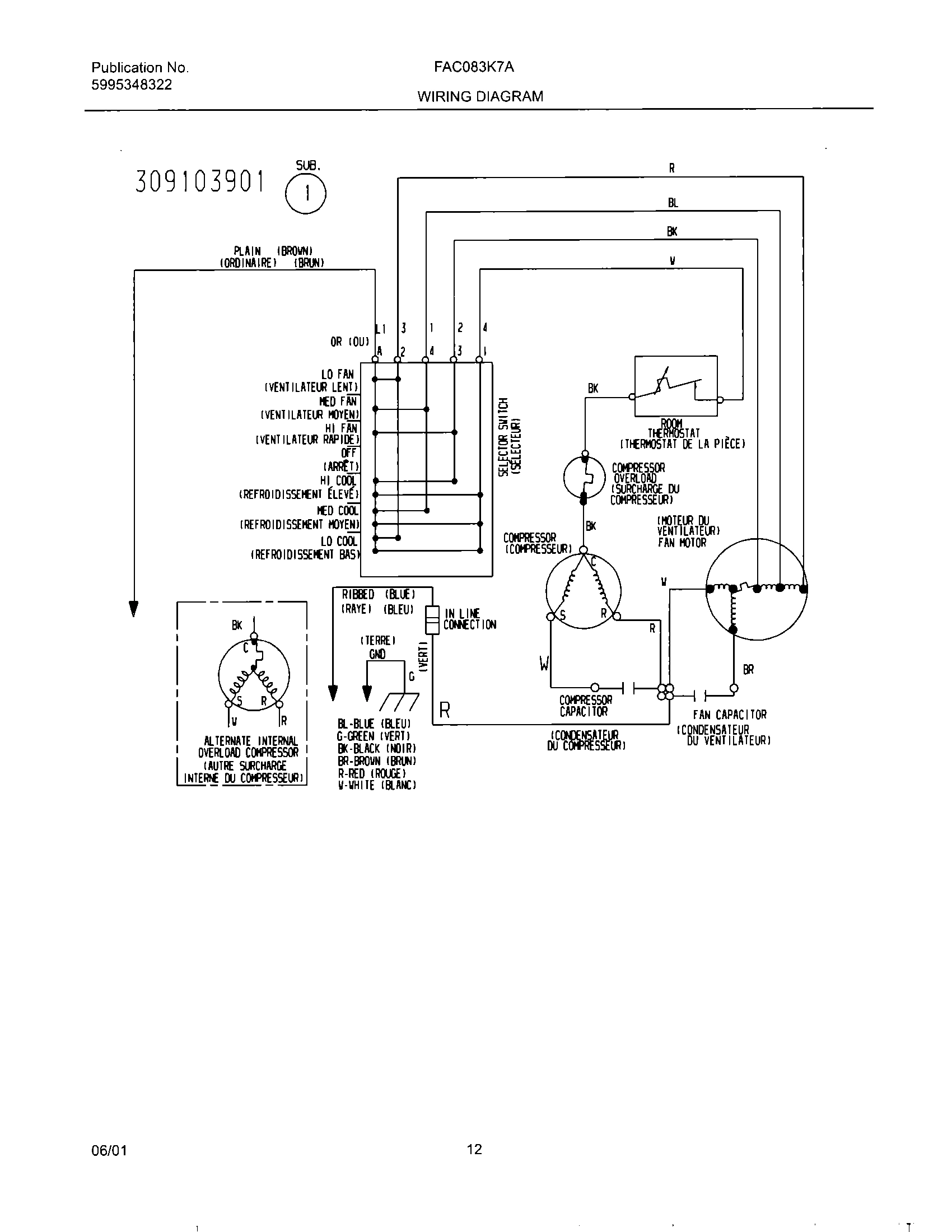

12 - WIRING DIAGRAM
Common parts from model Electrolux FAC083K7A1 ROOM AIR CONDITIONER
1
WCI 309624502 WCI 309624502 Contact Us For Availability
1
WCI 5304406829 WCI 5304406829 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
SCREW,INDT HEX HEAD ,10-16 ,(3) WCI 5303317224 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
3
WCI 309624201 WCI 309624201 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
4
SEAL, CONDENSER WCI 5303270043 Contact Us For Availability
4
Extension Kit-frame,LH & RH ,with accordians WCI 309644901 Contact Us For Availability
4
Frame,LH ,w/o accordian WCI 5304413847 Contact Us For Availability
5
SEAL, TOP RAIL WCI 08016226 Contact Us For Availability
6
GROMMET-MOTOR, (3) WCI 5300105402 Contact Us For Availability
6
GASKET-COVER WCI 3200282 Contact Us For Availability
7
WCI 309350302 WCI 309350302 Contact Us For Availability
7
COVER-TERMINAL WCI 3200281 Contact Us For Availability
8
Louver Assy,horizontal ,Incl-7,8,9 WCI 309640202 Contact Us For Availability
8
SWITCH-SELECTOR WCI 5303323284 Contact Us For Availability
8
WCI 309627301 WCI 309627301 Contact Us For Availability
8
OVERLOAD PROTECTOR WCI 3202920 Contact Us For Availability
9
WCI 309342001 WCI 309342001 Contact Us For Availability
9
WCI 5304402838 WCI 5304402838 Contact Us For Availability
9
Nut,terminal cover WCI 5303211017 Contact Us For Availability
10
WCI 309602404 WCI 309602404 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
11
WCI 309603301 WCI 309603301 Contact Us For Availability
11
WCI 309619305 WCI 309619305 Contact Us For Availability
12
WCI 309343501 WCI 309343501 Contact Us For Availability
12
WCI 309101202 WCI 309101202 Contact Us For Availability
12
WCI 309112101 WCI 309112101 Contact Us For Availability
12
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
12
WCI 5303303195 WCI 5303303195 Contact Us For Availability
13
CAPACITOR, 370 V, 10+35 MFD WCI 5303303576 Contact Us For Availability
13
WCI 5303302849 WCI 5303302849 Contact Us For Availability
14
WCI 5304413932 WCI 5304413932 Contact Us For Availability
14
Extension-frame,RH ,with accordian WCI 5304414121 Contact Us For Availability
15
WCI 5303303086 WCI 5303303086 Contact Us For Availability
15
WCI 5304407653 WCI 5304407653 Contact Us For Availability
15
Closure,accordian type ,window mount WCI 309626504 Contact Us For Availability
16
WCI 309100201 WCI 309100201 Contact Us For Availability
16
Capillary Tube,55 inch long ,cut-to-length WCI 3203179 Contact Us For Availability
16
WCI 5304417362 WCI 5304417362 Contact Us For Availability
17
Front-cabinet,4 way ,complete assy WCI 309640102 Contact Us For Availability
17
WCI 309343101 WCI 309343101 Contact Us For Availability
17
Tube-process,condenser WCI 5304413933 Contact Us For Availability
17
SCREW,WOOD, TYPE 17 ,10-12 X 0.750 WCI 3002803 Contact Us For Availability
18
SCREW,6-32 X 0.188 WCI 5303007754 Contact Us For Availability
19
Dial Plate WCI 309342903 Contact Us For Availability
19
WCI 5303302855 WCI 5303302855 Contact Us For Availability
19
WCI 309112501 WCI 309112501 Contact Us For Availability
20
Knob-control,rotary WCI 309306811 Contact Us For Availability
20
SLEEVE, CONTROL WCI 5303002600 Contact Us For Availability
20
PLATE-BLOWER HOUSING,SCROLL PLATE WCI 5304407654 Contact Us For Availability
20
SCREW,PAN HEAD ,8-18 X 0.750 WCI 5303295750 Contact Us For Availability
22
SPACER, PLATE WCI 5303001775 Contact Us For Availability
22
RETAINER,BOTTOM WCI 5304403252 Contact Us For Availability
23
SCREW,23(T) ,10-32 X 0.310 WCI 3001806 Contact Us For Availability
24
SCREW,WOOD, TYPE 17 ,8-15 X 0.500 WCI 5308002974 Contact Us For Availability
25
WCI 309328601 WCI 309328601 Contact Us For Availability
26
WCI 309330201 WCI 309330201 Contact Us For Availability
26
WCI 309638201 WCI 309638201 Contact Us For Availability
38
WCI 309639201 WCI 309639201 Contact Us For Availability
43
WCI 309639101 WCI 309639101 Contact Us For Availability
NI
WCI 309639301 WCI 309639301 Contact Us For Availability
NI
WCI 309111201 WCI 309111201 Contact Us For Availability
NI
WASHER,COMPRESSOR MTG WCI 5303002664 Contact Us For Availability
NI
Frame,RH ,w/o accordian WCI 5304413848 Contact Us For Availability
NI
Extension-frame,LH ,w/accordian WCI 5304414120 Contact Us For Availability
× ![]()
