Model Electrolux FAC082J7A6 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
02 - CABINET FRONT AND WRAPPER

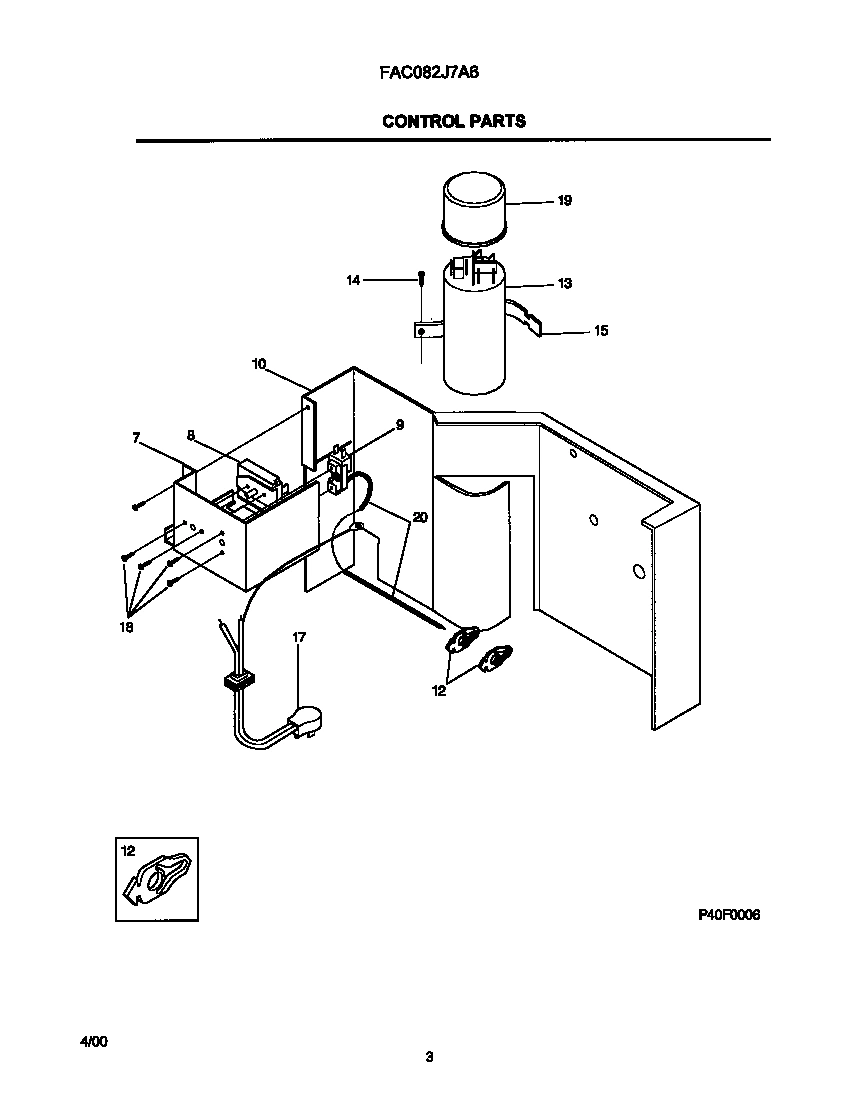

03 - CONTROL PARTS

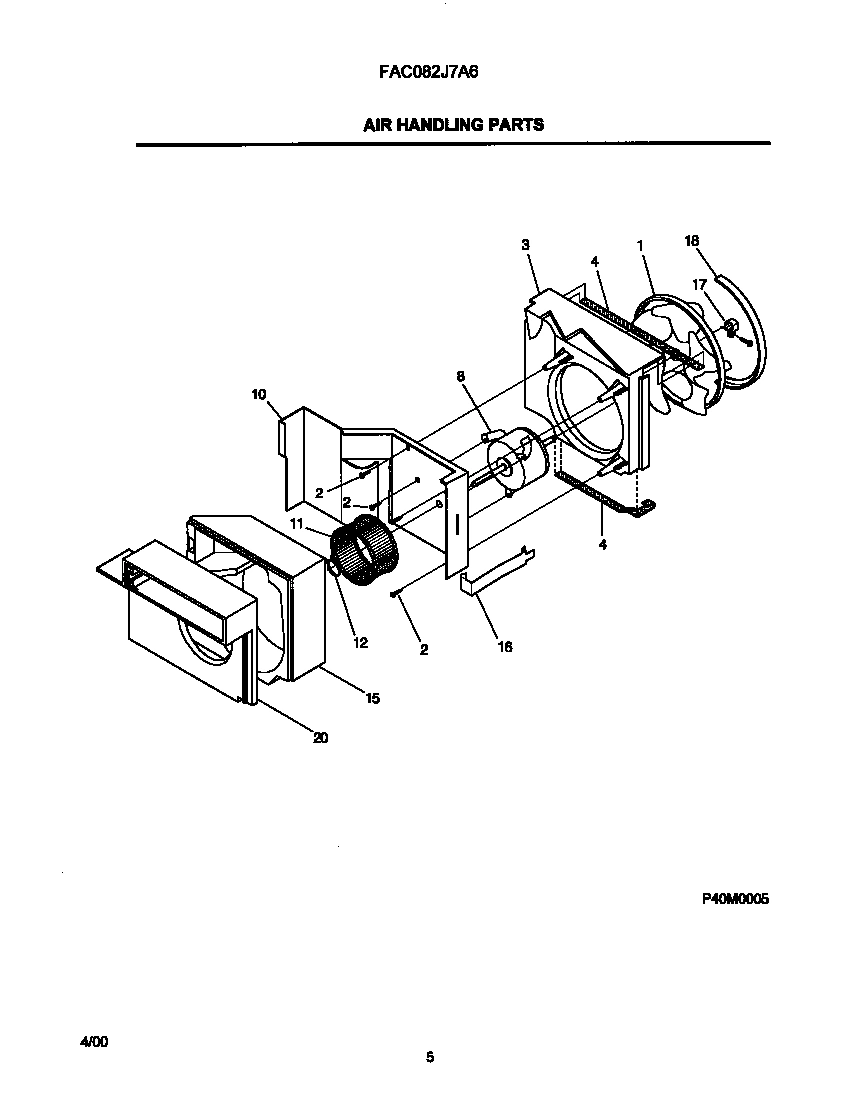

04 - AIR HANDLING PARTS

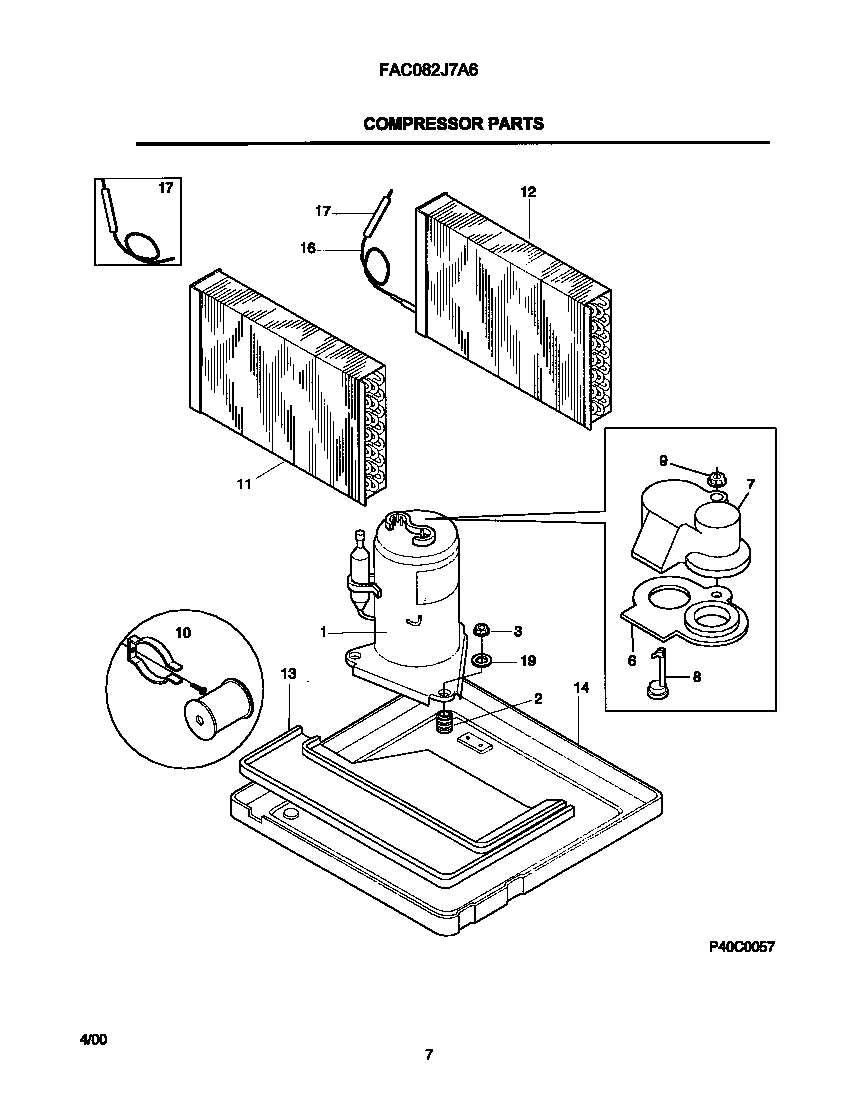

05 - COMPRESSOR PARTS

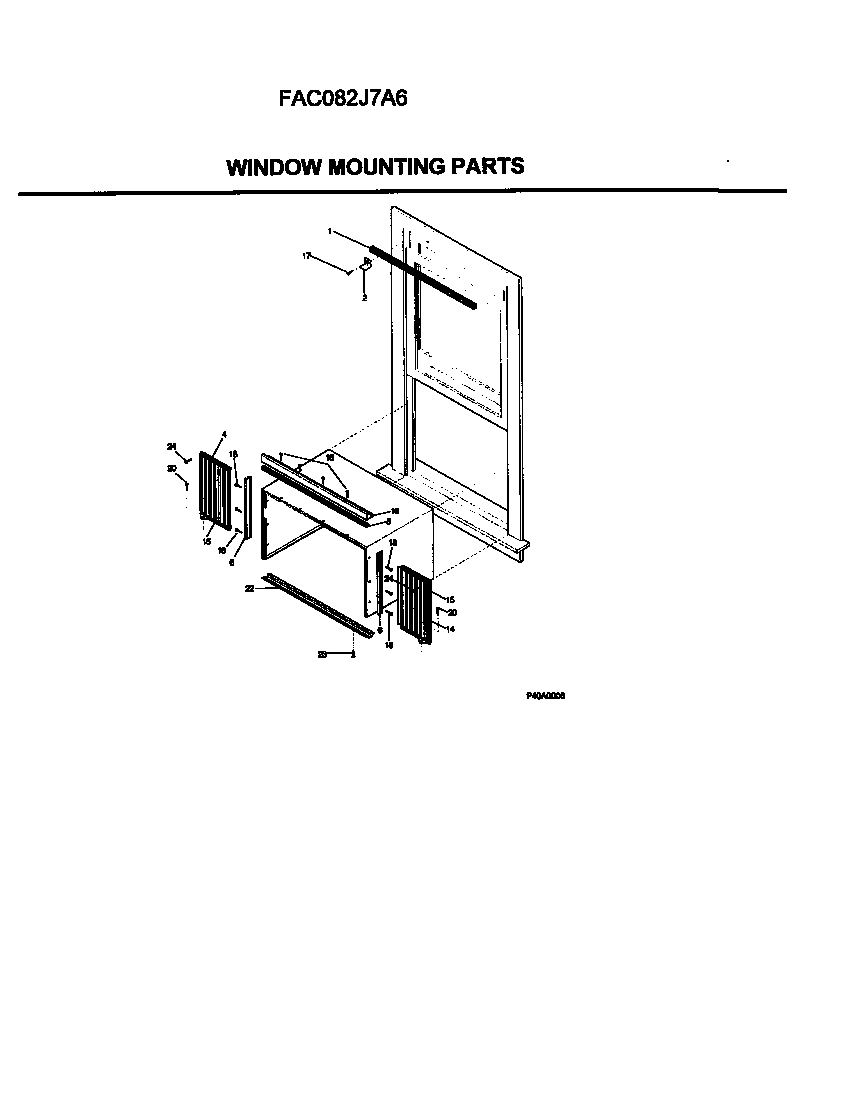

06 - WINDOW MOUNTING PARTS

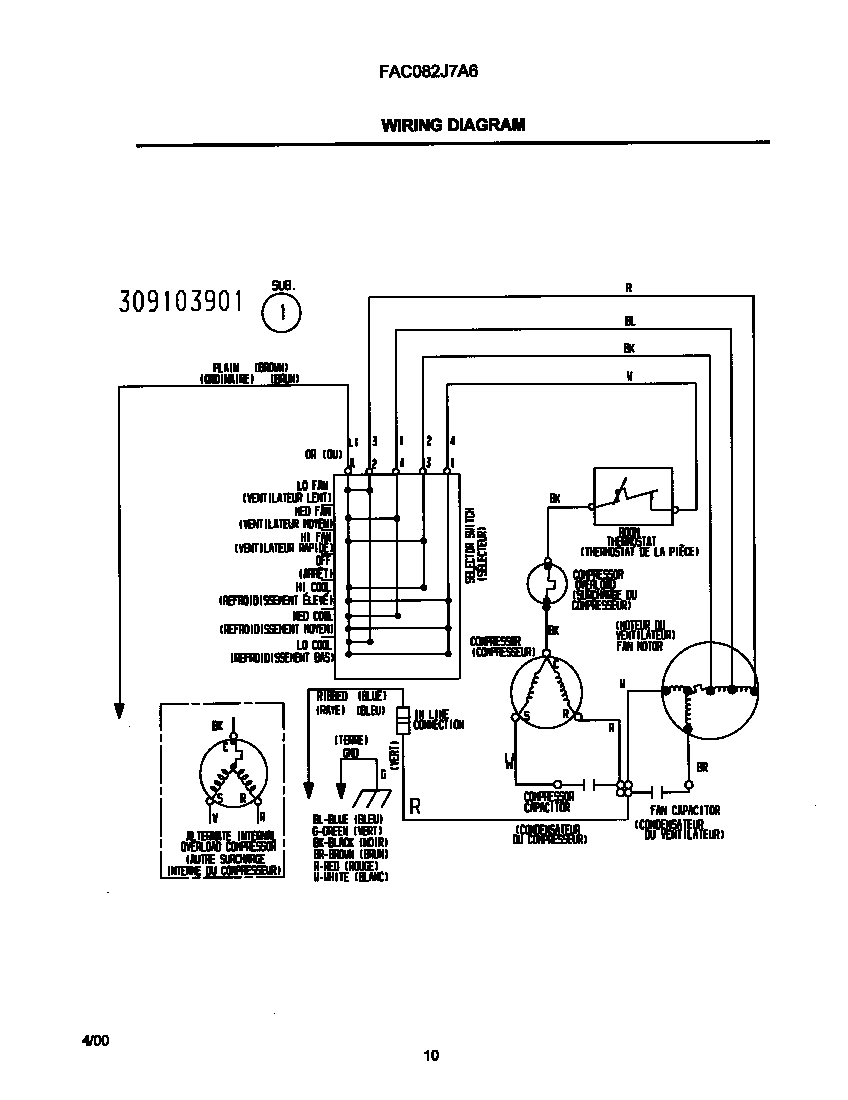

07 - WIRING DIAGRAM
Common parts from model Electrolux FAC082J7A6 ROOM AIR CONDITIONER
*44640
WCI 5304414891 WCI 5304414891 Contact Us For Availability
*44641
WCI 5304414892 WCI 5304414892 Contact Us For Availability
1
WCI 309624502 WCI 309624502 Contact Us For Availability
1
WCI 5304414415 WCI 5304414415 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
WCI 08007481 WCI 08007481 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
3
WCI 309624201 WCI 309624201 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
4
SEAL, CONDENSER WCI 5303270043 Contact Us For Availability
4
WCI 5304413847 WCI 5304413847 Contact Us For Availability
5
SEAL, TOP RAIL WCI 08016226 Contact Us For Availability
6
GASKET-COVER WCI 3200282 Contact Us For Availability
7
WCI 309638001 WCI 309638001 Contact Us For Availability
7
WCI 309340401 WCI 309340401 Contact Us For Availability
7
COVER-TERMINAL WCI 3200281 Contact Us For Availability
8
LOUVER-HORIZ BRANDS NCS1403 WCI 309639301 Contact Us For Availability
8
SWITCH-SELECTOR WCI 5303323284 Contact Us For Availability
8
WCI 309631502 WCI 309631502 Contact Us For Availability
8
OVERLOAD PROTECTOR WCI 3202920 Contact Us For Availability
9
VERT. LOUV. WCI 309342001 Contact Us For Availability
9
WCI 5304402838 WCI 5304402838 Contact Us For Availability
9
WCI 5303211017 WCI 5303211017 Contact Us For Availability
10
WCI 309602403 WCI 309602403 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
11
WCI 309603301 WCI 309603301 Contact Us For Availability
11
WCI 309604207 WCI 309604207 Contact Us For Availability
12
FILTER-NO FRAME WCI 309343501 Contact Us For Availability
12
WCI 309101202 WCI 309101202 Contact Us For Availability
12
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
12
WCI 5303302850 WCI 5303302850 Contact Us For Availability
13
WCI 5303318963 WCI 5303318963 Contact Us For Availability
13
WCI 5303302849 WCI 5303302849 Contact Us For Availability
14
BASE-COMPR/STD ASSY COMP 1403 WCI 5304413780 Contact Us For Availability
14
WCI 5304413848 WCI 5304413848 Contact Us For Availability
15
WCI 5303303086 WCI 5303303086 Contact Us For Availability
15
WCI 5304407653 WCI 5304407653 Contact Us For Availability
15
WCI 309626504 WCI 309626504 Contact Us For Availability
16
WCI 309100201 WCI 309100201 Contact Us For Availability
16
CAPILLARY TUBE WCI 3203179 Contact Us For Availability
16
WCI 5304413784 WCI 5304413784 Contact Us For Availability
17
WCI 309640102 WCI 309640102 Contact Us For Availability
17
CORD-SRV 115V/18GA LT. GREY WCI 309343101 Contact Us For Availability
17
WCI 5304413933 WCI 5304413933 Contact Us For Availability
17
SCREW,WOOD, TYPE 17 ,10-12 X 0.750 WCI 3002803 Contact Us For Availability
18
SCREW,6-32 X 0.188 WCI 5303007754 Contact Us For Availability
19
WCI 309342903 WCI 309342903 Contact Us For Availability
19
WCI 5303302855 WCI 5303302855 Contact Us For Availability
19
WASHER,COMPRESSOR MTG WCI 5303002664 Contact Us For Availability
20
KNOB-ROTARY NCS1403,W/7005 WCI 309306811 Contact Us For Availability
20
SLEEVE, CONTROL WCI 5303002600 Contact Us For Availability
20
PLATE-BLOWER HOUSING,SCROLL PLATE WCI 5304407654 Contact Us For Availability
20
SCREW,PAN HEAD ,8-18 X 0.750 WCI 5303295750 Contact Us For Availability
22
SPACER, PLATE WCI 5303001775 Contact Us For Availability
22
RETAINER,BOTTOM WCI 5304403252 Contact Us For Availability
23
SCREW,23(T) ,10-32 X 0.310 WCI 3001806 Contact Us For Availability
24
SCREW,WOOD, TYPE 17 ,8-15 X 0.500 WCI 5308002974 Contact Us For Availability
25
WCI 309328601 WCI 309328601 Contact Us For Availability
26
WCI 309330201 WCI 309330201 Contact Us For Availability
26
HANDLE-VNT BRND 1403 CMP/22TC WCI 309639401 Contact Us For Availability
38
PANEL-FRONT WCI 309639201 Contact Us For Availability
43
FRAME-FRNT WCI 309639101 Contact Us For Availability
× ![]()
