Model Electrolux FAC066L7A2 ROOM AIR CONDITIONER – Common Parts & Diagrams

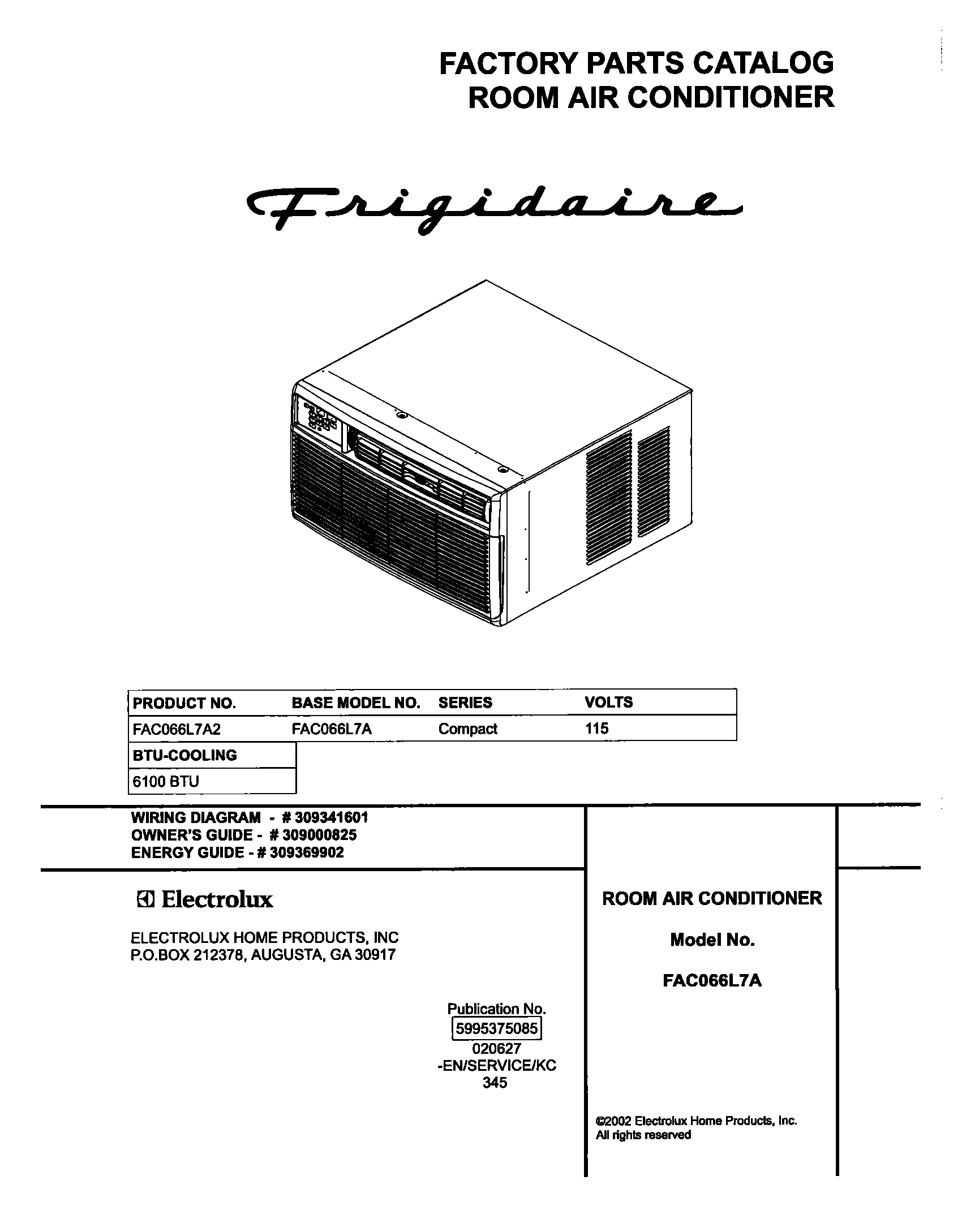

01 - COVER

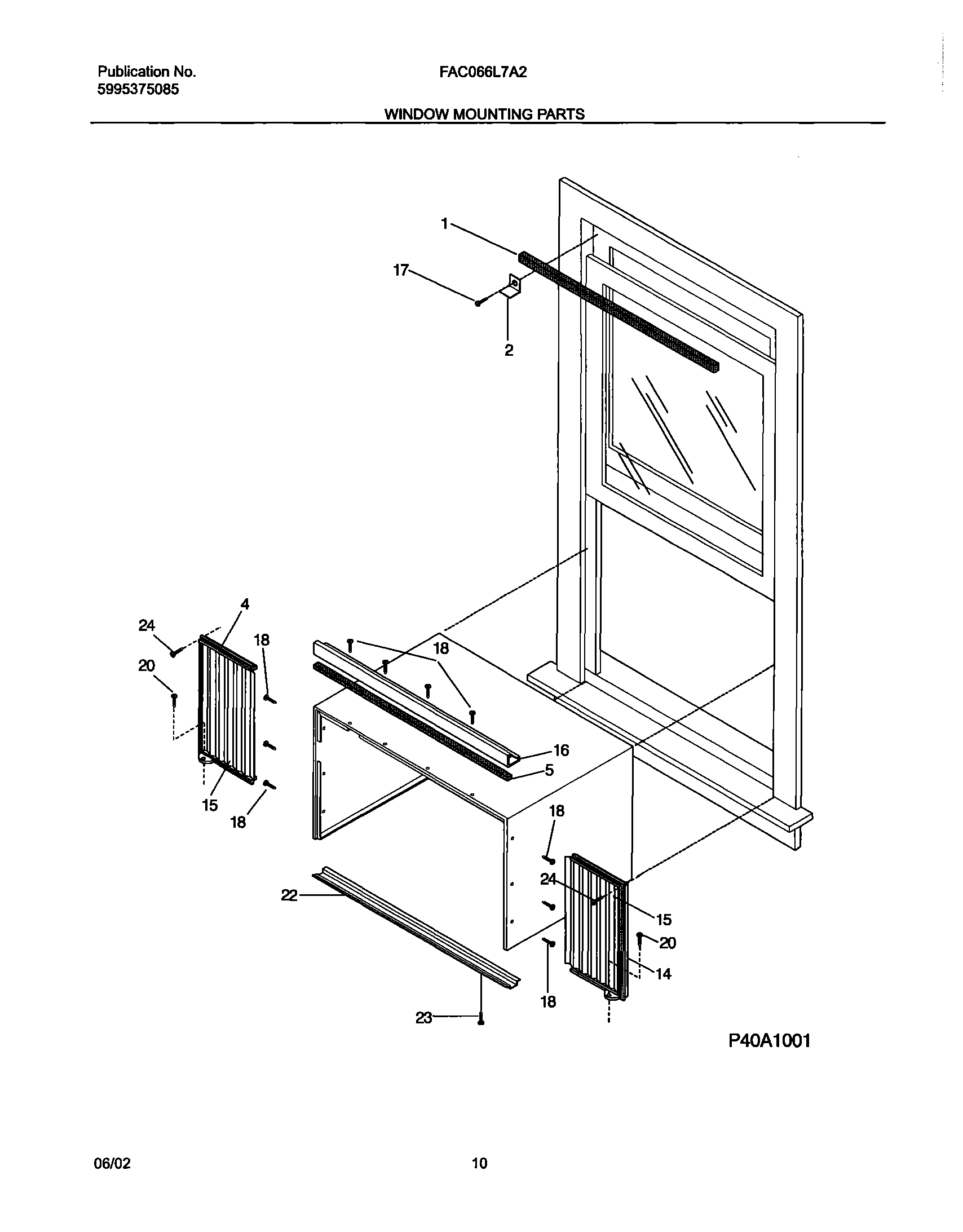

03 - WINDOW MOUNTING PARTS
05 - CABINET FRONT AND WRAPPER
07 - CONTROLS
09 - AIR HANDLING PARTS
11 - COMPRESSOR PARTS
12 - WIRING DIAGRAM
Common parts from model Electrolux FAC066L7A2 ROOM AIR CONDITIONER
1
Cabinet,wrapper WCI 309643602 Contact Us For Availability
1
WCI 309646202 WCI 309646202 Contact Us For Availability
1
WCI 309616916 WCI 309616916 Contact Us For Availability
2
BRACKET-SASH LOCK WCI 5303211056 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
3
Housing-fan,shroud WCI 309643901 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
4
WCI 5304423372 WCI 5304423372 Contact Us For Availability
4
WCI 5304421913 WCI 5304421913 Contact Us For Availability
5
Seal,top rail/cab WCI 08016226 Contact Us For Availability
5
WCI 5303303759 WCI 5303303759 Contact Us For Availability
6
WCI 08007481 WCI 08007481 Contact Us For Availability
6
GASKET - TERMINAL COVER WCI 3201668 Contact Us For Availability
7
WCI 309643801 WCI 309643801 Contact Us For Availability
7
WCI 5304405245 WCI 5304405245 Contact Us For Availability
8
WCI 309639302 WCI 309639302 Contact Us For Availability
8
WCI 309640204 WCI 309640204 Contact Us For Availability
8
WCI 309645002 WCI 309645002 Contact Us For Availability
8
WCI 5303311029 WCI 5303311029 Contact Us For Availability
9
WCI 309647201 WCI 309647201 Contact Us For Availability
9
NUT,TERMINAL COVER WCI 3201670 Contact Us For Availability
10
WCI 309643702 WCI 309643702 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
11
WCI 309643302 WCI 309643302 Contact Us For Availability
11
WCI 309604211 WCI 309604211 Contact Us For Availability
12
WCI 309343501 WCI 309343501 Contact Us For Availability
12
WCI 5304413782 WCI 5304413782 Contact Us For Availability
12
WCI 327161302 WCI 327161302 Contact Us For Availability
12
WCI 309645305 WCI 309645305 Contact Us For Availability
13
WCI 5304426655 WCI 5304426655 Contact Us For Availability
13
Tray,evap drip WCI 309642801 Contact Us For Availability
14
WCI 5304423373 WCI 5304423373 Contact Us For Availability
14
Base,compressor mt. ,with studs WCI 309644003 Contact Us For Availability
15
WCI 309645501 WCI 309645501 Contact Us For Availability
15
Strap,capacitor mtg. WCI 309351901 Contact Us For Availability
15
Housing,blower scroll ,Extended WCI 309642901 Contact Us For Availability
16
Rail,retainer ,top WCI 5304417362 Contact Us For Availability
16
Clip,evap/bulkhead WCI 309100201 Contact Us For Availability
16
Capillary Tube,37 inch long ,cut to length WCI 5304417693 Contact Us For Availability
17
SCREW,WOOD, TYPE 17 ,10-12 X 0.750 WCI 3002803 Contact Us For Availability
17
WCI 309640104 WCI 309640104 Contact Us For Availability
17
WCI 309343101 WCI 309343101 Contact Us For Availability
19
Overlay,control WCI 309340802 Contact Us For Availability
19
WCI 309112501 WCI 309112501 Contact Us For Availability
20
Plate,scroll cover WCI 309643002 Contact Us For Availability
22
WCI 5304403252 WCI 5304403252 Contact Us For Availability
23
SCREW,23(T) ,10-32 X 0.310 WCI 3001806 Contact Us For Availability
24
SCREW,WOOD, TYPE 17 ,8-15 X 0.500 WCI 5308002974 Contact Us For Availability
25
WCI 309328603 WCI 309328603 Contact Us For Availability
26
WCI 309638201 WCI 309638201 Contact Us For Availability
38
WCI 309646301 WCI 309646301 Contact Us For Availability
43
WCI 309646401 WCI 309646401 Contact Us For Availability
70
Enclosure,elec control mt WCI 309342201 Contact Us For Availability
71
PC Board,power ,w/temp sensor WCI 309340503 Contact Us For Availability
72
PC Board,input ,11.5 MM display WCI 309340505 Contact Us For Availability
75
Support-pc board WCI 5304413781 Contact Us For Availability
76
Transformer,120/12 Volt WCI 309111601 Contact Us For Availability
78
Remote Control,transmitter ,with batteries WCI 309342604 Contact Us For Availability
NI
WCI 309330201 WCI 309330201 Contact Us For Availability
NI
WCI 309369902 WCI 309369902 Contact Us For Availability
NI
WCI 309111201 WCI 309111201 Contact Us For Availability
NI
Screw,Ph truss hd ,8-18 x 0.38 ,grounding WCI 5303285199 Contact Us For Availability
NI
WCI 5304417643 WCI 5304417643 Contact Us For Availability
× ![]()
