Model Electrolux FAC065J7A2 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
02 - CABINET FRONT AND WRAPPER

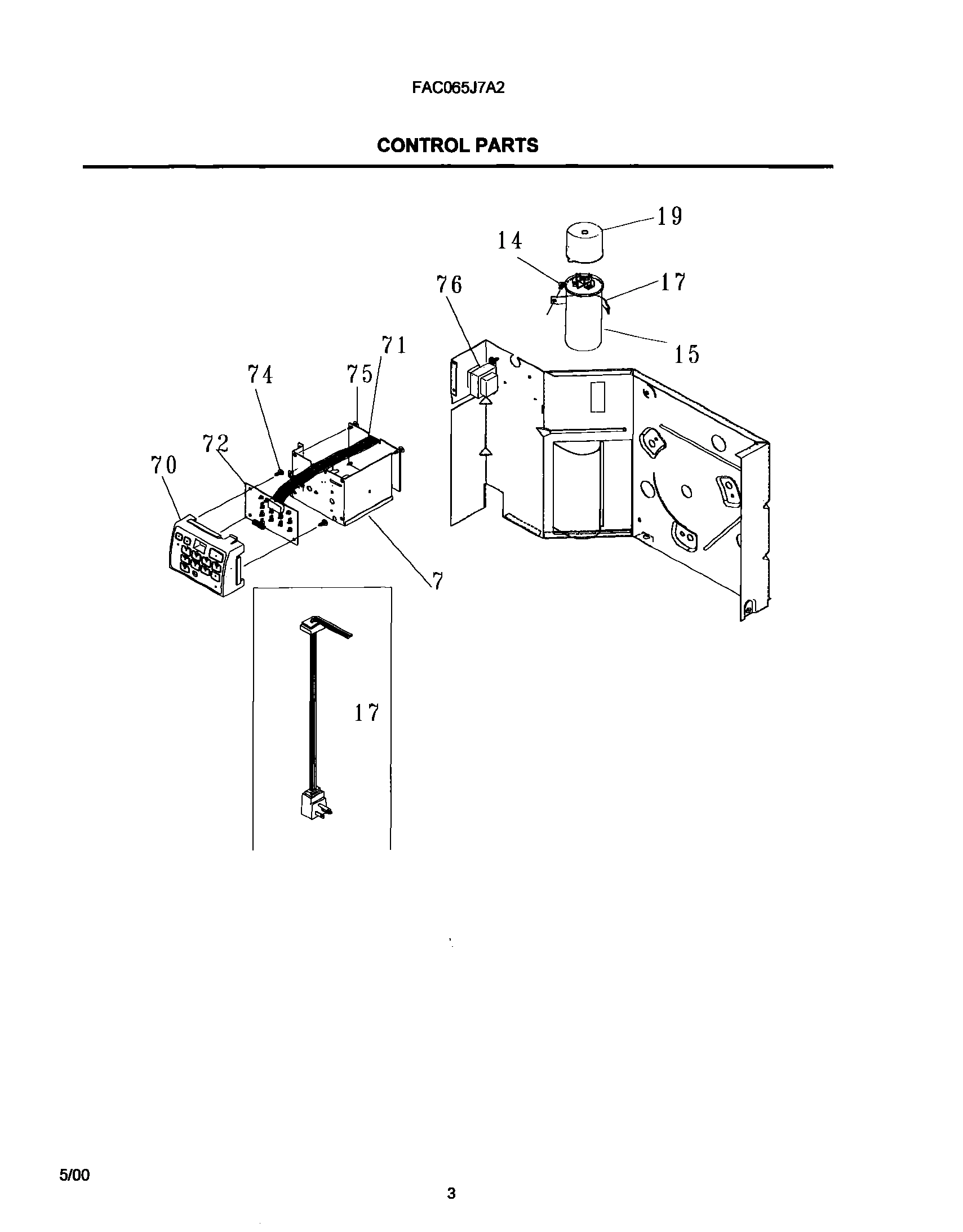

04 - CONTROL PARTS

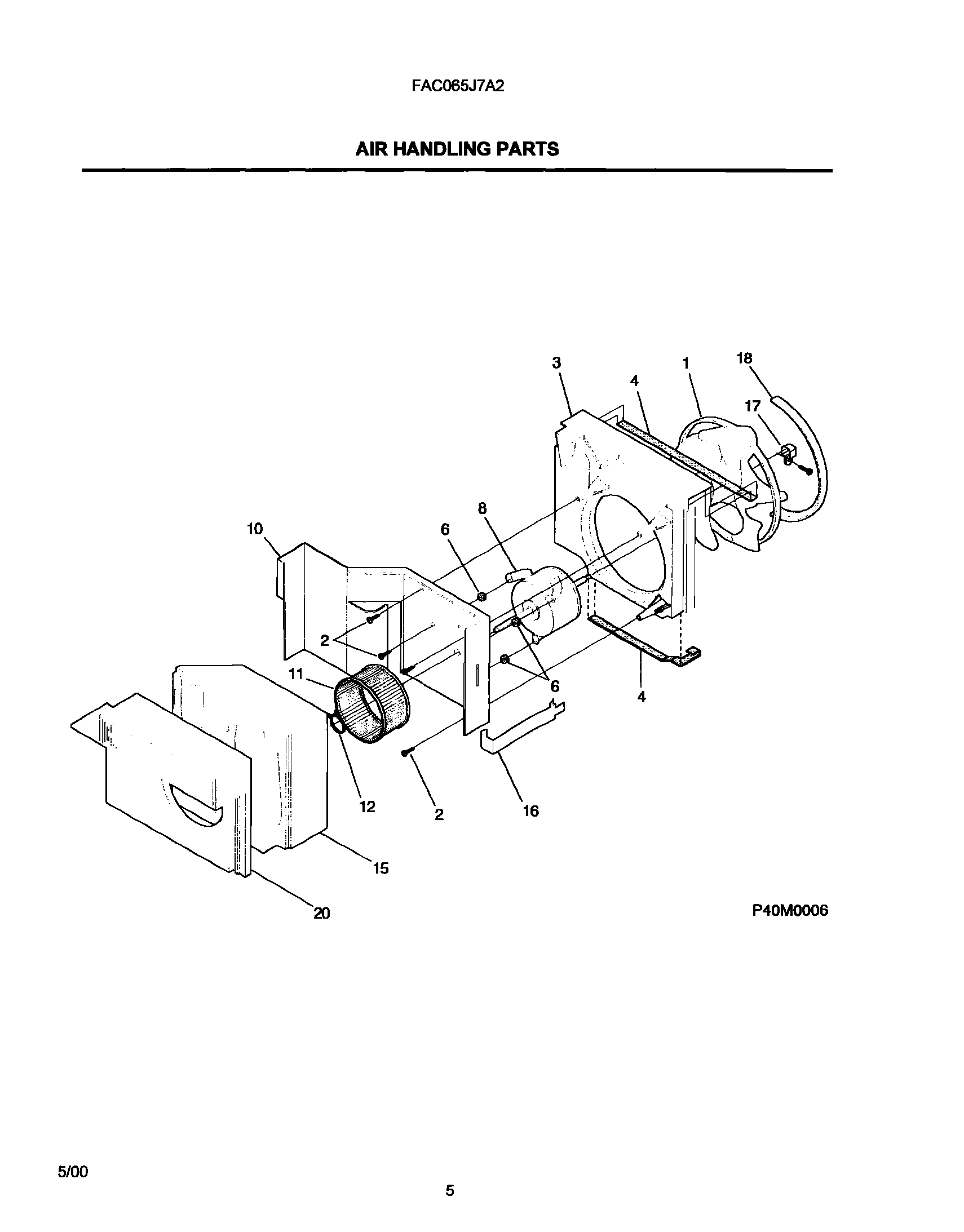

06 - AIR HANDLING PARTS

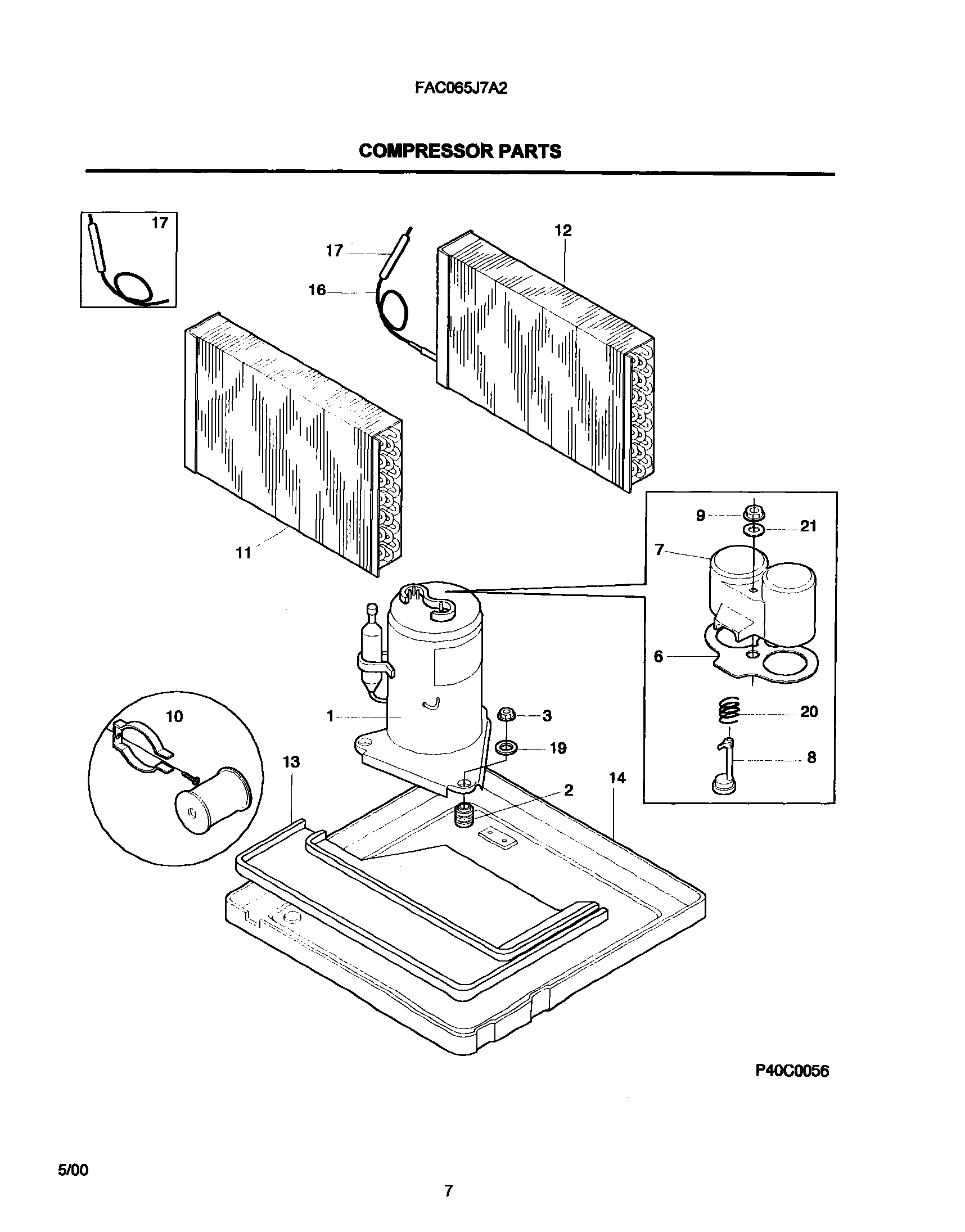

08 - COMPRESSOR

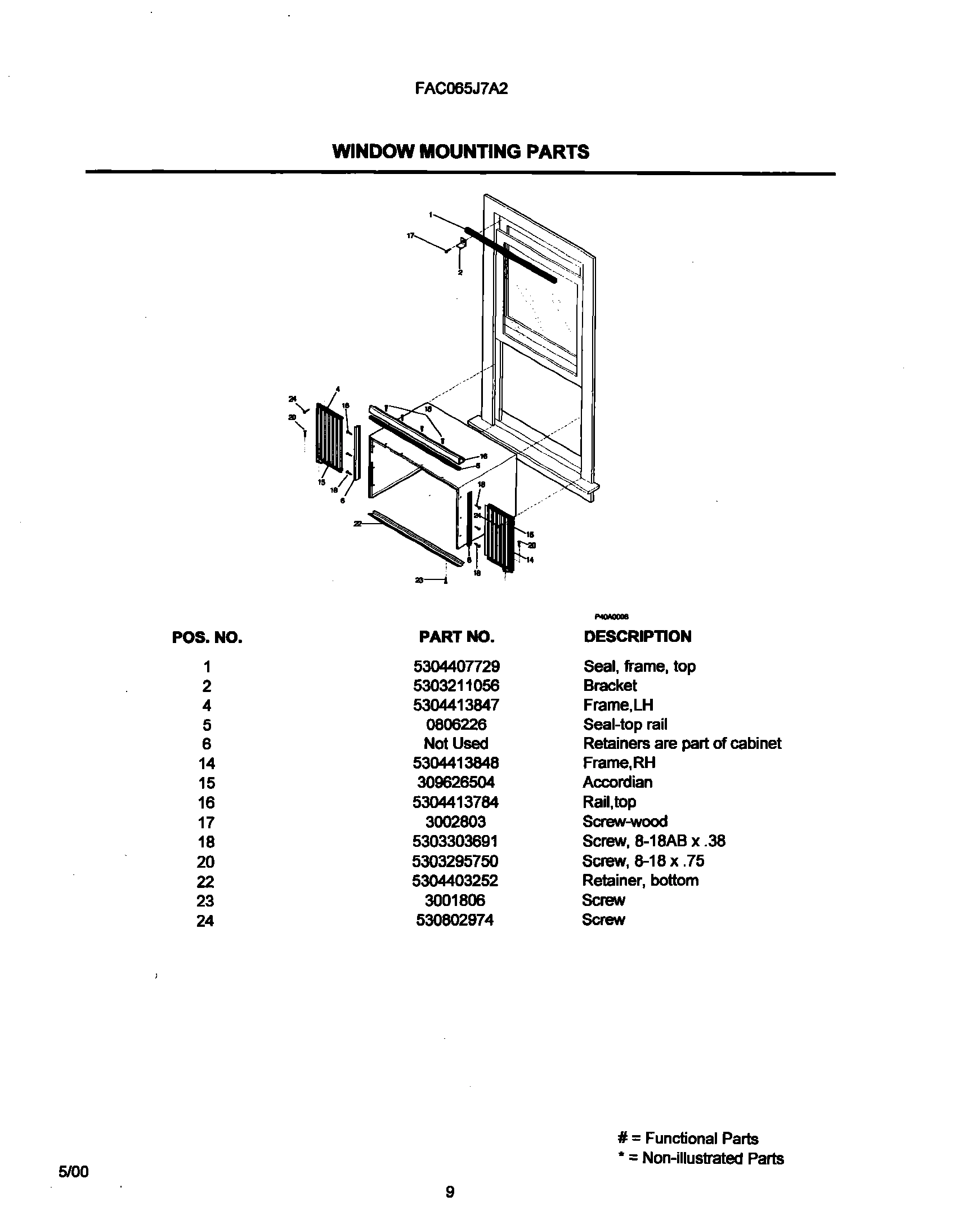

09 - WINDOW MOUNTING PARTS

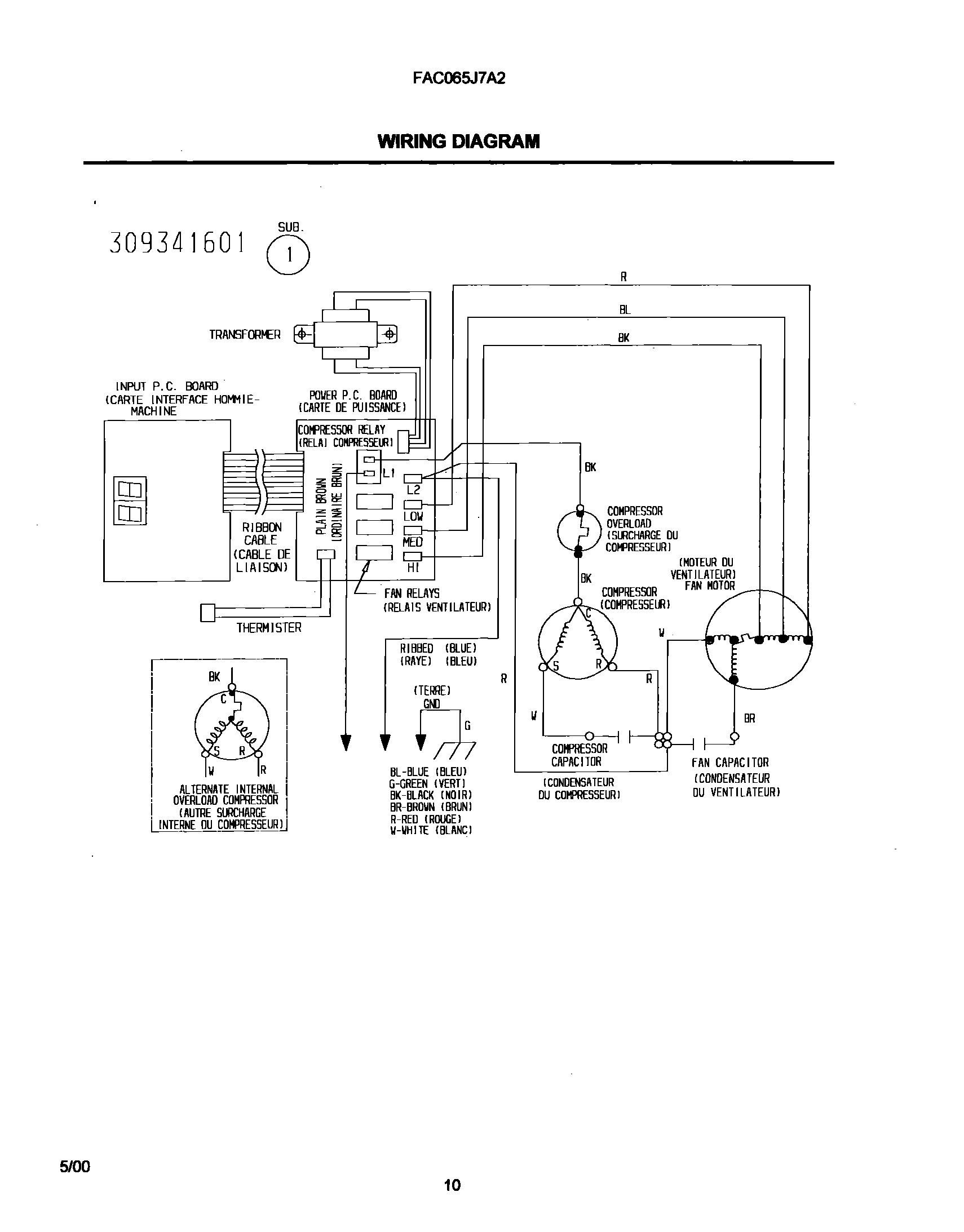

10 - WIRING DIAGRAM
Common parts from model Electrolux FAC065J7A2 ROOM AIR CONDITIONER
1
WCI 309624502 WCI 309624502 Contact Us For Availability
1
WCI 5303286601 WCI 5303286601 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
GROMMET-COMPRESSOR, 3 WCI 5303283877 Contact Us For Availability
2A
WCI 08007481 WCI 08007481 Contact Us For Availability
3
WCI 309624201 WCI 309624201 Contact Us For Availability
3
NUT, COMPRESSOR, (3) WCI 5308006948 Contact Us For Availability
4
SEAL, CONDENSER WCI 5303270043 Contact Us For Availability
4
WCI 5304413847 WCI 5304413847 Contact Us For Availability
5
WCI 0806226 WCI 0806226 Contact Us For Availability
6
WCI 08016225 WCI 08016225 Contact Us For Availability
6
WCI 5303002035 WCI 5303002035 Contact Us For Availability
6
RETAINERS ARE PART OF CABINET WCI NOT USED Contact Us For Availability
7
LINK/HANDLE WCI 309638001 Contact Us For Availability
7
WCI 309350302 WCI 309350302 Contact Us For Availability
7
COVER-TERMINAL WCI 5303211011 Contact Us For Availability
8
WCI 309639301 WCI 309639301 Contact Us For Availability
8
MOTOR-FAN RAIDER 3SP WCI 309627302 Contact Us For Availability
8
OVERLOAD PROTECTOR WCI 5303211022 Contact Us For Availability
9
WCI 309342001 WCI 309342001 Contact Us For Availability
9
WCI 5303301734 WCI 5303301734 Contact Us For Availability
10
WCI 309602403 WCI 309602403 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
11
WCI 309603301 WCI 309603301 Contact Us For Availability
11
WCI 5304403290 WCI 5304403290 Contact Us For Availability
12
WCI 3096343501 WCI 3096343501 Contact Us For Availability
12
CLIP-THERMISTER HOLDER WCI 5304413782 Contact Us For Availability
12
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
12
WCI 5303302850 WCI 5303302850 Contact Us For Availability
13
WCI 5303303125 WCI 5303303125 Contact Us For Availability
13
WCI 5303302849 WCI 5303302849 Contact Us For Availability
14
BASE/COMPRESSOR-STUD ASSY WCI 5304413780 Contact Us For Availability
14
WCI 5304413848 WCI 5304413848 Contact Us For Availability
15
WCI 5303303086 WCI 5303303086 Contact Us For Availability
15
WCI 5304407653 WCI 5304407653 Contact Us For Availability
15
WCI 309626504 WCI 309626504 Contact Us For Availability
16
WCI 309100201 WCI 309100201 Contact Us For Availability
16
CAPILLARY TUBE WCI 5303209546 Contact Us For Availability
16
Rail,top WCI 5304413784 Contact Us For Availability
17
FRONT CABINET, COMPLETE WCI 309640102 Contact Us For Availability
17
CORD-POWER 115V WCI 309343101 Contact Us For Availability
17
CLAMP - FAN BLADE WCI 5308011040 Contact Us For Availability
17
DRIER-FILTER WCI 5304413857 Contact Us For Availability
17
SCREW-WOOD WCI 3002803 Contact Us For Availability
18
WCI NOT SEPARATE WCI NOT SEPARATE Contact Us For Availability
19
WCI 309340802 WCI 309340802 Contact Us For Availability
19
WCI 5303302855 WCI 5303302855 Contact Us For Availability
19
WASHER - COMPRESSOR WCI 5303002664 Contact Us For Availability
20
WCI 5304407654 WCI 5304407654 Contact Us For Availability
20
SPRING-OVERLOAD WCI 5303002036 Contact Us For Availability
20
SCREW, 8-18 X 0.75 WCI 5303295750 Contact Us For Availability
21
WCI 5303295516 WCI 5303295516 Contact Us For Availability
22
RETAINER,BOTTOM WCI 5304403252 Contact Us For Availability
23
SCREW WCI 3001806 Contact Us For Availability
24
WCI 530802974 WCI 530802974 Contact Us For Availability
25
DOOR-VENT, ACTUATOR WCI 309328601 Contact Us For Availability
26
WCI 309639401 WCI 309639401 Contact Us For Availability
26A
WCI 309330201 WCI 309330201 Contact Us For Availability
38
PANEL-FRONT WCI 309639201 Contact Us For Availability
43
FRAME-FRNT WCI 309639101 Contact Us For Availability
70
ENCLOSURE WCI 309342201 Contact Us For Availability
71
WCI 309340503 WCI 309340503 Contact Us For Availability
72
WCI 309340504 WCI 309340504 Contact Us For Availability
75
HARDWARE WCI 5304413781 Contact Us For Availability
76
TRANSFORMER WCI 309111601 Contact Us For Availability
78
REMOTE CONTROL WCI 309342604 Contact Us For Availability
NI
Louver Assy,horizontal ,Incl-7,8,9 WCI 309640202 Contact Us For Availability
× ![]()
