Model Electrolux FAC064J7A3 ROOM AIR CONDITIONER – Common Parts & Diagrams

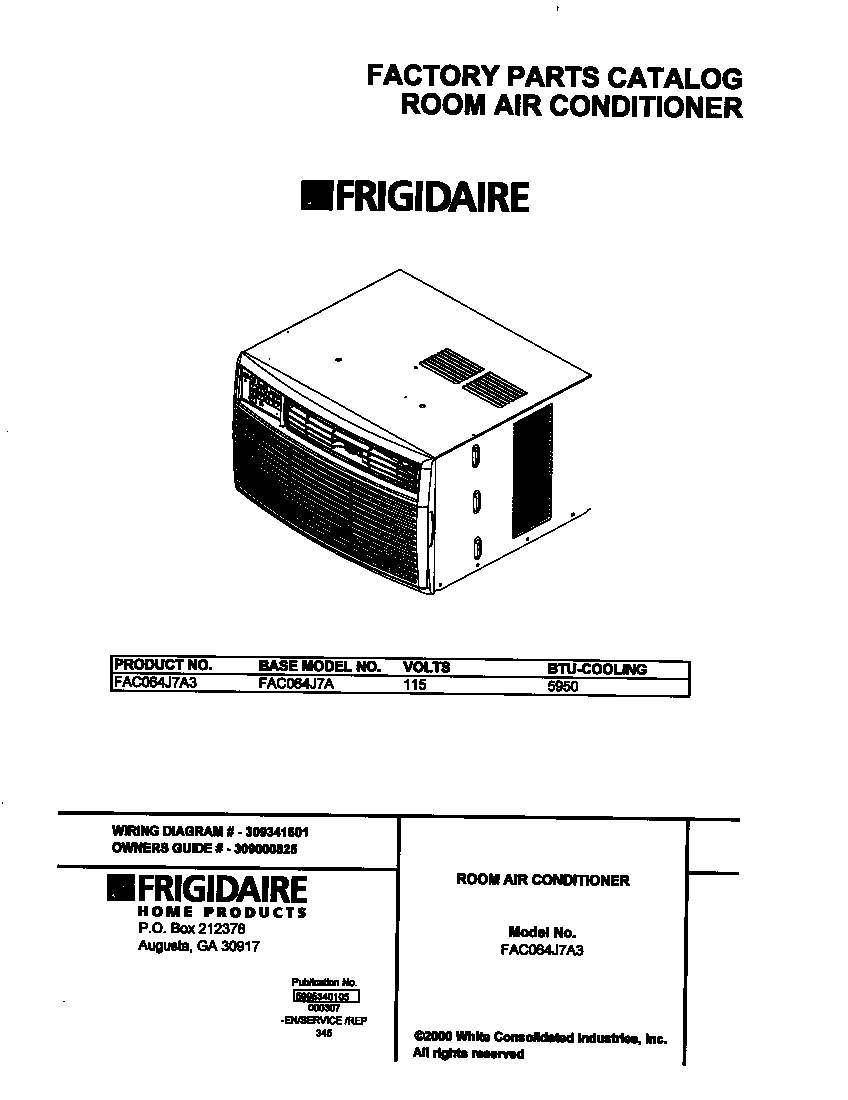

01 - COVER

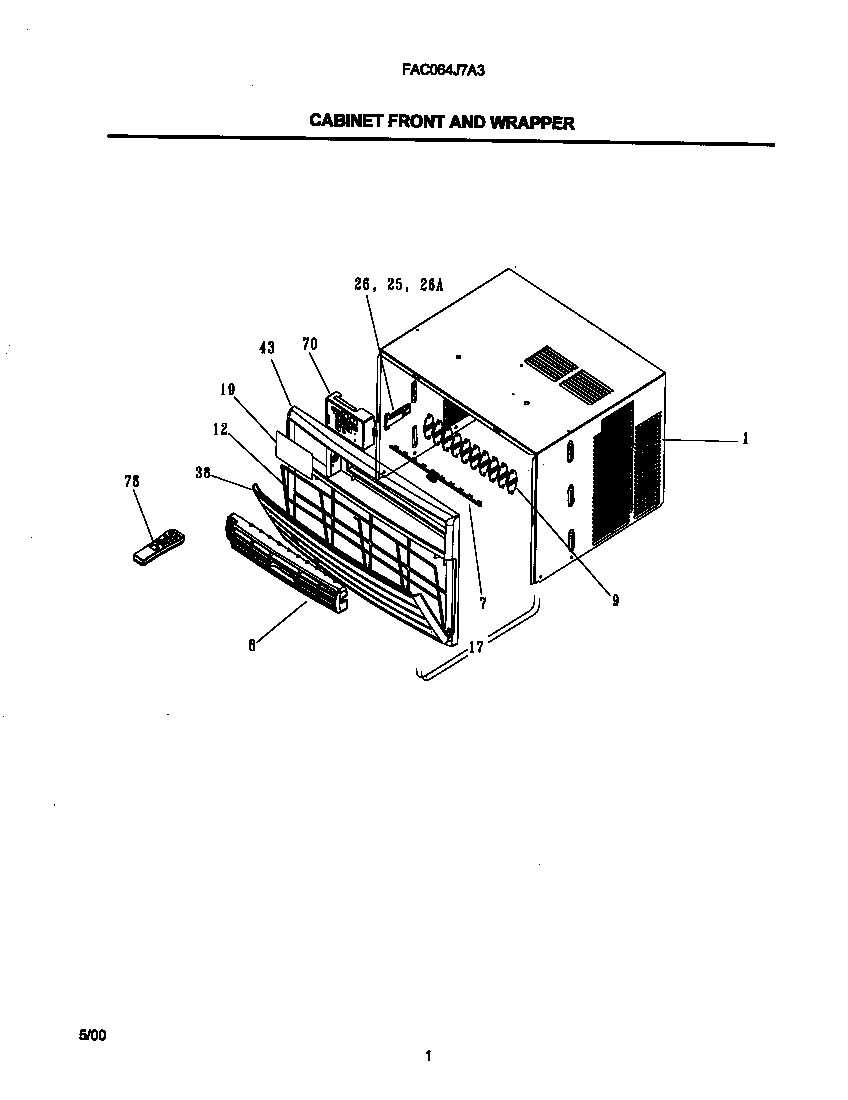

02 - CABINET FRONT AND WRAPPER

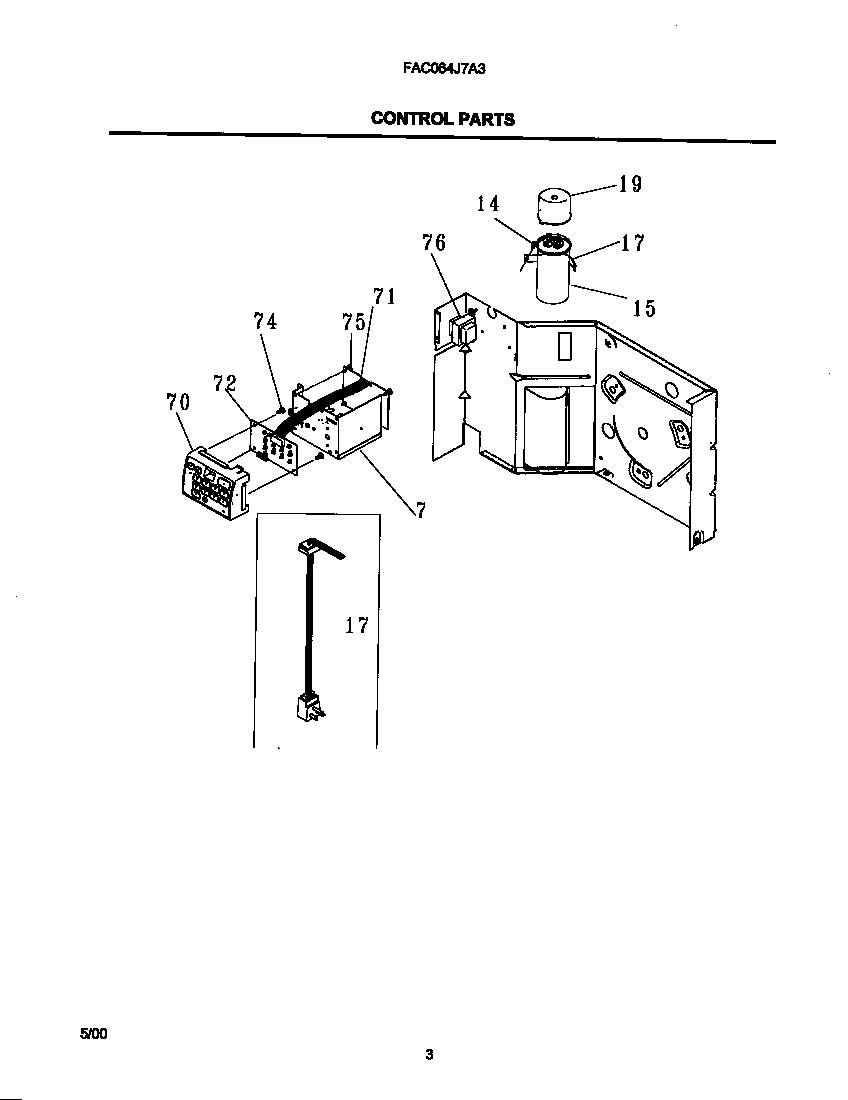

03 - CONTROL PARTS

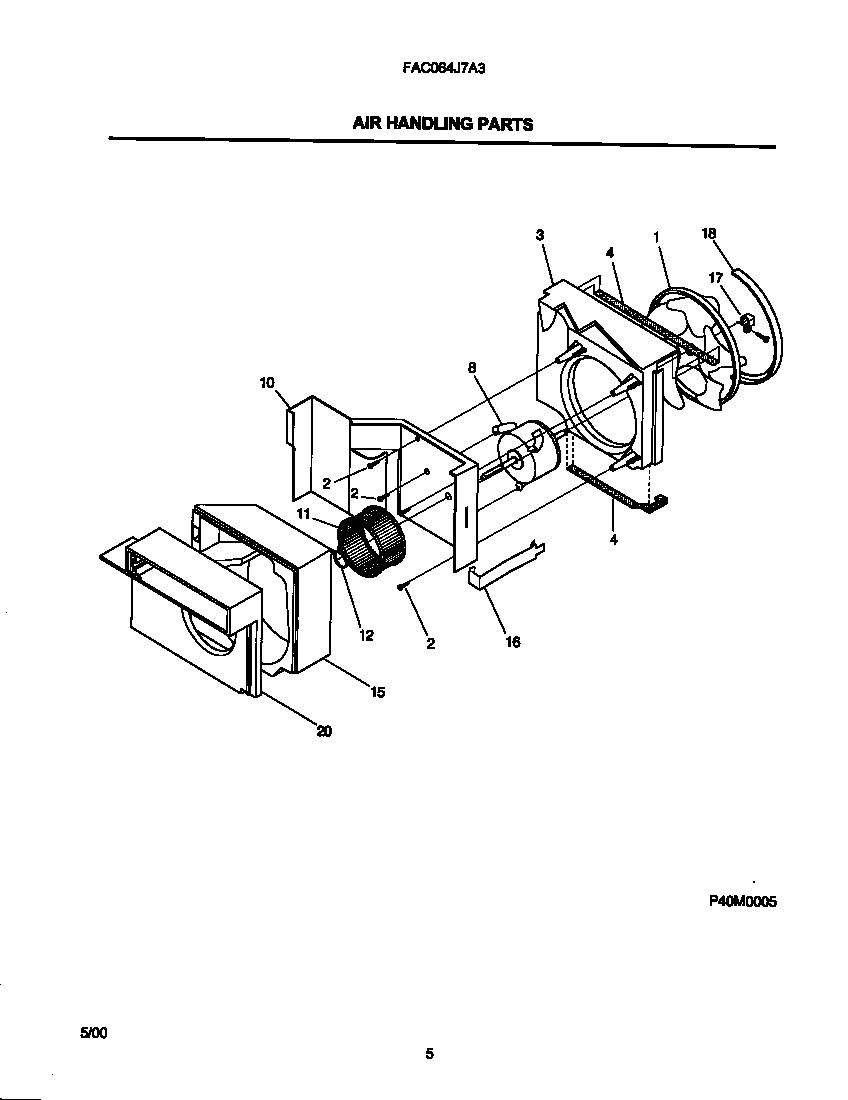

04 - AIR HANDLING PARTS

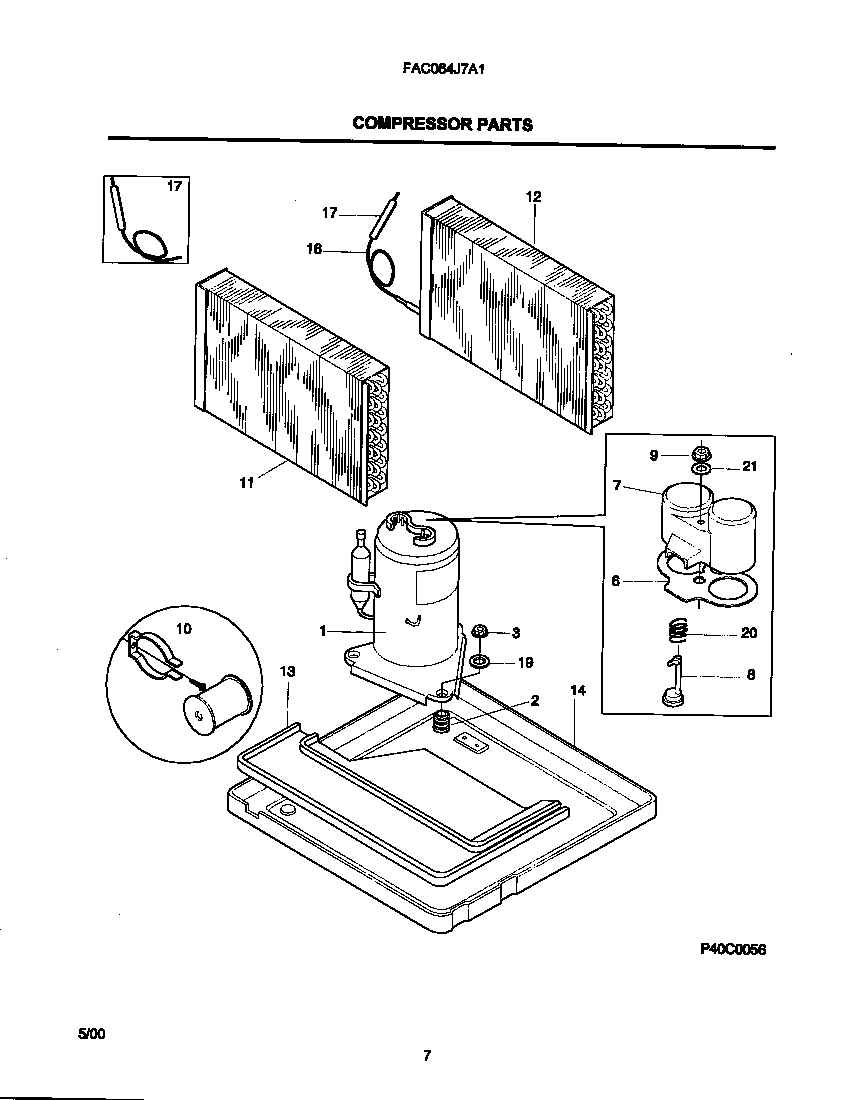

05 - COMPRESSOR PARTS

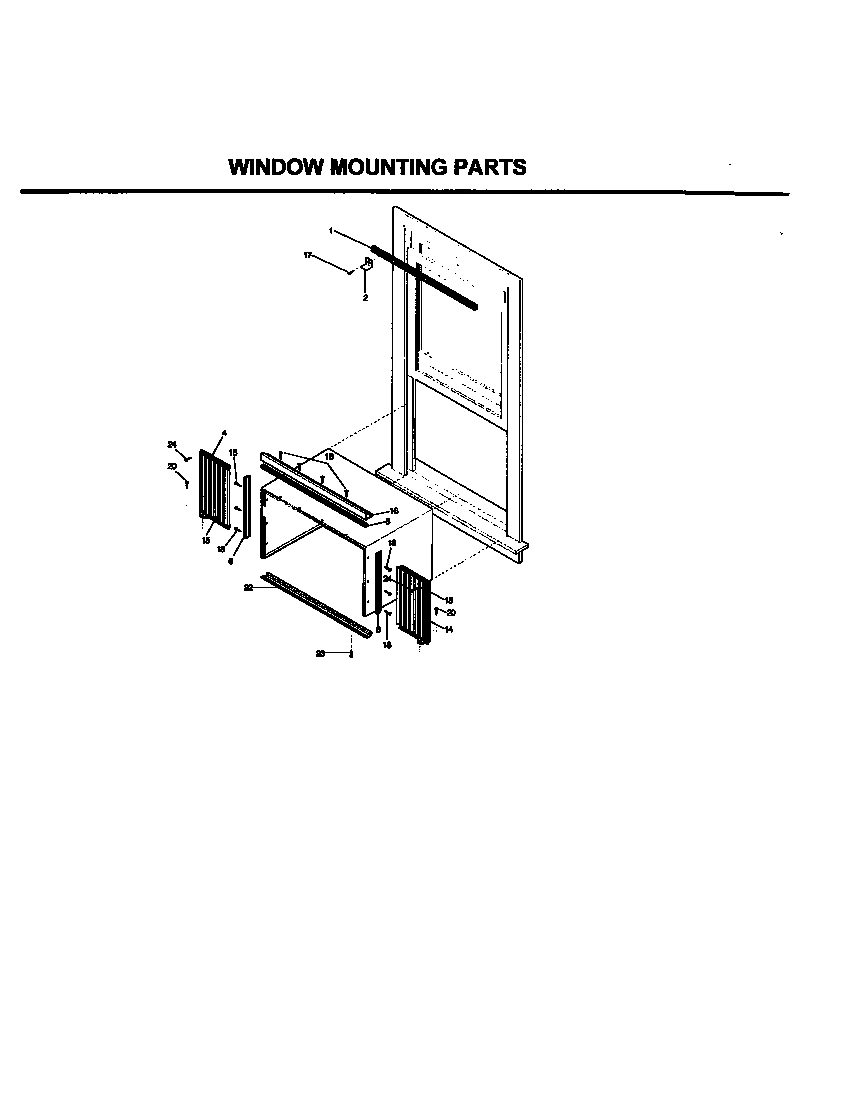

06 - WINDOW MOUNTING PARTS

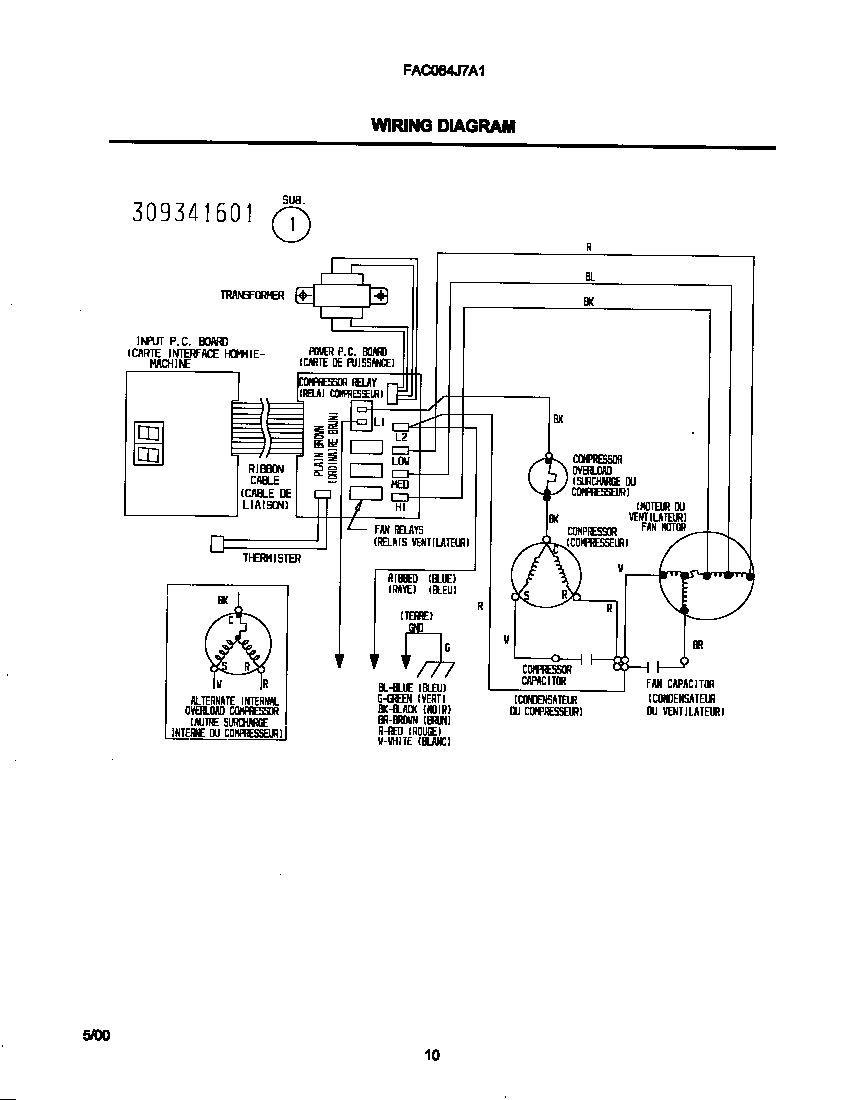

07 - WIRING DIAGRAM
Common parts from model Electrolux FAC064J7A3 ROOM AIR CONDITIONER
*30842
WCI 309111201 WCI 309111201 Contact Us For Availability
*30843
RIBBON PROTECTOR ELEC CNTRL WCI 5304417643 Contact Us For Availability
*30844
WCI 309341601 WCI 309341601 Contact Us For Availability
*30845
THERMISTOR HOLDER ASSY WCI 5304413782 Contact Us For Availability
1
WRAPPER-U-BEND NCS1403 A-KIT WCI 5304413783 Contact Us For Availability
1
WCI 309624502 WCI 309624502 Contact Us For Availability
1
WCI 5303925116 WCI 5303925116 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
WCI 08007481 WCI 08007481 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
3
WCI 309624201 WCI 309624201 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
4
SEAL, CONDENSER WCI 5303270043 Contact Us For Availability
4
WCI 5304413847 WCI 5304413847 Contact Us For Availability
5
SEAL, TOP RAIL WCI 08016226 Contact Us For Availability
6
GASKET,TERMINAL COVER WCI 5303002035 Contact Us For Availability
7
WCI 309638001 WCI 309638001 Contact Us For Availability
7
CONTROL BOX-ELECT COMP WCI 309350301 Contact Us For Availability
7
COVER-TERMINAL WCI 5303211011 Contact Us For Availability
8
LOUVER-HORIZ BRANDS NCS1403 WCI 309639301 Contact Us For Availability
8
WCI 309631506 WCI 309631506 Contact Us For Availability
8
OVERLOAD PROTECTOR WCI 5303211022 Contact Us For Availability
9
VERT. LOUV. WCI 309342001 Contact Us For Availability
9
NUT,TERMINAL COVER WCI 5303301734 Contact Us For Availability
10
WCI 309602403 WCI 309602403 Contact Us For Availability
11
WCI 309603301 WCI 309603301 Contact Us For Availability
11
WCI 5304403290 WCI 5304403290 Contact Us For Availability
12
FILTER-NO FRAME WCI 309343501 Contact Us For Availability
12
WCI 5304414108 WCI 5304414108 Contact Us For Availability
12
+CLAMP-BLOWER WHEEL WCI 309112101 Contact Us For Availability
12
WCI 5303302850 WCI 5303302850 Contact Us For Availability
13
WCI 5303303125 WCI 5303303125 Contact Us For Availability
13
WCI 5303302849 WCI 5303302849 Contact Us For Availability
14
BASE-COMPR/STD ASSY COMP 1403 WCI 5304413780 Contact Us For Availability
14
WCI 5304413848 WCI 5304413848 Contact Us For Availability
15
WCI 5303303086 WCI 5303303086 Contact Us For Availability
15
WCI 5304407653 WCI 5304407653 Contact Us For Availability
15
WCI 309626504 WCI 309626504 Contact Us For Availability
16
WCI 309100201 WCI 309100201 Contact Us For Availability
16
CAPILLARY TUBE WCI 5308017120 Contact Us For Availability
16
RAIL-TOP COMP. A-KIT NCS1403 WCI 5304417362 Contact Us For Availability
17
WCI 309640102 WCI 309640102 Contact Us For Availability
17
CORD-SRV 115V/18GA LT. GREY WCI 309343101 Contact Us For Availability
17
TUBE-PROCESS CND WCI 5304413857 Contact Us For Availability
17
SCREW,WOOD, TYPE 17 ,10-12 X 0.750 WCI 3002803 Contact Us For Availability
19
WCI 309340803 WCI 309340803 Contact Us For Availability
19
WCI 5303302855 WCI 5303302855 Contact Us For Availability
19
WASHER,COMPRESSOR MTG WCI 5303002664 Contact Us For Availability
20
PLATE-BLOWER HOUSING,SCROLL PLATE WCI 5304407654 Contact Us For Availability
20
SPRING-OVERLOAD WCI 5303002036 Contact Us For Availability
20
SCREW,PAN HEAD ,8-18 X 0.750 WCI 5303295750 Contact Us For Availability
21
WASHER,TERMINAL COVER WCI 5303295516 Contact Us For Availability
22
RETAINER,BOTTOM WCI 5304403252 Contact Us For Availability
23
SCREW,23(T) ,10-32 X 0.310 WCI 3001806 Contact Us For Availability
24
SCREW,WOOD, TYPE 17 ,8-15 X 0.500 WCI 5308002974 Contact Us For Availability
25
WCI 309328601 WCI 309328601 Contact Us For Availability
26
HANDLE-VNT BRND 1403 CMP/22TC WCI 309639401 Contact Us For Availability
38
PANEL-FRONT WCI 309639201 Contact Us For Availability
43
FRAME-FRNT WCI 309639101 Contact Us For Availability
70
WCI 309342201 WCI 309342201 Contact Us For Availability
71
WCI 309340503 WCI 309340503 Contact Us For Availability
72
WCI 309340505 WCI 309340505 Contact Us For Availability
75
PC BOARD-SUPPORT HARDWARE WCI 5304413781 Contact Us For Availability
76
WCI 309111601 WCI 309111601 Contact Us For Availability
78
PKG-JY-TAI TRANS W/BATTERIES WCI 309350502 Contact Us For Availability
× ![]()
