Model Electrolux FAC063T7A5B ROOM AIR CONDITIONER – Common Parts & Diagrams

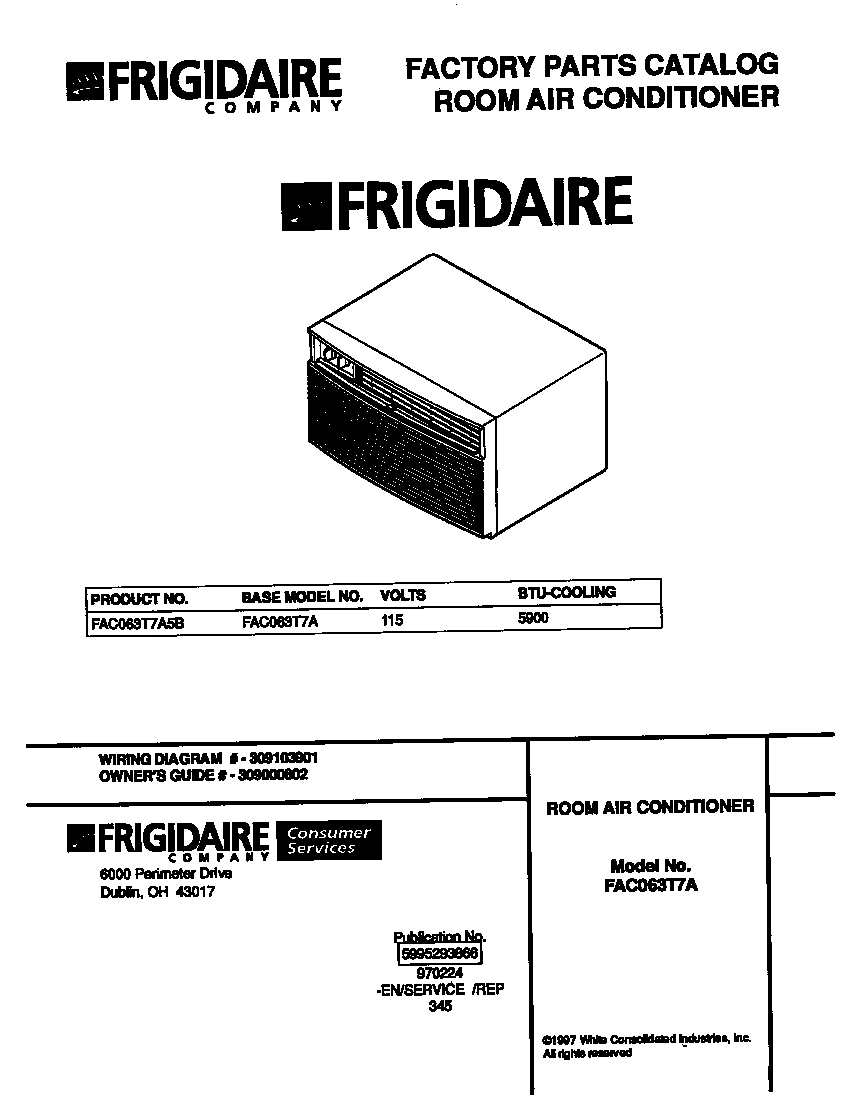

01 - COVER

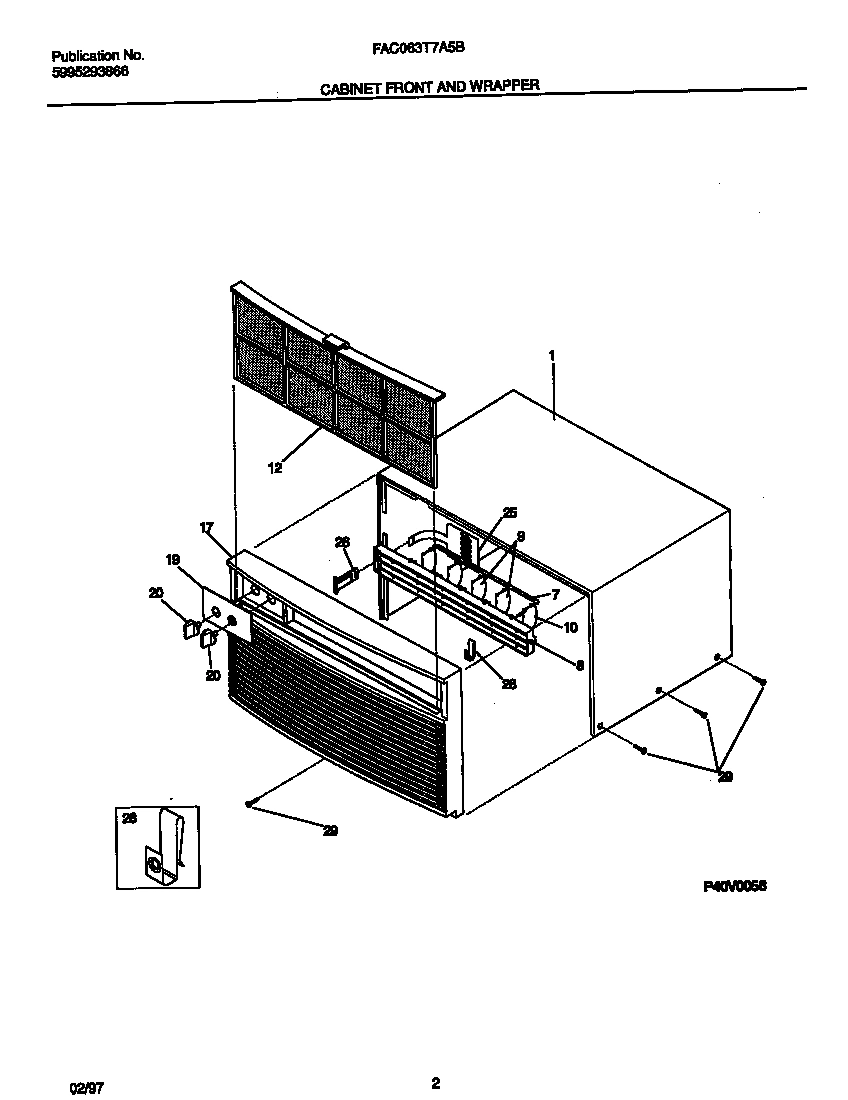

02 - CABINET FRONT AND WRAPPER

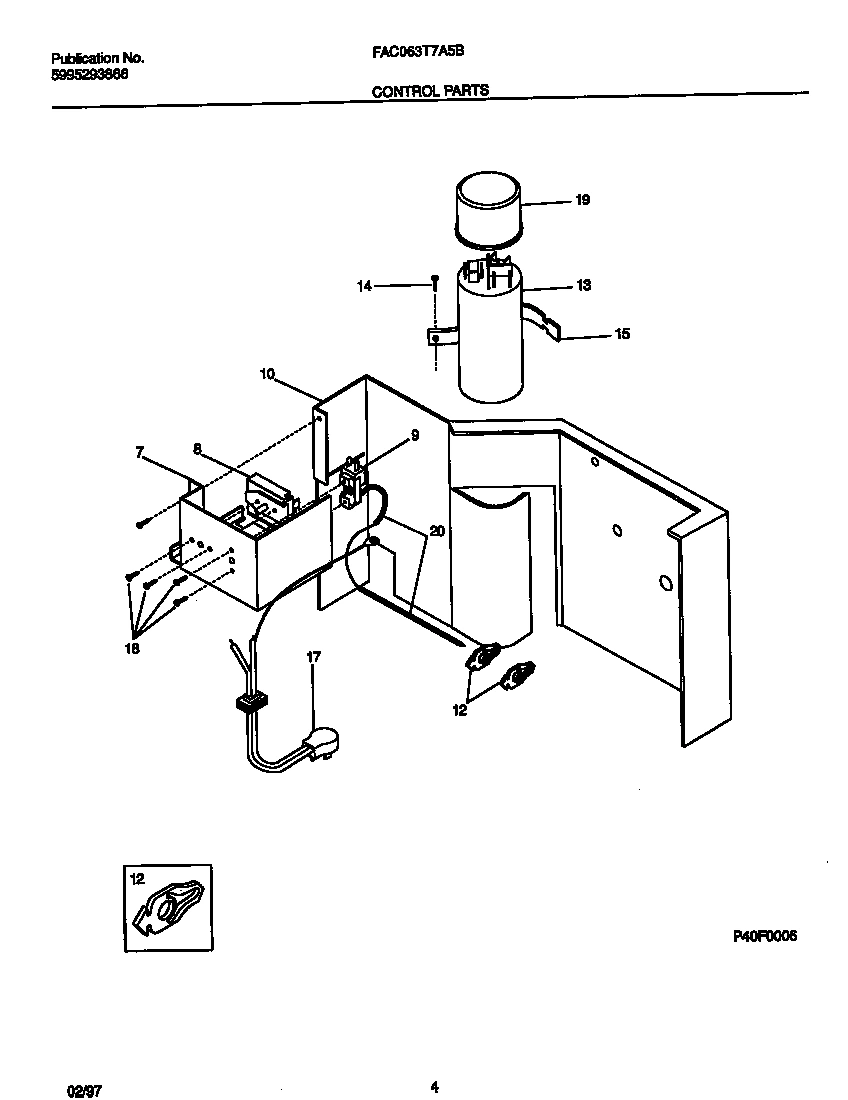

03 - CONTROL PARTS

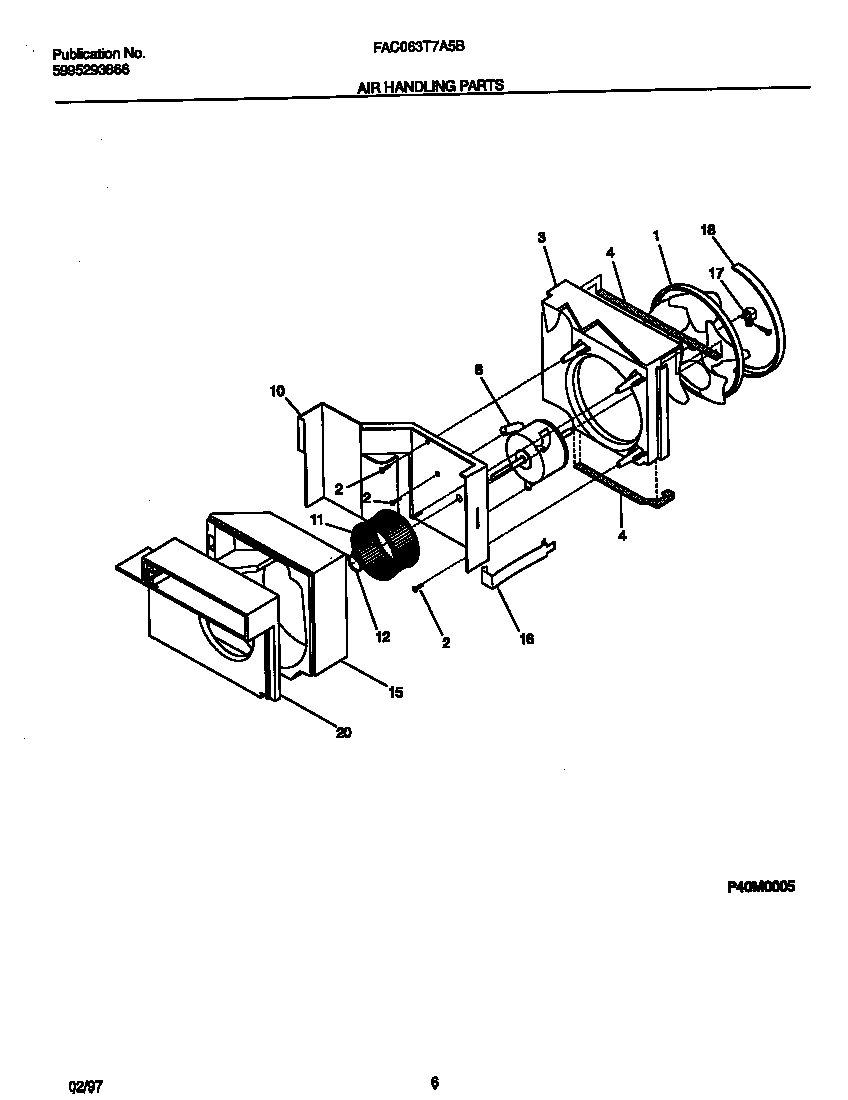

04 - AIR HANDLING PARTS

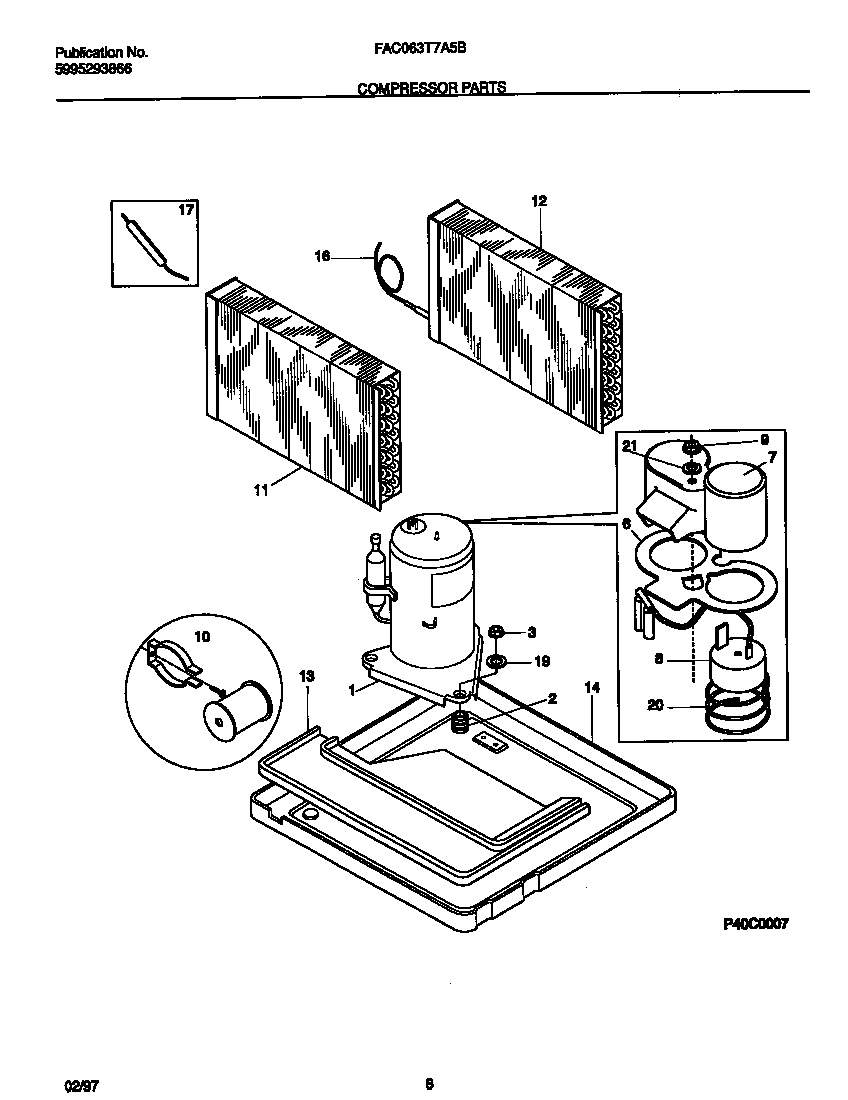

05 - COMPRESSOR PARTS

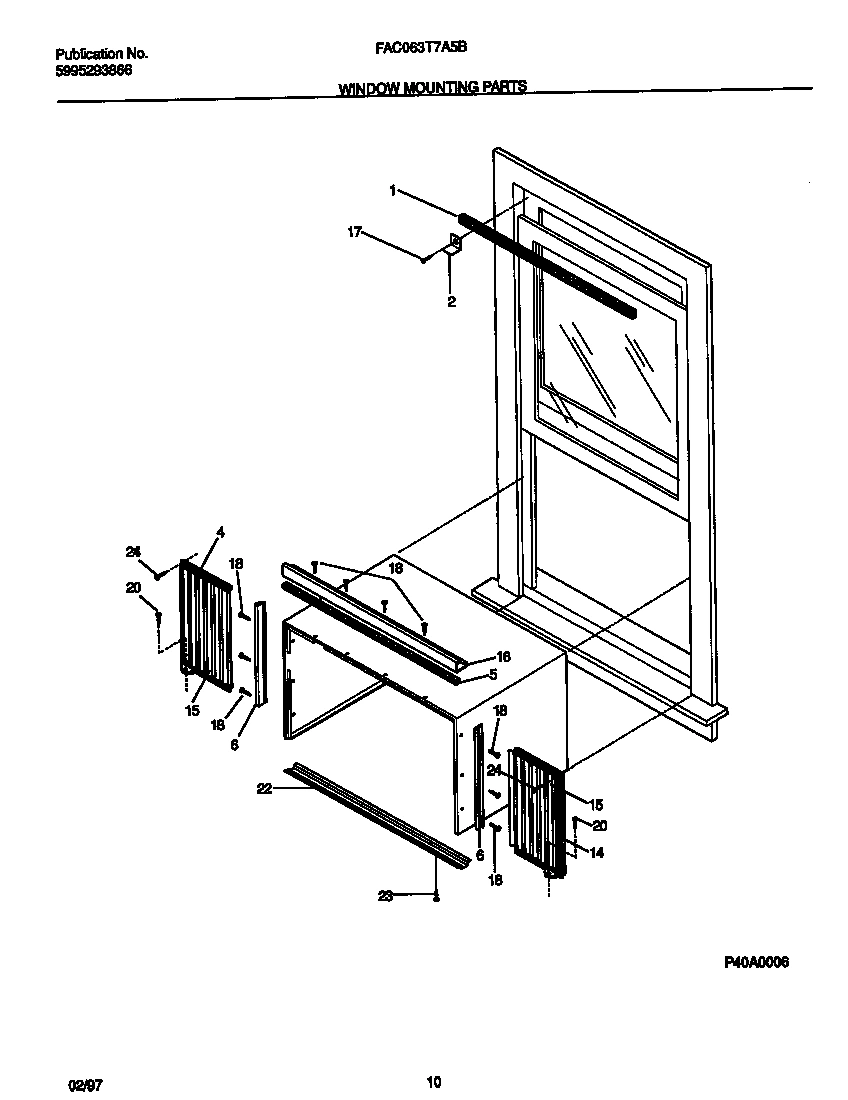

06 - WINDOW MOUNTING PARTS

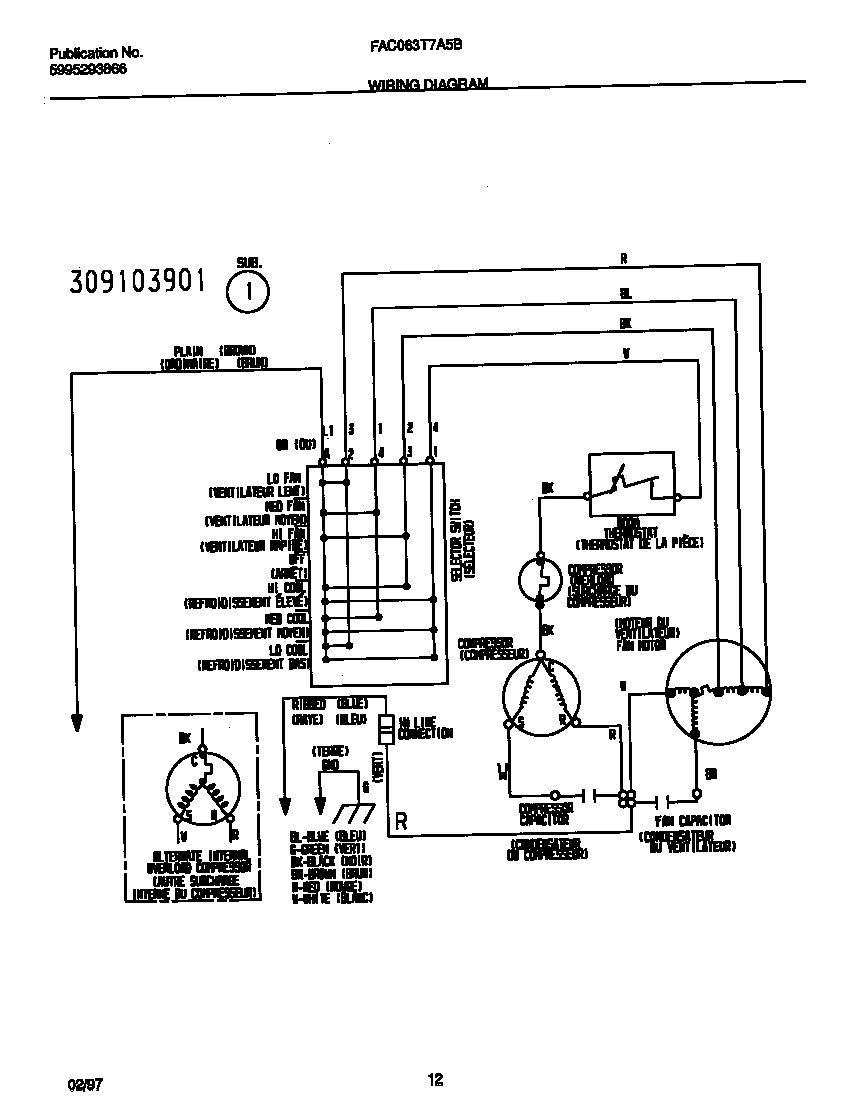

07 - WIRING DIAGRAM
Common parts from model Electrolux FAC063T7A5B ROOM AIR CONDITIONER
1
FAN BLADE, WITH CLAMP WCI 5303270893 Contact Us For Availability
1
WCI 5303300107 WCI 5303300107 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
GROMMET-COMPRESSOR, 3 WCI 5303283877 Contact Us For Availability
3
HOUSING-FAN WCI 5303270041 Contact Us For Availability
3
NUT, COMPRESSOR, (3) WCI 5308006948 Contact Us For Availability
4
SEAL, CONDENSER WCI 5303270043 Contact Us For Availability
4
WCI 5303311127 WCI 5303311127 Contact Us For Availability
5
WCI 08016226 WCI 08016226 Contact Us For Availability
6
GASKET-COVER WCI 5303291330 Contact Us For Availability
6
WCI 5303303795 WCI 5303303795 Contact Us For Availability
7
WCI 309602502 WCI 309602502 Contact Us For Availability
7
COVER-TERMINAL WCI 5303291329 Contact Us For Availability
8
WCI 309603902 WCI 309603902 Contact Us For Availability
8
SWITCH-SELECTOR WCI 5303323284 Contact Us For Availability
8
WCI 309615701 WCI 309615701 Contact Us For Availability
8
OVERLOAD PROTECTOR WCI 5303286408 Contact Us For Availability
9
WCI 5303303087 WCI 5303303087 Contact Us For Availability
9
WCI 5303302852 WCI 5303302852 Contact Us For Availability
9
WCI 5303294292 WCI 5303294292 Contact Us For Availability
10
WCI 5303303088 WCI 5303303088 Contact Us For Availability
10
WCI 309602401 WCI 309602401 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
11
WCI 309603301 WCI 309603301 Contact Us For Availability
11
WCI 5303302848 WCI 5303302848 Contact Us For Availability
12
WCI 5303303241 WCI 5303303241 Contact Us For Availability
12
WCI 309101202 WCI 309101202 Contact Us For Availability
12
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
12
WCI 5303302850 WCI 5303302850 Contact Us For Availability
13
WCI 5303302854 WCI 5303302854 Contact Us For Availability
13
WCI 5303302849 WCI 5303302849 Contact Us For Availability
14
WCI 5303302847 WCI 5303302847 Contact Us For Availability
14
WCI 5303311128 WCI 5303311128 Contact Us For Availability
15
WCI 5303303086 WCI 5303303086 Contact Us For Availability
15
WCI 5303302851 WCI 5303302851 Contact Us For Availability
15
ACCORDIAN WCI 5303270075 Contact Us For Availability
16
WCI 309100201 WCI 309100201 Contact Us For Availability
16
CAPILLARY TUBE WCI 5308017120 Contact Us For Availability
16
WCI 5303302859 WCI 5303302859 Contact Us For Availability
17
WCI 309603413 WCI 309603413 Contact Us For Availability
17
WCI 5303317236 WCI 5303317236 Contact Us For Availability
17
CLAMP - FAN BLADE WCI 5308011040 Contact Us For Availability
17
SCREW-WOOD WCI 3002803 Contact Us For Availability
18
SCREW, .138-32 X .188 WCI 5303007754 Contact Us For Availability
18
DEFLECTOR-WATER WCI 5303270042 Contact Us For Availability
19
WCI 309613526 WCI 309613526 Contact Us For Availability
19
WCI 5303302855 WCI 5303302855 Contact Us For Availability
19
WASHER - COMPRESSOR WCI 5303002664 Contact Us For Availability
20
WCI 309306801 WCI 309306801 Contact Us For Availability
20
SLEEVE, CONTROL WCI 5303002600 Contact Us For Availability
20
WCI 5303303573 WCI 5303303573 Contact Us For Availability
20
SPRING-OVERLOAD WCI 5303291328 Contact Us For Availability
20
WCI 5303295750 WCI 5303295750 Contact Us For Availability
21
WCI 5303293809 WCI 5303293809 Contact Us For Availability
22
RETAINER, BOTTOM WCI 5303302857 Contact Us For Availability
23
SCREW WCI 3001806 Contact Us For Availability
24
SCREW WCI 5308002974 Contact Us For Availability
25
WCI 5303317476 WCI 5303317476 Contact Us For Availability
26
WCI 309100504 WCI 309100504 Contact Us For Availability
28
WCI 309100401 WCI 309100401 Contact Us For Availability
× ![]()
