Model Electrolux FAC056W7A7 ROOM AIR CONDITIONER – Common Parts & Diagrams

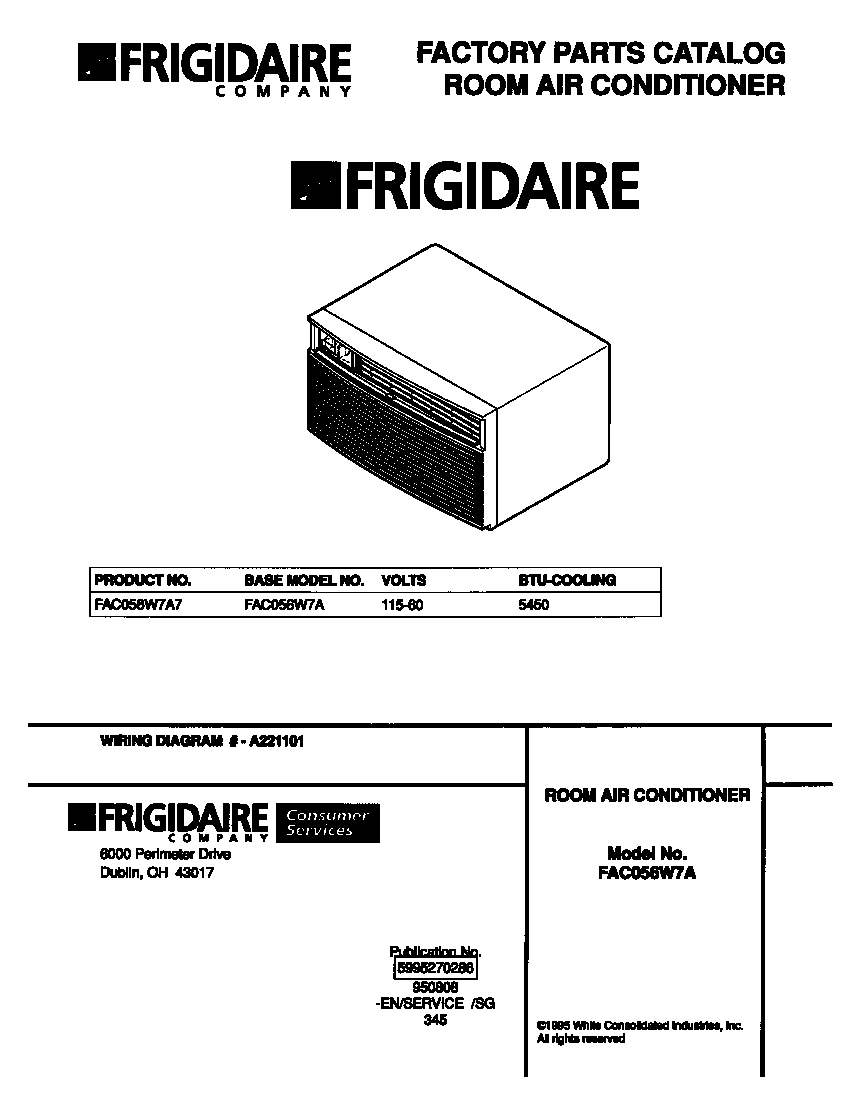

01 - COVER

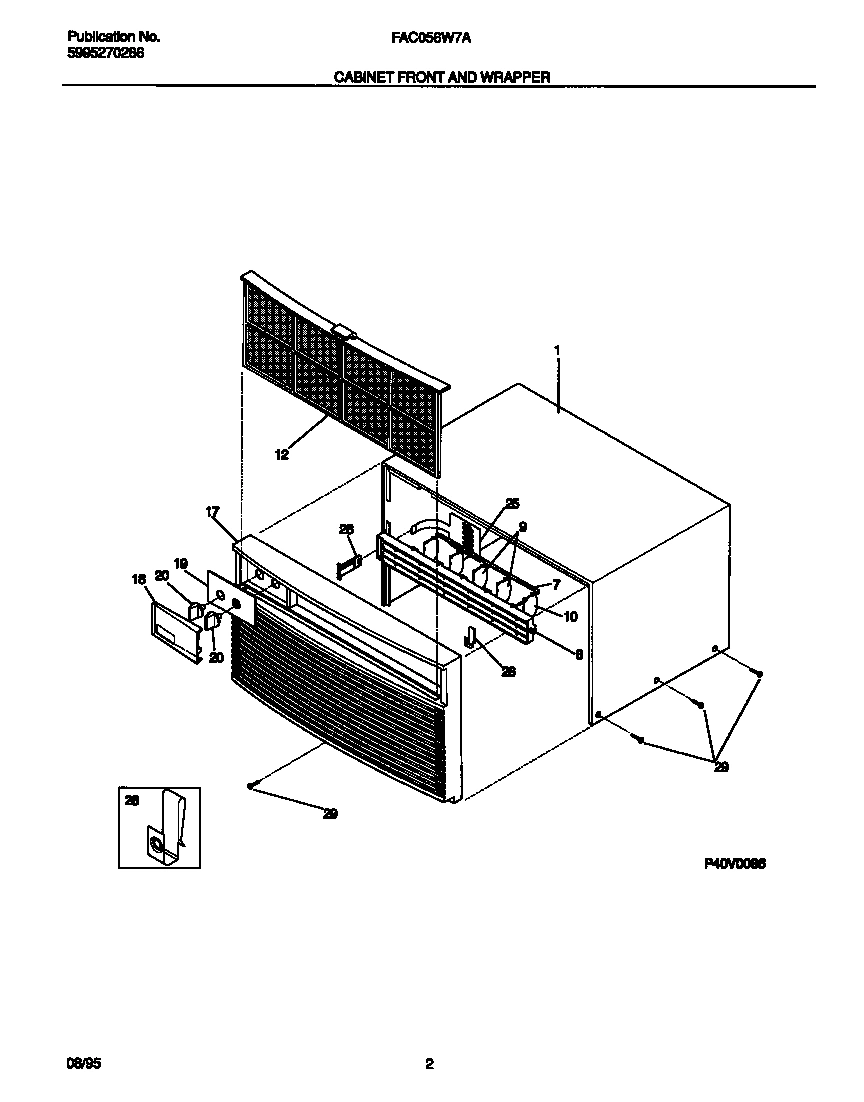

02 - CABINET FRONT & WRAPPER

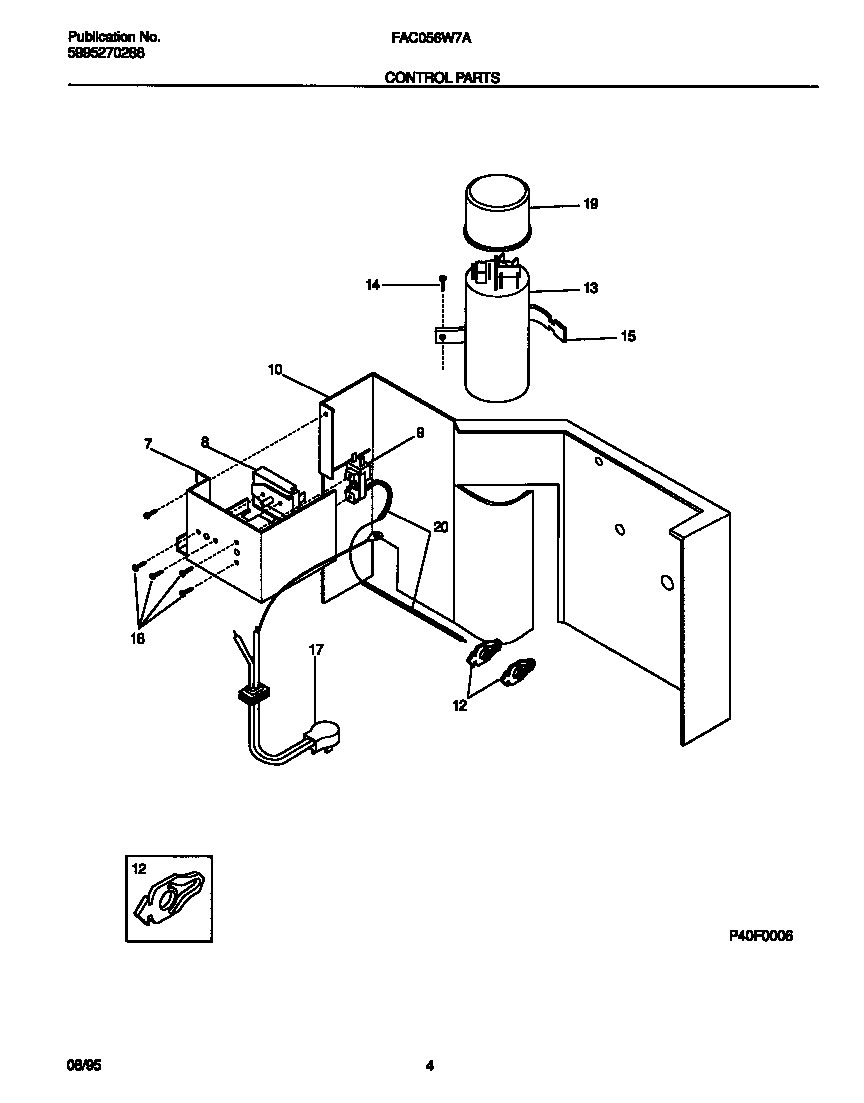

03 - CONTROL PARTS

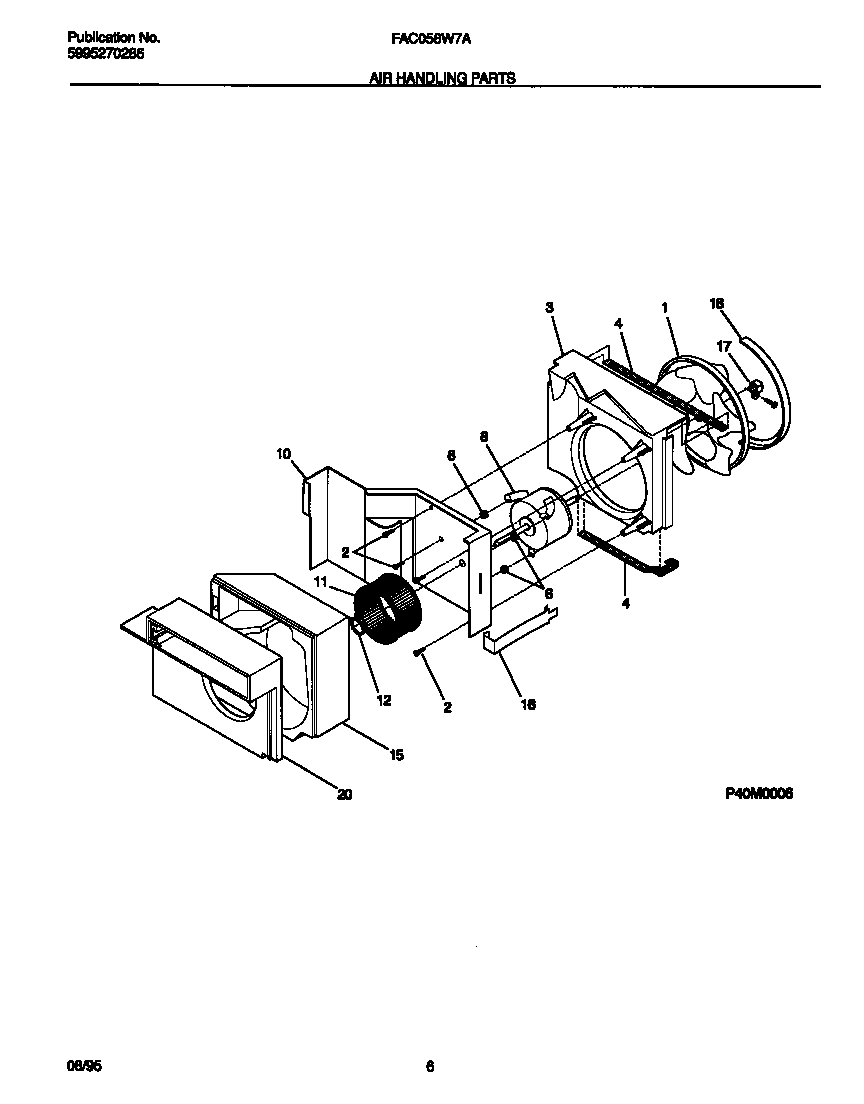

04 - AIR HANDLING PARTS

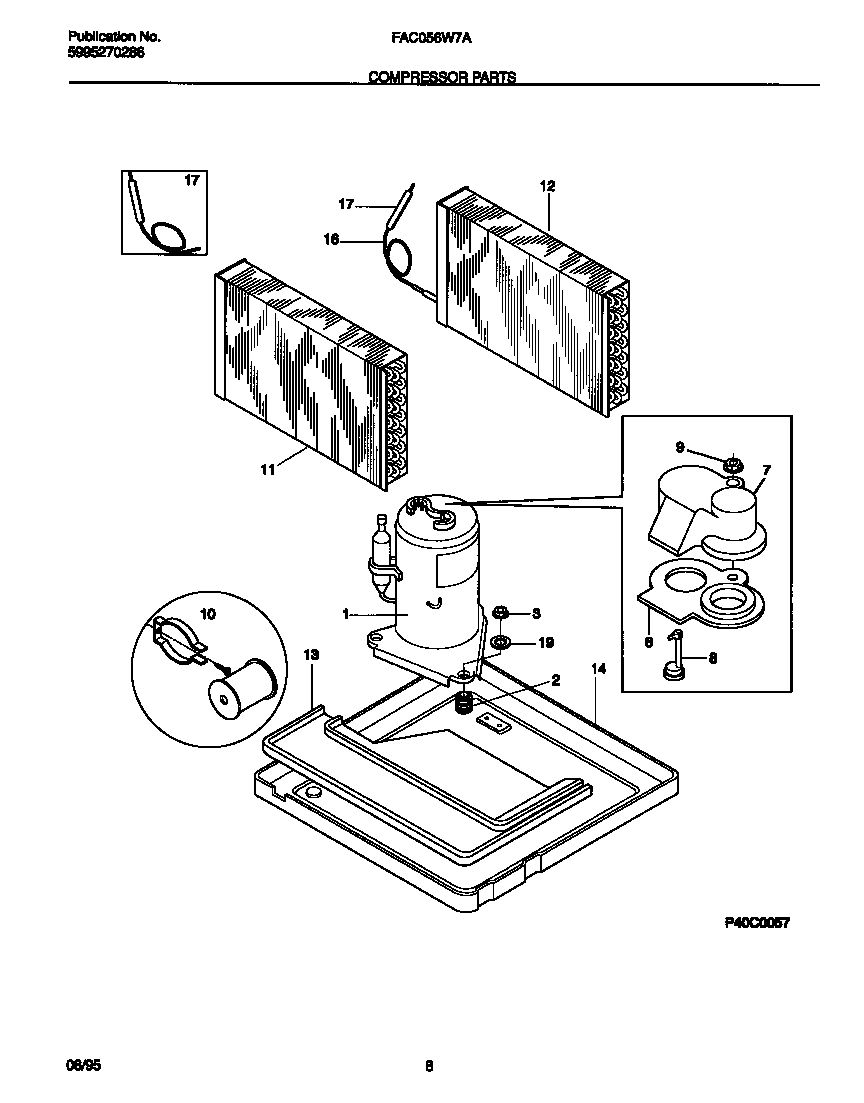

05 - COMPRESSOR PARTS

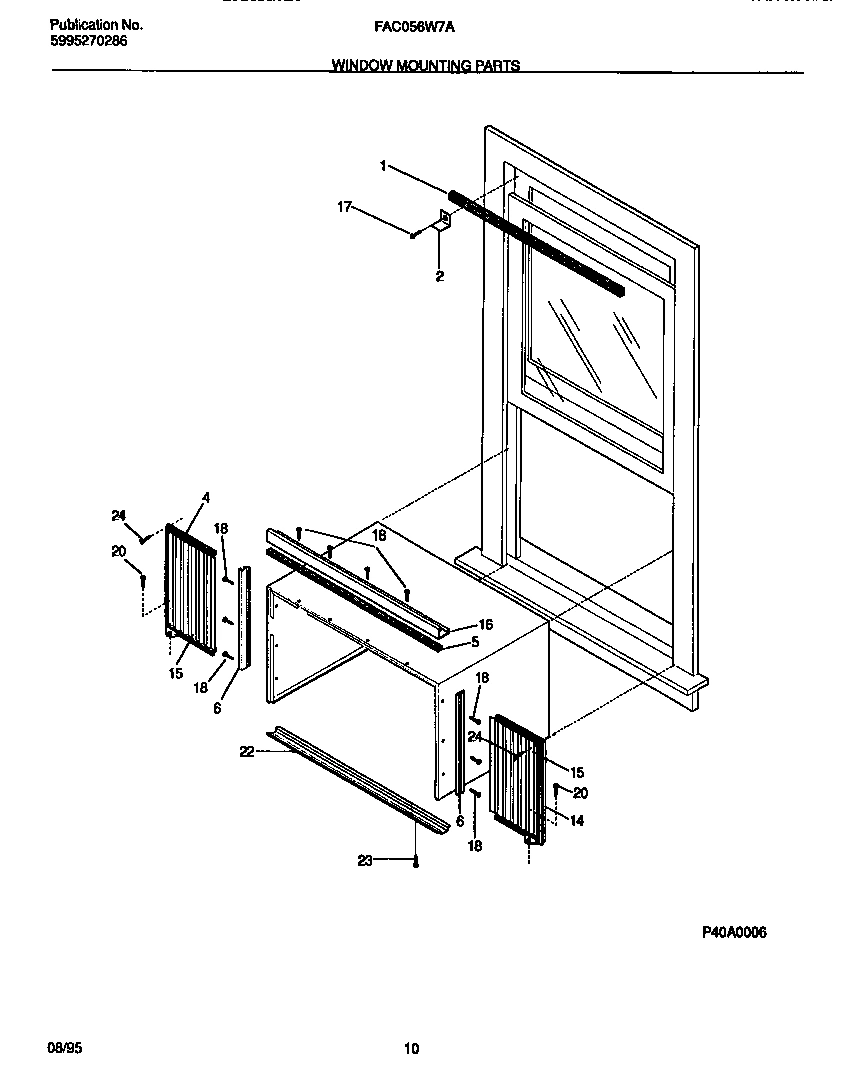

06 - WINDOW MOUNTING PARTS

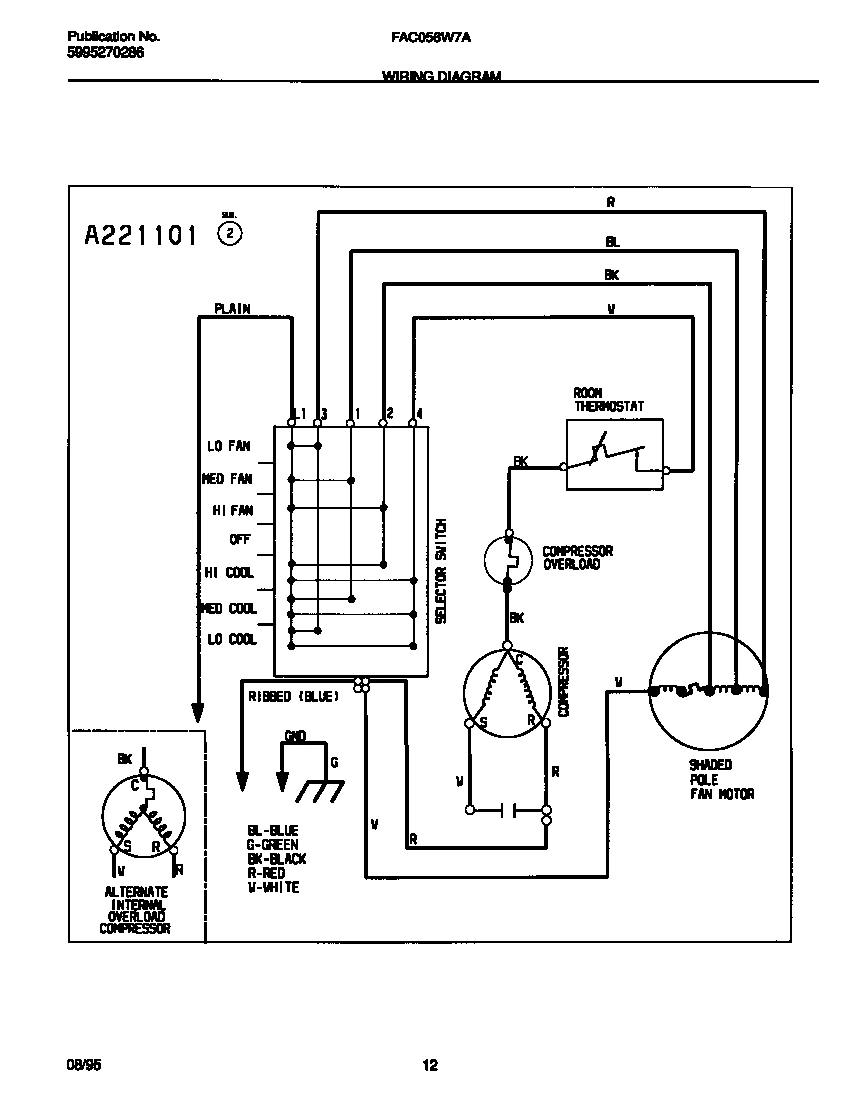

07 - WIRING DIAGRAM
Common parts from model Electrolux FAC056W7A7 ROOM AIR CONDITIONER
*73360
WCI 5303303809 WCI 5303303809 Contact Us For Availability
1
FAN BLADE & CLAMP WCI 5303270893 Contact Us For Availability
1
WCI 309616901 WCI 309616901 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
SCREW, (3) WCI 5303270036 Contact Us For Availability
2
GROMMET-COMPRESSOR WCI 5303283877 Contact Us For Availability
3
SHROUD WCI 5303270041 Contact Us For Availability
3
NUT - COMPRESSOR WCI 5308006948 Contact Us For Availability
4
SEAL-SHROUD TOP & BOTTOM WCI 5303270043 Contact Us For Availability
4
WCI 5303302860 WCI 5303302860 Contact Us For Availability
5
SEAL, TOP RAIL WCI 08016226 Contact Us For Availability
6
GROMMET-MOTOR, (3) WCI 5300105402 Contact Us For Availability
6
WCI 3201668 WCI 3201668 Contact Us For Availability
6
WCI 5303303795 WCI 5303303795 Contact Us For Availability
7
BOX-CONTROL WCI 309602502 Contact Us For Availability
7
WCI 3201669 WCI 3201669 Contact Us For Availability
8
WCI 309603902 WCI 309603902 Contact Us For Availability
8
SWITCH-SELECTOR WCI 5308013150 Contact Us For Availability
8
WCI 309603002 WCI 309603002 Contact Us For Availability
8
OVERLOAD WCI 5303311029 Contact Us For Availability
9
WCI 5303303087 WCI 5303303087 Contact Us For Availability
9
WCI 5303302852 WCI 5303302852 Contact Us For Availability
9
WCI 3201670 WCI 3201670 Contact Us For Availability
10
WCI 5303303088 WCI 5303303088 Contact Us For Availability
10
WCI 309602401 WCI 309602401 Contact Us For Availability
10
WCI 5303201723 WCI 5303201723 Contact Us For Availability
11
WCI 309603301 WCI 309603301 Contact Us For Availability
11
WCI 5303310374 WCI 5303310374 Contact Us For Availability
12
WCI 5303303241 WCI 5303303241 Contact Us For Availability
12
WCI 309101202 WCI 309101202 Contact Us For Availability
12
WCI 5303012110 WCI 5303012110 Contact Us For Availability
12
WCI 5303303197 WCI 5303303197 Contact Us For Availability
13
WCI 5303311028 WCI 5303311028 Contact Us For Availability
13
WCI 5303302849 WCI 5303302849 Contact Us For Availability
14
BASE WCI 5303302847 Contact Us For Availability
14
WCI 5303302861 WCI 5303302861 Contact Us For Availability
15
WCI 5303303086 WCI 5303303086 Contact Us For Availability
15
SCROLL WCI 5303302851 Contact Us For Availability
15
WCI 5303302862 WCI 5303302862 Contact Us For Availability
16
CLIP-SCROLL WCI 309100201 Contact Us For Availability
16
WCI 5303289577 WCI 5303289577 Contact Us For Availability
16
RAIL-TOP WCI 5303302859 Contact Us For Availability
17
WCI 309603402 WCI 309603402 Contact Us For Availability
17
WCI 5303302853 WCI 5303302853 Contact Us For Availability
17
CLAMP - FAN BLADE WCI 5308011040 Contact Us For Availability
17
SCREW - SASH LOCK WCI 3002803 Contact Us For Availability
18
WCI 309304602 WCI 309304602 Contact Us For Availability
18
SCREW WCI 5303007754 Contact Us For Availability
18
DEFLECTOR-SHROUD WCI 5303270042 Contact Us For Availability
19
WCI 5303303243 WCI 5303303243 Contact Us For Availability
19
WCI 5303302855 WCI 5303302855 Contact Us For Availability
19
WASHER - COMPRESSOR WCI 5303002664 Contact Us For Availability
20
WCI 5303303113 WCI 5303303113 Contact Us For Availability
20
SLEEVE-CONTROL TUBE WCI 5303002600 Contact Us For Availability
20
SCROLL PLATE WCI 5303303573 Contact Us For Availability
20
SCREW WCI 5303295750 Contact Us For Availability
22
WCI 5303302857 WCI 5303302857 Contact Us For Availability
23
SCREW WCI 3001806 Contact Us For Availability
24
SCREW WCI 5308002974 Contact Us For Availability
25
WCI 5303302867 WCI 5303302867 Contact Us For Availability
26
WCI 309100504 WCI 309100504 Contact Us For Availability
28
CLIP-FRONT WCI 309100401 Contact Us For Availability
× ![]()
