Model Electrolux FAC055K7A4 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
03 - CABINET FRONT AND WRAPPER

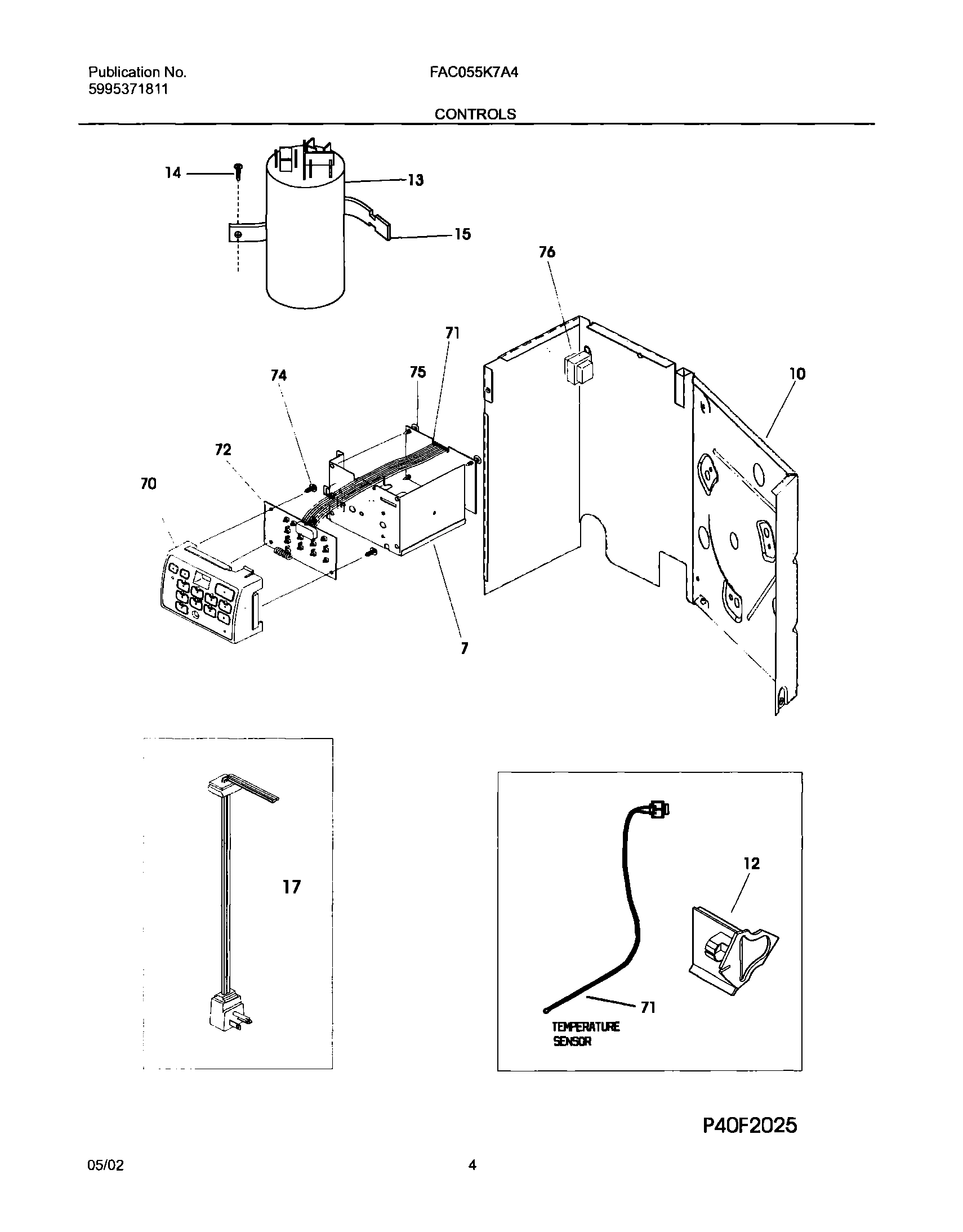

05 - CONTROLS

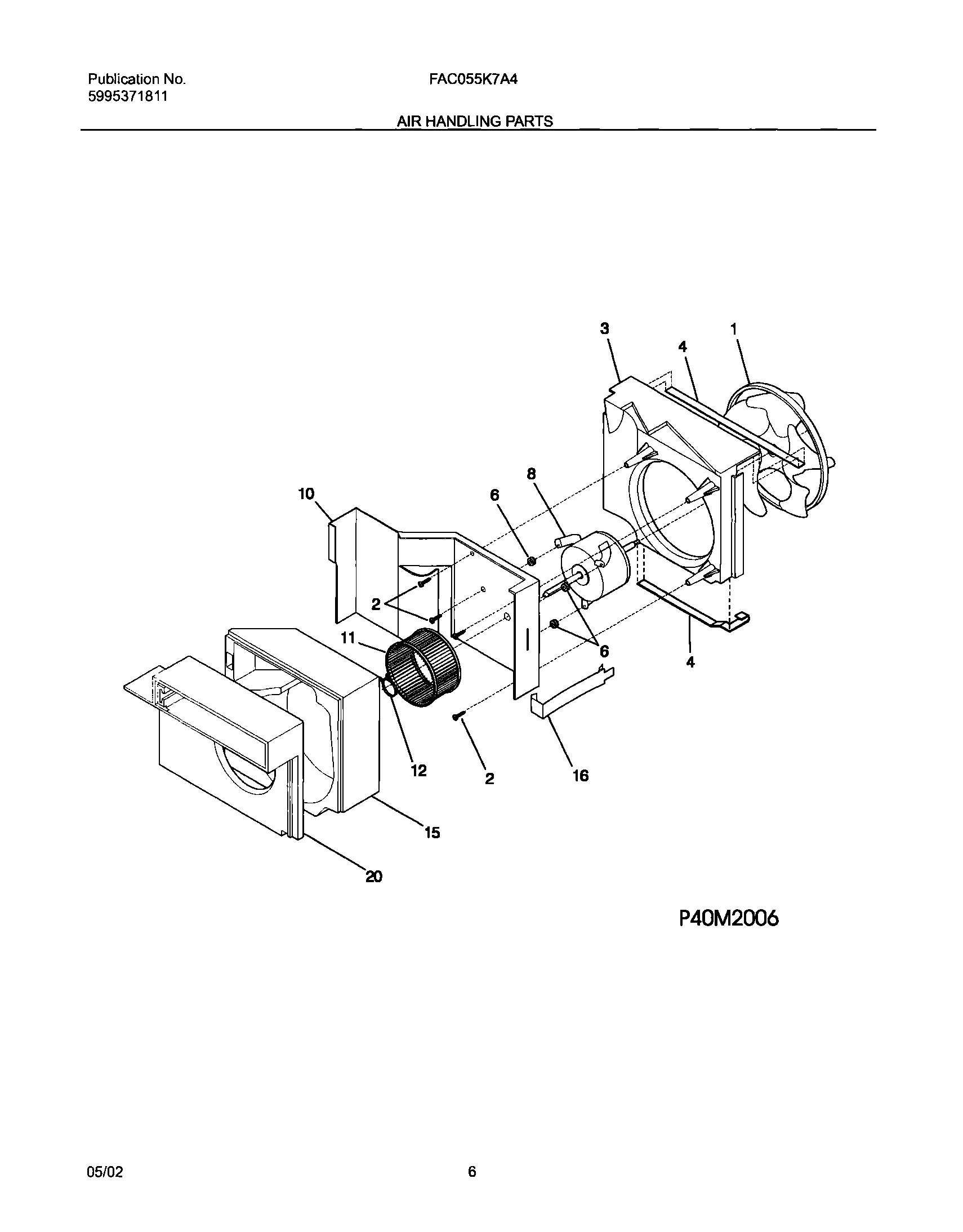

07 - AIR HANDLING PARTS

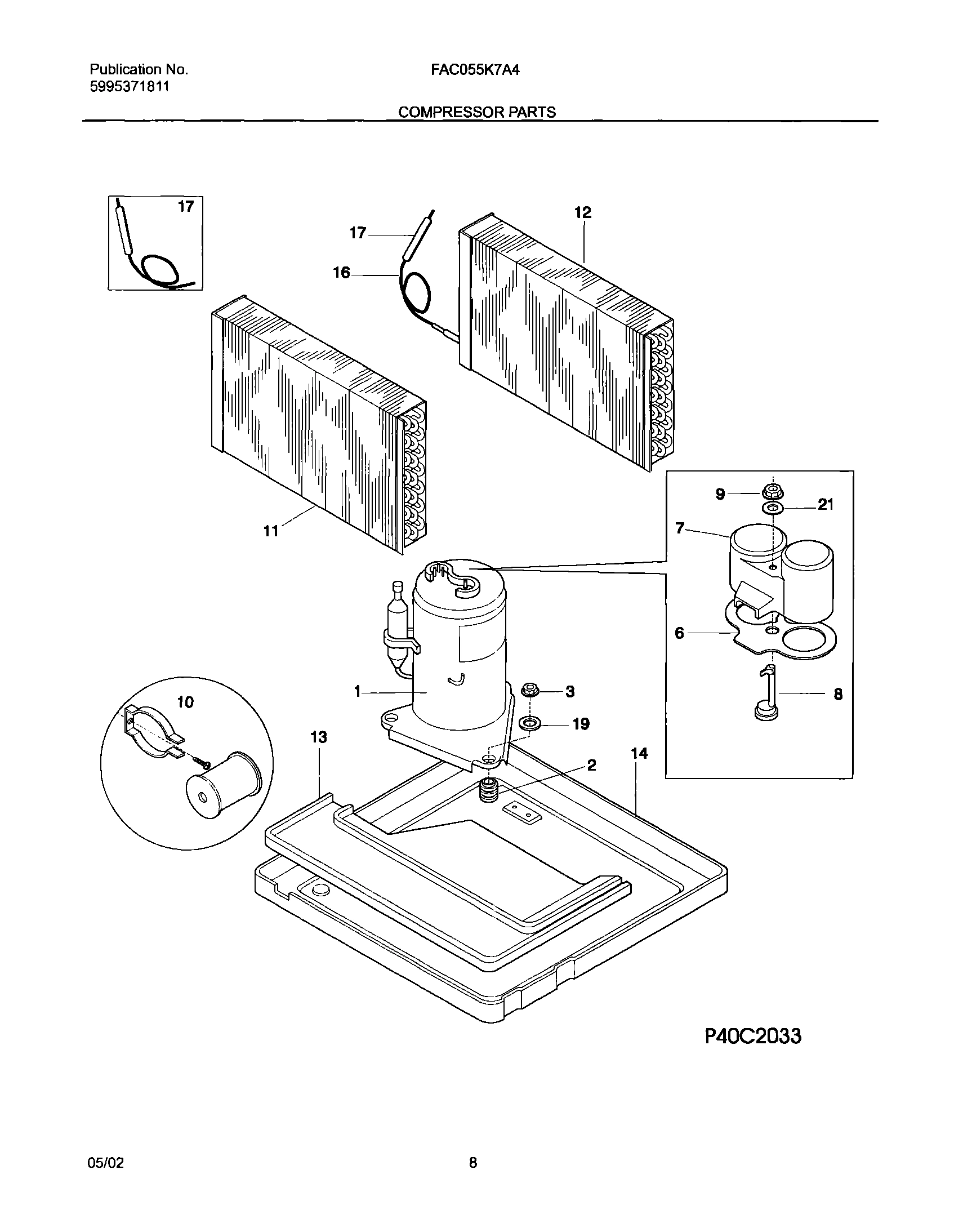

09 - COMPRESSOR PARTS

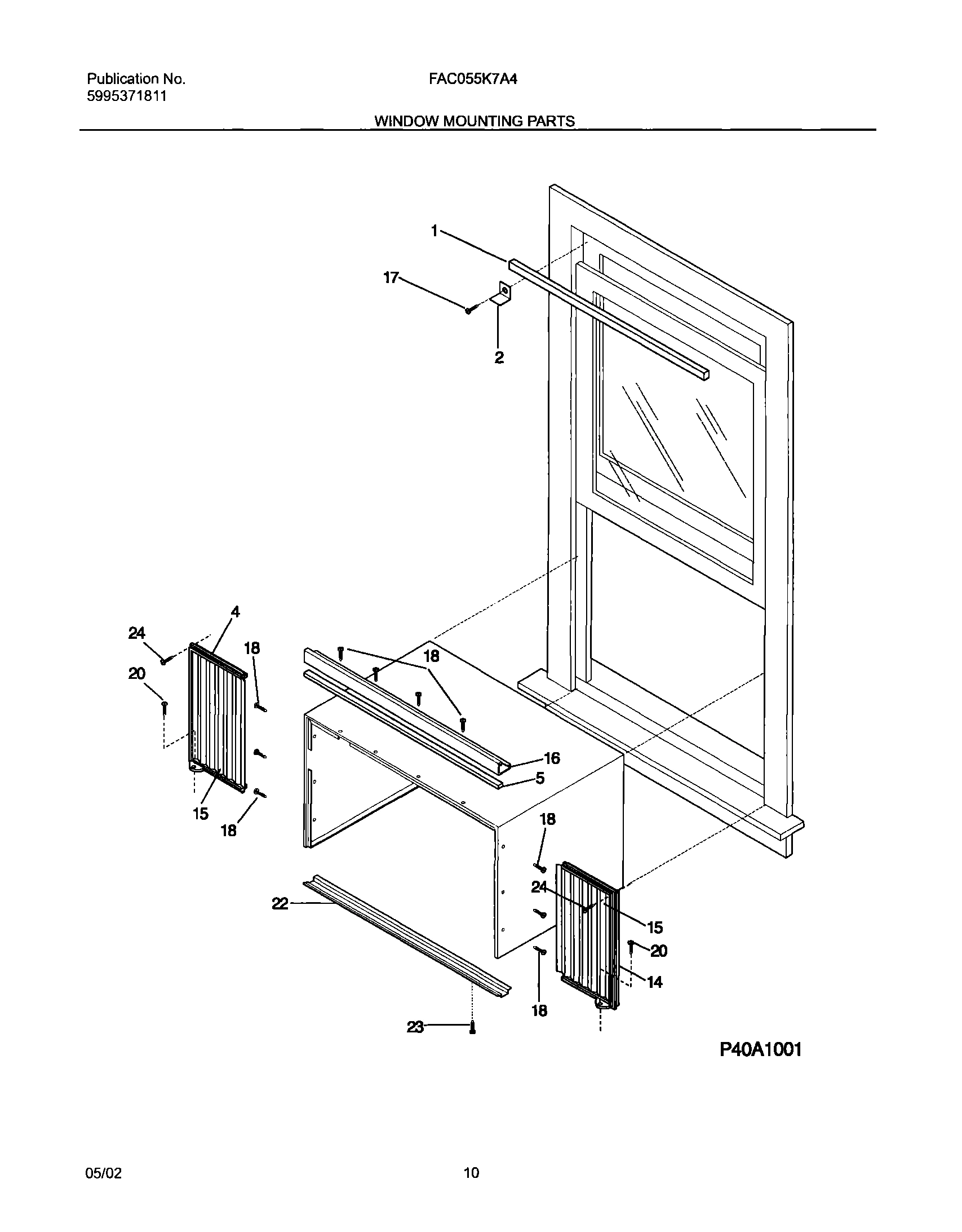

11 - WINDOW MOUNTING PARTS

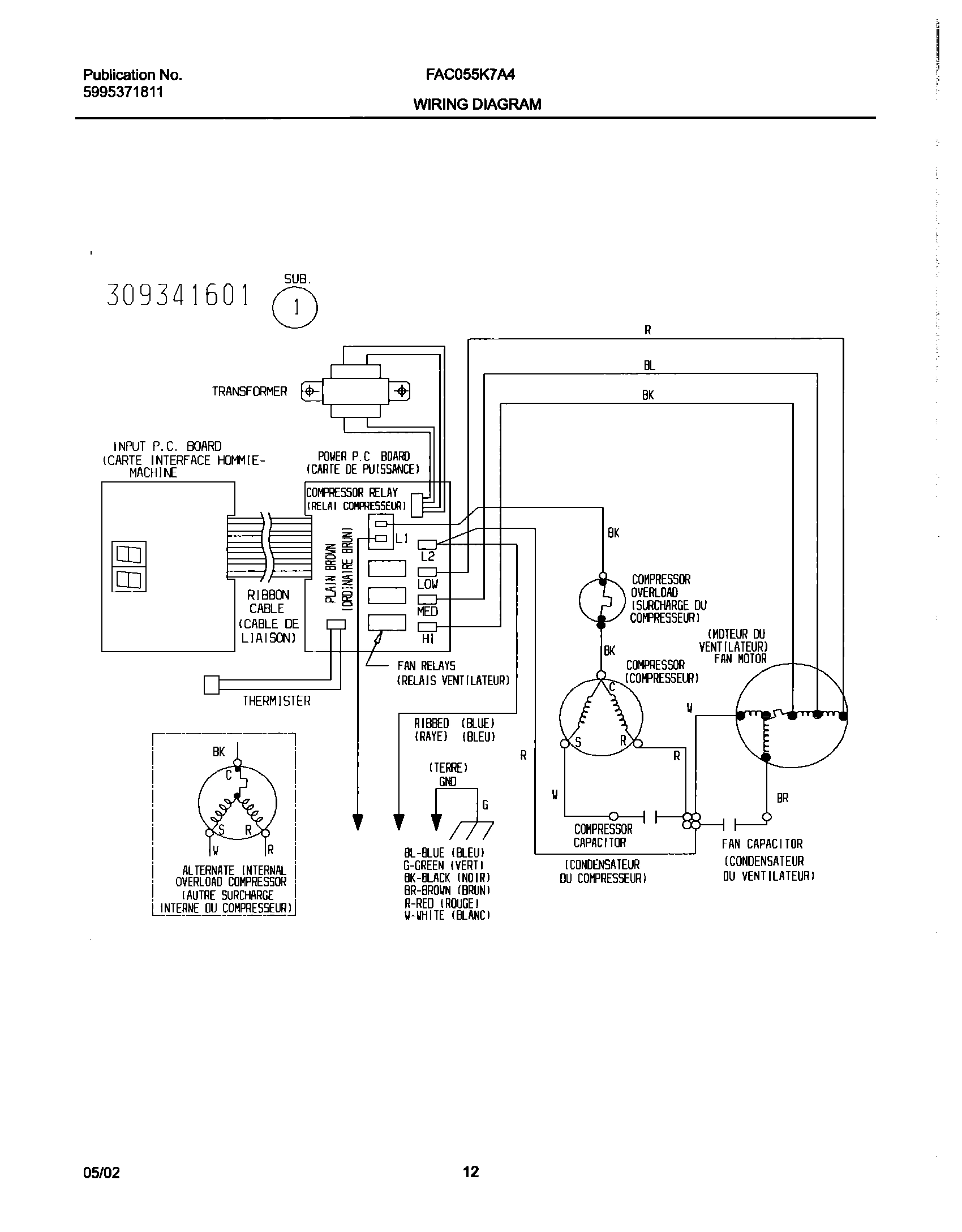

12 - WIRING DIAGRAM
Common parts from model Electrolux FAC055K7A4 ROOM AIR CONDITIONER
1
WCI 309646202 WCI 309646202 Contact Us For Availability
1
WCI 5304426656 WCI 5304426656 Contact Us For Availability
2
BRACKET-SASH LOCK WCI 5303211056 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
3
Housing-fan,shroud WCI 309643901 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
4
WCI 5303303759 WCI 5303303759 Contact Us For Availability
4
WCI 5304421913 WCI 5304421913 Contact Us For Availability
4
WCI 309644901 WCI 309644901 Contact Us For Availability
5
Seal,top rail/cab WCI 08016226 Contact Us For Availability
6
WCI 08007481 WCI 08007481 Contact Us For Availability
6
Gasket,terminal cover WCI 5303291330 Contact Us For Availability
7
WCI 309643801 WCI 309643801 Contact Us For Availability
7
WCI 5304416126 WCI 5304416126 Contact Us For Availability
8
WCI 309640204 WCI 309640204 Contact Us For Availability
8
WCI 309645002 WCI 309645002 Contact Us For Availability
8
WCI 5304417320 WCI 5304417320 Contact Us For Availability
9
WCI 309647201 WCI 309647201 Contact Us For Availability
9
Nut-terminal cover WCI 5303294292 Contact Us For Availability
10
WCI 309643702 WCI 309643702 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
11
WCI 309643302 WCI 309643302 Contact Us For Availability
11
WCI 309637507 WCI 309637507 Contact Us For Availability
12
WCI 309343501 WCI 309343501 Contact Us For Availability
12
Holder-thermistor,without seal WCI 5304414108 Contact Us For Availability
12
WCI 327161302 WCI 327161302 Contact Us For Availability
12
WCI 309645303 WCI 309645303 Contact Us For Availability
13
WCI 5304426655 WCI 5304426655 Contact Us For Availability
13
Tray,evap drip WCI 309642801 Contact Us For Availability
14
Base,compressor mt. ,with studs WCI 309644001 Contact Us For Availability
14
Frame,cab extension ,RH WCI 5304414121 Contact Us For Availability
15
Strap,capacitor mtg. WCI 309351901 Contact Us For Availability
15
Housing,blower scroll ,Extended WCI 309642901 Contact Us For Availability
15
Closure,accordian type ,window mount WCI 309626504 Contact Us For Availability
16
Clip,evap/bulkhead WCI 309100201 Contact Us For Availability
16
WCI 5304423363 WCI 5304423363 Contact Us For Availability
16
Rail,retainer ,top WCI 5304417362 Contact Us For Availability
17
Front-cabinet,4 way ,complete assy WCI 309640104 Contact Us For Availability
17
WCI 309343101 WCI 309343101 Contact Us For Availability
17
SCREW,WOOD, TYPE 17 ,10-12 X 0.750 WCI 3002803 Contact Us For Availability
19
Overlay,control WCI 309340802 Contact Us For Availability
19
WASHER,COMPRESSOR MTG WCI 5303002664 Contact Us For Availability
20
WCI 309643004 WCI 309643004 Contact Us For Availability
21
Washer,terminal cover WCI 5303293809 Contact Us For Availability
22
WCI 5304403252 WCI 5304403252 Contact Us For Availability
23
SCREW,23(T) ,10-32 X 0.310 WCI 3001806 Contact Us For Availability
24
SCREW,WOOD, TYPE 17 ,8-15 X 0.500 WCI 5308002974 Contact Us For Availability
25
WCI 309328603 WCI 309328603 Contact Us For Availability
26
WCI 309638201 WCI 309638201 Contact Us For Availability
26A
WCI 309330201 WCI 309330201 Contact Us For Availability
38
WCI 309646301 WCI 309646301 Contact Us For Availability
43
WCI 309646401 WCI 309646401 Contact Us For Availability
70
Enclosure,elec control mt WCI 309342201 Contact Us For Availability
71
PC Board,power WCI 309340503 Contact Us For Availability
72
PC Board,input ,11.5 MM display WCI 309340505 Contact Us For Availability
75
Support-pc board WCI 5304413781 Contact Us For Availability
76
Transformer,120/12 Volt WCI 309111601 Contact Us For Availability
78
Remote Control,transmitter ,with batteries WCI 309342604 Contact Us For Availability
NI
WCI 309639302 WCI 309639302 Contact Us For Availability
NI
WCI 309111201 WCI 309111201 Contact Us For Availability
NI
Screw,Ph truss hd ,8-18 x 0.38 ,grounding WCI 5303285199 Contact Us For Availability
NI
WCI 5304417643 WCI 5304417643 Contact Us For Availability
NI
WCI 309112501 WCI 309112501 Contact Us For Availability
NI
WCI 5303290357 WCI 5303290357 Contact Us For Availability
NI
Extension-frame,LH ,w/o accordian WCI 5304413847 Contact Us For Availability
NI
Frame,RH ,w/o accordian WCI 5304413848 Contact Us For Availability
× ![]()
