Model Electrolux FAC055J7A3 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
03 - CABINET FRONT AND WRAPPER

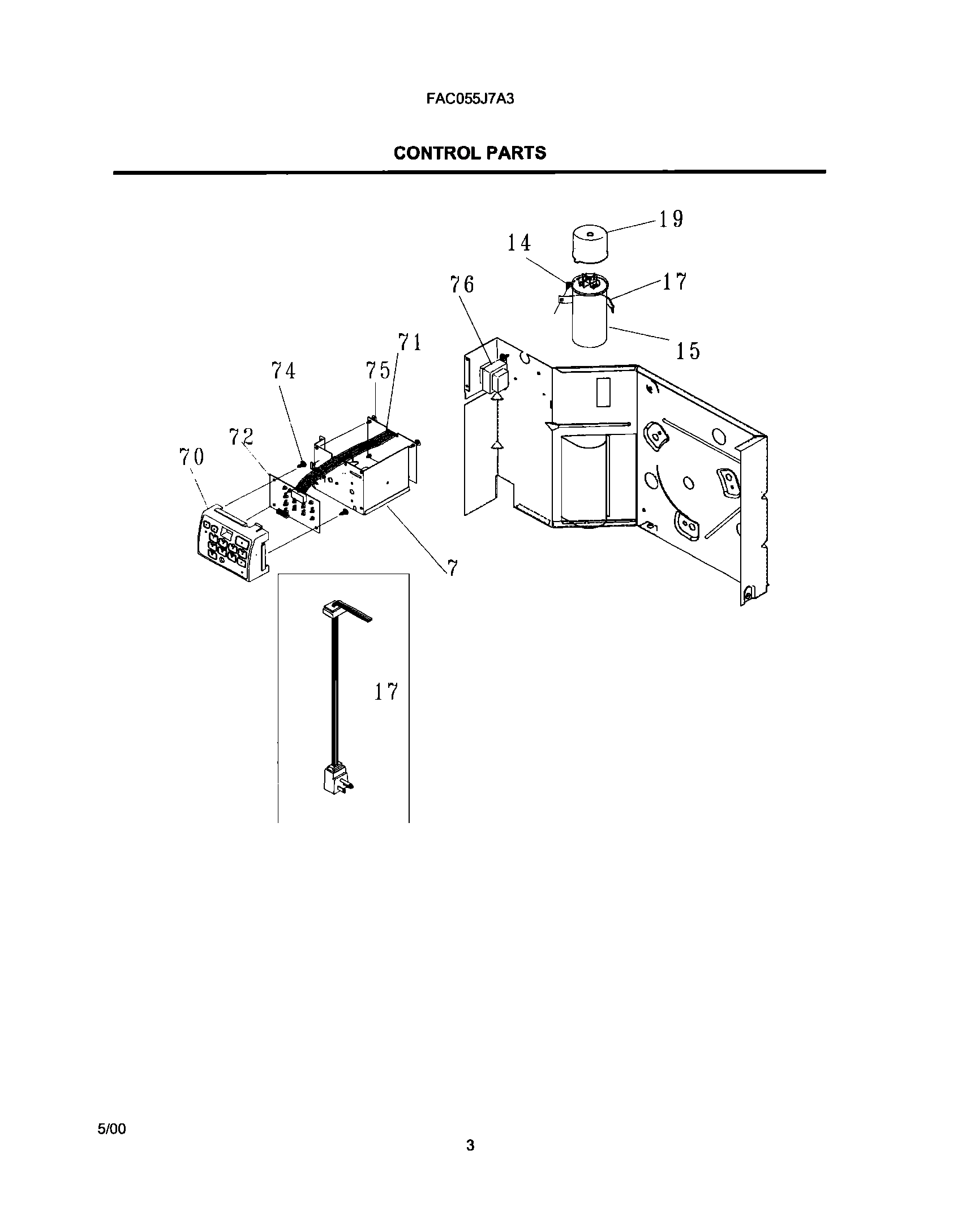

05 - CONTROL PARTS
07 - AIR HANDLING PARTS

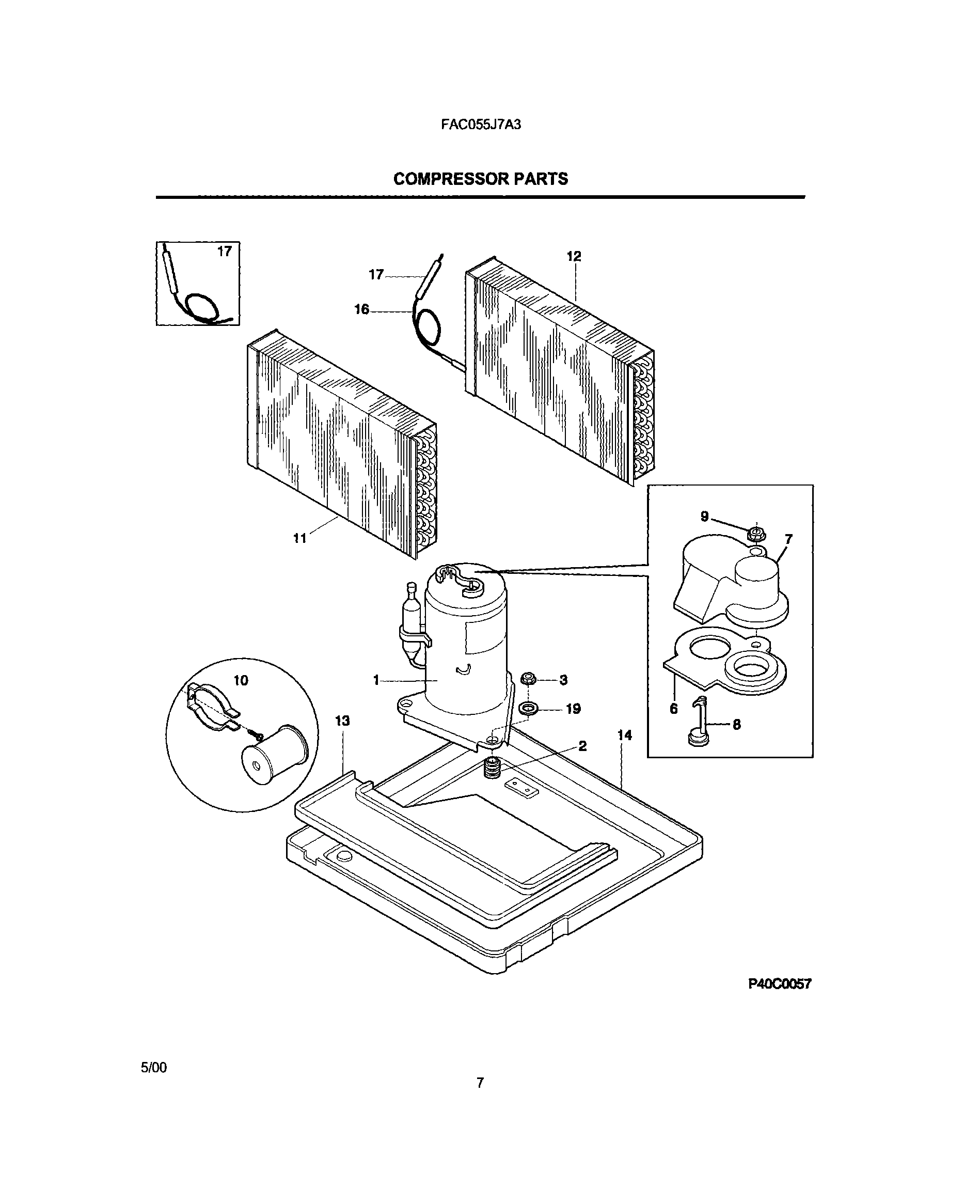

09 - COMPRESSOR PARTS

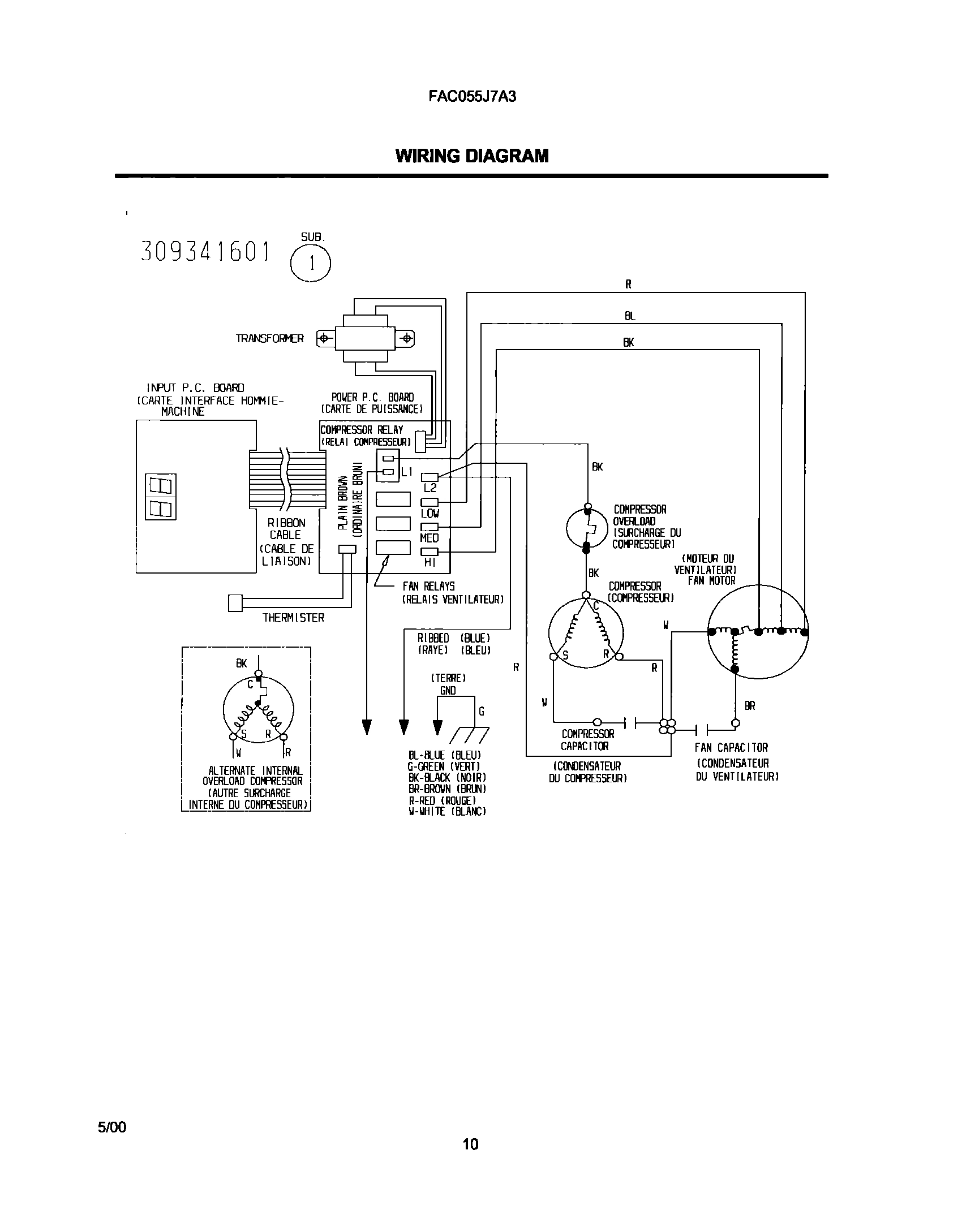

10 - WIRING DIAGRAM

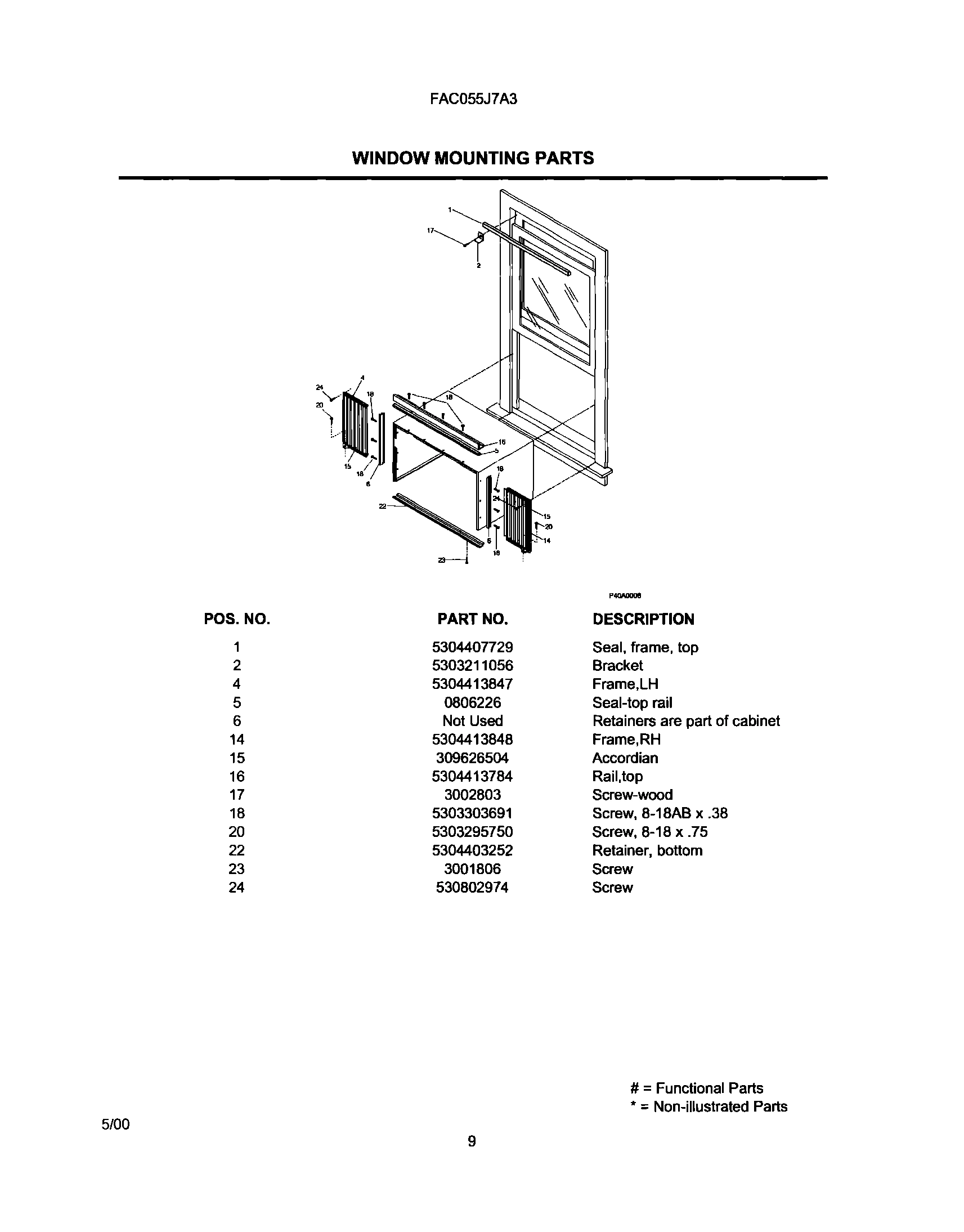

11 - WINDOW MOUNTING PARTS
Common parts from model Electrolux FAC055J7A3 ROOM AIR CONDITIONER
1
WCI 309624502 WCI 309624502 Contact Us For Availability
1
WCI 5304414117 WCI 5304414117 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
2A
SCREW,INDT HEX HEAD ,10-16 ,(3) WCI 5303317224 Contact Us For Availability
3
WCI 309624201 WCI 309624201 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
4
SEAL, CONDENSER WCI 5303270043 Contact Us For Availability
4
WCI 5304413847 WCI 5304413847 Contact Us For Availability
5
SEAL, TOP RAIL WCI 08016226 Contact Us For Availability
6
GROMMET-MOTOR, (3) WCI 5300105402 Contact Us For Availability
6
GASKET,TERMINAL COVER WCI 5303002035 Contact Us For Availability
7
WCI 309350301 WCI 309350301 Contact Us For Availability
7
COVER,COMPR TERMINAL WCI 3002034 Contact Us For Availability
8
WCI 309639301 WCI 309639301 Contact Us For Availability
8
Louver Assy,horizontal ,Incl-7,8,9 WCI 309640202 Contact Us For Availability
8
WCI 309615302 WCI 309615302 Contact Us For Availability
8
WCI 5304413778 WCI 5304413778 Contact Us For Availability
9
WCI 309342001 WCI 309342001 Contact Us For Availability
9
NUT,TERMINAL COVER WCI 5303301734 Contact Us For Availability
10
WCI 309602403 WCI 309602403 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
11
WCI 309617101 WCI 309617101 Contact Us For Availability
11
WCI 309604217 WCI 309604217 Contact Us For Availability
12
Filter-air,7.12 x 17.31 WCI 309343501 Contact Us For Availability
12
Holder-thermistor,assy with seal WCI 5304413782 Contact Us For Availability
12
WCI 309112101 WCI 309112101 Contact Us For Availability
12
WCI 309637601 WCI 309637601 Contact Us For Availability
13
WCI 5303316594 WCI 5303316594 Contact Us For Availability
13
WCI 5303302849 WCI 5303302849 Contact Us For Availability
14
WCI 5304413780 WCI 5304413780 Contact Us For Availability
14
WCI 5304413848 WCI 5304413848 Contact Us For Availability
15
WCI 5303303086 WCI 5303303086 Contact Us For Availability
15
WCI 5304407653 WCI 5304407653 Contact Us For Availability
15
WCI 309626504 WCI 309626504 Contact Us For Availability
16
WCI 309100201 WCI 309100201 Contact Us For Availability
16
CAPILLARY TUBE,CUT-TO-SIZE WCI 5303289577 Contact Us For Availability
16
WCI 5304417362 WCI 5304417362 Contact Us For Availability
17
Front-cabinet,4 way ,complete assy WCI 309640102 Contact Us For Availability
17
SCREW,WOOD, TYPE 17 ,10-12 X 0.750 WCI 3002803 Contact Us For Availability
17No.
Cord-service WCI 309343101 Contact Us For Availability
19
Overlay-compact WCI 309340802 Contact Us For Availability
19
WCI 5303302855 WCI 5303302855 Contact Us For Availability
19
WASHER,COMPRESSOR MTG WCI 5303002664 Contact Us For Availability
20
PLATE-BLOWER HOUSING,SCROLL PLATE WCI 5304407654 Contact Us For Availability
20
SPRING-OVERLOAD WCI 5303002036 Contact Us For Availability
20
SCREW,PAN HEAD ,8-18 X 0.750 WCI 5303295750 Contact Us For Availability
21
WASHER,TERMINAL COVER WCI 5303295516 Contact Us For Availability
22
RETAINER,BOTTOM WCI 5304403252 Contact Us For Availability
23
SCREW,23(T) ,10-32 X 0.310 WCI 3001806 Contact Us For Availability
24
SCREW,WOOD, TYPE 17 ,8-15 X 0.500 WCI 5308002974 Contact Us For Availability
25
WCI 309328601 WCI 309328601 Contact Us For Availability
26
Handle,vent door WCI 309639401 Contact Us For Availability
38
WCI 309639201 WCI 309639201 Contact Us For Availability
43
WCI 309639101 WCI 309639101 Contact Us For Availability
70
Enclosure,elec control mt WCI 309342201 Contact Us For Availability
71
PC Board,power WCI 309340503 Contact Us For Availability
72
PC Board,input ,11.5 MM display WCI 309340505 Contact Us For Availability
75
Support-pc board WCI 5304413781 Contact Us For Availability
76
Transformer,120/12 Volt WCI 309111601 Contact Us For Availability
78
WCI 309350502 WCI 309350502 Contact Us For Availability
NI
WCI 309330201 WCI 309330201 Contact Us For Availability
NI
WCI 309111201 WCI 309111201 Contact Us For Availability
NI
DIAGRAM-WIRING WCI 309341601 Contact Us For Availability
NI
Holder-thermistor,without seal WCI 5304414108 Contact Us For Availability
NI
WCI 5304417643 WCI 5304417643 Contact Us For Availability
NI
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
× ![]()
