Model Electrolux FAC054K7A6 ROOM AIR CONDITIONER – Common Parts & Diagrams

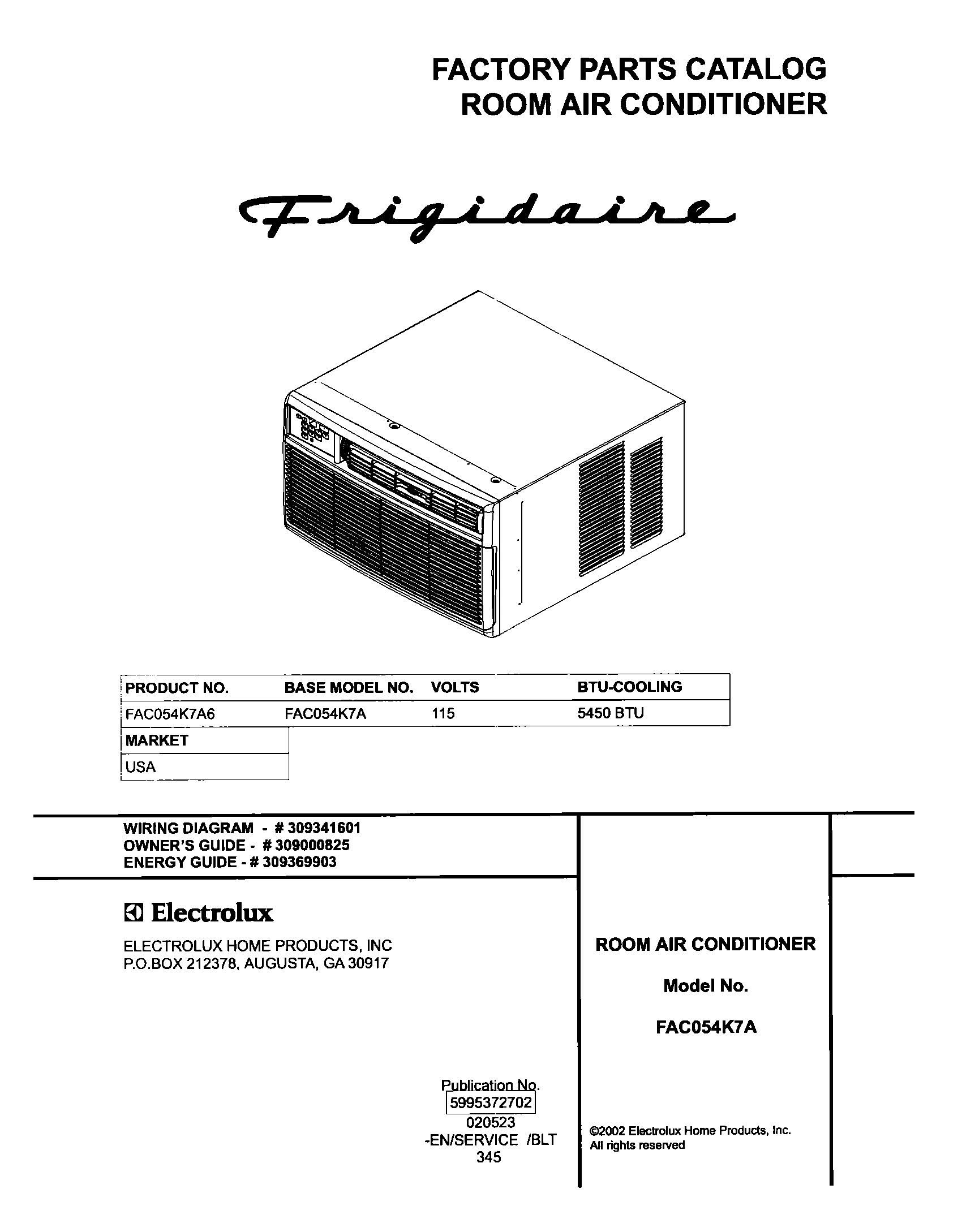

01 - COVER

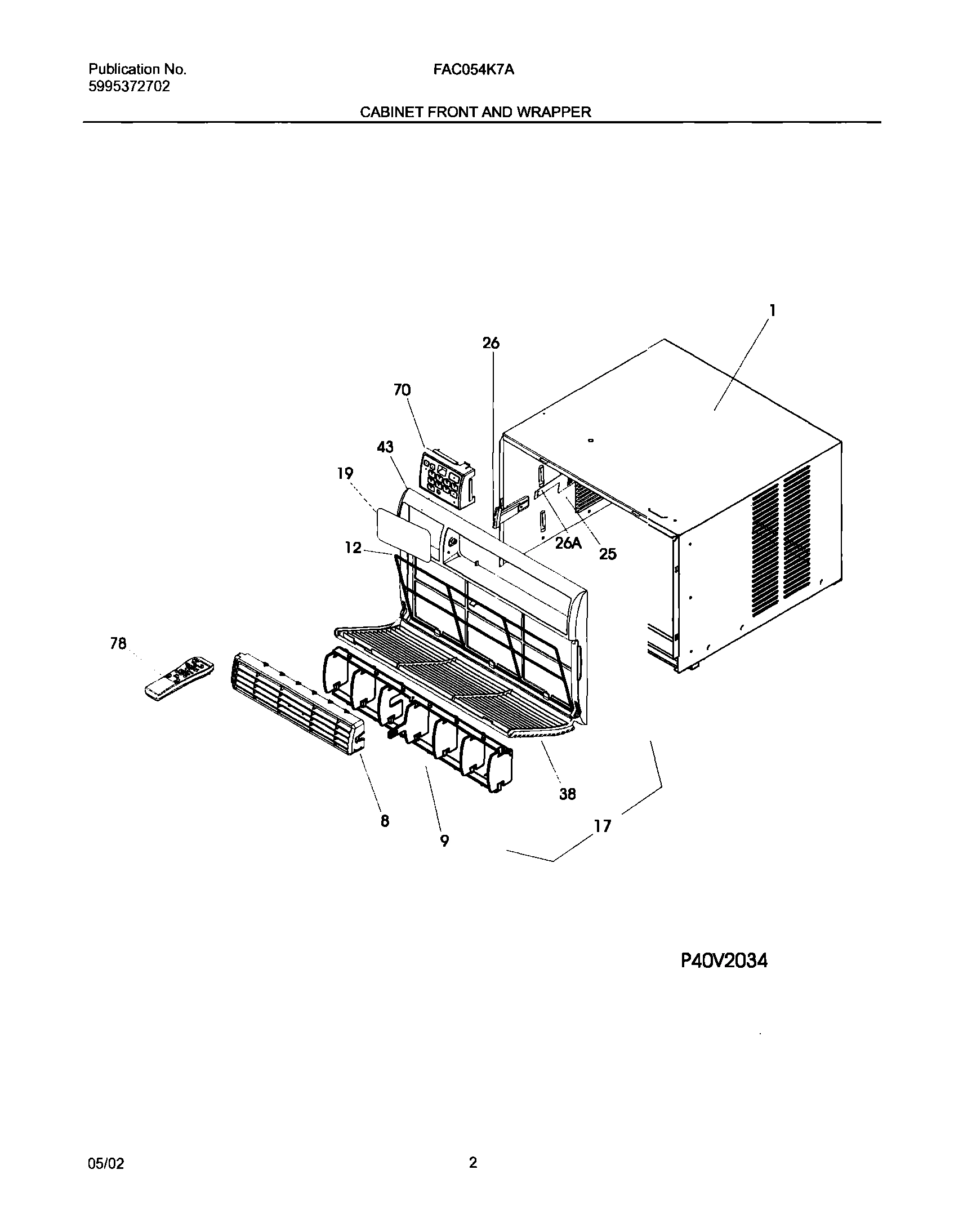

03 - CABINET FRONT AND WRAPPER

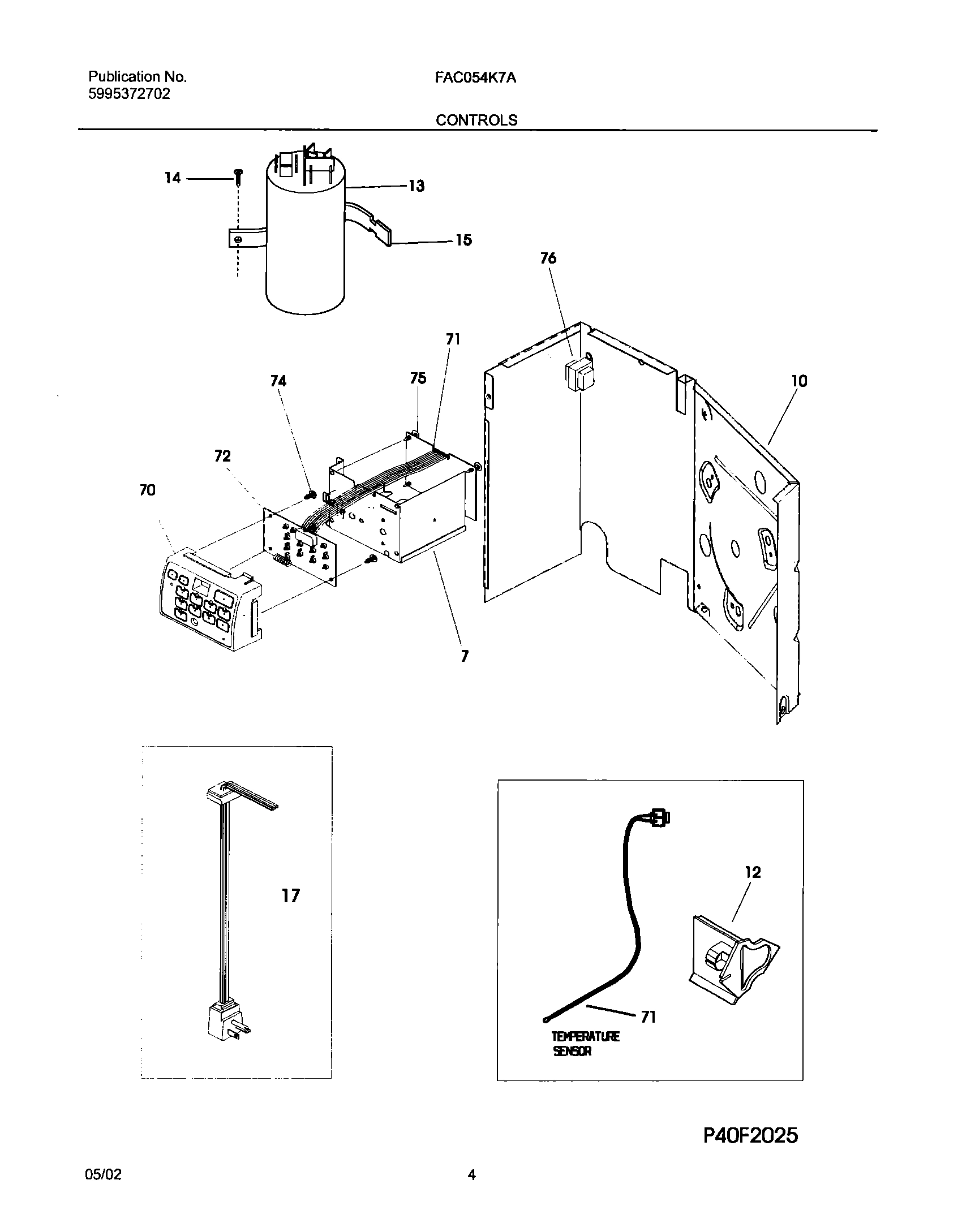

05 - CONTROLS

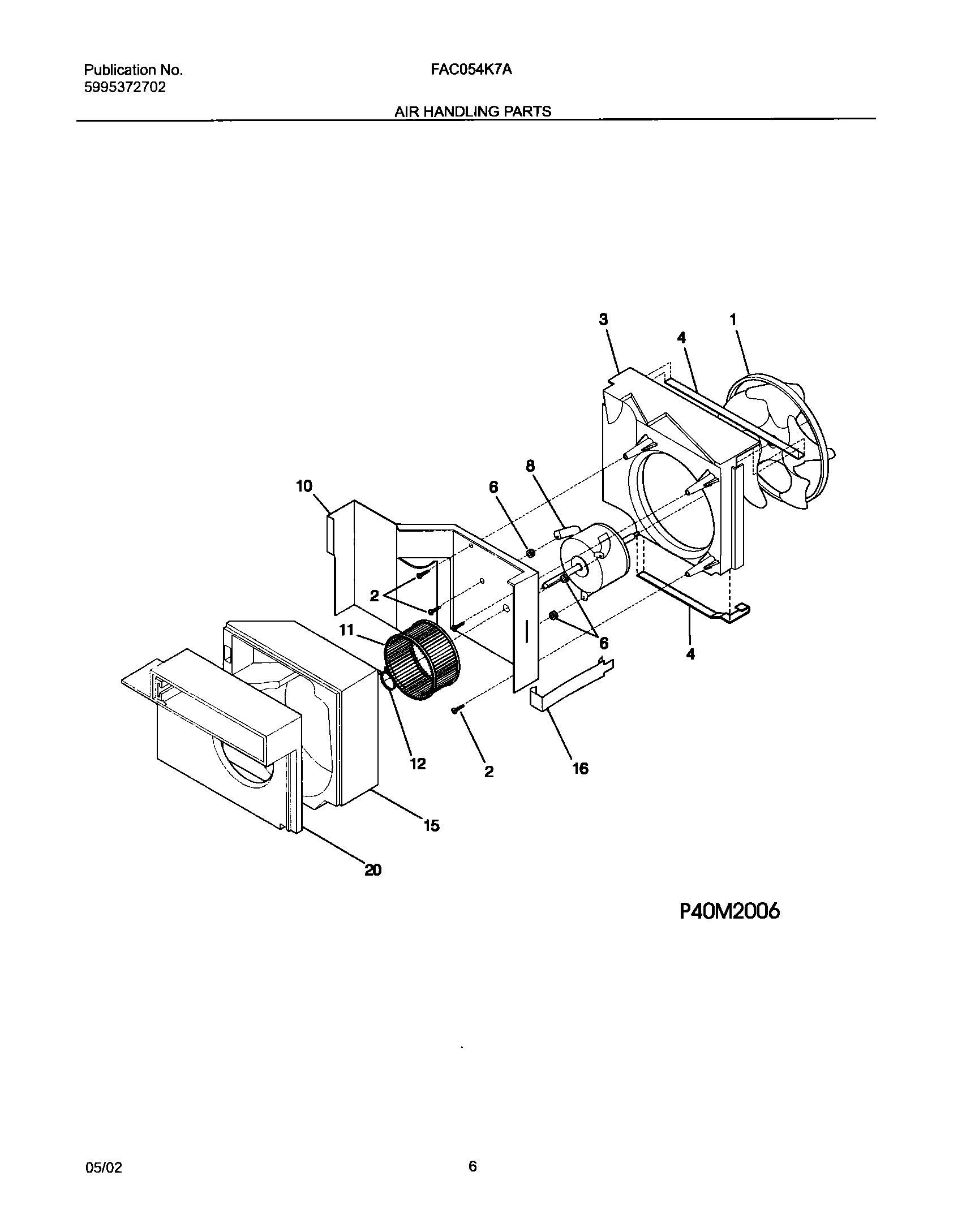

07 - AIR HANDLING PARTS

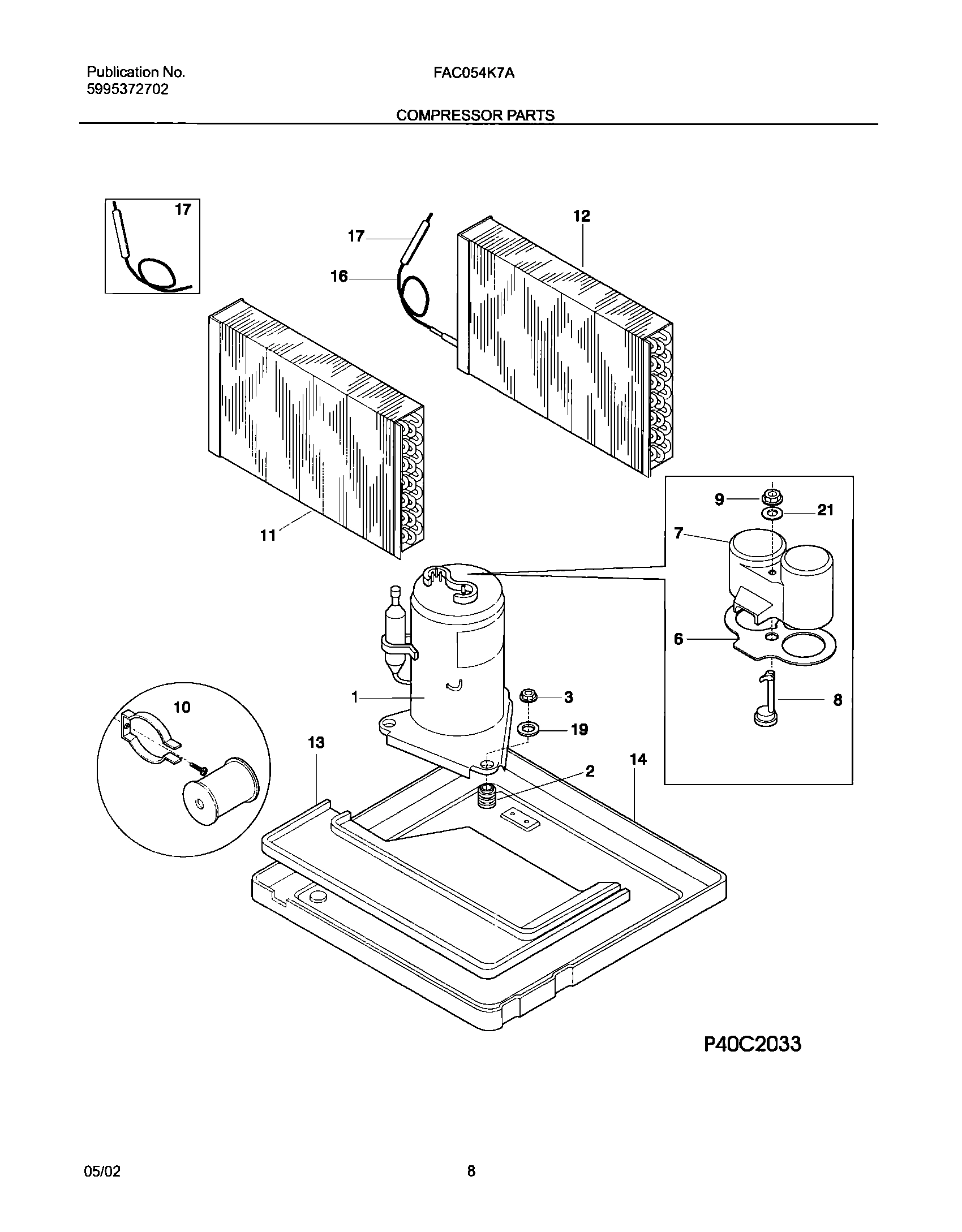

09 - COMPRESSOR PARTS

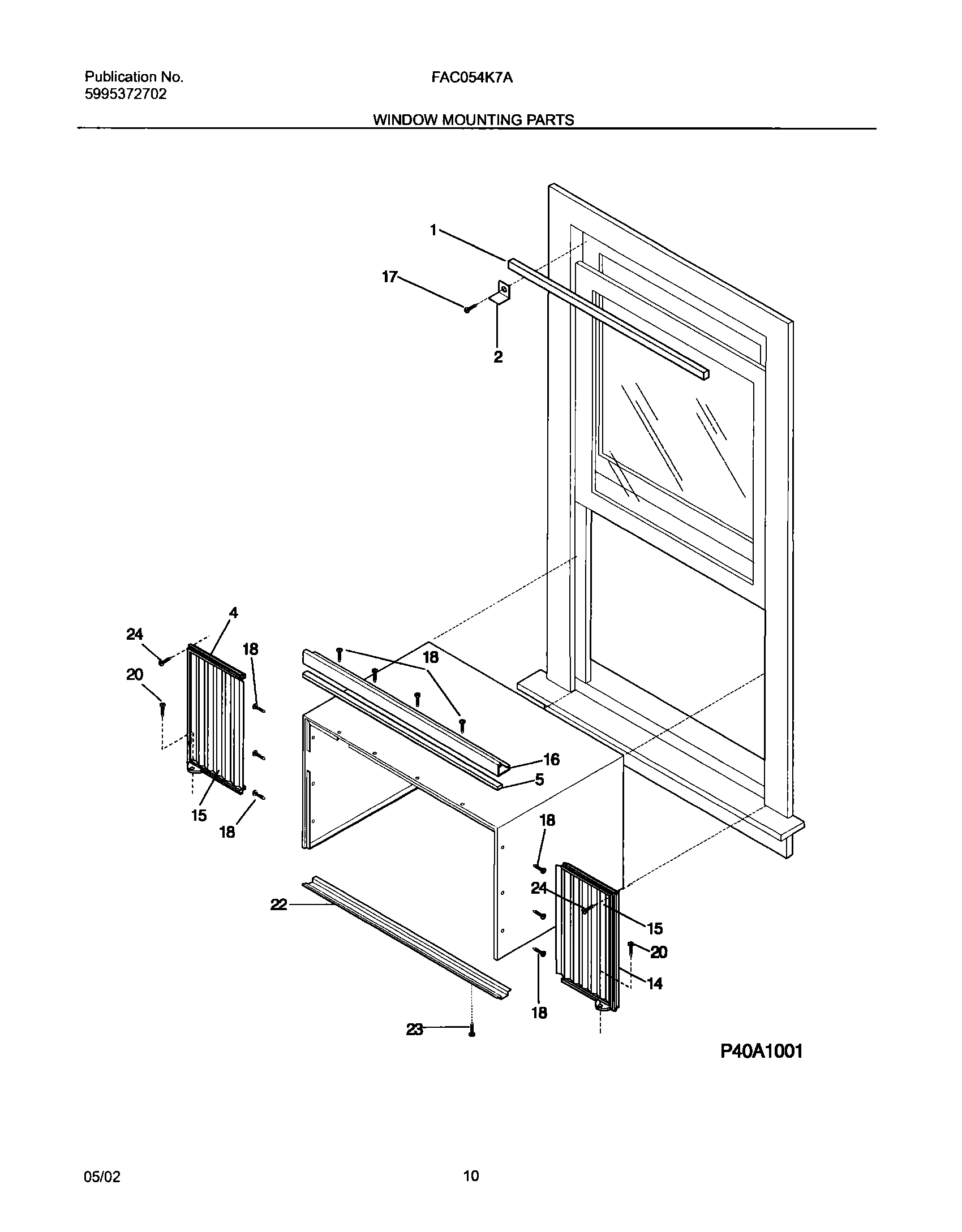

11 - WINDOW MOUNTING PARTS

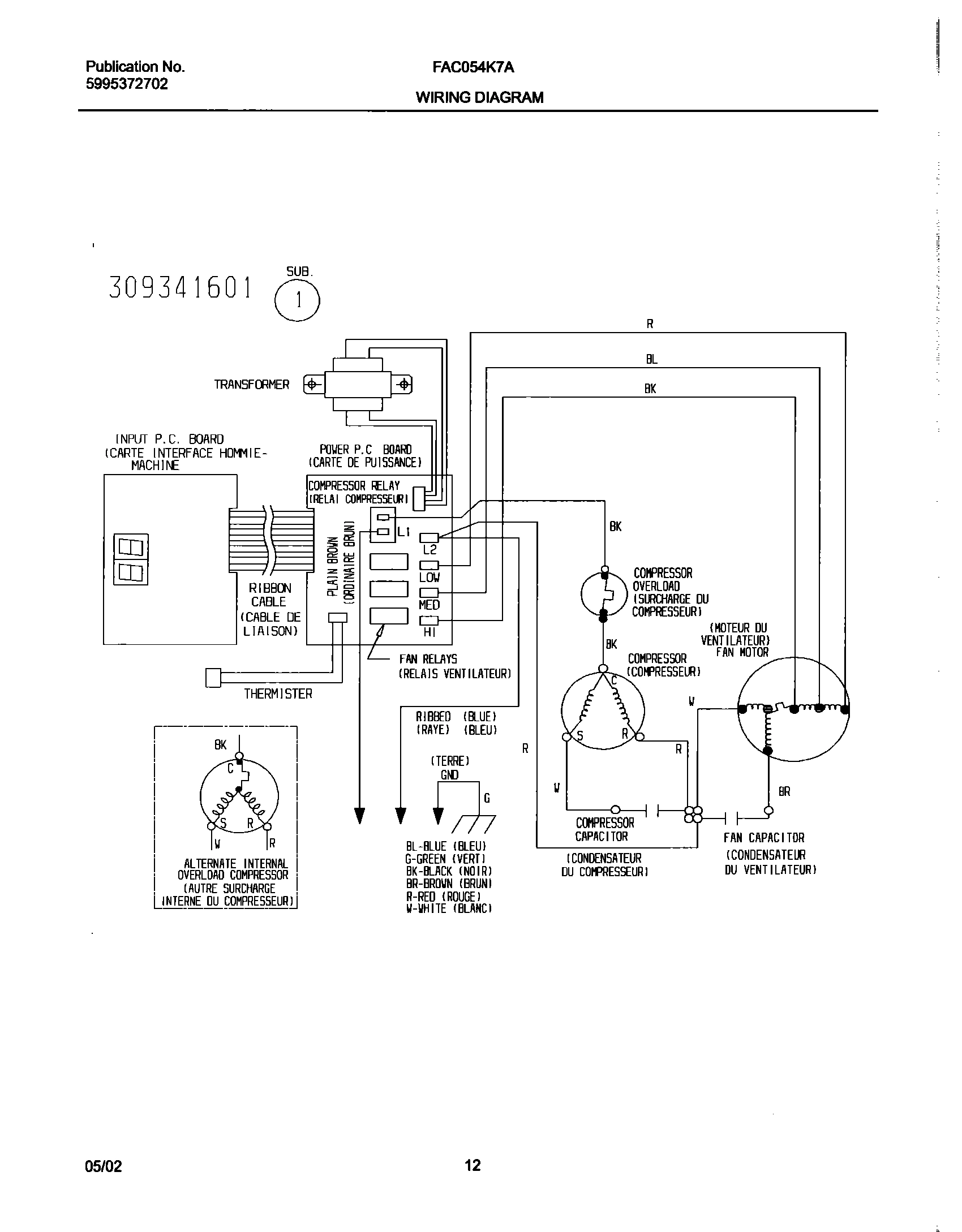

12 - WIRING DIAGRAM
Common parts from model Electrolux FAC054K7A6 ROOM AIR CONDITIONER
1
WCI 309624506 WCI 309624506 Contact Us For Availability
1
WCI 5304417319 WCI 5304417319 Contact Us For Availability
2
BRACKET-SASH LOCK WCI 5303211056 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
3
WCI 309624201 WCI 309624201 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
4
SEAL, CONDENSER WCI 5303270043 Contact Us For Availability
4
WCI 5303303759 WCI 5303303759 Contact Us For Availability
4
WCI 309644901 WCI 309644901 Contact Us For Availability
5
Seal,top rail/cab WCI 08016226 Contact Us For Availability
6
WCI 08007481 WCI 08007481 Contact Us For Availability
6
Gasket,terminal cover WCI 5303291330 Contact Us For Availability
7
WCI 309350301 WCI 309350301 Contact Us For Availability
7
WCI 5304416126 WCI 5304416126 Contact Us For Availability
8
WCI 309640204 WCI 309640204 Contact Us For Availability
8
WCI 309642701 WCI 309642701 Contact Us For Availability
8
WCI 5304417320 WCI 5304417320 Contact Us For Availability
9
WCI 309647201 WCI 309647201 Contact Us For Availability
9
Nut-terminal cover WCI 5303294292 Contact Us For Availability
10
WCI 309602404 WCI 309602404 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
11
WCI 309631702 WCI 309631702 Contact Us For Availability
11
WCI 309604223 WCI 309604223 Contact Us For Availability
12
WCI 309343501 WCI 309343501 Contact Us For Availability
12
WCI 5304413782 WCI 5304413782 Contact Us For Availability
12
Holder-thermistor,without seal WCI 5304414108 Contact Us For Availability
12
WCI 327161302 WCI 327161302 Contact Us For Availability
12
WCI 5303302850 WCI 5303302850 Contact Us For Availability
13
WCI 5304427231 WCI 5304427231 Contact Us For Availability
13
WCI 5303302849 WCI 5303302849 Contact Us For Availability
14
WCI 5304413780 WCI 5304413780 Contact Us For Availability
14
Frame,cab extension ,RH WCI 5304414121 Contact Us For Availability
15
WCI 5303303086 WCI 5303303086 Contact Us For Availability
15
WCI 5304407653 WCI 5304407653 Contact Us For Availability
15
Closure,accordian type ,window mount WCI 309626504 Contact Us For Availability
16
Clip,evap/bulkhead WCI 309100201 Contact Us For Availability
16
Capillary Tube,45 inch long ,cut to length WCI 5308017120 Contact Us For Availability
16
Rail,retainer ,top WCI 5304417362 Contact Us For Availability
17
Front-cabinet,4 way ,complete assy WCI 309640104 Contact Us For Availability
17
WCI 309343101 WCI 309343101 Contact Us For Availability
17
SCREW,WOOD, TYPE 17 ,10-12 X 0.750 WCI 3002803 Contact Us For Availability
19
Overlay WCI 309340803 Contact Us For Availability
19
WASHER,COMPRESSOR MTG WCI 5303002664 Contact Us For Availability
20
PLATE-BLOWER HOUSING,SCROLL PLATE WCI 5304407654 Contact Us For Availability
21
Washer,terminal cover WCI 5303293809 Contact Us For Availability
22
WCI 5304403252 WCI 5304403252 Contact Us For Availability
23
SCREW,23(T) ,10-32 X 0.310 WCI 3001806 Contact Us For Availability
24
SCREW,WOOD, TYPE 17 ,8-15 X 0.500 WCI 5308002974 Contact Us For Availability
25
WCI 309328601 WCI 309328601 Contact Us For Availability
26
WCI 309638201 WCI 309638201 Contact Us For Availability
26A
WCI 309330201 WCI 309330201 Contact Us For Availability
38
WCI 309646301 WCI 309646301 Contact Us For Availability
43
WCI 309646401 WCI 309646401 Contact Us For Availability
70
Enclosure,elec control mt WCI 309342201 Contact Us For Availability
71
PC Board,power WCI 309340503 Contact Us For Availability
72
PC Board,input ,11.5 MM display WCI 309340505 Contact Us For Availability
75
Support-pc board WCI 5304413781 Contact Us For Availability
76
Transformer,120/12 Volt WCI 309111601 Contact Us For Availability
78
Remote Control,transmitter ,with batteries WCI 309342604 Contact Us For Availability
NI
WCI 309639302 WCI 309639302 Contact Us For Availability
NI
WCI 309111201 WCI 309111201 Contact Us For Availability
NI
Screw,Ph truss hd ,8-18 x 0.38 ,grounding WCI 5303285199 Contact Us For Availability
NI
WCI 5303302855 WCI 5303302855 Contact Us For Availability
NI
WCI 5304417643 WCI 5304417643 Contact Us For Availability
NI
WCI 309112501 WCI 309112501 Contact Us For Availability
NI
WCI 5303290357 WCI 5303290357 Contact Us For Availability
NI
Extension-frame,LH ,w/o accordian WCI 5304413847 Contact Us For Availability
NI
Frame,RH ,w/o accordian WCI 5304413848 Contact Us For Availability
× ![]()
