Model Electrolux FAC052K7A6 ROOM AIR CONDITIONER – Common Parts & Diagrams

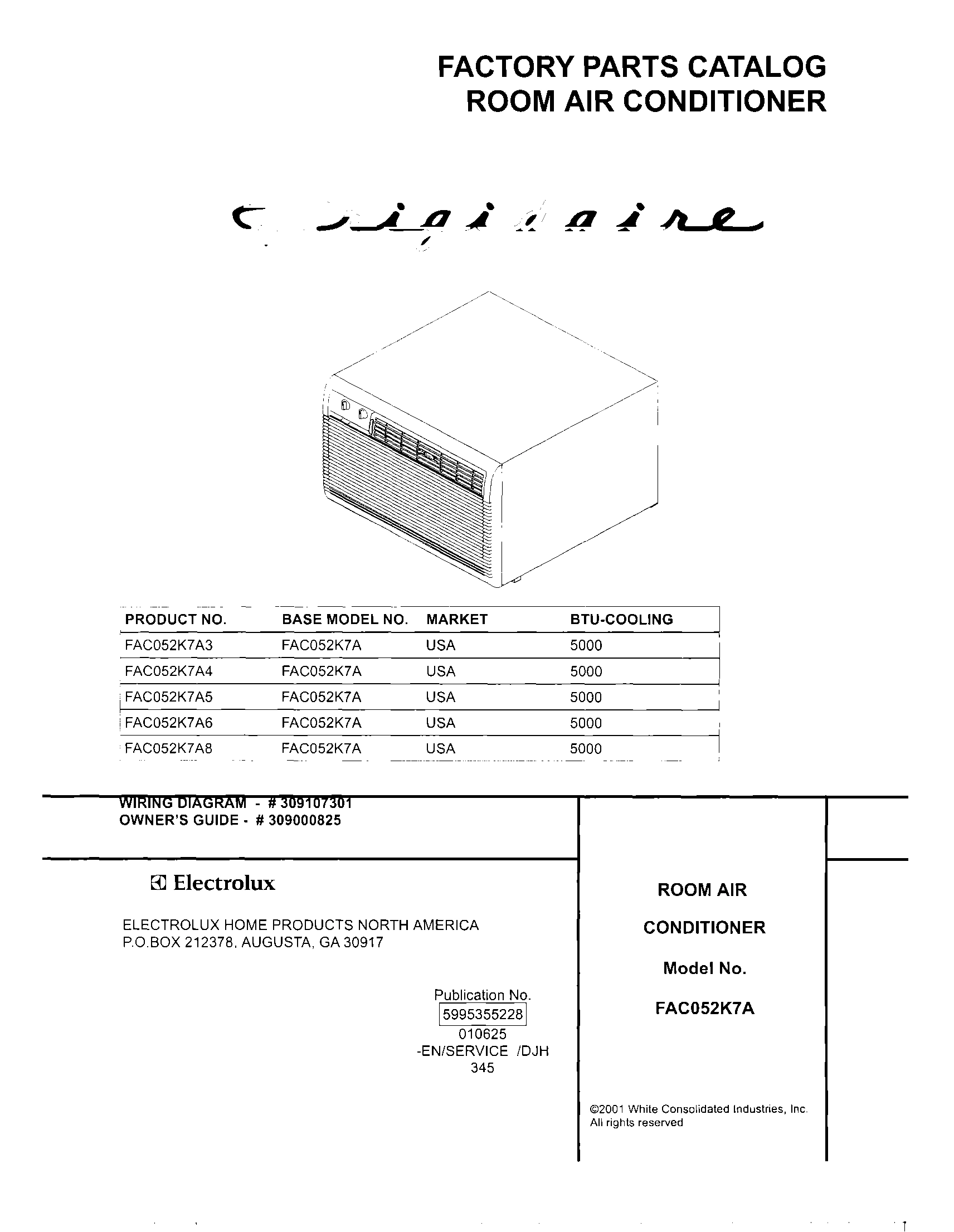

01 - COVER

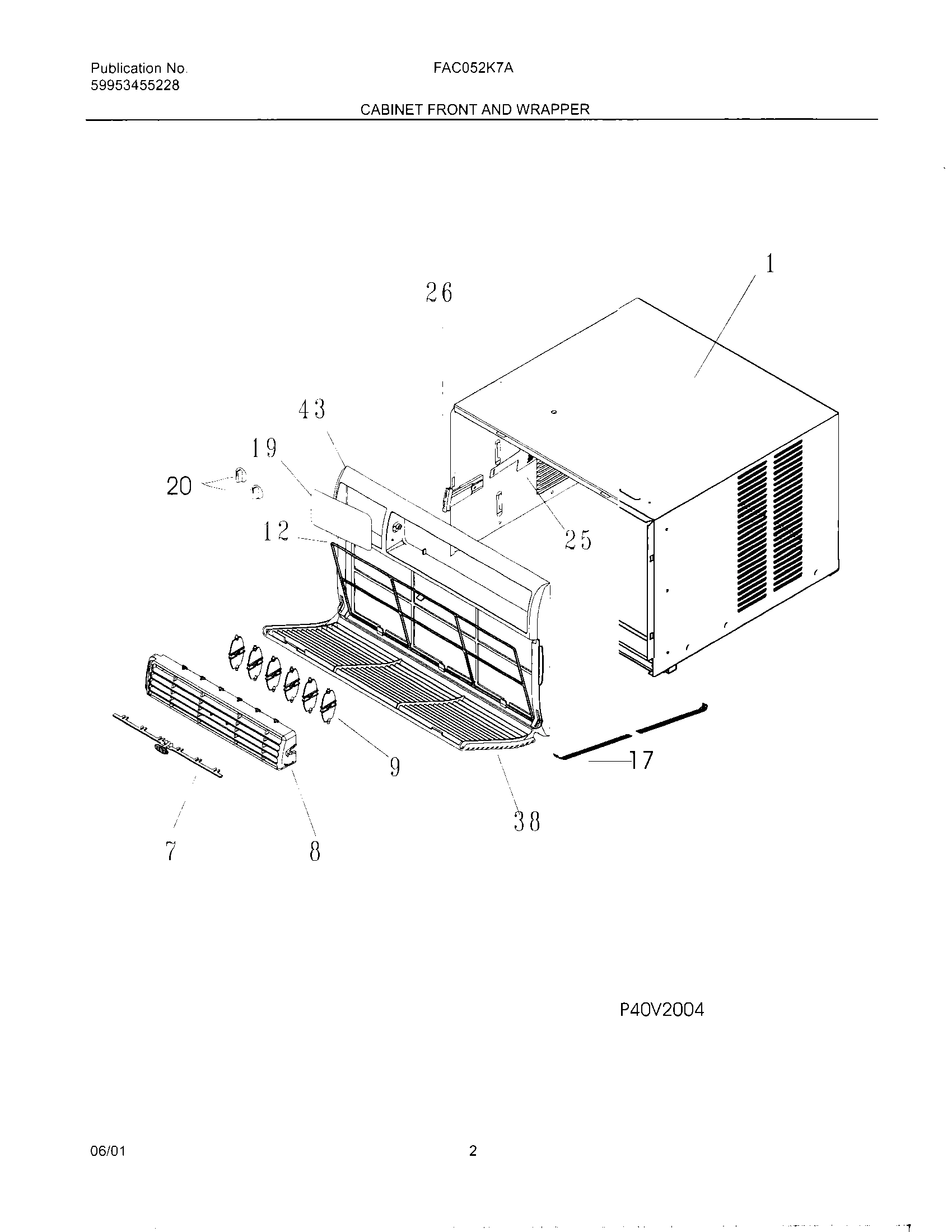

03 - WRAPPER

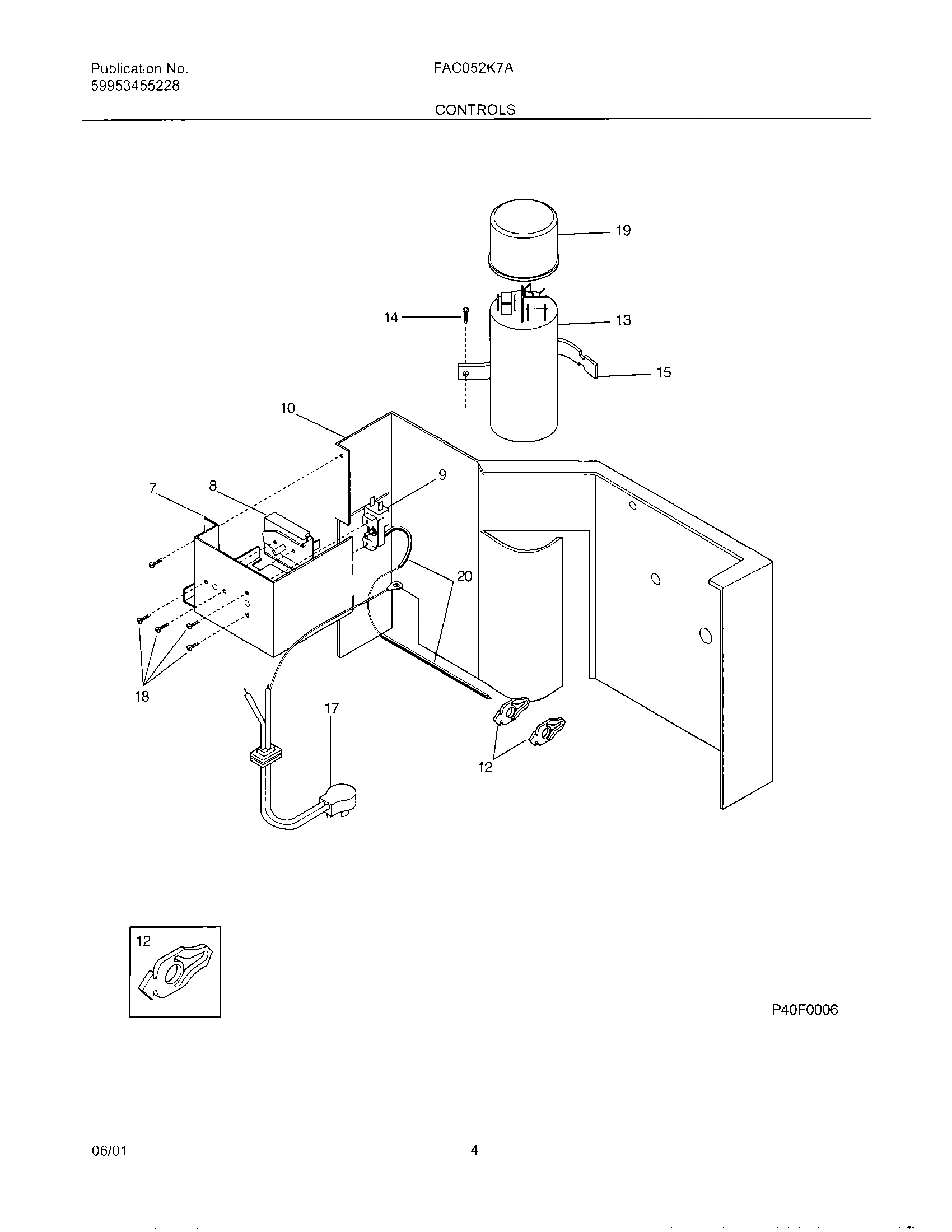

05 - CONTROLS

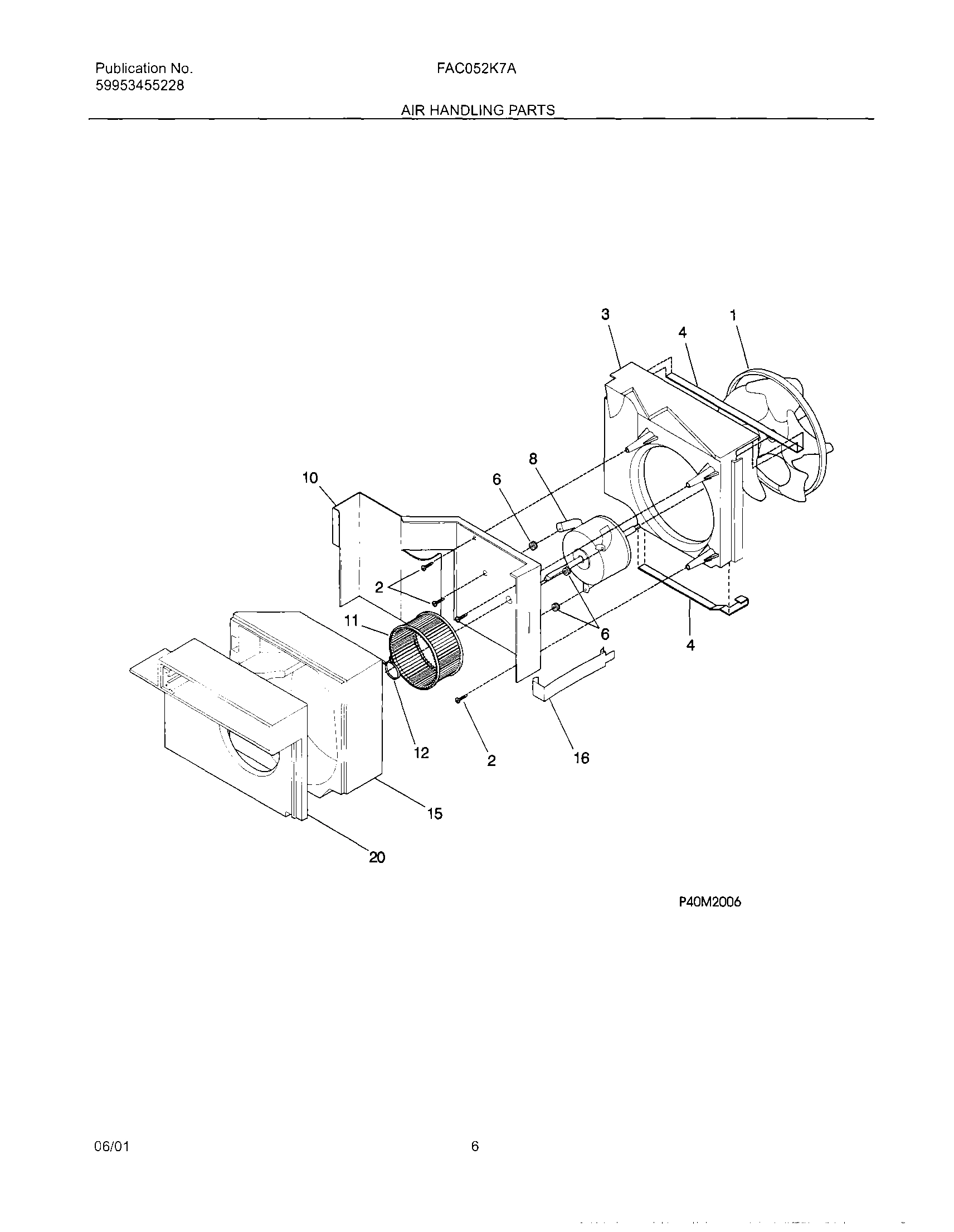

07 - AIR HANDLING

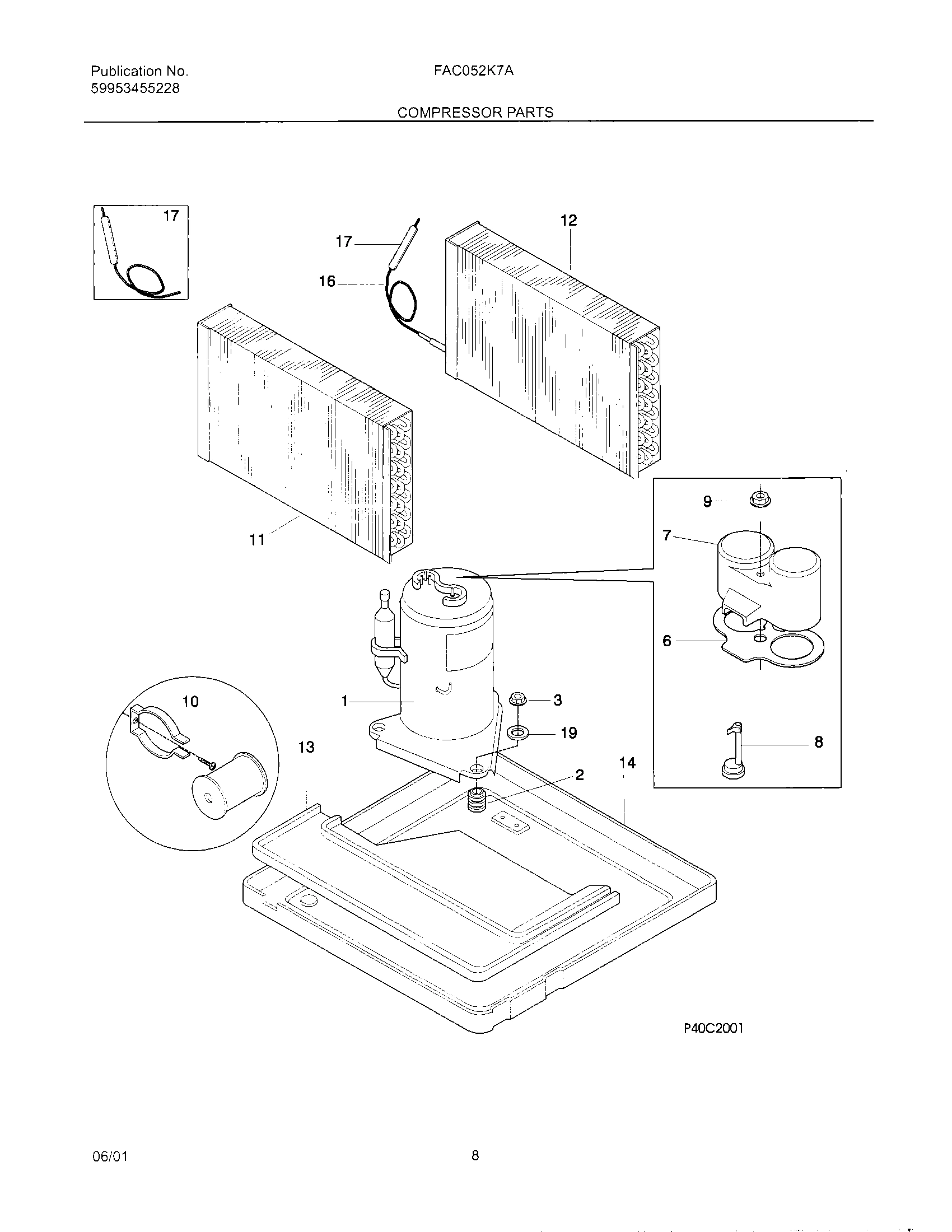

09 - SYSTEM

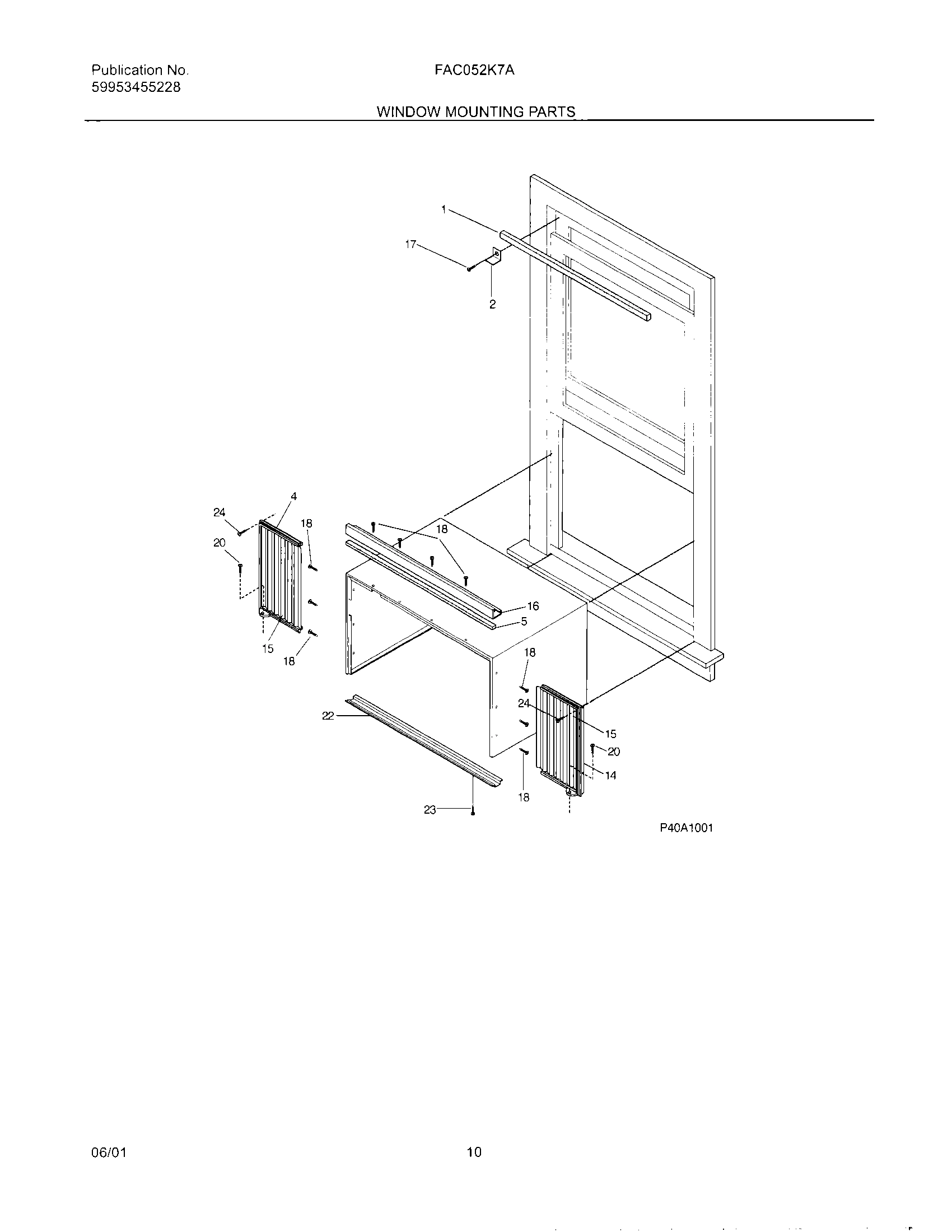

11 - WINDOW MOUNTING

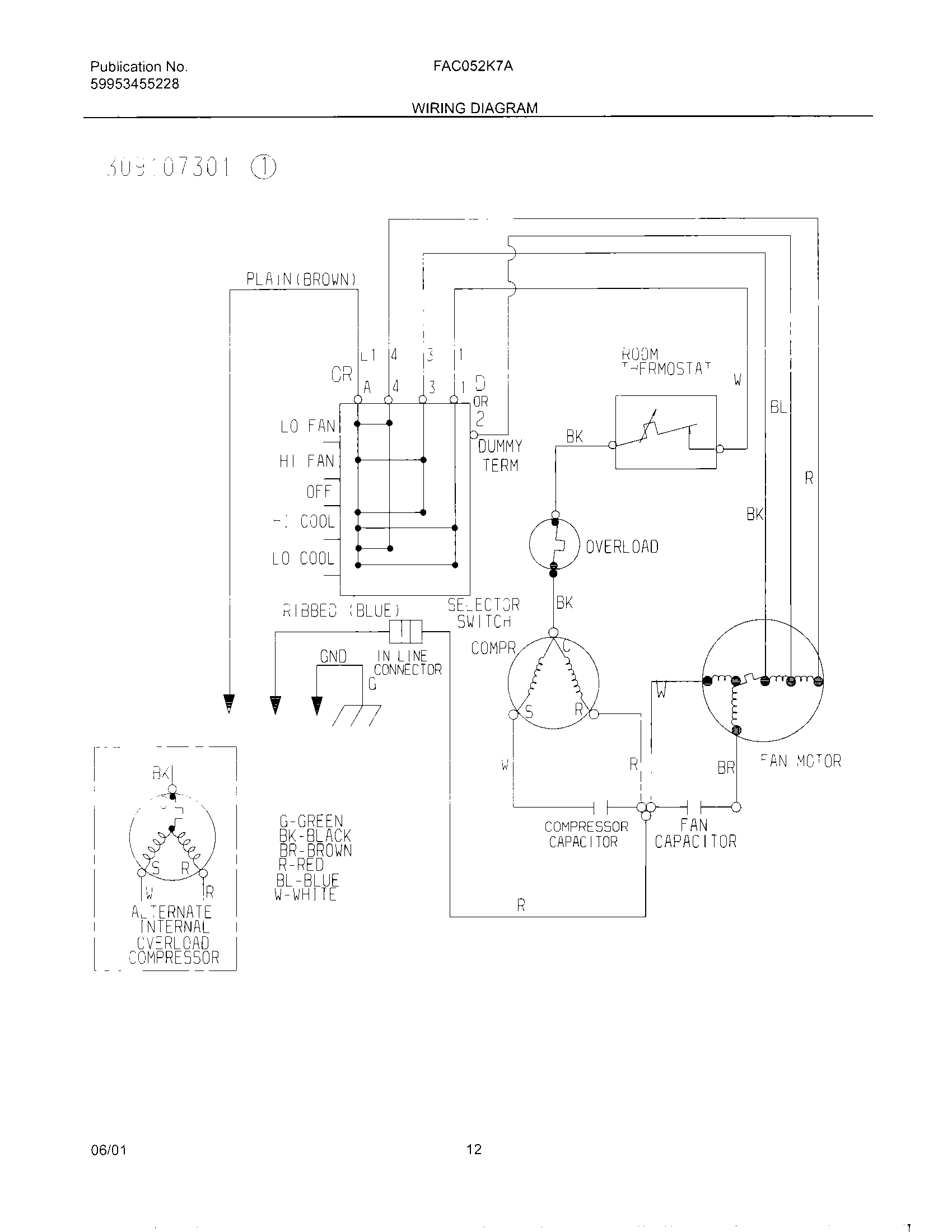

12 - WIRING DIAGRAM
Common parts from model Electrolux FAC052K7A6 ROOM AIR CONDITIONER
1
WCI 309624502 WCI 309624502 Contact Us For Availability
1
WCI 5304417319 WCI 5304417319 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
3
WCI 309643901 WCI 309643901 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
4
Seal-condenser top WCI 5304421913 Contact Us For Availability
4
WCI 5304423359 WCI 5304423359 Contact Us For Availability
4
Frame-extention assy,L.H WCI 5304423372 Contact Us For Availability
5
SEAL, TOP RAIL WCI 08016226 Contact Us For Availability
6
GROMMET-MOTOR, (3) WCI 5300105402 Contact Us For Availability
6
Gasket,terminal cover WCI 5303291330 Contact Us For Availability
7
WCI 309643802 WCI 309643802 Contact Us For Availability
7
Cover-terminal,compressor WCI 5304416126 Contact Us For Availability
8
WCI 309639301 WCI 309639301 Contact Us For Availability
8
Switch-selector,5 position WCI 5304410837 Contact Us For Availability
8
WCI 309642405 WCI 309642405 Contact Us For Availability
8
WCI 5304417320 WCI 5304417320 Contact Us For Availability
9
WCI 309342001 WCI 309342001 Contact Us For Availability
9
WCI 5304402838 WCI 5304402838 Contact Us For Availability
9
Nut-terminal cover WCI 5303294292 Contact Us For Availability
10
WCI 309643701 WCI 309643701 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
11
WCI 309643301 WCI 309643301 Contact Us For Availability
11
WCI 309637403 WCI 309637403 Contact Us For Availability
12
WCI 309343501 WCI 309343501 Contact Us For Availability
12
WCI 309101202 WCI 309101202 Contact Us For Availability
12
WCI 309112101 WCI 309112101 Contact Us For Availability
12
WCI 309637603 WCI 309637603 Contact Us For Availability
13
WCI 5304423280 WCI 5304423280 Contact Us For Availability
13
WCI 309642801 WCI 309642801 Contact Us For Availability
14
WCI 309644001 WCI 309644001 Contact Us For Availability
14
Frame-extention assy,RH WCI 5304423373 Contact Us For Availability
15
Closure-accordion,LH/RH WCI 309645501 Contact Us For Availability
15
WCI 309351901 WCI 309351901 Contact Us For Availability
15
WCI 309642901 WCI 309642901 Contact Us For Availability
16
WCI 309100201 WCI 309100201 Contact Us For Availability
16
TUBE-cappillary WCI 5304423363 Contact Us For Availability
16
WCI 5304417362 WCI 5304417362 Contact Us For Availability
17
Front-cabinet,4 way ,complete assy WCI 309640102 Contact Us For Availability
17
WCI 309343101 WCI 309343101 Contact Us For Availability
17
WCI 5304413857 WCI 5304413857 Contact Us For Availability
17
SCREW,WOOD, TYPE 17 ,10-12 X 0.750 WCI 3002803 Contact Us For Availability
18
SCREW,6-32 X 0.188 WCI 5303007754 Contact Us For Availability
19
Dial Plate WCI 309342902 Contact Us For Availability
19
WASHER,COMPRESSOR MTG WCI 5303002664 Contact Us For Availability
20
Knob-control,rotary WCI 309306811 Contact Us For Availability
20
SLEEVE, CONTROL WCI 5303002600 Contact Us For Availability
20
WCI 309643003 WCI 309643003 Contact Us For Availability
20
SCREW,PAN HEAD ,8-18 X 0.750 WCI 5303295750 Contact Us For Availability
22
RETAINER,BOTTOM WCI 5304403252 Contact Us For Availability
23
SCREW,23(T) ,10-32 X 0.310 WCI 3001806 Contact Us For Availability
24
SCREW,WOOD, TYPE 17 ,8-15 X 0.500 WCI 5308002974 Contact Us For Availability
38
WCI 309639201 WCI 309639201 Contact Us For Availability
43
WCI 309639101 WCI 309639101 Contact Us For Availability
NI
Louver Assy,horizontal ,Incl-7,8,9 WCI 309640202 Contact Us For Availability
NI
WCI 309111201 WCI 309111201 Contact Us For Availability
NI
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
NI
WCI 309112501 WCI 309112501 Contact Us For Availability
NI
WASHER WCI 5303293809 Contact Us For Availability
NI
Extension-frame,LH ,w/accordian WCI 5304414120 Contact Us For Availability
× ![]()
