Model Electrolux FAC052J7A3 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER

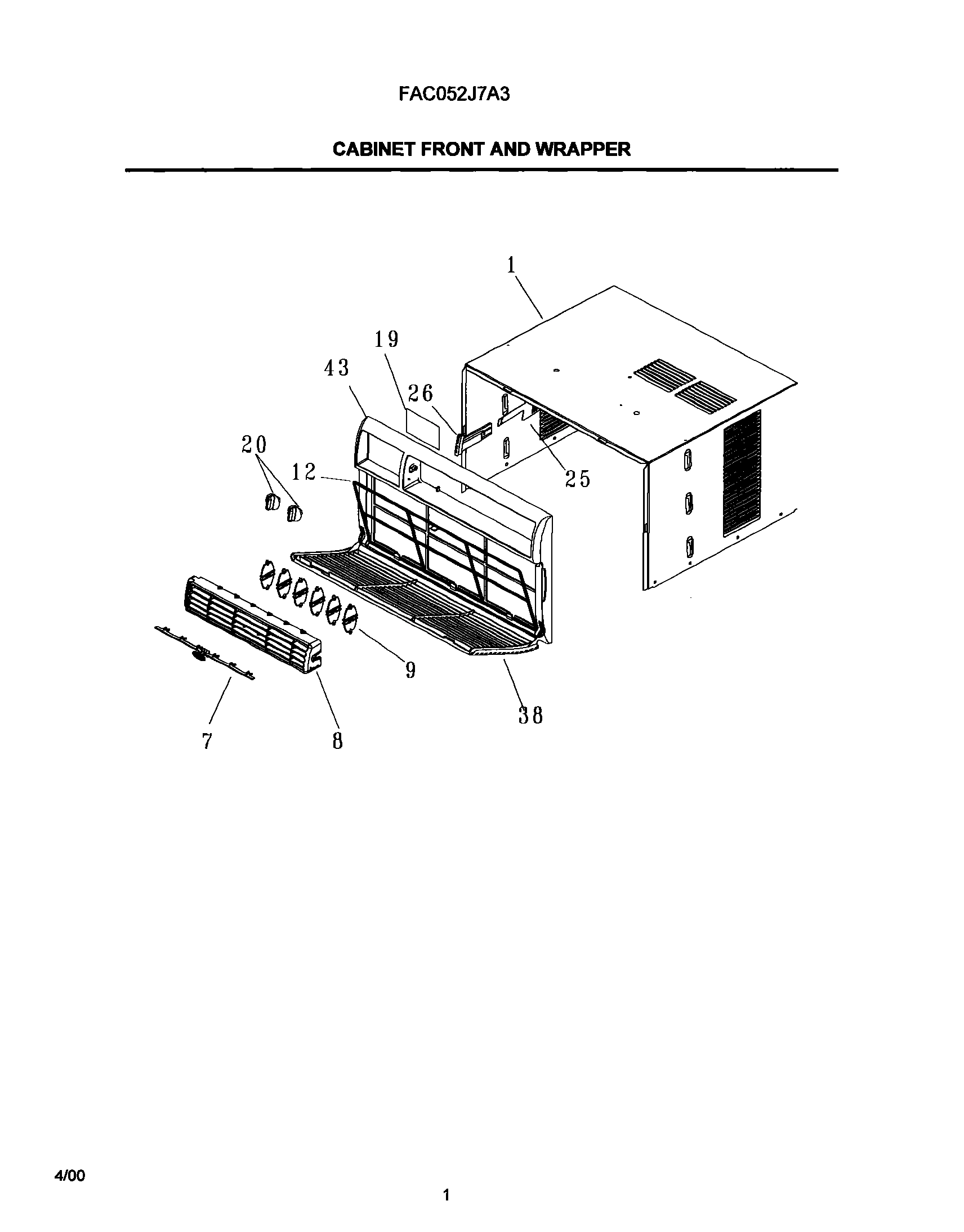

02 - CABINET FRONT AND WRAPPER

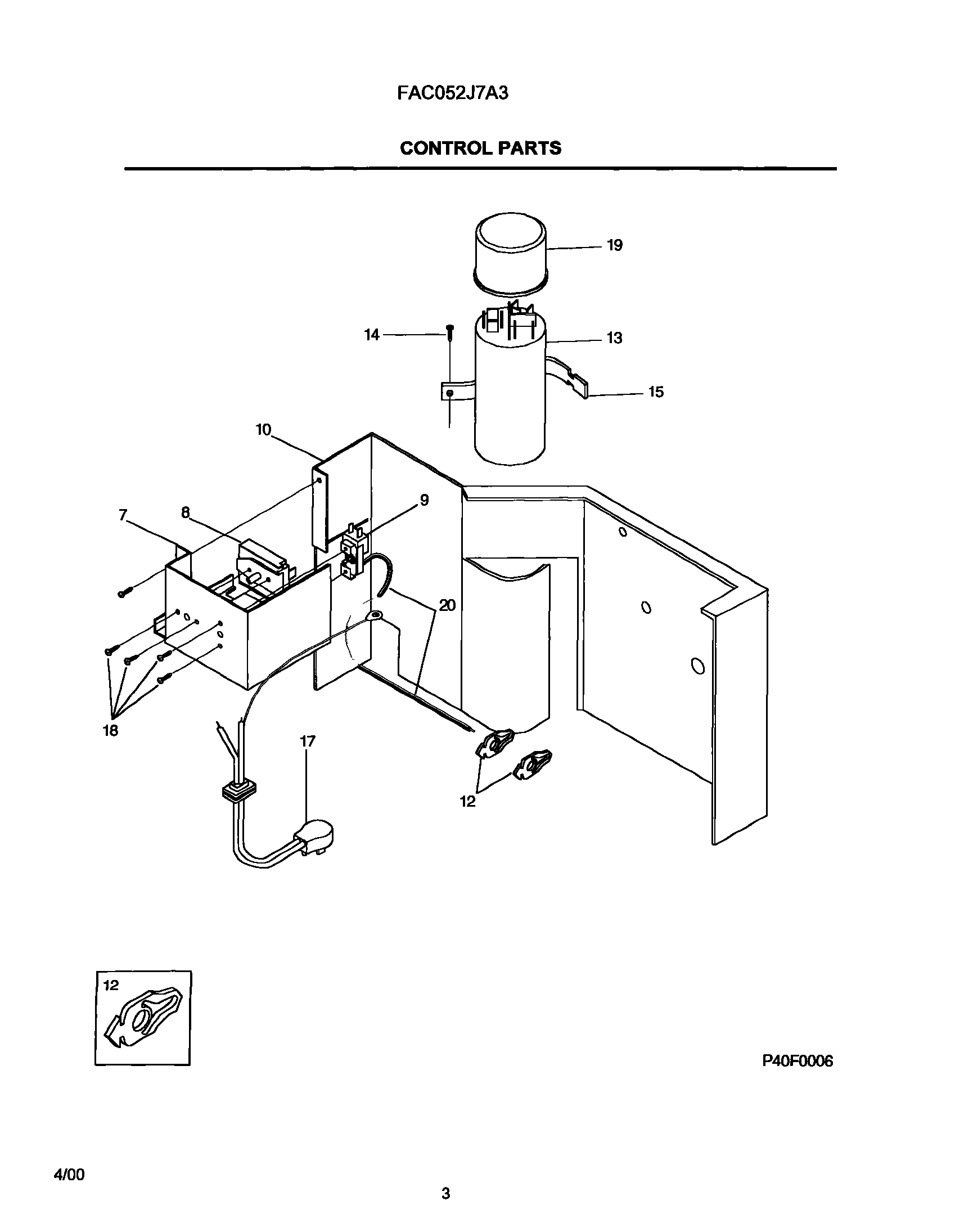

04 - CONTROL PARTS

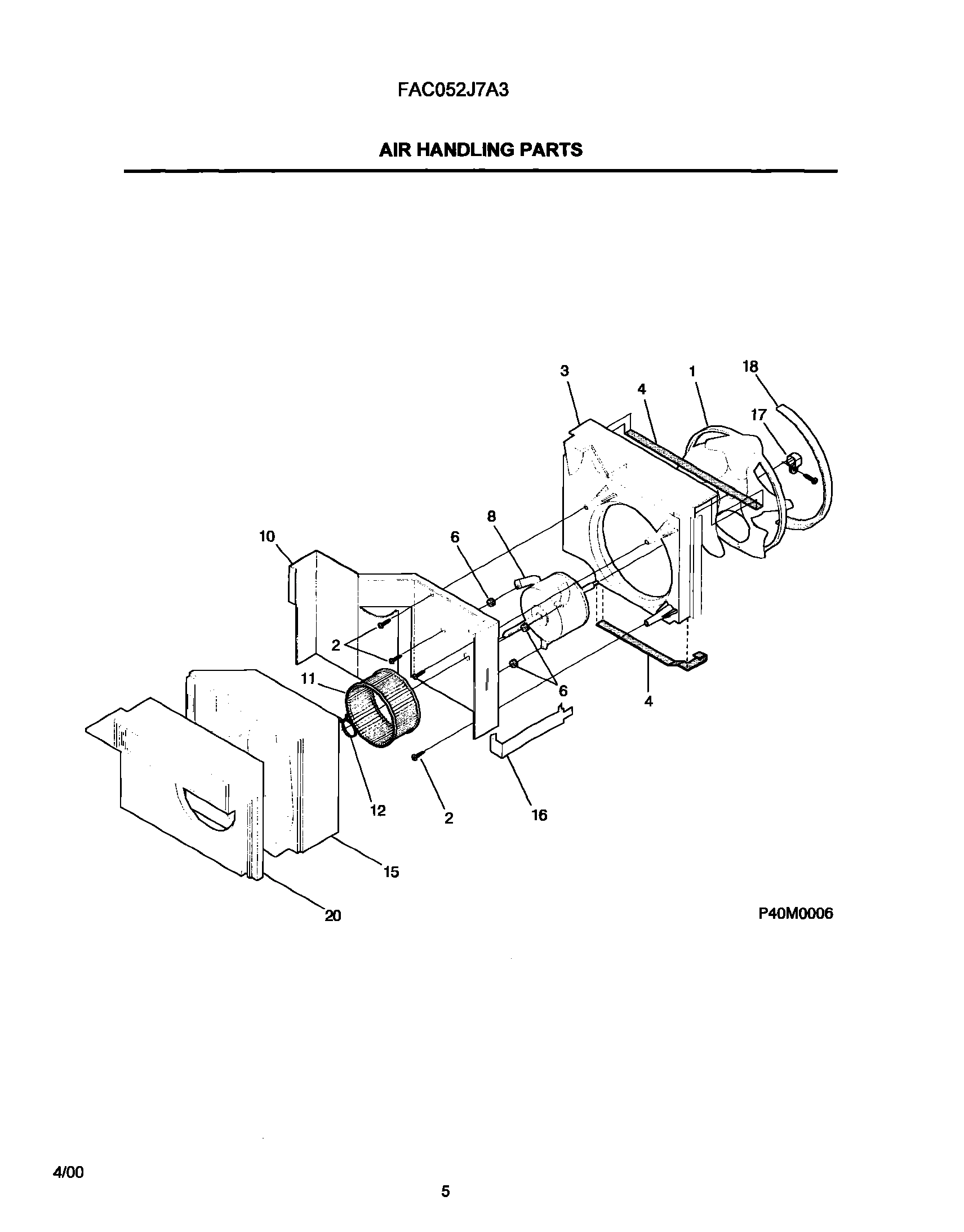

06 - AIR HANDLING PARTS

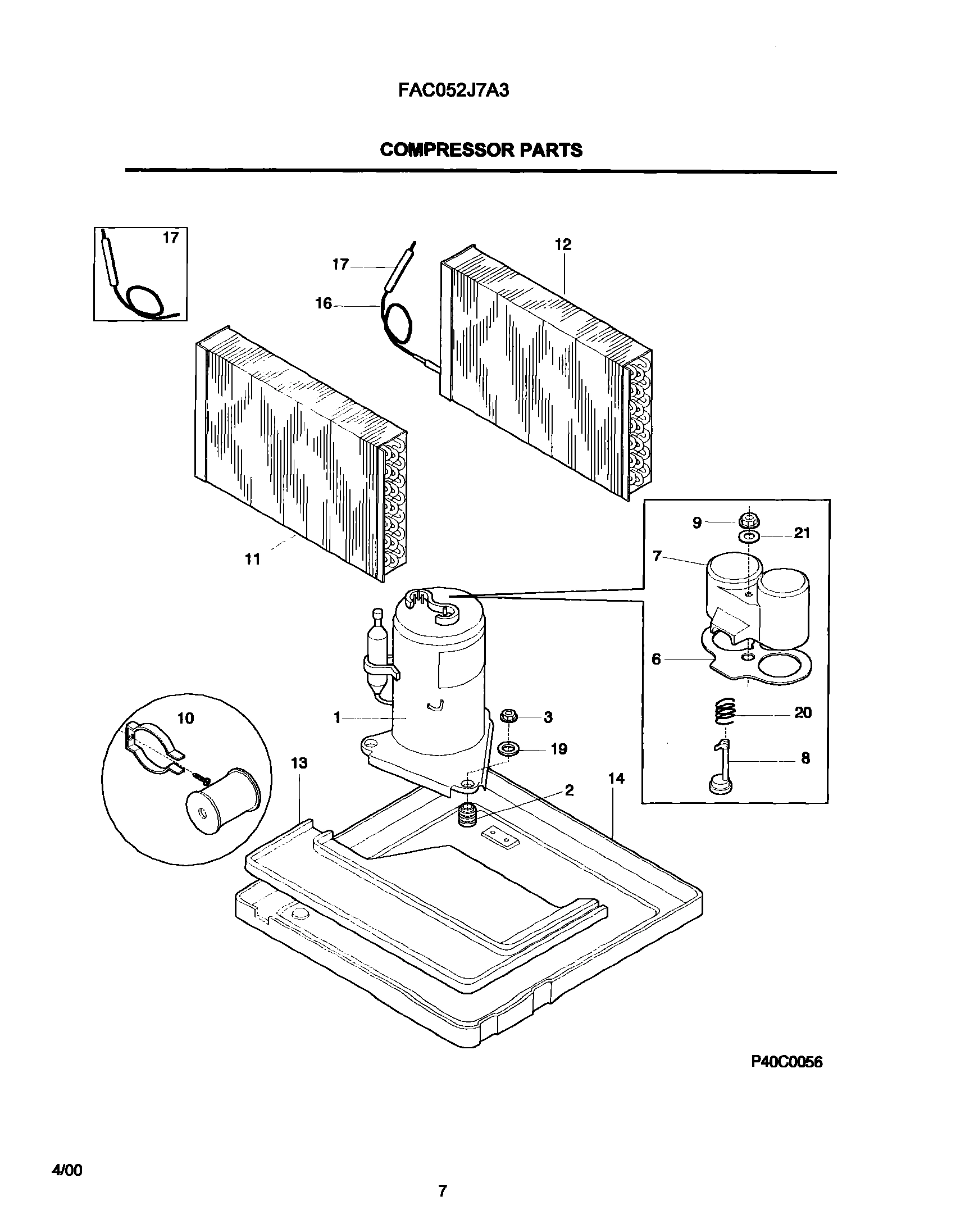

08 - COMPRESSOR

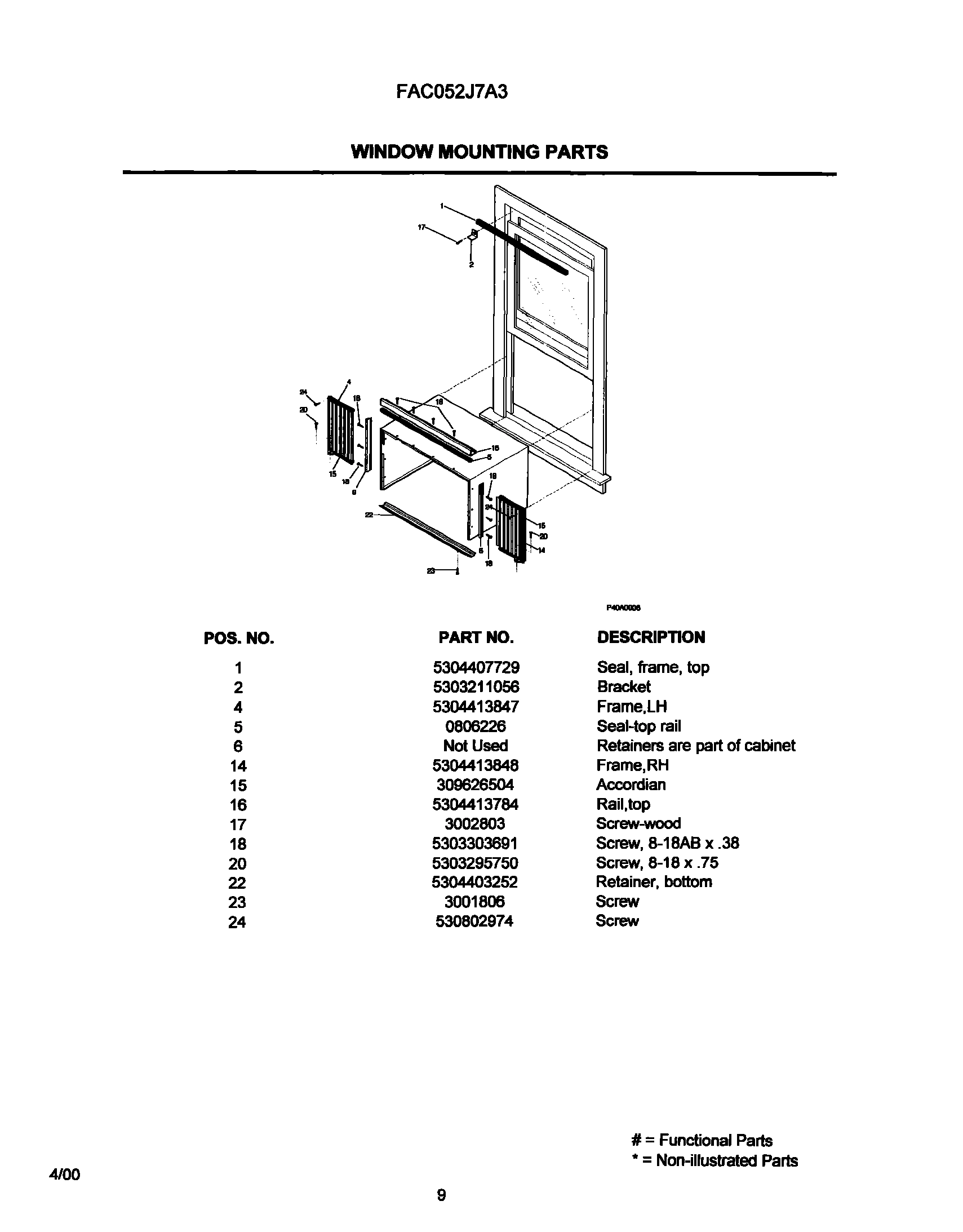

09 - WINDOW MOUNTING PARTS

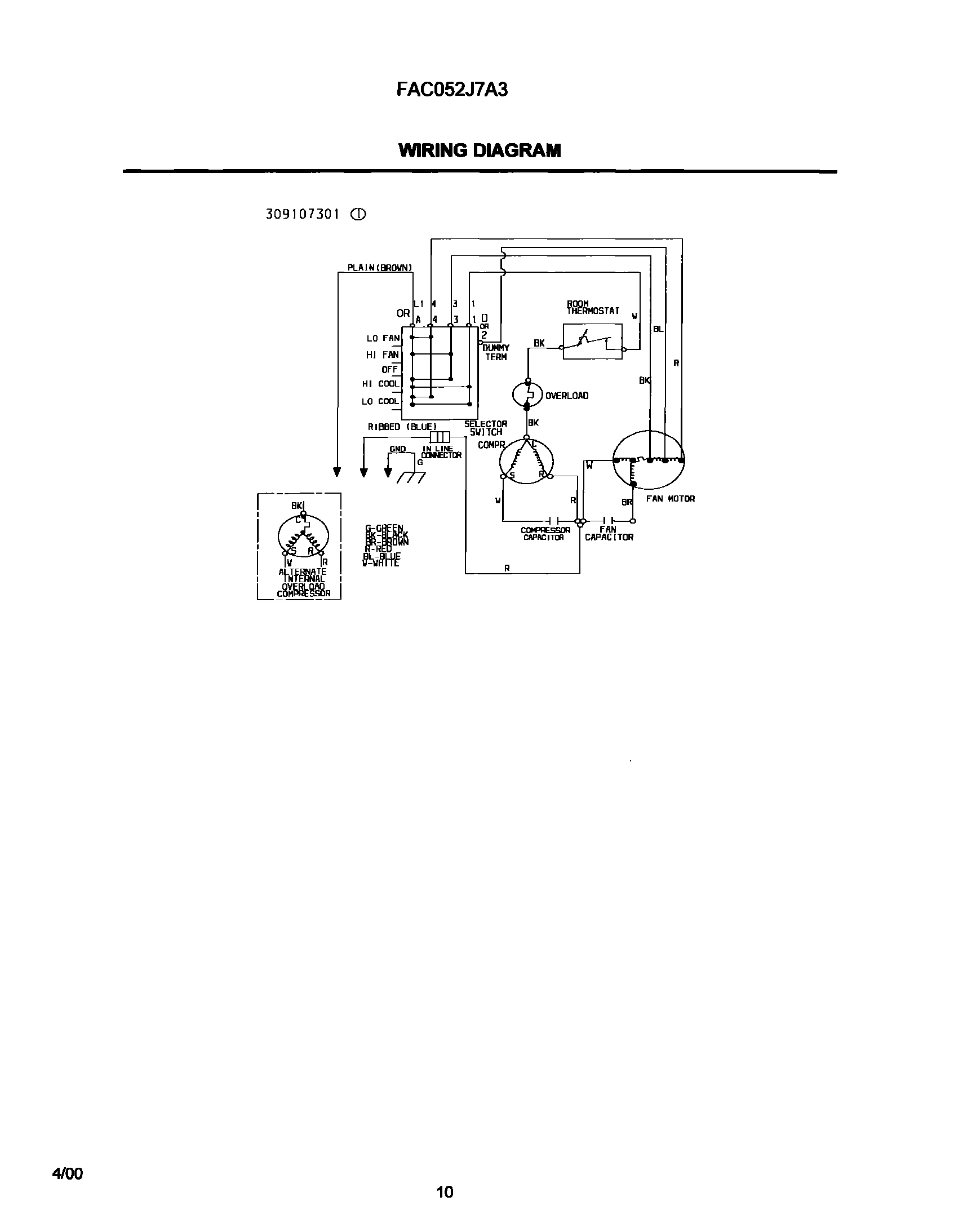

10 - WIRING DIAGRAM
Common parts from model Electrolux FAC052J7A3 ROOM AIR CONDITIONER
1
WCI 309624502 WCI 309624502 Contact Us For Availability
1
WCI 5304417319 WCI 5304417319 Contact Us For Availability
2
BRACKET WINDOW WCI 5303211056 Contact Us For Availability
2
GROMMET-COMPRESSOR, 3 WCI 5303283877 Contact Us For Availability
3
WCI 309624201 WCI 309624201 Contact Us For Availability
3
NUT - COMPRESSOR WCI 5308006948 Contact Us For Availability
4
SEAL, CONDENSER WCI 5303270043 Contact Us For Availability
4
WCI 5304413847 WCI 5304413847 Contact Us For Availability
5
WCI 0806226 WCI 0806226 Contact Us For Availability
6
WCI 08016225 WCI 08016225 Contact Us For Availability
6
GASKET-COVER WCI 5303291330 Contact Us For Availability
6
RETAINERS ARE PART OF CABINET WCI NOT USED Contact Us For Availability
7
LINK/HANDLE WCI 309638001 Contact Us For Availability
7
BOX-CONTROL WCI 309602502 Contact Us For Availability
7
COVER-TERMINAL WCI 5303291329 Contact Us For Availability
8
WCI 309639301 WCI 309639301 Contact Us For Availability
8
SWITCH-SELECTOR WCI 5304410837 Contact Us For Availability
8
WCI 309642402 WCI 309642402 Contact Us For Availability
8
WCI 5304417320 WCI 5304417320 Contact Us For Availability
9
WCI 309342001 WCI 309342001 Contact Us For Availability
9
WCI 5303302838 WCI 5303302838 Contact Us For Availability
9
WCI 5303294292 WCI 5303294292 Contact Us For Availability
10
WCI 309602403 WCI 309602403 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
11
WCI 309603301 WCI 309603301 Contact Us For Availability
11
WCI 309637401 WCI 309637401 Contact Us For Availability
12
WCI 3096343501 WCI 3096343501 Contact Us For Availability
12
CLIP-CONTROL BULB WCI 309101202 Contact Us For Availability
12
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
12
WCI 5303307226 WCI 5303307226 Contact Us For Availability
13
CAPACITOR, 370V, 35 + 7.5 MFD WCI 5303303125 Contact Us For Availability
13
WCI 5303302849 WCI 5303302849 Contact Us For Availability
14
BASE/COMPRESSOR-STUD ASSY WCI 5304413780 Contact Us For Availability
14
WCI 5304413848 WCI 5304413848 Contact Us For Availability
15
WCI 5303303086 WCI 5303303086 Contact Us For Availability
15
WCI 5304407653 WCI 5304407653 Contact Us For Availability
15
WCI 309626504 WCI 309626504 Contact Us For Availability
16
WCI 309100201 WCI 309100201 Contact Us For Availability
16
CAPILLARY TUBE WCI 5303209546 Contact Us For Availability
16
Rail,top WCI 5304413784 Contact Us For Availability
17
FRONT CABINET, COMPLETE WCI 309640102 Contact Us For Availability
17
CORD-POWER 115V WCI 309343101 Contact Us For Availability
17
CLAMP - FAN BLADE WCI 5308011040 Contact Us For Availability
17
WCI 5304413857 WCI 5304413857 Contact Us For Availability
17
SCREW-WOOD WCI 3002803 Contact Us For Availability
18
SCREW, .138-32 X .188 WCI 5303007754 Contact Us For Availability
18
WCI NOT SEPARATE WCI NOT SEPARATE Contact Us For Availability
19
Dial Plate WCI 309342902 Contact Us For Availability
19
WCI 5303302855 WCI 5303302855 Contact Us For Availability
19
WASHER - COMPRESSOR WCI 5303002664 Contact Us For Availability
20
KNOB, CONTROL WCI 309306811 Contact Us For Availability
20
SLEEVE, CONTROL WCI 5303002600 Contact Us For Availability
20
SCROLL PLATE WCI 5303303573 Contact Us For Availability
20
SPRING-OVERLOAD WCI 5303291328 Contact Us For Availability
20
SCREW, 8-18 X 0.75 WCI 5303295750 Contact Us For Availability
21
WCI 5303293809 WCI 5303293809 Contact Us For Availability
22
RETAINER,BOTTOM WCI 5304403252 Contact Us For Availability
23
SCREW WCI 3001806 Contact Us For Availability
24
WCI 530802974 WCI 530802974 Contact Us For Availability
26A
VENT-DETENT WCI N/A Contact Us For Availability
38
PANEL-FRONT WCI 309639201 Contact Us For Availability
43
FRAME-FRNT WCI 309639101 Contact Us For Availability
NI
Louver Assy,horizontal ,Incl-7,8,9 WCI 309640202 Contact Us For Availability
NI
SPACER - DIAL PLATE WCI 5303001775 Contact Us For Availability
× ![]()
