Model Electrolux FAC052J7A1 ROOM AIR CONDITIONER – Common Parts & Diagrams

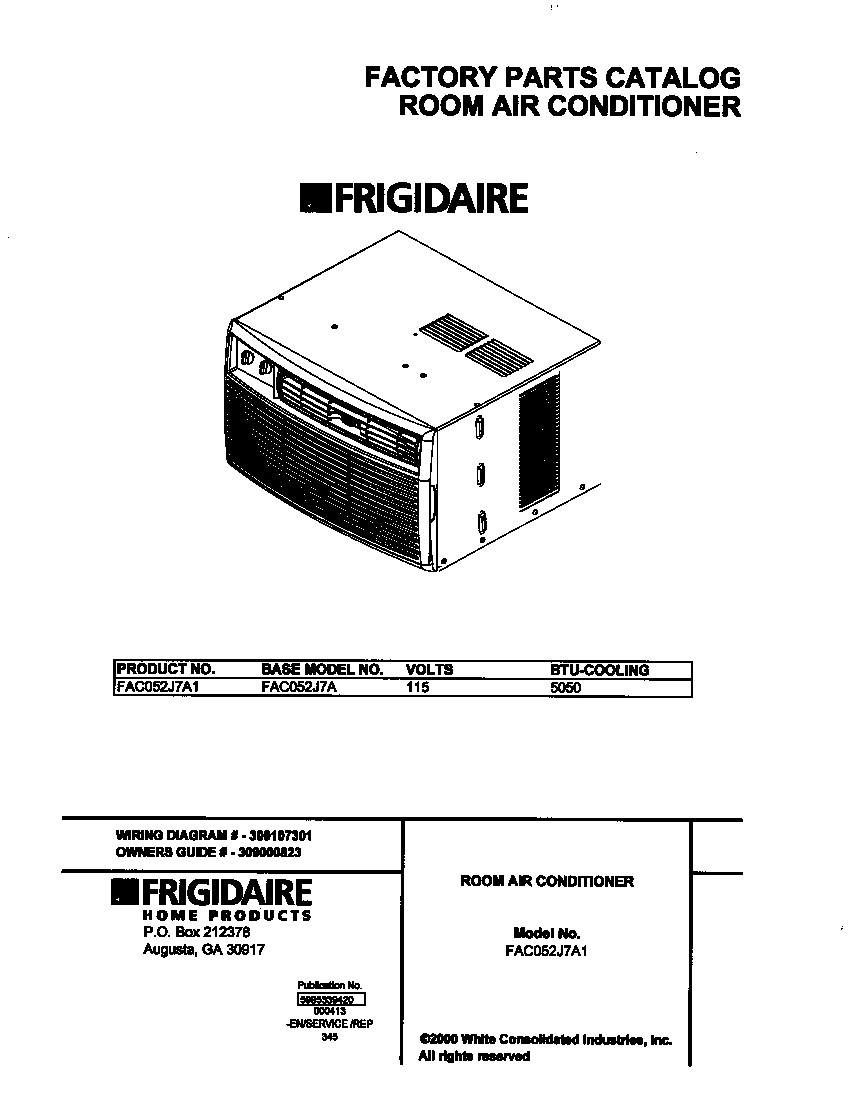

01 - COVER

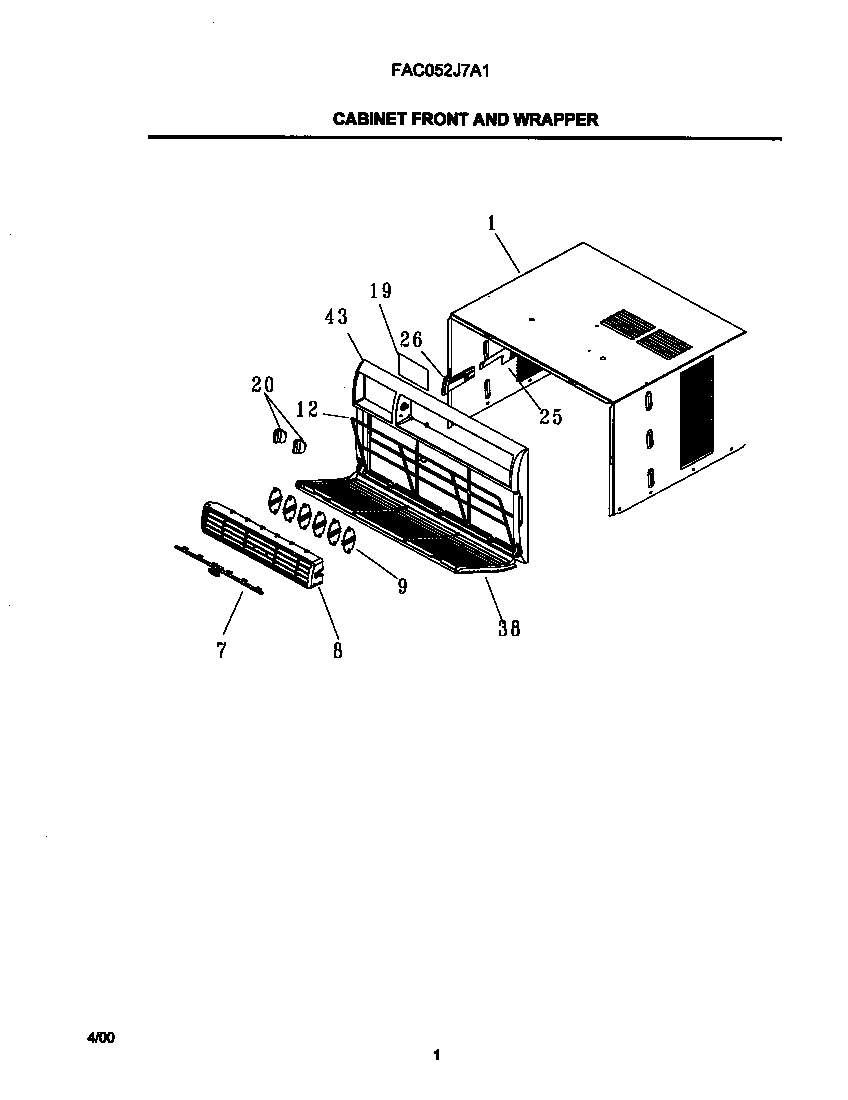

02 - CABINET FRONT AND WRAPPER
03 - CONTROL PARTS
04 - AIR HANDLING PARTS
05 - COMPRESSOR PARTS
06 - WINDOW MOUNTING PARTS
07 - WIRING DIAGRAM
Common parts from model Electrolux FAC052J7A1 ROOM AIR CONDITIONER
*54041
WCI 309111201 WCI 309111201 Contact Us For Availability
1
WRAPPER-U-BEND NCS1403 A-KIT WCI 5304413783 Contact Us For Availability
1
WCI 309624502 WCI 309624502 Contact Us For Availability
1
WCI 5304410678 WCI 5304410678 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
SCREW,INDT HEX HEAD ,10-16 ,(3) WCI 5303317224 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
3
WCI 309624201 WCI 309624201 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
4
SEAL, CONDENSER WCI 5303270043 Contact Us For Availability
4
WCI 5304413847 WCI 5304413847 Contact Us For Availability
5
SEAL, TOP RAIL WCI 08016226 Contact Us For Availability
6
GROMMET-MOTOR, (3) WCI 5300105402 Contact Us For Availability
6
GASKET-COVER WCI 5303291330 Contact Us For Availability
7
WCI 309638001 WCI 309638001 Contact Us For Availability
7
WCI 309350302 WCI 309350302 Contact Us For Availability
7
COVER-TERMINAL,GS CMPR355OU-L WCI 5304416126 Contact Us For Availability
8
LOUVER-HORIZ BRANDS NCS1403 WCI 309639301 Contact Us For Availability
8
SWITCH-SELECTOR,5 BUTTON WCI 5304410837 Contact Us For Availability
8
WCI 309615302 WCI 309615302 Contact Us For Availability
8
OVERLOAD PROTECTOR WCI 5303209085 Contact Us For Availability
9
VERT. LOUV. WCI 309342001 Contact Us For Availability
9
WCI 5304402838 WCI 5304402838 Contact Us For Availability
9
WCI 5303294292 WCI 5303294292 Contact Us For Availability
10
WCI 309602403 WCI 309602403 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
11
WCI 309617101 WCI 309617101 Contact Us For Availability
11
WCI 309637401 WCI 309637401 Contact Us For Availability
12
FILTER-NO FRAME WCI 309343501 Contact Us For Availability
12
WCI 309101202 WCI 309101202 Contact Us For Availability
12
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
12
WCI 309637601 WCI 309637601 Contact Us For Availability
13
WCI 5303317672 WCI 5303317672 Contact Us For Availability
13
WCI 5303302849 WCI 5303302849 Contact Us For Availability
14
BASE-COMPR/STD ASSY COMP 1403 WCI 5304413780 Contact Us For Availability
14
WCI 5304413848 WCI 5304413848 Contact Us For Availability
15
WCI 5303303086 WCI 5303303086 Contact Us For Availability
15
WCI 5304407653 WCI 5304407653 Contact Us For Availability
16
WCI 309100201 WCI 309100201 Contact Us For Availability
16
CAPILLARY TUBE,CUT-TO-SIZE WCI 5303289577 Contact Us For Availability
16
WCI 5304413784 WCI 5304413784 Contact Us For Availability
17
WCI 309640102 WCI 309640102 Contact Us For Availability
17
CORD-SRV 115V/18GA LT. GREY WCI 309343101 Contact Us For Availability
17
SCREW,WOOD, TYPE 17 ,10-12 X 0.750 WCI 3002803 Contact Us For Availability
18
SCREW,6-32 X 0.188 WCI 5303007754 Contact Us For Availability
19
WCI 309342902 WCI 309342902 Contact Us For Availability
19
WCI 5303302855 WCI 5303302855 Contact Us For Availability
19
WASHER,COMPRESSOR MTG WCI 5303002664 Contact Us For Availability
20
KNOB-ROTARY NCS1403,W/7005 WCI 309306811 Contact Us For Availability
20
SLEEVE, CONTROL WCI 5303002600 Contact Us For Availability
20
WCI 5303303573 WCI 5303303573 Contact Us For Availability
20
SPRING-OVERLOAD WCI 5303291328 Contact Us For Availability
20
SCREW,PAN HEAD ,8-18 X 0.750 WCI 5303295750 Contact Us For Availability
21
WASHER WCI 5303293809 Contact Us For Availability
22
SPACER, PLATE WCI 5303001775 Contact Us For Availability
22
RETAINER,BOTTOM WCI 5304403252 Contact Us For Availability
23
SCREW,23(T) ,10-32 X 0.310 WCI 3001806 Contact Us For Availability
24
SCREW,WOOD, TYPE 17 ,8-15 X 0.500 WCI 5308002974 Contact Us For Availability
38
PANEL-FRONT WCI 309639201 Contact Us For Availability
43
FRAME-FRNT WCI 309639101 Contact Us For Availability
× ![]()
