Model Electrolux FAC052G7A3 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
02 - CABINET FRONT/WRAPPER

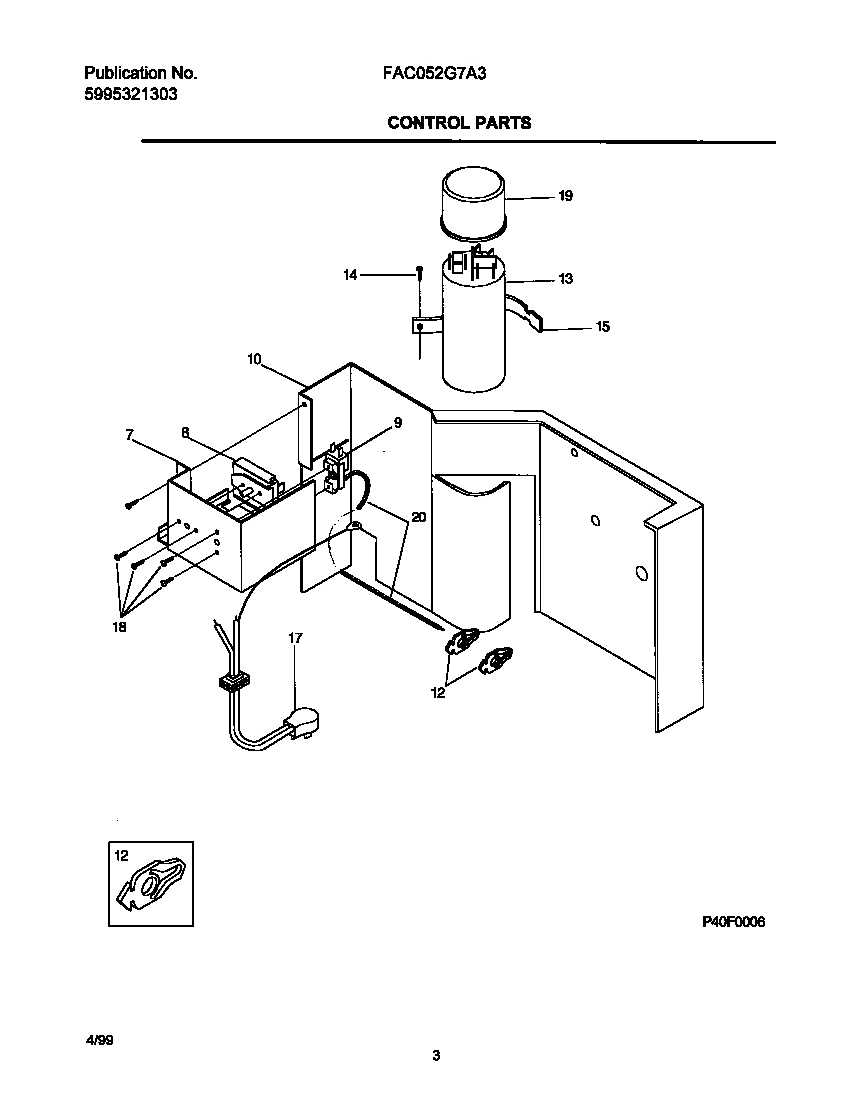

03 - CONTROL PARTS

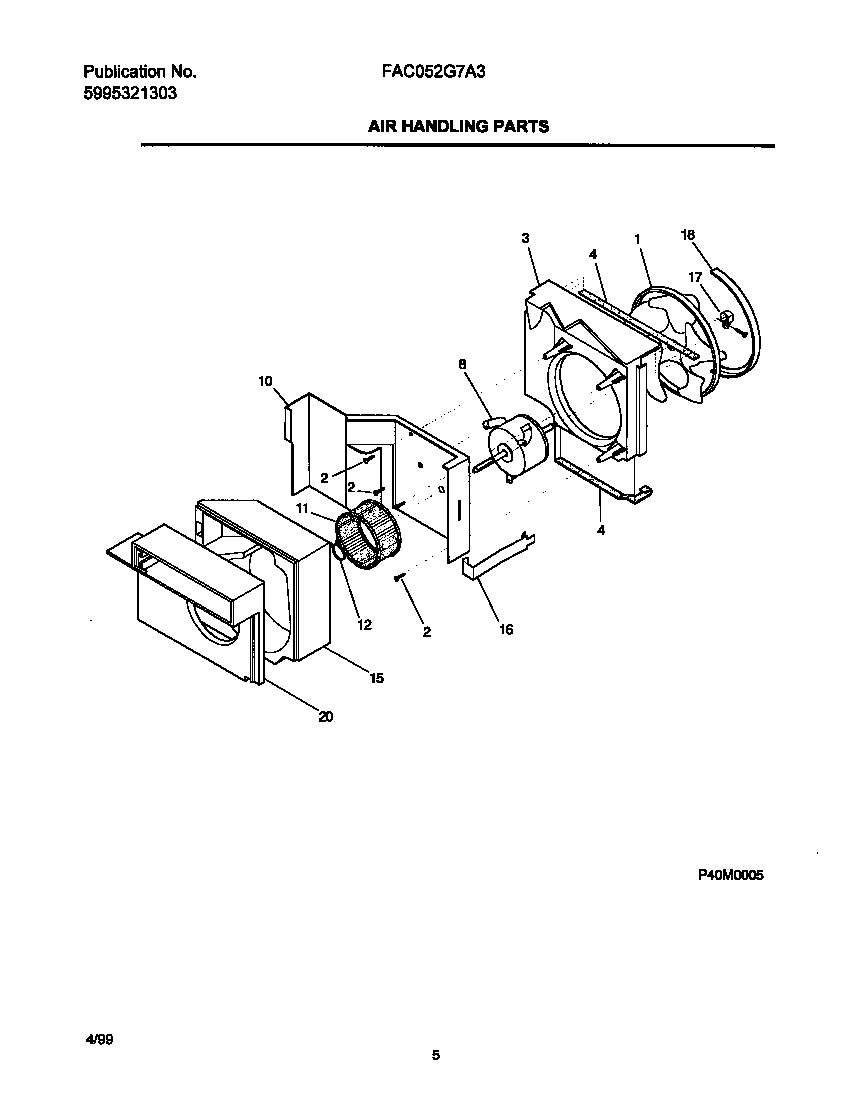

04 - AIR HANDLING PARTS

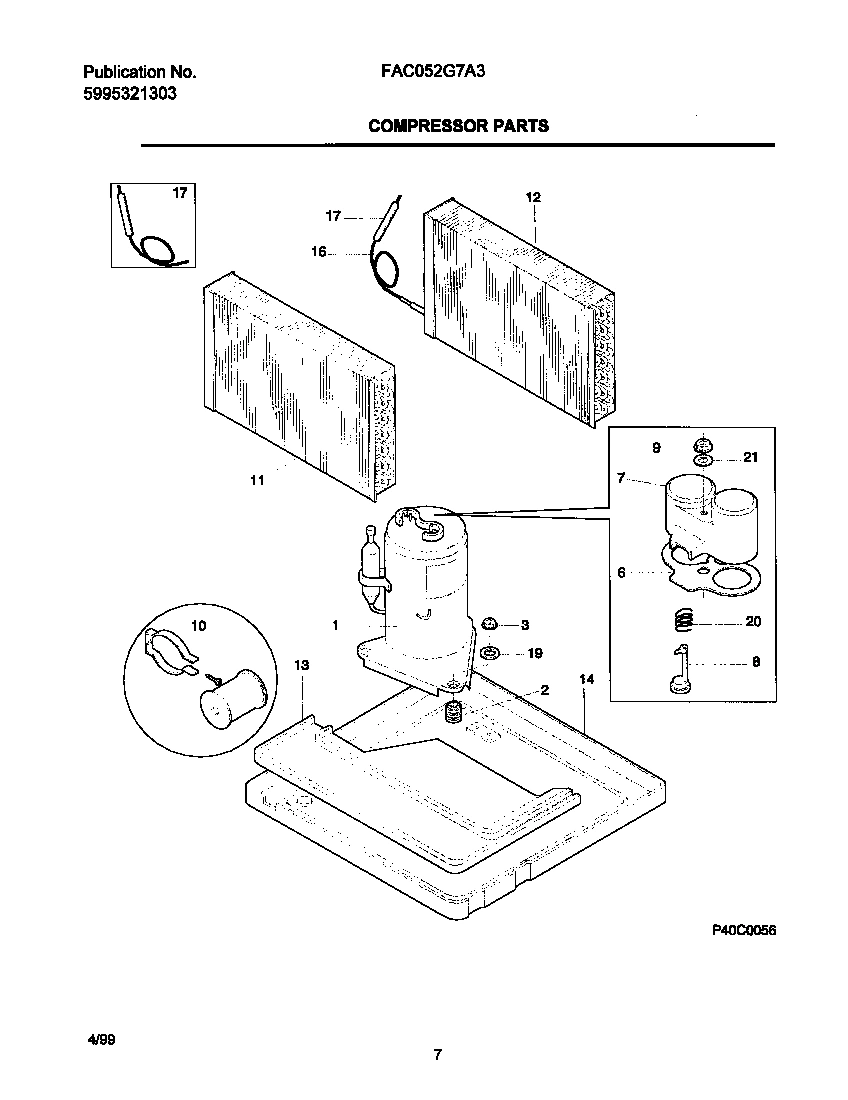

05 - COMPRESSOR PARTS
06 - WINDOW MOUNTING PARTS

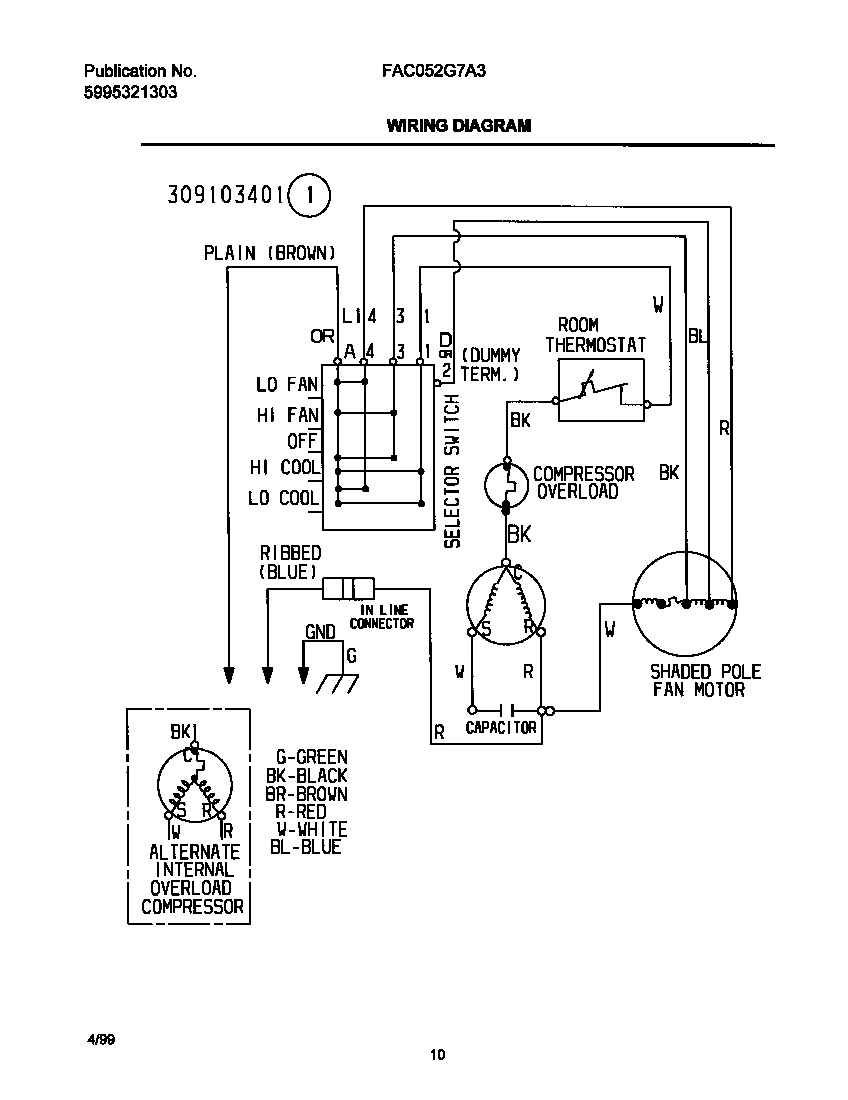

07 - WIRING DIAGRAM
Common parts from model Electrolux FAC052G7A3 ROOM AIR CONDITIONER
1
FAN BLADE & CLAMP WCI 309624502 Contact Us For Availability
1
WCI 5303291331 WCI 5303291331 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
WCI 5303317224 WCI 5303317224 Contact Us For Availability
2
GROMMET-COMPRESSOR, 3 WCI 5303283877 Contact Us For Availability
3
WCI 309624201 WCI 309624201 Contact Us For Availability
3
NUT, COMPRESSOR, (3) WCI 5308006948 Contact Us For Availability
4
SEAL, CONDENSER WCI 5303270043 Contact Us For Availability
4
WCI 5303311127 WCI 5303311127 Contact Us For Availability
5
WCI 08016226 WCI 08016226 Contact Us For Availability
6
GROMMET-MOTOR, (3) WCI 5300105402 Contact Us For Availability
6
GASKET-COVER WCI 5303291330 Contact Us For Availability
7
WCI 5303303089 WCI 5303303089 Contact Us For Availability
7
WCI 309602502 WCI 309602502 Contact Us For Availability
7
COVER-TERMINAL WCI 5303291329 Contact Us For Availability
8
WCI 309603901 WCI 309603901 Contact Us For Availability
8
SWITCH-5POS 2SPD SHORT,N/4WAY WCI 5304410837 Contact Us For Availability
8
WCI 309603003 WCI 309603003 Contact Us For Availability
8
OVERLOAD PROTECTOR WCI 5303209085 Contact Us For Availability
9
WCI 5303303087 WCI 5303303087 Contact Us For Availability
9
WCI 5304402838 WCI 5304402838 Contact Us For Availability
9
WCI 5303294292 WCI 5303294292 Contact Us For Availability
10
WCI 5303303088 WCI 5303303088 Contact Us For Availability
10
WCI 309602403 WCI 309602403 Contact Us For Availability
11
WCI 309603301 WCI 309603301 Contact Us For Availability
11
WCI 5304410838 WCI 5304410838 Contact Us For Availability
12
WCI 5303303242 WCI 5303303242 Contact Us For Availability
12
WCI 309101202 WCI 309101202 Contact Us For Availability
12
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
12
WCI 5303303199 WCI 5303303199 Contact Us For Availability
13
WCI 5303303128 WCI 5303303128 Contact Us For Availability
13
WCI 5303302849 WCI 5303302849 Contact Us For Availability
14
WCI 5303302847 WCI 5303302847 Contact Us For Availability
14
WCI 5303311128 WCI 5303311128 Contact Us For Availability
15
WCI 5303303086 WCI 5303303086 Contact Us For Availability
15
WCI 5304407653 WCI 5304407653 Contact Us For Availability
15
WCI 309626501 WCI 309626501 Contact Us For Availability
16
WCI 309100201 WCI 309100201 Contact Us For Availability
16
CAPILLARY TUBE,CUT-TO-SIZE WCI 5303289577 Contact Us For Availability
16
WCI 5303302859 WCI 5303302859 Contact Us For Availability
17
FRONT,CABINET ,COMPLETE WCI 309603407 Contact Us For Availability
17
WCI 309631217 WCI 309631217 Contact Us For Availability
17
SCREW-WOOD WCI 3002803 Contact Us For Availability
18
SCREW, .138-32 X .188 WCI 5303007754 Contact Us For Availability
19
WCI 309613535 WCI 309613535 Contact Us For Availability
19
WCI 5303302855 WCI 5303302855 Contact Us For Availability
19
WASHER - COMPRESSOR WCI 5303002664 Contact Us For Availability
20
WCI 309306807 WCI 309306807 Contact Us For Availability
20
SLEEVE, CONTROL WCI 5303002600 Contact Us For Availability
20
WCI 5303303573 WCI 5303303573 Contact Us For Availability
20
SPRING-OVERLOAD WCI 5303291328 Contact Us For Availability
20
WCI 5303295750 WCI 5303295750 Contact Us For Availability
21
WCI 5303293809 WCI 5303293809 Contact Us For Availability
22
RETAINER,BOTTOM WCI 5304403252 Contact Us For Availability
23
SCREW WCI 3001806 Contact Us For Availability
24
SCREW WCI 5308002974 Contact Us For Availability
28
WCI 309100401 WCI 309100401 Contact Us For Availability
× ![]()
