Model Electrolux FAC051K7A6 ROOM AIR CONDITIONER – Common Parts & Diagrams

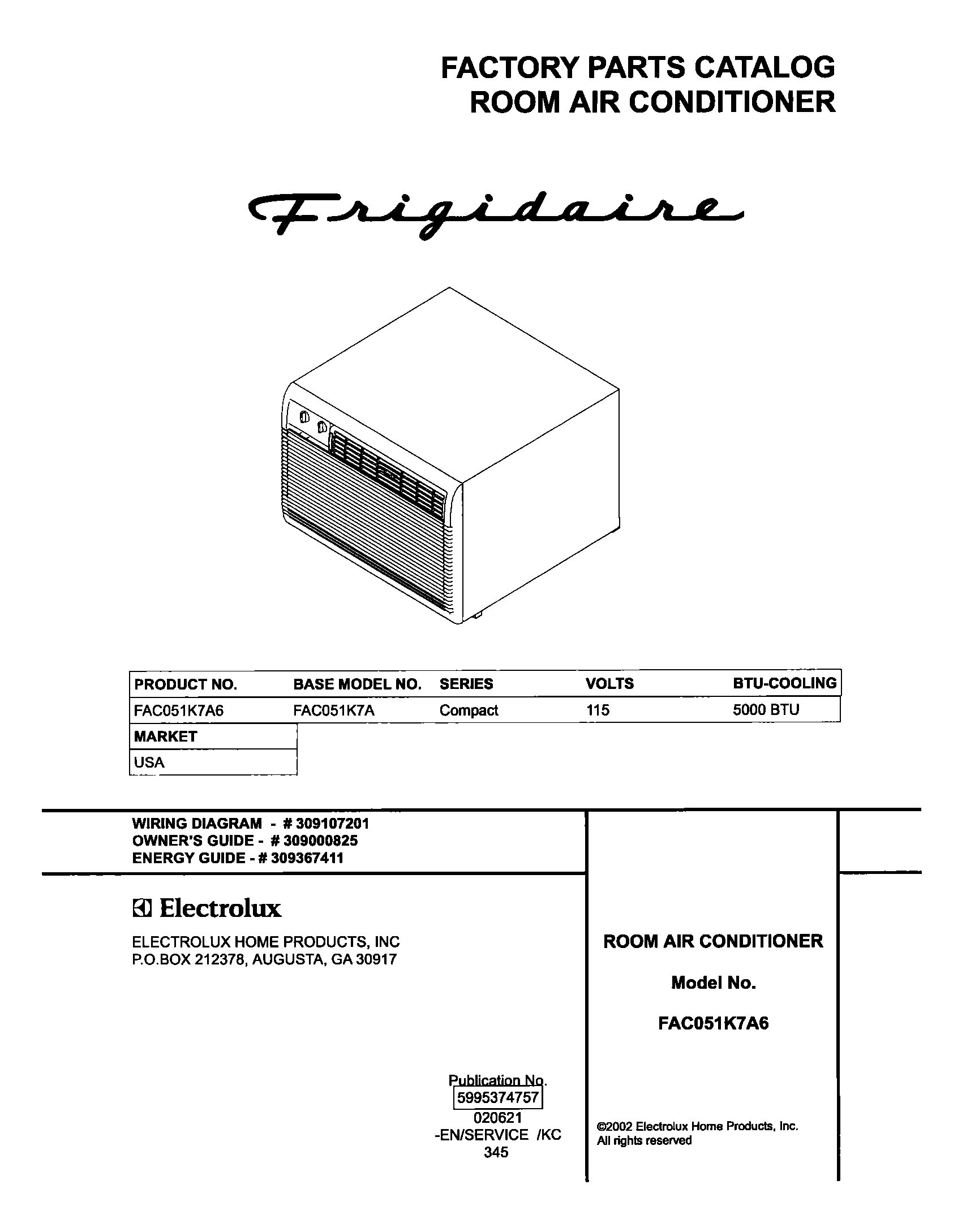

01 - COVER

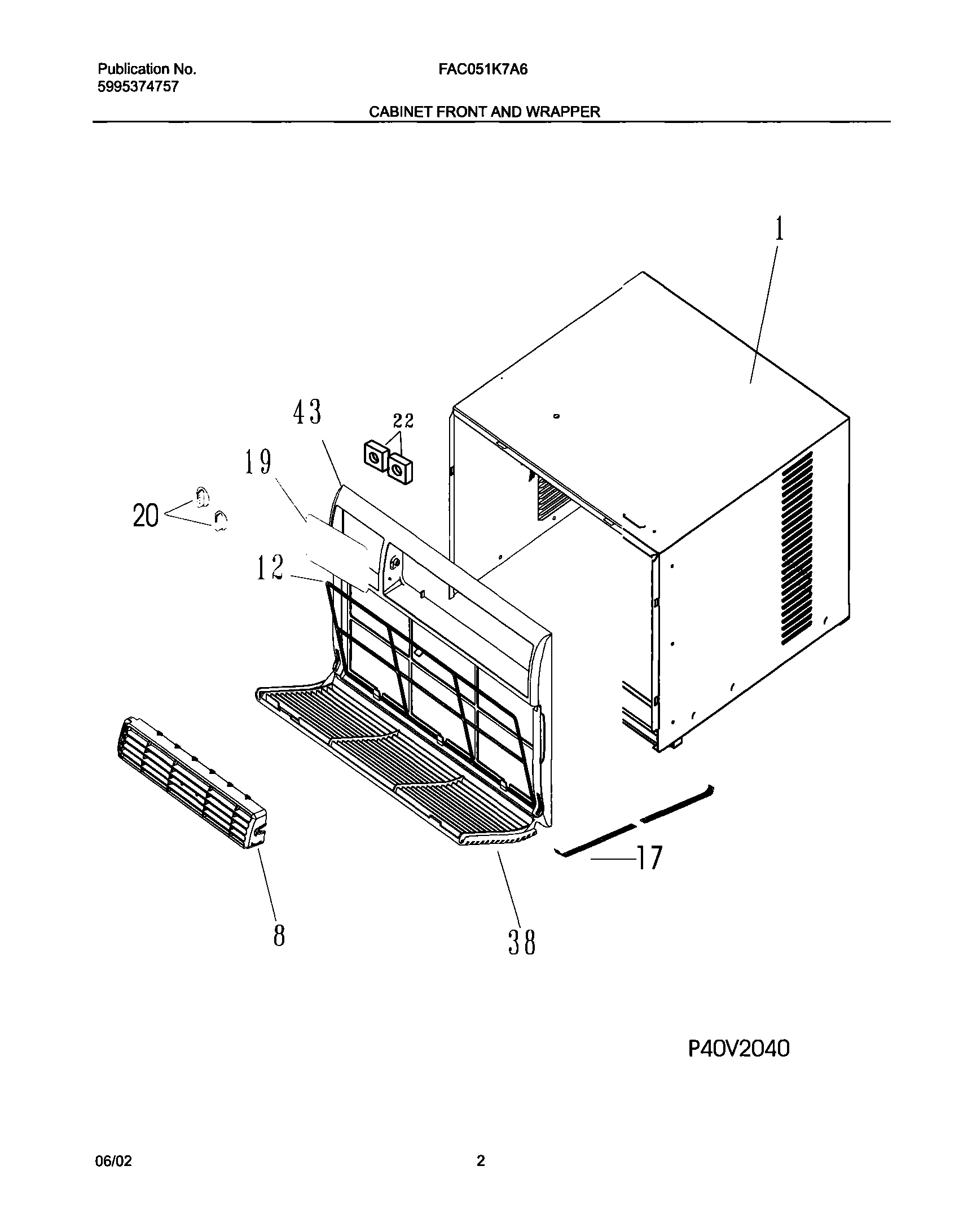

03 - CABINET FRONT AND WRAPPER
05 - CONTROLS
07 - AIR HANDLING PARTS
09 - COMPRESSOR PARTS
11 - WINDOW MOUNTING PARTS
12 - WIRING DIAGRAM
Common parts from model Electrolux FAC051K7A6 ROOM AIR CONDITIONER
1
WCI 309646202 WCI 309646202 Contact Us For Availability
1
WCI 5304426656 WCI 5304426656 Contact Us For Availability
2
BRACKET-SASH LOCK WCI 5303211056 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
3
Housing-fan,shroud WCI 309643901 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
4
WCI 5304421913 WCI 5304421913 Contact Us For Availability
4
WCI 309644902 WCI 309644902 Contact Us For Availability
4
WCI 5304423372 WCI 5304423372 Contact Us For Availability
5
WCI 5303303759 WCI 5303303759 Contact Us For Availability
5
Seal,top rail/cab WCI 08016226 Contact Us For Availability
6
WCI 08007481 WCI 08007481 Contact Us For Availability
6
Gasket,terminal cover WCI 5303291330 Contact Us For Availability
7
Control Box WCI 309643802 Contact Us For Availability
7
WCI 5304416126 WCI 5304416126 Contact Us For Availability
8
Switch,selector ,2 position,1 sp WCI 5303318550 Contact Us For Availability
8
WCI 309645002 WCI 309645002 Contact Us For Availability
8
WCI 5304417320 WCI 5304417320 Contact Us For Availability
9
Nut-terminal cover WCI 5303294292 Contact Us For Availability
10
WCI 309643702 WCI 309643702 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
11
WCI 309643302 WCI 309643302 Contact Us For Availability
11
Evaporator WCI 309637403 Contact Us For Availability
12
WCI 309343501 WCI 309343501 Contact Us For Availability
12
WCI 327161302 WCI 327161302 Contact Us For Availability
12
WCI 309637605 WCI 309637605 Contact Us For Availability
13
WCI 5304426655 WCI 5304426655 Contact Us For Availability
13
Tray,evap drip WCI 309642801 Contact Us For Availability
14
Base,compressor mt. ,with studs WCI 309644001 Contact Us For Availability
14
WCI 5304423373 WCI 5304423373 Contact Us For Availability
15
WCI 309645501 WCI 309645501 Contact Us For Availability
15
Strap,capacitor mtg. WCI 309351901 Contact Us For Availability
15
Housing,blower scroll ,Extended WCI 309642901 Contact Us For Availability
16
Clip,evap/bulkhead WCI 309100201 Contact Us For Availability
16
WCI 5304423363 WCI 5304423363 Contact Us For Availability
16
Rail,retainer ,top WCI 5304417362 Contact Us For Availability
17
WCI 309640106 WCI 309640106 Contact Us For Availability
17
WCI 309343101 WCI 309343101 Contact Us For Availability
17
SCREW,WOOD, TYPE 17 ,10-12 X 0.750 WCI 3002803 Contact Us For Availability
18
SCREW,6-32 X 0.188 WCI 5303007754 Contact Us For Availability
19
WCI 309342901 WCI 309342901 Contact Us For Availability
19
WCI 309112501 WCI 309112501 Contact Us For Availability
20
WCI 309364102 WCI 309364102 Contact Us For Availability
20
Plate,scroll cover WCI 309643003 Contact Us For Availability
21
Washer,terminal cover WCI 5303293809 Contact Us For Availability
22
SPACER - DIAL PLATE WCI 5303001775 Contact Us For Availability
22
WCI 5304403252 WCI 5304403252 Contact Us For Availability
23
SCREW,23(T) ,10-32 X 0.310 WCI 3001806 Contact Us For Availability
24
SCREW,WOOD, TYPE 17 ,8-15 X 0.500 WCI 5308002974 Contact Us For Availability
38
WCI 309646301 WCI 309646301 Contact Us For Availability
43
WCI 309646401 WCI 309646401 Contact Us For Availability
NI
WCI 309367411 WCI 309367411 Contact Us For Availability
NI
WCI 309111201 WCI 309111201 Contact Us For Availability
NI
Screw,Ph truss hd ,8-18 x 0.38 ,grounding WCI 5303285199 Contact Us For Availability
× ![]()
