Model Whirlpool FA10AN-1M FREEZER – Common Parts & Diagrams

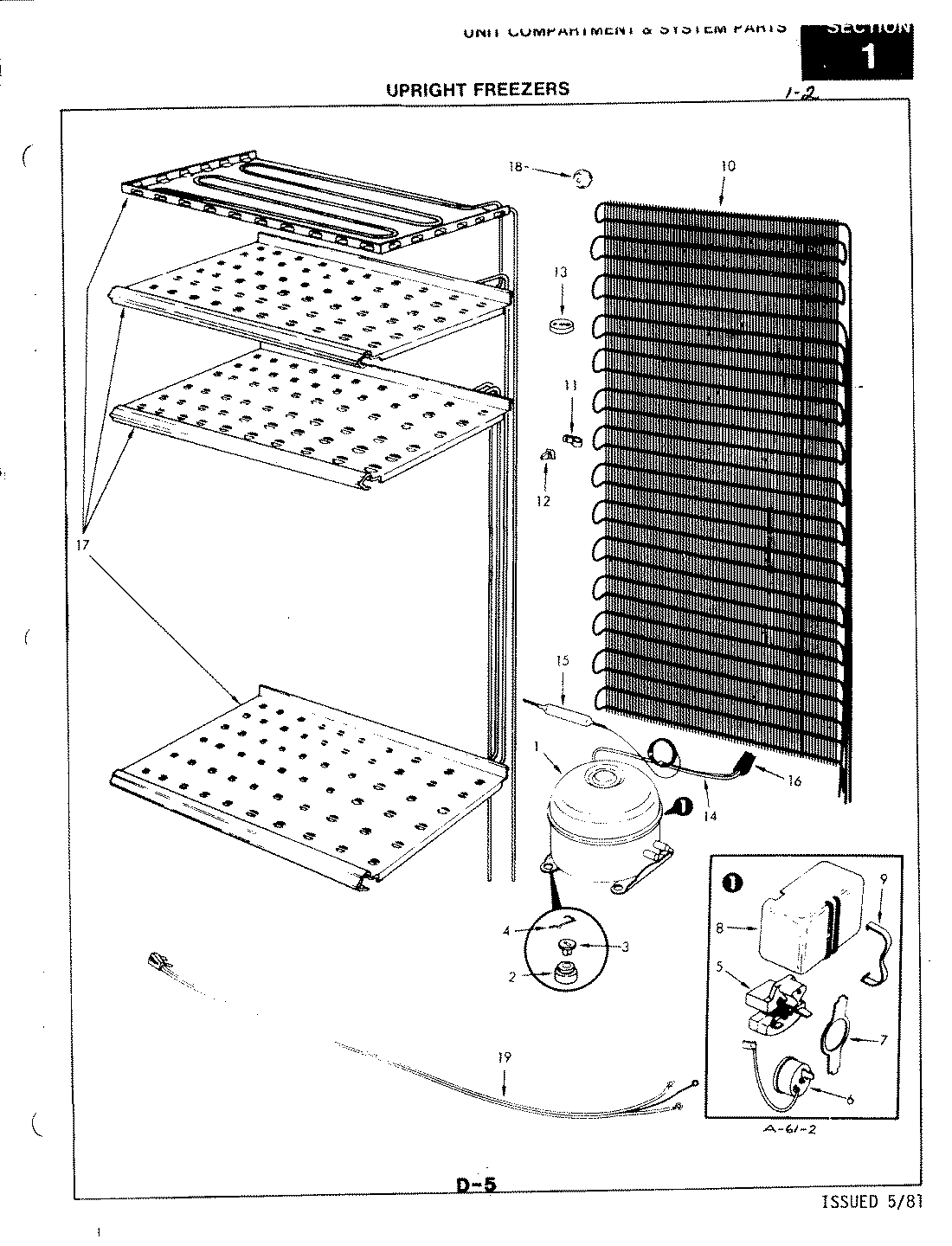

03 - UNIT COMPARTMENT & SYSTEM
01 - DOOR

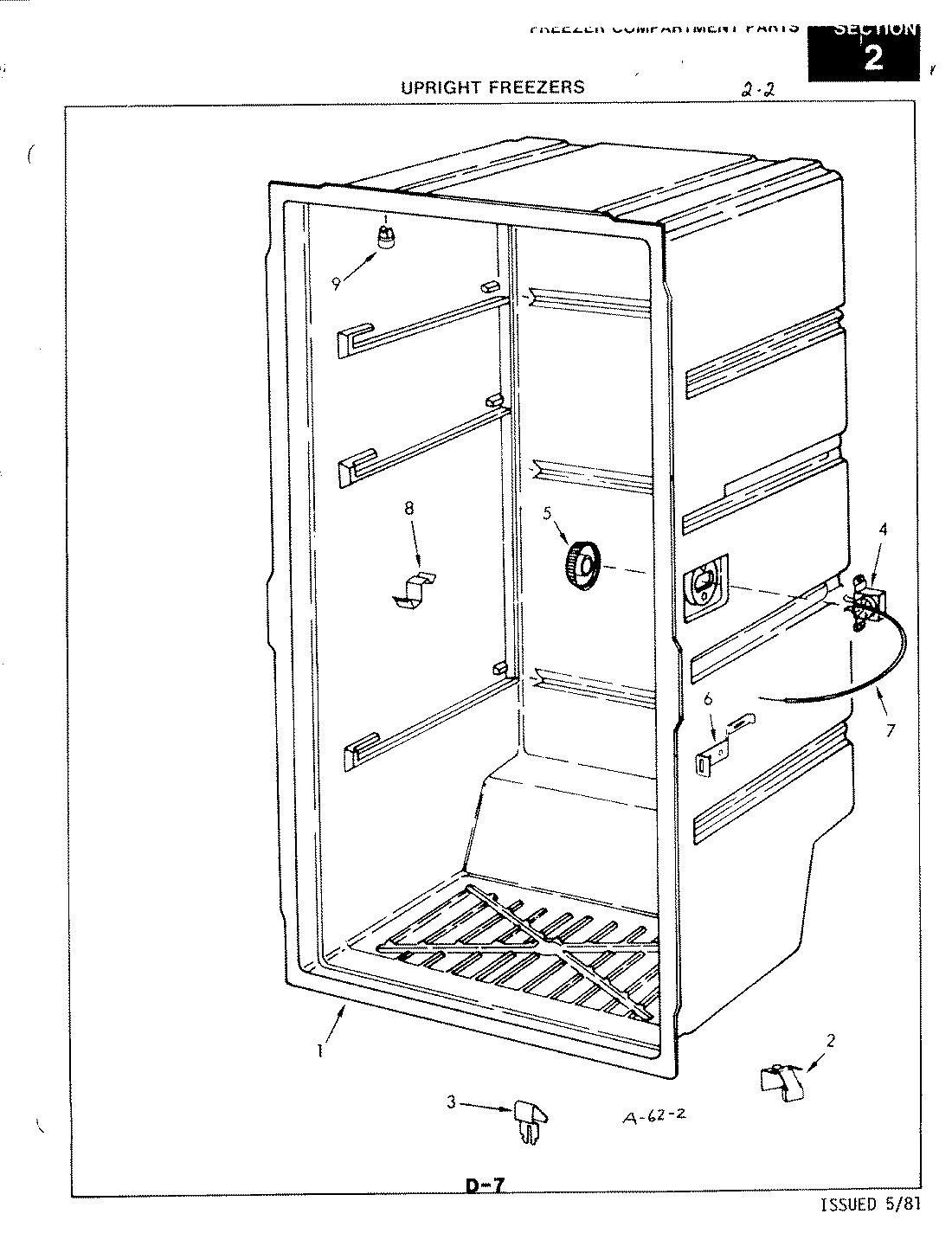

02 - FREEZER COMPARTMENT
Common parts from model Whirlpool FA10AN-1M FREEZER
1
COMPRESSOR WPL RA949T Contact Us For Availability
1
OUTER PANEL WPL 5384541WW Contact Us For Availability
1
FOOD LINER WPL 546297 Contact Us For Availability
2
GROMMET WPL 172453 Contact Us For Availability
2
PLUG BUTTON, DOOR WPL 495034900 Contact Us For Availability
2
CLIP WPL 545761 Contact Us For Availability
3
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
3
HANDLE WPL 5673313 Contact Us For Availability
3
SCREW WPL 998693 Contact Us For Availability
3
CLIP WPL 580831 Contact Us For Availability
4
CLIP WPL 556241 Contact Us For Availability
4
WASHER WPL 4200631 Contact Us For Availability
4
NAMEPLATE WPL 596312 Contact Us For Availability
4
SCREW WPL 406015103 Contact Us For Availability
4
CONTROL, TEMPERATURE WPL 5288121 Contact Us For Availability
5
RELAY, START WPL 632931 Contact Us For Availability
5
INNER PANEL WPL 274459 Contact Us For Availability
5
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
5
KNOB WPL 2662127 Contact Us For Availability
6
OVERLOAD WPL 632941 Contact Us For Availability
6
SEAL WPL 562876 Contact Us For Availability
6
SCREW WPL 4000141 Contact Us For Availability
6
BRACKET WPL 573111 Contact Us For Availability
7
CLIP WPL 632951 Contact Us For Availability
7
TRIM WPL 5720932 Contact Us For Availability
7
TUBING WPL 400813 Contact Us For Availability
8
COVER WPL 632961 Contact Us For Availability
8
TRIM LOCK WPL 555561 Contact Us For Availability
8
CLIP WPL 546671 Contact Us For Availability
9
CLIP WPL 632971 Contact Us For Availability
9
HINGE WPL 5370910 Contact Us For Availability
9
SCREW WPL 998687 Contact Us For Availability
9
SCREW WPL 4020251 Contact Us For Availability
9
NUT WPL 561428 Contact Us For Availability
10
SCREW, KICKPLATE MTG. WPL 9986101 Contact Us For Availability
10
CONDENSER WPL RA4361543 Contact Us For Availability
10
SHIM WPL 573971 Contact Us For Availability
11
CLAMP WPL 225041 Contact Us For Availability
11
BUSHING WPL 557811 Contact Us For Availability
12
NYLON NUT, CLAMP MTG. WPL 562311 Contact Us For Availability
12
TAPPING PLATE WPL 573961 Contact Us For Availability
13
CUSHION WPL 634061 Contact Us For Availability
13
RIVET WPL 263976 Contact Us For Availability
14
HEAT EXCHANGER WPL RA4360548 Contact Us For Availability
14
WASHER WPL 521851 Contact Us For Availability
15
SCREW WPL 4030621 Contact Us For Availability
15
HINGE WPL 5367110 Contact Us For Availability
16
INSULATION WPL 2627515 Contact Us For Availability
16
SPACER WPL 536883 Contact Us For Availability
17
FRZR SHELF WPL RA4364941 Contact Us For Availability
17
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
18
GROMMET WPL 557511 Contact Us For Availability
18
CUP WPL 554241 Contact Us For Availability
19
WIRE HARNESS WPL 528767 Contact Us For Availability
19
FLANGE HEATER WPL RA436831 Contact Us For Availability
19
WASHER WPL 542331 Contact Us For Availability
20
LEG, LEVELING WPL 60128 Contact Us For Availability
× ![]()
