Model Electrolux F71C663BD0 DISHWASHER – Common Parts & Diagrams

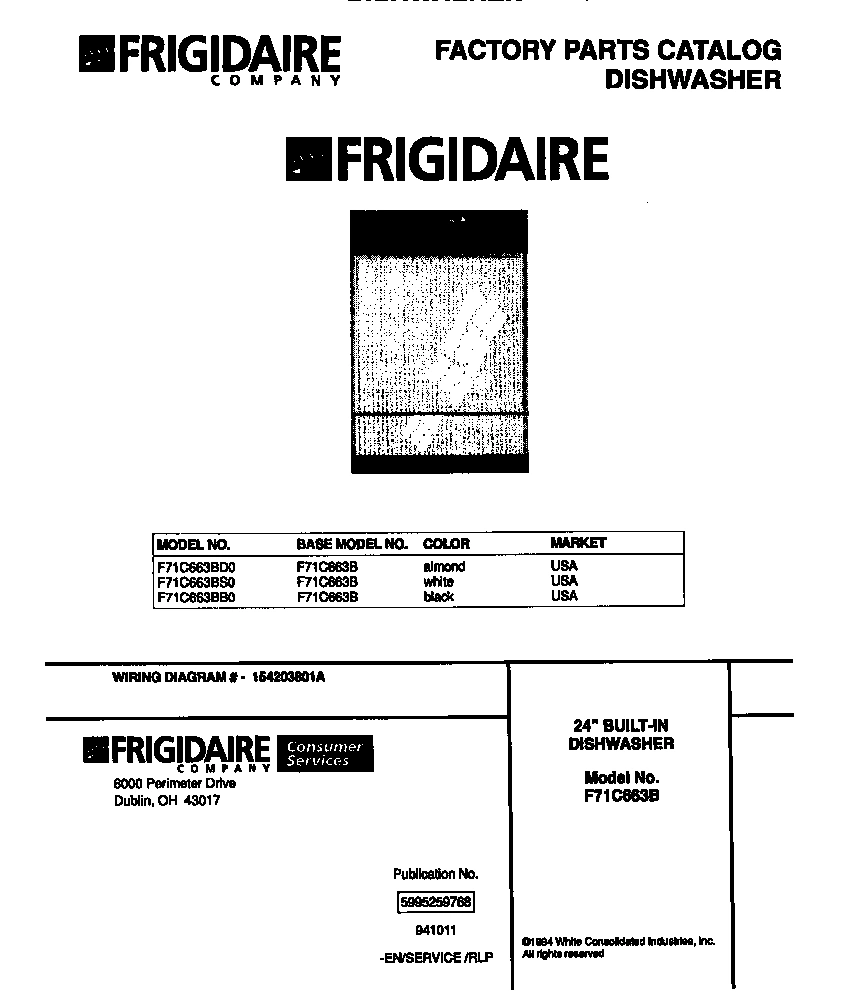

01 - DISHWASHER

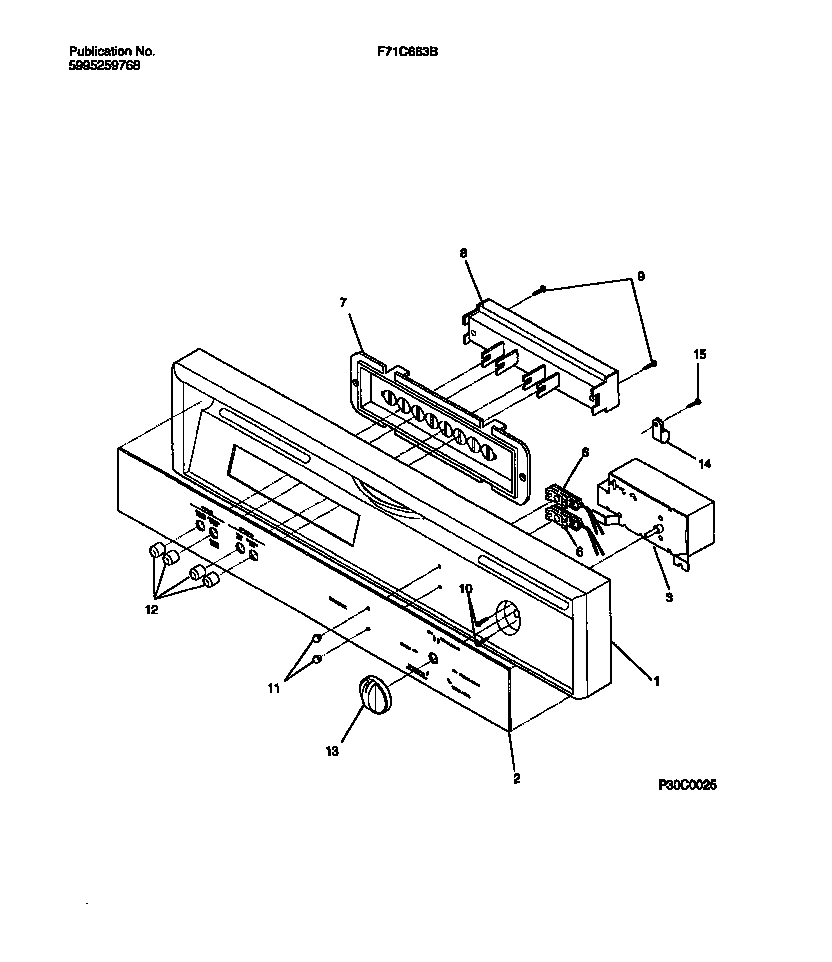

02 - CONSOLE PAGE

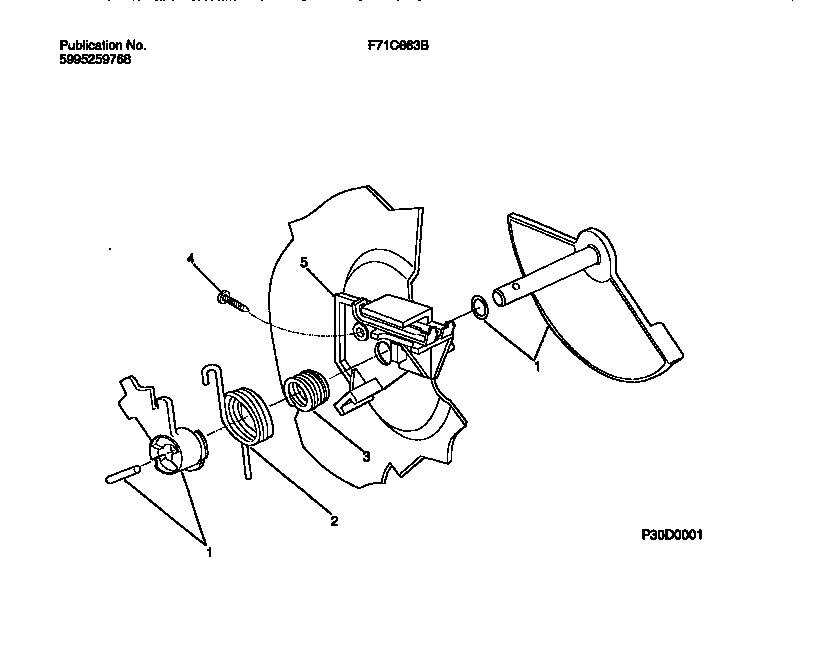

03 - DETERGENT CUP DISPENSER

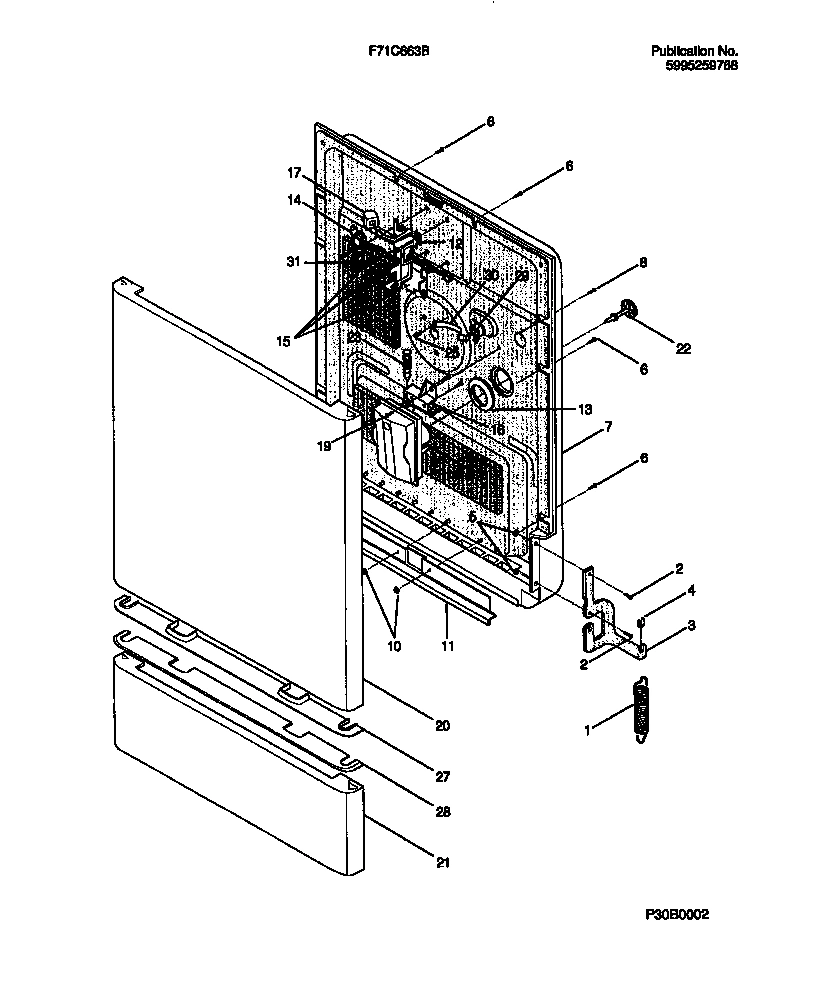

04 - DOOR DETAILS

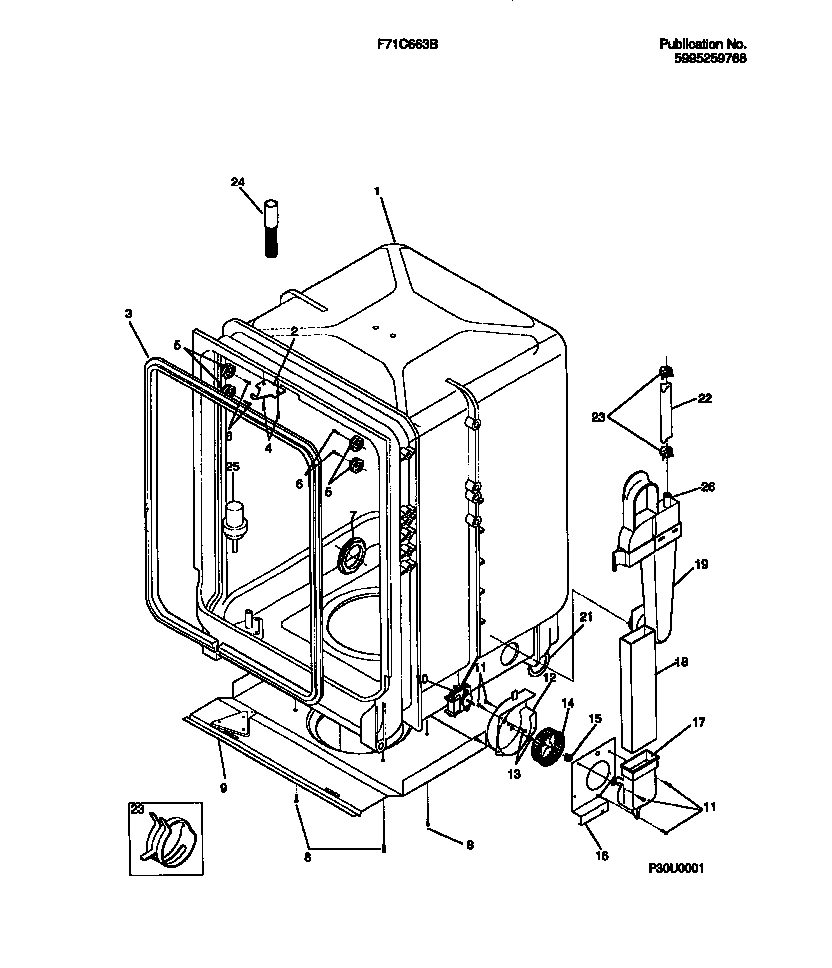

05 - TUB DETAILS
06 - MOTOR DETAILS

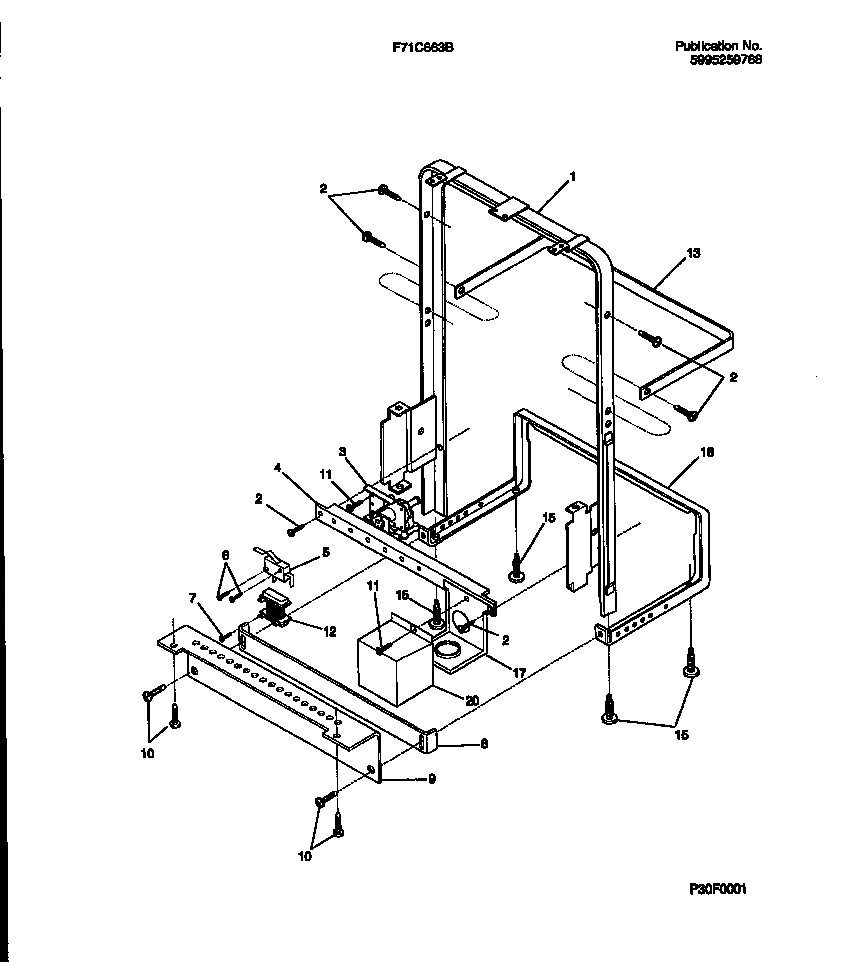

07 - FRAME DETAILS

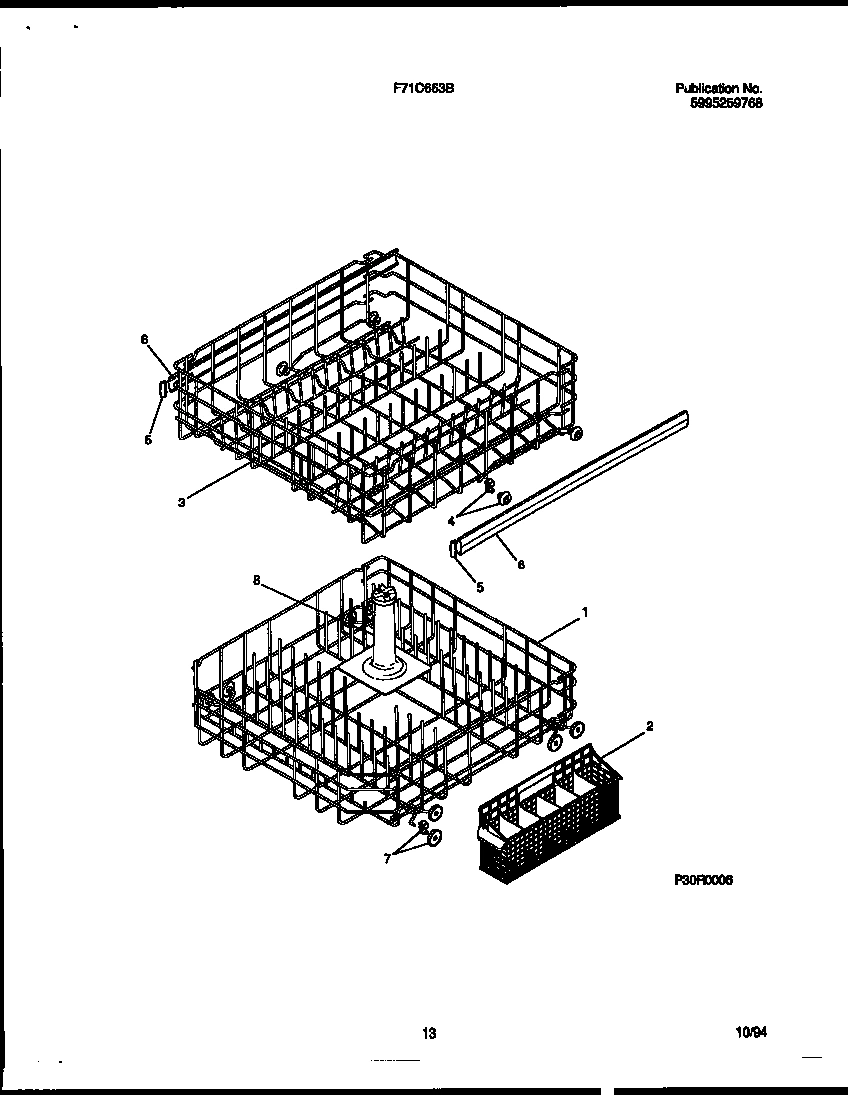

08 - RACK DETAILS
Common parts from model Electrolux F71C663BD0 DISHWASHER
*64601
INSULATION-TUB WCI 5303212479 Contact Us For Availability
1
SCREW 10-32 HEXAGONAL WCI 5300806353 Contact Us For Availability
1
TUB ASSY W/GASKET WCI 5303943090 Contact Us For Availability
1
WCI 5300809972 WCI 5300809972 Contact Us For Availability
1
WCI 154112623 WCI 154112623 Contact Us For Availability
2
STRIKE DOOR WCI 5300809610 Contact Us For Availability
2
WCI 5300809585 WCI 5300809585 Contact Us For Availability
2
WCI 154025901 WCI 154025901 Contact Us For Availability
2A
WCI 5300810094 WCI 5300810094 Contact Us For Availability
3
ARM ASSY (2) WCI 5303270031 No Longer Available
3
GASKET TUB WCI 5300809611 Contact Us For Availability
3
WCI 154169101 WCI 154169101 Contact Us For Availability
3
WCI 5300809584 WCI 5300809584 Contact Us For Availability
3
WCI 5303303957 WCI 5303303957 Contact Us For Availability
3
WCI 5303270141 WCI 5303270141 Contact Us For Availability
4
WCI 5300809918 WCI 5300809918 Contact Us For Availability
4
WCI 154151901 WCI 154151901 Contact Us For Availability
4
WCI 5303286368 WCI 5303286368 Contact Us For Availability
5
WCI 5300809920 WCI 5300809920 Contact Us For Availability
5
B-METAL ASSY WCI 154183301 Contact Us For Availability
5
WCI 154144601 WCI 154144601 Contact Us For Availability
6
WCI 5300809921 WCI 5300809921 Contact Us For Availability
6
SCREW(2) WCI 5300804594 Contact Us For Availability
6
RACK SLIDE (2) WCI 5300809941 Contact Us For Availability
7
WCI 154196902 WCI 154196902 Contact Us For Availability
7
WCI 5300809724 WCI 5300809724 Contact Us For Availability
7
WCI 5300809006 WCI 5300809006 Contact Us For Availability
7
SCREW-8-32 X 1/4`` WCI 5300804672 Contact Us For Availability
8
WCI 154156901 WCI 154156901 Contact Us For Availability
8
WCI 5300809007 WCI 5300809007 Contact Us For Availability
8
WCI 5300809303 WCI 5300809303 Contact Us For Availability
9
BODY-DISPENSER WCI 5300806753 Contact Us For Availability
9
PAN-BOTTOM WCI 5300809614 Contact Us For Availability
9
WCI 5300806521 WCI 5300806521 Contact Us For Availability
9
WCI 5300809765 WCI 5300809765 Contact Us For Availability
10
LOWER IMPELLER WCI 5300809909 Contact Us For Availability
10
WCI 154184601 WCI 154184601 Contact Us For Availability
11
SEAL KIT WCI 5300803903 Contact Us For Availability
11
SCREW-8-32 X 3/8``(2) WCI 154102801 Contact Us For Availability
11
SCREW-8-32 X 1 1/4`` WCI 5300807004 Contact Us For Availability
12
WCI 154160101 WCI 154160101 Contact Us For Availability
12
WCI 5303351059 WCI 5303351059 Contact Us For Availability
13
GROMMET-RINSE AGENT WCI 5300805631 Contact Us For Availability
13
SCREW-8-32 X 3/8``(2) WCI 5300809731 Contact Us For Availability
13
PUMP HOUSING WCI 5300809591 Contact Us For Availability
13
WCI 154145501 WCI 154145501 Contact Us For Availability
14
WCI 154105301 WCI 154105301 Contact Us For Availability
14
BLADE-BLOWER WCI 08016015 Contact Us For Availability
14
SCREW-10 X 1``(3) WCI 5300807268 Contact Us For Availability
15
WCI 5300809728 WCI 5300809728 Contact Us For Availability
15
WCI 5300808186 WCI 5300808186 Contact Us For Availability
15
LEVELER(4) WCI 154026101 Contact Us For Availability
16
BI-METAL RINSE DISPENSER WCI 5300809782 Contact Us For Availability
16
WCI 154158701 WCI 154158701 Contact Us For Availability
16
WCI 5300809590 WCI 5300809590 Contact Us For Availability
16
WCI 5303211181 WCI 5303211181 Contact Us For Availability
17
LATCH KNOB-BLACK WCI 5300808712 Contact Us For Availability
17
WASHER - HEATER (2) WCI 5300809587 Contact Us For Availability
17
WCI 154112901 WCI 154112901 Contact Us For Availability
18
WCI 154064901 WCI 154064901 Contact Us For Availability
18
WCI 154161701 WCI 154161701 Contact Us For Availability
19
WCI 5300809616 WCI 5300809616 Contact Us For Availability
20
WCI 5300809366 WCI 5300809366 Contact Us For Availability
20
WCI 5300809730 WCI 5300809730 Contact Us For Availability
20
WCI 154128301 WCI 154128301 Contact Us For Availability
21
GASKET BLOWER WCI 5300809618 Contact Us For Availability
21
MOTOR WCI 5300809984 Contact Us For Availability
22
TUBING-WATER INLET WCI 5300809619 Contact Us For Availability
22
SCREW-MOTOR MTG (4) WCI 5300809022 Contact Us For Availability
23
WCI 5300809898 WCI 5300809898 Contact Us For Availability
23
WCI 5300807813 WCI 5300807813 Contact Us For Availability
23
TOOL WCI 5300803923 Contact Us For Availability
24
FILTER HOUSING ASSY WCI 154158301 Contact Us For Availability
25
WCI 154144301 WCI 154144301 Contact Us For Availability
25
WCI 5300807359 WCI 5300807359 Contact Us For Availability
26
LOWER SPRAY ARM ASSY WCI 154156602 Contact Us For Availability
27
SPRAY ARM SHIELD (2) WCI 5300809938 Contact Us For Availability
28
SPRAY ARM NUT WCI 154190401 Contact Us For Availability
28A
CLIP-ATTACH (4) (NON-ILLUSTRATED) WCI 154144401 Contact Us For Availability
29
WCI 5303297402 WCI 5303297402 Contact Us For Availability
29
WCI 5300809015 WCI 5300809015 Contact Us For Availability
30
RETAINER-THERMOSTAT WCI 5300809097 Contact Us For Availability
30
WCI 5300809016 WCI 5300809016 Contact Us For Availability
31
WCI 154142901 WCI 154142901 Contact Us For Availability
31
SCREW WCI 5300809012 Contact Us For Availability
32
WCI 5300809937 WCI 5300809937 Contact Us For Availability
33
WCI 154119301 WCI 154119301 Contact Us For Availability
34
WCI 154119401 WCI 154119401 Contact Us For Availability
35
PLATE-UPPER SPRAY ARM MOUNTING WCI 154126401 Contact Us For Availability
× ![]()
