Model Whirlpool F6858L0 – Common Parts & Diagrams

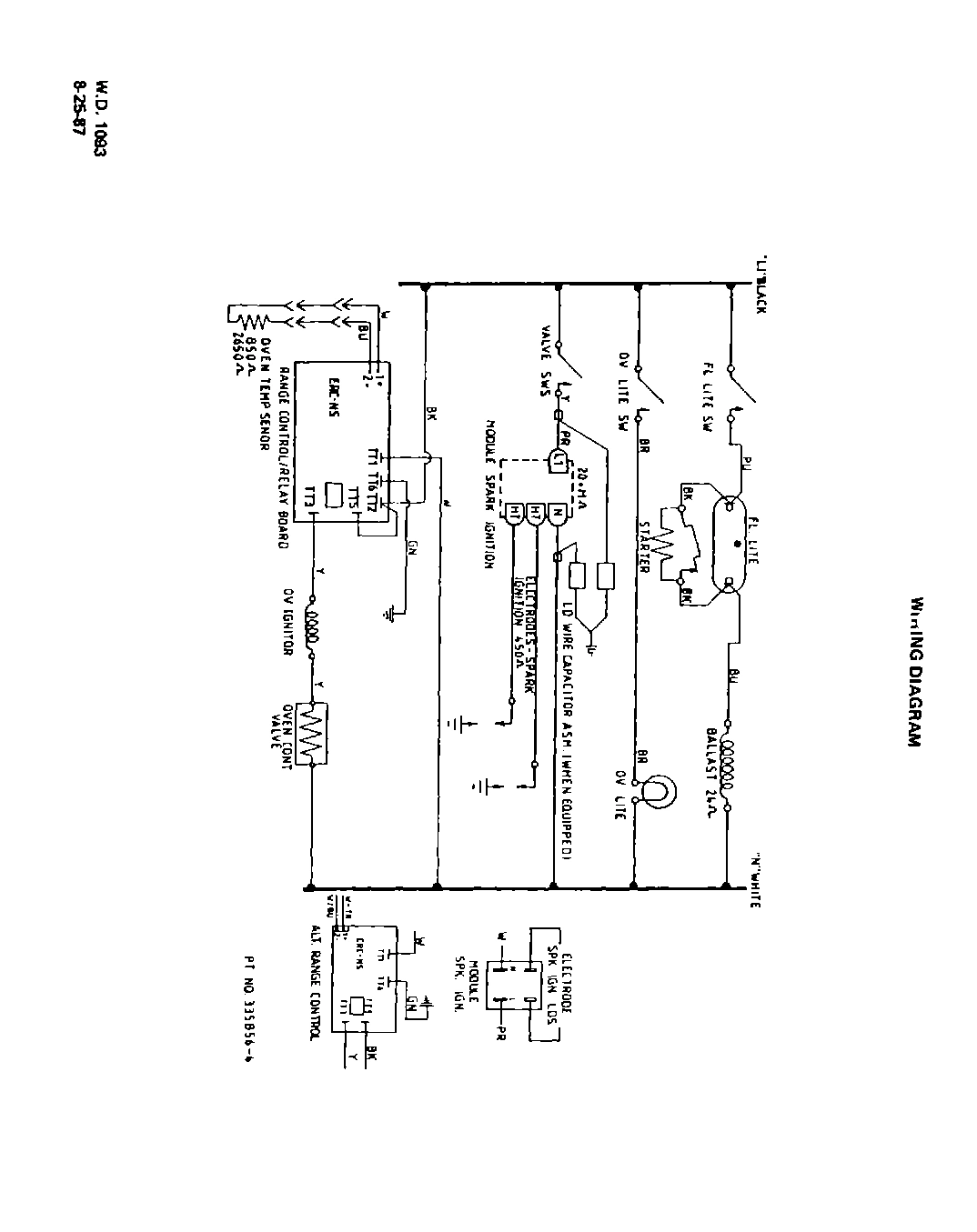

08 - WIRING DIAGRAM

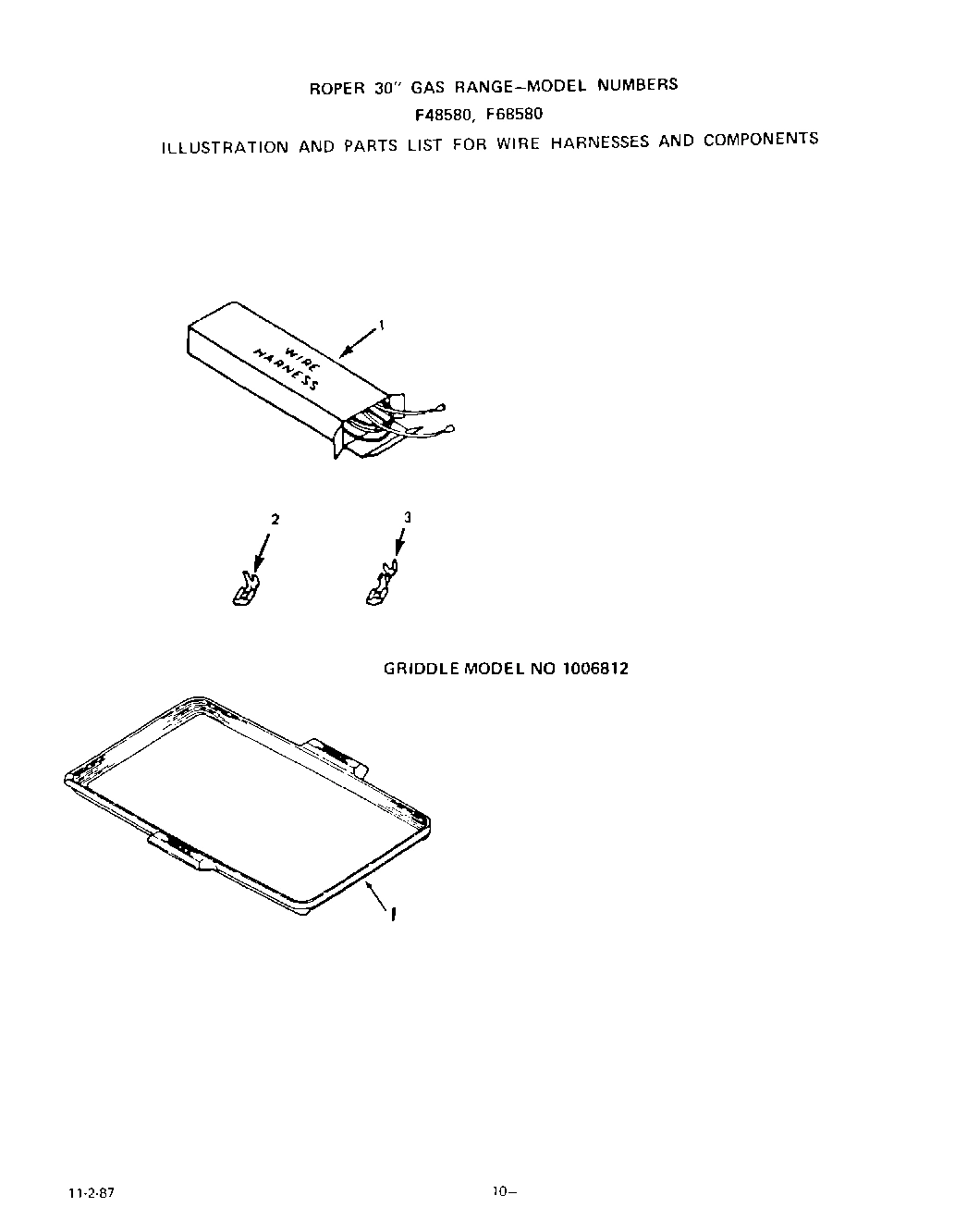

07 - WIRE HARNESS/COMPONENTS/GRIDDLE

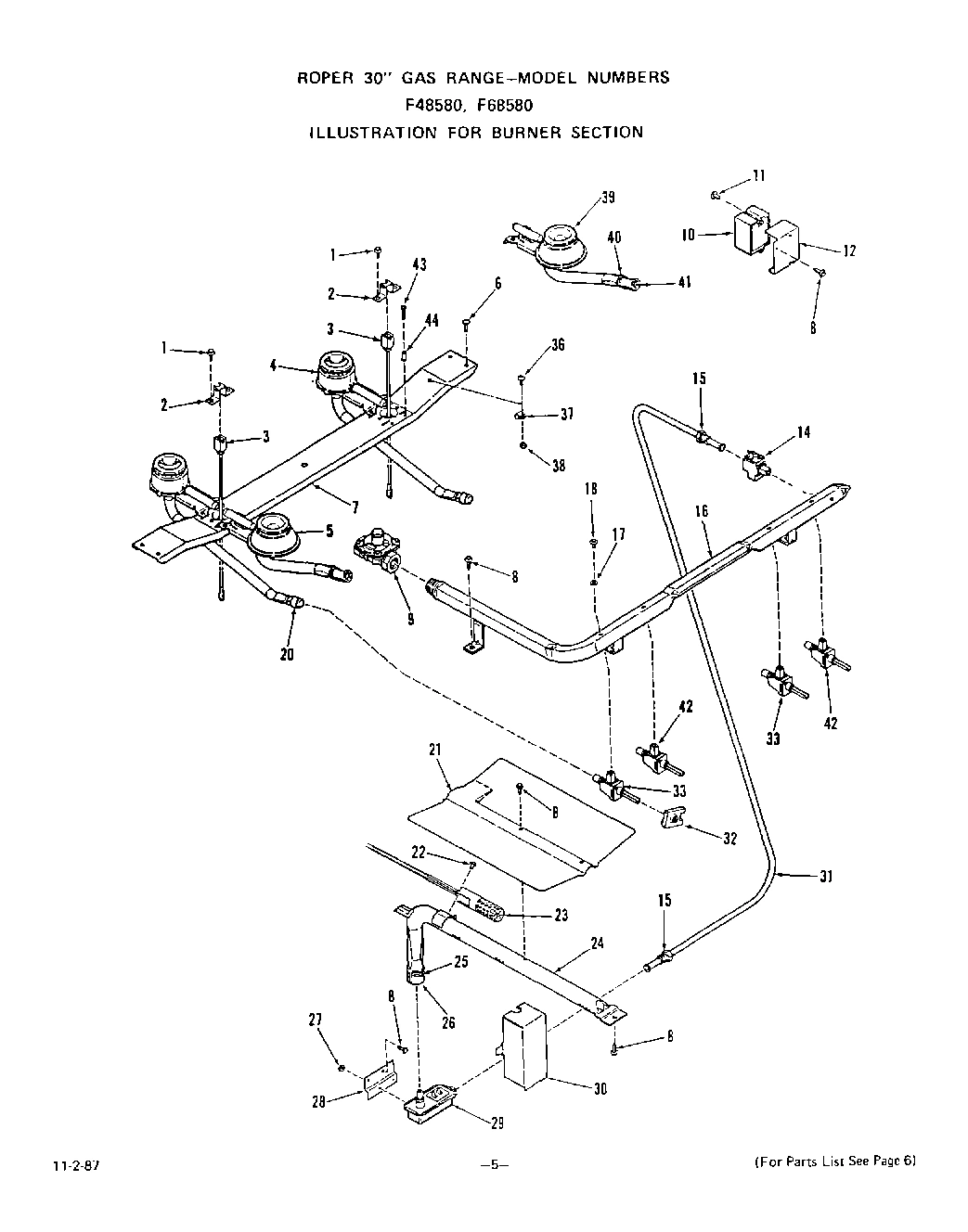

04 - BURNER

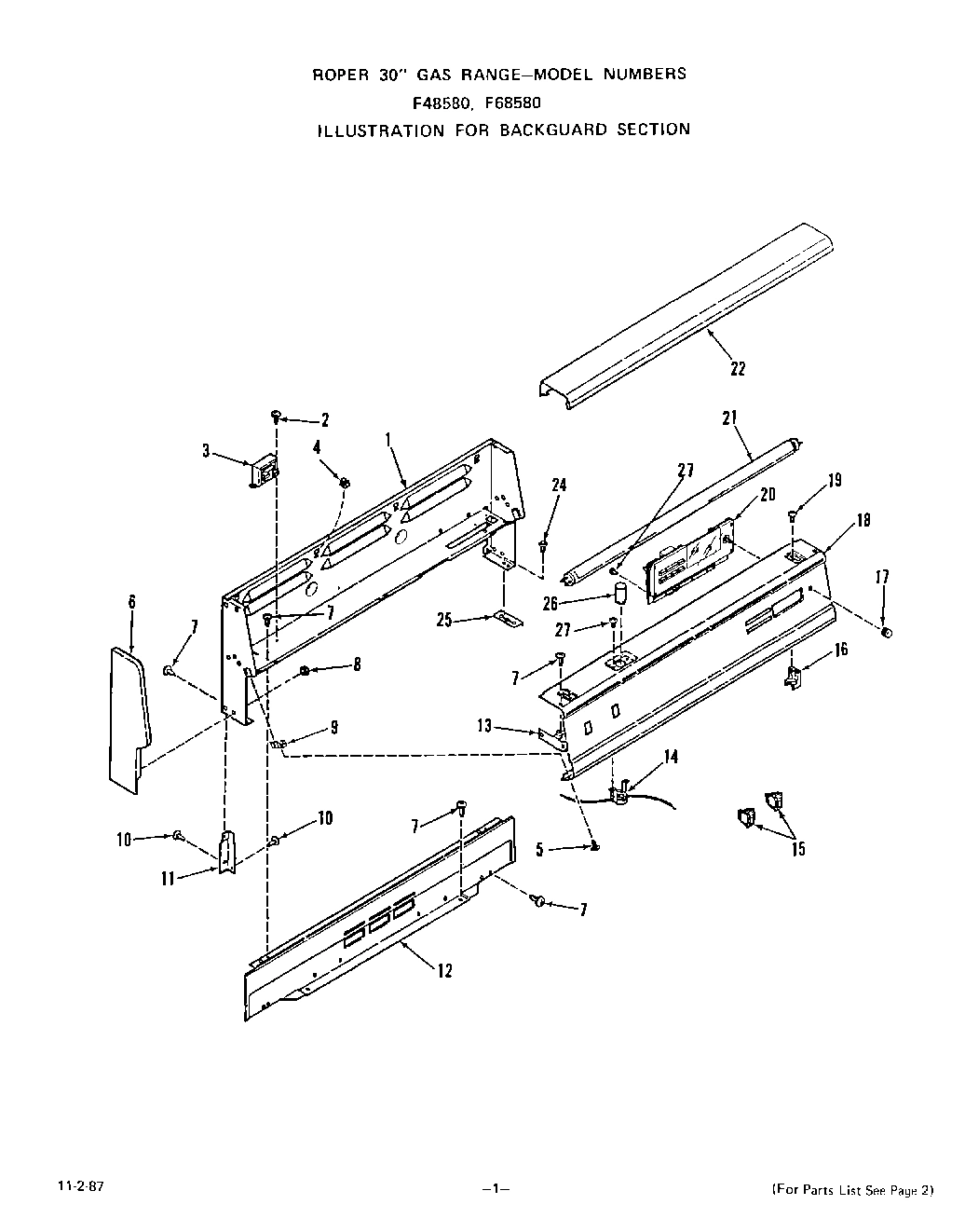

02 - BACKGUARD
06 - OVEN DOOR

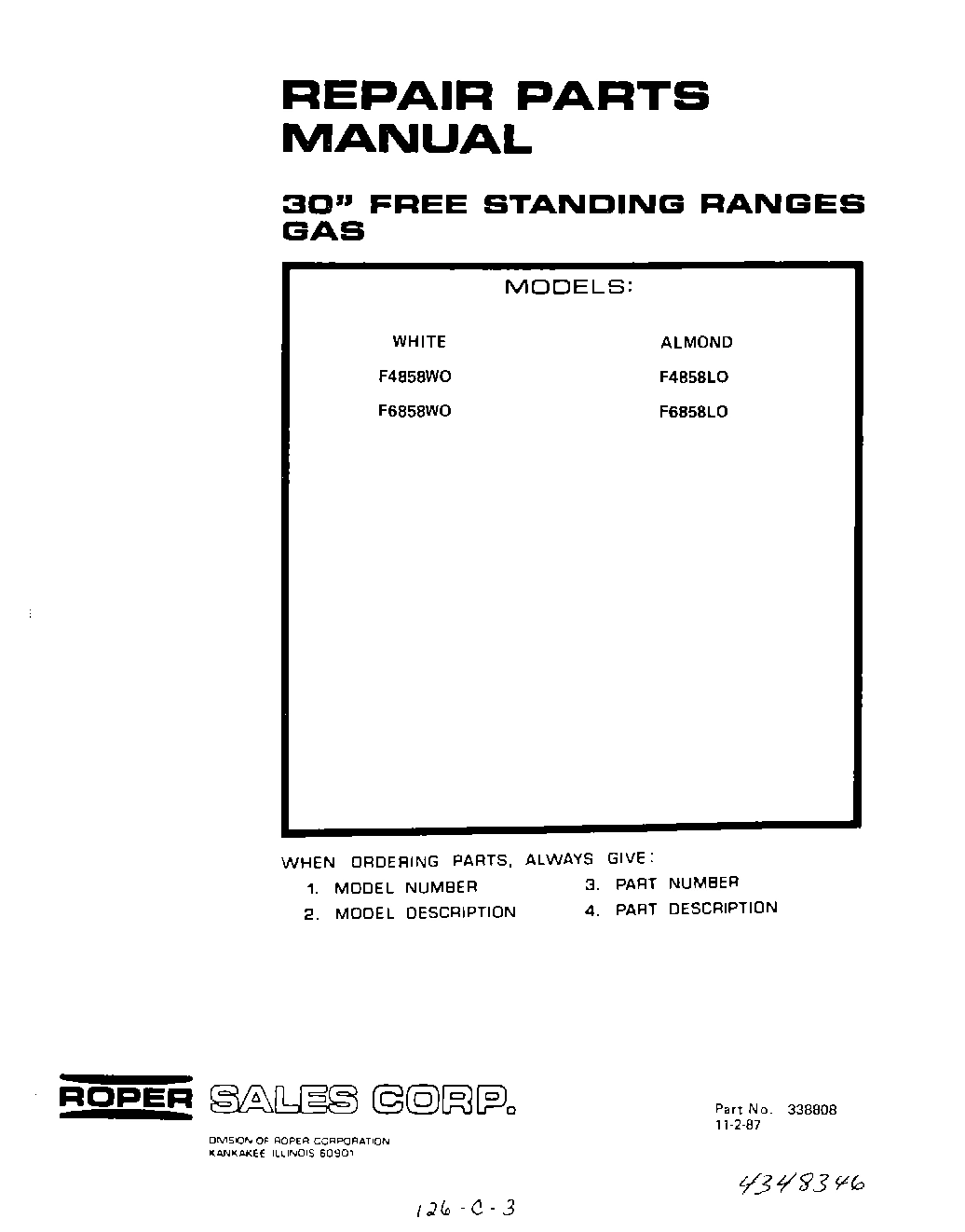

01 - COVER

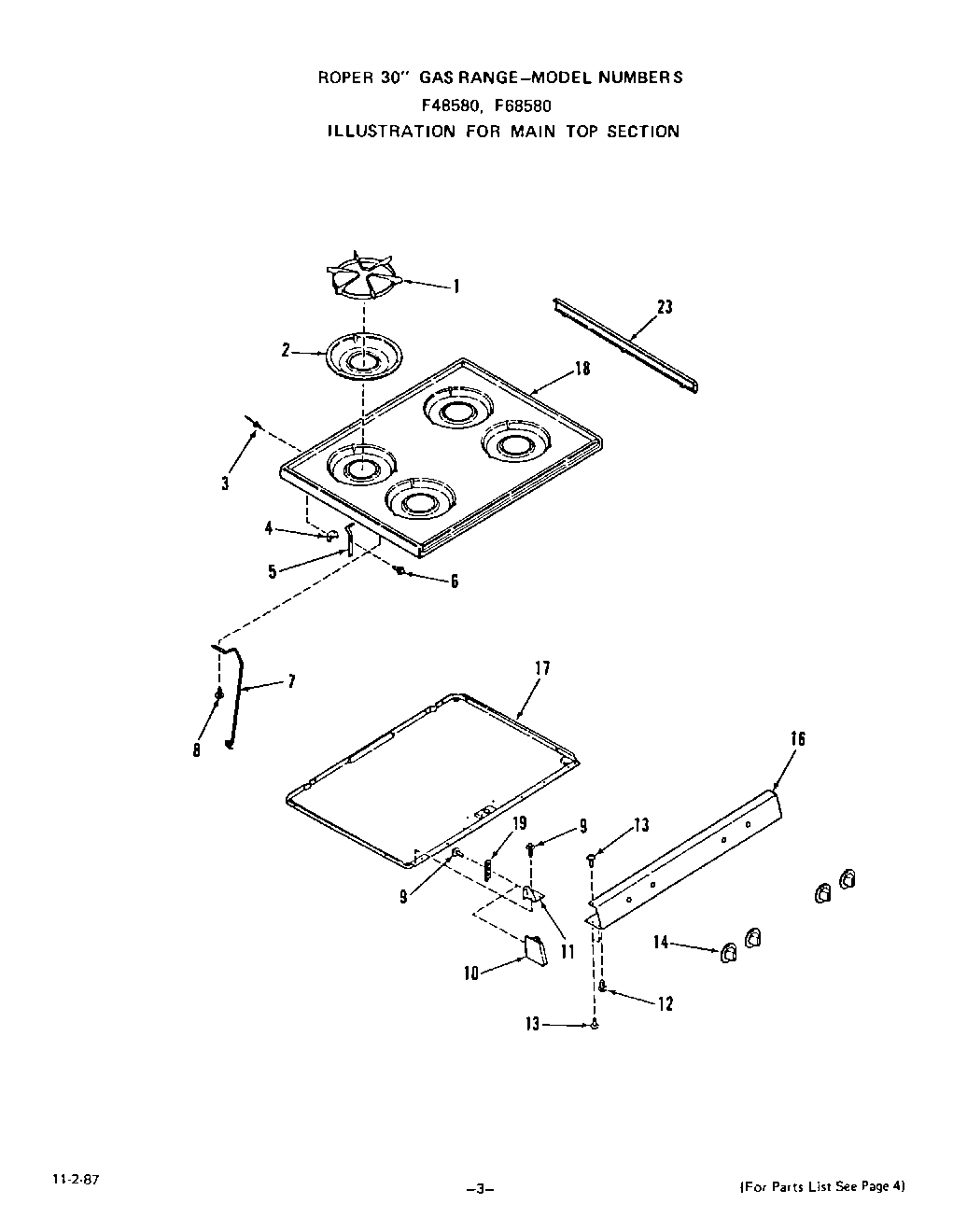

03 - MAIN TOP
05 - BODY
Common parts from model Whirlpool F6858L0
xClock /Oven Control Lens WPL 335646 Contact Us For Availability
1
Switches WPL 326868 Contact Us For Availability
1
Backguard WPL 337875 Contact Us For Availability
1
Main WPL 337877 Contact Us For Availability
1
Wire Harness WPL ARI56934A4 Contact Us For Availability
1
Screw 8 - 32x3/8`` WPL 97217 Contact Us For Availability
1
Backguard Body WPL 338150 Contact Us For Availability
1
Inner Glass WPL 326010 Contact Us For Availability
1
Top Burner Grate (4 Req) WPL 330242 Contact Us For Availability
1
Flue Deflector WPL 327079 Contact Us For Availability
2
Flag Terminal 1/4`` WPL 238391 Contact Us For Availability
2
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
2
Screw 6-20x3/8`` WPL 329382 Contact Us For Availability
2
Outer Glass WPL 332067 Contact Us For Availability
2
Aeration Pan (4 Req) WPL 332299 Contact Us For Availability
2
Back-Main WPL 327087 Contact Us For Availability
3
3/16`` WPL 238392 Contact Us For Availability
3
1/4`` WPL 238393 Contact Us For Availability
3
Faston Terminal WPL ARI56935A2 Contact Us For Availability
3
Right WPL 313629 Contact Us For Availability
3
Left WPL 334509 Contact Us For Availability
3
Electrode WPL ARI56923A8 Contact Us For Availability
3
Ballast WPL 98186 Contact Us For Availability
3
Cushion WPL 112370 Contact Us For Availability
3
Rivet Pop WPL 338735 Contact Us For Availability
3
Insulation WPL 328142 Contact Us For Availability
4
Rear Burner-Rt. or Lt. WPL 333223 Contact Us For Availability
4
Clip WPL 338025 Contact Us For Availability
4
Frame WPL 332066 Contact Us For Availability
4
Hinge Mounting Bracket WPL 335975 Contact Us For Availability
5
Handle WPL 332452 Contact Us For Availability
5
Right WPL 320921 Contact Us For Availability
5
Left WPL 320922 Contact Us For Availability
5
Main Top Hinge WPL ARI56918A7 Contact Us For Availability
5
Spacer WPL 335320 Contact Us For Availability
6
Screw 6-32x3/8`` WPL 327621 Contact Us For Availability
6
Screw 6-32x7/8`` WPL 327256 Contact Us For Availability
6
Right WPL 333760 Contact Us For Availability
6
Left WPL 333761 Contact Us For Availability
6
End Cap WPL ARI56916A3 Contact Us For Availability
6
Spacer, Door Handle WPL 107158 Contact Us For Availability
6
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
7
Support-Top Burner WPL 338635 Contact Us For Availability
7
Main Top Support Rod (2 Req) WPL 332284 Contact Us For Availability
7
Screw WPL 337857 Contact Us For Availability
8
Pal Nut WPL 335776 Contact Us For Availability
8
Washer WPL 333014 Contact Us For Availability
8
Right WPL 334340 Contact Us For Availability
8
Left WPL 334341 Contact Us For Availability
8
Side Support WPL ARI56924A9 Contact Us For Availability
9
Backguard Clip WPL 337975 Contact Us For Availability
9
Screw 10-32x3/4`` WPL 300864 Contact Us For Availability
9
Base w/Levelers-Lt. or Rt. WPL 334811 Contact Us For Availability
10
Module-Spark Igniter WPL 320990 Contact Us For Availability
10
Glass Spacer WPL 333015 Contact Us For Availability
10
Right WPL 333349 Contact Us For Availability
10
Left WPL 333350 Contact Us For Availability
10
End Cap WPL ARI56919A6 Contact Us For Availability
10
Bottom-Main WPL 327053 Contact Us For Availability
11
Right WPL 334337 Contact Us For Availability
11
Left WPL 334338 Contact Us For Availability
11
Backguard Support WPL ARI56917A3 Contact Us For Availability
11
Screw 10-32 x 17/32`` WPL 104520 Contact Us For Availability
11
Right WPL 333351 Contact Us For Availability
11
Left WPL 333352 Contact Us For Availability
11
Manifold Panel Bracket WPL ARI56920A4 Contact Us For Availability
11
Right WPL 332345 Contact Us For Availability
11
Left WPL 332346 Contact Us For Availability
11
Door Hinge WPL ARI56925A3 Contact Us For Availability
12
Bracket - Spark Igniter Module WPL 315369 Contact Us For Availability
12
Backguard Front Panel WPL 336661 Contact Us For Availability
12
Retainer WPL 328622 Contact Us For Availability
12
Screw WPL 335967 Contact Us For Availability
12
Leg Levelers (4 Req) WPL 326052 Contact Us For Availability
13
Backguard Bracket WPL 335667 Contact Us For Availability
13
Screw WPL 331704 Contact Us For Availability
13
Insulation WPL 325999 Contact Us For Availability
14
Shut Off Valve WPL 326830 Contact Us For Availability
14
Starter Base WPL 334924 Contact Us For Availability
14
(Model F68580) WPL 325946 Contact Us For Availability
14
(Model F48580) WPL 331581 Contact Us For Availability
14
Lining WPL ARI56933A9 Contact Us For Availability
14
Gas Valve Knob (4 Req) WPL 338397 Contact Us For Availability
14
Spring WPL 334723 Contact Us For Availability
15
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
15
Switch WPL 334649 Contact Us For Availability
15
Washer WPL 99279 Contact Us For Availability
15
White WPL 335826 Contact Us For Availability
15
Body Side (Almond) WPL 335830 Contact Us For Availability
15
Body Side WPL ARI56926A1 Contact Us For Availability
16
Manifold Pipe WPL 338398 Contact Us For Availability
16
Lamp Holder WPL 334173 Contact Us For Availability
16
Washer WPL 335945 Contact Us For Availability
16
Manifold Panel WPL 335321 Contact Us For Availability
16
Left WPL 334382 Contact Us For Availability
16
Right WPL 334384 Contact Us For Availability
16
Broiler Drawer Guide WPL ARI56927A4 Contact Us For Availability
17
Gasket (For Key 18) WPL 311692 Contact Us For Availability
17
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
17
Clock/Oven Control Knob WPL 334045 Contact Us For Availability
17
Burner Box Bottom WPL 333544 Contact Us For Availability
18
Screw (For Key 33) WPL 311455 Contact Us For Availability
18
Control Panel WPL 335852 Contact Us For Availability
18
White WPL 338835 Contact Us For Availability
18
Almond WPL 338836 Contact Us For Availability
18
Main Top W/Trim WPL ARI56921A5 Contact Us For Availability
18
Broiler Drawer WPL 334398 Contact Us For Availability
19
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
19
Pressure Regulator WPL 324528 Contact Us For Availability
19
Screw 6-32x3/8`` WPL 89022 Contact Us For Availability
19
Cleat WPL 335977 Contact Us For Availability
20
Air Shutter WPL 327198 Contact Us For Availability
20
Clock/Oven Control w/Lens WPL 337178 Contact Us For Availability
20
Slide Block - Front WPL 334918 Contact Us For Availability
21
Baffle - Oven Burner WPL 329316 Contact Us For Availability
21
Fluorescent Lamp WPL 334193 Contact Us For Availability
21
Slide Block - Rear WPL 334916 Contact Us For Availability
22
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
22
Canopy Panel WPL 334176 Contact Us For Availability
22
Spring WPL 327481 Contact Us For Availability
23
Oven Igniter WPL 337263 Contact Us For Availability
23
Right WPL 332281 Contact Us For Availability
23
Left WPL 332282 Contact Us For Availability
23
Main Top Trim WPL ARI56922A8 Contact Us For Availability
23
Shoulder Bolt WPL 329271 Contact Us For Availability
24
Oven Burner Asm. (Inc`s Keys 21, 25, 26) WPL 331173 Contact Us For Availability
24
Right WPL 327482 Contact Us For Availability
24
Left WPL 327483 Contact Us For Availability
24
Drawer Hinge WPL ARI56928A7 Contact Us For Availability
25
Adjustment Screw WPL 312989 Contact Us For Availability
25
Drawer Bottom WPL 331554 Contact Us For Availability
26
Air Shutter WPL 312988 Contact Us For Availability
26
Lamp Starter WPL 334104 Contact Us For Availability
27
Hex Nut 6-32 WPL 236313 Contact Us For Availability
27
Screw 6-32x5/16`` WPL 78153 Contact Us For Availability
27
Handle WPL 332205 Contact Us For Availability
28
Bracket-Control Valve WPL 296179 Contact Us For Availability
28
White WPL 332113 Contact Us For Availability
28
Almond WPL 332117 Contact Us For Availability
28
Door Panel WPL ARI56929A8 Contact Us For Availability
29
Control Valve WPL 321756 Contact Us For Availability
29
Screw WPL 336529 Contact Us For Availability
30
Cover-Control Valve WPL 327090 Contact Us For Availability
30
Hex Nut 10-24 WPL 74056 Contact Us For Availability
31
Tubing 3/8`` (Inc`s Key 15) WPL 315807 Contact Us For Availability
31
Broiler Pan WPL 331593 Contact Us For Availability
32
Switch-Gas Valve WPL 338399 Contact Us For Availability
32
Door Lining WPL 331567 Contact Us For Availability
33
Gas Valve WPL 338396 Contact Us For Availability
33
Broiler Pan Grid WPL 331588 Contact Us For Availability
34
Screw 10ABx1/2`` WPL 69014 Contact Us For Availability
35
Oven Lamp Bulb WPL 111257 Contact Us For Availability
36
Screw 8-32 x 3/8`` WPL 238833 Contact Us For Availability
36
Lamp Bulb Holder WPL 295974 Contact Us For Availability
38
Nut WPL 239764 Contact Us For Availability
38
(Model F68580) WPL 327084 Contact Us For Availability
38
(Model F48580) WPL 331539 Contact Us For Availability
38
Oven Bottom WPL ARI56930A9 Contact Us For Availability
39
Front Burner-Rt. (Inc`s Key 40, 41) WPL 334818 Contact Us For Availability
39
Non-folding WPL 326068 Contact Us For Availability
39
Folding WPL 338368 Contact Us For Availability
39
Oven Rack WPL ARI56931A7 Contact Us For Availability
40
Adjustment Screw WPL 301911 Contact Us For Availability
40
Seal WPL 326047 Contact Us For Availability
41
Air Shutter WPL 301910 Contact Us For Availability
41
Retainer WPL 327875 Contact Us For Availability
42
Gas Valve (Inc`s Key 18) WPL 338663 Contact Us For Availability
42
Front Frame WPL 334054 Contact Us For Availability
43
Insulation Retainer WPL 328984 Contact Us For Availability
44
Eyelet WPL 335718 Contact Us For Availability
44
Insulation WPL 326040 Contact Us For Availability
45
(Model F48580) WPL 333175 Contact Us For Availability
45
(Model F68580) WPL 335850 Contact Us For Availability
45
Oven Body WPL ARI56932A2 Contact Us For Availability
47
Bushing WPL 232365 Contact Us For Availability
48
Clip WPL 106767 Contact Us For Availability
49
Service Cord WPL 235822 Contact Us For Availability
50
Disconnect WPL 232150 Contact Us For Availability
51
Wire Cover WPL 334452 Contact Us For Availability
52
Strike WPL 333892 Contact Us For Availability
53
Insulation WPL 329314 Contact Us For Availability
54
Sensor WPL 338242 Contact Us For Availability
55
Screw 6-32x1/4`` WPL 293121 Contact Us For Availability
56
Screw 10-32x7/16`` WPL 321337 Contact Us For Availability
A1
Set-On Griddle WPL 289671 Contact Us For Availability
× ![]()
