Model Whirlpool F6857W0 – Common Parts & Diagrams

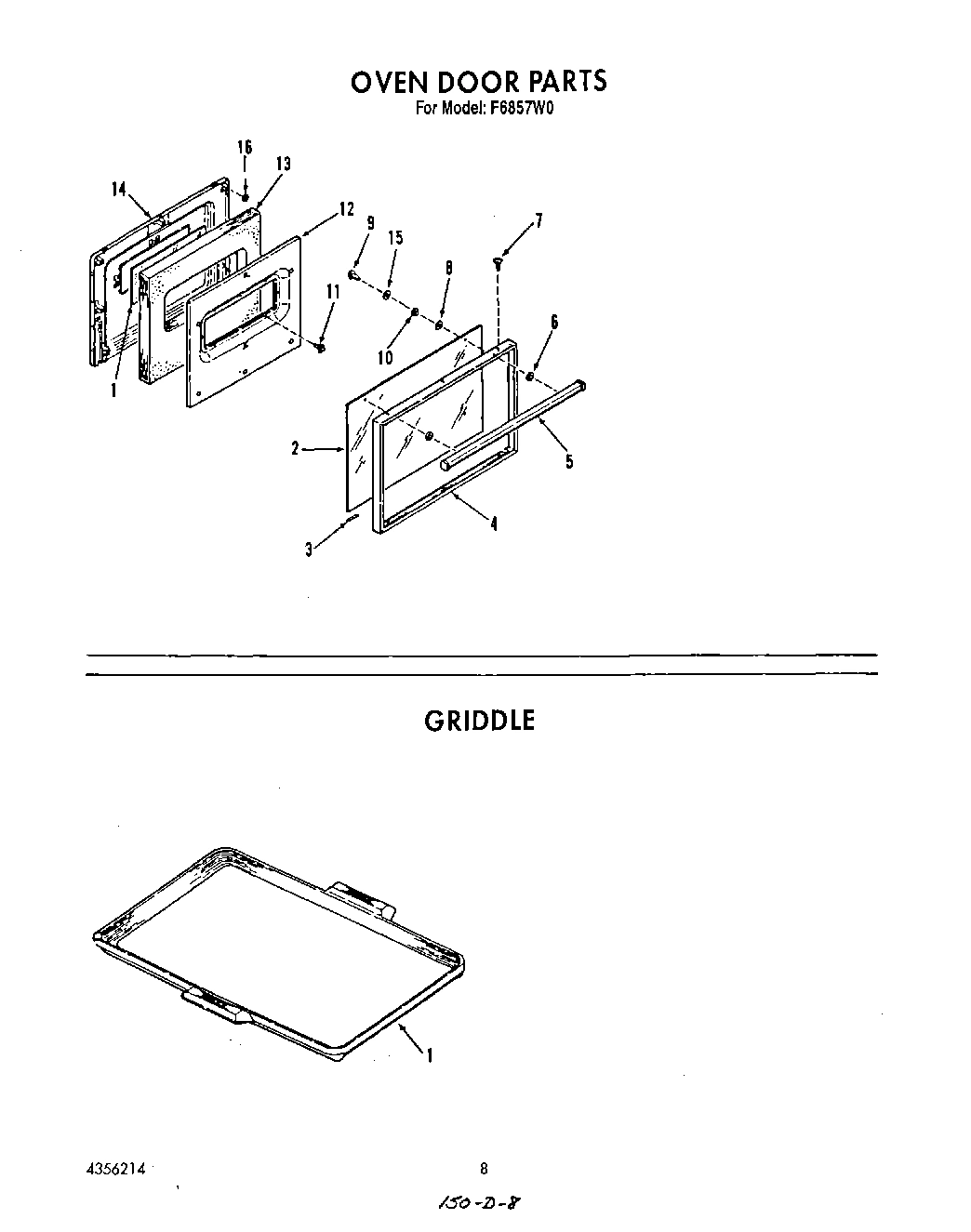

06 - OVEN DOOR , GRIDDLE

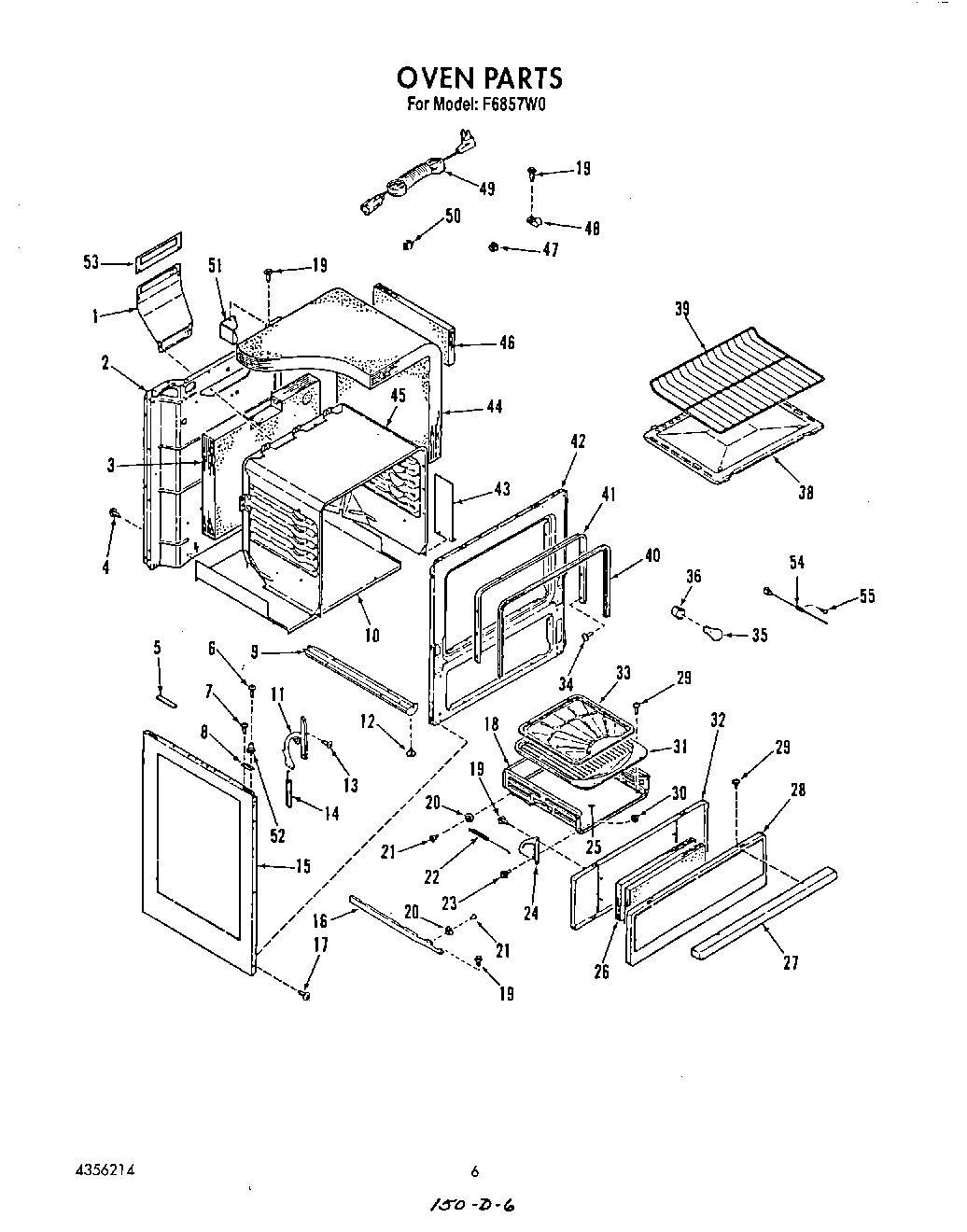

05 - OVEN

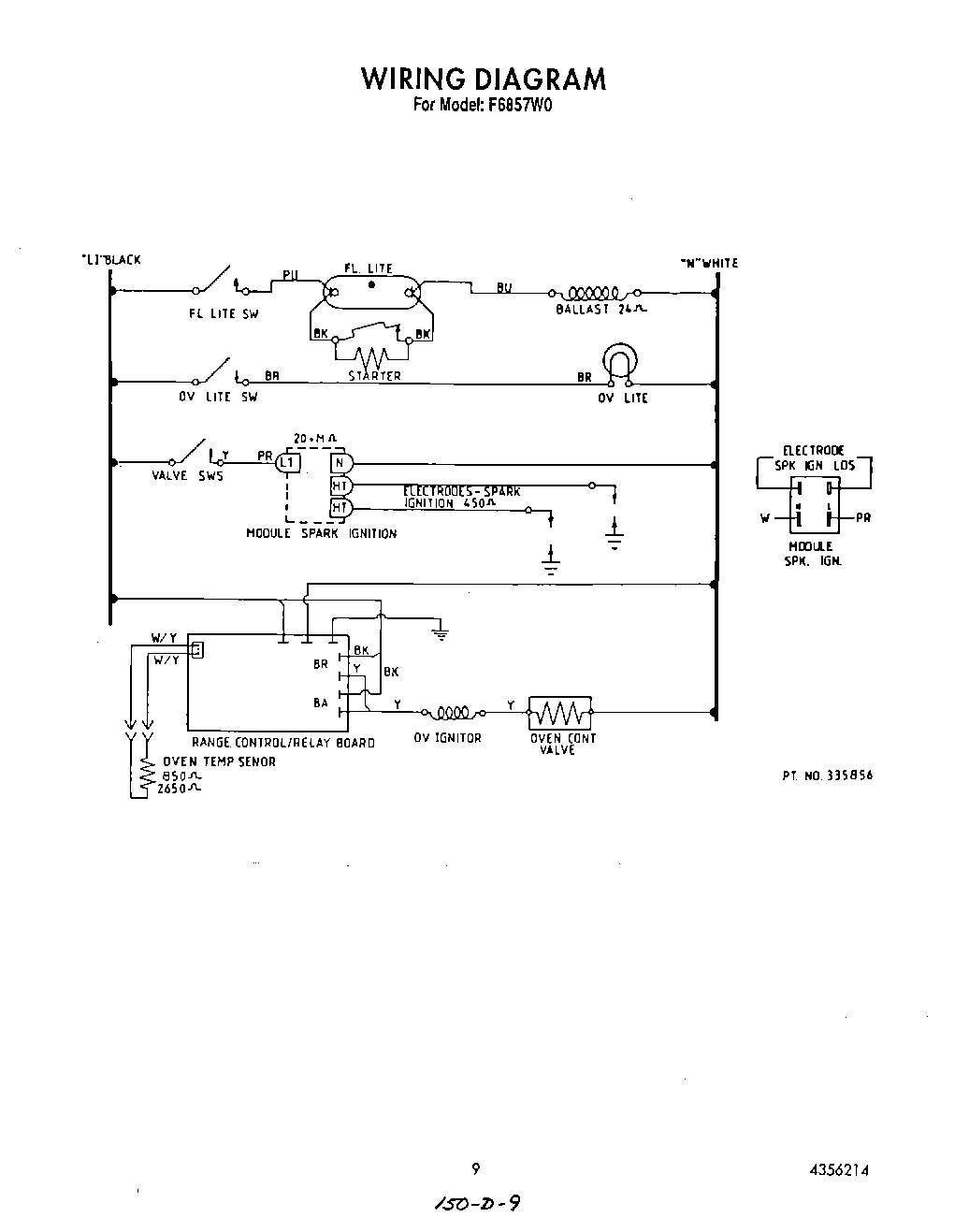

07 - WIRING DIAGRAM

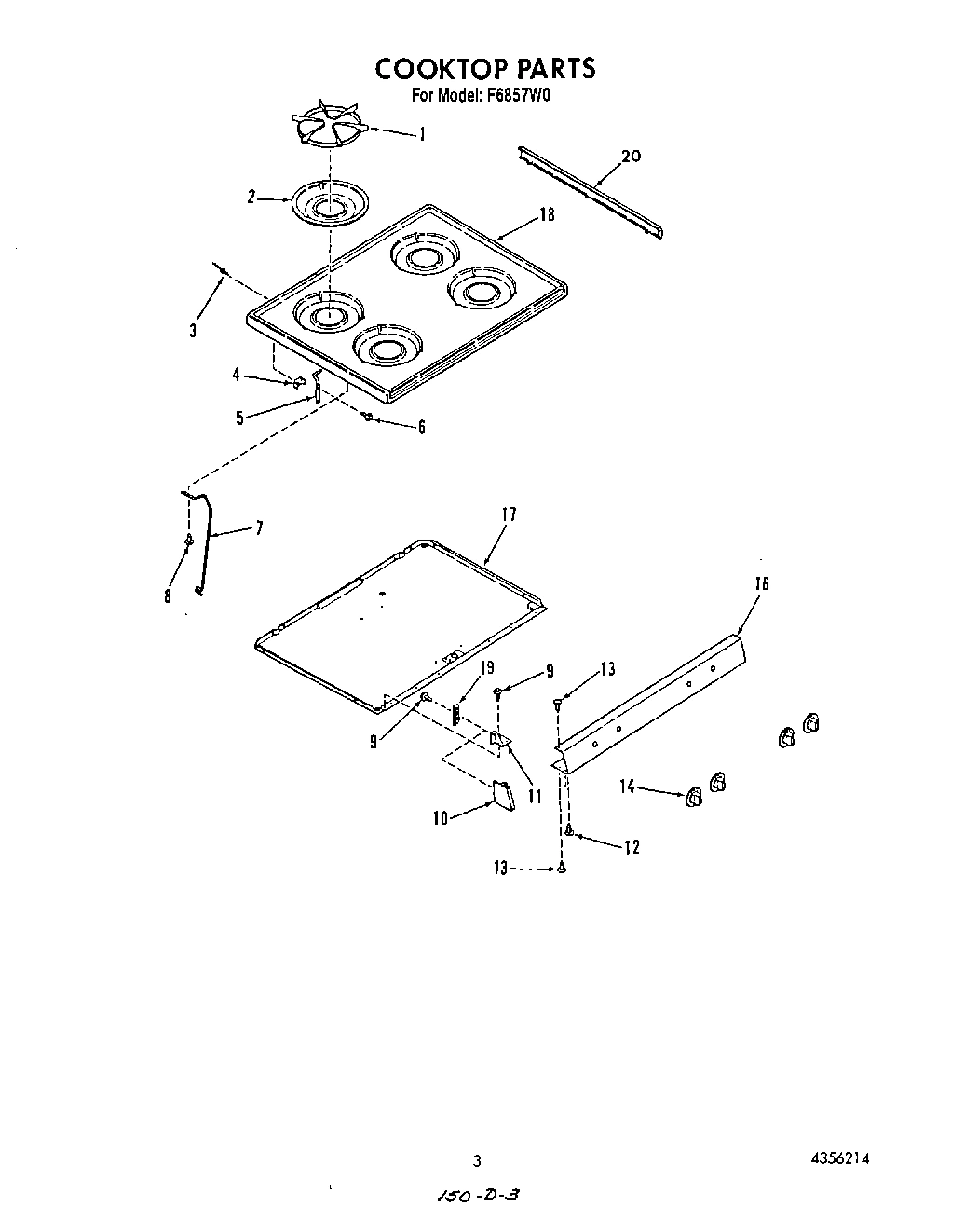

03 - COOK TOP

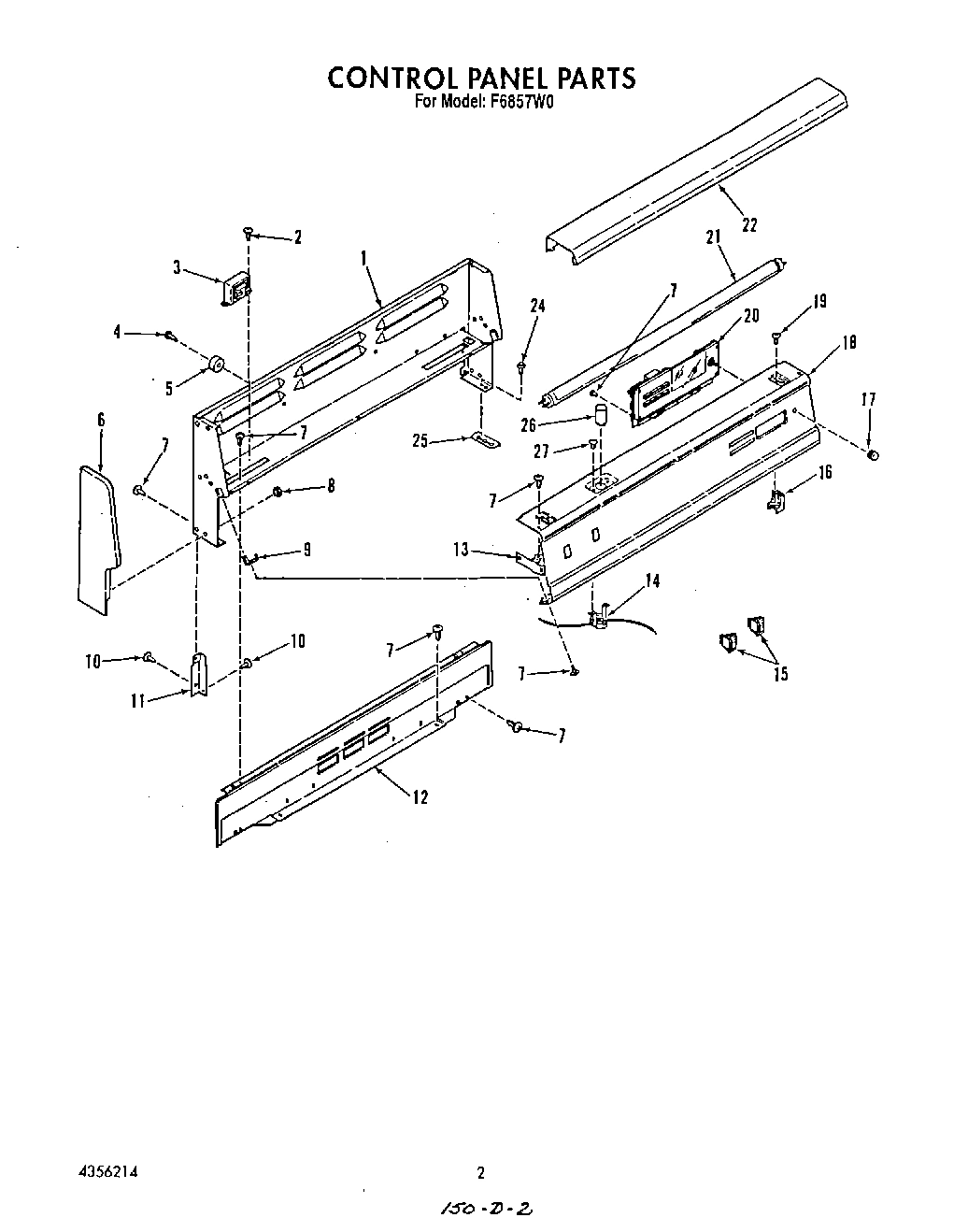

02 - CONTROL PANEL , LIT/OPTIONAL

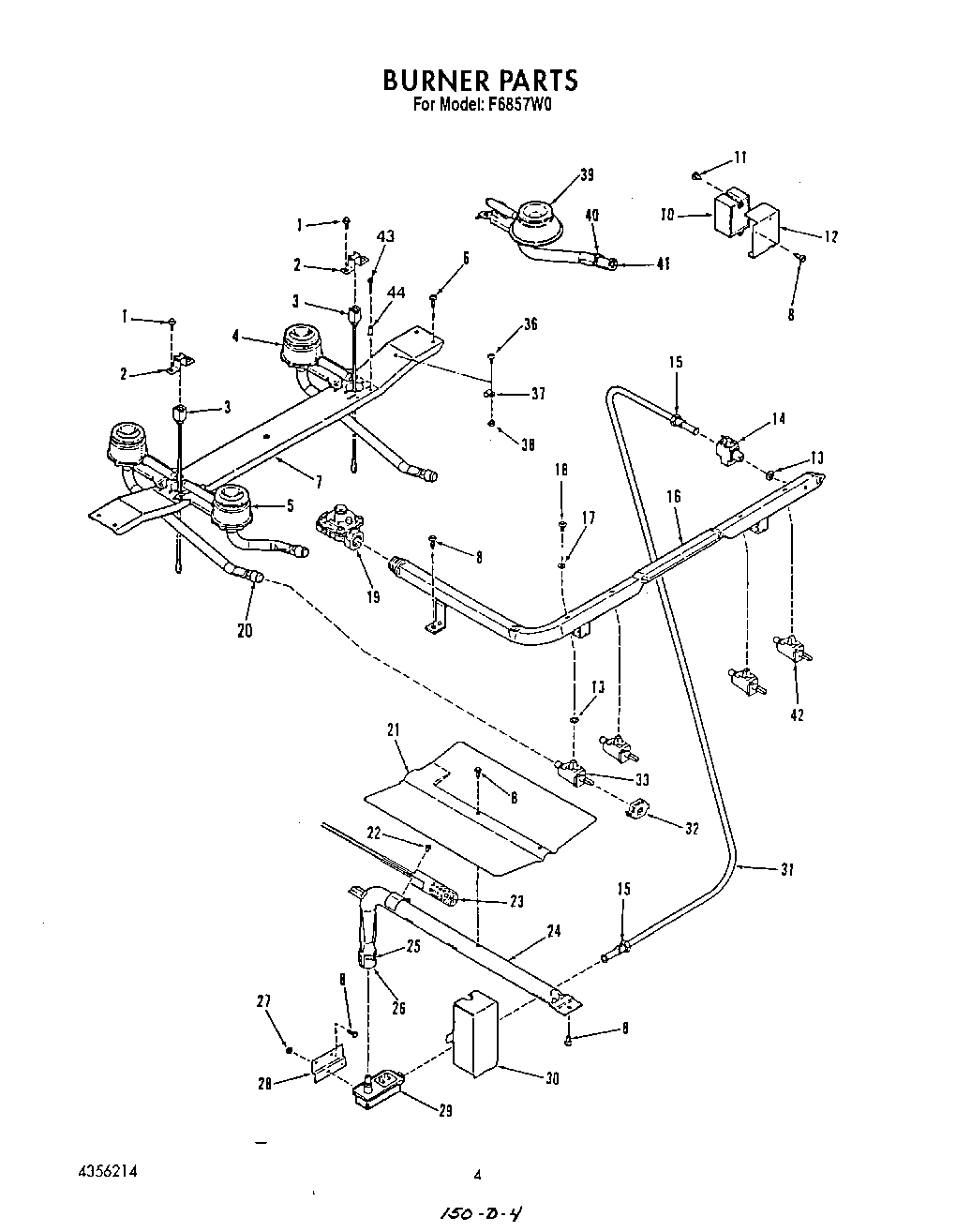

04 - BURNER
Common parts from model Whirlpool F6857W0
xLens, Clock/Oven Control WPL 4337553 Contact Us For Availability
1
Deflector WPL 4335162 Contact Us For Availability
1
Grate, Burner (4) WPL 4336234 Contact Us For Availability
1
Rear Cover WPL 4338271 Contact Us For Availability
2
Bowl, Drip WPL 4336770 Contact Us For Availability
2
Cover, Rear WPL 4335165 Contact Us For Availability
2
Bracket, Igniter WPL 4331307 Contact Us For Availability
3
Cushion WPL 4324217 Contact Us For Availability
3
Insulation WPL 4354817 Contact Us For Availability
3
Rivet WPL 4328335 Contact Us For Availability
3
Ballast WPL 4323673 Contact Us For Availability
3
Electrode (Right) WPL 4331688 Contact Us For Availability
3
Electrode (Left) WPL 4354924 Contact Us For Availability
4
Frame WPL 4336720 Contact Us For Availability
4
Bracket, Mounting WPL 4335270 Contact Us For Availability
4
Burner, Rear Lt/Rt WPL 4336922 Contact Us For Availability
5
Handle WPL 4336828 Contact Us For Availability
5
Spacer WPL 4337485 Contact Us For Availability
5
Hinge (Right) WPL 4333234 Contact Us For Availability
5
Hinge (Left) WPL 4333235 Contact Us For Availability
5
Bumper WPL 4337434 Contact Us For Availability
5
Burner, Lt Front WPL 4336921 Contact Us For Availability
6
Spacer, Handle WPL 4323997 Contact Us For Availability
6
End Cap (Right) WPL 4337047 Contact Us For Availability
6
End Cap (Left) WPL 4337048 Contact Us For Availability
6
Screw No.6-32x3/8 WPL 4335339 Contact Us For Availability
7
Support Rod (2) WPL 4336765 Contact Us For Availability
7
Support, Top Burner WPL 4337013 Contact Us For Availability
8
Washer WPL 4336868 Contact Us For Availability
8
Screw WPL 4328072 Contact Us For Availability
8
Support, Side (Right) WPL 4337183 Contact Us For Availability
8
Support, Side (Left) WPL 4337184 Contact Us For Availability
9
Base W/Levelers Rt/Lt WPL 4337332 Contact Us For Availability
9
Clip, Backguard WPL 4338226 Contact Us For Availability
10
Spacer, Glass WPL 4336869 Contact Us For Availability
10
Bottom WPL 4335153 Contact Us For Availability
10
End Cap (Right) WPL 4336960 Contact Us For Availability
10
End Cap (Left) WPL 4336961 Contact Us For Availability
10
Spark Igniter Module WPL 4333260 Contact Us For Availability
11
Hinge-Door (Left) WPL 4336784 Contact Us For Availability
11
Hinge-Door (Right) WPL 4336783 Contact Us For Availability
11
Bracket, Manifold (Right) WPL 4336962 Contact Us For Availability
11
Bracket, Manifold (Left) WPL 4336963 Contact Us For Availability
11
Screw, No.6-20 x 3/8 WPL 4336048 Contact Us For Availability
11
Support, Backguard (Right) WPL 4337180 Contact Us For Availability
11
Support, Backguard (Left) WPL 4337181 Contact Us For Availability
12
Retainer WPL 4334788 Contact Us For Availability
12
Levelers, Leg (4) WPL 4334800 Contact Us For Availability
12
Screw, No.6-20x3/8 WPL 4337623 Contact Us For Availability
12
Backguard Front WPL 4337853 Contact Us For Availability
12
Bracket, Spark Module WPL 4332158 Contact Us For Availability
13
Screw WPL 4336631 Contact Us For Availability
13
Insulation WPL 4354748 Contact Us For Availability
13
Screw, No.10x1/2 WPL 4337678 Contact Us For Availability
13
Bracket, Backguard WPL 4337555 Contact Us For Availability
13
Seal, Valve WPL 4331665 Contact Us For Availability
14
Lining WPL 4334773 Contact Us For Availability
14
Spring, Door WPL 4337297 Contact Us For Availability
14
Knob, Gas Valve (4) WPL 4337120 Contact Us For Availability
14
Starter Base WPL 4337372 Contact Us For Availability
14
Valve, Shut Off WPL 4335080 Contact Us For Availability
15
Washer WPL 4323694 Contact Us For Availability
15
Side Panel (White) WPL 4337591 Contact Us For Availability
15
Side Panel (Almond) WPL 4337593 Contact Us For Availability
15
Inverted Nut, 3/8 WPL 4351421 Contact Us For Availability
16
Flag Terminal 1/4`` Faston Terminal WPL 4325033 Contact Us For Availability
16
3/16`` WPL 4325036 Contact Us For Availability
16
Washer, Felt WPL 4337618 Contact Us For Availability
16
Main WPL 4338189 Contact Us For Availability
16
Wire Harness WPL ARI56895A5 Contact Us For Availability
16
Guide, Broiler Drawer (Inc 20,21) (Left) WPL 4327690 Contact Us For Availability
16
Guide, Broiler Drawer (Inc 20,21) (Right) WPL 4327691 Contact Us For Availability
16
Panel, Manifold WPL 4337486 Contact Us For Availability
16
Holder, Lamp WPL 4337139 Contact Us For Availability
16
Manifold WPL 4337088 Contact Us For Availability
17
Bottom, Burner Box WPL 4337004 Contact Us For Availability
17
Knob, Clock/Oven Control WPL 4338513 Contact Us For Availability
17
Seal (for No.18) WPL 4331164 Contact Us For Availability
18
Broiler Drawer (Inc. 20,21) WPL 4336583 Contact Us For Availability
18
Cooktop W/Trim (White) WPL 4338441 Contact Us For Availability
18
Cooktop W/Trim (Almond) WPL 4338442 Contact Us For Availability
18
Control Panel WPL 4337602 Contact Us For Availability
18
Screw (for No.33) WPL 4331097 Contact Us For Availability
19
Pressure Regulator WPL 4334271 Contact Us For Availability
20
Roller WPL 4323378 Contact Us For Availability
20
Trim (Right) WPL 4336763 Contact Us For Availability
20
Trim (Left) WPL 4336764 Contact Us For Availability
20
Control, Clock-Oven, w/Lens WPL 4342994 Contact Us For Availability
20
Air Shutter WPL 4335197 Contact Us For Availability
21
Rivet WPL 4323405 Contact Us For Availability
21
Baffle, Burner WPL 4336021 Contact Us For Availability
22
Spring, Drawer WPL 4335295 Contact Us For Availability
22
Panel, Cover WPL 4337141 Contact Us For Availability
22
Screw No.10-32x1/4 WPL 4323953 Contact Us For Availability
23
Bolt, Shoulder WPL 4335999 Contact Us For Availability
23
Igniter, Oven WPL 4338008 Contact Us For Availability
24
Hinge, Drawer (Right) WPL 4335296 Contact Us For Availability
24
Hinge, Drawer (Left) WPL 4335297 Contact Us For Availability
24
Burner Assembly, (Inc. 21,25,26) WPL 4336511 Contact Us For Availability
25
Drawer Bottom WPL 4336575 Contact Us For Availability
25
Cleat WPL 4337625 Contact Us For Availability
25
Screw, Adjustment WPL 4331502 Contact Us For Availability
26
Starter, Lamp WPL 4337125 Contact Us For Availability
26
Shutter, Air WPL 4331501 Contact Us For Availability
27
Handle WPL 4336754 Contact Us For Availability
27
Screw, No.6-32 x 5/16 WPL 4323476 Contact Us For Availability
27
Hex Nut, No.6-32 WPL 4324855 Contact Us For Availability
28
Broiler Door Panel (White) WPL 4336732 Contact Us For Availability
28
Broiler Door Panel (Almond) WPL 4336733 Contact Us For Availability
28
Bracket, Control Valve WPL 4327660 Contact Us For Availability
29
Screw No.10-32x1/2 WPL 4332521 Contact Us For Availability
29
Control Valve WPL 4333470 Contact Us For Availability
30
Cover, Control Valve WPL 4335168 Contact Us For Availability
31
Pan, Broiler WPL 4336603 Contact Us For Availability
31
Tubing 3/8``, (Inc. No.15) WPL 4332282 Contact Us For Availability
32
Lining, Broiler Door WPL 4336584 Contact Us For Availability
33
Grid, Broiler Pan WPL 4336598 Contact Us For Availability
33
Gas Valve WPL 4336715 Contact Us For Availability
34
Screw No.10x1/2 WPL 4323884 Contact Us For Availability
36
Screw, No.8-32 x 3/8 WPL 4342637 Contact Us For Availability
37
Clip WPL 4323987 Contact Us For Availability
38
Bottom, Oven WPL 4335164 Contact Us For Availability
39
Rack, Oven WPL 4354754 Contact Us For Availability
39
Burner, Rt Front, (Inc. 40, 41) WPL 4342927 Contact Us For Availability
40
Seal, Oven Door WPL 4354751 Contact Us For Availability
40
Screw, Adjustment WPL 4328513 Contact Us For Availability
41
Retainer, Door Seal WPL 4335426 Contact Us For Availability
41
Air Shutter WPL 4342928 Contact Us For Availability
42
Frame, Front WPL 4337112 Contact Us For Availability
42
Gas Valve (Inc 18) WPL 4338399 Contact Us For Availability
43
Screw No.6-32x7/8 WPL 4335220 Contact Us For Availability
43
Retainer, Insulation WPL 4335889 Contact Us For Availability
44
Insulation, Top And Sides WPL 4354750 Contact Us For Availability
44
Eyelet WPL 4337565 Contact Us For Availability
45
Oven, Cont. Clean WPL 4337600 Contact Us For Availability
46
Insulation WPL 4327653 Contact Us For Availability
47
Bushing WPL 4324656 Contact Us For Availability
49
Power Cord WPL 4351709 Contact Us For Availability
50
Disconnect WPL 4324642 Contact Us For Availability
51
Cover, Wire WPL 4337219 Contact Us For Availability
52
Strike WPL 4337082 Contact Us For Availability
53
Insulation WPL 4336020 Contact Us For Availability
54
Sensor WPL 4338291 Contact Us For Availability
55
Screw WPL 4327216 Contact Us For Availability
× ![]()
