Model Whirlpool F6507W0 – Common Parts & Diagrams
07 - WIRE HARNESSES AND COMPONENTS , GRI
08 - WIRING DIAGRAM

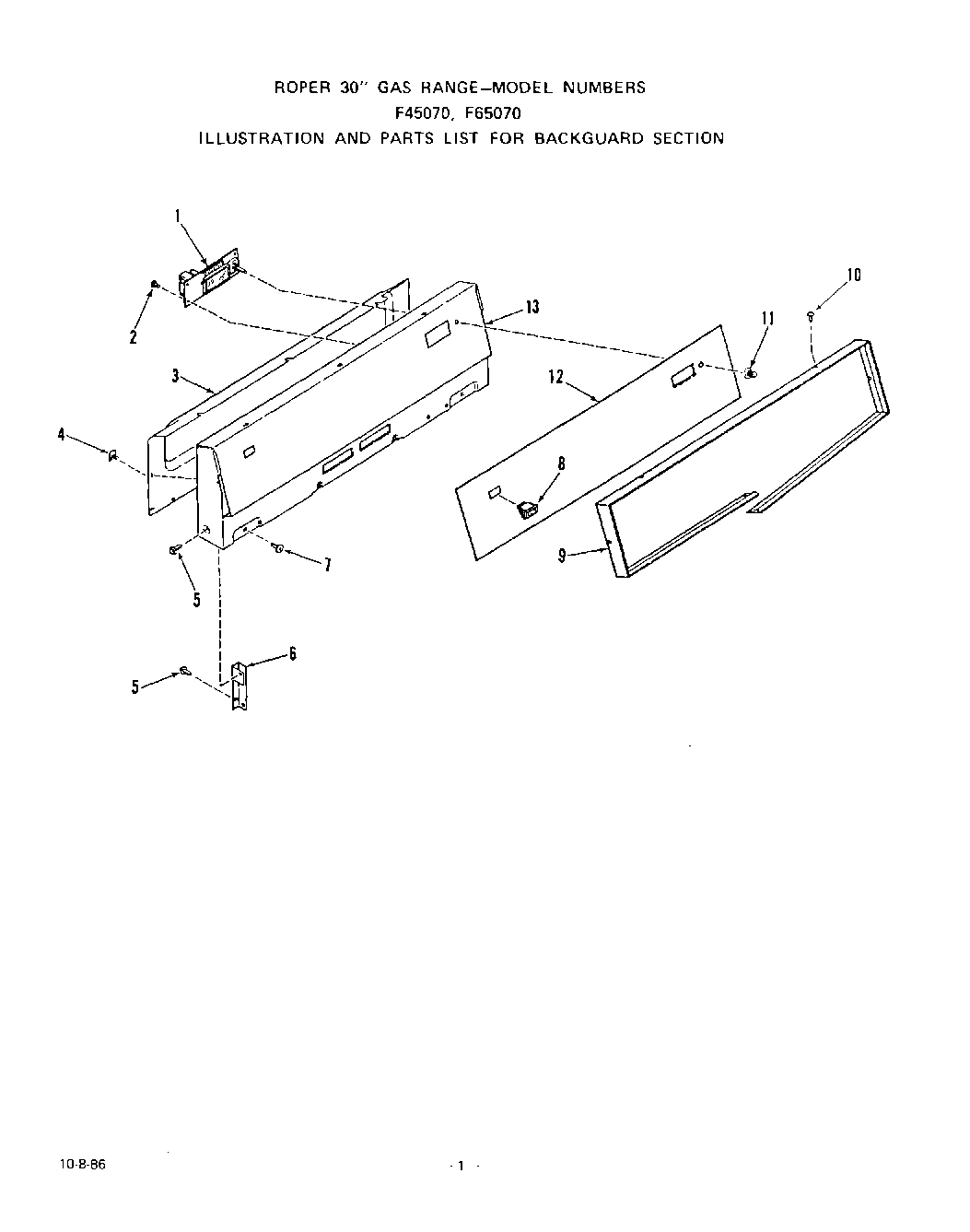

02 - BACKGUARD

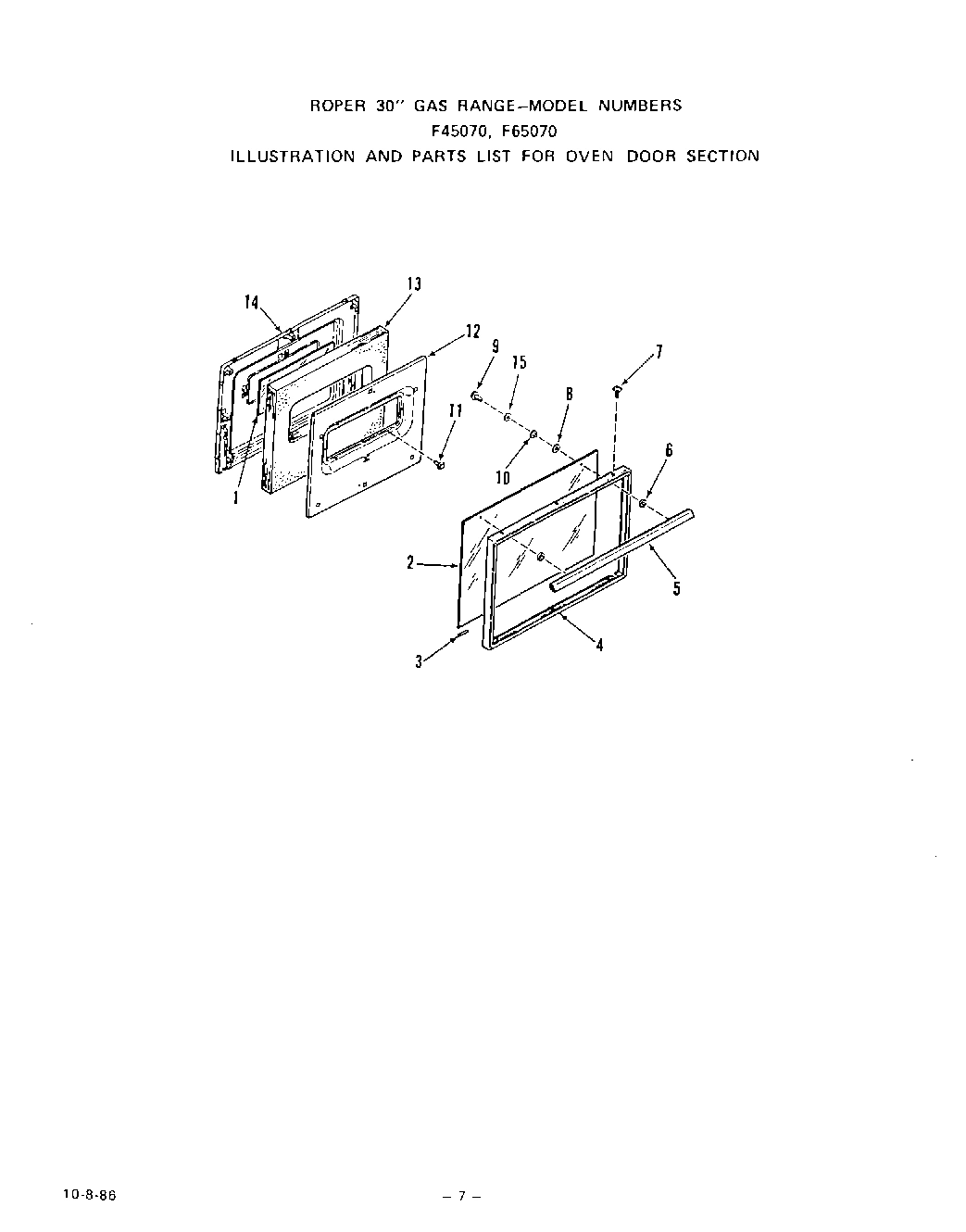

06 - OVEN DOOR

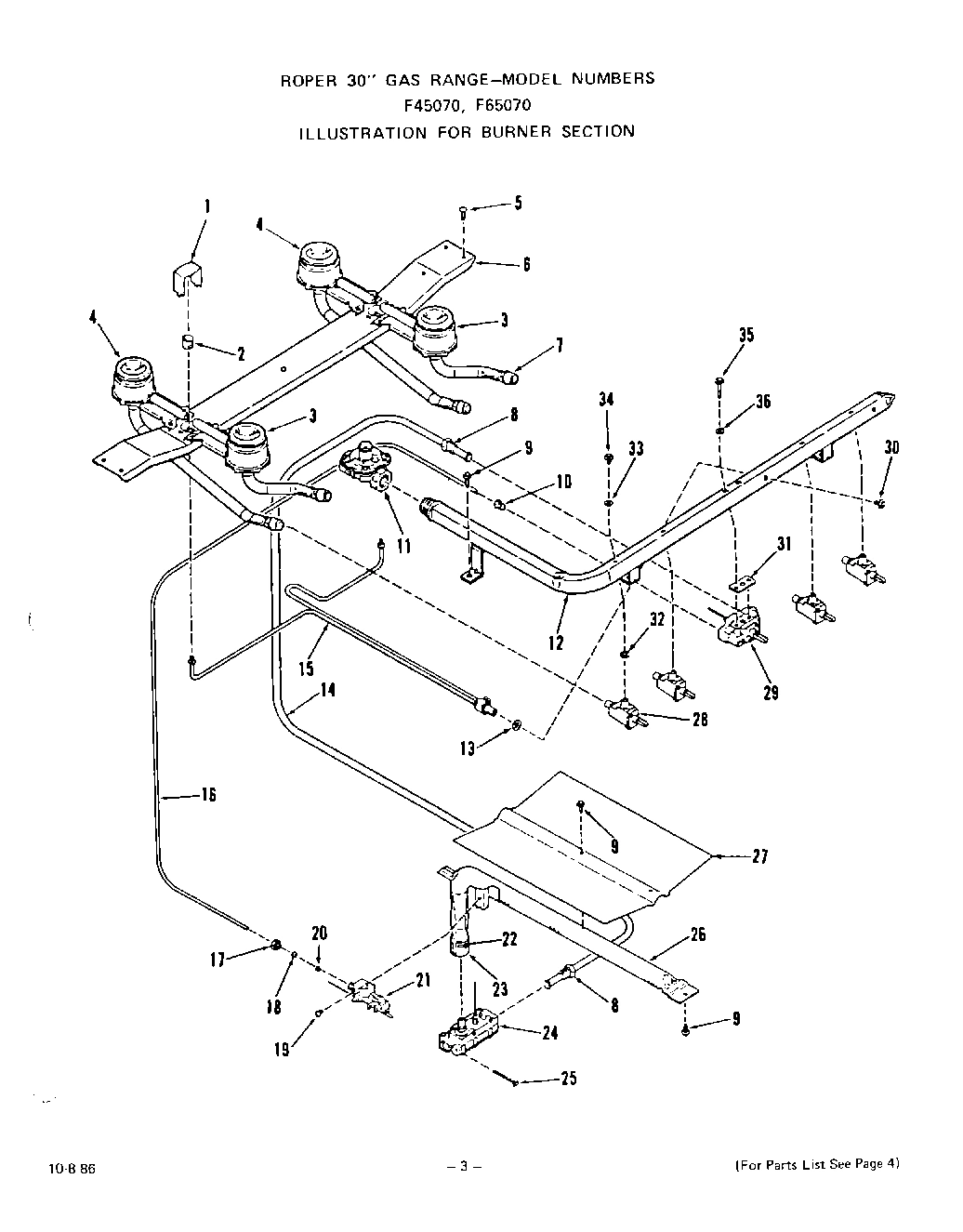

04 - BURNER

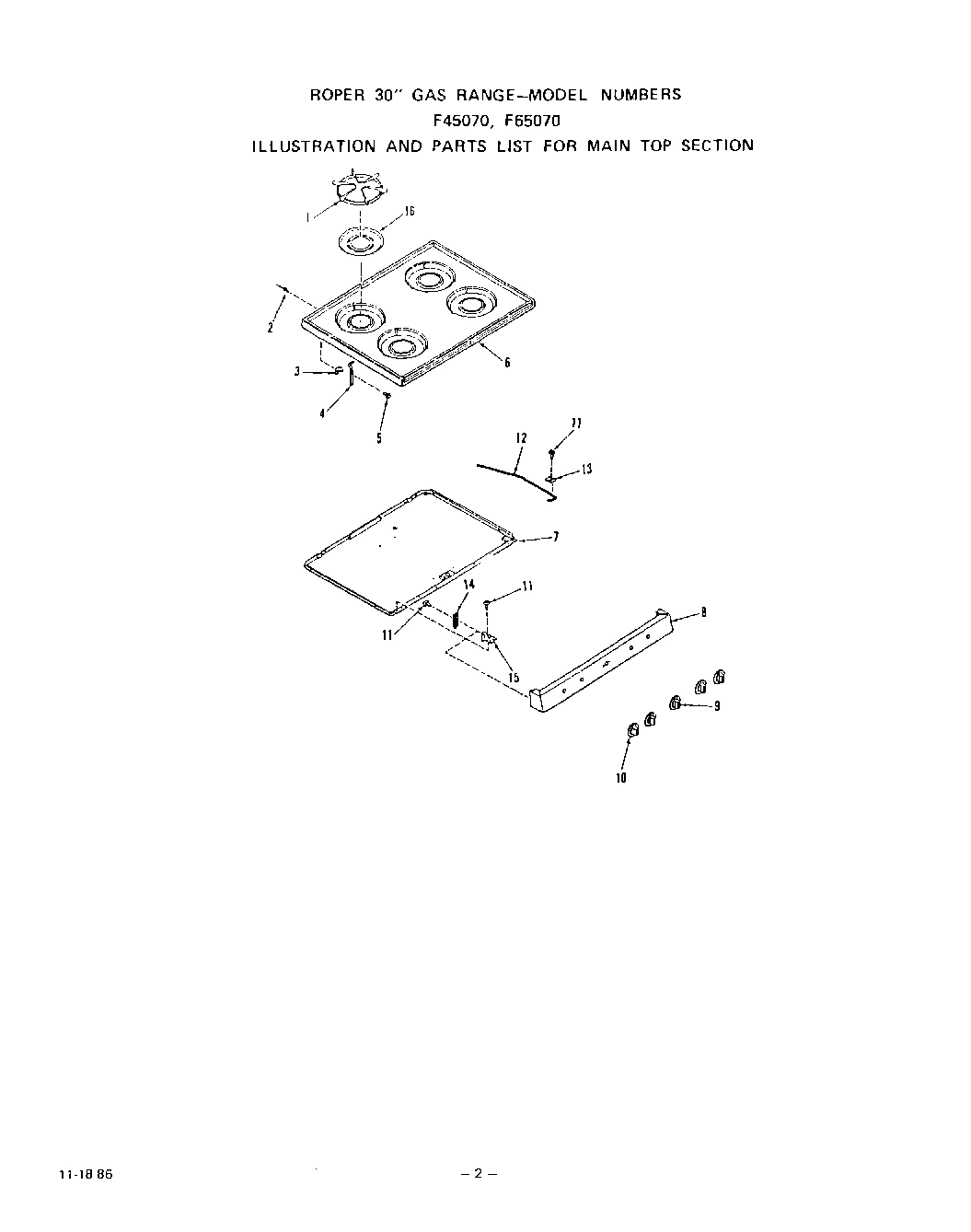

03 - MAIN TOP

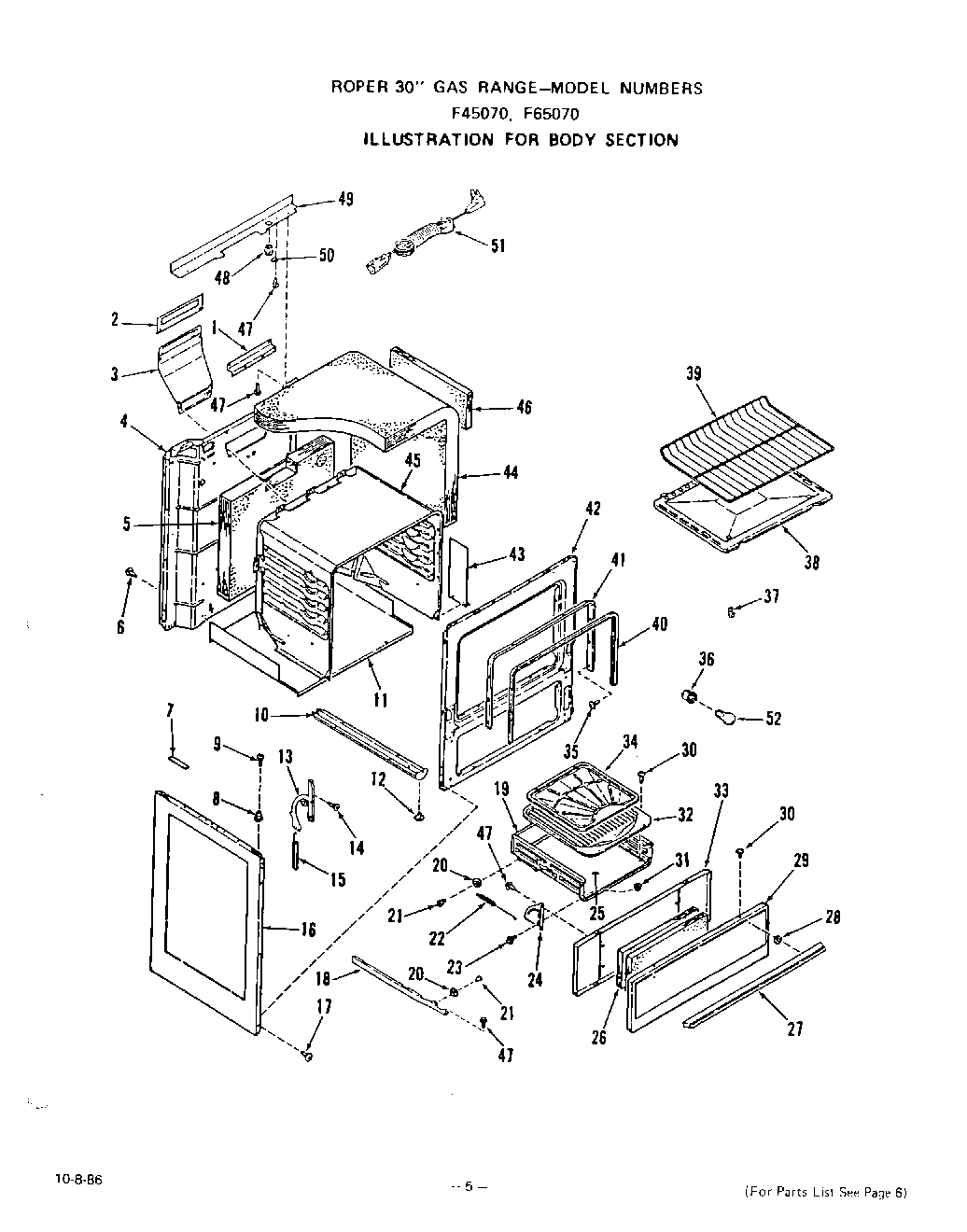

05 - BODY
Common parts from model Whirlpool F6507W0
1
Wire Harness WPL 334351 Contact Us For Availability
1
xClock WPL 335616 Contact Us For Availability
1
xInner Glass WPL 326010 Contact Us For Availability
1
Top Pilot Shield WPL 296183 Contact Us For Availability
1
Top Burner Grate (4 Req) WPL 330242 Contact Us For Availability
1
Flue Deflector Support WPL 334528 Contact Us For Availability
2
Flag Terminal 1/4`` WPL 238391 Contact Us For Availability
2
Screw 6-32x5/16`` WPL 78153 Contact Us For Availability
2
xOuter Glass WPL 332067 Contact Us For Availability
2
Pilot Cup WPL 308292 Contact Us For Availability
2
Rivet WPL 301167 Contact Us For Availability
2
Insulation-Flue WPL 329314 Contact Us For Availability
3
3/16`` WPL 238392 Contact Us For Availability
3
1/4`` WPL 238393 Contact Us For Availability
3
Faston Terminal WPL ARI56863A6 Contact Us For Availability
3
Wire Cover WPL 334749 Contact Us For Availability
3
Cushion WPL 112370 Contact Us For Availability
3
xFront Burner-Lt. or Rt. (Inc`s. 7) WPL 333222 Contact Us For Availability
3
Hinge Bracket WPL 335975 Contact Us For Availability
3
Flue Deflector WPL 327079 Contact Us For Availability
4
Trim Clip WPL 70588 Contact Us For Availability
4
Frame WPL 332066 Contact Us For Availability
4
xRear Burner-Lt. or Rt. (Inc`s. 7) WPL 333223 Contact Us For Availability
4
Right WPL 320921 Contact Us For Availability
4
Left WPL 320922 Contact Us For Availability
4
Hinge WPL ARI56851A9 Contact Us For Availability
4
Main Back WPL 334533 Contact Us For Availability
5
Screw 6-32x3/8`` WPL 327621 Contact Us For Availability
5
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
5
Insulation-Oven Back WPL 328142 Contact Us For Availability
6
Right WPL 327106 Contact Us For Availability
6
Left WPL 327107 Contact Us For Availability
6
Support WPL ARI56850A4 Contact Us For Availability
6
Spacer, Door Handle WPL 107158 Contact Us For Availability
6
Top Burner Support WPL 333609 Contact Us For Availability
6
White WPL 332318 Contact Us For Availability
6
Almond WPL 332324 Contact Us For Availability
6
Chrome WPL 335298 Contact Us For Availability
6
Main Top WPL ARI56852A1 Contact Us For Availability
7
Air Shutter WPL 327198 Contact Us For Availability
7
Burner Box Bottom WPL 335171 Contact Us For Availability
7
Spacer-Main Top WPL 335320 Contact Us For Availability
8
xSwitch-Oven Light WPL 334649 Contact Us For Availability
8
Washer WPL 333014 Contact Us For Availability
8
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
8
White WPL 335303 Contact Us For Availability
8
Almond WPL 335304 Contact Us For Availability
8
Manifold Panel (Black) WPL 335757 Contact Us For Availability
8
Manifold Panel WPL ARI56853A2 Contact Us For Availability
8
Strike WPL 333892 Contact Us For Availability
9
Screw 10-32x3/4`` WPL 300864 Contact Us For Availability
9
Thermostat Knob WPL 333786 Contact Us For Availability
9
Screw 6-32x7/8`` WPL 327256 Contact Us For Availability
10
Spacer-Glass WPL 333015 Contact Us For Availability
10
Hex Nut WPL 79673 Contact Us For Availability
10
Gas Valve Knob WPL 333785 Contact Us For Availability
10
Base w/Levelers-Lt. or Rt. WPL 334811 Contact Us For Availability
11
Knob-Clock WPL 334914 Contact Us For Availability
11
Screw 10-32 x 17/32`` WPL 104520 Contact Us For Availability
11
xPressure Regulator WPL 324528 Contact Us For Availability
11
Bottom-Main WPL 327053 Contact Us For Availability
12
Insert - Backguard WPL 335615 Contact Us For Availability
12
Retainer WPL 328622 Contact Us For Availability
12
Manifold Pipe WPL 333903 Contact Us For Availability
12
Support Rod WPL 334482 Contact Us For Availability
12
Leg Leveler (4 Req) WPL 326052 Contact Us For Availability
12
Right WPL 332345 Contact Us For Availability
12
Left WPL 332346 Contact Us For Availability
13
Panel-Backguard WPL 335612 Contact Us For Availability
13
Insulation WPL 325999 Contact Us For Availability
13
Gasket WPL 323913 Contact Us For Availability
13
Clamp WPL 326348 Contact Us For Availability
13
xHinge-Oven Door WPL ARI56855A2 Contact Us For Availability
14
Screw WPL 331704 Contact Us For Availability
14
F6507 Models WPL 325946 Contact Us For Availability
14
F4507 Models WPL 331581 Contact Us For Availability
14
Lining WPL ARI56862A5 Contact Us For Availability
14
Tubing 3/8`` WPL 295037 Contact Us For Availability
14
Cleat WPL 335977 Contact Us For Availability
15
Washer WPL 99279 Contact Us For Availability
15
xFilter w/Pilot WPL 323912 Contact Us For Availability
15
Right WPL 333351 Contact Us For Availability
15
Left WPL 333352 Contact Us For Availability
15
Manifold Panel Bracket WPL ARI56854A8 Contact Us For Availability
15
xSpring-Oven Door WPL 334723 Contact Us For Availability
16
Tubing 3/16`` WPL 322447 Contact Us For Availability
16
Aeration Pan F6507 Models WPL 322888 Contact Us For Availability
16
White WPL 335826 Contact Us For Availability
16
Body Side (Almond) WPL 335830 Contact Us For Availability
16
Body Side (Black) WPL 335831 Contact Us For Availability
16
Body Side WPL ARI56856A1 Contact Us For Availability
17
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
17
Compression Nut 3/16`` WPL 65712 Contact Us For Availability
18
Compression Sleeve 3/16`` WPL 65711 Contact Us For Availability
18
Right WPL 296327 Contact Us For Availability
18
Broiler Drawer Guide (Inc`s. 20, 21) WPL ARI56857A4 Contact Us For Availability
19
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
19
Broiler Drawer (Inc`s. 20, 21) WPL 331566 Contact Us For Availability
20
xOrifice Cup WPL 318485 Contact Us For Availability
20
Roller WPL 69006 Contact Us For Availability
21
xPilot WPL 318486 Contact Us For Availability
21
Rivet WPL 70275 Contact Us For Availability
22
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
22
xSpring-Broiler Drawer WPL 327481 Contact Us For Availability
23
Air Shutter WPL 312988 Contact Us For Availability
23
Right WPL 327482 Contact Us For Availability
23
Left WPL 327483 Contact Us For Availability
23
Shoulder Bolt WPL 329271 Contact Us For Availability
24
xOven Safety Valve WPL 323680 Contact Us For Availability
24
xHinge-Broiler Drawer WPL ARI56858A2 Contact Us For Availability
25
Screw 10-32 x 2`` WPL 323296 Contact Us For Availability
25
bottom-broiler drawer WPL 331554 Contact Us For Availability
26
xOven Burner (Inc`s. 22, 23 & 27) WPL 329651 Contact Us For Availability
27
Handle WPL 335305 Contact Us For Availability
27
Baffle - Oven Burner WPL 329316 Contact Us For Availability
28
xGas Valve (4 Req) WPL 332001 Contact Us For Availability
28
Spacer WPL 302343 Contact Us For Availability
29
xOven Thermostat (Inc`s. 31) WPL 334901 Contact Us For Availability
29
White WPL 332137 Contact Us For Availability
29
Almond WPL 332141 Contact Us For Availability
29
Panel-Broiler Door (Black) WPL 332142 Contact Us For Availability
29
Panel-Broiler Door WPL ARI56859A6 Contact Us For Availability
30
Mounting Screw (For Key 15) WPL 323914 Contact Us For Availability
30
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
31
Thermostat Gasket WPL 318657 Contact Us For Availability
31
Hex Nut 10-24 WPL 74056 Contact Us For Availability
32
Gasket (For Key 28) WPL 313563 Contact Us For Availability
32
Broiler Pan WPL 331593 Contact Us For Availability
33
Gasket (For Key 34) WPL 304241 Contact Us For Availability
33
Lining-Broiler Door WPL 331567 Contact Us For Availability
34
Mounting Screw (For Key 28) WPL 311455 Contact Us For Availability
34
Broiler Pan Grid WPL 331588 Contact Us For Availability
35
Mounting Screw (For Key 29) WPL 318478 Contact Us For Availability
35
Screw 10ABx1/2`` WPL 69014 Contact Us For Availability
36
Gasket (For Key 35) WPL 318658 Contact Us For Availability
36
xHolder-Oven Lamp Bulb WPL 295974 Contact Us For Availability
37
Thermostat Bulb Clip WPL 115533 Contact Us For Availability
38
F6507 Models WPL 327084 Contact Us For Availability
38
F4507 Models WPL 331539 Contact Us For Availability
38
Oven Bottom WPL ARI56860A8 Contact Us For Availability
39
Oven Rack WPL 326068 Contact Us For Availability
40
xSeal-Oven Door WPL 326047 Contact Us For Availability
41
Retainer-Door Seal WPL 327875 Contact Us For Availability
42
Front Frame WPL 334054 Contact Us For Availability
43
Retainer-Insulation WPL 328984 Contact Us For Availability
44
Insulation-Oven Top & Sides WPL 326040 Contact Us For Availability
45
F6507 Models WPL 324957 Contact Us For Availability
45
F4507 Models WPL 331586 Contact Us For Availability
45
Oven Body WPL ARI56861A5 Contact Us For Availability
47
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
48
xDisconnect WPL 232150 Contact Us For Availability
49
Wire Cover-Backguard Bottom WPL 327251 Contact Us For Availability
50
Clamp-Nylon WPL 109266 Contact Us For Availability
A1
Set-On Griddle WPL 289671 Contact Us For Availability
× ![]()
