Model Whirlpool F4508L1 – Common Parts & Diagrams

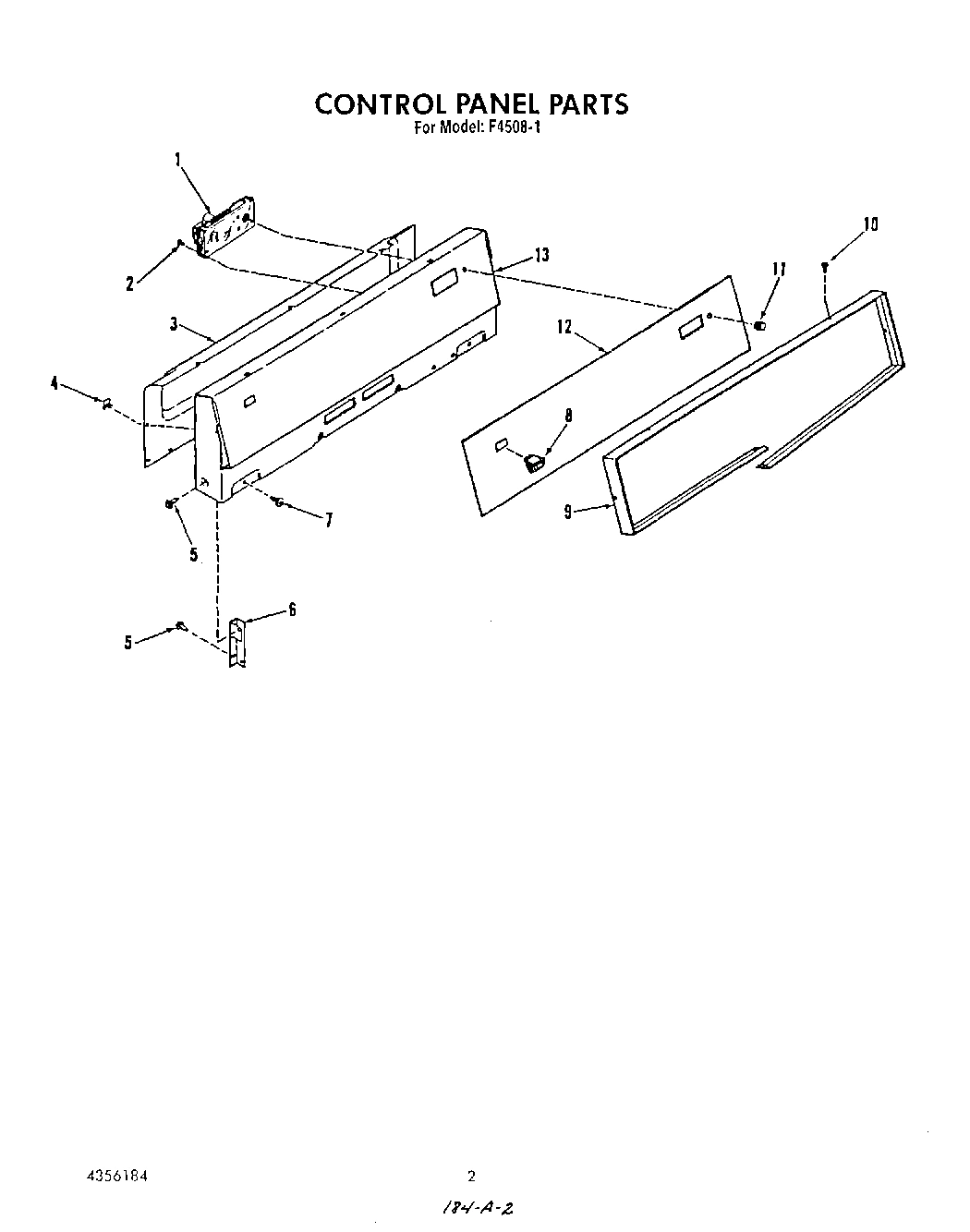

02 - CONTROL PANEL , LIT/OPTIONAL

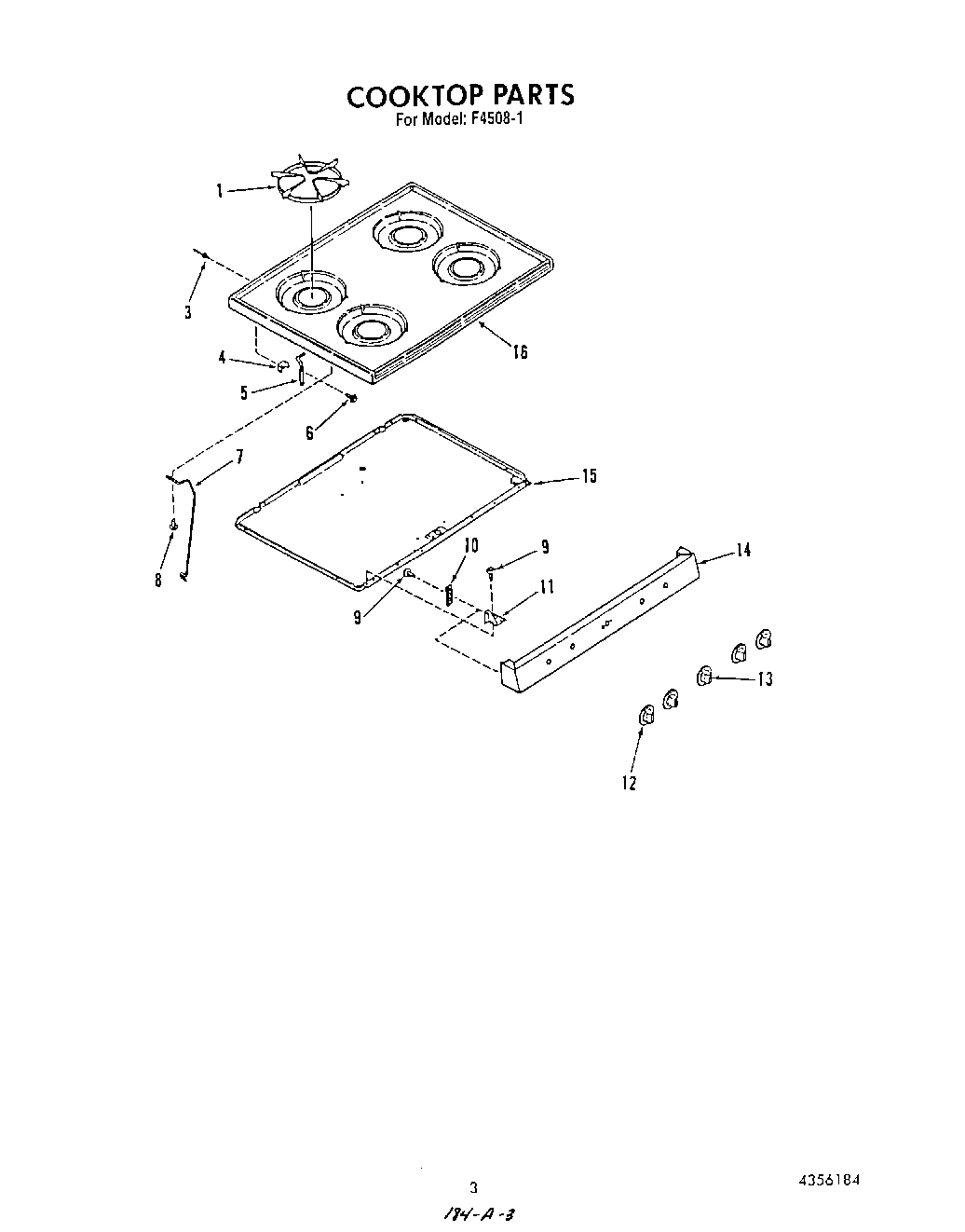

03 - COOK TOP

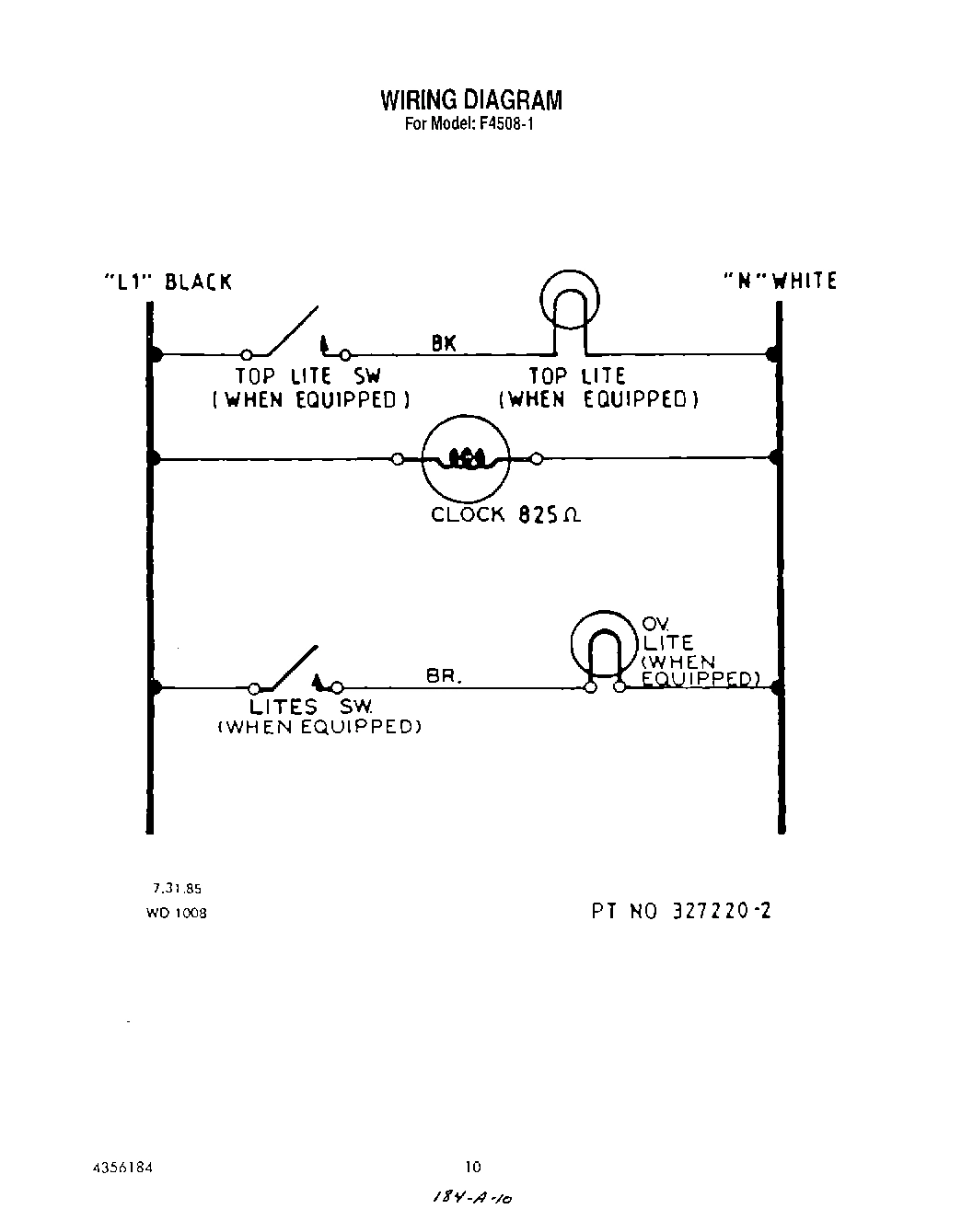

08 - WIRING DIAGRAM

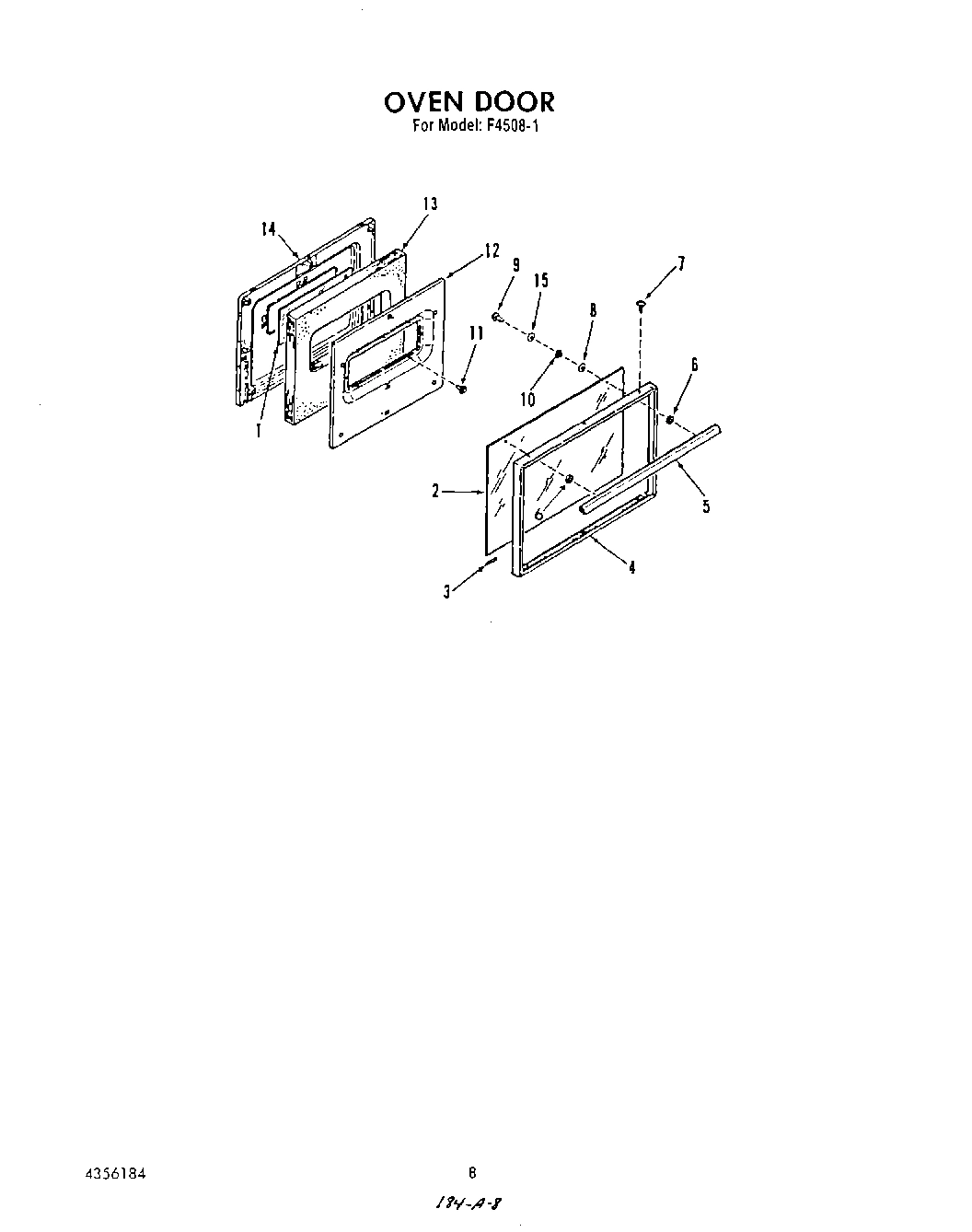

06 - OVEN DOOR

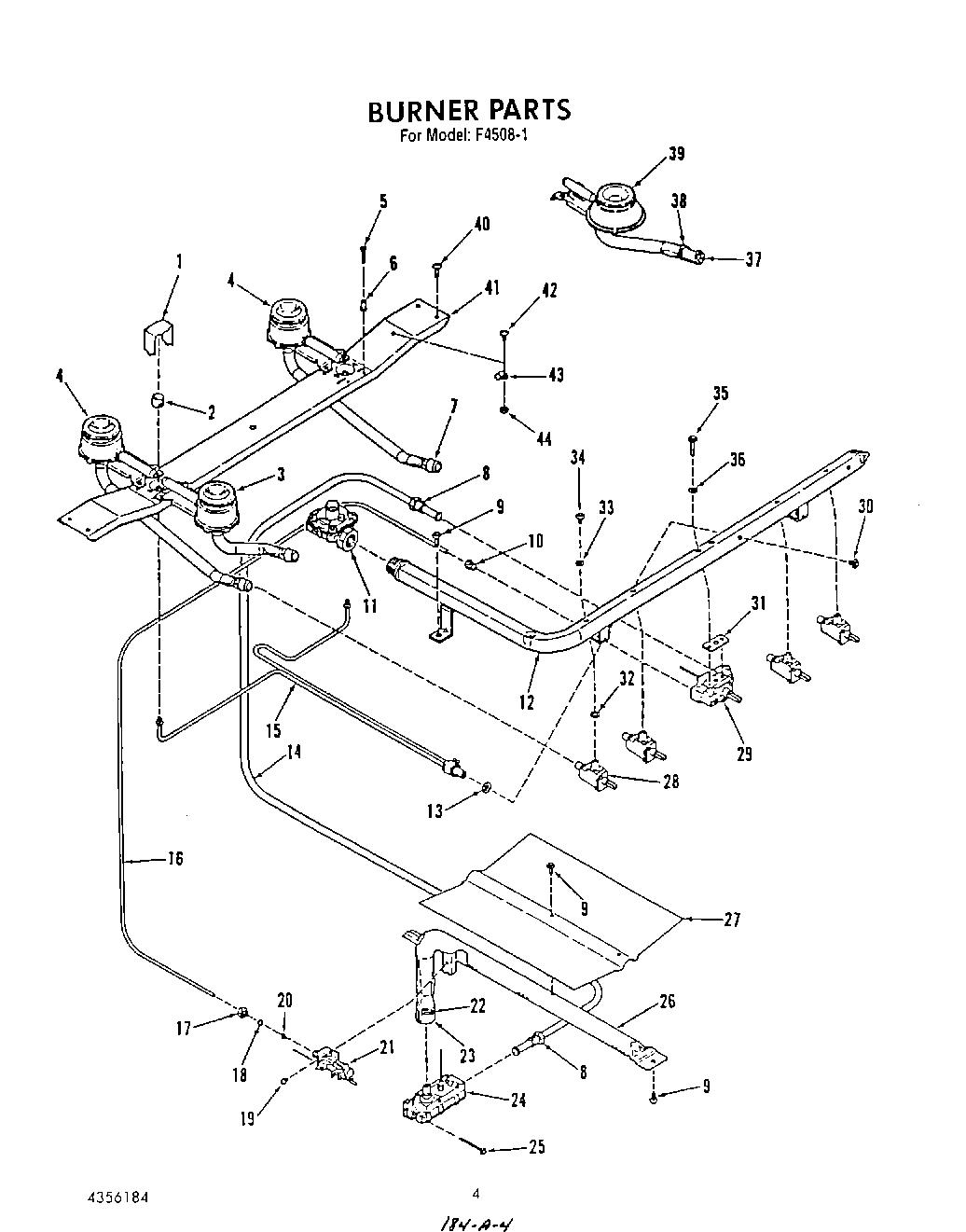

04 - BURNER

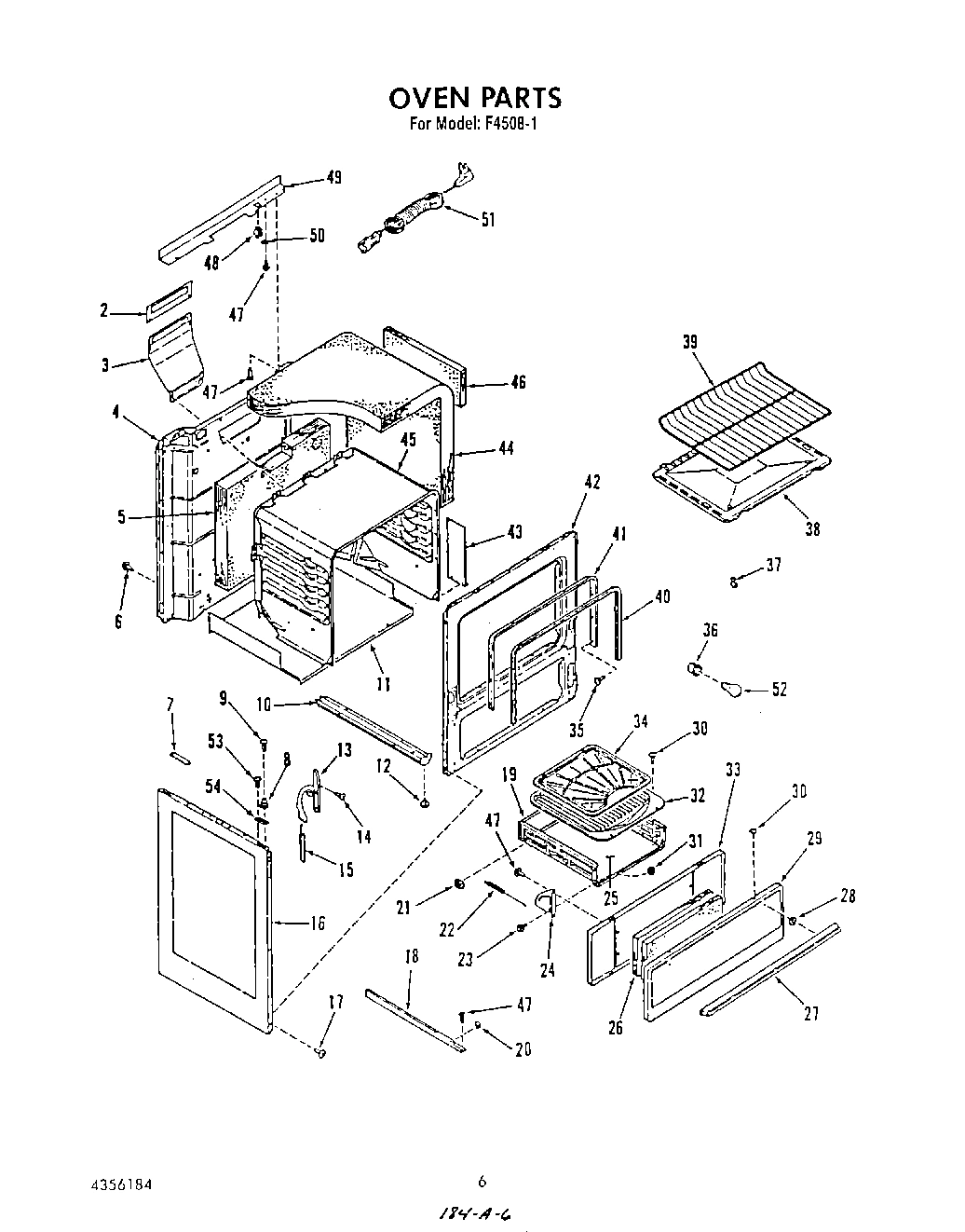

05 - OVEN

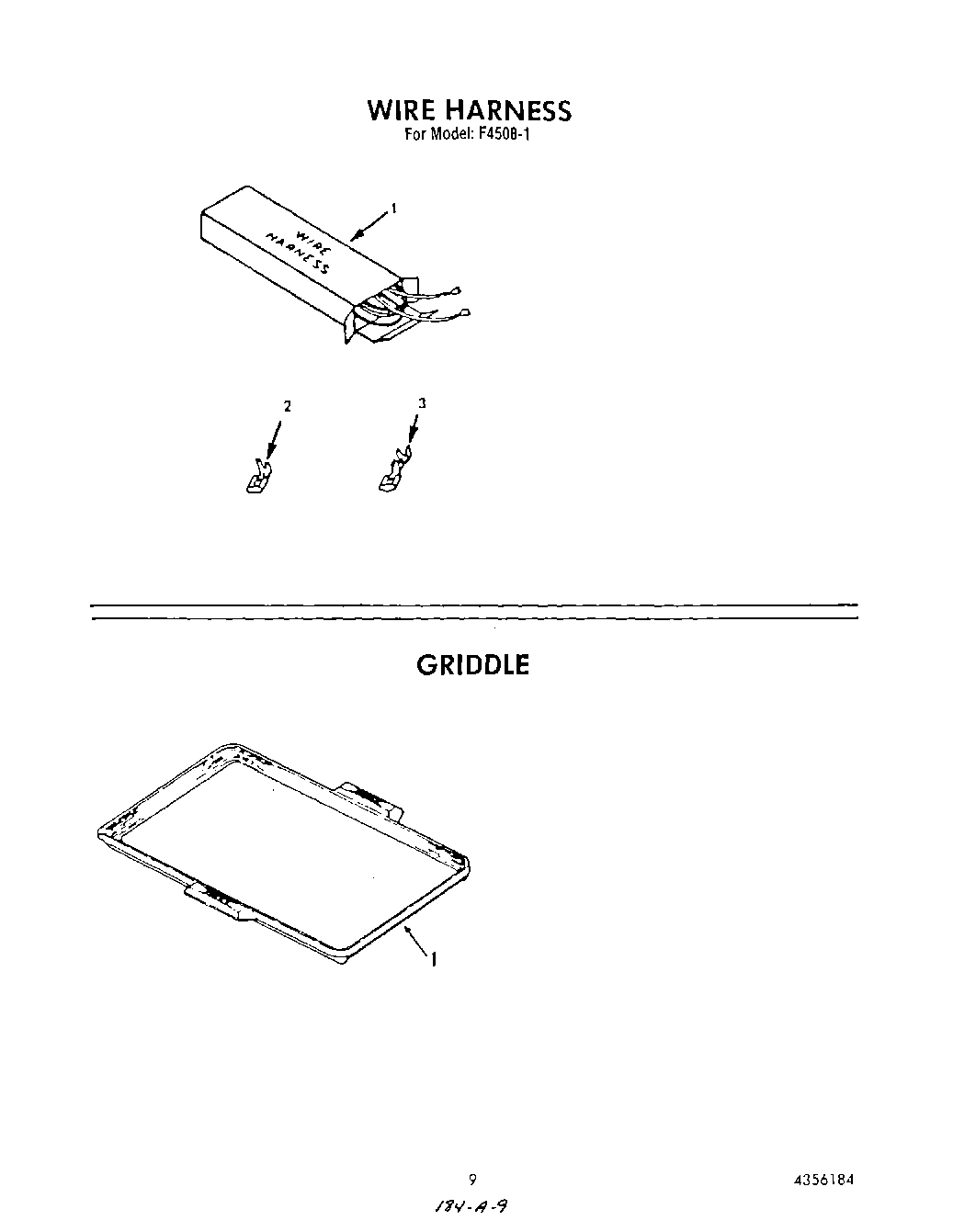

07 - WIRE HARNESS , GRIDDLE
Common parts from model Whirlpool F4508L1
1
Grate, Burner (4) WPL 4336234 Contact Us For Availability
1
Glass, Inner WPL 4334792 Contact Us For Availability
1
Shield, Pilot WPL 4327662 Contact Us For Availability
1
Wire Harness WPL 4337186 Contact Us For Availability
2
Screw, No.6-32 x 5/16 WPL 4323476 Contact Us For Availability
2
Glass, Outer WPL 4336721 Contact Us For Availability
2
Cup, Pilot WPL 4330078 Contact Us For Availability
2
Insulation-Flue WPL 4336020 Contact Us For Availability
2
Flag Terminal-1/4`` WPL 4325035 Contact Us For Availability
3
Cover, Wire WPL 4337308 Contact Us For Availability
3
Rivet WPL 4338425 Contact Us For Availability
3
Cushion WPL 4324217 Contact Us For Availability
3
Burner, Front-Lt. (Inc`s No.7) WPL 4336921 Contact Us For Availability
3
Deflector-Flue WPL 4335162 Contact Us For Availability
3
Faston Terminal (3/16``) WPL 4325036 Contact Us For Availability
4
Clip, Trim WPL 4323413 Contact Us For Availability
4
Bracket, Hinge WPL 4337624 Contact Us For Availability
4
Frame WPL 4336720 Contact Us For Availability
4
Burner, Rear-Lt/Rt (Inc`s No.7) WPL 4336922 Contact Us For Availability
4
Cover, Back WPL 4337236 Contact Us For Availability
5
Hinge (Right) WPL 4333234 Contact Us For Availability
5
Hinge (Left) WPL 4333235 Contact Us For Availability
5
Insulation-Back WPL 4354817 Contact Us For Availability
6
Support (Right) WPL 4335176 Contact Us For Availability
6
Support (Left) WPL 4335177 Contact Us For Availability
6
Eyelet WPL 4337565 Contact Us For Availability
7
Rod, Support WPL 4336765 Contact Us For Availability
7
Air Shutter WPL 4335197 Contact Us For Availability
7
Spacer-Top WPL 4337485 Contact Us For Availability
8
Washer WPL 4336868 Contact Us For Availability
8
Nut, Inverted 3/8 WPL 4324278 Contact Us For Availability
8
Strike WPL 4337082 Contact Us For Availability
9
Frame, Bezel WPL 4337603 Contact Us For Availability
9
Screw No.6-32x7/8 WPL 4335220 Contact Us For Availability
10
Cleat WPL 4337625 Contact Us For Availability
10
Spacer, Glass WPL 4336869 Contact Us For Availability
10
Nut, Hex WPL 4323489 Contact Us For Availability
10
Base w/Levelers-Lt or Rt WPL 4337332 Contact Us For Availability
11
Knob, Clock WPL 4337111 Contact Us For Availability
11
Bracket, Manifold (Right) WPL 4336962 Contact Us For Availability
11
Bracket, Manifold (Left) WPL 4336963 Contact Us For Availability
11
Screw, No.10-32x17/32`` WPL 4323884 Contact Us For Availability
11
Regulator-Pressure WPL 4334271 Contact Us For Availability
11
Bottom WPL 4335153 Contact Us For Availability
12
Insert-Backguard WPL 4337548 Contact Us For Availability
12
Knob, Gas Valve WPL 4342557 Contact Us For Availability
12
Retainer WPL 4335755 Contact Us For Availability
12
Manifold Pipe WPL 4337089 Contact Us For Availability
12
Levelers, Leg (4) WPL 4334800 Contact Us For Availability
13
Hinge-Door (Left) WPL 4336784 Contact Us For Availability
13
Hinge-Door (Right) WPL 4336783 Contact Us For Availability
13
Backguard WPL 4337547 Contact Us For Availability
13
Knob, Thermostat WPL 4337055 Contact Us For Availability
13
Insulation WPL 4354748 Contact Us For Availability
13
Seal WPL 4334043 Contact Us For Availability
14
Panel, Manifold WPL 4337570 Contact Us For Availability
14
Screw WPL 4336631 Contact Us For Availability
14
Lining WPL 4336593 Contact Us For Availability
14
Tubing 3/8`` WPL 4327510 Contact Us For Availability
15
Bottom, Burner Box WPL 4337449 Contact Us For Availability
15
Washer WPL 4323694 Contact Us For Availability
15
Filter w/Pilot WPL 4334042 Contact Us For Availability
15
Spring, Door WPL 4337297 Contact Us For Availability
16
Top, Main (White) WPL 4336778 Contact Us For Availability
16
Top, Main (Almond) WPL 4336779 Contact Us For Availability
16
Top, Main (Chrome) WPL 4337476 Contact Us For Availability
16
Tubing 3/16 WPL 4354564 Contact Us For Availability
16
Side-Body (White) WPL 4337591 Contact Us For Availability
16
Side-Body (Almond) WPL 4337593 Contact Us For Availability
16
Side-Body (Black) WPL 4337594 Contact Us For Availability
17
Nut-Compression - 3/16`` WPL 4323359 Contact Us For Availability
18
Sleeve-Compression 3/16`` WPL 4350216 Contact Us For Availability
18
Guide-Broiler (Left) WPL 4337201 Contact Us For Availability
18
Guide-Broiler (Right) WPL 4337202 Contact Us For Availability
19
Screw, No.10-24 x 1/4 WPL 4326551 Contact Us For Availability
19
Drawer, Broiler WPL 4342680 Contact Us For Availability
20
Orifice WPL 4332673 Contact Us For Availability
20
Slide Block-Front WPL 4337370 Contact Us For Availability
21
Pilot WPL 4332674 Contact Us For Availability
21
Slide Block-Rear WPL 4337369 Contact Us For Availability
22
Screw, Adjustment WPL 4331502 Contact Us For Availability
22
Spring-Broiler WPL 4335295 Contact Us For Availability
23
Shutter, Air WPL 4331501 Contact Us For Availability
23
Bolt, Shoulder WPL 4335999 Contact Us For Availability
24
Valve, Safety WPL 4354616 Contact Us For Availability
24
Hinge-Broiler (Left) WPL 4338606 Contact Us For Availability
24
Hinge-Broiler (Right) WPL 4338607 Contact Us For Availability
25
Screw, No.10-32 x 2 WPL 4333826 Contact Us For Availability
25
Bottom, Drawer WPL 4336575 Contact Us For Availability
26
Burner-Oven (Inc`s 22, 23 & 27) WPL 4336130 Contact Us For Availability
27
Handle WPL 4337344 Contact Us For Availability
27
Baffle WPL 4336021 Contact Us For Availability
28
Spacer WPL 4323997 Contact Us For Availability
28
Valve, Gas (Lt & Rt Rear, and) WPL 4336714 Contact Us For Availability
28
Valve, Gas (Right Front) WPL 4338377 Contact Us For Availability
29
Thermostat (Inc`s. No.31) WPL 4337363 Contact Us For Availability
29
Panel-Broiler Door (White) WPL 4336742 Contact Us For Availability
29
Panel-Broiler Door (Almond) WPL 4336743 Contact Us For Availability
29
Panel-Broiler Door (Black) WPL 4336744 Contact Us For Availability
30
Screw, Mounting (for No.15) WPL 4334044 Contact Us For Availability
30
Screw No.10-32x1/2 WPL 4332521 Contact Us For Availability
31
Seal-Thermostat WPL 4332708 Contact Us For Availability
32
Seal (for No.28) WPL 4331665 Contact Us For Availability
32
Pan, Broiler WPL 4336603 Contact Us For Availability
33
Seal (for No.34) WPL 4353254 Contact Us For Availability
33
Lining, Broiler Door WPL 4336584 Contact Us For Availability
34
Screw (for No.28) WPL 4331097 Contact Us For Availability
34
Grid, Broiler Pan WPL 4336598 Contact Us For Availability
35
Screw (for No.29) WPL 4332668 Contact Us For Availability
36
Seal (for No.35) WPL 4332709 Contact Us For Availability
37
Shutter, Air WPL 4328512 Contact Us For Availability
37
Clip, Thermostat WPL 4324423 Contact Us For Availability
38
Screw, Adjustment WPL 4328513 Contact Us For Availability
38
Bottom, Oven WPL 4336570 Contact Us For Availability
39
Burner-Front (inc` No.37 & 38) WPL 4337333 Contact Us For Availability
39
Rack, Oven WPL 4354754 Contact Us For Availability
40
Screw No.6-32x3/8 WPL 4335339 Contact Us For Availability
40
Seal, Oven Door WPL 4354751 Contact Us For Availability
41
Support-Top Burner WPL 4337014 Contact Us For Availability
41
Retainer, Door Seal WPL 4335426 Contact Us For Availability
42
Screw, No.8-32 x 3/8 WPL 4342637 Contact Us For Availability
42
Frame, Front WPL 4337112 Contact Us For Availability
43
Clip WPL 4323987 Contact Us For Availability
43
Retainer, Insul. WPL 4335889 Contact Us For Availability
44
Insulation-Top & Sides WPL 4354750 Contact Us For Availability
45
Oven WPL 4336596 Contact Us For Availability
46
Insulation WPL 4327653 Contact Us For Availability
48
Disconnect WPL 4324642 Contact Us For Availability
49
Cover, Wire WPL 4335215 Contact Us For Availability
50
Clip WPL 4324071 Contact Us For Availability
51
Cord, Service WPL 4351709 Contact Us For Availability
53
Screw WPL 4338182 Contact Us For Availability
54
Support, Side (Right) WPL 4337183 Contact Us For Availability
54
Support, Side (Left) WPL 4337184 Contact Us For Availability
A1
Griddle, Set-On WPL 4326773 Contact Us For Availability
× ![]()
