Model Electrolux F44N21CEW2 REFRIGERATOR TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

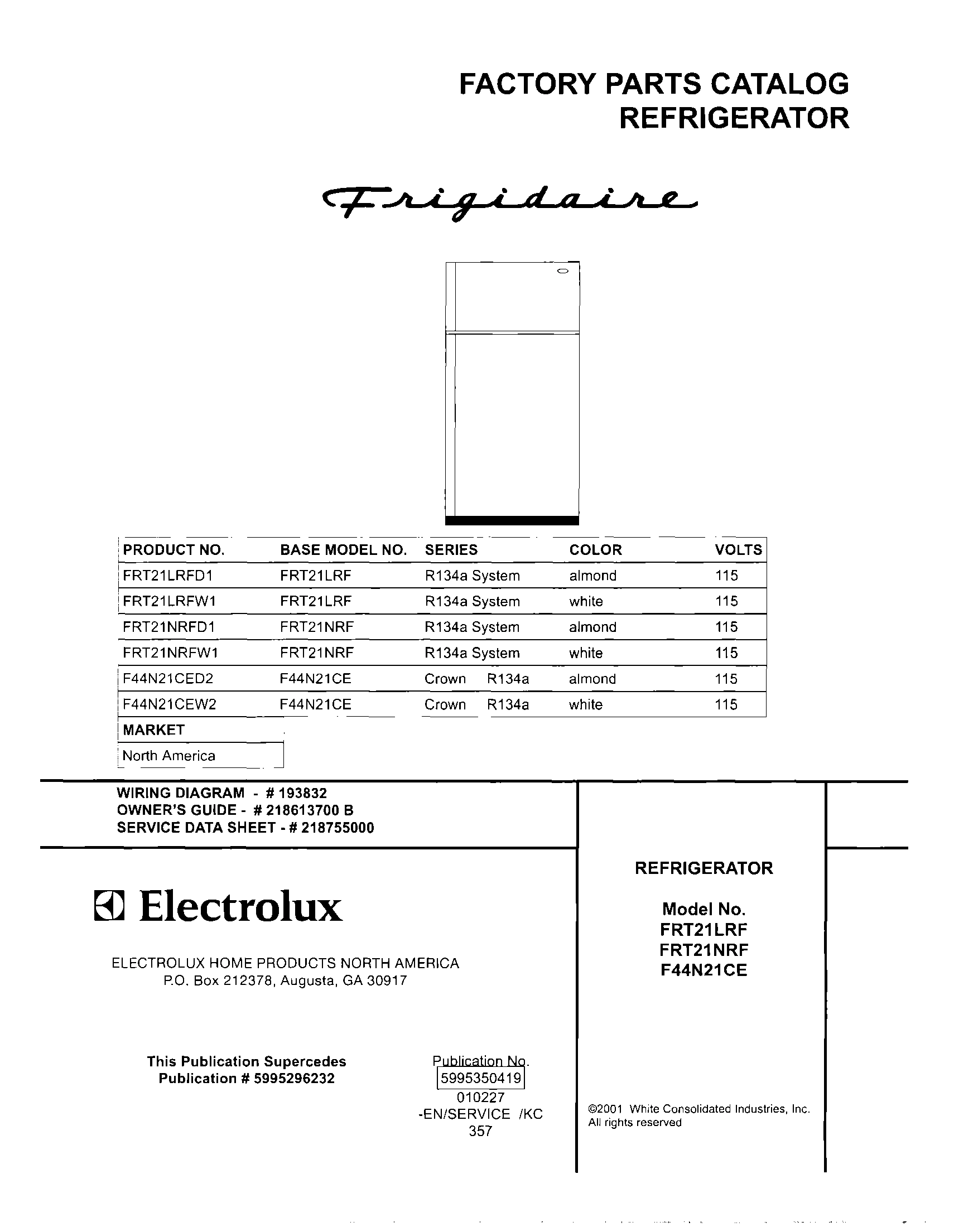

01 - COVER

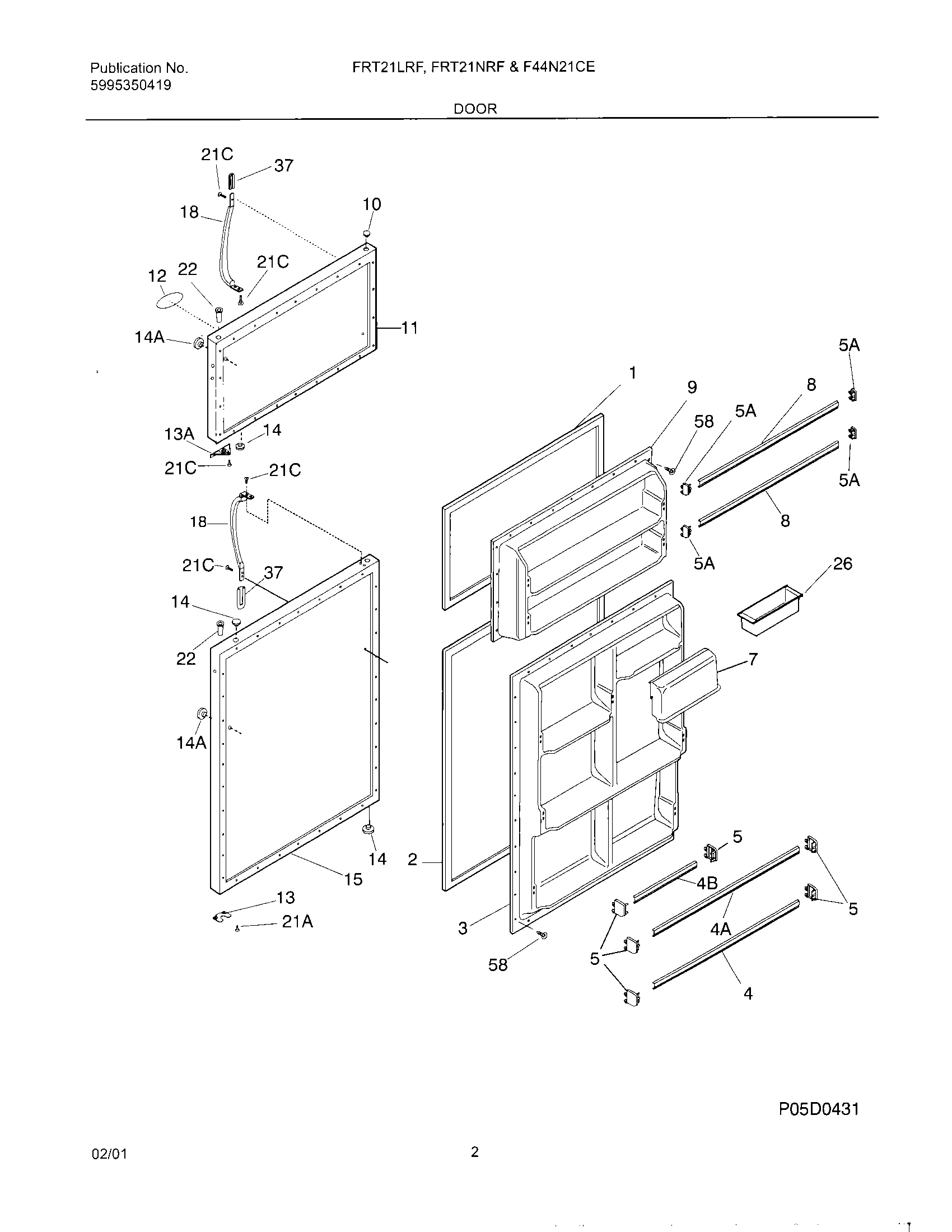

03 - DOOR

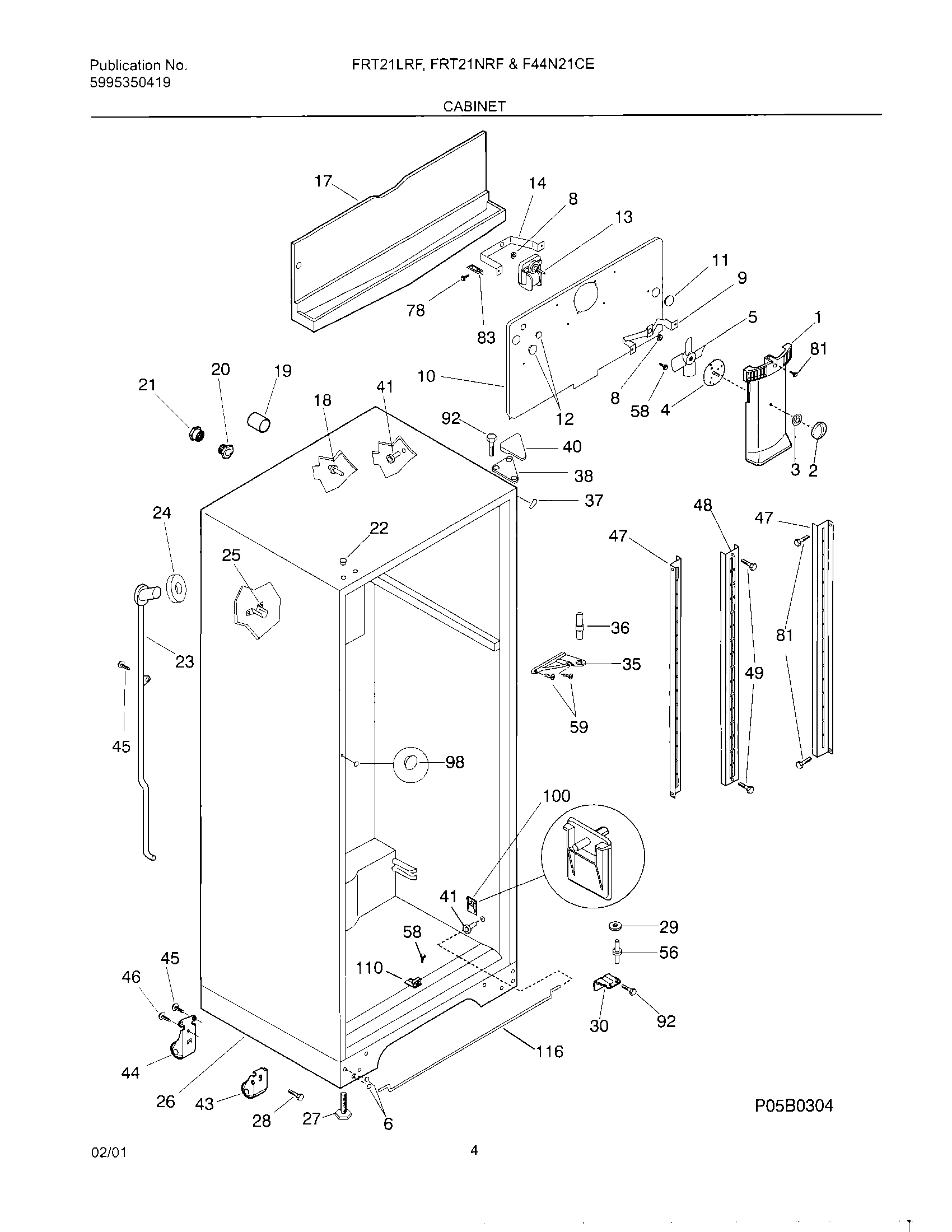

05 - CABINET

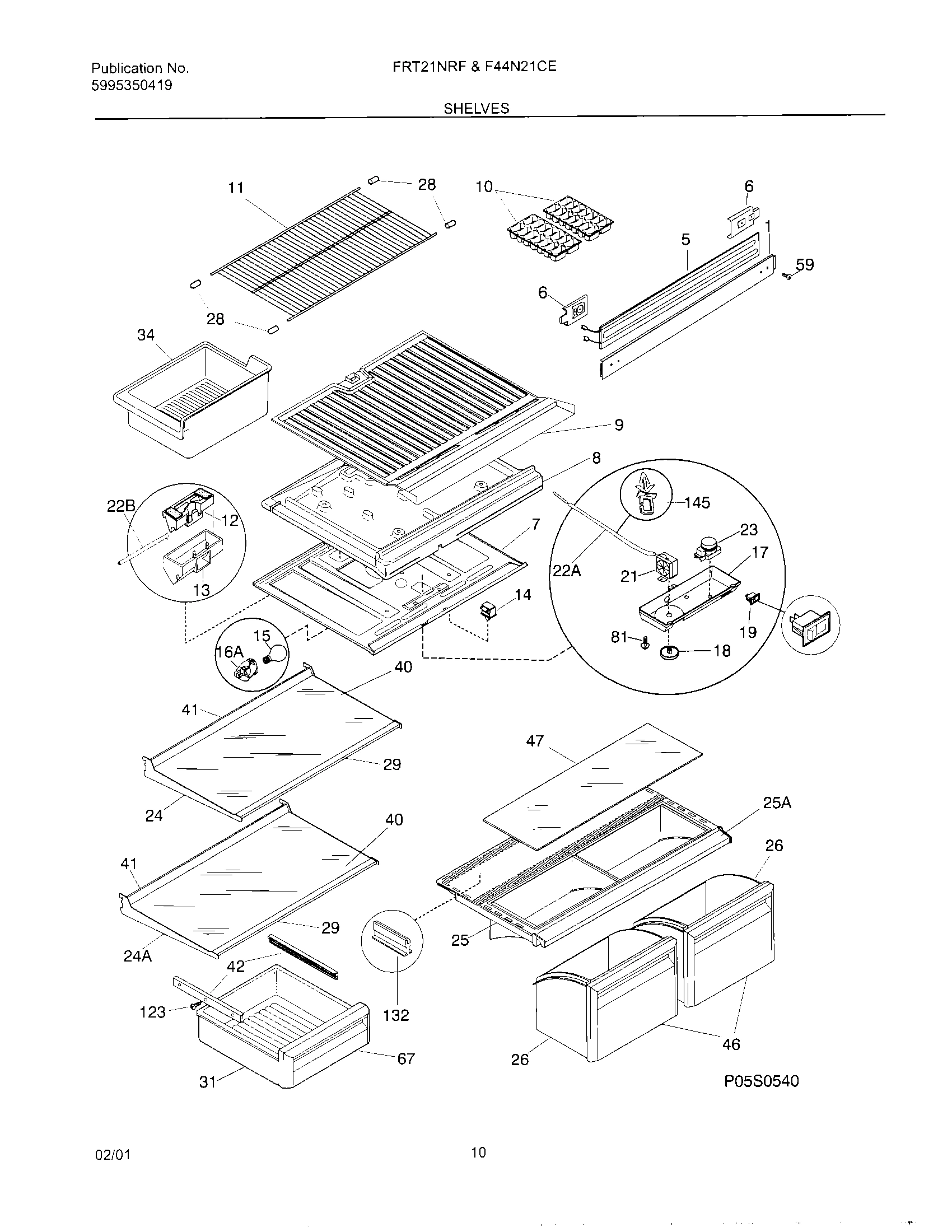

09 - SHELVES

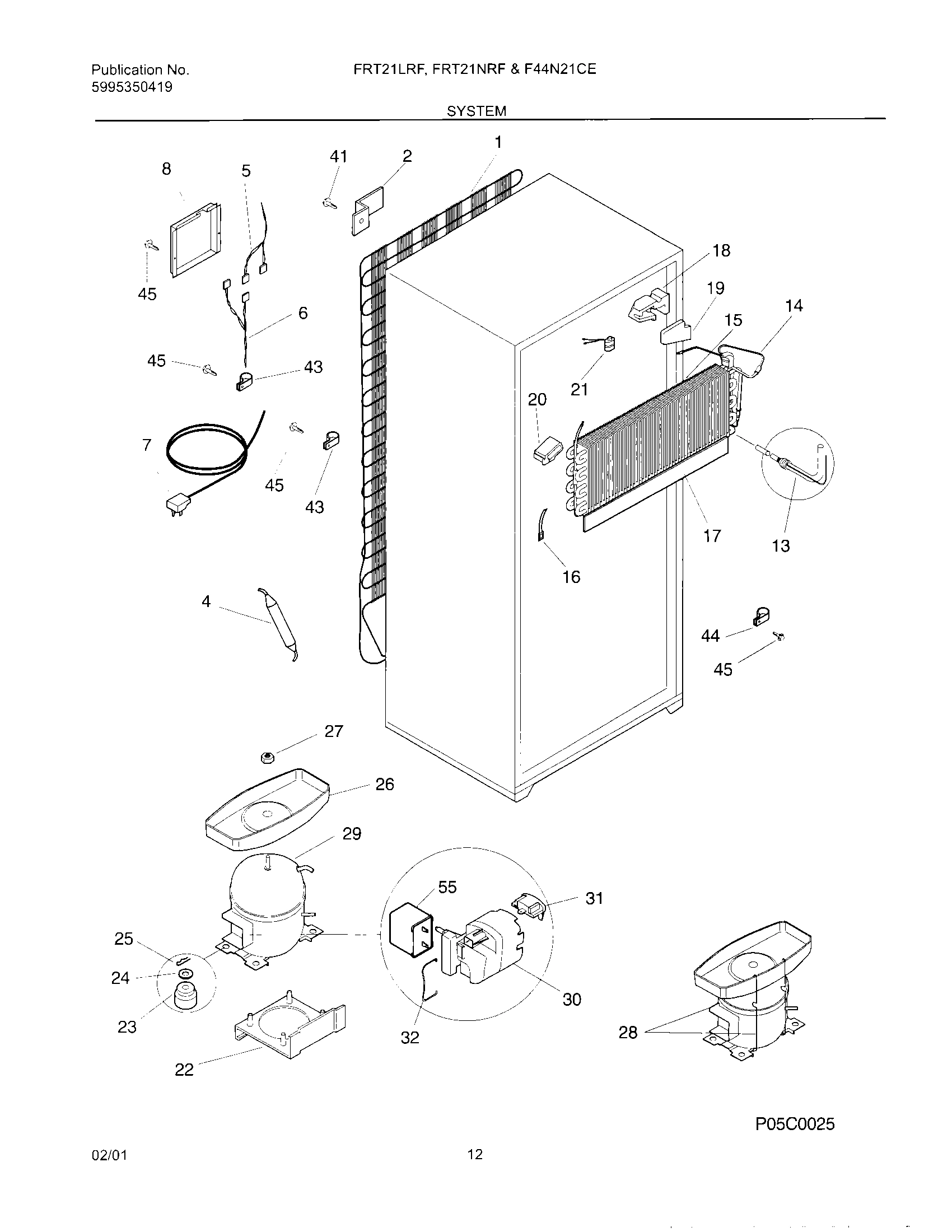

11 - SYSTEM
12 - WIRING DIAGRAM

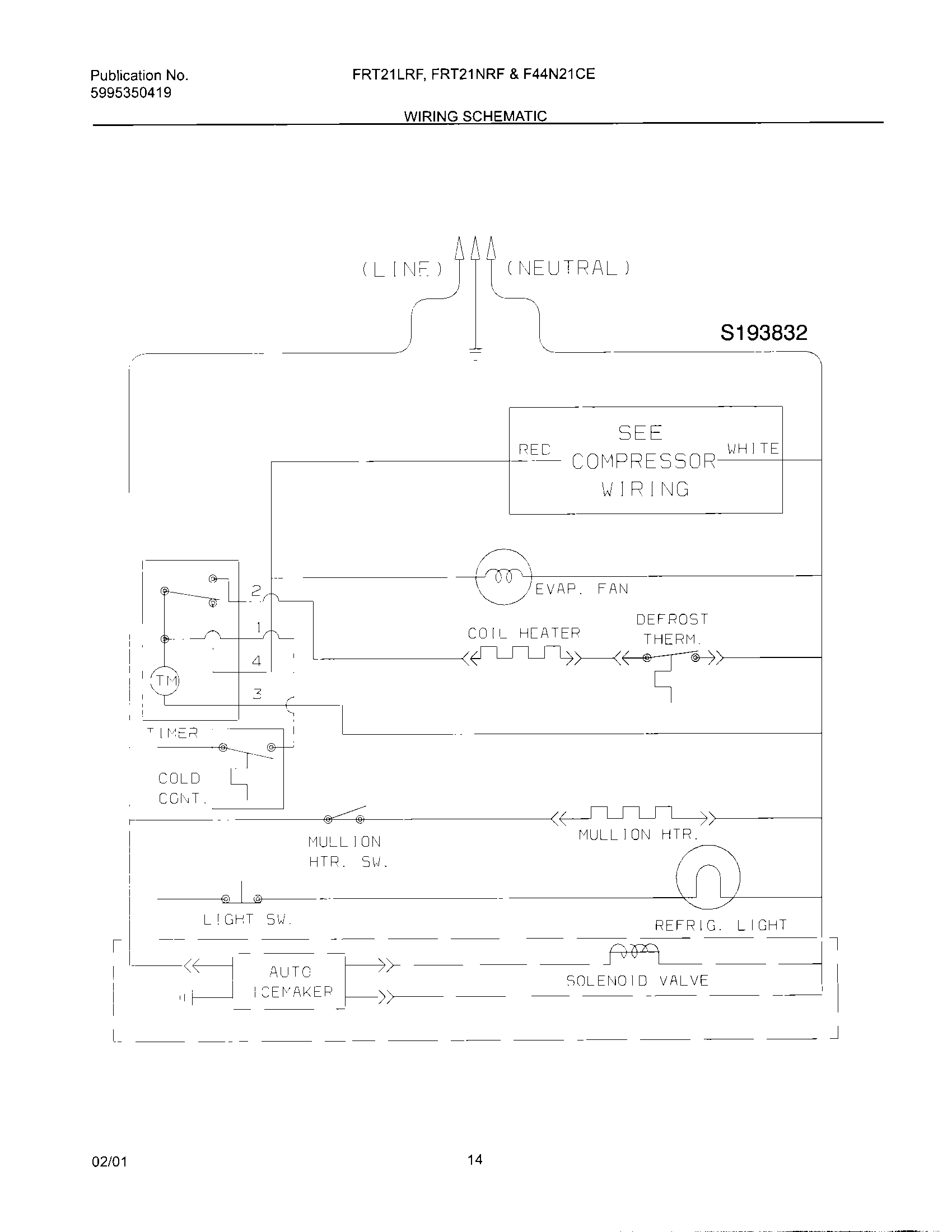

13 - WIRING SCHEMATIC
Common parts from model Electrolux F44N21CEW2 REFRIGERATOR TOP MOUNT REFRIGERATOR
1
WCI 218651900 WCI 218651900 Contact Us For Availability
1
WCI 218657100 WCI 218657100 Contact Us For Availability
2
WCI 218730609 WCI 218730609 Contact Us For Availability
2
Bracket,condenser mtg ,(4) WCI 5308000296 Contact Us For Availability
5
WCI 218781002 WCI 218781002 Contact Us For Availability
5
WCI 218767600 WCI 218767600 Contact Us For Availability
6
WCI 218279800 WCI 218279800 Contact Us For Availability
6
WIRING HARNESS,COMPRESSOR WCI 215257001 Contact Us For Availability
7
WCI 218738800 WCI 218738800 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
8
WCI 218781400 WCI 218781400 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
WCI 5303210641 WCI 5303210641 Contact Us For Availability
10
PLUG-BUTTON, WHITE, HINGE BRG HOLE WCI 5308000134 Contact Us For Availability
11
SHELF-FREEZER, FIXED/FLAT, FULL WIDTH WCI 5303288243 Contact Us For Availability
12
WCI 218730000 WCI 218730000 Contact Us For Availability
12
WCI 215079000 WCI 215079000 Contact Us For Availability
12
WCI 215079100 WCI 215079100 Contact Us For Availability
13
WCI 218631001 WCI 218631001 Contact Us For Availability
13
WCI 218249001 WCI 218249001 Contact Us For Availability
13
WCI 215076405 WCI 215076405 Contact Us For Availability
15
WCI 218765400 WCI 218765400 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 5303321455 WCI 5303321455 Contact Us For Availability
18
WCI 5303311079 WCI 5303311079 Contact Us For Availability
18
WCI 218773700 WCI 218773700 Contact Us For Availability
19
SWITCH-ENERGY SAVER, ROCKER TYPE WCI 5303286905 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
Screw,8 oval head ,10-32CA x 0.625 , WCI 218251900 Contact Us For Availability
22
WCI 218519300 WCI 218519300 Contact Us For Availability
22
TUBE, PVC, WHITE, @ AIR DEFLECTOR, WCI 218731104 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23
WCI 5303210377 WCI 5303210377 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 215919117 WCI 215919117 Contact Us For Availability
24
FRAME-PAN MTG SHELF,CANTILEVER , WCI 215919122 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 215363203 WCI 215363203 Contact Us For Availability
25
WCI 5303310151 WCI 5303310151 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
26
WCI 215363301 WCI 215363301 Contact Us For Availability
26
WCI 215372500 WCI 215372500 Contact Us For Availability
27
SCREW-LEVELING WCI 5303212922 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
END CAP-SHELF,PROTECTOR ,FRZR SHELF WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
29
WASHER, .34 X .62 X .02, NYLON WCI 5308011326 Contact Us For Availability
29
WCI 215919405 WCI 215919405 Contact Us For Availability
30
WCI 218721100 WCI 218721100 Contact Us For Availability
31
WCI 5303299560 WCI 5303299560 Contact Us For Availability
37
WCI 5303321081 WCI 5303321081 Contact Us For Availability
40
WCI 3206101 WCI 3206101 Contact Us For Availability
40
WCI 218390524 WCI 218390524 Contact Us For Availability
41
WCI 215919805 WCI 215919805 Contact Us For Availability
46
FRONT-CRISPER PAN,(2) WCI 215412104 Contact Us For Availability
47
WCI 218233300 WCI 218233300 Contact Us For Availability
47
WCI 218390526 WCI 218390526 Contact Us For Availability
48
WCI 5303292395 WCI 5303292395 Contact Us For Availability
49
SCREW, HEX WASHER HEAD, 8-18AB X 1-1/2 WCI 215507300 Contact Us For Availability
67
WCI 215357805 WCI 215357805 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
100
SUPPORT-PAN COVER WCI 5303288973 No Longer Available
110
WCI 215363501 WCI 215363501 Contact Us For Availability
116
WCI 215426703 WCI 215426703 Contact Us For Availability
132
WCI 215426600 WCI 215426600 Contact Us For Availability
145
WCI 218660800 WCI 218660800 Contact Us For Availability
NI
WCI 215782300 WCI 215782300 Contact Us For Availability
NI
WCI 5303917276 WCI 5303917276 Contact Us For Availability
NI
PLUG-BUTTON,CAB LINER HOLES WCI 5308016571 Contact Us For Availability
NI
WCI 218676001 WCI 218676001 Contact Us For Availability
NI
TAPPING PLATE/GUSSET,RH WCI 218605200 Contact Us For Availability
NI
TAPPING PLATE/GUSSET,LH WCI 218605300 Contact Us For Availability
NI
TAPPING PLATE, UPPER HINGE (2) WCI 5308012296 Contact Us For Availability
NI
SPACER-SHELF WCI 218159700 Contact Us For Availability
NI
WCI 5303001260 WCI 5303001260 Contact Us For Availability
NI
WCI 5303001380 WCI 5303001380 Contact Us For Availability
NI
NUT-ANCHOR WCI 5308016567 Contact Us For Availability
NI
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
NI
Washer,ext tooth lock ,No.10 ,grounding WCI 5308009617 Contact Us For Availability
× ![]()
