Model Whirlpool F4458L0 – Common Parts & Diagrams

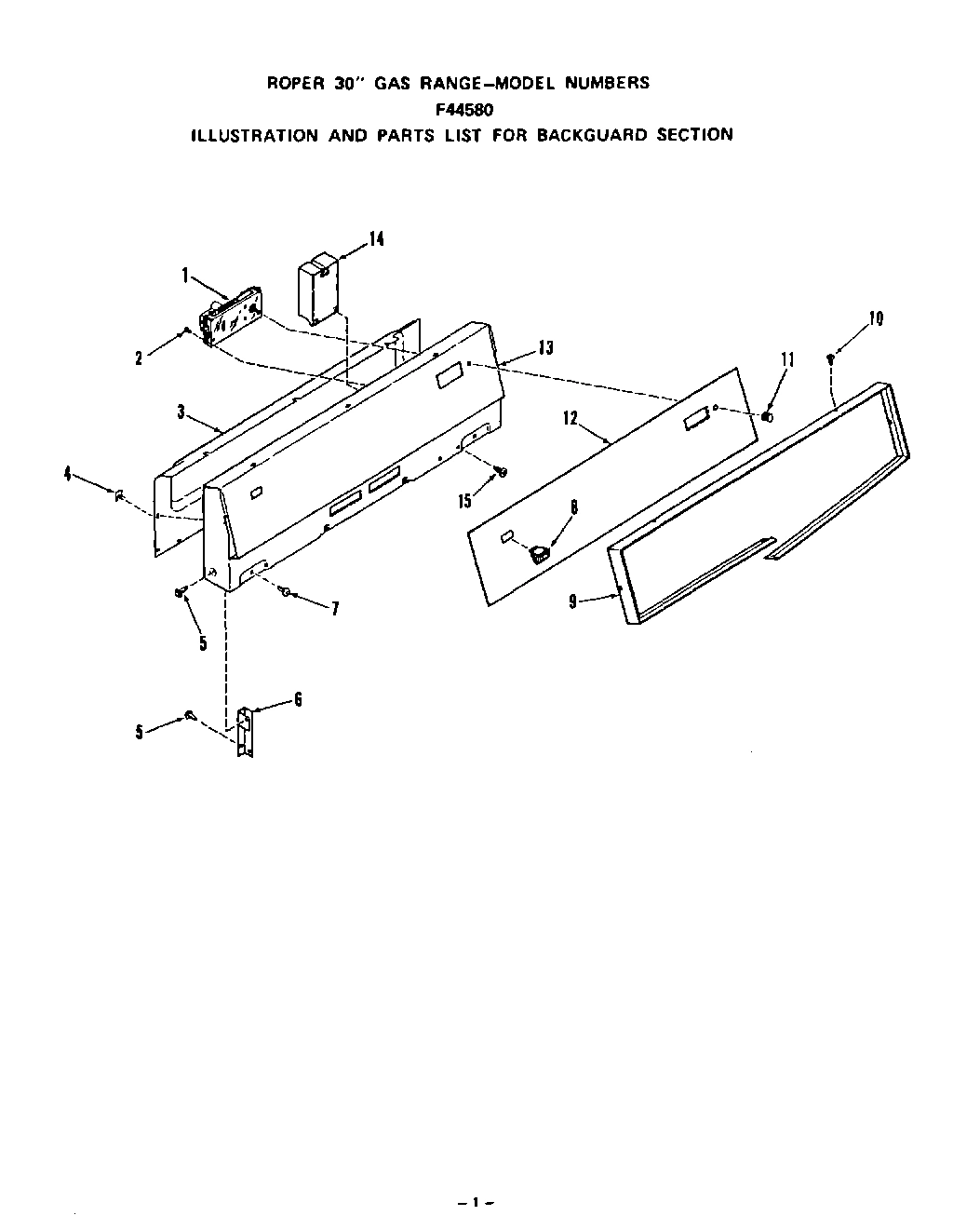

02 - BACKGUARD

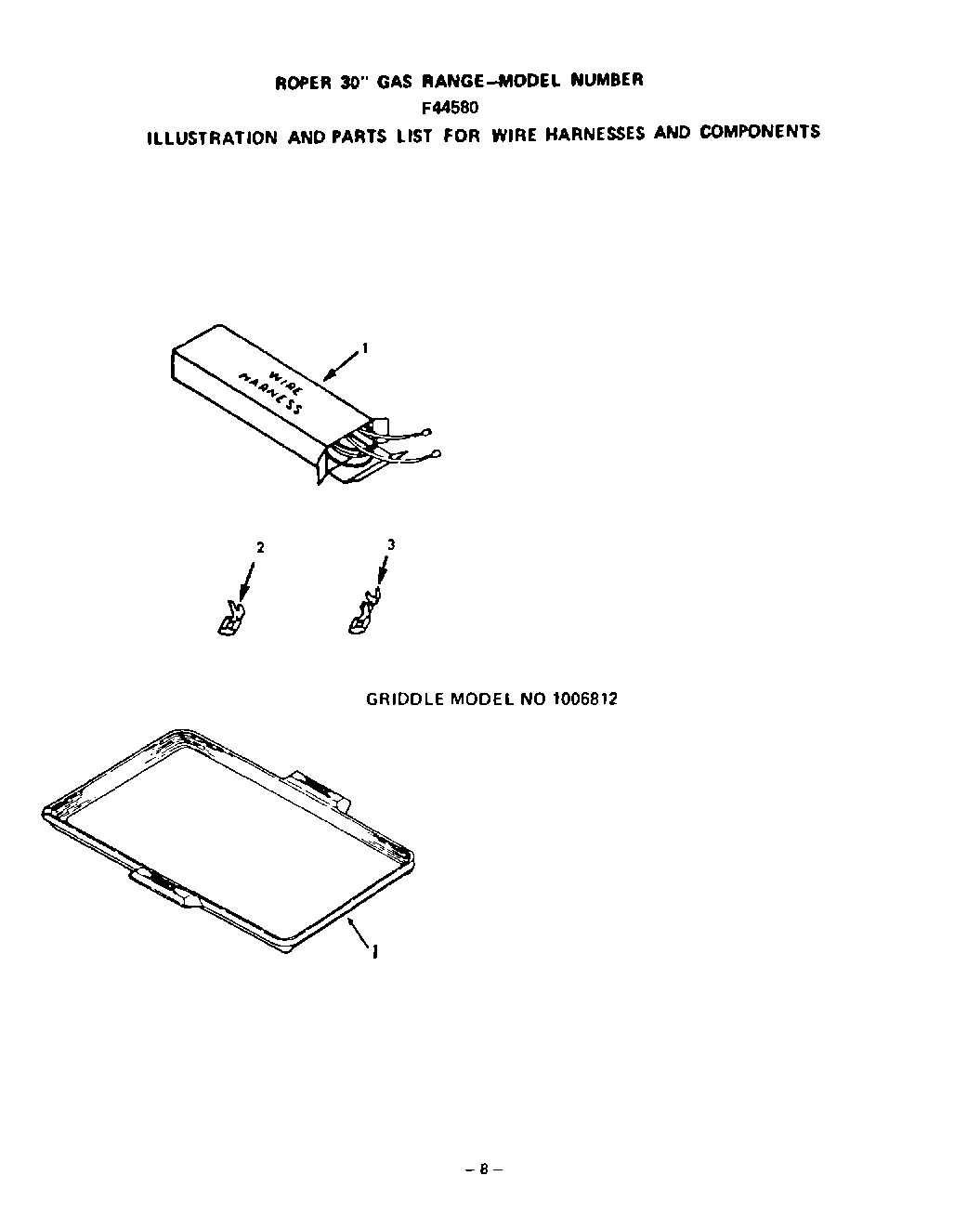

07 - WIRE HARNESS, GRIDDLE

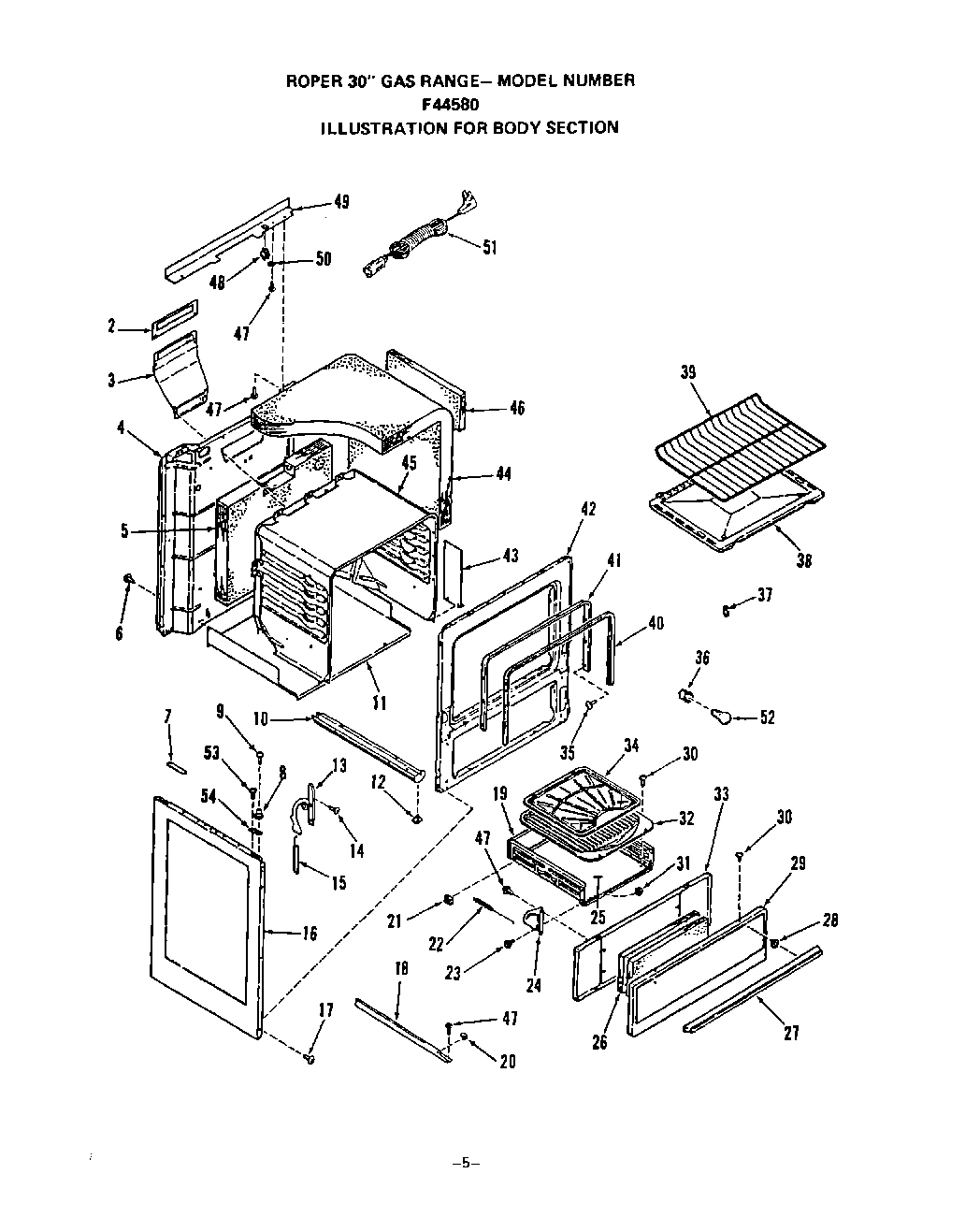

05 - BODY

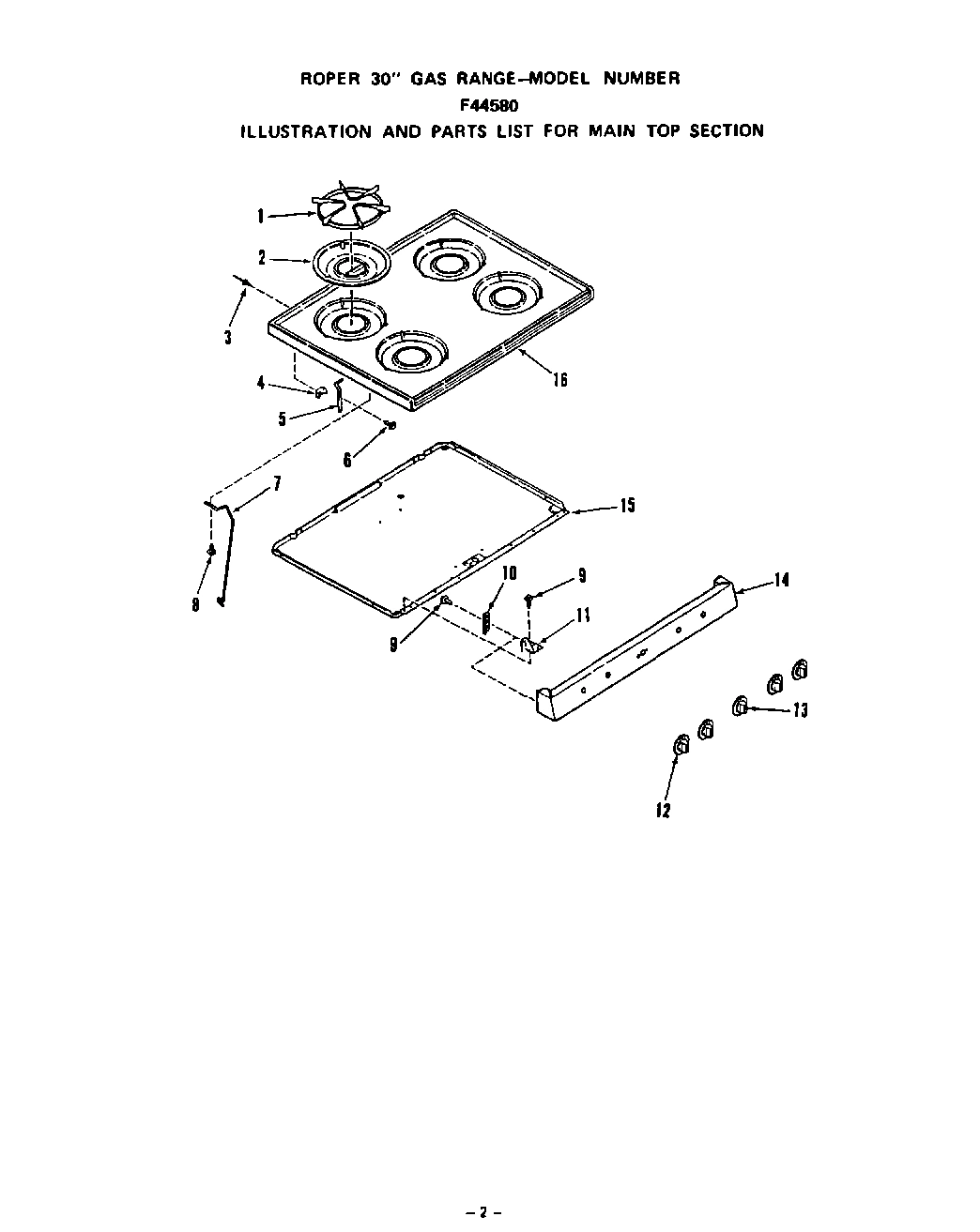

03 - MAIN TOP

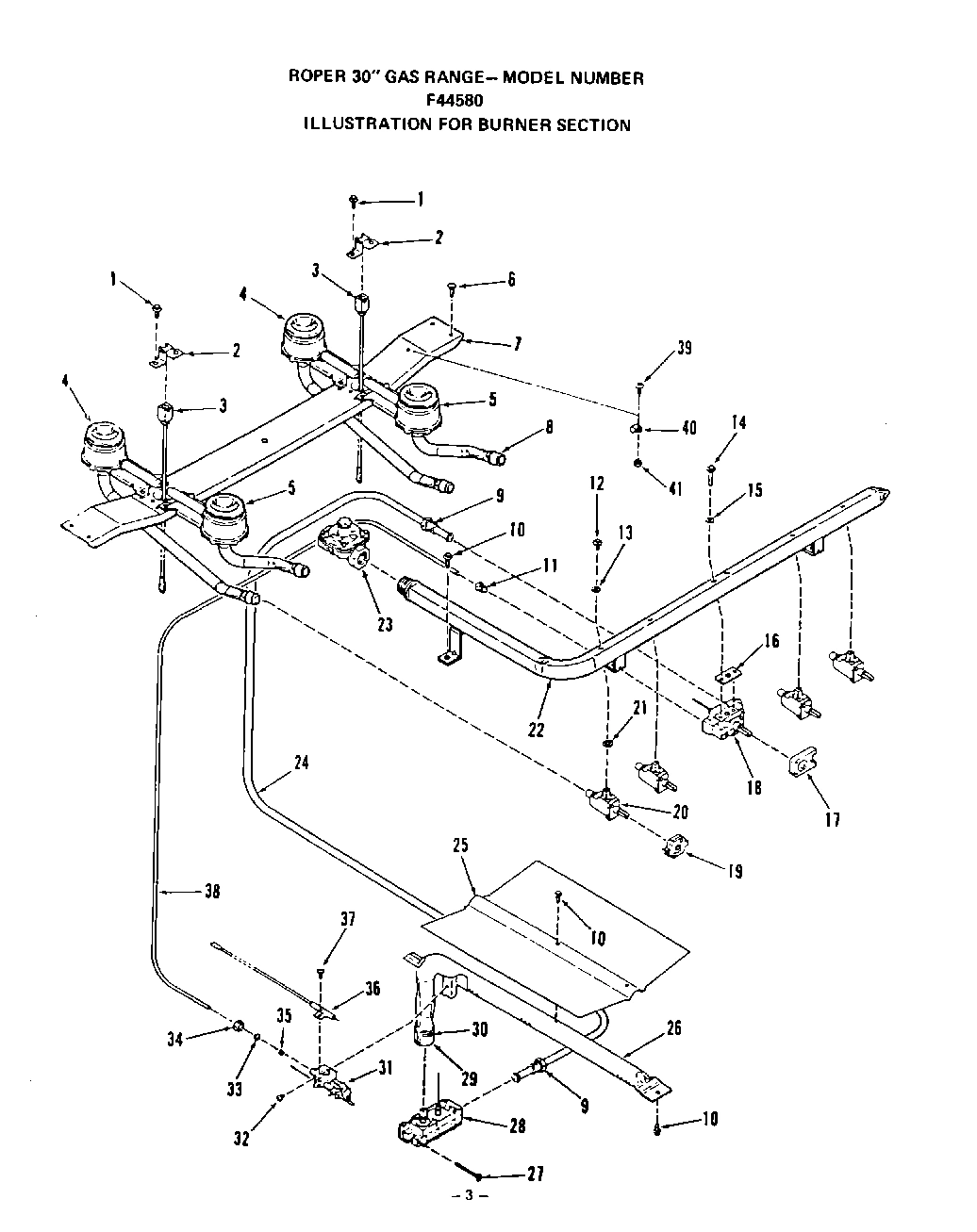

04 - BURNER

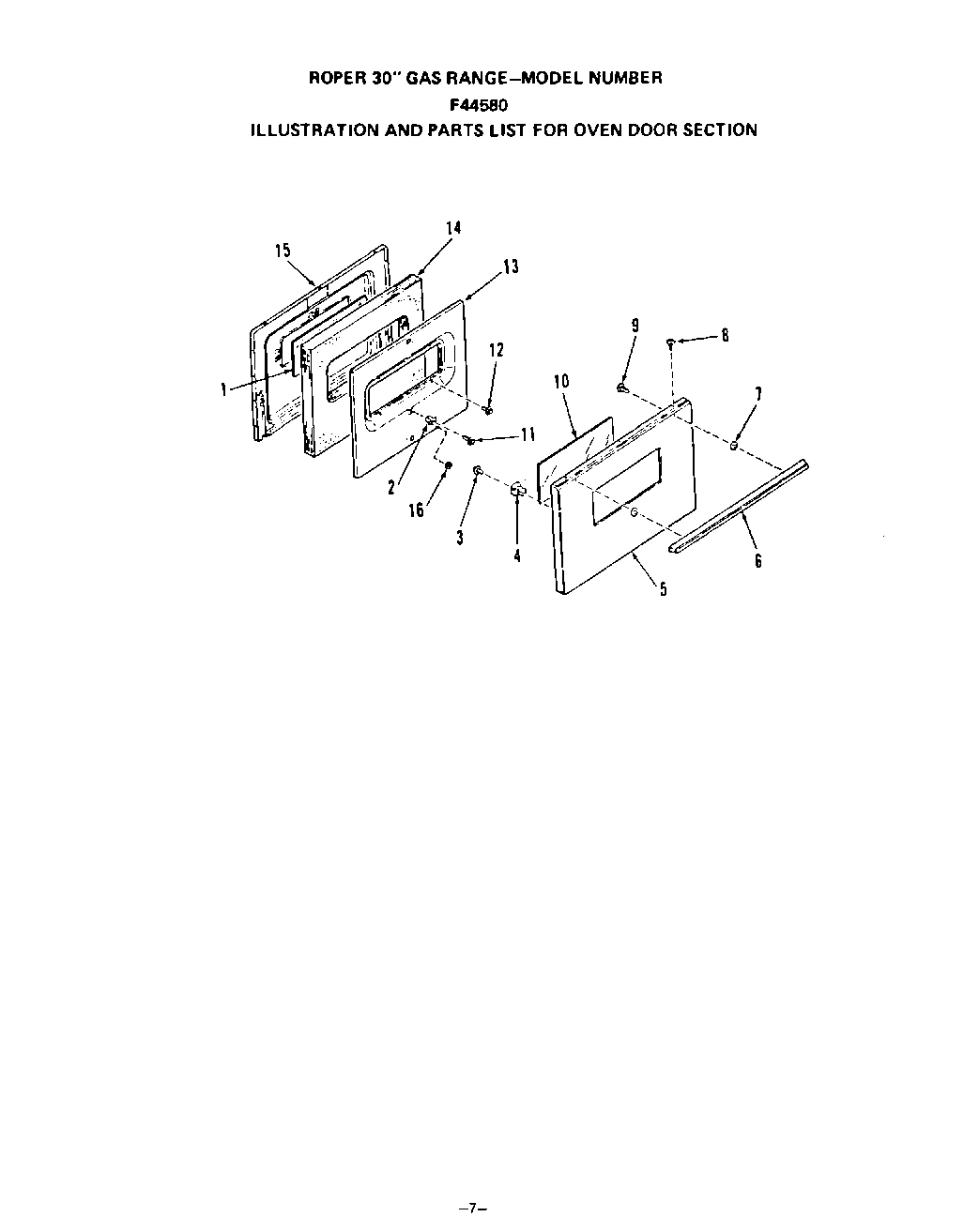

06 - OVEN DOOR

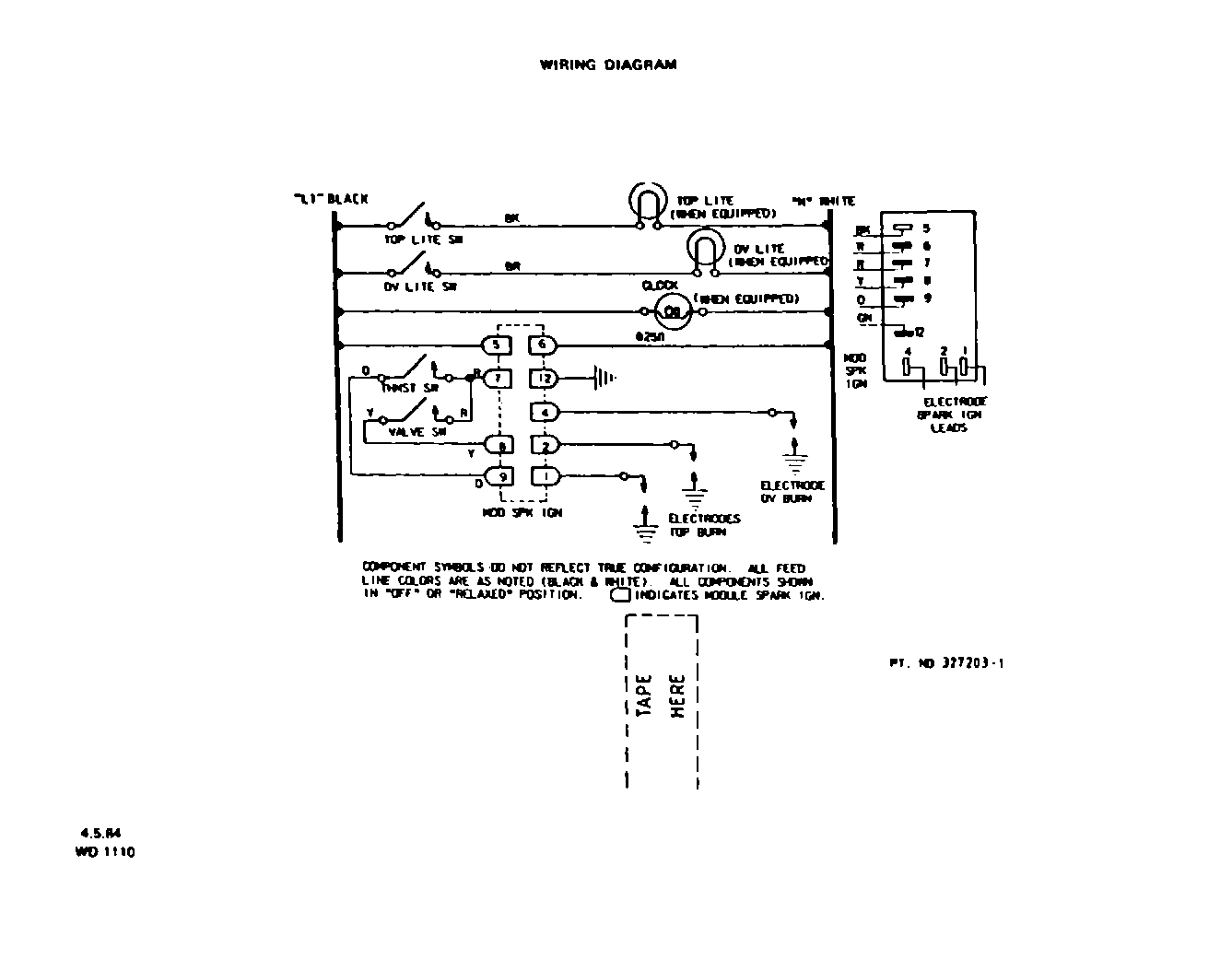

08 - WIRING DIAGRAM
Common parts from model Whirlpool F4458L0
1
Clock w/Lens WPL 336931 Contact Us For Availability
1
Clock Lens WPL 336943 Contact Us For Availability
1
Wir Harness (Valve Switches) WPL 326870 Contact Us For Availability
1
Wir Harness (Main) WPL 327204 Contact Us For Availability
1
Wir Harness (Oven Light) WPL 334351 Contact Us For Availability
1
Top Burner Grate (4 Req) WPL 330242 Contact Us For Availability
1
Screw 8-32 x 3/8`` WPL 92717 Contact Us For Availability
1
inner glass-oven door WPL 326010 Contact Us For Availability
2
Screw 6-32x5/16`` WPL 78153 Contact Us For Availability
2
Flag Terminal 1/4`` WPL 238391 Contact Us For Availability
2
Insulation-Flue WPL 329314 Contact Us For Availability
2
Aeration Pan WPL 322888 Contact Us For Availability
2
Bracket - Spark Igniter WPL 312453 Contact Us For Availability
2
Spacer WPL 327269 Contact Us For Availability
3
Wire Cover WPL 334749 Contact Us For Availability
3
Faston Terminal (3/16``) WPL 238392 Contact Us For Availability
3
Faston Terminal (1/4``) WPL 238393 Contact Us For Availability
3
Flue Deflector WPL 327079 Contact Us For Availability
3
Rivet WPL 338735 Contact Us For Availability
3
Electrode (Right) WPL 313629 Contact Us For Availability
3
Electrode (Left) WPL 334509 Contact Us For Availability
3
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
4
Trim Clip WPL 70588 Contact Us For Availability
4
Back-Main WPL 327087 Contact Us For Availability
4
Hinge Bracket WPL 335975 Contact Us For Availability
4
Rear Burner-Lt. or Rt.. (Inc`s. Key 8) WPL 333223 Contact Us For Availability
4
Retainer-Door (Lt. or Rt.) WPL 299592 Contact Us For Availability
5
Insulation-Oven Back WPL 328142 Contact Us For Availability
5
Hinge (Right) WPL 320921 Contact Us For Availability
5
Hinge (Left) WPL 320922 Contact Us For Availability
5
Front Burner-Lt. or Rt. (Inc`s. Key 8) WPL 333222 Contact Us For Availability
5
Front Panel-Oven Door (White) WPL 333459 Contact Us For Availability
5
Front Panel-Oven Door (Almond) WPL 333461 Contact Us For Availability
6
Support (Right) WPL 327106 Contact Us For Availability
6
Support (Left) WPL 327107 Contact Us For Availability
6
Handle WPL 334848 Contact Us For Availability
6
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
6
Screw 6-32x3/8`` WPL 327621 Contact Us For Availability
7
Spacer-Main Top WPL 335320 Contact Us For Availability
7
Spacer, Door Handle WPL 107158 Contact Us For Availability
7
Support Rod WPL 332284 Contact Us For Availability
7
Support-Top Burner WPL 333607 Contact Us For Availability
8
Switch-Oven Light WPL 334649 Contact Us For Availability
8
Screw WPL 336152 Contact Us For Availability
8
Strike WPL 333892 Contact Us For Availability
8
Air Shutter WPL 327198 Contact Us For Availability
8
Screw 1--32 x 1/2`` WPL 335967 Contact Us For Availability
9
Bezel - Backguard WPL 335897 Contact Us For Availability
9
Screw 6-32x7/8`` WPL 327256 Contact Us For Availability
9
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
10
Base w/Levelers-Lt. or Rt. WPL 334811 Contact Us For Availability
10
Cleat WPL 335977 Contact Us For Availability
10
Outer Glass-Oven Door WPL 326583 Contact Us For Availability
11
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
11
Knob-Clock WPL 334045 Contact Us For Availability
11
Bottom-Main WPL 327053 Contact Us For Availability
11
Manifold Panel Bracket (Right) WPL 333351 Contact Us For Availability
11
Manifold Panel Bracket (Left) WPL 333352 Contact Us For Availability
11
Loxit Nut WPL 79673 Contact Us For Availability
12
Insert - Backguard WPL 335615 Contact Us For Availability
12
Leg Leveler (4 Req) WPL 326052 Contact Us For Availability
12
Gas Valve Knob WPL 338449 Contact Us For Availability
12
Screw (For Key 20) WPL 311455 Contact Us For Availability
12
Screw 10-32 x 17/32`` WPL 104520 Contact Us For Availability
13
Panel-Backguard WPL 335612 Contact Us For Availability
13
Hinge-Oven Door (Right) WPL 332345 Contact Us For Availability
13
Hinge-Oven Door (Left) WPL 332346 Contact Us For Availability
13
Thermostat Knob WPL 333786 Contact Us For Availability
13
Gasket (For Key 12) WPL 311692 Contact Us For Availability
13
Retainer-Oven Door Insulation WPL 335843 Contact Us For Availability
14
Module - Spark Igniter WPL 326136 Contact Us For Availability
14
Screw WPL 331704 Contact Us For Availability
14
Manifold Panel WPL 335757 Contact Us For Availability
14
Screw (For Key 18) WPL 318478 Contact Us For Availability
14
Insulation-Oven Door WPL 325999 Contact Us For Availability
15
Screw 13-16 x 1/2`` WPL 329676 Contact Us For Availability
15
Installation Guide WPL 335344 Contact Us For Availability
15
Use & Care Manual WPL 338750 Contact Us For Availability
15
Repair Parts List WPL 338850 Contact Us For Availability
15
Spring-Oven Door WPL 334722 Contact Us For Availability
15
Burner Box Bottom WPL 333544 Contact Us For Availability
15
Gasket (For Key 14) WPL 318658 Contact Us For Availability
15
Lining-Oven Door WPL 331743 Contact Us For Availability
16
Body side (White) WPL 335826 Contact Us For Availability
16
Body Side (Almond) WPL 335830 Contact Us For Availability
16
Main top (White) WPL 332318 Contact Us For Availability
16
Main Top (Almond) WPL 332324 Contact Us For Availability
16
Gasket (For Key 18) WPL 318657 Contact Us For Availability
16
Felt Washer WPL 335945 Contact Us For Availability
17
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
17
Switch-Thermostat WPL 318432 Contact Us For Availability
18
Broiler Drawer Guide (Left) WPL 334382 Contact Us For Availability
18
Broiler Drawer Guide (Right) WPL 334384 Contact Us For Availability
18
Thermostat (Inc`s Key 16) WPL 330596 Contact Us For Availability
19
Broiler Drawer WPL 334398 Contact Us For Availability
19
Switch-Gas Valve WPL 312457 Contact Us For Availability
20
Slide Block - Front WPL 334918 Contact Us For Availability
20
Gas Valve (Inc`s. Key 21) WPL 332001 Contact Us For Availability
21
Slide Block - Rear WPL 334916 Contact Us For Availability
21
Gasket (For Key 20) WPL 313563 Contact Us For Availability
22
Spring-Broiler Drawer WPL 327481 Contact Us For Availability
22
Manifold Pipe WPL 333907 Contact Us For Availability
23
Shoulder Bolt WPL 329271 Contact Us For Availability
23
Pressure Regulator WPL 324528 Contact Us For Availability
24
Hinge-Broiler Drawer (Right) WPL 327482 Contact Us For Availability
24
Hinge-Broiler Drawer (Left) WPL 327483 Contact Us For Availability
24
Tubing 3/8`` (Inc`s. Key 9) WPL 295037 Contact Us For Availability
25
Bottom - Broiler Drawer WPL 331544 Contact Us For Availability
25
Baffle - Oven Burner WPL 329316 Contact Us For Availability
26
Oven Burner Asm (Inc`s. Key 25, 29, 30) WPL 329651 Contact Us For Availability
27
Screw 10-32 x 2`` WPL 323296 Contact Us For Availability
28
Control Valve (Inc`s. 31 & 35) WPL 321755 Contact Us For Availability
29
Panel-Broiler Door (White) WPL 332137 Contact Us For Availability
29
Panel-Broiler Door (Almond) WPL 332141 Contact Us For Availability
29
Air Shutter WPL 312988 Contact Us For Availability
30
Screw 10 - 32 x 1/2`` WPL 102430 Contact Us For Availability
30
Adjustment Screw WPL 312989 Contact Us For Availability
31
Hex Nut 10-24 WPL 74056 Contact Us For Availability
31
Pilot (Inc`s. Key 35) WPL 318486 Contact Us For Availability
32
Broiler Pan WPL 331593 Contact Us For Availability
32
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
33
Lining-Broiler Door WPL 331567 Contact Us For Availability
33
Compression Sleeve 3/16`` WPL 65711 Contact Us For Availability
34
Broiler Pan Grid WPL 331588 Contact Us For Availability
34
Compression Nut 3/16`` WPL 65712 Contact Us For Availability
35
Screw 10ABx1/2`` WPL 69014 Contact Us For Availability
35
Orifice Cup (For Key 31) WPL 318485 Contact Us For Availability
36
Bulb Holder WPL 295974 Contact Us For Availability
36
Electrode WPL 327217 Contact Us For Availability
37
Thermostat Bulb Clip WPL 321539 Contact Us For Availability
37
Screw 6ABx3/8`` WPL 120855 Contact Us For Availability
38
Oven Bottom WPL 331539 Contact Us For Availability
38
Tubing 3/16`` WPL 322447 Contact Us For Availability
39
Oven Rack WPL 326068 Contact Us For Availability
39
Screw 8-32 x 3/8`` WPL 238833 Contact Us For Availability
40
seal-oven door WPL 326047 Contact Us For Availability
40
Clip WPL 106767 Contact Us For Availability
41
Retainer-Door Seal WPL 327875 Contact Us For Availability
41
Nut WPL 239764 Contact Us For Availability
42
Front Frame WPL 334054 Contact Us For Availability
43
Retainer-Insulation WPL 328984 Contact Us For Availability
44
Insulation-Top & Sides WPL 326040 Contact Us For Availability
45
Oven Body WPL 333175 Contact Us For Availability
48
Disconnect WPL 232150 Contact Us For Availability
49
Wire Cover-Backguard Bottom WPL 327251 Contact Us For Availability
50
Clip WPL 335798 Contact Us For Availability
51
Service Cord WPL 238822 Contact Us For Availability
52
Bulb WPL 111257 Contact Us For Availability
53
Screw WPL 337857 Contact Us For Availability
54
Body Side Support (Right) WPL 334340 Contact Us For Availability
54
Body Side Support (Left) WPL 334341 Contact Us For Availability
A1
Set-On Griddle WPL 289761 Contact Us For Availability
× ![]()
