Model Whirlpool F4357L2 – Common Parts & Diagrams

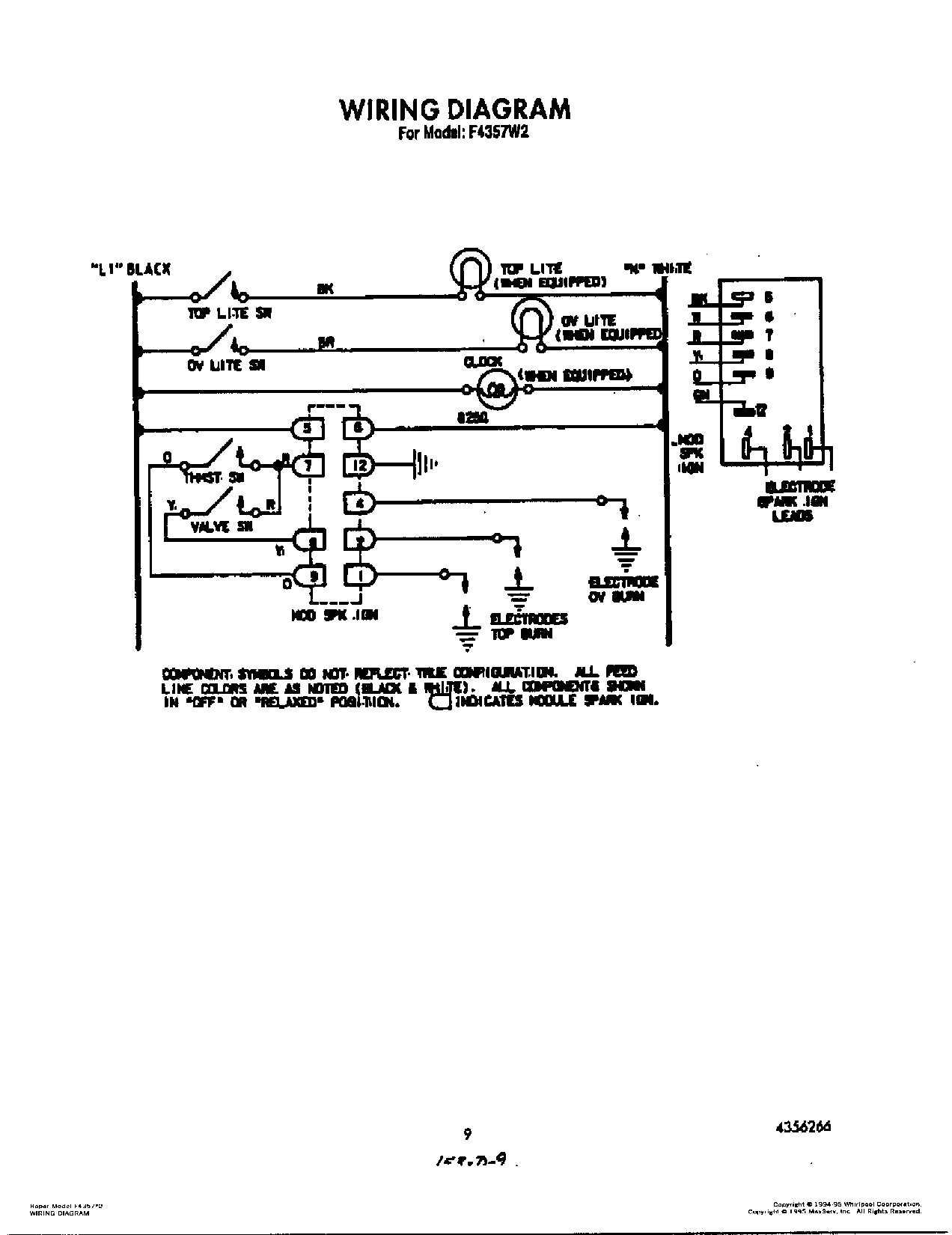

07 - WIRING DIAGRAM

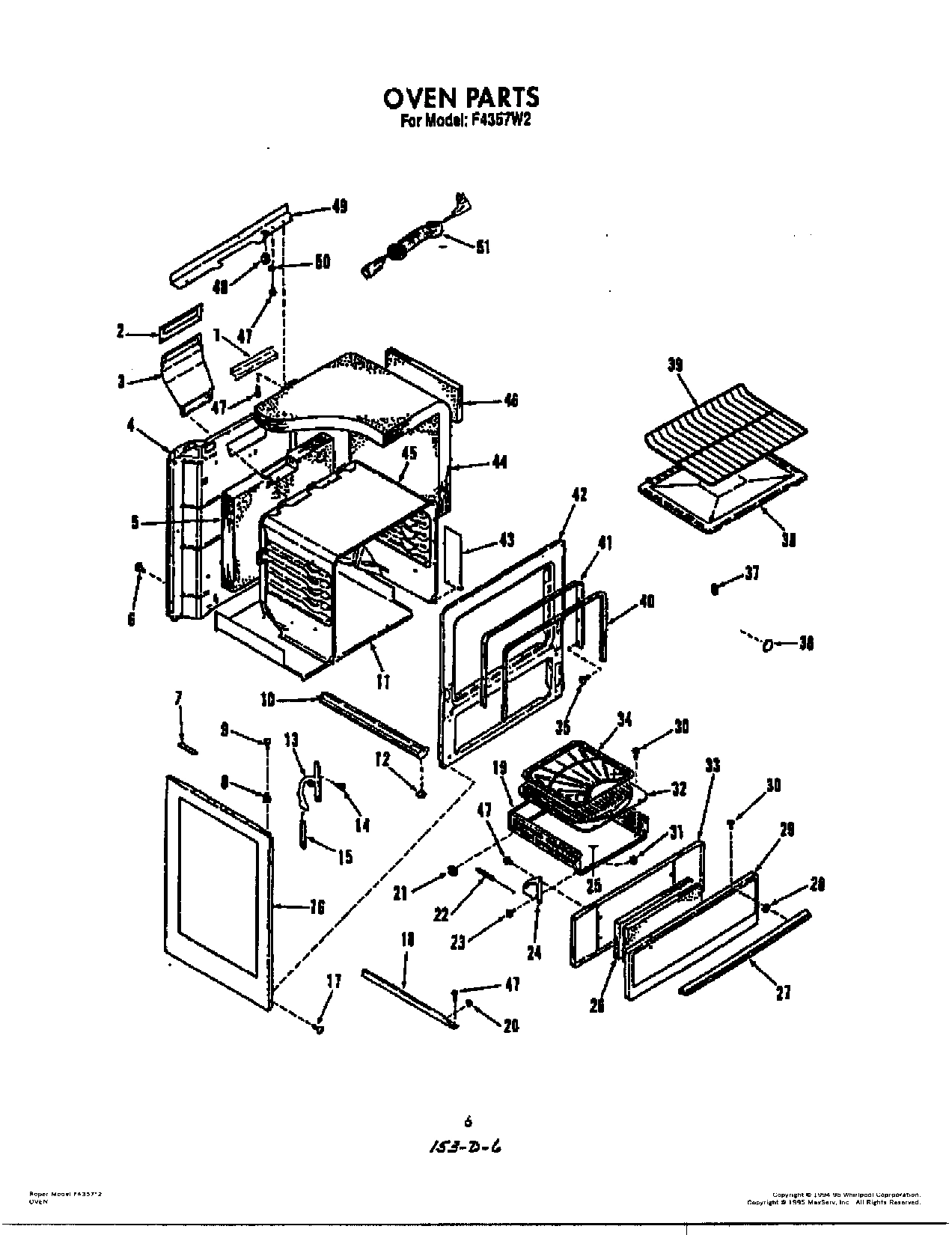

05 - OVEN
03 - COOKTOP
01 - COVER
02 - CONTROL PANEL
04 - BURNER
06 - OVEN DOOR
Common parts from model Whirlpool F4357L2
1
Grate, Burner (4) WPL 4336234 Contact Us For Availability
1
Clip WPL 4323413 Contact Us For Availability
1
Lining, Oven Door WPL 4336592 Contact Us For Availability
2
Rivet WPL 4338425 Contact Us For Availability
2
End Cap (Right) WPL 4334884 Contact Us For Availability
2
End Cap (Left) WPL 4334885 Contact Us For Availability
2
Bracket, Spark Igniter WPL 4331307 Contact Us For Availability
2
Glass, Outer WPL 4336722 Contact Us For Availability
3
Hinge Bracket WPL 4337624 Contact Us For Availability
3
Electrode (Right) WPL 4331688 Contact Us For Availability
3
Electrode (Left) WPL 4354924 Contact Us For Availability
3
Cushion (3) WPL 4324217 Contact Us For Availability
4
Hinge (Right) WPL 4333234 Contact Us For Availability
4
Hinge (Left) WPL 4333235 Contact Us For Availability
4
Rear Burner, Lt/Rt. (Inc`s No.8) WPL 4336922 Contact Us For Availability
4
Frame WPL 4337193 Contact Us For Availability
5
Insulation-Back WPL 4354817 Contact Us For Availability
5
Handle WPL 4337344 Contact Us For Availability
5
Backguard Support (Right) WPL 4335176 Contact Us For Availability
5
Backguard Support (Left) WPL 4335177 Contact Us For Availability
5
Front Burner, Lt/Rt (Inc`s No.8) WPL 4336921 Contact Us For Availability
6
Spacer, Handle WPL 4323997 Contact Us For Availability
6
Cooktop (White) WPL 4336778 Contact Us For Availability
6
Cooktop (Almond) WPL 4336779 Contact Us For Availability
6
Screw No.6-32x3/8 WPL 4335339 Contact Us For Availability
7
Spacer-Top WPL 4337485 Contact Us For Availability
7
Screw WPL 4336631 Contact Us For Availability
7
Bottom, Burner Box WPL 4337004 Contact Us For Availability
7
Screw, No.13-16 x 1/2 WPL 4336143 Contact Us For Availability
7
Top Burner Support WPL 4337014 Contact Us For Availability
8
Strike WPL 4337082 Contact Us For Availability
8
Panel, Manifold WPL 4337570 Contact Us For Availability
8
Control Panel WPL 4337698 Contact Us For Availability
8
Air Shutter WPL 4335197 Contact Us For Availability
8
Insulation WPL 4354791 Contact Us For Availability
9
Screw No.6-32x7/8 WPL 4335220 Contact Us For Availability
9
Knob, Thermostat WPL 4337055 Contact Us For Availability
9
Wire Cover, Backguard WPL 4337308 Contact Us For Availability
9
Nut, Inverted 3/8 WPL 4324278 Contact Us For Availability
9
Washer WPL 4336868 Contact Us For Availability
10
Base w/Levelers-Lt or Rt WPL 4337332 Contact Us For Availability
10
Knob, Gas Valve (4) WPL 4337054 Contact Us For Availability
10
Module, Spark WPL 4334842 Contact Us For Availability
10
Installation Guide WPL 4348091 Contact Us For Availability
10
Use & Care Guide WPL 4348340 Contact Us For Availability
10
Repair Parts List WPL 4356266 Contact Us For Availability
11
Bottom WPL 4335153 Contact Us For Availability
11
Nut, Hex WPL 4323489 Contact Us For Availability
11
Spacer WPL 4336869 Contact Us For Availability
12
Levelers, Leg (4) WPL 4334800 Contact Us For Availability
12
Screw (For No.20) WPL 4331097 Contact Us For Availability
12
Washer WPL 4323694 Contact Us For Availability
13
Hinge-Door (Left) WPL 4336784 Contact Us For Availability
13
Hinge-Door (Right) WPL 4336783 Contact Us For Availability
13
Seal (For No.12) WPL 4331164 Contact Us For Availability
13
Washer, Felt WPL 4337618 Contact Us For Availability
14
Cleat WPL 4337625 Contact Us For Availability
14
Screw (For No.18) WPL 4332668 Contact Us For Availability
15
Spring-Door WPL 4337296 Contact Us For Availability
15
Manifold Bracket (Right) WPL 4336962 Contact Us For Availability
15
Manifold Bracket (Left) WPL 4336963 Contact Us For Availability
15
Seal (For No.14) WPL 4332709 Contact Us For Availability
16
Side-Body (White) WPL 4337591 Contact Us For Availability
16
Side-Body (Almond) WPL 4337593 Contact Us For Availability
16
Seal (For No.18) WPL 4332708 Contact Us For Availability
17
Switch, Thermostat WPL 4332653 Contact Us For Availability
18
Guide-Broiler (Left) WPL 4337201 Contact Us For Availability
18
Guide-Broiler (Right) WPL 4337202 Contact Us For Availability
18
Thermostat, (Inc`s No.16) WPL 4336370 Contact Us For Availability
19
Switch, Gas Valve WPL 4331311 Contact Us For Availability
19
Drawer, Broiler WPL 4342680 Contact Us For Availability
20
Slide Block-Front WPL 4337370 Contact Us For Availability
20
Gas Valve (Inc`s No.21) WPL 4336714 Contact Us For Availability
21
Slide Block-Rear WPL 4337369 Contact Us For Availability
21
Seal (For No.20) WPL 4331665 Contact Us For Availability
22
Spring-Broiler WPL 4335295 Contact Us For Availability
22
Manifold Pipe WPL 4337090 Contact Us For Availability
23
Bolt, Shoulder WPL 4335999 Contact Us For Availability
23
Pressure Regulator WPL 4334271 Contact Us For Availability
24
Broiler Hinge (Left) WPL 4338606 Contact Us For Availability
24
Broiler Hinge (Right) WPL 4338607 Contact Us For Availability
24
3/8 Tubing (Inc`s No.9) WPL 4327510 Contact Us For Availability
25
Bottom, Drawer WPL 4336575 Contact Us For Availability
25
Baffle, Oven Burner WPL 4336021 Contact Us For Availability
26
Oven Burner Asm., (Inc`s No.25,29,30) WPL 4336130 Contact Us For Availability
27
Screw, No.10-32 x 2 WPL 4333826 Contact Us For Availability
28
Control Valve, (Inc`s No.31 ,35) WPL 4333469 Contact Us For Availability
29
Panel-Broiler Door (White) WPL 4336742 Contact Us For Availability
29
Panel-Broiler Door (Almond) WPL 4336743 Contact Us For Availability
29
Shutter, Air WPL 4331501 Contact Us For Availability
30
Screw, No.10-32 x 1/2 WPL 4323778 Contact Us For Availability
30
Adjustment Screw WPL 4331502 Contact Us For Availability
31
Pilot (Inc`s No.35) WPL 4332674 Contact Us For Availability
32
Pan, Broiler WPL 4336603 Contact Us For Availability
32
Screw, No.10-24 x 1/4 WPL 4326551 Contact Us For Availability
33
Lining, Broiler Door WPL 4336584 Contact Us For Availability
33
3/16 Compression Sleeve WPL 4350216 Contact Us For Availability
34
Grid, Broiler Pan WPL 4336598 Contact Us For Availability
34
3/16 Compression Nut WPL 4323359 Contact Us For Availability
35
Orifice Cup (For No.31) WPL 4332673 Contact Us For Availability
36
Plug Button WPL 4323720 Contact Us For Availability
36
Electrode WPL 4335201 Contact Us For Availability
37
Clip, Thermostat WPL 4333390 Contact Us For Availability
37
Screw, No.6 x 3/8 WPL 4324445 Contact Us For Availability
38
Bottom, Oven WPL 4336570 Contact Us For Availability
38
Tubing 3/16 WPL 4354564 Contact Us For Availability
39
Rack, Oven WPL 4354754 Contact Us For Availability
39
Screw, No.8-32 x 3/8 WPL 4342637 Contact Us For Availability
40
Seal, Oven Door WPL 4354751 Contact Us For Availability
40
Clip WPL 4323987 Contact Us For Availability
41
Retainer, Door Seal WPL 4335426 Contact Us For Availability
42
Frame, Front WPL 4337112 Contact Us For Availability
43
Retainer, Insul. WPL 4335889 Contact Us For Availability
44
Insulation-Top & Sides WPL 4354750 Contact Us For Availability
45
Oven WPL 4336910 Contact Us For Availability
46
Insulation WPL 4327653 Contact Us For Availability
48
Disconnect WPL 4324642 Contact Us For Availability
49
Wire Cover, Bottom Backguard WPL 4335215 Contact Us For Availability
50
Clip WPL 4337581 Contact Us For Availability
51
Power Cord WPL 4351709 Contact Us For Availability
× ![]()
