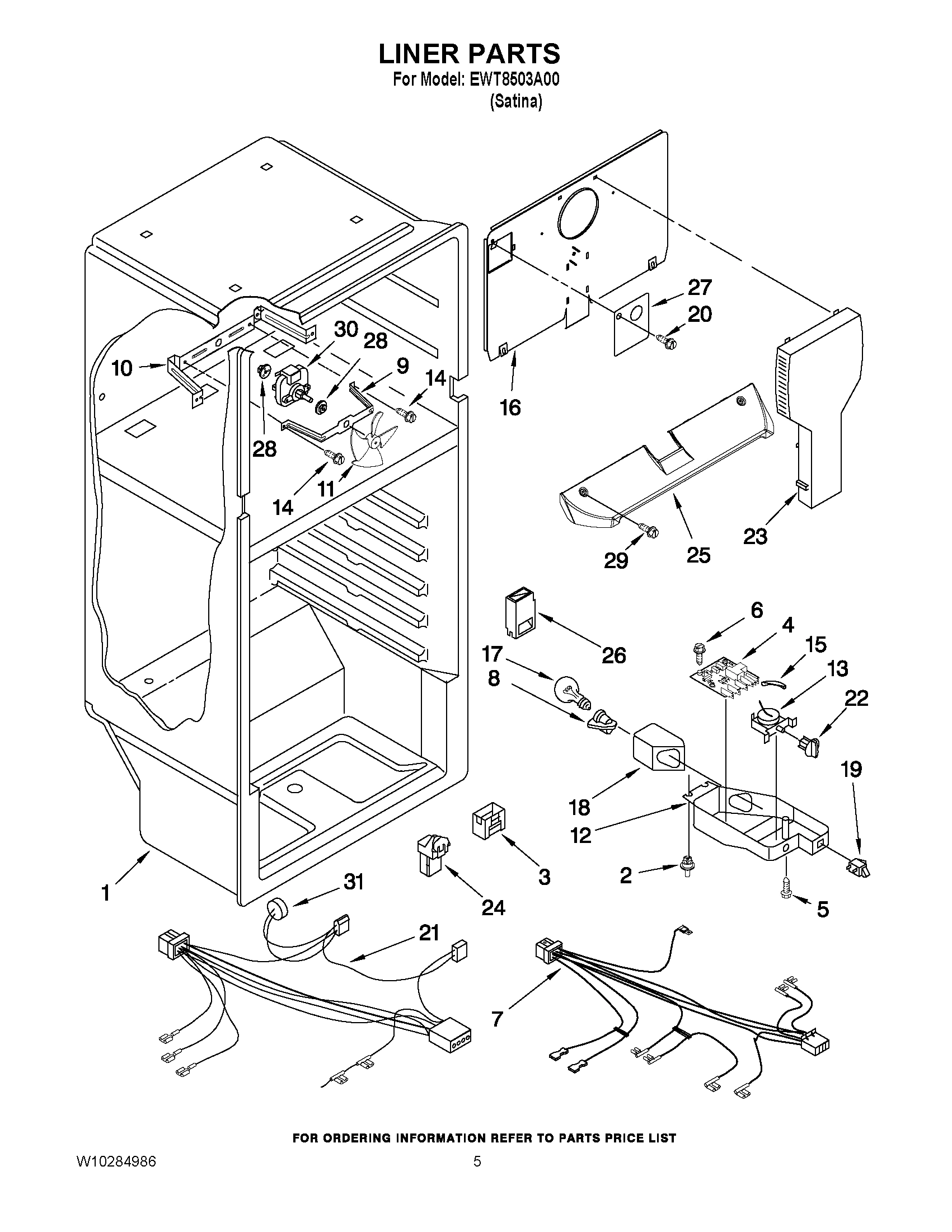

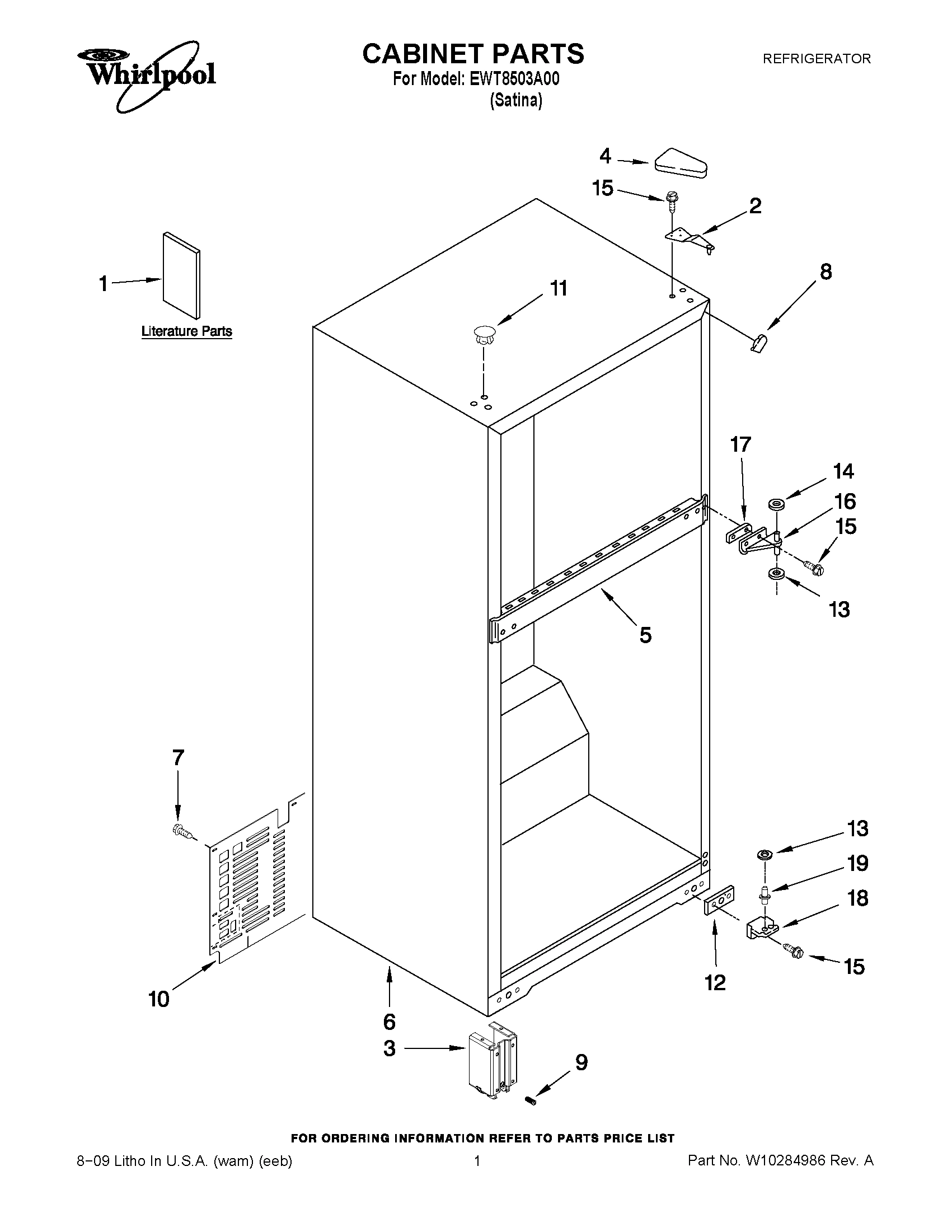

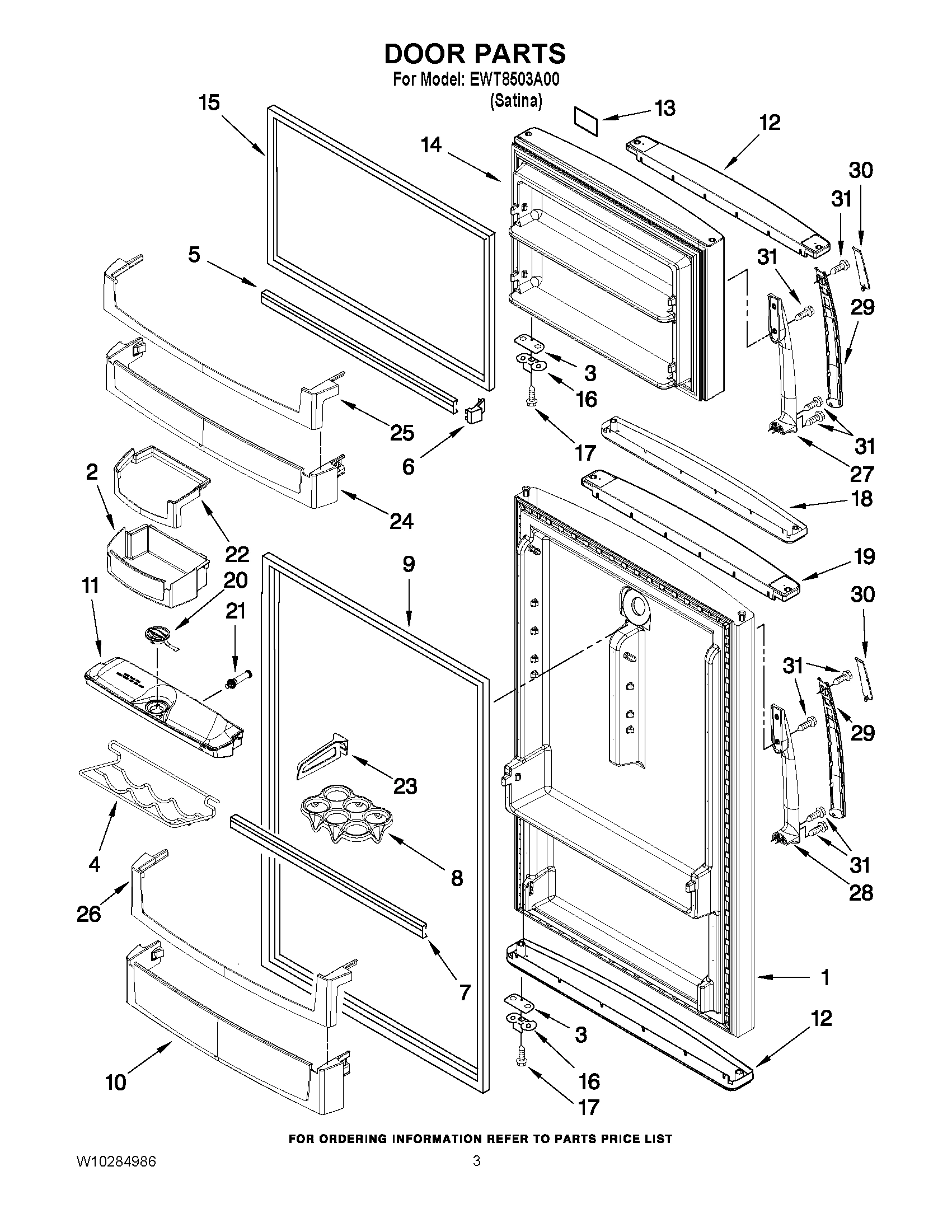

Model Whirlpool EWT8503A00 REFRIGERATOR – Common Parts &amp; Diagrams

1

LINER (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability

2

939962 Whirlpool Refrigerator Rivet Backorder WPL 939962 $7.21

3

WP2222031 Whirlpool Refrigerator Cover In Stock WPL WP2222031 $99.97

3

WP2258681W Whirlpool Refrigerator Shim Backorder WPL WP2258681W $3.70

3

WPW10219348 Whirlpool Refrigerator Condenser Backorder WPL WPW10219348 $202.70

3

Cover, Air Diffuser WPL 2183061 Contact Us For Availability

4

2213360D Whirlpool Refrigerator Cover Backorder WPL 2213360D $7.80

4

WP2188379 Whirlpool Refrigerator Defrost Time Backorder WPL WP2188379 $101.56

4

WP2256704 Whirlpool Crisper Pan In Stock WPL WP2256704 $87.93

5

2258452 Whirlpool Refrigerator Spacer Backorder WPL 2258452 $7.85

5

WP2261934 Whirlpool Meat Pan In Stock WPL WP2261934 $82.70

5

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

6

WP2156003 Whirlpool Refrigerator Door Shelf E In Stock WPL WP2156003 $4.50

6

WP2256601 Whirlpool Refrigerator Holder Backorder WPL WP2256601 $64.35

6

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

7

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

7

Heat Shield WPL 2319224 Contact Us For Availability

7

Wire Assembly Control Box WPL 2265965 Contact Us For Availability

8

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

8

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $30.98

9

WP2176222 Whirlpool Refrigerator Slide In Stock WPL WP2176222 $9.97

9

WPW10180172 Whirlpool Refrigerator Bracket Backorder WPL WPW10180172 $14.37

9

Evaporating Tray WPL 2201801 Contact Us For Availability

10

Fan Mounting Bracket WPL 2197405 Contact Us For Availability

11

Fan Blade WPL 2169141 Contact Us For Availability

12

WP2201567 Whirlpool Hinge Shim In Stock WPL WP2201567 $3.70

12

Control Box WPL 2266382 Contact Us For Availability

W11661102 Whirlpool Tube Backorder WPL W11661102 $11.11

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $37.83

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

WPW10511937 Whirlpool Thermostat Control In Stock WPL WPW10511937 $86.26

14

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

14

WP2163786 Whirlpool Refrigerator Grommet Backorder WPL WP2163786 $3.70

14

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

15

2321245 Whirlpool Refrigerator Capacitor Backorder WPL 2321245 $46.87

15

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

16

Screw WPL 8533892 Contact Us For Availability

16

Cover-Evaporator WPL 2264669 Contact Us For Availability

17

2166043 Whirlpool Refrigerator Shim Backorder WPL 2166043 $23.81

17

WP67002552 Whirlpool Refrigerator Light Bulb In Stock WPL WP67002552 $2.56

17

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.53

18

W11034434 Whirlpool Refrigerator Light Lens Backorder WPL W11034434 $41.52

18

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

18

WP2325482 Whirlpool Bottom Hinge In Stock WPL WP2325482 $28.51

19

8201619 Whirlpool Refrigerator Support Assemb Backorder WPL 8201619 $57.45

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

19

WP2325483 Whirlpool Hinge Pin In Stock WPL WP2325483 $3.70

20

WP2263920 Whirlpool Refrigerator Evaporator Backorder WPL WP2263920 $138.89

20

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

21

Clip, Compressor WPL 24364001 Contact Us For Availability

21

WIRING-FREEZER (INCLUDES ITEM 33) WPL 2266642 Contact Us For Availability

22

2321301 Whirlpool Start Device Backorder WPL 2321301 $57.38

22

WP2202885 Whirlpool Refrigerator Thermal Knob Backorder WPL WP2202885 $8.88

23

Air Tower WPL 9790408 No Longer Available

24

285002 Whirlpool Nut Backorder WPL 285002 $7.58

24

Hood And Foil Assembly WPL 2197052 Contact Us For Availability

25

Cover, Air Return WPL 2261978 Contact Us For Availability

25

CLIP, RETAINER WPL 2263628 Contact Us For Availability

26

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

26

Air Diffuser WPL 2221992 Contact Us For Availability

27

9791833 Whirlpool Refrigerator Clip Backorder WPL 9791833 $4.37

27

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $15.98

28

W10170300 Whirlpool Compressor Backorder WPL W10170300 $351.52

28

WP2264462 Whirlpool Refrigerator Grommet In Stock WPL WP2264462 $16.25

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

29

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

29

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

30

WPW10189703 Whirlpool Refrigerator Evaporator In Stock WPL WPW10189703 $35.77

31

WP4387500 Whirlpool Refrigerator Bimetallic D Backorder WPL WP4387500 $35.81

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

W11700559 Whirlpool Ice Maker Assembly Backorder WPL W11700559 $128.14

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
