Model Electrolux EWMED7CJIW4 ELECTRIC DRYER – Common Parts &amp; Diagrams

1

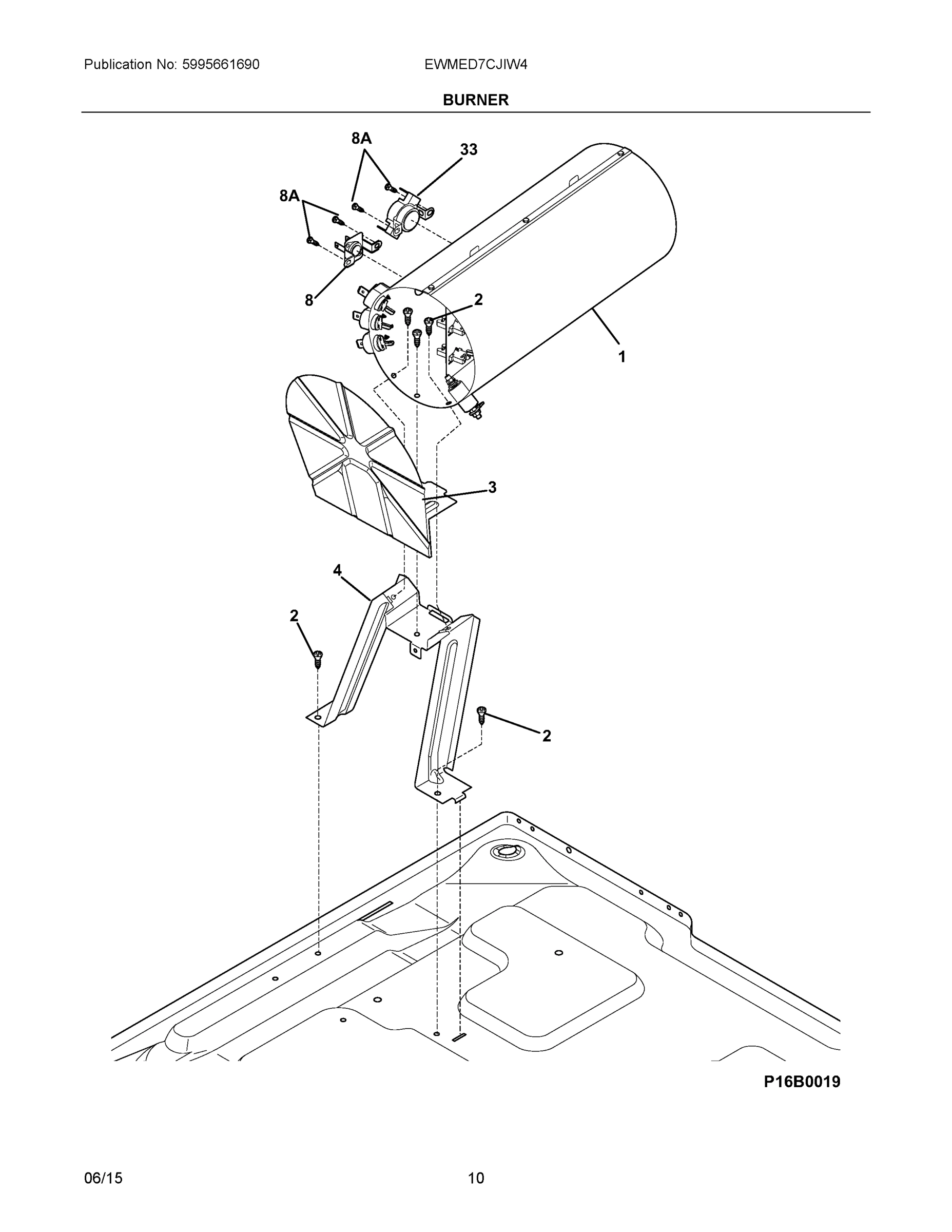

5304535760 Frigidaire Heater In Stock WCI 5304535760 $66.74

3

KNOB, RETRACTING, COMPLETE ASMY WCI 134766500 Contact Us For Availability

4

134792100 Frigidaire Bracket Assembly Backorder WCI 134792100 $18.26

4

134871900 Frigidaire Pipe Backorder WCI 134871900 $52.46

4

LOCK, BLOWER HOUSING WCI 134707900 Contact Us For Availability

5

134767800 Frigidaire Pipe Backorder WCI 134767800 $26.28

7

137046800 Frigidaire Bracket Assembly Backorder WCI 137046800 $11.59

7

5303161296 Frigidaire Washer Inlet Hose (1 Pi Backorder WCI 5303161296 $8.48

7

5304509710 Frigidaire Tube Backorder WCI 5304509710 $16.93

7A

137046700 Frigidaire Bracket Backorder WCI 137046700 $15.13

8

134711401 Frigidaire Dryer Thermal Fuse In Stock WCI 134711401 $14.68

8

134767600 Frigidaire Lens Backorder WCI 134767600 $33.87

8

137032600 Frigidaire Washer Dryer Thermal Lim In Stock WCI 137032600 $15.09

8

137560800 Frigidaire Filter Housing Cover Backorder WCI 137560800 $28.49

8

137578600 Frigidaire Cover Assembly Backorder WCI 137578600 $7.55

8A

134935200 Frigidaire Screw Backorder WCI 134935200 $8.44

9

134768400 Frigidaire Pipe Backorder WCI 134768400 $8.89

10

137007900 Frigidaire Cap Backorder WCI 137007900 $36.57

10

137552300 Frigidaire Washer Blower Assembly In Stock WCI 137552300 $181.90

10

ASSEMBLY, INDICATOR, COMPLETE WCI 134933900 Contact Us For Availability

11

137043100 Frigidaire Button Backorder WCI 137043100 $23.16

12

134696901 Frigidaire Frame Backorder WCI 134696901 $53.34

12

137010900 Frigidaire Button Backorder WCI 137010900 $80.59

13

137021200 Frigidaire Button Backorder WCI 137021200 $33.85

14

137009900 Frigidaire Button Backorder WCI 137009900 $41.42

134704600 Frigidaire Hinge Backorder WCI 134704600 $141.17

134711300 Frigidaire Washer Thermistor In Stock WCI 134711300 $33.87

137031800 Frigidaire Cushion Assembly Backorder WCI 137031800 $5.33

BUTTON, OFF WCI 137008100 Contact Us For Availability

16

134788000 Frigidaire Screw Backorder WCI 134788000 $8.89

16

5304508449 Frigidaire Washer Dryer Air Duct In Stock WCI 5304508449 $66.13

16

WCI 809160406 WCI 809160406 Contact Us For Availability

17

134792900 Frigidaire Protector Backorder WCI 134792900 $8.46

18

131168200 Frigidaire Dryer Screw In Stock WCI 131168200 $8.89

19

134402900 Frigidaire Screw Backorder WCI 134402900 $18.70

19

134711200 Frigidaire Washer Thermistor In Stock WCI 134711200 $32.07

19

134790400 Frigidaire Screw Backorder WCI 134790400 $8.91

20

131017900 Frigidaire Screw Backorder WCI 131017900 $8.91

20

137553000 Frigidaire Dryer Gasket-Door In Stock WCI 137553000 $80.67

20

5304499489 Frigidaire Washer Felt Seal In Stock WCI 5304499489 $41.46

21

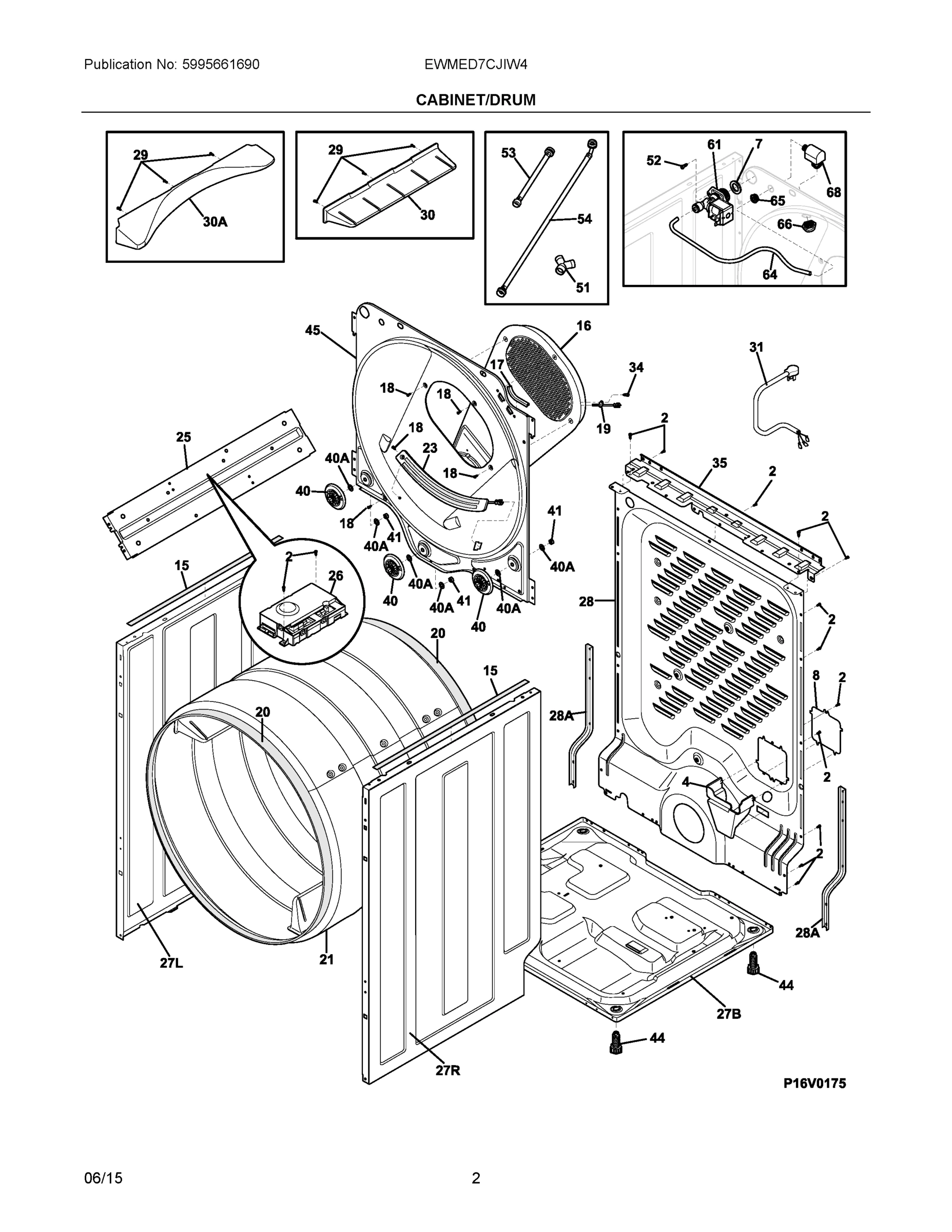

137610710 Frigidaire Drum Assembly Backorder WCI 137610710 $302.94

22

134790700 Frigidaire Harness Backorder WCI 134790700 $48.48

22

WCI 137553710 WCI 137553710 Contact Us For Availability

23

134784400 Frigidaire Idler Arm Assembly Backorder WCI 134784400 $70.97

23

134786100 Frigidaire Moisture Sensor In Stock WCI 134786100 $54.22

24

134638510 Frigidaire Washer Dryer Top Panel Backorder WCI 134638510 $123.28

25

134719300 Frigidaire Dryer 5-Rib Belt In Stock WCI 134719300 $41.87

25

137538802 Frigidaire Door Latch Backorder WCI 137538802 $62.14

25

137567001 Frigidaire Bracket Assembly Backorder WCI 137567001 $22.72

26

134813600 Frigidaire Dryer Door Switch In Stock WCI 134813600 $26.74

26

WCI 809160314 WCI 809160314 Contact Us For Availability

27

134242400 Frigidaire Washer Clamp Assembly In Stock WCI 134242400 $11.57

27

137623900 Frigidaire Lint Filter In Stock WCI 137623900 $96.88

27A

134710900 Frigidaire Bracket Assembly Backorder WCI 134710900 $13.37

27A

134790600 Frigidaire Screw Backorder WCI 134790600 $9.35

27B

134690203 Frigidaire Base Assembly Backorder WCI 134690203 $160.77

27B

134711000 Frigidaire Bracket Assembly Backorder WCI 134711000 $13.37

27L

134712610 Frigidaire Panel Backorder WCI 134712610 $128.28

27R

PANEL (RIGHT SIDE) (WHITE) WCI 134712710 Contact Us For Availability

28

137034500 Frigidaire Clip In Stock WCI 137034500 $27.18

28

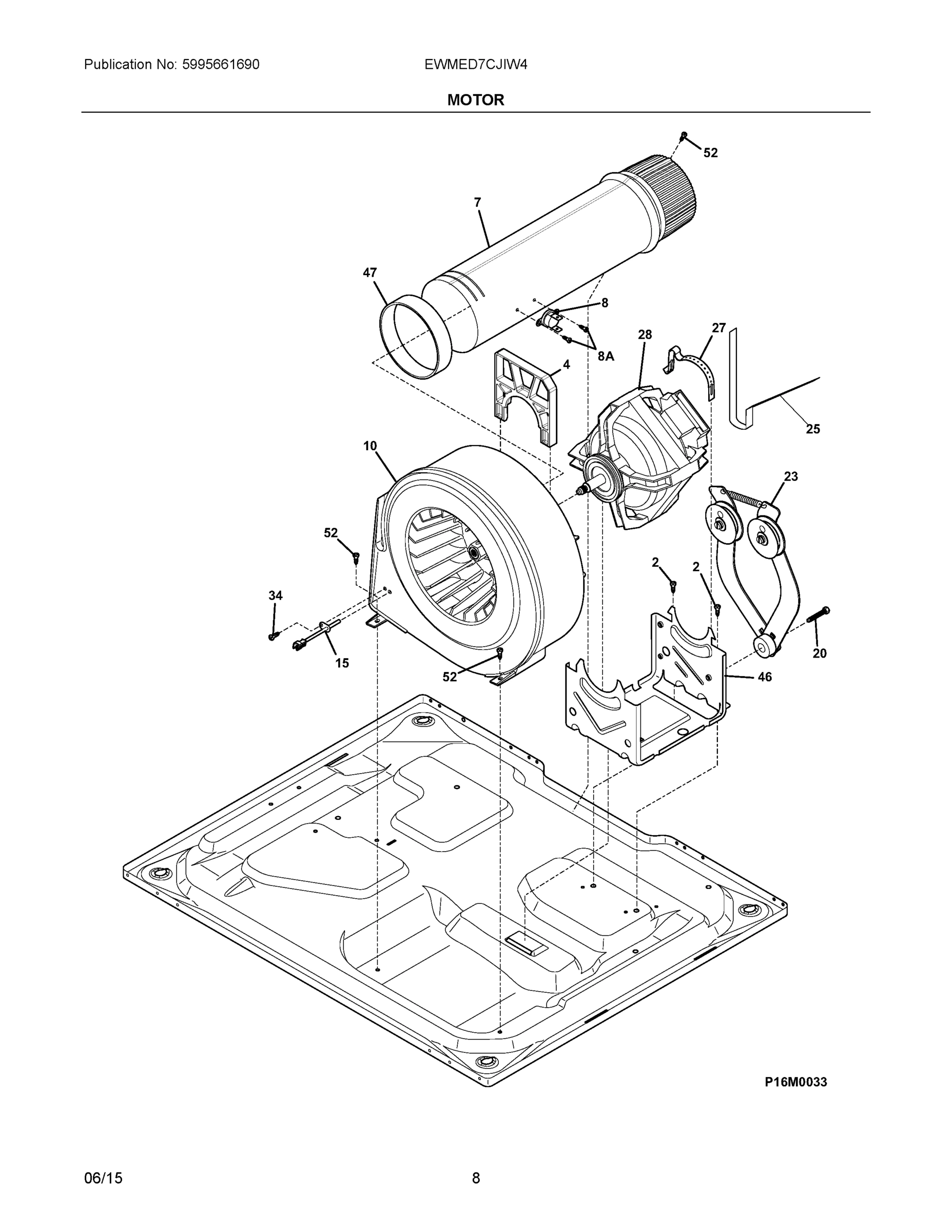

137116000 Frigidaire Dryer Motor Assembly In Stock WCI 137116000 $195.71

28

137560425 Frigidaire Panel Backorder WCI 137560425 $133.71

29

131205100 Frigidaire Screw In Stock WCI 131205100 $8.91

30

137610900 Frigidaire Vane Assembly Backorder WCI 137610900 $59.51

30A

137611100 Frigidaire Vane Backorder WCI 137611100 $72.52

33

3204267 Frigidaire Dryer Safety Thermostat In Stock WCI 3204267 $46.66

35

BRACKET, TOP PANEL MTG., REAR WCI 134713100 Contact Us For Availability

40

5304523155 Frigidaire Washer Kit In Stock WCI 5304523155 $52.01

40A

134716700 Frigidaire Washer Backorder WCI 134716700 $1.33

41

134716800 Frigidaire Nut Backorder WCI 134716800 $1.75

42

137556105 Frigidaire Bulkhead Assembly Backorder WCI 137556105 $142.44

45

137556623 Frigidaire Bulkhead Backorder WCI 137556623 $207.19

46

134707400 Frigidaire Bracket Backorder WCI 134707400 $49.81

46

GASKET, DOOR GLASS WCI 134934900 Contact Us For Availability

47

5304505715 Frigidaire Trim Ring Backorder WCI 5304505715 $210.34

47

SEAL, EXHAUST TUBE WCI 131633300 Contact Us For Availability

49

134651200 Frigidaire Retainer Clip Backorder WCI 134651200 $95.62

51

137459300 Frigidaire Striker In Stock WCI 137459300 $30.30

52

131202300 Frigidaire Screw Backorder WCI 131202300 $8.46

53

137471800 Frigidaire Hose In Stock WCI 137471800 $7.57

54

5304503984 Frigidaire Kit Assembly In Stock WCI 5304503984 $19.97

56

137576000 Frigidaire Glass In Stock WCI 137576000 $38.35

58

137604200 Frigidaire Appliance Panel Backorder WCI 137604200 $60.39

59

134931500 Frigidaire Cover Assembly Backorder WCI 134931500 $16.04

60

134430300 Frigidaire Screw Backorder WCI 134430300 $9.35

61

137544800 Frigidaire Washer Valve In Stock WCI 137544800 $49.36

65

137017200 Frigidaire Grommet Backorder WCI 137017200 $2.24

66

5304529773 Frigidaire Assembly Nozzle Backorder WCI 5304529773 $47.13

68

134742000 Frigidaire Plug Backorder WCI 134742000 $6.68

70

137526000 Frigidaire LED Lamp Backorder WCI 137526000 $106.26

134693800 Frigidaire Washer Motor Pulley Backorder WCI 134693800 $11.24

134716200 Frigidaire Retainer In Stock WCI 134716200 $1.96

134793200 Frigidaire Harness Backorder WCI 134793200 $36.58

134926600 Frigidaire Damper Backorder WCI 134926600 $8.88

134930800 Frigidaire Harness Backorder WCI 134930800 $29.85

137030800 Frigidaire Nut Backorder WCI 137030800 $4.44

137150200 Frigidaire Terminal In Stock WCI 137150200 $20.05

137605700 Frigidaire Front Panel Gasket Backorder WCI 137605700 $20.94

WCI 137555200 WCI 137555200 Contact Us For Availability

NIB

5304500486 Frigidaire Seal Backorder WCI 5304500486 $29.41

NIB

5304506746 Frigidaire Shield Backorder WCI 5304506746 $26.74

NIB

WCI 137555201 WCI 137555201 Contact Us For Availability

NIC

5308027429 Frigidaire Dryer High Temperature In Stock WCI 5308027429 $37.47
