Model Electrolux EWDW6505GS1C DISHWASHER, BUILT-IN – Common Parts & Diagrams

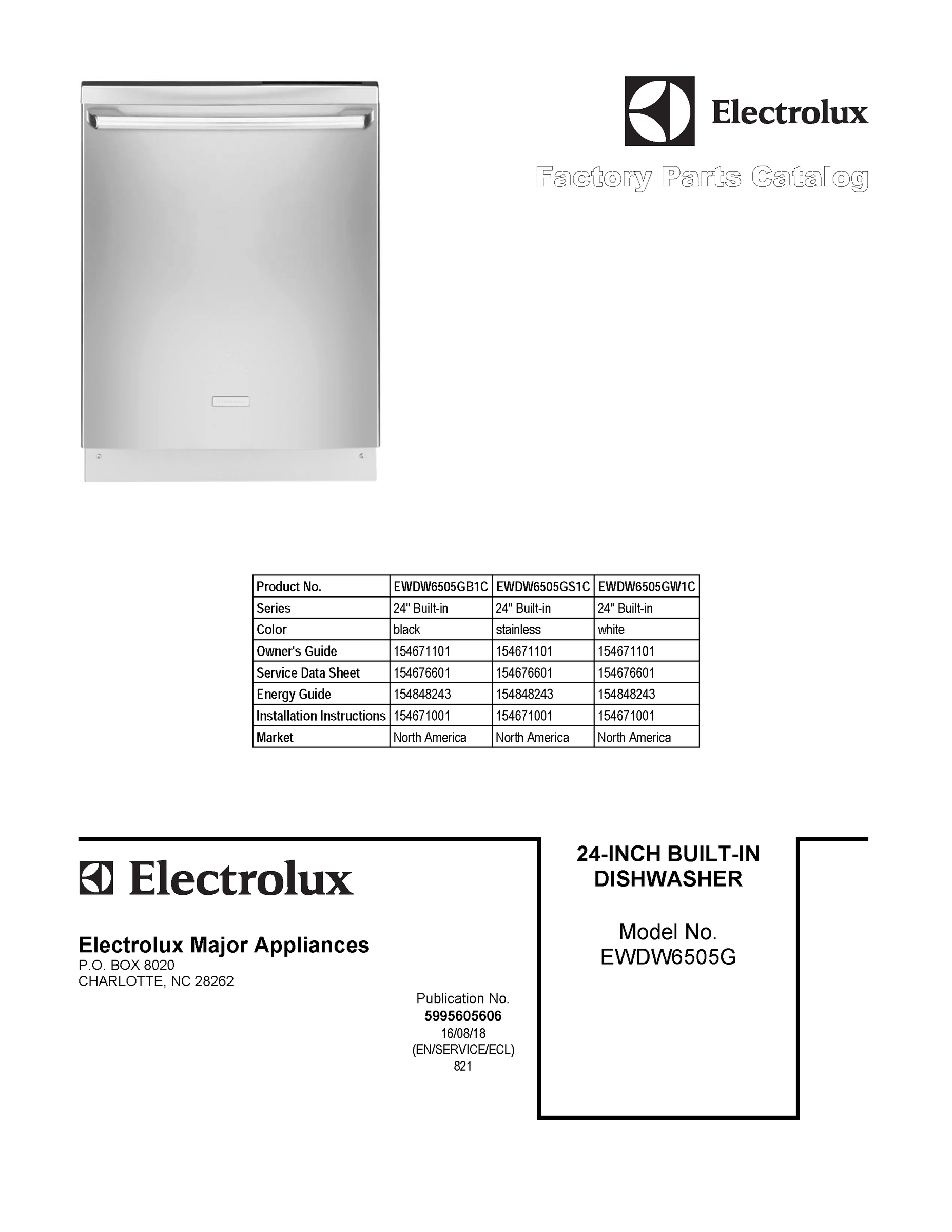

01 - COVER SHEET

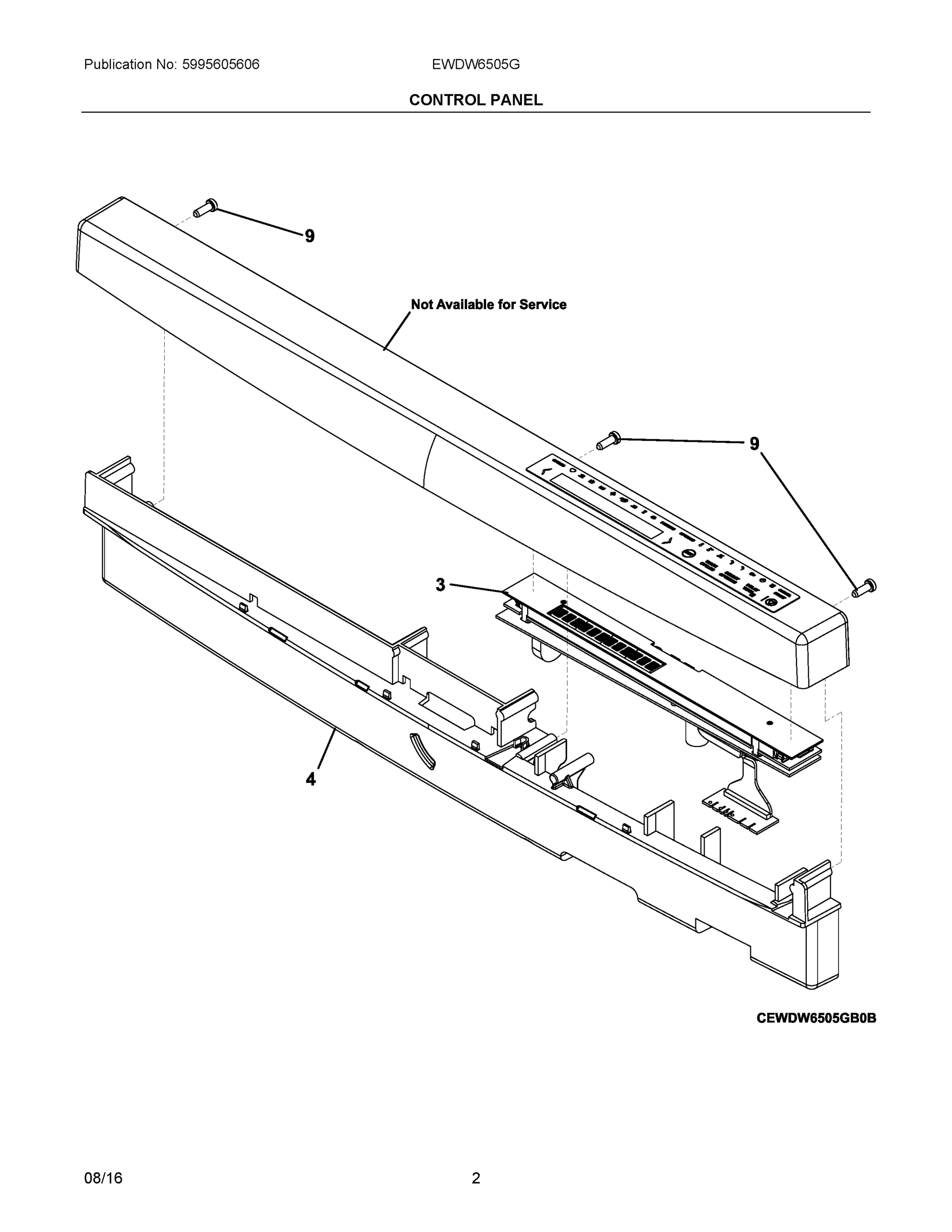

02 - CONTROL PANEL

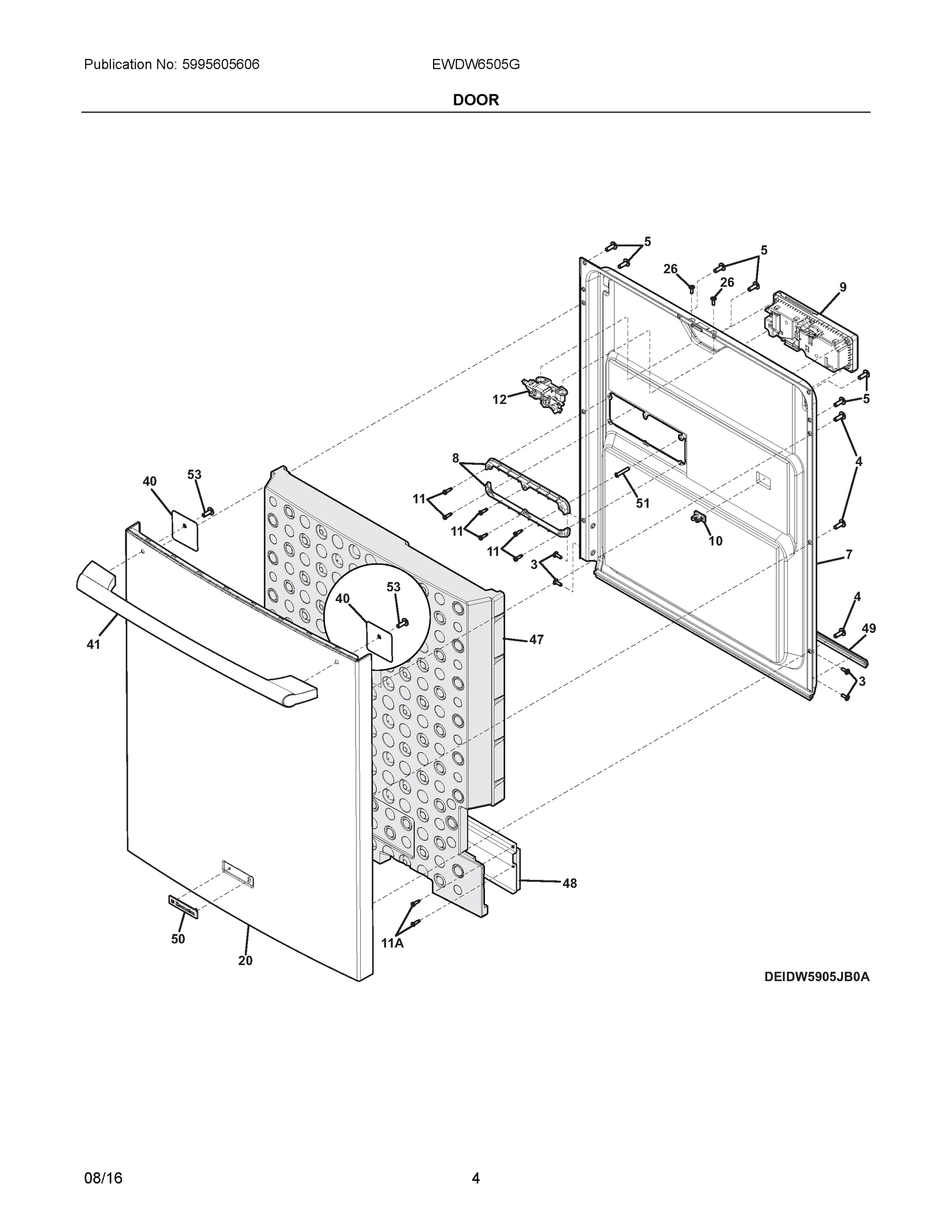

03 - DOOR

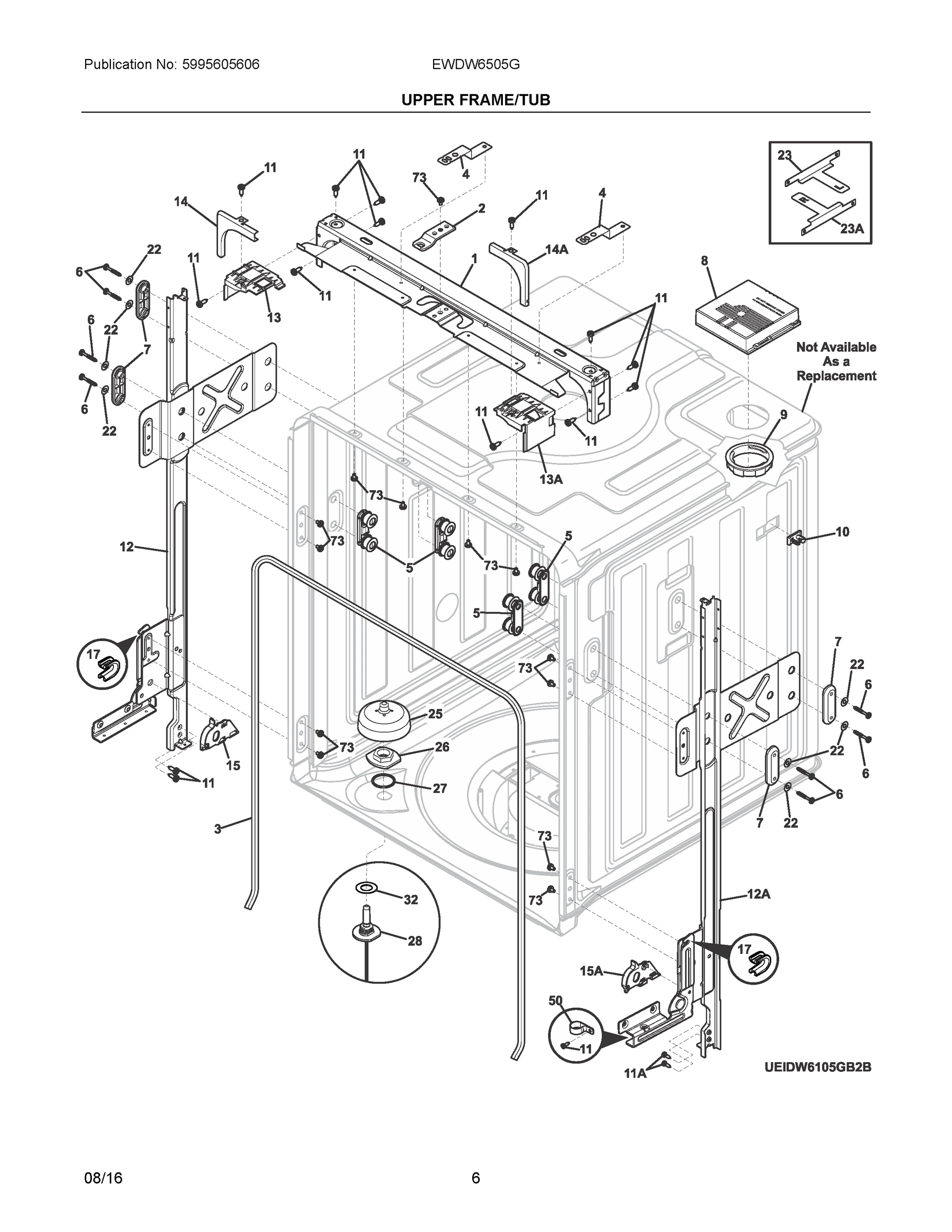

04 - UPPER FRAME/TUB

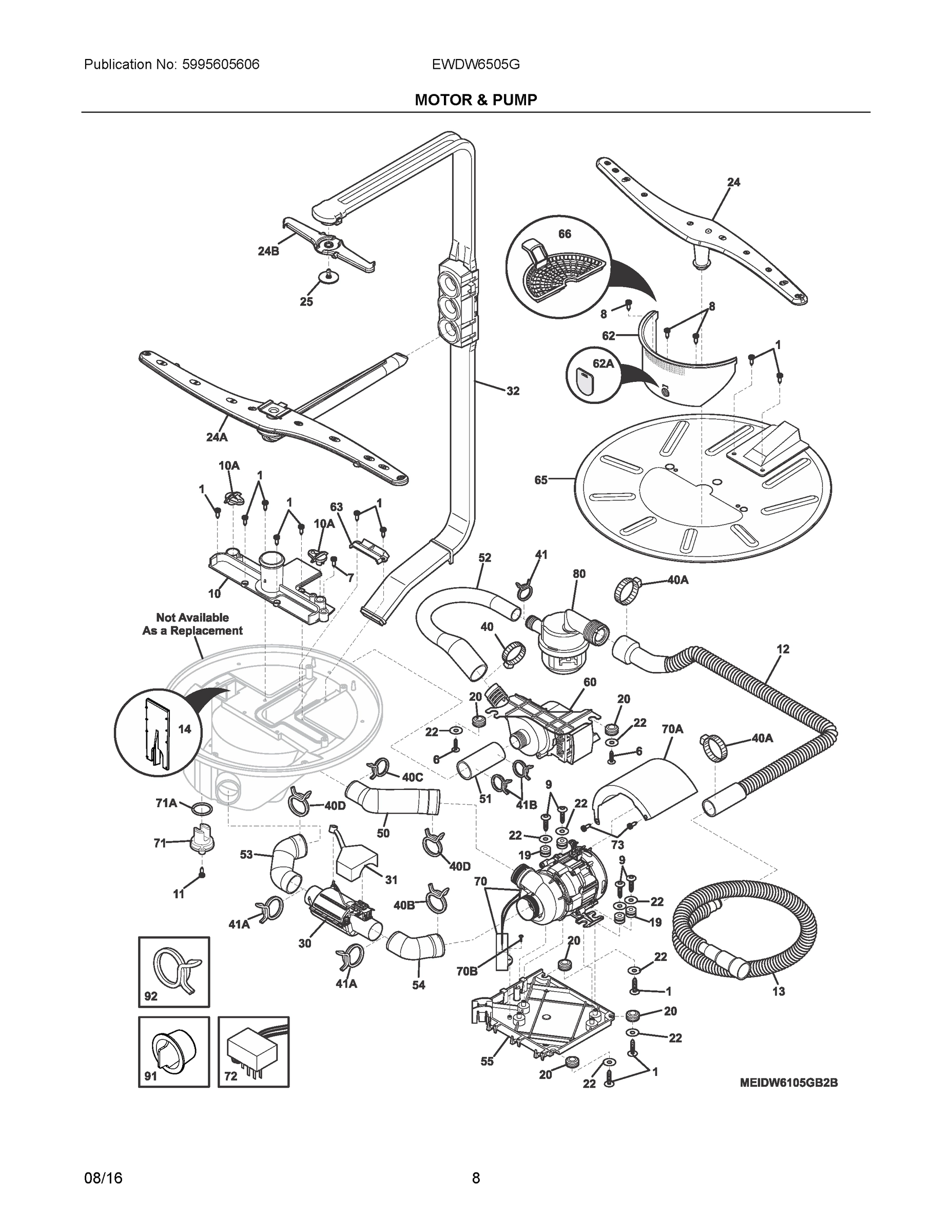

05 - MOTOR & PUMP

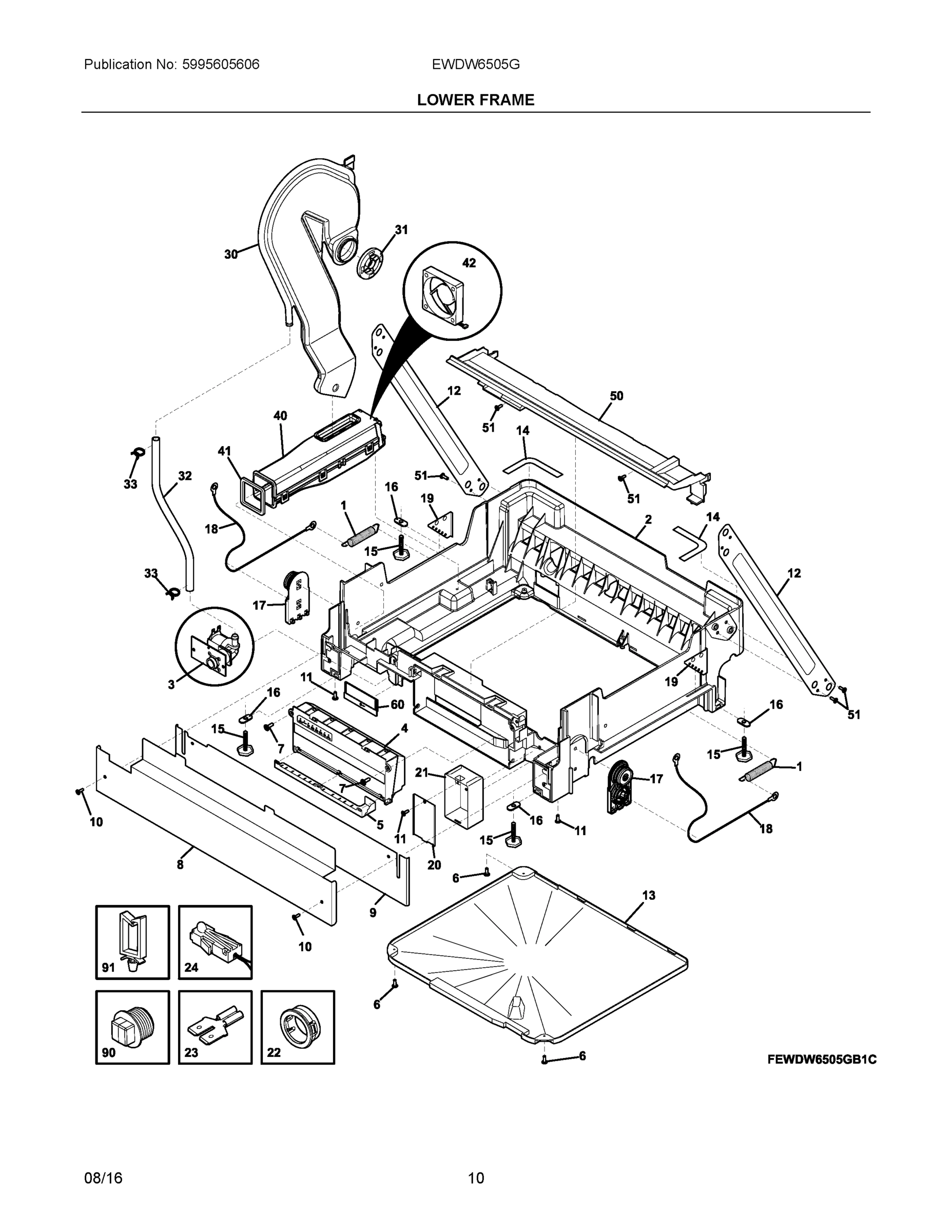

06 - LOWER FRAME

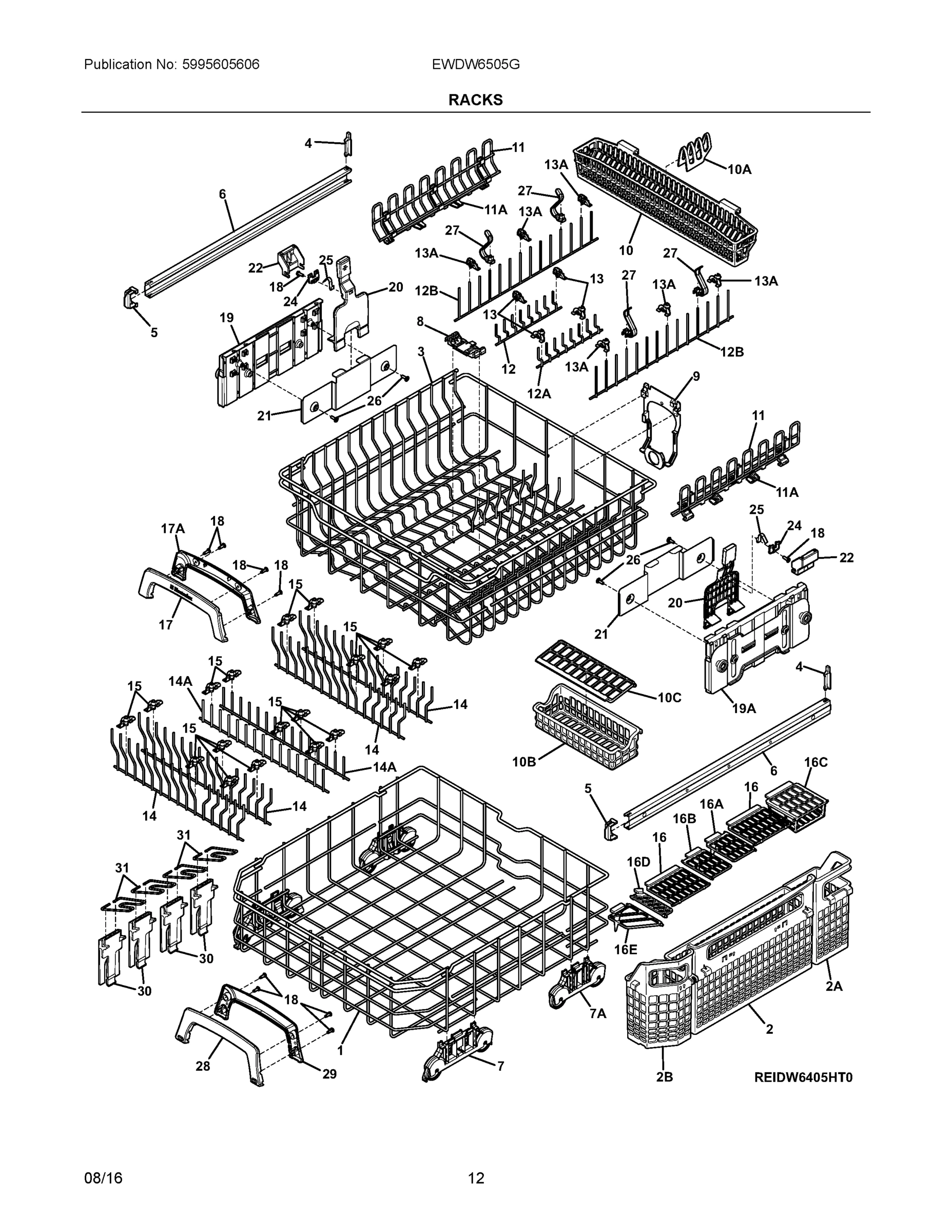

07 - RACKS
08 - WIRING DIAGRAM
Common parts from model Electrolux EWDW6505GS1C DISHWASHER, BUILT-IN
1
SPRING, DOOR HINGE, (2) WCI 154838401 Contact Us For Availability
1
RACK ASSEMBLY, LOWER WCI 154625401 Contact Us For Availability
2
BASKET, SILVERWARE, MAIN, CENTER WCI 154632401 Contact Us For Availability
2
STRIKE, DOOR LATCH WCI 154511401 Contact Us For Availability
2A
BASKET, SILVERWARE, SIDE, REAR WCI 154632601 Contact Us For Availability
2B
BASKET, SILVERWARE, SIDE, FRONT WCI 154632701 Contact Us For Availability
3
VALVE ASSEMBLY, WATER WCI 154513601 Contact Us For Availability
3
WCI 5304507341 WCI 5304507341 Contact Us For Availability
4
CLIP, CABINET MTG., TOP MOUNT, (2) WCI 154657901 Contact Us For Availability
4
FRAME, CONSOLE WCI 154650001 Contact Us For Availability
5
ROLLER ASSEMBLY, TUB, (4), W/GASKET WCI 154510702 Contact Us For Availability
7
ROLLER ASSEMBLY, LOWER RACK, FRONT, (2) WCI 154671301 Contact Us For Availability
7
PLATE, RETAINER, OUTER, (2), TUB ROLLER WCI 154510601 Contact Us For Availability
7A
ROLLER ASSEMBLY, LOWER RACK, REAR, (2) WCI 154689501 Contact Us For Availability
8
VENT ASSEMBLY, UPPER WCI 154773401 Contact Us For Availability
10
CLIP, WIRING HARNESS WCI 154633501 Contact Us For Availability
10
SCREW, PHILLIPS HEAD, SILVER MIST WCI 154371307 Contact Us For Availability
10
BASKET ASSY, KNIFE HOLDER WCI 154581203 Contact Us For Availability
11
SCREW, 6 LOBE RECESS, #8-18 WCI 154518301 Contact Us For Availability
11
SHELF, CUP, UPPER RACK, (2) WCI 154629002 Contact Us For Availability
12
HOSE, DRAIN, INTERMEDIATE WCI 154654801 Contact Us For Availability
12
LEG AND HINGE ASSEMBLY, LEFT HAND, FRONT WCI 154774001 Contact Us For Availability
12A
LEG AND HINGE ASSEMBLY, RIGHT HAND, FRONT WCI 154774101 Contact Us For Availability
13
TRAY, BASE, W/LABEL WCI 154658101 Contact Us For Availability
13
CLIP, FOLD DOWN FENCE, UPPER RACK, (4) WCI 154629402 Contact Us For Availability
14
BRACKET, DRAIN WCI 154793601 Contact Us For Availability
15
COVER, HINGE ARM, LH WCI 154656801 Contact Us For Availability
15A
COVER, HINGE ARM, RH WCI 154656901 Contact Us For Availability
17
BRACKET ASSEMBLY, PULLEY, (2) WCI 154856901 Contact Us For Availability
17
BUSHING, HINGE ARM CABLE, (2) WCI 154671501 Contact Us For Availability
19
PLATE ASSEM WCI 154673701 Contact Us For Availability
19
PLATE, ADJUSTMENT, (2), DOOR SPRING WCI 154514901 Contact Us For Availability
19A
WCI 154673601 WCI 154673601 Contact Us For Availability
20
WCI 154655101 WCI 154655101 Contact Us For Availability
20
DOOR, OUTER, STAINLESS WCI 154603501 Contact Us For Availability
20
COVER, JUNCTION BOX, W/LABEL WCI 154658201 Contact Us For Availability
20
GROMMET, VIBRATION, (5) WCI 154740001 Contact Us For Availability
22
WCI 154630301 WCI 154630301 Contact Us For Availability
23A
CLIP, CABINET MTG., RH WCI 154654701 Contact Us For Availability
24
WCI 154655201 WCI 154655201 Contact Us For Availability
24A
SPRAY ARM, ASSEMBLY, MIDDLE, W/MANIFOLD WCI 154508201 Contact Us For Availability
24B
SPRAY ARM, ASSEMBLY, UPPER WCI 154649502 Contact Us For Availability
25
PIN, SPRAY ARM, UPPER WCI 154650102 Contact Us For Availability
26
WCI 154673501 WCI 154673501 Contact Us For Availability
31
COVER, DRYING INLET WCI 154618301 Contact Us For Availability
32
TUBING ASSEMBLY, DELIVERY, W/CHECK VALVE WCI 154515602 Contact Us For Availability
40
DUCT ASSEMBLY, LOWER DRYING, W/MOTOR WCI 154617602 Contact Us For Availability
40B
CLAMP, SPRING, SAE 28 WCI 154787001 Contact Us For Availability
40D
CLAMP, SPRING, 1.625", SAE 26 WCI 154786901 Contact Us For Availability
41
GASKET, DRYING DUCT, LOWER WCI 154617801 Contact Us For Availability
48
REINFORCEMENT, ASSEMBLY, DOOR WCI 154670301 Contact Us For Availability
51
CLAMP, DRIP LOOP, WIRE WCI 154320301 Contact Us For Availability
62A
FLAPPER, DRAIN CHECK WCI 154511601 Contact Us For Availability
66
WCI 154740901 WCI 154740901 Contact Us For Availability
NI
SEAL, TUB CORNER, LH LOWER WCI 154733101 Contact Us For Availability
NI
WCI 154662101 WCI 154662101 Contact Us For Availability
NI
HARNESS, WIRING, MAIN WCI 154833501 Contact Us For Availability
NI
HARNESS, WIRING, LH SIDE, BASE WCI 154833301 Contact Us For Availability
NI
INSULATION, BLANKET WCI 154623602 Contact Us For Availability
NI
HARNESS, WIRING, RH S WCI 154833401 Contact Us For Availability
NIA
WCI 154833101 WCI 154833101 Contact Us For Availability
NIA
WCI 154689201 WCI 154689201 Contact Us For Availability
× ![]()
