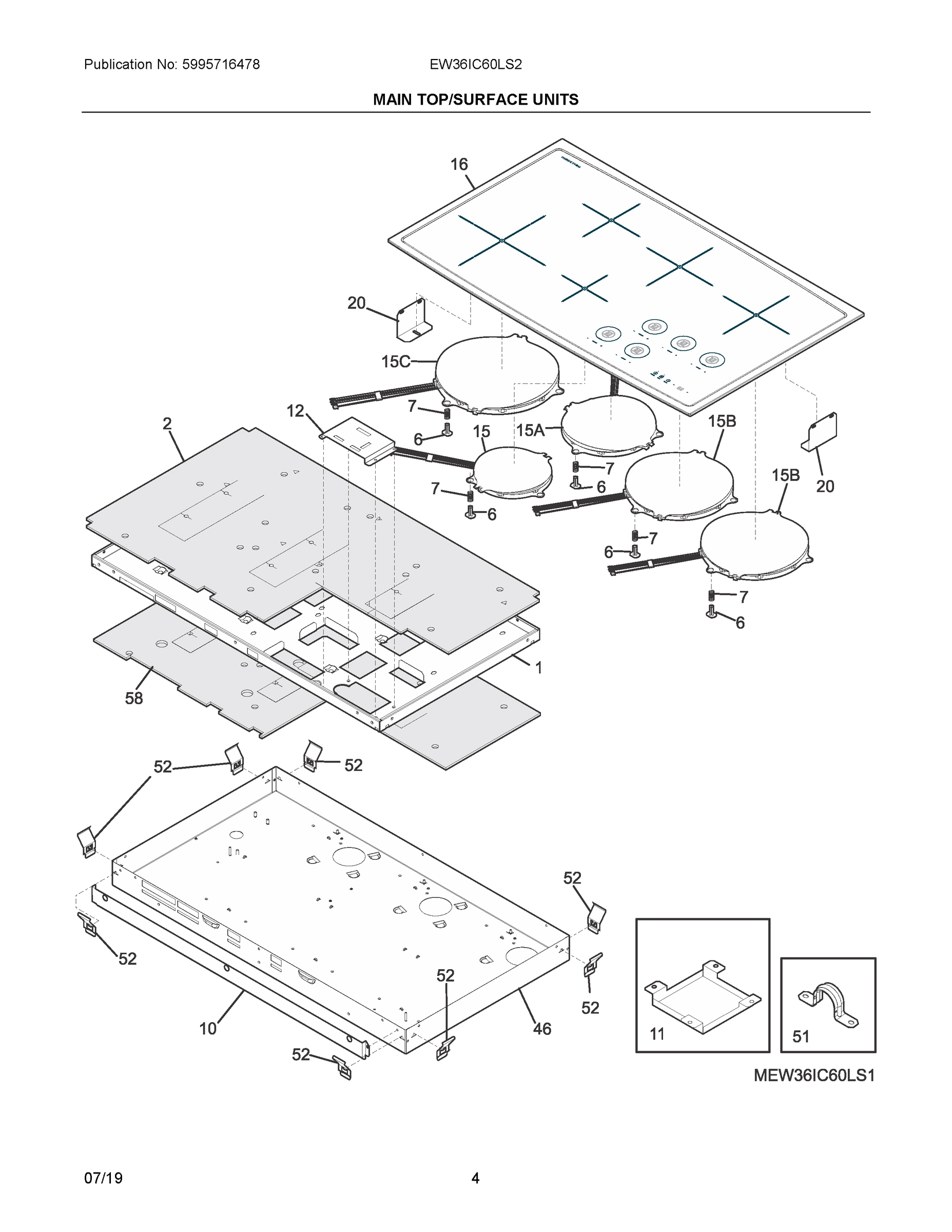

Model Electrolux EW36IC60LS2 COOKTOP, ELECTRIC, 30 INCH – Common Parts & Diagrams

12
SHIELD, EMI
SHIELD, EMI WCI 318577902 Contact Us For Availability
View on Model
15
ELEMENT, INDUCTION COIL, 140MM
ELEMENT, INDUCTION COIL, 140MM WCI 318329241 Contact Us For Availability
View on Model
15A
ELEMENT, INDUCTION COIL, 180MM
ELEMENT, INDUCTION COIL, 180MM WCI 318329242 Contact Us For Availability
View on Model
15B
ELEMENT, INDUCTION COIL, 210MM
ELEMENT, INDUCTION COIL, 210MM WCI 318329243 Contact Us For Availability
View on Model
15C
ELEMENT, INDUCTION COIL, 280MM
ELEMENT, INDUCTION COIL, 280MM WCI 318329246 Contact Us For Availability
View on Model
16
MAIN TOP ASSY, GLASS, BLACK/STAINLESS, COMPLE
MAIN TOP ASSY, GLASS, BLACK/STAINLESS, COMPLE WCI 318935226 Contact Us For Availability
View on Model
20
BRACKET, RETAINER, (2)
BRACKET, RETAINER, (2) WCI 318121915 Contact Us For Availability
View on Model
22
HARNESS, WIRING, MAIN, W/MAGNETIC CORE
HARNESS, WIRING, MAIN, W/MAGNETIC CORE WCI 318578362 Contact Us For Availability
View on Model
23
HARNESS, WIRING, COMMUNICATION
HARNESS, WIRING, COMMUNICATION WCI 318578332 Contact Us For Availability
View on Model
35
CLIP, WIRE RETAINER
CLIP, WIRE RETAINER WCI 216273000 Contact Us For Availability
View on Model
46
BOX, BURNER
BOX, BURNER WCI 318225458 Contact Us For Availability
View on Model
51
BRACKET, CONDUIT MTG.
BRACKET, CONDUIT MTG. WCI 318389600 Contact Us For Availability
View on Model
52
SPACER, SPRING, (8)
SPACER, SPRING, (8) WCI 318560900 Contact Us For Availability
View on Model
58
INSULATION, SERVICE PANEL
INSULATION, SERVICE PANEL WCI 318330578 Contact Us For Availability
View on Model
77A
SPACER
SPACER WCI 316114100 Contact Us For Availability
View on Model
97
BOARD, POWER SUPPLY
BOARD, POWER SUPPLY WCI 318416300 Contact Us For Availability
View on Model
NI
PAD, CLEANING
PAD, CLEANING WCI 316459400 Contact Us For Availability
View on Model
NI
SCREW, 8-18 X 0.500
SCREW, 8-18 X 0.500 WCI 5303211311 Contact Us For Availability
View on Model
NI
FOAM TAPE, 1/2" X 14"
FOAM TAPE, 1/2" X 14" WCI 5304424462 Contact Us For Availability
View on Model
NI
SCREW, 8-32 X 5/16
SCREW, 8-32 X 5/16 WCI 5304462994 Contact Us For Availability
View on Model
NI
SCREW, TRUSS HEAD, 8-18 X 3/8", (7)
SCREW, TRUSS HEAD, 8-18 X 3/8", (7) WCI 08016432 Contact Us For Availability
View on Model
NI
SCREW, 8 X 5/8
SCREW, 8 X 5/8 WCI 3131048 Contact Us For Availability
View on Model
NI
CLEANER, STAINLESS STEEL
CLEANER, STAINLESS STEEL WCI 318163602 Contact Us For Availability
View on Model
