Model Electrolux EW30MC65PSE WALL OVEN, MICRO COMBO, DOUBLE, 30 INCH – Common Parts & Diagrams

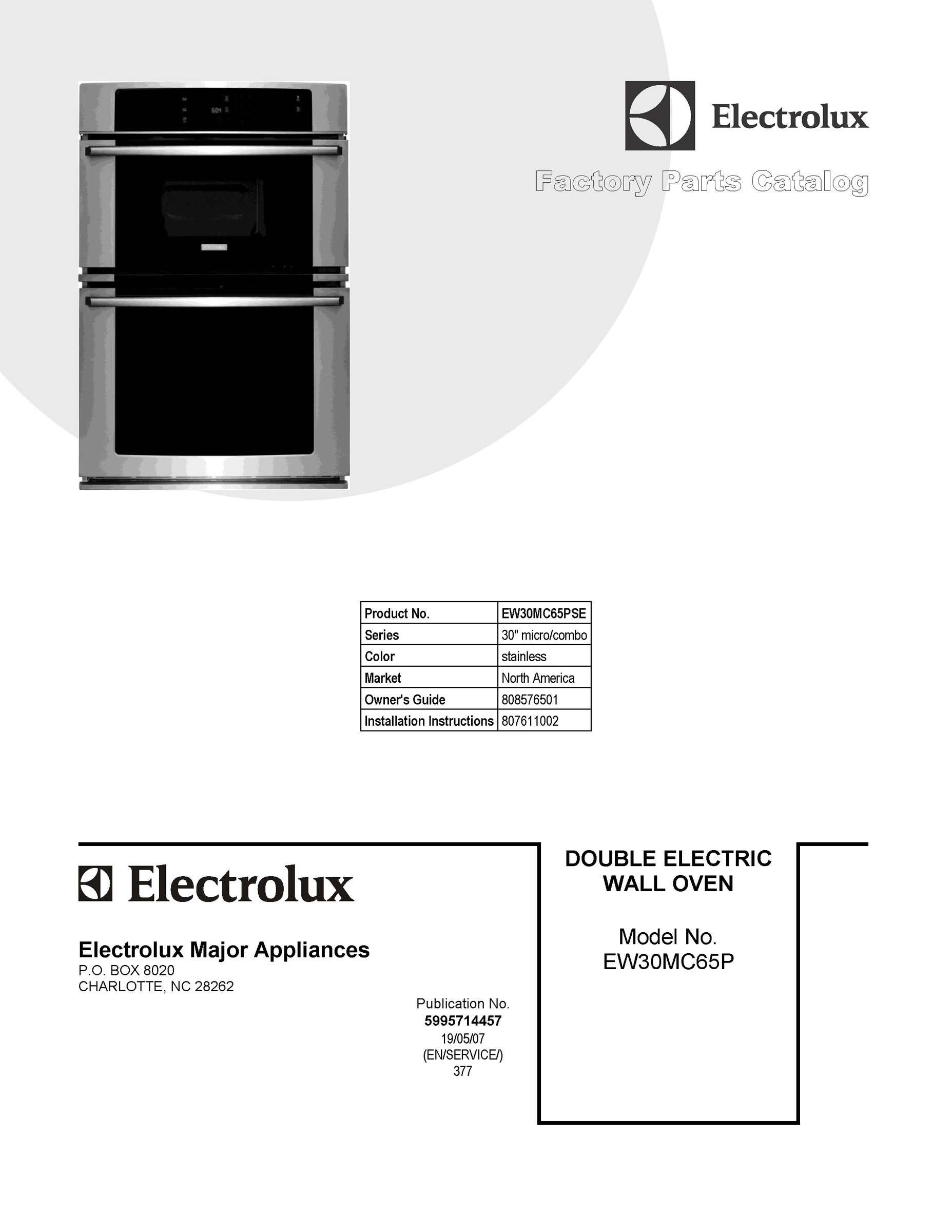

01 - COVER SHEET

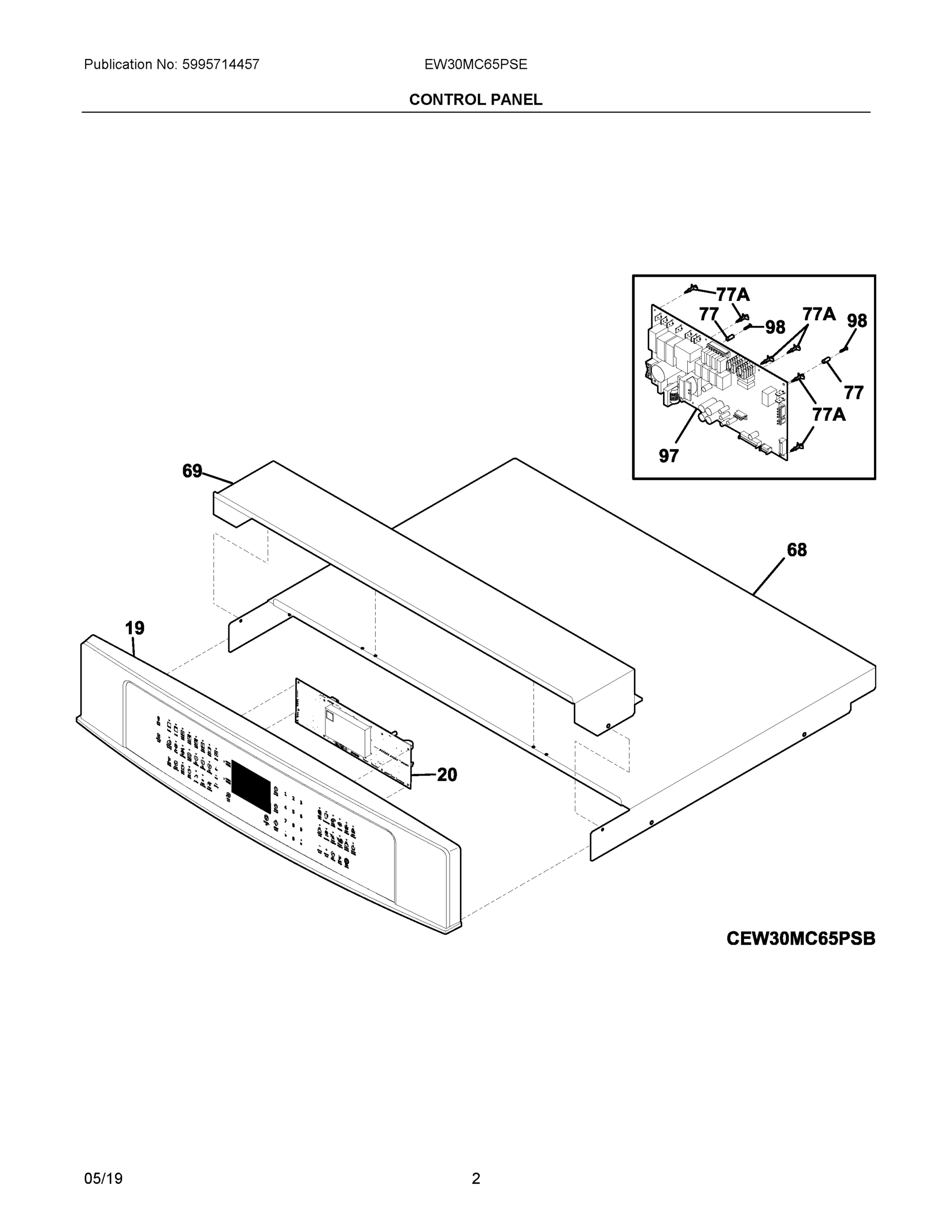

02 - CONTROL PANEL
03 - MICROWAVE
04 - LOWER OVEN
05 - DOORS
06 - WIRING DIAGRAM
07 - WIRING DIAGRAM
Common parts from model Electrolux EW30MC65PSE WALL OVEN, MICRO COMBO, DOUBLE, 30 INCH
2
SWITCH, MONITOR, W/CERAMIC FUSE WCI 5304503483 Contact Us For Availability
2B
HOUSING, FAN, AIR DIVERTER WCI 139038901 Contact Us For Availability
3
FILTER, NOISE, W/FUSE MOUNT WCI 5304498734 Contact Us For Availability
3
SPACER, DOOR GLASS, TOP WCI 5304491779 Contact Us For Availability
4
SWITCH, INTERLOCK, DOOR SENSOR WCI 5304493153 Contact Us For Availability
4
SPACER, DOOR GLASS, SILICONE, (2) WCI 808983501 Contact Us For Availability
5
FUSE, CAVITY TEMP WCI 5304480634 Contact Us For Availability
5
CAP, SCREW HOLE, TRIM, (2) WCI 139010800 Contact Us For Availability
6A
GLIDE RACK, ASSEMBLY, COBALT, W/HANDLE WCI 808713906 Contact Us For Availability
7
LAMP, OVEN LIGHT WCI 5304464198 Contact Us For Availability
7
GLASS, THERMAL, INNER, HB11 #2 WCI 139010505 Contact Us For Availability
8
GLASS, THERMAL, INNER, HB11 #1 WCI 139010504 Contact Us For Availability
8
LAMPHOLDER, SOCKET WCI 5304463785 Contact Us For Availability
9
MOTOR, FAN WCI 5304461119 Contact Us For Availability
9
PAN, BROILER, COBALT BLUE WCI 316081901 Contact Us For Availability
10
TRANSFORMER, POWER WCI 5304470538 Contact Us For Availability
10
SCREW, HANDLE MTG., 10-24 X 1.77", (2) WCI 316439507 Contact Us For Availability
11
CAPACITOR, HIGH VOLTAGE WCI 5304470539 Contact Us For Availability
11
SEAL, OVEN DOOR, GRAY WCI 807545504 Contact Us For Availability
13
DOOR ASSEMBLY, OUTER, METAL/GLASS, STAINLESS/ WCI 5304490890 Contact Us For Availability
13
MAGNETRON WCI 5304501808 Contact Us For Availability
14
MOTOR, TURNTABLE WCI 5304498736 Contact Us For Availability
15
TRANSFORMER, LOW VOLTAGE WCI 5304470541 Contact Us For Availability
15AA
LAMP ASSEMBLY, HALOGEN, 26" HARNESS, W/G9 40W WCI 139001800 Contact Us For Availability
19
CONTROL PANEL, ASSEMBLY, BLACK/STAINLESS WCI 139034547 Contact Us For Availability
20
BOARD, CONTROL, UIB, MICROCOMBI WCI 316570412 Contact Us For Availability
23
HINGE, DOOR, YELLOW, DUAL SPRING WCI 139010302 Contact Us For Availability
25
HINGE, OVEN, LH WCI 5304480638 Contact Us For Availability
26
HINGE, OVEN, RH WCI 5304480639 Contact Us For Availability
27
LATCH HOOK, RIGHT SIDE WCI 5304470547 Contact Us For Availability
28
LATCH HOOK, LEFT SIDE WCI 5304470548 Contact Us For Availability
29
CAM, DOOR, LH WCI 5304480640 Contact Us For Availability
30
CAM, DOOR, RH WCI 5304480641 Contact Us For Availability
33
SUPPORT, TURNTABLE, WITH ROLLERS WCI 5304501830 Contact Us For Availability
34
TRAY, TURNTABLE WCI 5304518632 Contact Us For Availability
37
SENSOR, OVEN TEMP PROBE WCI 5304504897 Contact Us For Availability
39
COUPLING, TURNTABLE WCI 5304480644 Contact Us For Availability
39
HANDLE, DOOR, STAINLESS WCI 316380802 Contact Us For Availability
40
COVER, WAVEGUIDE WCI 5304461165 Contact Us For Availability
42
BLADE, FAN WCI 5304461173 Contact Us For Availability
51
BRACKET, TURNTABLE MOUNT WCI 5304451459 Contact Us For Availability
52
TRIM ASSEMBLY, DOOR, TOP WCI 5304494448 Contact Us For Availability
56
SCREW, 10-32 X 1/4" WCI 807286001 Contact Us For Availability
57
PANEL, SERVICE, BAKE ELEMENT WCI 807988901 Contact Us For Availability
60
WCI 5304461114 WCI 5304461114 Contact Us For Availability
70
SHIELD, INSULATION, SIDES, (2) WCI 139000601 Contact Us For Availability
70A
PANEL, SIDE, (2) WCI 807119201 Contact Us For Availability
71
WCI 5304451470 WCI 5304451470 Contact Us For Availability
71
SHIELD, REAR WIRE, MAIN WCI 139020000 Contact Us For Availability
71A
WCI 807119501 WCI 807119501 Contact Us For Availability
72
WCI 5304480654 WCI 5304480654 Contact Us For Availability
75
DOOR ASSEMBLY, COMPLETE, STAINLESS, W/HANDLE- WCI 5304503733 Contact Us For Availability
76
PANEL, INNER DOOR WCI 5304471512 Contact Us For Availability
77
FRAME, INNER DOOR, CHOKE COVER WCI 5304470579 Contact Us For Availability
77
SPACER, POWER BOARD WCI 316247900 Contact Us For Availability
77A
SPACER WCI 316114100 Contact Us For Availability
78
LATCH HEAD, RIGHT SIDE WCI 5304491054 Contact Us For Availability
79
LATCH HEAD, LEFT SIDE WCI 5304490142 Contact Us For Availability
80
WCI 139021101 WCI 139021101 Contact Us For Availability
80
SPRING, LATCH HEAD, (2) WCI 5304503735 Contact Us For Availability
81
SCREW, 4 MM X 8 MM WCI 5304451561 Contact Us For Availability
82
WCI 807988802 WCI 807988802 Contact Us For Availability
82
SCREW WCI 5304470583 Contact Us For Availability
86
WCI 139026900 WCI 139026900 Contact Us For Availability
87
WCI 139020100 WCI 139020100 Contact Us For Availability
89
WCI 139021302 WCI 139021302 Contact Us For Availability
90
WCI 318903514 WCI 318903514 Contact Us For Availability
90
LABEL, USER CAUTION, FRENCH WCI 5304451534 Contact Us For Availability
91
WCI 808804802 WCI 808804802 Contact Us For Availability
92
WCI 807804801 WCI 807804801 Contact Us For Availability
96
WCI 5304451553 WCI 5304451553 Contact Us For Availability
97
BOARD, RELAY WCI 316570512 Contact Us For Availability
99
WCI 318256201 WCI 318256201 Contact Us For Availability
107
WCI 139001502 WCI 139001502 Contact Us For Availability
108
WCI 139038301 WCI 139038301 Contact Us For Availability
108A
WCI 139023900 WCI 139023900 Contact Us For Availability
108B
WCI 318073038 WCI 318073038 Contact Us For Availability
111
WCI 316136600 WCI 316136600 Contact Us For Availability
112
WCI 5304494446 WCI 5304494446 Contact Us For Availability
114
LABEL, USER CAUTION WCI 5304440346 Contact Us For Availability
125
WCI 139008502 WCI 139008502 Contact Us For Availability
127
WCI 807123501 WCI 807123501 Contact Us For Availability
143
WCI 318172904 WCI 318172904 Contact Us For Availability
165
WCI 318381740 WCI 318381740 Contact Us For Availability
166
WCI 318577001 WCI 318577001 Contact Us For Availability
185
WCI 318531800 WCI 318531800 Contact Us For Availability
264
WCI 807804602 WCI 807804602 Contact Us For Availability
272
WCI 139021700 WCI 139021700 Contact Us For Availability
400
WCI 318576901 WCI 318576901 Contact Us For Availability
401
WCI 5304503654 WCI 5304503654 Contact Us For Availability
402
WCI 318406714 WCI 318406714 Contact Us For Availability
403
WCI 318407603 WCI 318407603 Contact Us For Availability
404
WCI 5304503653 WCI 5304503653 Contact Us For Availability
405
WCI 5304502990 WCI 5304502990 Contact Us For Availability
410
WCI 318933901 WCI 318933901 Contact Us For Availability
NI
WCI 316021109 WCI 316021109 Contact Us For Availability
NI
WCI 318165800 WCI 318165800 Contact Us For Availability
NI
WCI 316021105 WCI 316021105 Contact Us For Availability
NI
WCI 5304517285 WCI 5304517285 Contact Us For Availability
NI
WCI 5303289910 WCI 5303289910 Contact Us For Availability
NI
WCI 5304470882 WCI 5304470882 Contact Us For Availability
NI
WCI 5304517369 WCI 5304517369 Contact Us For Availability
NI
WCI 5304517372 WCI 5304517372 Contact Us For Availability
NI
WCI 807597603 WCI 807597603 Contact Us For Availability
NI
CLEANER, STAINLESS STEEL WCI 318163602 Contact Us For Availability
NIA
WCI 318946400 WCI 318946400 Contact Us For Availability
NIA
WCI 318946500 WCI 318946500 Contact Us For Availability
NIA
WCI 316418900 WCI 316418900 Contact Us For Availability
NIA
WCI 5303323130 WCI 5303323130 Contact Us For Availability
NIA
SCREW, CONTROL MTG, 6-32 X .25, (5) WCI 316524400 Contact Us For Availability
NIA
WCI 5303288566 WCI 5303288566 Contact Us For Availability
NIA
WCI 139022101 WCI 139022101 Contact Us For Availability
NIA
WCI 318579001 WCI 318579001 Contact Us For Availability
NIA
INSUALTION, DOOR, (2) WCI 139022104 Contact Us For Availability
NIB
WCI 316205500 WCI 316205500 Contact Us For Availability
NIB
WCI 318231870 WCI 318231870 Contact Us For Availability
NIBA
WCI 316021119 WCI 316021119 Contact Us For Availability
× ![]()
