Model Electrolux EW30IS8CRSB RANGE/OVEN, INDUCTION, FREESTANDING, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET

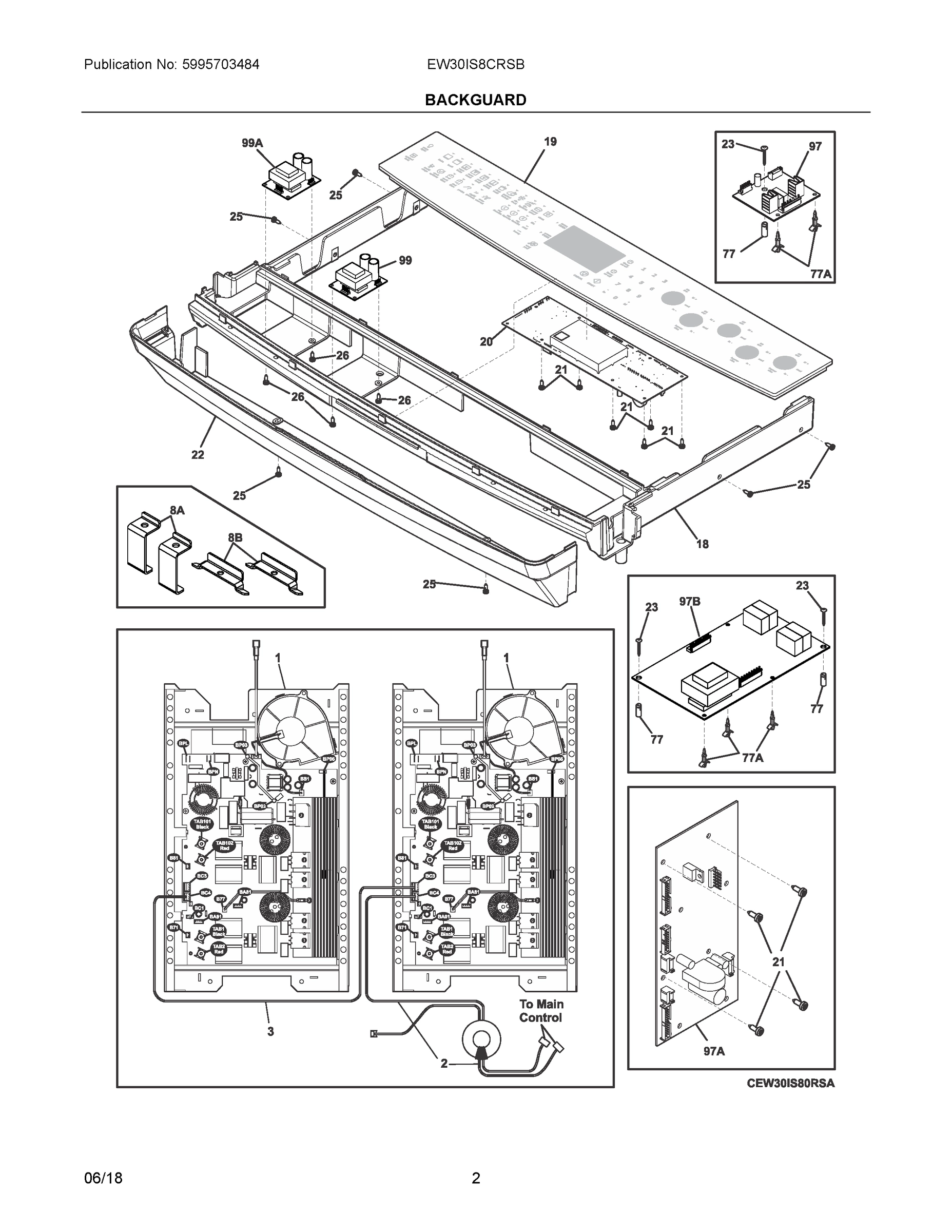

02 - BACKGUARD
03 - BODY
04 - TOP/DRAWER
05 - DOOR
06 - WIRING DIAGRAM
07 - WIRING DIAGRAM
Common parts from model Electrolux EW30IS8CRSB RANGE/OVEN, INDUCTION, FREESTANDING, 30 INCH
1
BODY, DRAWER WCI 318384703 Contact Us For Availability
3
TRIM, OVEN DOOR, BLACK, UPPER WCI 139023301 Contact Us For Availability
3A
TRIM, OVEN DOOR, BLACK, SIDE, (2), VENTED WCI 139014401 Contact Us For Availability
4
PANEL, DRAWER, STAINLESS, OUTER WCI 5304503253 Contact Us For Availability
5
LEVELING LEG WCI 316498903 Contact Us For Availability
6
BAFFLE, DOOR WCI 139006905 Contact Us For Availability
6A
RACK ASSEMBLY, GLIDING, COBALT, W/HANDLE WCI 139013315 Contact Us For Availability
7
INSULATION, DOOR WCI 318372017 Contact Us For Availability
7
BOX, BAKE ELEMENT WCI 318297303 Contact Us For Availability
7
INSULATION, DRAWER FRONT WCI 5304503261 Contact Us For Availability
7A
INSULATION, DOOR WCI 318372016 Contact Us For Availability
8
PANEL, SERVICE WCI 318359500 Contact Us For Availability
8A
BRACKET, BAKE ELEMENT WCI 318313601 Contact Us For Availability
8B
BRACKET, SERVICE PANEL, (2) WCI 318403202 Contact Us For Availability
9
PAN, BROILER, COBALT BLUE WCI 316081901 Contact Us For Availability
9
LINER, OVEN DOOR WCI 139000403 Contact Us For Availability
9
LINER, DRAWER WCI 5304503255 Contact Us For Availability
11
SEAL, OVEN DOOR, GRAY WCI 807545502 Contact Us For Availability
12
SEAL, WARMER DRAWER WCI 318053326 Contact Us For Availability
13
GLIDE, DRAWER, (2) WCI 318385600 Contact Us For Availability
15
ELEMENT, INDUCTION COIL, 140MM WCI 318329241 Contact Us For Availability
15A
ELEMENT, INDUCTION COIL, 180MM WCI 318329242 Contact Us For Availability
15B
ELEMENT, INDUCTION COIL, 210MM WCI 318329243 Contact Us For Availability
15C
ELEMENT, INDUCTION COIL, 260MM WCI 318329244 Contact Us For Availability
16
SMOOTHTOP ASSEMBLY, GLASS/STEEL, BLACK/STAINL WCI 139033859 Contact Us For Availability
17
SPACER, GLASS, (2) WCI 318264731 Contact Us For Availability
19
CONTROL ASSEMBLY, GLASS, BLACK, W/INTERFACE WCI 318387122 Contact Us For Availability
20
CONTROLLER, ELECTRONIC, ES630 WCI 316576687 Contact Us For Availability
21
SCREW, CONTROL MTG, 6-32 X .25, (5) WCI 316524400 Contact Us For Availability
22
PANEL, SERVICE, STAINLESS WCI 318905005 Contact Us For Availability
23
HINGE, OVEN DOOR, LILAC WCI 316575915 Contact Us For Availability
23
SCREW, TRUSS SQDR, 8A X 1", 62* WCI 5303289910 Contact Us For Availability
24A
COVER, VENT TRIM, BLACK WCI 139075001 Contact Us For Availability
25
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
26
SCREW, CUP PT, 8-18 X 0.375, CHROME WCI 316021108 Contact Us For Availability
29
SPACER, DOOR HANDLE, (2) WCI 139023400 Contact Us For Availability
37
SENSOR, OVEN TEMP PROBE WCI 5304504897 Contact Us For Availability
37
PROBE, OVEN TEMP WCI 316217005 Contact Us For Availability
39
HANDLE, DOOR, STAINLESS WCI 316380802 Contact Us For Availability
40
BRACKET, GLASS HOLDER, DOOR, (2) WCI 318242702 Contact Us For Availability
41
BRACKET, GLASS PANEL, (2) WCI 318370602 Contact Us For Availability
42
BRACKET, GLASS RETAINER, (4) WCI 318382302 Contact Us For Availability
56A
SCREW, 8-18 X 5/16, BLACK WCI 5303324184 Contact Us For Availability
57
COVER, ACCESS WCI 316283600 Contact Us For Availability
59
DUCT, COOLING FAN, UPPER WCI 139027600 Contact Us For Availability
64
SPACER, GLASS, FOAM WCI 318165800 Contact Us For Availability
77
SPACER, POWER BOARD WCI 316247900 Contact Us For Availability
77A
SPACER WCI 316114100 Contact Us For Availability
86
RECEPTACLE, HINGE, (2) WCI 318561100 Contact Us For Availability
90
PANEL, SIDE, STAINLESS, RH WCI 318905812 Contact Us For Availability
90A
PANEL, SIDE, STAINLES WCI 318905813 Contact Us For Availability
97
BOARD, VARIABLE SPEED, TRIAC WCI 316519200 Contact Us For Availability
97A
BOARD, POWER, UIB WCI 316201101 Contact Us For Availability
97B
BOARD, RELAY WCI 316443916 Contact Us For Availability
99
BOARD, POWER SUPPLY, 8V WCI 316535201 Contact Us For Availability
99A
BOARD, POWER SUPPLY WCI 316435703 Contact Us For Availability
108
WCI 807123004 WCI 807123004 Contact Us For Availability
111
WCI 316136600 WCI 316136600 Contact Us For Availability
119
SWITCH, THERMAL WCI 318004902 Contact Us For Availability
119
WCI 807144901 WCI 807144901 Contact Us For Availability
125
WCI 139008500 WCI 139008500 Contact Us For Availability
127
WCI 139042600 WCI 139042600 Contact Us For Availability
131
WCI 139027700 WCI 139027700 Contact Us For Availability
166
WCI 318298410 WCI 318298410 Contact Us For Availability
166A
WCI 5304511884 WCI 5304511884 Contact Us For Availability
167
WCI 318147811 WCI 318147811 Contact Us For Availability
168
WCI 318302400 WCI 318302400 Contact Us For Availability
200
WCI 318298232 WCI 318298232 Contact Us For Availability
201
WCI 318298233 WCI 318298233 Contact Us For Availability
272
WCI 139021700 WCI 139021700 Contact Us For Availability
NI
WCI 316001009 WCI 316001009 Contact Us For Availability
NI
WCI 316021109 WCI 316021109 Contact Us For Availability
NI
WCI 318531701 WCI 318531701 Contact Us For Availability
NIA
WCI 318946500 WCI 318946500 Contact Us For Availability
NIA
GASKET, MAINTOP, BLACK WCI 318534402 Contact Us For Availability
NIA
WCI 316418900 WCI 316418900 Contact Us For Availability
NIB
WCI 316205500 WCI 316205500 Contact Us For Availability
× ![]()
