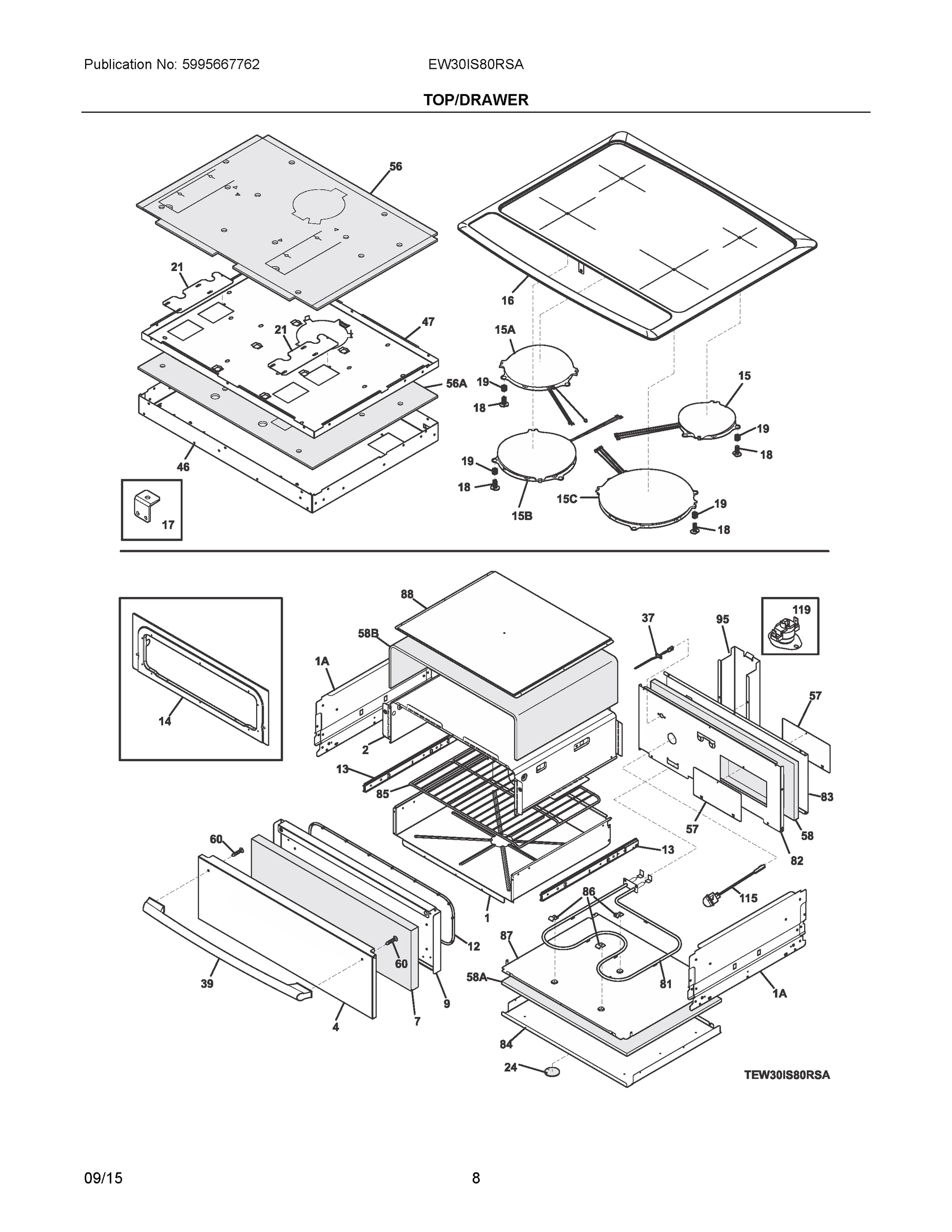

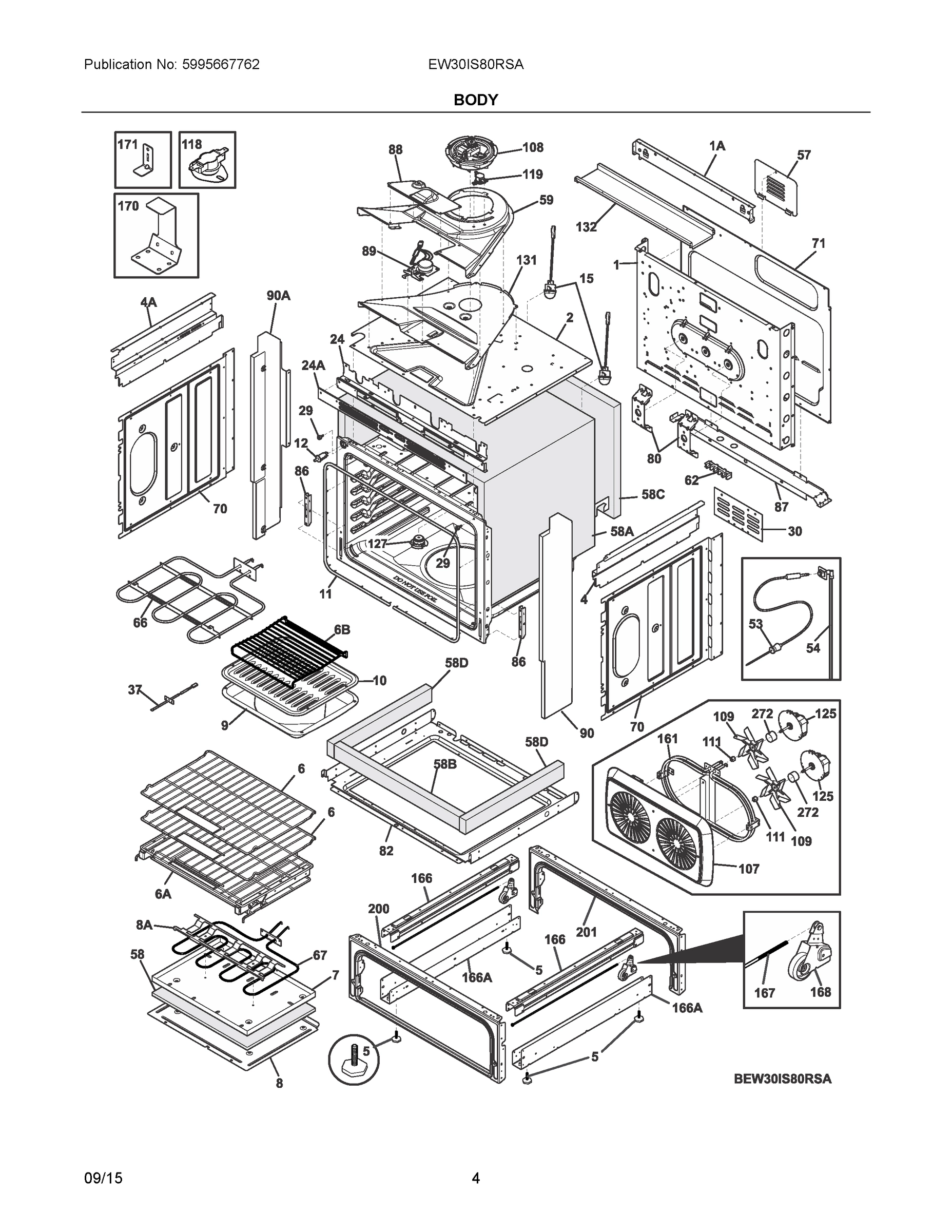

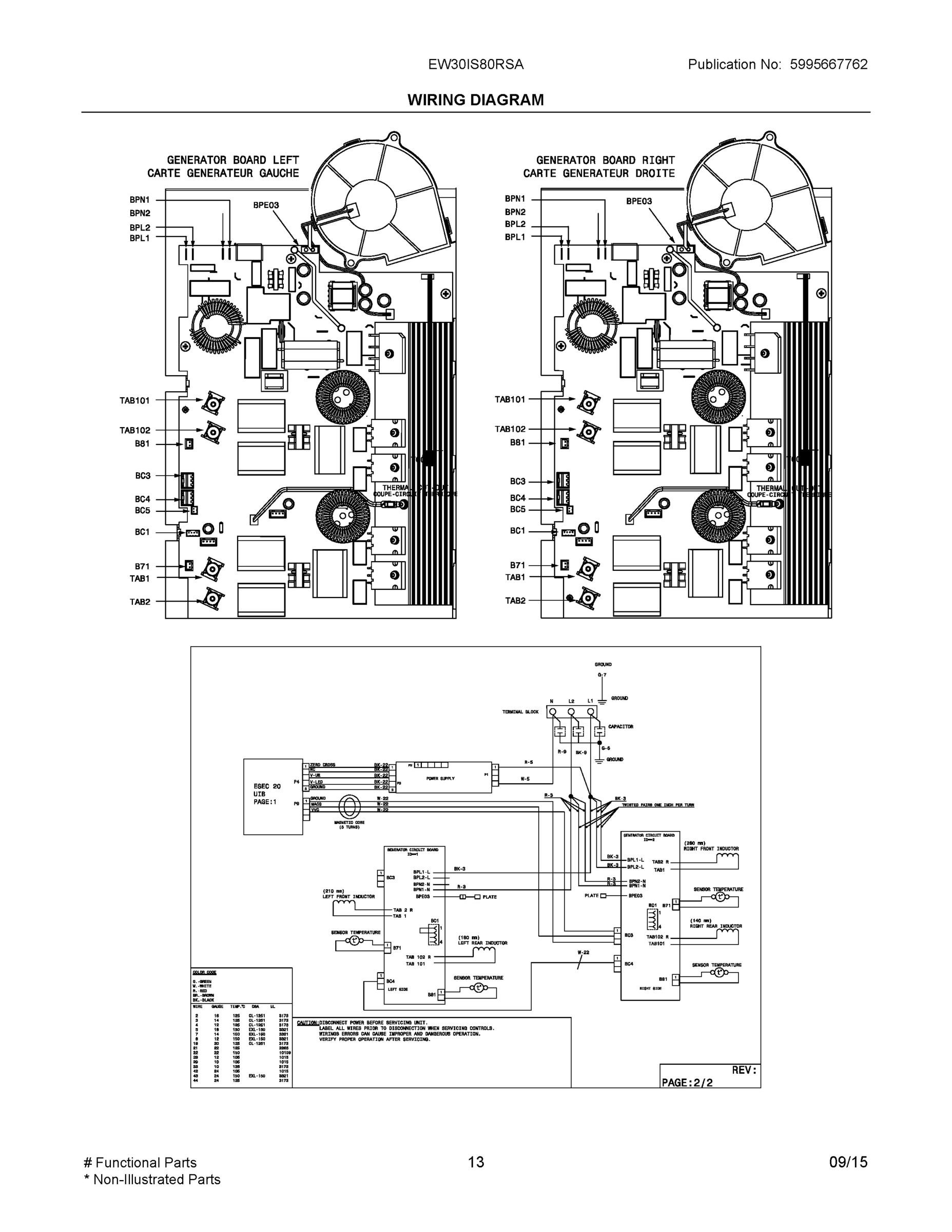

Model Electrolux EW30IS80RSA ELECTRIC RANGE – Common Parts &amp; Diagrams

2

5304517795 Frigidaire Oven Wiring Harness Backorder WCI 5304517795 $65.70

3

139023301 Frigidaire Oven Trim Backorder WCI 139023301 $32.07

3A

139014401 Frigidaire Oven Trim Backorder WCI 139014401 $19.15

4

5304503253 Frigidaire Oven Panel Backorder WCI 5304503253 $151.61

5

318175503 Frigidaire Screw with Bolt Backorder WCI 318175503 $10.22

6

139006905 Frigidaire Oven Baffle Backorder WCI 139006905 $70.52

7

318297303 Frigidaire Oven Box Backorder WCI 318297303 $69.66

7

318372017 Frigidaire Insulation Backorder WCI 318372017 $10.22

7

WCI 5304503261 WCI 5304503261 Contact Us For Availability

7A

318372016 Frigidaire Insulation Backorder WCI 318372016 $11.13

8

318359500 Frigidaire Oven Panel Backorder WCI 318359500 $80.24

8

5304503232 Frigidaire Oven Inner Door Glass In Stock WCI 5304503232 $72.74

8A

318313601 Frigidaire Oven Bracket Backorder WCI 318313601 $42.34

8A

318403105 Frigidaire Oven Bracket Assembly Backorder WCI 318403105 $31.20

8B

BRACKET, SERVICE PANEL, (2) WCI 318403202 Contact Us For Availability

9

139000403 Frigidaire Oven Liner Backorder WCI 139000403 $97.34

9

316081901 Frigidaire Oven Baking Pan Backorder WCI 316081901 $42.99

9

5304503255 Frigidaire Oven Liner Backorder WCI 5304503255 $157.01

10

5304507924 Frigidaire Oven Screw In Stock WCI 5304507924 $4.46

11

807545502 Frigidaire Oven Seal Backorder WCI 807545502 $84.88

12

318053326 Frigidaire Oven Seal Backorder WCI 318053326 $59.53

13

318385600 Frigidaire Oven Glide Backorder WCI 318385600 $64.82

13

808950031 Frigidaire Door Assembly Backorder WCI 808950031 $385.64

15

318329241 Frigidaire Oven Element Backorder WCI 318329241 $125.78

15A

318329242 Frigidaire Oven Element Backorder WCI 318329242 $147.42

15B

318329243 Frigidaire Oven Heating Element Backorder WCI 318329243 $166.55

15C

318329244 Frigidaire Oven Element Backorder WCI 318329244 $207.37

16

316446401 Frigidaire Oven Glass In Stock WCI 316446401 $72.75

16

WCI 139033859 WCI 139033859 Contact Us For Availability

18

SUBFRAME, CONTROL WCI 318900302 Contact Us For Availability

19

CONTROL ASSEMBLY, GLASS, BLACK, W/INTERFACE WCI 318387122 Contact Us For Availability

20

316576687 Frigidaire Controller Backorder WCI 316576687 $313.52

21

316524400 Frigidaire Oven Screw Backorder WCI 316524400 $8.02

22

318905005 Frigidaire Oven Panel Backorder WCI 318905005 $279.91

23

316575915 Frigidaire Oven Hinge Backorder WCI 316575915 $95.80

24A

139075001 Frigidaire Oven Cover Backorder WCI 139075001 $37.03

26

SCREW, CUP PT, 8-18 X 0.375, CHROME WCI 316021108 Contact Us For Availability

29

139023400 Frigidaire Oven Spacer Backorder WCI 139023400 $12.02

37

316217005 Frigidaire Oven Probe Backorder WCI 316217005 $48.95

37

5304504897 Frigidaire Oven Temperature Sensor In Stock WCI 5304504897 $26.72

39

316380802 Frigidaire Oven Handle Assembly Backorder WCI 316380802 $144.50

40

318242702 Frigidaire Oven Bracket Assembly Backorder WCI 318242702 $11.59

41

318370602 Frigidaire Oven Bracket Backorder WCI 318370602 $8.02

42

318382302 Frigidaire Bracket Backorder WCI 318382302 $29.87

53

5304503737 Frigidaire Black Meat Temperature In Stock WCI 5304503737 $63.92

54

139017201 Frigidaire Assembly Receptacle Backorder WCI 139017201 $113.61

56

5303324184 Frigidaire Wall Oven Range Screw Backorder WCI 5303324184 $8.91

57

316283600 Frigidaire Oven Cover Backorder WCI 316283600 $7.13

59

139027600 Frigidaire Oven Duct Backorder WCI 139027600 $53.34

64

318165800 Frigidaire Oven Door Glass Spacer w Backorder WCI 318165800 $11.13

66

5304521498 Frigidaire Element In Stock WCI 5304521498 $50.67

67

5304521880 Frigidaire Element Backorder WCI 5304521880 $67.01

70

139000601 Frigidaire Oven Shield Backorder WCI 139000601 $41.86

77

316247900 Frigidaire Oven Spacer Backorder WCI 316247900 $28.07

77A

316114100 Frigidaire Oven Spacer Backorder WCI 316114100 $37.90

86

318561100 Frigidaire Receptacle Backorder WCI 318561100 $12.46

88

5304506964 Frigidaire Oven Cover Backorder WCI 5304506964 $15.15

89

5304528836 Frigidaire Motor Backorder WCI 5304528836 $45.40

90

318905812 Frigidaire Oven Panel Backorder WCI 318905812 $119.53

90A

318905813 Frigidaire Oven Panel Backorder WCI 318905813 $115.36

97

316519200 Frigidaire Oven Control Board Backorder WCI 316519200 $157.00

97A

316201101 Frigidaire Oven Board Backorder WCI 316201101 $178.66

97B

316443916 Frigidaire Oven Range Relay Board Backorder WCI 316443916 $255.88

99

316535201 Frigidaire Oven Control Board Backorder WCI 316535201 $203.73

99A

316435703 Frigidaire Oven Board In Stock WCI 316435703 $229.99

108

807123004 Frigidaire Motor Assembly Backorder WCI 807123004 $97.74

109

318398302 Frigidaire Stove Oven Range Convect In Stock WCI 318398302 $15.13

111

316136600 Frigidaire Oven Range Lock Nut Backorder WCI 316136600 $12.01

115

5304528790 Frigidaire Lamp Assembly Appliance In Stock WCI 5304528790 $13.35

118

318578506 Frigidaire Oven High Limit Thermost In Stock WCI 318578506 $32.18

119

318004902 Frigidaire Oven Switch In Stock WCI 318004902 $47.61

119

807144901 Frigidaire Thermostat Backorder WCI 807144901 $34.31

125

139008500 Frigidaire Oven Motor Backorder WCI 139008500 $122.88

127

139042600 Frigidaire Tube Assembly Backorder WCI 139042600 $27.18

131

139027700 Frigidaire Oven Duct Backorder WCI 139027700 $45.40

161

5304522063 Frigidaire Element Assembly Backorder WCI 5304522063 $77.14

166

318298410 Frigidaire Oven Bracket Backorder WCI 318298410 $44.09

166A

5304511884 Frigidaire Oven Bracket Assembly Backorder WCI 5304511884 $38.35

167

318147811 Frigidaire Oven Screw Backorder WCI 318147811 $19.61

168

318302400 Frigidaire Bracket & Wheel Backorder WCI 318302400 $46.72

200

WCI 318298232 WCI 318298232 Contact Us For Availability

201

318298233 Frigidaire Oven Frame Backorder WCI 318298233 $28.52

272

139021700 Frigidaire Oven Tube Backorder WCI 139021700 $11.13

316001009 Frigidaire Oven Screw In Stock WCI 316001009 $8.91

316021105 Frigidaire Oven Screw Backorder WCI 316021105 $7.11

316021109 Frigidaire Oven Screw In Stock WCI 316021109 $8.91

318531701 Frigidaire Spacer Backorder WCI 318531701 $7.57

5303289910 Frigidaire Oven Screw Backorder WCI 5303289910 $3.55

5304517813 Frigidaire Harness Assembly Backorder WCI 5304517813 $22.28

PAD, CLEANING WCI 316459400 Contact Us For Availability

SCREW, 6-20 X 3/4 WCI 5303317179 Contact Us For Availability

316418900 Frigidaire Oven Screw In Stock WCI 316418900 $8.91

318264200 Frigidaire Oven Plate Backorder WCI 318264200 $13.81

318946500 Frigidaire Oven Light Bulb Range/Wa Backorder WCI 318946500 $33.42

GASKET, MAINTOP, BLACK WCI 318534402 Contact Us For Availability

NIB

316001017 Frigidaire Screw Backorder WCI 316001017 $1.80

NIC

316205500 Frigidaire Oven Nut Backorder WCI 316205500 $7.13
