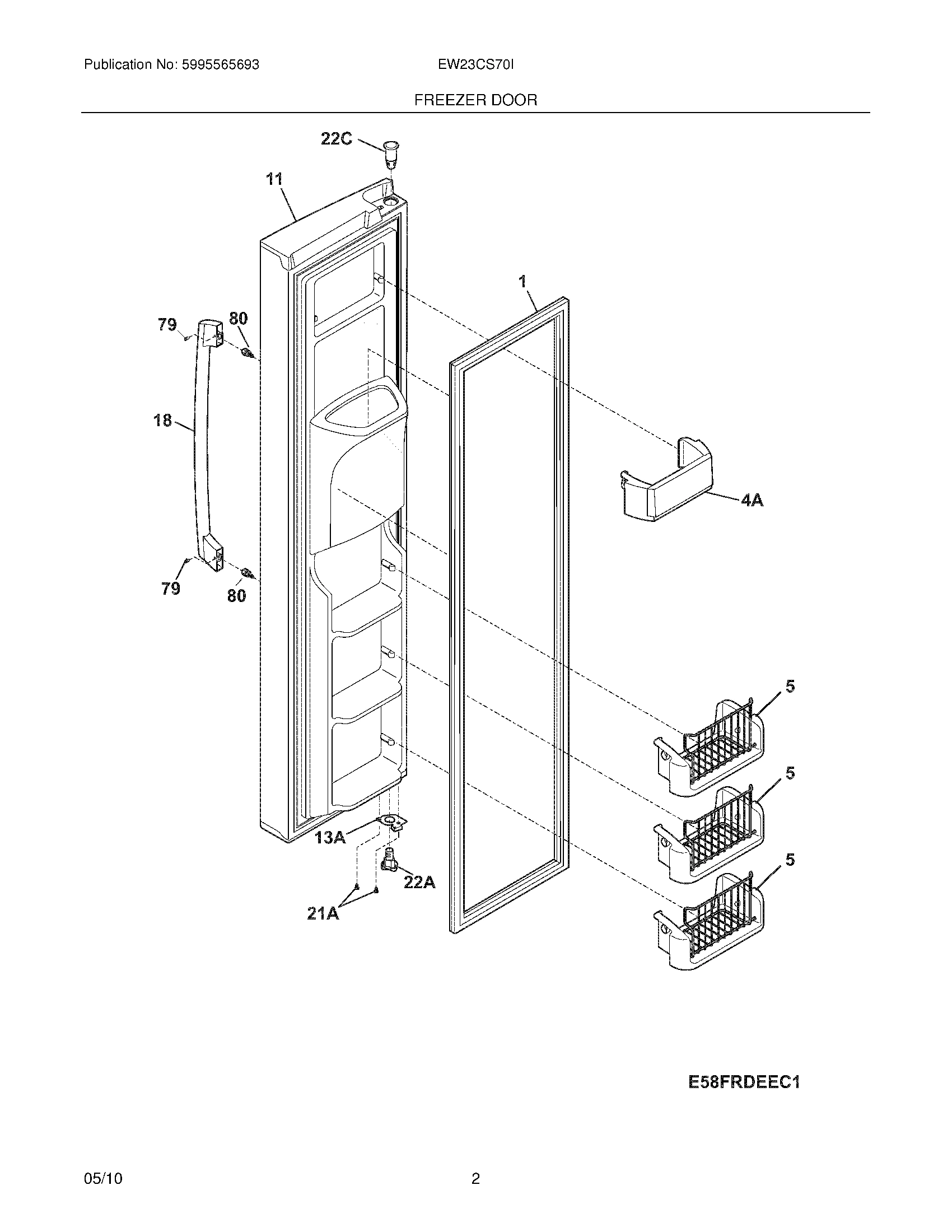

Model Electrolux EW23CS70IB3 REFRIGERATOR – Common Parts &amp; Diagrams

1

241510204 Frigidaire Refrigerator Door Gasket Backorder WCI 241510204 $58.27

2

241510203 Frigidaire Refrigerator Gasket Door Backorder WCI 241510203 $59.64

2

241684701 Frigidaire Refrigerator Ice Auger Backorder WCI 241684701 $144.11

2

241741301 Frigidaire Refrigerator Basket Trim Backorder WCI 241741301 $35.78

2A

241741601 Frigidaire Refrigerator Basket Trim Backorder WCI 241741601 $26.27

3

241685201 Frigidaire Refrigerator Drive Cam Backorder WCI 241685201 $26.72

3

WCI 241745301 WCI 241745301 Contact Us For Availability

3C

WCI 241748601 WCI 241748601 Contact Us For Availability

4

241515202 Frigidaire Refrigerator Container Backorder WCI 241515202 $60.48

4

WCI 241950801 WCI 241950801 Contact Us For Availability

5

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

5

WCI 241516102 WCI 241516102 Contact Us For Availability

6

241515901 Frigidaire Refrigerator Dairy Compa Backorder WCI 241515901 $25.35

6

241516904 Frigidaire Refrigerator Service Cor In Stock WCI 241516904 $23.09

6

241685101 Frigidaire Refrigerator Ice Dispens In Stock WCI 241685101 $33.06

7

WCI 5304458382 WCI 5304458382 Contact Us For Availability

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

9

241518301 Frigidaire Refrigerator Bushing Backorder WCI 241518301 $42.12

10

241726501 Frigidaire Refrigerator Drive Bar In Stock WCI 241726501 $37.18

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

11

WCI 242026444 WCI 242026444 Contact Us For Availability

11

WCI 5304458400 WCI 5304458400 Contact Us For Availability

11A

240443358 Frigidaire Refrigerator Shelf In Stock WCI 240443358 $57.37

12

WCI 241873302 WCI 241873302 Contact Us For Availability

13

5304456665 Frigidaire Refrigerator Thermostat Backorder WCI 5304456665 $79.31

13

809069220 Frigidaire Evaporator Fan Motor In Stock WCI 809069220 $95.44

13A

241990201 Frigidaire Refrigerator Door Stop Backorder WCI 241990201 $13.59

13A

241990202 Frigidaire Refrigerator Door Stop A Backorder WCI 241990202 $13.59

14

242044113 Frigidaire Refrigerator Defrost Hea In Stock WCI 242044113 $65.42

14A

241547902 Frigidaire Refrigerator Light Switc In Stock WCI 241547902 $10.86

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

5303918284 Frigidaire Refrigerator Evaporator In Stock WCI 5303918284 $330.62

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $54.68

WCI 242038839 WCI 242038839 Contact Us For Availability

16

241559801 Frigidaire Light Socket Refrigerato Backorder WCI 241559801 $45.94

16

241622802 Frigidaire Refrigerator Light Socke Backorder WCI 241622802 $37.63

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

17

241684503 Frigidaire Ice Crusher Blade In Stock WCI 241684503 $10.39

19

WCI 5304458378 WCI 5304458378 Contact Us For Availability

20

241675502 Frigidaire Refrigerator Motor Cover Backorder WCI 241675502 $82.20

21

5303918214 Frigidaire Refrigerator Defrost Th In Stock WCI 5303918214 $14.53

21

WCI 5304458390 WCI 5304458390 Contact Us For Availability

21A

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $4.97

21D

241548003 Frigidaire Refrigerator Screw In Stock WCI 241548003 $1.79

240597220 Frigidaire Sensor In Stock WCI 240597220 $3.05

241917801 Frigidaire Refrigerator Closer Plat In Stock WCI 241917801 $4.51

241990301 Frigidaire Hinge Bearing Backorder WCI 241990301 $4.51

WCI 5304458375 WCI 5304458375 Contact Us For Availability

22A

241990302 Frigidaire Refrigerator Hinge Beari Backorder WCI 241990302 $4.51

22B

241760404 Frigidaire Refrigerator Bearing Backorder WCI 241760404 $8.15

22C

241760402 Frigidaire Refrigerator Bearing In Stock WCI 241760402 $12.20

23

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

23

241684001 Frigidaire Refrigerator Front Plate Backorder WCI 241684001 $92.01

23

241845401 Frigidaire Refrigerator Sensor Hous Backorder WCI 241845401 $8.60

25

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

25

WCI 240491503 WCI 240491503 Contact Us For Availability

25A

WCI 241747101 WCI 241747101 Contact Us For Availability

25B

241953902 Frigidaire Refrigerator Screw In Stock WCI 241953902 $10.93

25B

241958401 Frigidaire Refrigerator Electronic Backorder WCI 241958401 $187.57

25B

242025901 Frigidaire Refrigerator Overlay Backorder WCI 242025901 $98.11

26

215503203 Frigidaire Refrigerator Door Handle In Stock WCI 215503203 $4.51

26

241697502 Frigidaire Defrost Drain Pan Backorder WCI 241697502 $91.88

30

241577501 Frigidaire Refrigerator Inverter Backorder WCI 241577501 $240.06

33

241684802 Frigidaire Refrigerator Spacer Backorder WCI 241684802 $5.40

34

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $12.67

34

241689802 Frigidaire Refrigerator Spacer Backorder WCI 241689802 $4.97

35A

241684303 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684303 $10.39

35B

241684203 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684203 $10.85

37

WCI 240337610 WCI 240337610 Contact Us For Availability

37A

241684107 Frigidaire Refrigerator Ice Crusher Backorder WCI 241684107 $13.13

37B

241684108 Frigidaire Refrigerator Ice Crusher In Stock WCI 241684108 $13.13

37C

241684109 Frigidaire Ice Crusher Blade In Stock WCI 241684109 $13.13

38

241761301 Frigidaire Upper Bracket Hinge Backorder WCI 241761301 $41.88

38A

241761302 Frigidaire Refrigerator Upper Hinge In Stock WCI 241761302 $40.78

38C

WCI 242041101 WCI 242041101 Contact Us For Availability

38C

WCI 241853102 WCI 241853102 Contact Us For Availability

39

240367603 Frigidaire Refrigerator Shelf Trim Backorder WCI 240367603 $47.07

40

WCI 5304458401 WCI 5304458401 Contact Us For Availability

40A

241891901 Frigidaire Refrigerator Wiring Harn Backorder WCI 241891901 $1.31

41

241550801 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550801 $37.63

41

WCI 241571201 WCI 241571201 Contact Us For Availability

42

218515403 Frigidaire Refrigerator Grille Clip Backorder WCI 218515403 $18.56

42

240578902 Frigidaire Screw Mounting Hinge In Stock WCI 240578902 $9.04

43

241720601 Frigidaire Refrigerator Extension In Stock WCI 241720601 $13.11

43

5304499445 Frigidaire Refrigerator Roller Ass Backorder WCI 5304499445 $19.99

45

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $2.72

45B

241676001 Frigidaire Refrigerator E-Ring Sole Backorder WCI 241676001 $44.35

45C

241676101 Frigidaire Refrigerator Solenoid-Ac In Stock WCI 241676101 $40.78

46

WCI 241684402 WCI 241684402 Contact Us For Availability

47

240350649 Frigidaire Refrigerator Glass Inser In Stock WCI 240350649 $64.95

47

241513001 Frigidaire Refrigerator Shelf Mount In Stock WCI 241513001 $66.34

47

241731801 Frigidaire Refrigerator Control Rod Backorder WCI 241731801 $9.06

47A

240350603 Frigidaire Glass Shelf Backorder WCI 240350603 $73.07

47B

5304469950 Frigidaire Refrigerator Sealant In Stock WCI 5304469950 $64.53

48

241684602 Frigidaire Refrigerator Control Rod Backorder WCI 241684602 $67.69

49

241750501 Frigidaire Refrigerator Door Bin Backorder WCI 241750501 $80.48

49

WCI 241676501 WCI 241676501 Contact Us For Availability

49A

WCI 241742201 WCI 241742201 Contact Us For Availability

50

241675601 Frigidaire Refrigerator Solenoid Gu Backorder WCI 241675601 $50.64

51

241799801 Frigidaire Refrigerator Glass Shelf Backorder WCI 241799801 $37.19

51

WCI 241676301 WCI 241676301 Contact Us For Availability

51A

241514701 Frigidaire Refrigerator Glass Shelf Backorder WCI 241514701 $40.32

51B

297049500 Frigidaire Refrigerator Slide Clip In Stock WCI 297049500 $13.13

51C

240579821 Frigidaire Refrigerator Basket Hang Backorder WCI 240579821 $79.31

51D

240579822 Frigidaire Refrigerator Basket Hang Backorder WCI 240579822 $64.53

52

241684901 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684901 $18.12

52

WCI 241799901 WCI 241799901 Contact Us For Availability

52A

241514801 Frigidaire Refrigerator Glass Shelf Backorder WCI 241514801 $236.28

52B

241809102 Frigidaire Refrigerator Basket Hang Backorder WCI 241809102 $97.24

53

241690402 Frigidaire Refrigerator Spiral Pin Backorder WCI 241690402 $12.20

54

WCI 241532401 No Longer Available

54

241685001 Frigidaire Auger Nut Backorder WCI 241685001 $12.67

55

241690306 Frigidaire Refrigerator Washer Backorder WCI 241690306 $31.71

56

241690201 Frigidaire Refrigerator E-Ring Backorder WCI 241690201 $12.22

58

218781101 Frigidaire Handle Screw In Stock WCI 218781101 $9.97

59

241946106 Frigidaire Refrigerator Condenser F Backorder WCI 241946106 $28.97

60

218362501 Frigidaire Refrigerator Screw Backorder WCI 218362501 $7.71

60

WCI 241755401 WCI 241755401 Contact Us For Availability

61

241639502 Frigidaire Refrigerator Condenser F In Stock WCI 241639502 $11.41

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $6.79

70

WCI 241504601 WCI 241504601 Contact Us For Availability

72

WCI 241758702 WCI 241758702 Contact Us For Availability

74

218755402 Frigidaire Refrigerator Set Screw In Stock WCI 218755402 $4.07

79

218755401 Frigidaire Refrigerator Screw Set In Stock WCI 218755401 $14.94

80

218755504 Frigidaire Refrigerator Shoulder Sc In Stock WCI 218755504 $8.60

81

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $30.80

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

84

241957901 Frigidaire Refrigerator Drain Tube Backorder WCI 241957901 $38.55

85

241856909 Frigidaire Refrigerator Connector T In Stock WCI 241856909 $94.62

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $39.88

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $8.60

93

241911704 Frigidaire Refrigerator Switch Backorder WCI 241911704 $19.47

97

241532006 Frigidaire Refrigerator Water Tank Backorder WCI 241532006 $80.22

100

240326304 Frigidaire Refrigerator Cover Backorder WCI 240326304 $44.31

100

241993001 Frigidaire Refrigerator Left Crispe In Stock WCI 241993001 $5.55

100

241993101 Frigidaire Refrigerator Right Crisp In Stock WCI 241993101 $3.46

101

218493101 Frigidaire Refrigerator Screw In Stock WCI 218493101 $8.58

101

5304453707 Frigidaire Oven Screw In Stock WCI 5304453707 $9.50

107

WCI 241753601 WCI 241753601 Contact Us For Availability

108

WCI 241753701 WCI 241753701 Contact Us For Availability

115

241853801 Frigidaire Refrigerator Damper Cont In Stock WCI 241853801 $67.82

121

WCI 241504701 WCI 241504701 Contact Us For Availability

122

WCI 241504702 WCI 241504702 Contact Us For Availability

126

241674401 Frigidaire Refrigerator Channel Backorder WCI 241674401 $30.36

126

241674402 Frigidaire Refrigerator Channel Backorder WCI 241674402 $27.62

139

240396002 Frigidaire Refrigerator Primary Bas In Stock WCI 240396002 $61.79

146

WCI 241955001 WCI 241955001 Contact Us For Availability

147

241977001 Frigidaire Refrigerator Fan Backorder WCI 241977001 $70.82

148

241782001 Frigidaire Refrigerator Heater Asse Backorder WCI 241782001 $116.55

149

242204504 Frigidaire Shroud Assembly Backorder WCI 242204504 $23.09

199

240398401 Frigidaire Refrigerator Filter Rele Backorder WCI 240398401 $35.32

199

WCI 240397501 WCI 240397501 Contact Us For Availability

210

WCI 241755202 WCI 241755202 Contact Us For Availability

215005101 Frigidaire Refrigerator Screw Backorder WCI 215005101 $9.50

218252201 Frigidaire Refrigerator Screw Backorder WCI 218252201 $9.04

218976420 Frigidaire Refrigerator Tube Backorder WCI 218976420 $28.51

218976421 Frigidaire Refrigerator Water Inlet Backorder WCI 218976421 $13.11

240346701 Frigidaire Refrigerator Foam Seal T Backorder WCI 240346701 $19.01

240349801 Frigidaire Refrigerator Clip In Stock WCI 240349801 $12.24

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.26

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $8.14

240451503 Frigidaire Refrigerator Screw Backorder WCI 240451503 $2.26

240542901 Frigidaire Water Valve Cap Backorder WCI 240542901 $11.33

240561701 Frigidaire Refrigerator Seal Backorder WCI 240561701 $13.13

241519401 Frigidaire Refrigerator Clip Backorder WCI 241519401 $5.40

241550701 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550701 $10.85

241583301 Frigidaire Refrigerator Air Deflect Backorder WCI 241583301 $29.88

241781601 Frigidaire Refrigerator Air Return Backorder WCI 241781601 $5.40

241850615 Frigidaire Ice Maker Fill Tube Asse In Stock WCI 241850615 $22.19

241852501 Frigidaire Refrigerator Clip Backorder WCI 241852501 $9.93

5303321321 Frigidaire Refrigerator Black Touc Backorder WCI 5303321321 $13.61

5303918327 Frigidaire Refrigerator Heat Excha In Stock WCI 5303918327 $176.48

WCI 5303918222 WCI 5303918222 Contact Us For Availability

WCI 241914701 WCI 241914701 Contact Us For Availability

WCI 241522901 WCI 241522901 Contact Us For Availability

WCI 241520403 WCI 241520403 Contact Us For Availability

WCI 241510802 WCI 241510802 Contact Us For Availability

WCI 241834701 WCI 241834701 Contact Us For Availability
