Model LG EVW011SK-SN – Common Parts & Diagrams

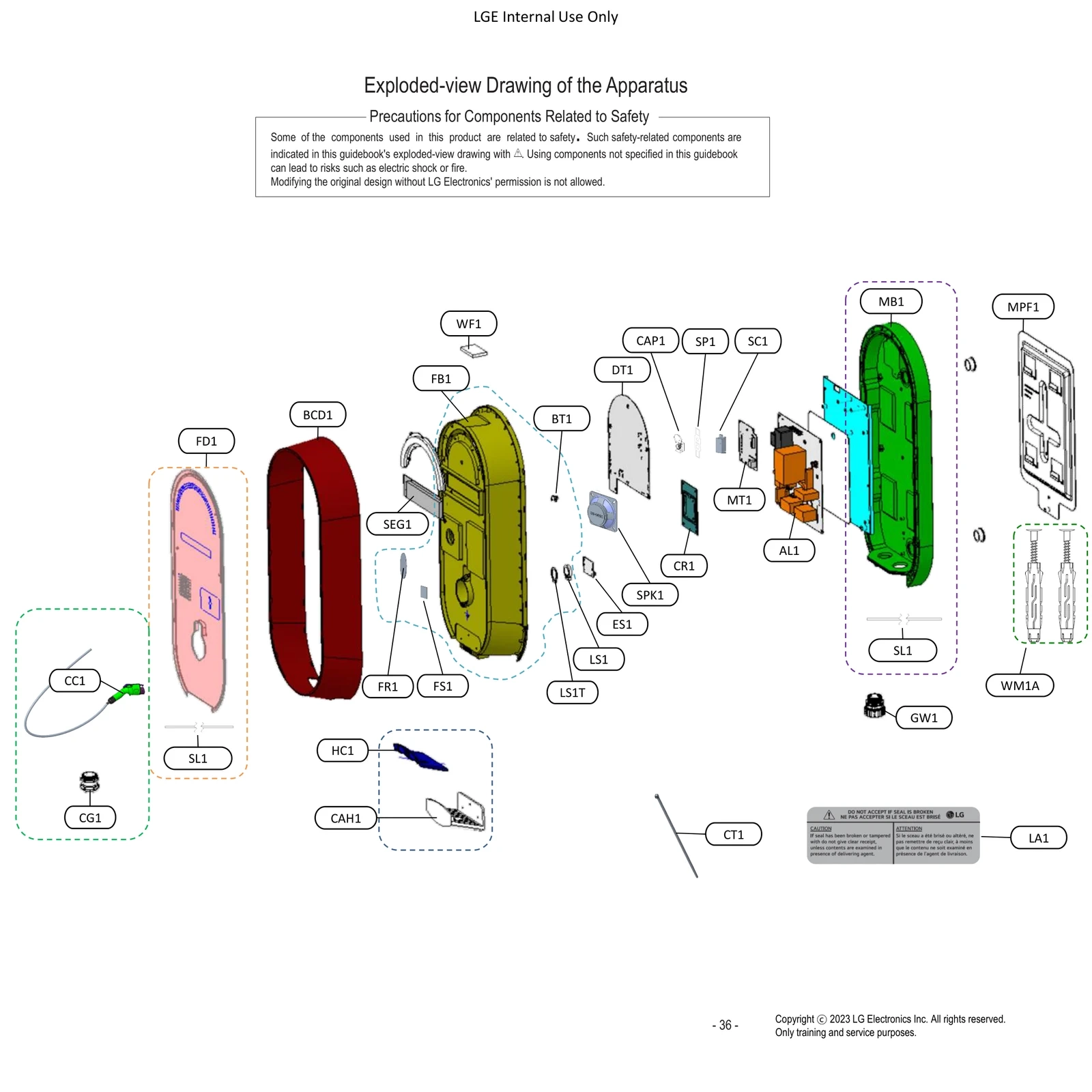

Diagram 0
Common parts from model LG EVW011SK-SN
AL1
Chassis Assembly LGE EBT67818401 Contact Us For Availability
BCD1
Decor LGE MCR68476002 Contact Us For Availability
BT1
Damper LGE MCQ70906601 Contact Us For Availability
CAH1
Holder LGE MEG66727402 Contact Us For Availability
CAP1
Cover LGE MCK71878901 Contact Us For Availability
CC1
Cable,EV Coupler LGE EAD66038401 Contact Us For Availability
CG1
Holder LGE MEG66729301 Contact Us For Availability
CR1
PCB Assembly,RF LGE EBR42399801 Contact Us For Availability
CT1
Cable Tie,Common LGE FAG30807201 Contact Us For Availability
DT1
Chassis Assembly LGE EBT67818201 Contact Us For Availability
ES1
PCB Assembly,Sub LGE EBR39924101 Contact Us For Availability
FB1
Case,Body LGE MBN66589802 Contact Us For Availability
FD1
Decor LGE MCR68475902 Contact Us For Availability
FR1
Filter LGE MDJ66348201 Contact Us For Availability
FS1
Filter LGE MDJ66348301 Contact Us For Availability
GW1
Holder LGE MEG66727802 Contact Us For Availability
HC1
Cover LGE MCK71878502 Contact Us For Availability
LA1
Label LGE MEZ68775003 Contact Us For Availability
LS1
Cover LGE MCK71877601 Contact Us For Availability
LS1T
Sheet LGE MHK67949001 Contact Us For Availability
MB1
Case,Body LGE MBN66589702 Contact Us For Availability
MPF1
Cover LGE MCK71878601 Contact Us For Availability
MT1
Chassis Assembly LGE EBT67818301 Contact Us For Availability
SC1
Cover LGE MCK71878801 Contact Us For Availability
SEG1
LED Display Module LGE EAV65076101 Contact Us For Availability
SL1
Gasket,Sealing LGE MDS67700501 Contact Us For Availability
SP1
Plate LGE MGJ67599101 Contact Us For Availability
SPK1
Speaker,MID,Range LGE EAB65835601 Contact Us For Availability
WM1A
Package Assembly LGE AGF76758002 Contact Us For Availability
× ![]()
