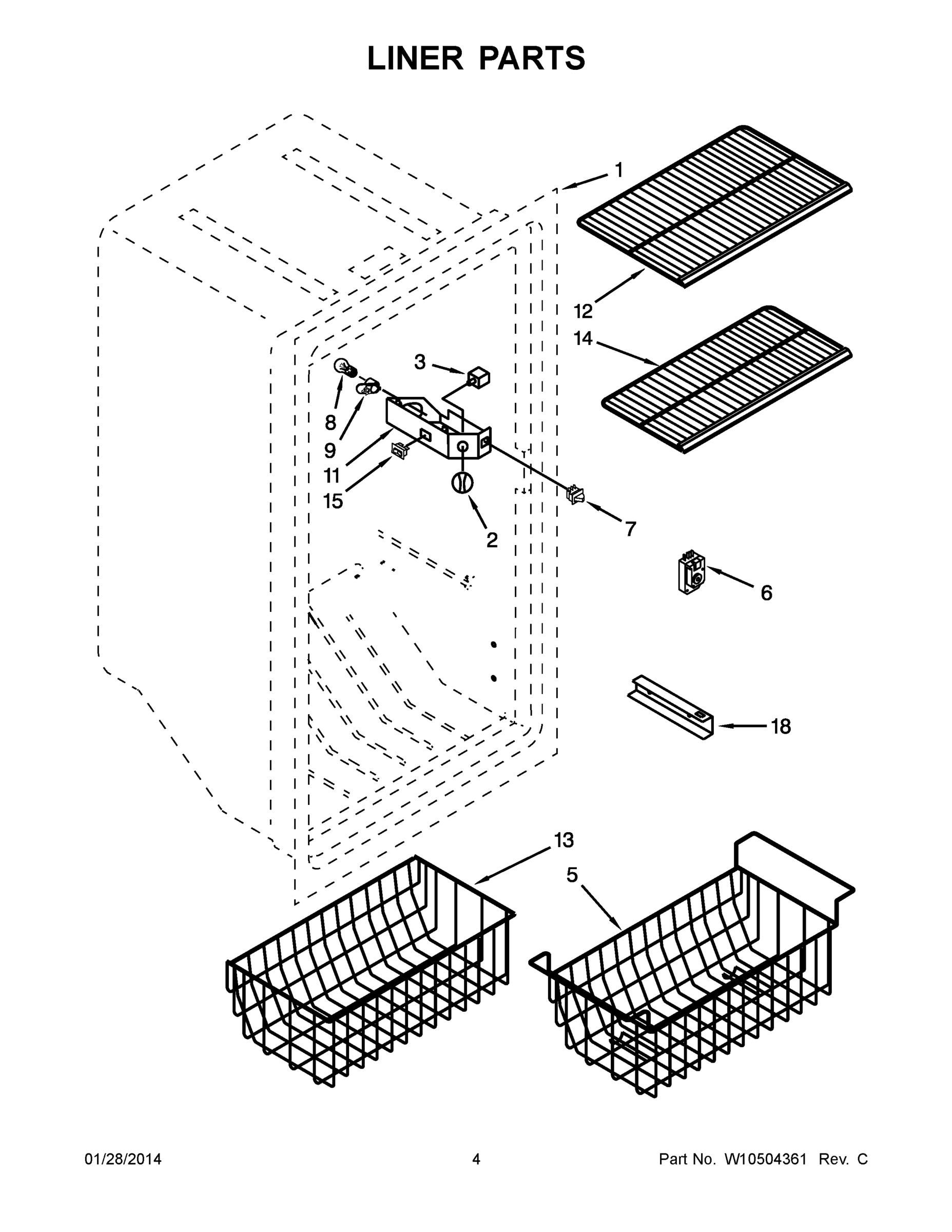

Model Whirlpool EV250NXTQ02 FREEZER – Common Parts & Diagrams

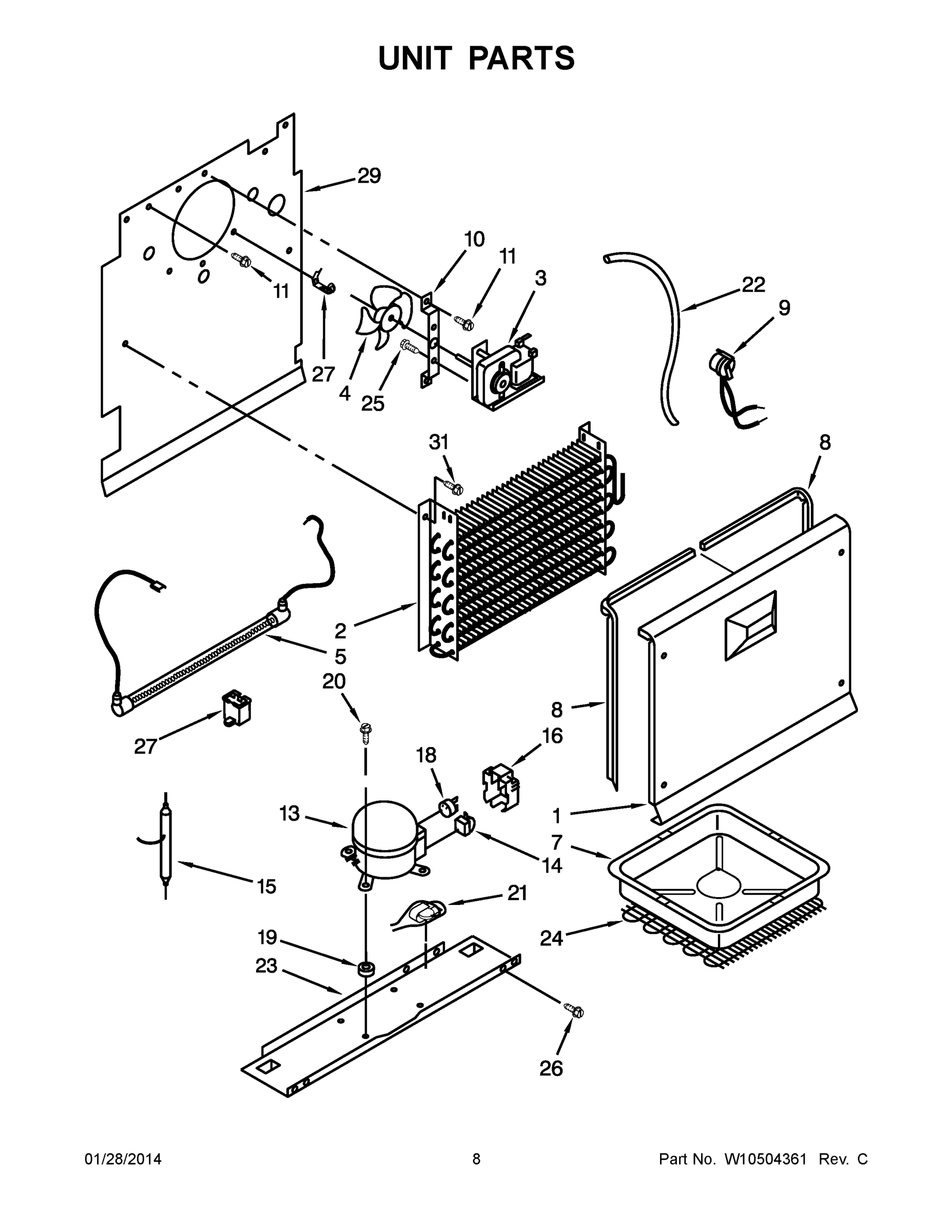

1
COVER, EVAPORATOR
COVER, EVAPORATOR WPL 482705001 Contact Us For Availability
View on Model

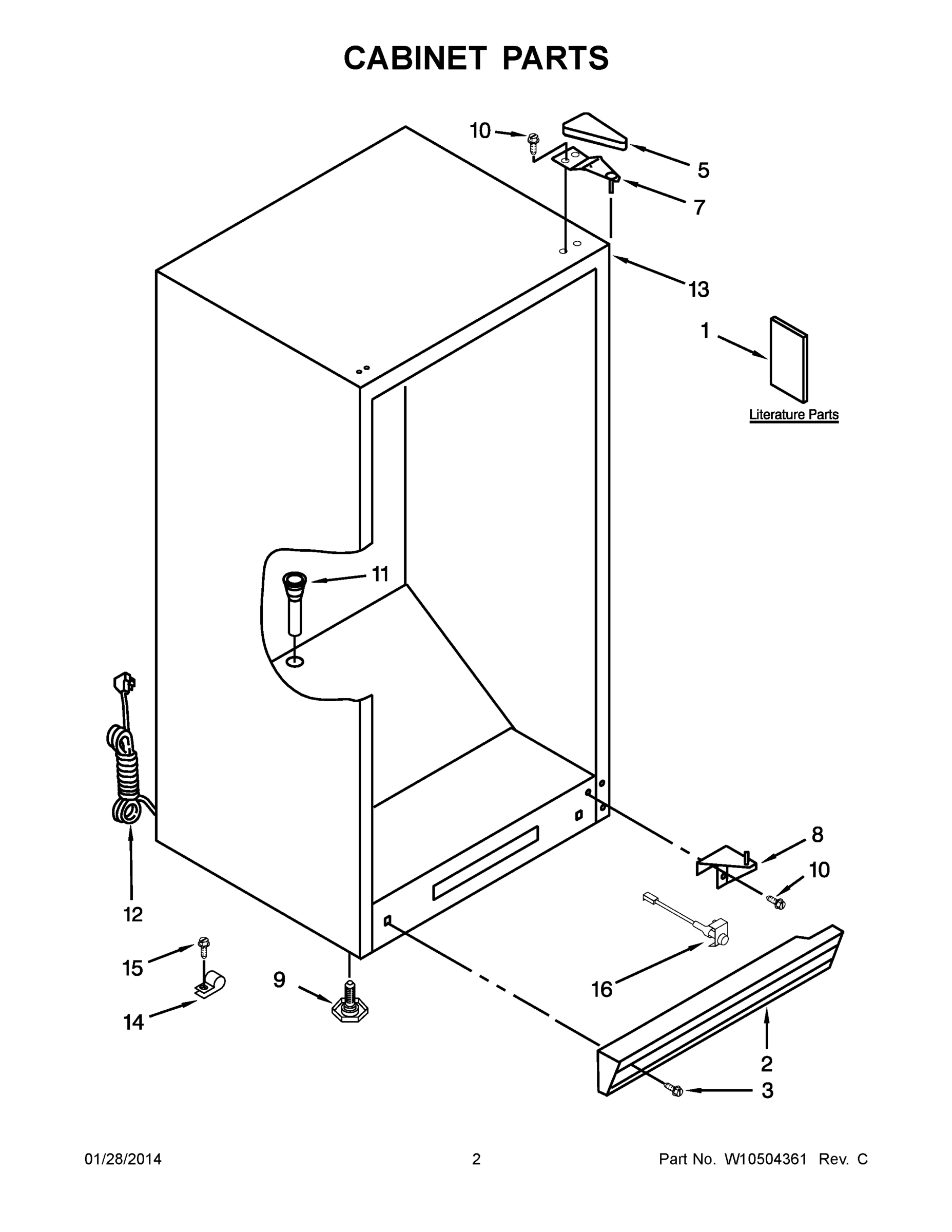

1
OWNERS MANUAL
OWNERS MANUAL WPL W10326799 Contact Us For Availability
View on Model
1
ENERGY LABEL/TAG
ENERGY LABEL/TAG WPL W10326811 Contact Us For Availability
View on Model
2
TRIM, TOE (WHITE)
TRIM, TOE (WHITE) WPL 480502119 Contact Us For Availability
View on Model
3
PLUG, VENT
PLUG, VENT WPL 324898007 Contact Us For Availability
View on Model
3
MOTOR, FAN
MOTOR, FAN WPL 380411103 Contact Us For Availability
View on Model

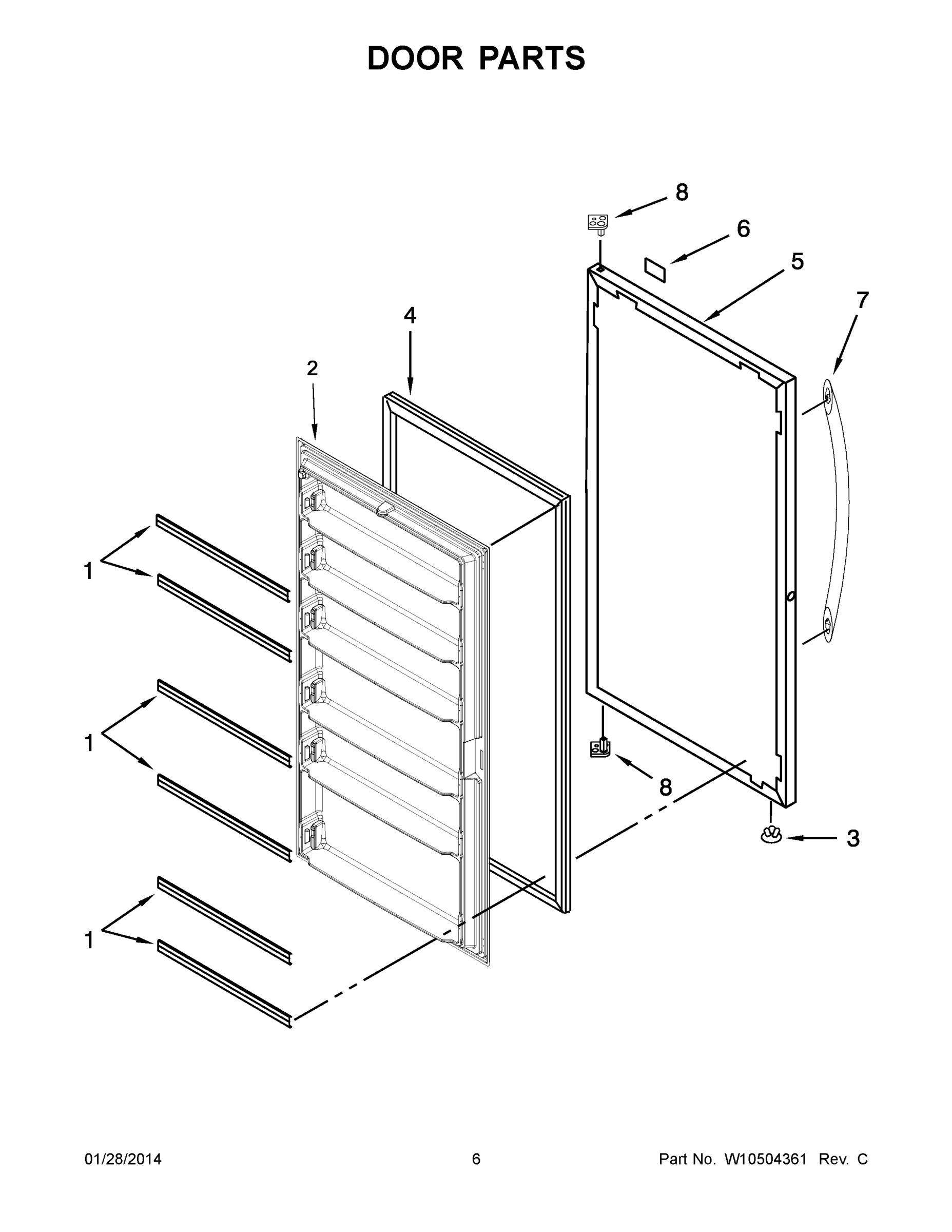

4
GASKET, DOOR
GASKET, DOOR WPL 481679001 Contact Us For Availability
View on Model
4
BLADE, FAN
BLADE, FAN WPL 180250101 Contact Us For Availability
View on Model
5
COVER, HINGE (WHITE)
COVER, HINGE (WHITE) WPL 380838003 Contact Us For Availability
View on Model
7
HANDLE, DOOR (WHITE)
HANDLE, DOOR (WHITE) WPL 383029002 Contact Us For Availability
View on Model
7
PAN, DRAIN
PAN, DRAIN WPL 482674001 Contact Us For Availability
View on Model
7
HINGE, TOP (WHITE)
HINGE, TOP (WHITE) WPL 281016105 Contact Us For Availability
View on Model
8
STOP, DOOR (NATURAL)
STOP, DOOR (NATURAL) WPL 281124001 Contact Us For Availability
View on Model
8
GASKET, COVER EVAPORATOR (RIGHT SIDE)
GASKET, COVER EVAPORATOR (RIGHT SIDE) WPL 360180001 Contact Us For Availability
View on Model
8
GASKET, COVER EVAPORATOR (LEFT SIDE)
GASKET, COVER EVAPORATOR (LEFT SIDE) WPL 360180002 Contact Us For Availability
View on Model
8
HINGE, BOTTOM (WHITE)
HINGE, BOTTOM (WHITE) WPL 482693001 Contact Us For Availability
View on Model
9
LEG, LEVELER (BLACK)
LEG, LEVELER (BLACK) WPL 382710001 Contact Us For Availability
View on Model
10
BRACKET, FAN
BRACKET, FAN WPL 280028101 Contact Us For Availability
View on Model
10
SCREW
SCREW WPL 180271103 Contact Us For Availability
View on Model
11
SCREW
SCREW WPL 380732004 Contact Us For Availability
View on Model
11
GROMMET, DRAIN
GROMMET, DRAIN WPL 360696001 Contact Us For Availability
View on Model
12
CORD, POWER
CORD, POWER WPL 482399001 Contact Us For Availability
View on Model
13
COMPRESSOR
COMPRESSOR WPL 432972144 Contact Us For Availability
View on Model
13
CABINET (NOT A SERVICEABLE PART)
CABINET (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability
View on Model
14
RELAY, START
RELAY, START WPL 235154012 Contact Us For Availability
View on Model
14
CLAMP, TUBE
CLAMP, TUBE WPL 325095011 Contact Us For Availability
View on Model
15
SCREW
SCREW WPL 324004107 Contact Us For Availability
View on Model
16
COVER
COVER WPL 335171003 Contact Us For Availability
View on Model
16
ASSEMBLY, POWER WARNING LIGHT BRACKET
ASSEMBLY, POWER WARNING LIGHT BRACKET WPL 382130001 Contact Us For Availability
View on Model
18
OVERLOAD
OVERLOAD WPL 234286041 Contact Us For Availability
View on Model
20
BOLT, COMPRESSOR
BOLT, COMPRESSOR WPL 282082001 Contact Us For Availability
View on Model
21
ALARM (BUZZER)
ALARM (BUZZER) WPL W10406953 Contact Us For Availability
View on Model
22
HEAT EXCHANGER
HEAT EXCHANGER WPL W10451937 Contact Us For Availability
View on Model
23
PAN, COMPRESSOR
PAN, COMPRESSOR WPL 481680001 Contact Us For Availability
View on Model
25
SCREW
SCREW WPL 180271104 Contact Us For Availability
View on Model
26
SCREW
SCREW WPL 324838048 Contact Us For Availability
View on Model
27
CAPACITOR
CAPACITOR WPL 335956013 Contact Us For Availability
View on Model
29
PLATE, EVAPORATOR MOUNTING
PLATE, EVAPORATOR MOUNTING WPL W10455865 Contact Us For Availability
View on Model
31
SCREW
SCREW WPL 324004079 Contact Us For Availability
View on Model
NI
MISCELLANEOUS, KIT, FOAM SLAB (30`` X 32 1/2`
MISCELLANEOUS, KIT, FOAM SLAB (30`` X 32 1/2` WPL 876029 Contact Us For Availability
View on Model
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108``)
MISCELLANEOUS, TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
View on Model
NI
TORX SCREW WRENCH TORX KEY
TORX SCREW WRENCH TORX KEY WPL 1117510 Contact Us For Availability
View on Model
