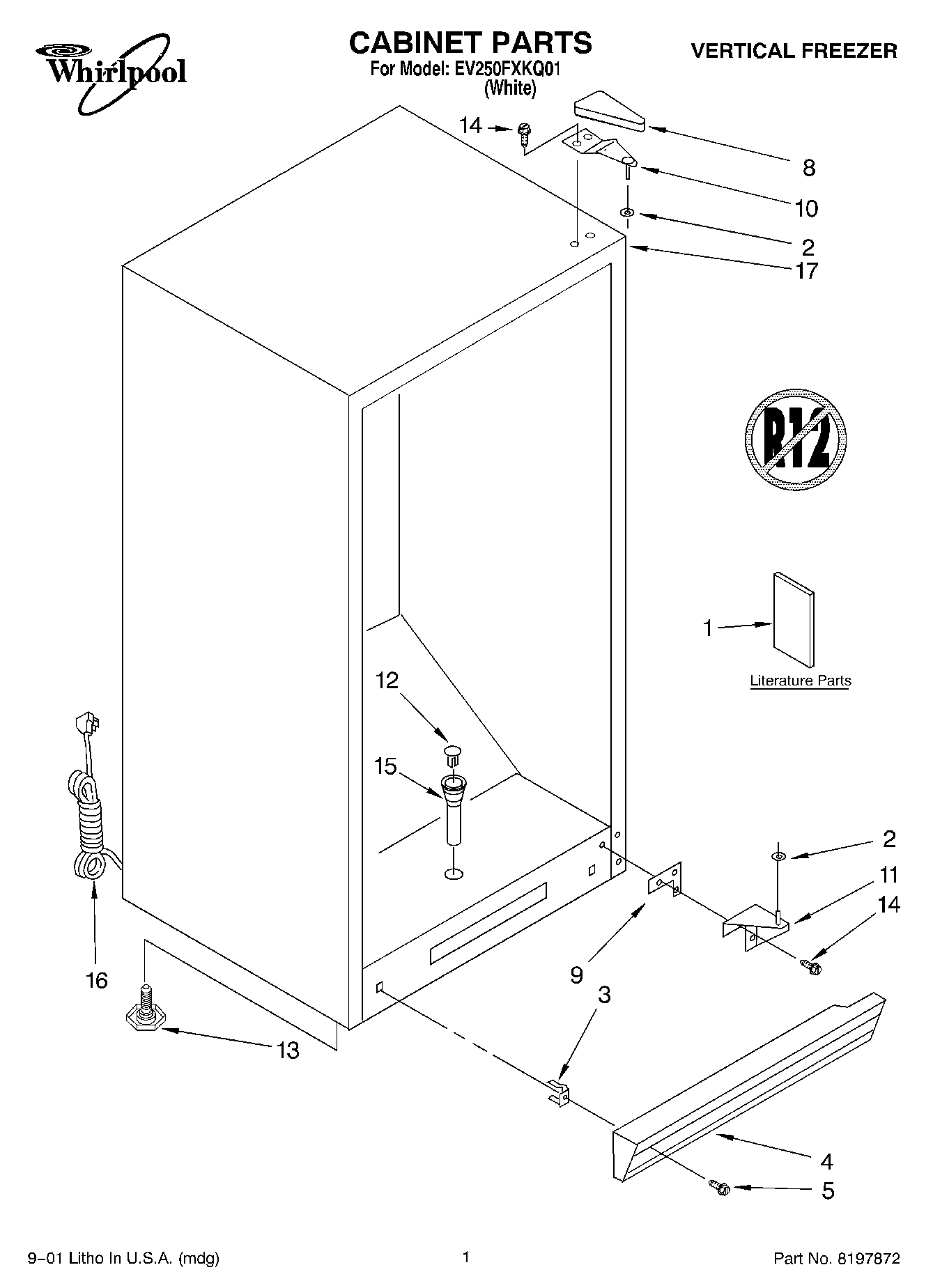

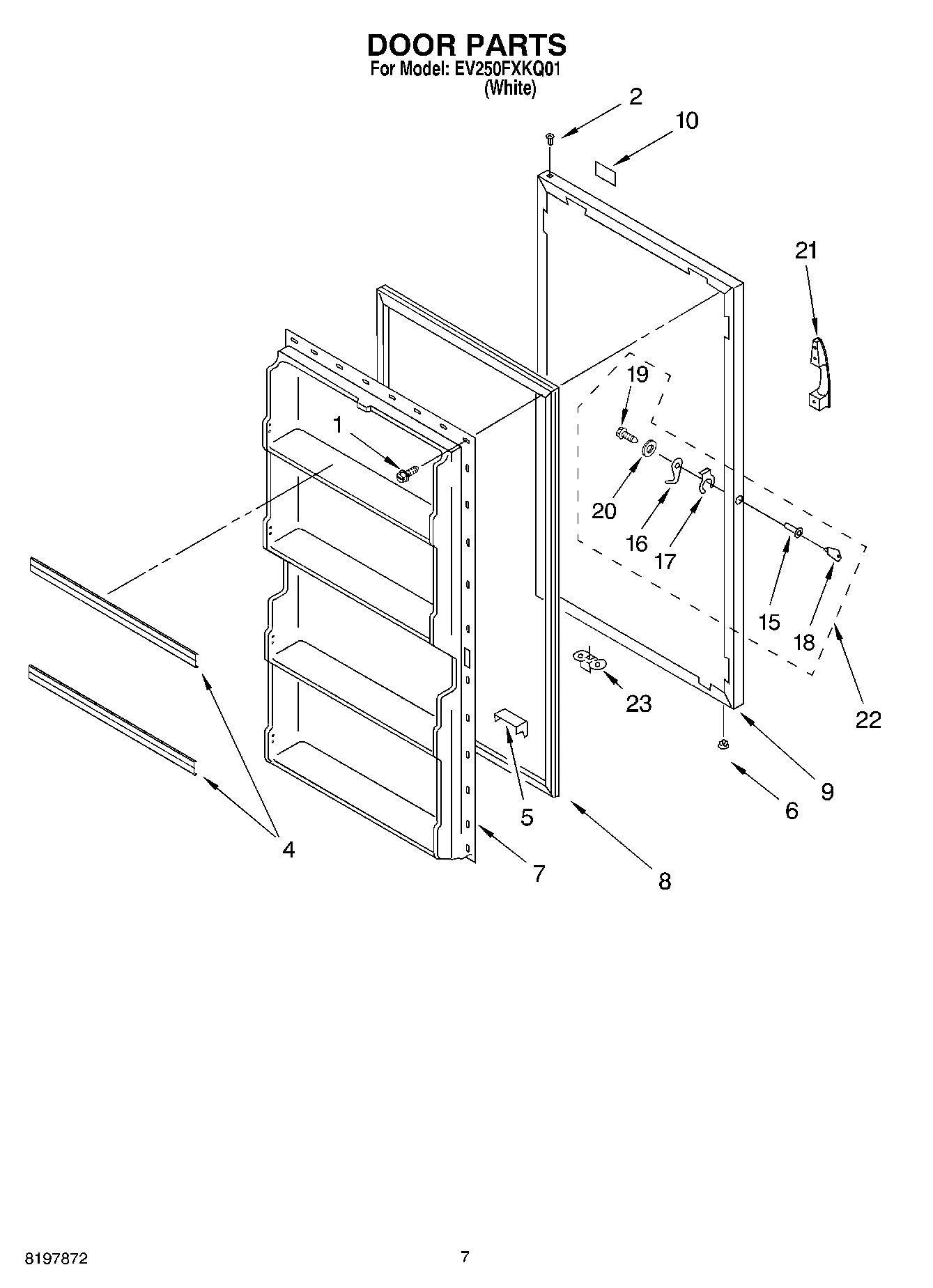

Model Whirlpool EV250FXKQ01 VERTICAL FREEZER – Common Parts &amp; Diagrams

1

Liner (Not A Serviceable Part) WPL ARI56448A8 Contact Us For Availability

1

Literature Parts (Owners Manual) WPL LIT4390678 Contact Us For Availability

1

Literature Parts (Energy Label) WPL LIT4390800 Contact Us For Availability

2

4390731 Whirlpool Refrigerator Hinge Bushing Backorder WPL 4390731 $7.39

2

W10851331 Whirlpool Refrigerator Washer Backorder WPL W10851331 $4.26

2

Control Knob WPL 4390619 Contact Us For Availability

3

1-80247-101 Whirlpool Refrigerator Clip Backorder WPL 1-80247-101 $4.63

3

1-81154 Whirlpool Plate Backorder WPL 1-81154 $6.39

4

W10450648 Whirlpool Freezer Door Trim Backorder WPL W10450648 $53.14

4

Thermostat WPL 4390620 Contact Us For Availability

4

Grille WPL 4390804 Contact Us For Availability

5

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

5

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.91

5

Foam Block WPL 4356893 Contact Us For Availability

6

3-24898-007 Whirlpool Refrigerator Vent Plug Backorder WPL 3-24898-007 $4.72

6

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

7

Basket, Lower WPL 4390793 Contact Us For Availability

7

Interior Door WPL 4390802 Contact Us For Availability

8

WP4-81679-001 Whirlpool Freezer Door Gasket Backorder WPL WP4-81679-001 $159.45

8

Relay WPL 4356738 Contact Us For Availability

8

Support, Basket (Left) WPL 4390795 Contact Us For Availability

9

Stop, Basket WPL 4390796 Contact Us For Availability

9

Door, Exterior WPL 4390801 Contact Us For Availability

9

Shim, Bottom WPL 4356828 Contact Us For Availability

10

Screw, Support (1 1/2``) WPL 4390798 Contact Us For Availability

10

Nameplate WPL 4390656 Contact Us For Availability

10

Top, Hinge WPL 4357052 Contact Us For Availability

11

Basket, Middle WPL 4390799 Contact Us For Availability

11

Bottom, Hinge WPL 4357050 Contact Us For Availability

12

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

12

Evaporator Shelf WPL 4390812 Contact Us For Availability

12

Drain Plug WPL 4357019 Contact Us For Availability

13

W11117769 Whirlpool Refrigerator Leveler In Stock WPL W11117769 $6.97

13

Evaporator Shelf WPL 4390813 Contact Us For Availability

13

Bracket WPL 4390626 Contact Us For Availability

14

W10873798 Whirlpool Refrigerator Light Bulb Backorder WPL W10873798 $7.37

14

WP8204624 Whirlpool Bolt In Stock WPL WP8204624 $8.82

14

Washer WPL 4357057 Contact Us For Availability

4357145 Whirlpool Freezer Door Lock Backorder WPL 4357145 $16.63

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

Socket, Lamp WPL 4356874 Contact Us For Availability

Grommet, Drain WPL 4357269 Contact Us For Availability

Heat Exchanger WPL 4390809 Contact Us For Availability

Shield, Light WPL 4390615 Contact Us For Availability

Lock, Bolt WPL 4357224 Contact Us For Availability

Power Cord WPL 4390693 Contact Us For Availability

17

4356777 Whirlpool Term Cover Backorder WPL 4356777 $51.48

17

Spring Clip WPL 4356842 Contact Us For Availability

18

WP4356840 Whirlpool Refrigerator Door Key In Stock WPL WP4356840 $4.81

19

3-35956-013 Whirlpool Refrigerator Capacitor Backorder WPL 3-35956-013 $52.08

20

Clamp WPL 4356854 Contact Us For Availability

20

Washer WPL 4356992 Contact Us For Availability

21

3-82596-002 Whirlpool Refrigerator Handle Backorder WPL 3-82596-002 $161.55

22

WP3-24838-048 Whirlpool Refrigerator Screw Backorder WPL WP3-24838-048 $2.51

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Evaporator Shelf, Bottom WPL 4390814 Contact Us For Availability

Door Stop WPL 4390695 Contact Us For Availability
