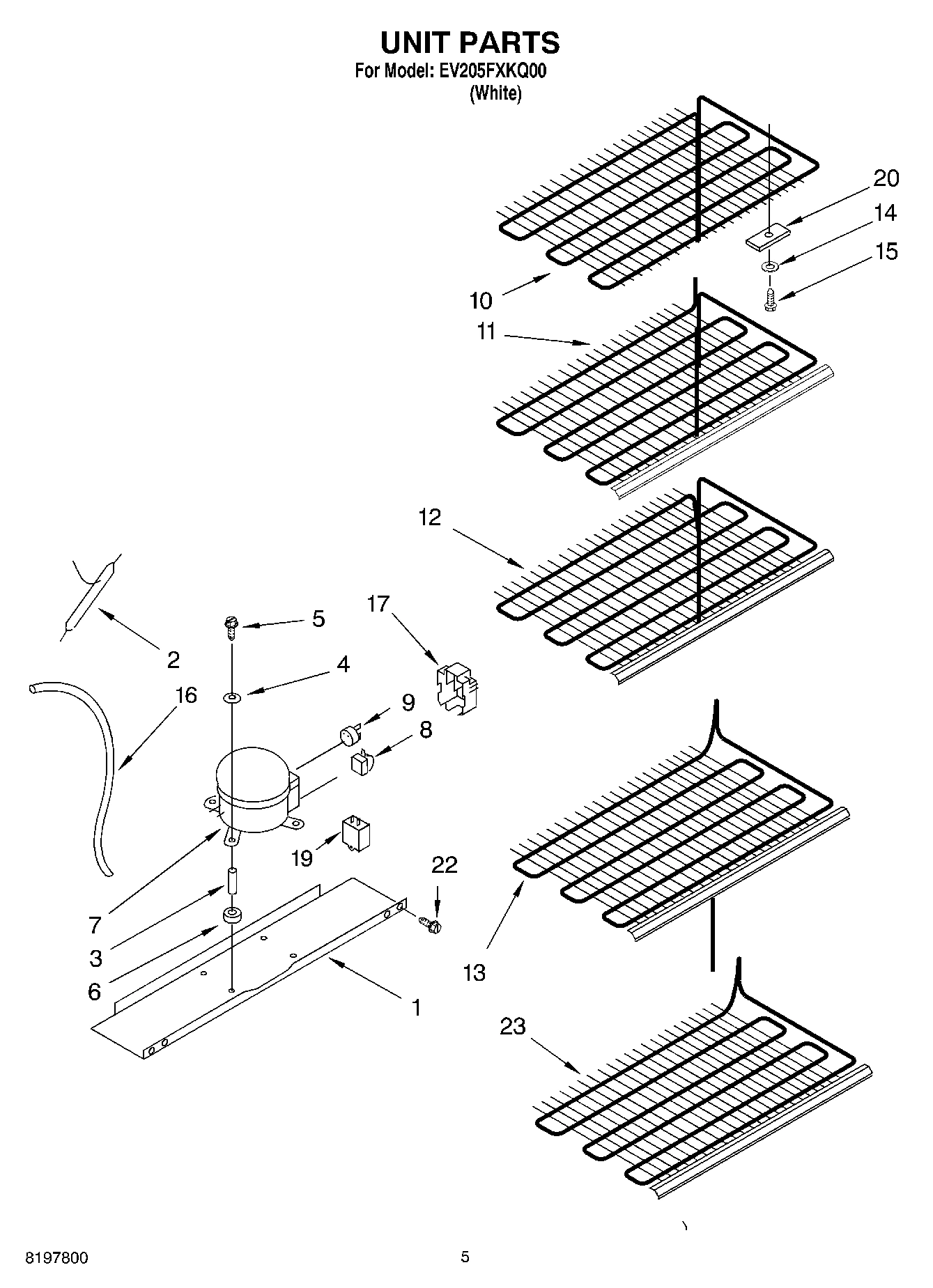

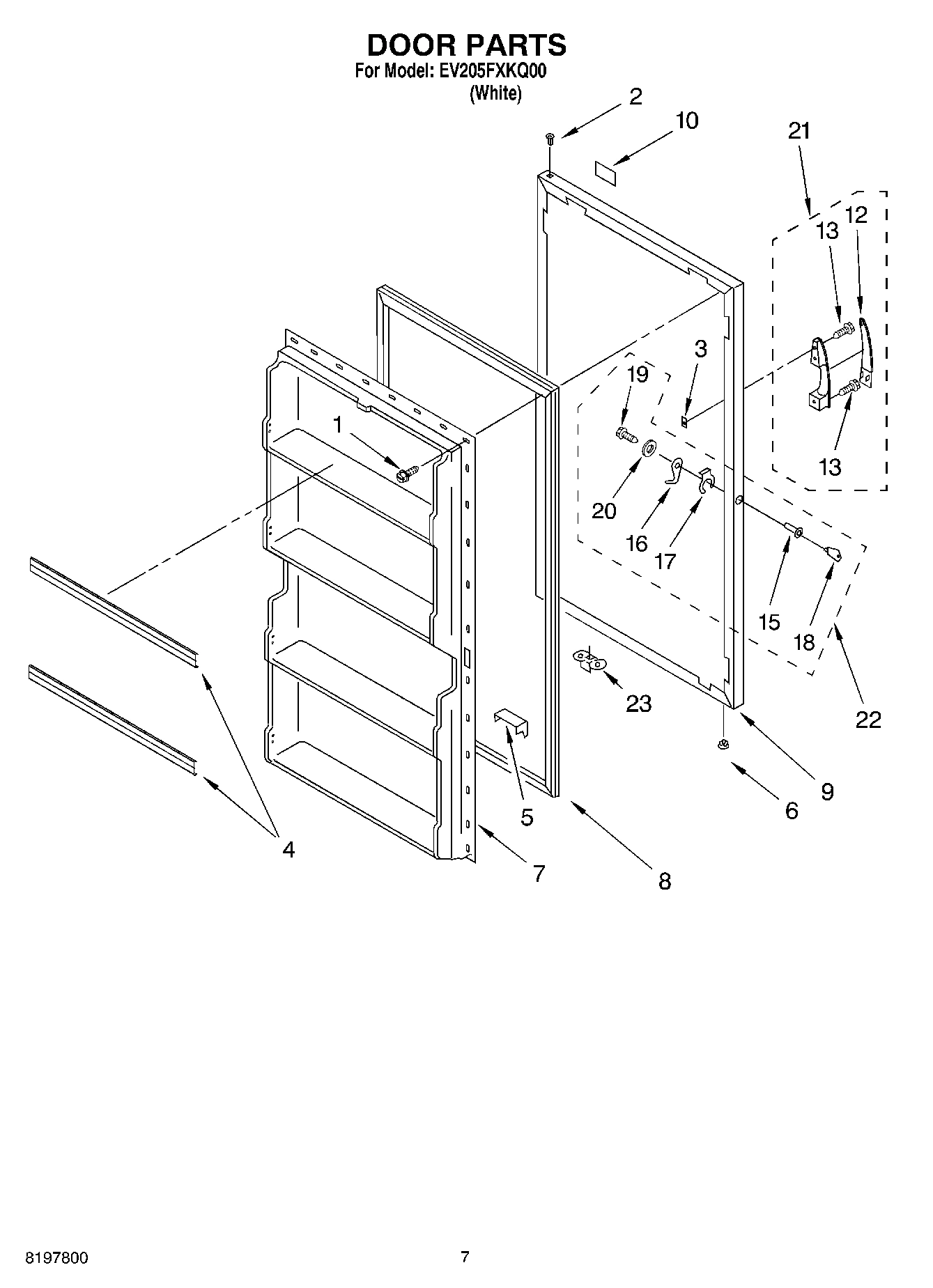

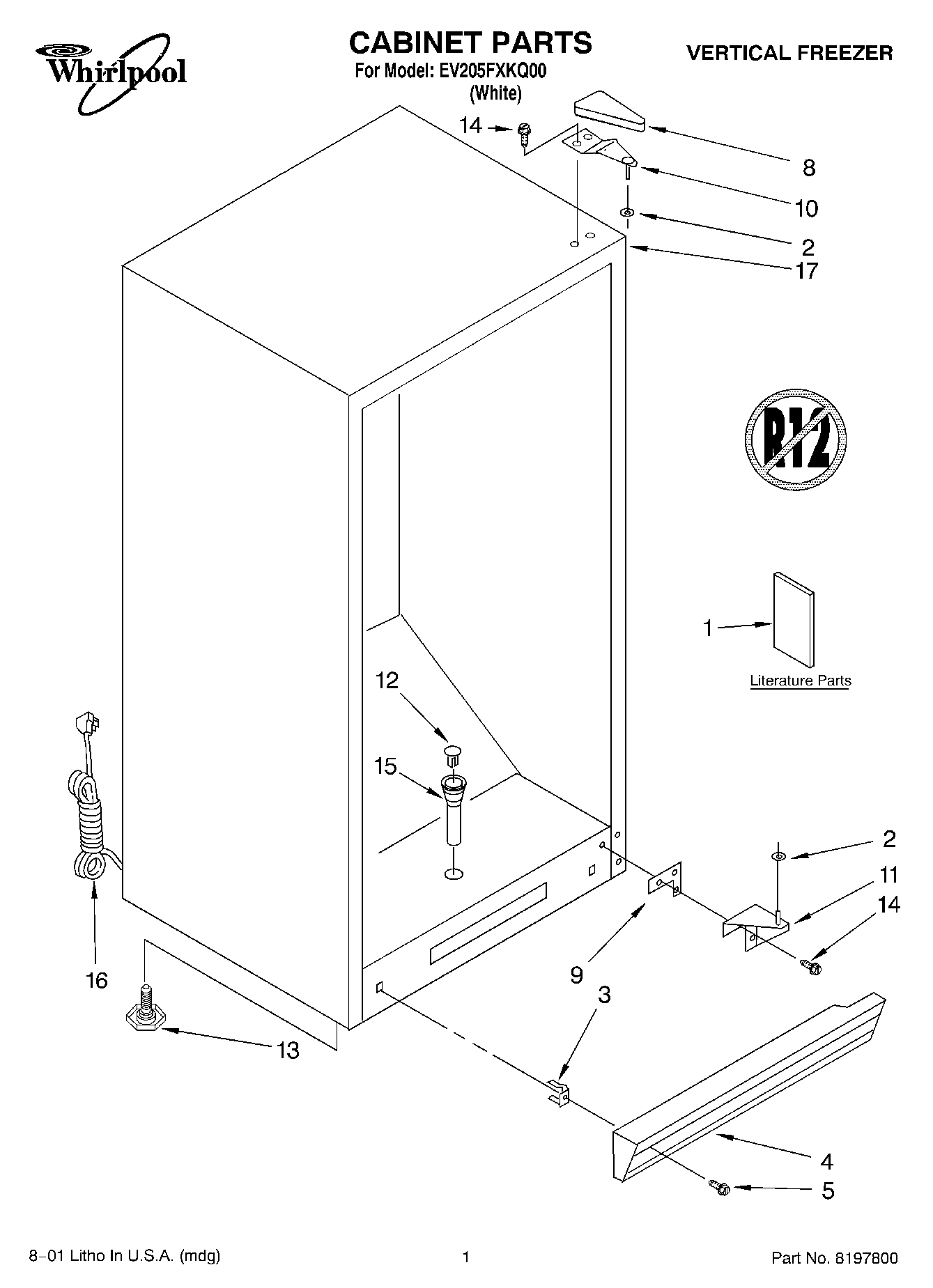

Model Whirlpool EV205FXKQ00 VERTICAL FREEZER – Common Parts &amp; Diagrams

1

Liner (Not A Serviceable Part) WPL ARI56433A6 Contact Us For Availability

1

Pan, Compressor Mounting WPL 4357095 Contact Us For Availability

2

4390731 Whirlpool Refrigerator Hinge Bushing Backorder WPL 4390731 $7.39

2

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

2

W10851331 Whirlpool Refrigerator Washer Backorder WPL W10851331 $4.26

2

Control Knob WPL 4390619 Contact Us For Availability

3

1-81154 Whirlpool Plate Backorder WPL 1-81154 $6.39

3

4356846 Whirlpool Refrigerator Sleeve Backorder WPL 4356846 $8.73

3

Anchor, Screw WPL 4390680 Contact Us For Availability

4

Thermostat WPL 4390620 Contact Us For Availability

4

Washer WPL 4356847 Contact Us For Availability

4

Door Shelf Trim (4) WPL 4390702 Contact Us For Availability

5

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.91

5

Screw, Compressor Mounting WPL 4356852 Contact Us For Availability

5

Foam Block WPL 4356893 Contact Us For Availability

6

3-24898-007 Whirlpool Refrigerator Vent Plug Backorder WPL 3-24898-007 $4.72

6

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

6

Grommet WPL 4356335 Contact Us For Availability

7

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $298.57

7

Basket WPL 4390698 Contact Us For Availability

7

Interior Door WPL 4390718 Contact Us For Availability

8

WP4-81049-001 Whirlpool Refrigerator Door Gas In Stock WPL WP4-81049-001 $155.91

8

Relay WPL 4356738 Contact Us For Availability

9

2-34286-021 Whirlpool Refrigerator Overload R Backorder WPL 2-34286-021 $56.13

9

Door, Exterior WPL 4390846 Contact Us For Availability

10

Evaporator Top WPL 4390703 Contact Us For Availability

10

Nameplate WPL 4390656 Contact Us For Availability

11

Evaporator Shelf WPL 4390704 Contact Us For Availability

12

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

12

Evaporator Shelf WPL 4390705 Contact Us For Availability

12

Insert, Handle WPL 4390668 Contact Us For Availability

W11117769 Whirlpool Refrigerator Leveler In Stock WPL W11117769 $6.97

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

Bracket WPL 4390626 Contact Us For Availability

Evaporator Shelf WPL 4390706 Contact Us For Availability

14

W10873798 Whirlpool Refrigerator Light Bulb Backorder WPL W10873798 $5.89

14

W10903204 Whirlpool Refrigerator Washer Backorder WPL W10903204 $4.03

14

WP8204624 Whirlpool Bolt Backorder WPL WP8204624 $8.82

4357145 Whirlpool Refrigerator Door Lock Backorder WPL 4357145 $15.85

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

Grommet, Drain WPL 4357269 Contact Us For Availability

Socket, Light WPL 4356874 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Power Cord WPL 4390696 Contact Us For Availability

Shield, Light WPL 4390615 Contact Us For Availability

Heat Exchanger WPL 4357188 Contact Us For Availability

Lock, Bolt WPL 4357224 Contact Us For Availability

17

4356777 Whirlpool Term Cover Backorder WPL 4356777 $49.03

17

Cabinet (Not A Serviceable Part) WPL ARI56432A6 Contact Us For Availability

17

Spring Clip WPL 4356842 Contact Us For Availability

18

WP4356840 Whirlpool Refrigerator Door Key In Stock WPL WP4356840 $4.81

19

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

19

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

20

1-80308-101 Whirlpool Refrigerator Bulb Clamp Backorder WPL 1-80308-101 $26.21

20

Washer WPL 4356992 Contact Us For Availability

21

Handle Assembly (Includes Items 12 & 13) WPL 4390667 Contact Us For Availability

22

WP3-24838-048 Whirlpool Refrigerator Screw Backorder WPL WP3-24838-048 $2.51

23

Evaporator Shelf, Bottom WPL 4390707 Contact Us For Availability

23

Door Stop WPL 4390695 Contact Us For Availability
