Model Whirlpool EV200NZTQ01 VERTICAL FREEZER – Common Parts & Diagrams

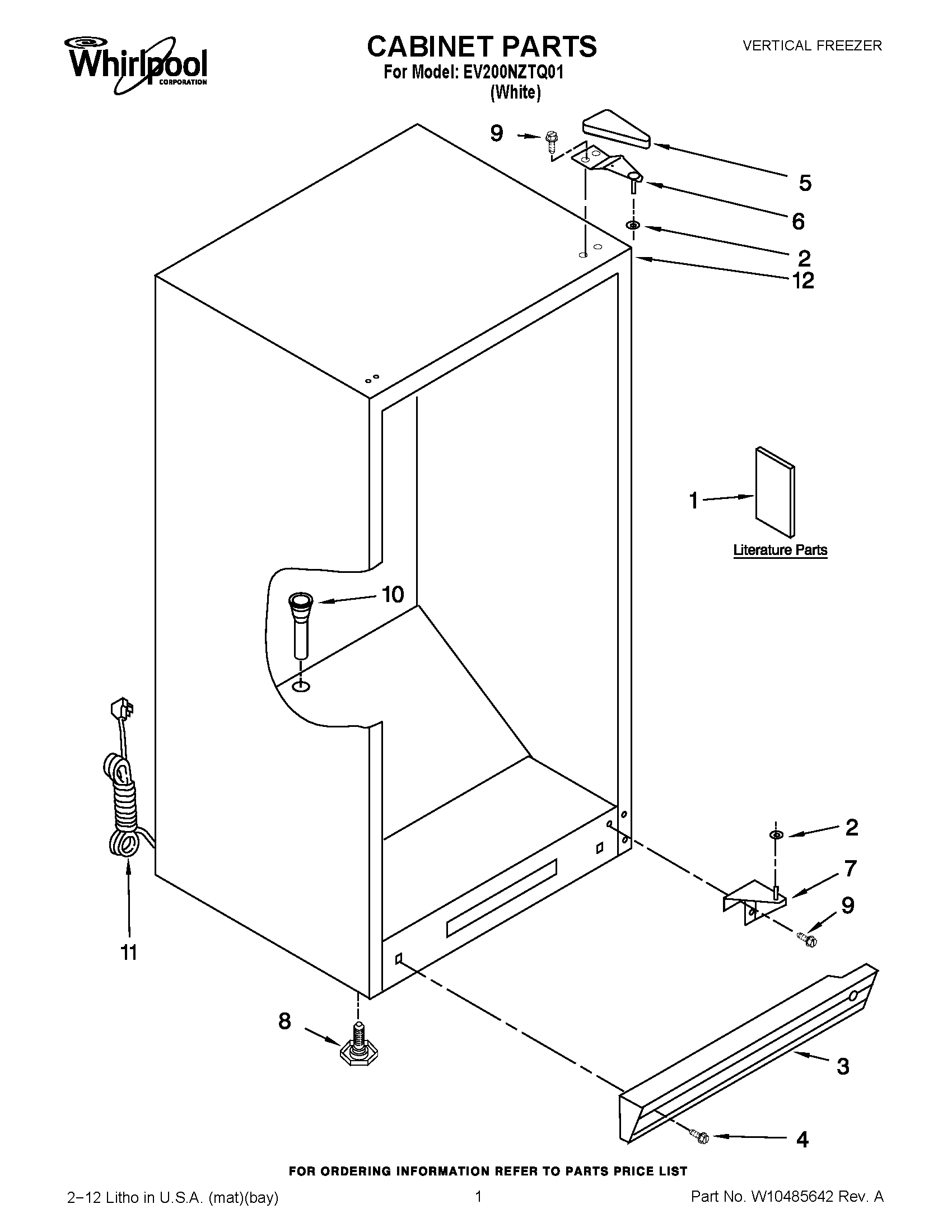

01 - CABINET PARTS

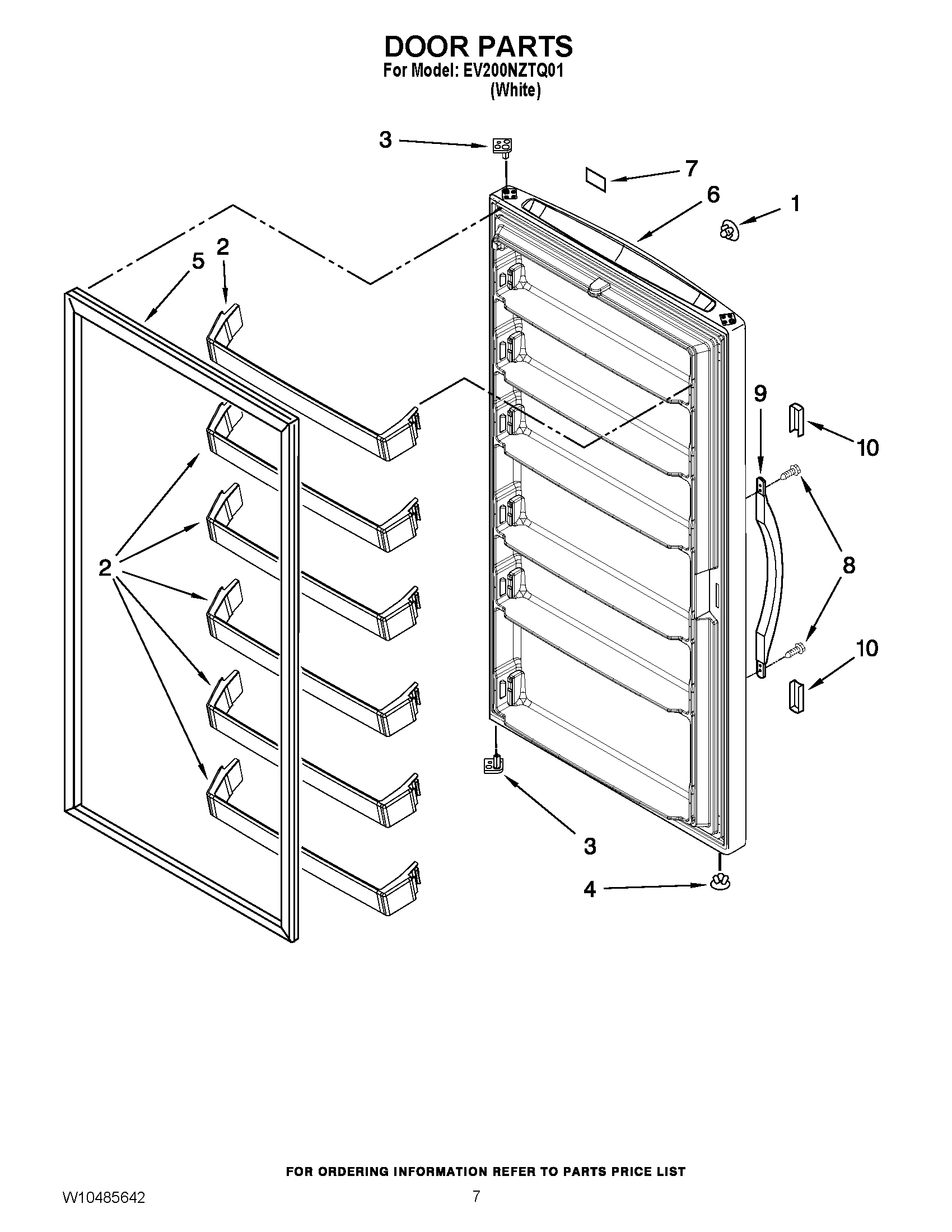

04 - DOOR PARTS
02 - LINER PARTS
03 - UNIT PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool EV200NZTQ01 VERTICAL FREEZER
1
PLUG, DOOR WPL 160121001 Contact Us For Availability
1
COVER, EVAPORATOR WPL 482699001 Contact Us For Availability
2
RAIL, DOOR WPL 465451001 Contact Us For Availability
2
KNOB, CONTROL WPL 382390001 Contact Us For Availability
2
EVAPORATOR WPL 481546 Contact Us For Availability
3
STOP, DOOR (UPPER & LOWER) WPL 281124001 Contact Us For Availability
3
THERMOSTAT WPL 483053002 Contact Us For Availability
3
MOTOR, FAN WPL 360336001 Contact Us For Availability
4
VENT PLUG WPL 324898007 Contact Us For Availability
4
SCREW WPL 324004092 Contact Us For Availability
5
GASKET, DOOR WPL 465151004 Contact Us For Availability
5
HEATER, DEFROST WPL 380405003 Contact Us For Availability
6
DOOR ASSEMBLY (INCLUDES INTERIOR DOOR LINER) WPL 482827047 Contact Us For Availability
6
BASKET, WIRE WPL 460064001 Contact Us For Availability
6
SHIELD, HEATER WPL 382697001 Contact Us For Availability
7
DEFROST TIMER WPL 381329 Contact Us For Availability
7
PAN, DRAIN WPL 482674001 Contact Us For Availability
8
SCREW WPL 324004091 Contact Us For Availability
8
SWITCH, LIGHT WPL 232164001 Contact Us For Availability
8
GASKET, COVER EVAPORATOR WPL 360180002 Contact Us For Availability
9
SCREW WPL 180271103 Contact Us For Availability
9
HANDLE WPL 481902001 Contact Us For Availability
9
BI-METAL DEFROST WPL 181801001 Contact Us For Availability
10
TUBE, DRAIN WPL 360696001 Contact Us For Availability
10
TRIM, HANDLE WPL 282012001 Contact Us For Availability
10
BULB, LIGHT WPL 134291002 Contact Us For Availability
11
CORD, POWER WPL 482399001 Contact Us For Availability
11
BRACKET, FAN MTR WPL 280028101 Contact Us For Availability
12
SHIELD, LIGHT WPL 382392001 Contact Us For Availability
12
SCREW, MOTOR WPL 380732004 Contact Us For Availability
13
BOX, CONTROL WPL 482389002 Contact Us For Availability
13
SCREW (4) WPL W10451793 Contact Us For Availability
14
SHELF, UPPER WIRE WPL 482634001 Contact Us For Availability
14
COMPRESSOR WPL 432972143 Contact Us For Availability
15
AIR DIFFUSER, UPR WPL 482556002 Contact Us For Availability
15
RELAY WPL 235154010 Contact Us For Availability
16
SHELF, LOWER WIRE WPL 482977001 Contact Us For Availability
17
AIR DIFFUSER, LWR WPL 482573002 Contact Us For Availability
17
COVER WPL 335171003 Contact Us For Availability
18
HARNESS, FAN WPL 481785001 Contact Us For Availability
19
OVERLOAD WPL 234286037 Contact Us For Availability
23
BOLT, COMPRESSOR WPL 282082001 Contact Us For Availability
24
BLOCK, FOAM WPL 180252101 Contact Us For Availability
25
EXCHANGER, HEAT WPL 282072003 Contact Us For Availability
28
CONDENSER WPL 482234002 Contact Us For Availability
30
SCREW WPL 324838048 Contact Us For Availability
32
GROMMET WPL 323995015 Contact Us For Availability
33
PLATE, EVAPORATOR MOUNT WPL 480504101 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
NI
REFRIGERANT CHARGE 6.2 OZ. (R-134A) WPL NP Contact Us For Availability
× ![]()
