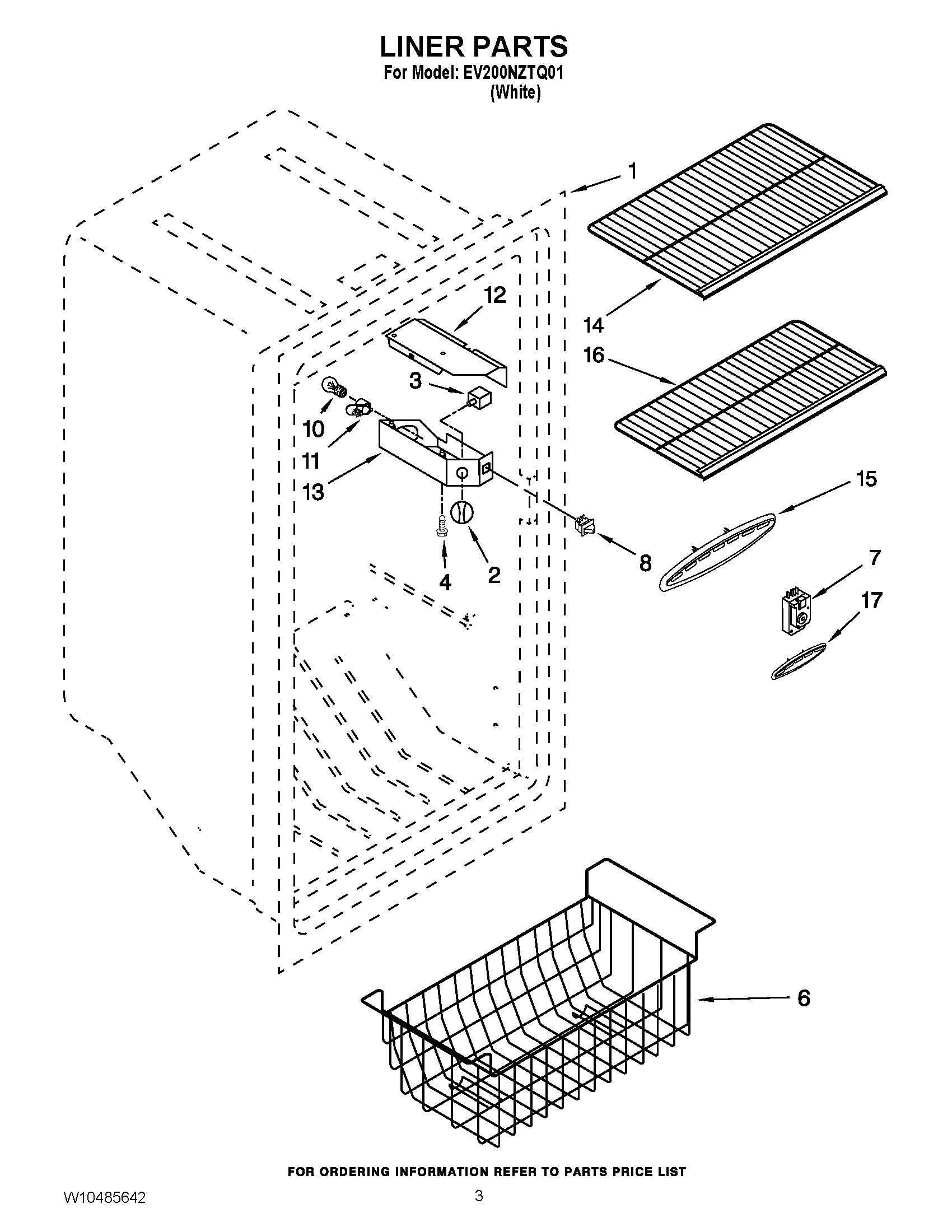

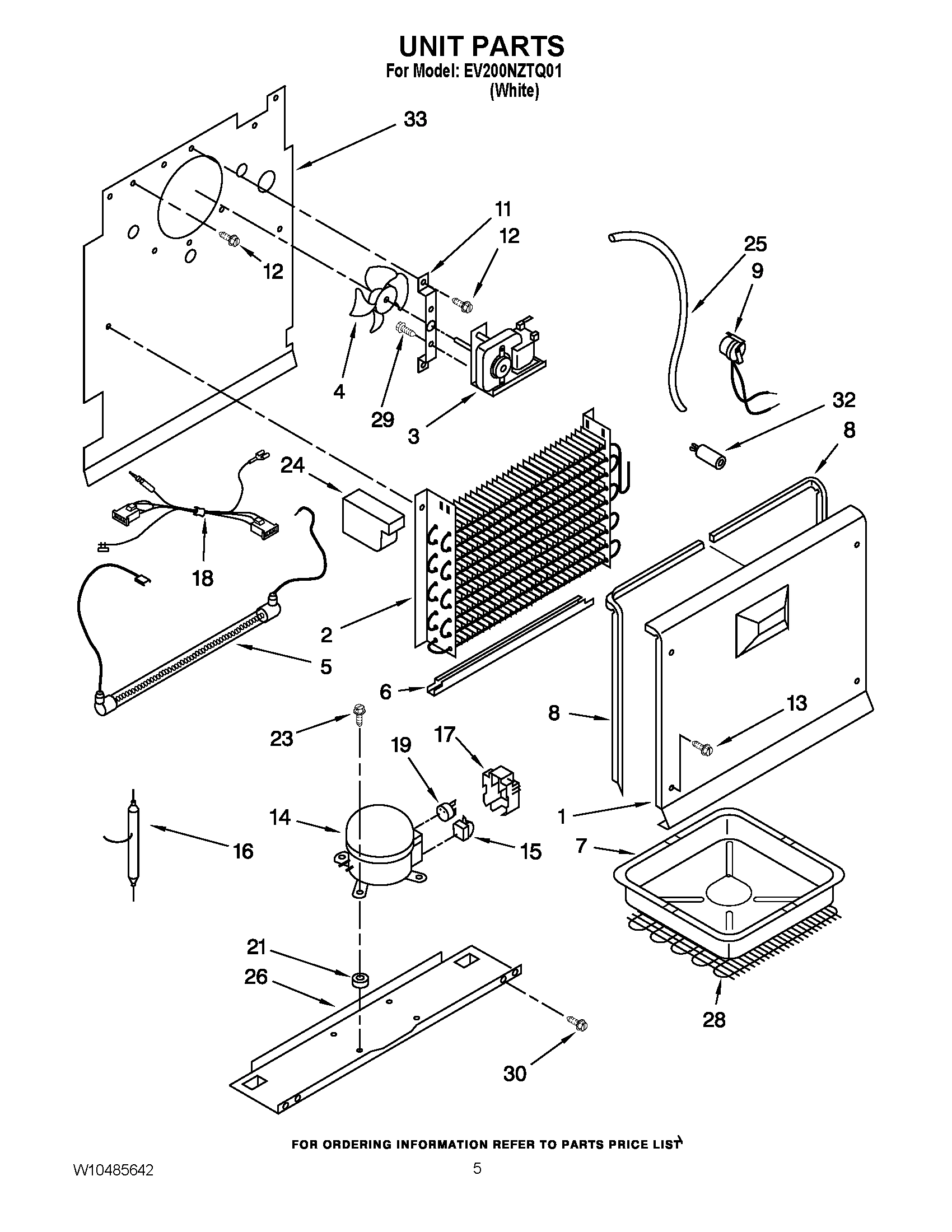

Model Whirlpool EV200NZTQ01 VERTICAL FREEZER – Common Parts & Diagrams

1
PLUG, DOOR
PLUG, DOOR WPL 160121001 Contact Us For Availability
View on Model
1
COVER, EVAPORATOR
COVER, EVAPORATOR WPL 482699001 Contact Us For Availability
View on Model
2
RAIL, DOOR
RAIL, DOOR WPL 465451001 Contact Us For Availability
View on Model
2
KNOB, CONTROL
KNOB, CONTROL WPL 382390001 Contact Us For Availability
View on Model
2
EVAPORATOR
EVAPORATOR WPL 481546 Contact Us For Availability
View on Model
3
STOP, DOOR (UPPER & LOWER)
STOP, DOOR (UPPER & LOWER) WPL 281124001 Contact Us For Availability
View on Model
3
THERMOSTAT
THERMOSTAT WPL 483053002 Contact Us For Availability
View on Model
3
MOTOR, FAN
MOTOR, FAN WPL 360336001 Contact Us For Availability
View on Model
4
VENT PLUG
VENT PLUG WPL 324898007 Contact Us For Availability
View on Model
4
SCREW
SCREW WPL 324004092 Contact Us For Availability
View on Model
5
GASKET, DOOR
GASKET, DOOR WPL 465151004 Contact Us For Availability
View on Model
5
HEATER, DEFROST
HEATER, DEFROST WPL 380405003 Contact Us For Availability
View on Model
6
DOOR ASSEMBLY (INCLUDES INTERIOR DOOR LINER)
DOOR ASSEMBLY (INCLUDES INTERIOR DOOR LINER) WPL 482827047 Contact Us For Availability
View on Model
6
BASKET, WIRE
BASKET, WIRE WPL 460064001 Contact Us For Availability
View on Model
6
SHIELD, HEATER
SHIELD, HEATER WPL 382697001 Contact Us For Availability
View on Model
7
DEFROST TIMER
DEFROST TIMER WPL 381329 Contact Us For Availability
View on Model
7
PAN, DRAIN
PAN, DRAIN WPL 482674001 Contact Us For Availability
View on Model
8
SCREW
SCREW WPL 324004091 Contact Us For Availability
View on Model
8
SWITCH, LIGHT
SWITCH, LIGHT WPL 232164001 Contact Us For Availability
View on Model
8
GASKET, COVER EVAPORATOR
GASKET, COVER EVAPORATOR WPL 360180002 Contact Us For Availability
View on Model
9
SCREW
SCREW WPL 180271103 Contact Us For Availability
View on Model
9
HANDLE
HANDLE WPL 481902001 Contact Us For Availability
View on Model
9
BI-METAL DEFROST
BI-METAL DEFROST WPL 181801001 Contact Us For Availability
View on Model
10
TUBE, DRAIN
TUBE, DRAIN WPL 360696001 Contact Us For Availability
View on Model
10
TRIM, HANDLE
TRIM, HANDLE WPL 282012001 Contact Us For Availability
View on Model
10
BULB, LIGHT
BULB, LIGHT WPL 134291002 Contact Us For Availability
View on Model
11
CORD, POWER
CORD, POWER WPL 482399001 Contact Us For Availability
View on Model
11
BRACKET, FAN MTR
BRACKET, FAN MTR WPL 280028101 Contact Us For Availability
View on Model
12
SHIELD, LIGHT
SHIELD, LIGHT WPL 382392001 Contact Us For Availability
View on Model
12
SCREW, MOTOR
SCREW, MOTOR WPL 380732004 Contact Us For Availability
View on Model
13
BOX, CONTROL
BOX, CONTROL WPL 482389002 Contact Us For Availability
View on Model
13
SCREW (4)
SCREW (4) WPL W10451793 Contact Us For Availability
View on Model
14
SHELF, UPPER WIRE
SHELF, UPPER WIRE WPL 482634001 Contact Us For Availability
View on Model
14
COMPRESSOR
COMPRESSOR WPL 432972143 Contact Us For Availability
View on Model
15
AIR DIFFUSER, UPR
AIR DIFFUSER, UPR WPL 482556002 Contact Us For Availability
View on Model
15
RELAY
RELAY WPL 235154010 Contact Us For Availability
View on Model
16
SHELF, LOWER WIRE
SHELF, LOWER WIRE WPL 482977001 Contact Us For Availability
View on Model
17
AIR DIFFUSER, LWR
AIR DIFFUSER, LWR WPL 482573002 Contact Us For Availability
View on Model
17
COVER
COVER WPL 335171003 Contact Us For Availability
View on Model
18
HARNESS, FAN
HARNESS, FAN WPL 481785001 Contact Us For Availability
View on Model
19
OVERLOAD
OVERLOAD WPL 234286037 Contact Us For Availability
View on Model
23
BOLT, COMPRESSOR
BOLT, COMPRESSOR WPL 282082001 Contact Us For Availability
View on Model
24
BLOCK, FOAM
BLOCK, FOAM WPL 180252101 Contact Us For Availability
View on Model
25
EXCHANGER, HEAT
EXCHANGER, HEAT WPL 282072003 Contact Us For Availability
View on Model
28
CONDENSER
CONDENSER WPL 482234002 Contact Us For Availability
View on Model
30
SCREW
SCREW WPL 324838048 Contact Us For Availability
View on Model
32
GROMMET
GROMMET WPL 323995015 Contact Us For Availability
View on Model
33
PLATE, EVAPORATOR MOUNT
PLATE, EVAPORATOR MOUNT WPL 480504101 Contact Us For Availability
View on Model
NI
TAPE, VINYL (3/4 X 108``)
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
View on Model
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN WPL 799344 Contact Us For Availability
View on Model
NI
REFRIGERANT CHARGE 6.2 OZ. (R-134A)
REFRIGERANT CHARGE 6.2 OZ. (R-134A) WPL NP Contact Us For Availability
View on Model
