Model Whirlpool EV200NXRW0 VERTICAL FREEZER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

WPL 206925 WPL 206925 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL LIT1101097 WPL LIT1101097 Contact Us For Availability

WPL LIT1104035 WPL LIT1104035 Contact Us For Availability

WPL LIT1104037 WPL LIT1104037 Contact Us For Availability

WPL LIT1104044 WPL LIT1104044 Contact Us For Availability

WPL LIT656493 WPL LIT656493 Contact Us For Availability

WPL LIT789218 WPL LIT789218 Contact Us For Availability

1

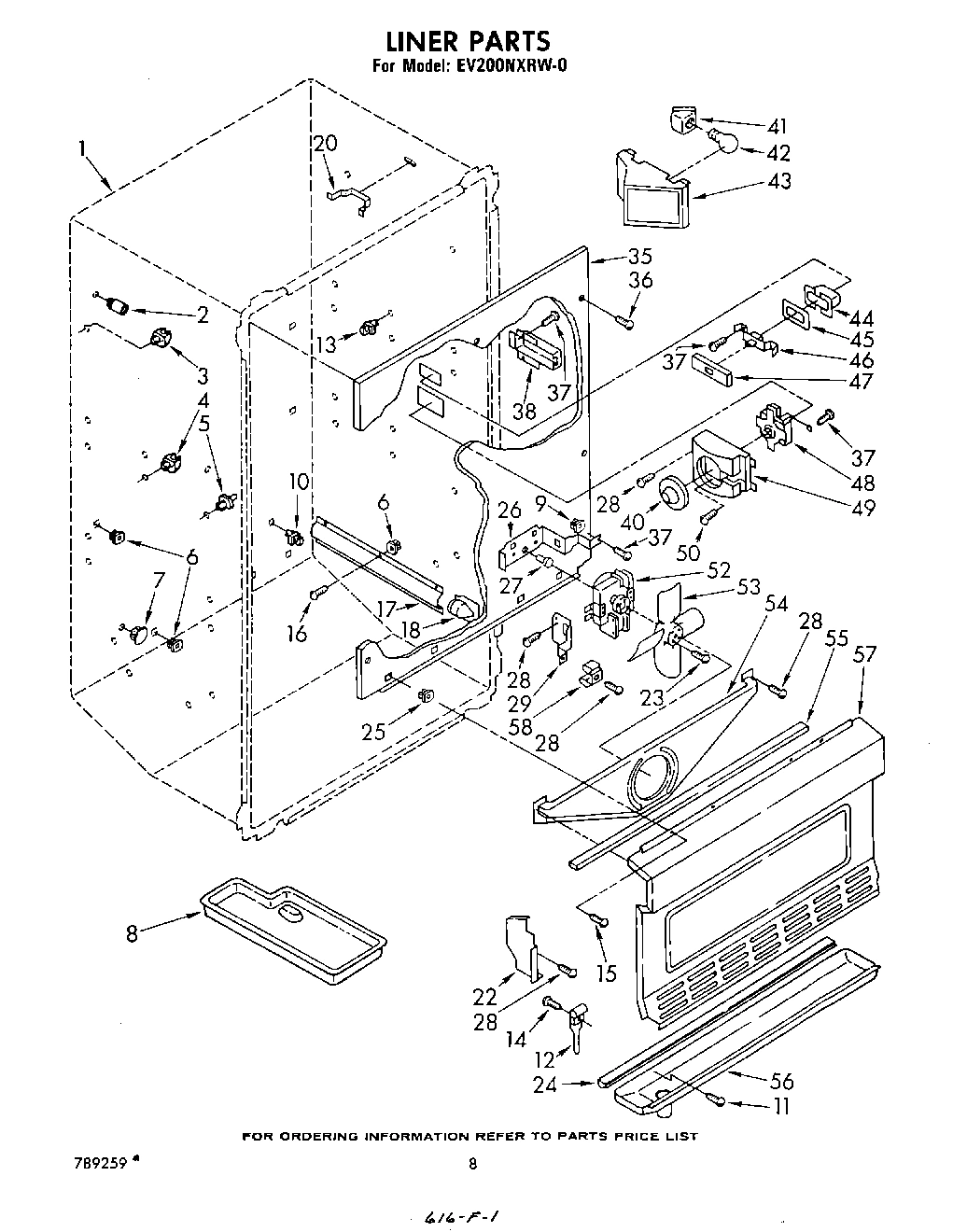

Cabinet (Not A Serviceable Part) WPL ARI56354A5 Contact Us For Availability

1

Retainer, Gasket (2) (Top & Bottom) WPL 836118 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI56355A1 Contact Us For Availability

1

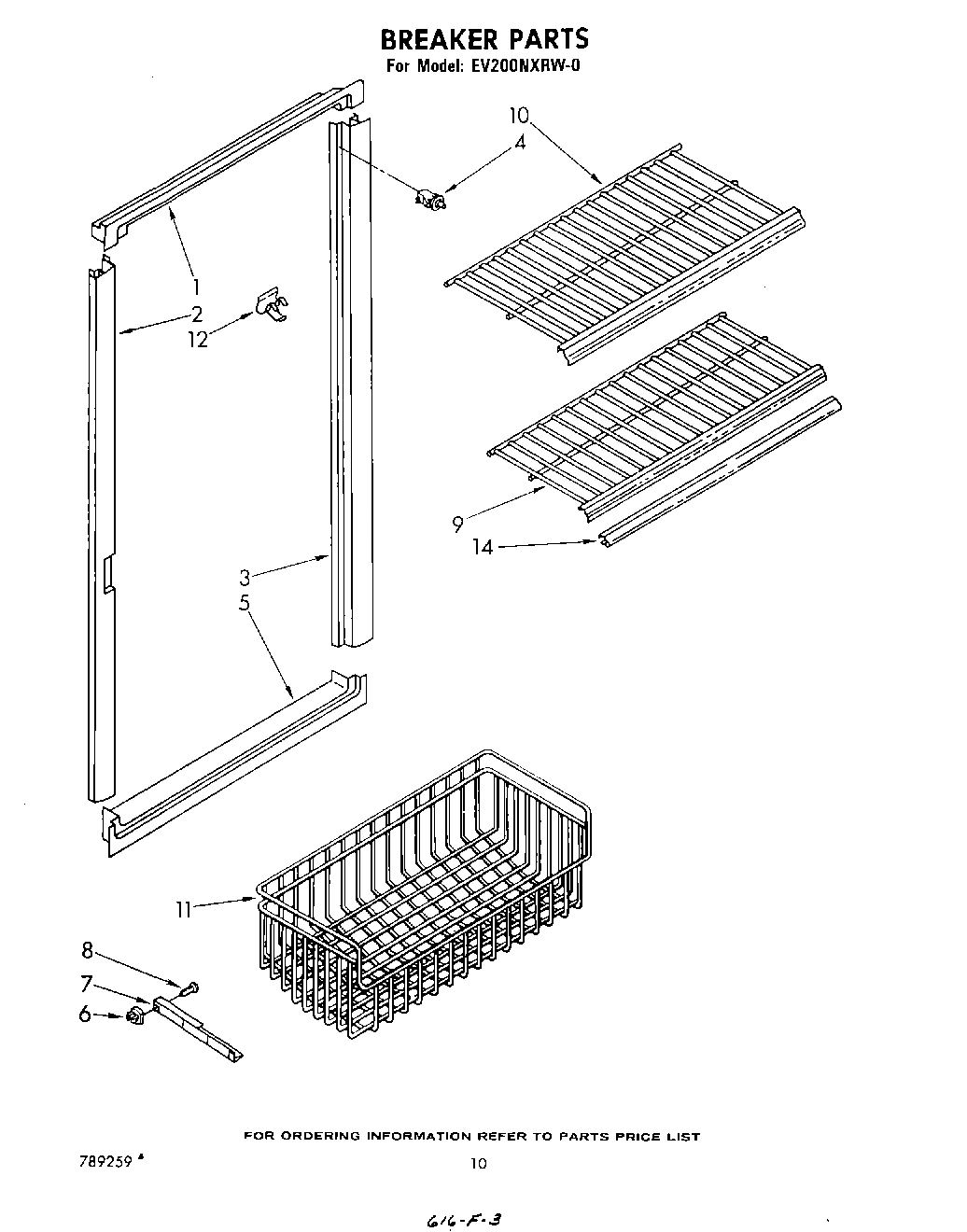

Breaker, Top WPL 940918 Contact Us For Availability

2

Extension Fitting WPL 841646 Contact Us For Availability

2

Panel WPL 942677 Contact Us For Availability

2

Spacer, Evaporator Mounting (9) WPL 657544 Contact Us For Availability

2

Breaker, L.S. WPL 839831 Contact Us For Availability

3

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

3

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

3

Clip, Drain WPL 841648 Contact Us For Availability

3

Stud, Saddle (R.S.) (4) WPL 523263 Contact Us For Availability

3

Stud, Saddle (L.S.) (4) WPL 523264 Contact Us For Availability

3

Breaker, R.S. WPL 836635 Contact Us For Availability

4

WP849996 Whirlpool Refrigerator Endcap Trim In Stock WPL WP849996 $3.70

4

Screw, 8-15 x 3/8 WPL 488978 Contact Us For Availability

4

Stud, Shelf (6) WPL 509108 Contact Us For Availability

4

Switch, Light WPL 549191 Contact Us For Availability

5

Plug, Hole (3) (White) WPL 842031 Contact Us For Availability

5

Plug, Hole (3) (Almond) WPL 989195 Contact Us For Availability

5

Trim, Shelf (5) WPL 1104084 Contact Us For Availability

5

Stud, Shelf (8) WPL 529758 Contact Us For Availability

5

Breaker, Bottom WPL 839829 Contact Us For Availability

6

Leveler (2) WPL 836392 Contact Us For Availability

6

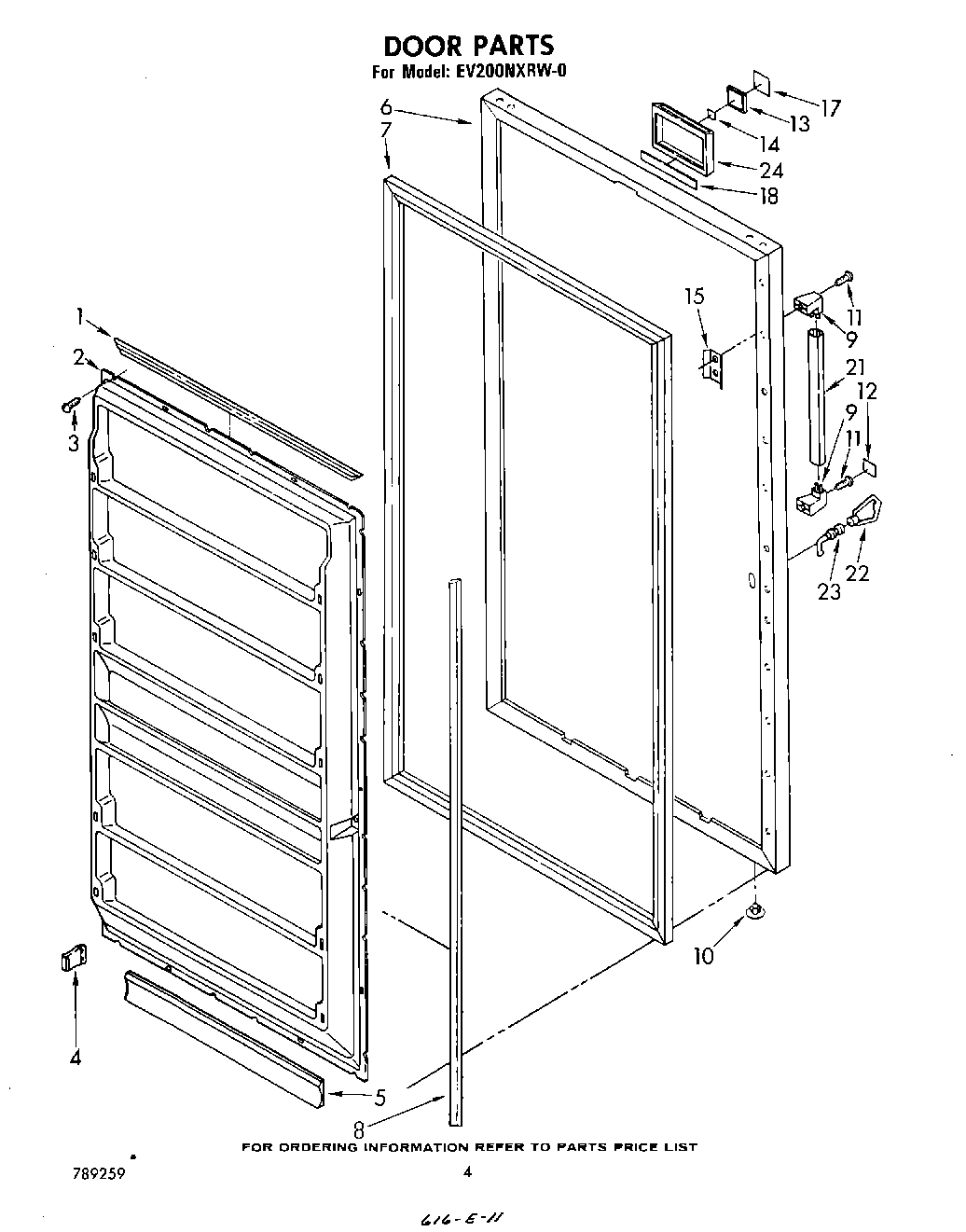

Door, Exterior (White) WPL 942619 Contact Us For Availability

6

Door, Exterior (Almond) WPL 942623 Contact Us For Availability

6

Grommet WPL 842339 Contact Us For Availability

7

2188438A Whirlpool Freezer DOR Gasket Backorder WPL 2188438A $134.50

7

Filler Grille (White) WPL 838535 Contact Us For Availability

7

Filler Grille (Almond) WPL 989931 Contact Us For Availability

7

Plug, Hole (13) WPL 519890 Contact Us For Availability

7

Track, Shelf (R.S.) WPL 837554 Contact Us For Availability

7

Track, Shelf (L.S.) WPL 837557 Contact Us For Availability

8

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

8

Tray, Evaporating WPL 842041 Contact Us For Availability

8

Lock, Strike WPL 991992 Contact Us For Availability

8

Retainer, Gasket (Side) (2) WPL 836120 Contact Us For Availability

9

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

9

Screw, 8-22 x .312 WPL 489085 Contact Us For Availability

9

End, Handle WPL 946737 Contact Us For Availability

9

Grommet WPL 538449 Contact Us For Availability

9

Shelf (1) WPL 849691 Contact Us For Availability

Grille, Exterior (White) WPL 945600 Contact Us For Availability

Grille, Exterior (Almond) WPL 945604 Contact Us For Availability

Plug, Hole (2) WPL 534927 Contact Us For Availability

Stud, Hook (2) WPL 653172 Contact Us For Availability

Shelf (3) WPL 849690 Contact Us For Availability

Heater, Stile WPL 936129 Contact Us For Availability

Screw, 8-15 x 1-5/8 WPL 488987 Contact Us For Availability

Screw, 8-15 x 1/2 (5) WPL 486214 Contact Us For Availability

Basket, Slide-Out WPL 839852 Contact Us For Availability

Clip, Retainer (10) WPL 935663 Contact Us For Availability

Cover, Handle End WPL 946742 Contact Us For Availability

Probe, Heat (Includes Illus. 14) WPL 849689 Contact Us For Availability

Clip (3) WPL 939139 Contact Us For Availability

13

Clip, Grille Retainer WPL 989068 Contact Us For Availability

13

Nameplate (Includes Items 14 & 17) WPL 945116 Contact Us For Availability

13

Stud, Hook (2) WPL 651590 Contact Us For Availability

14

Guard, Timer WPL 548708 Contact Us For Availability

14

Tape Strip WPL 991259 Contact Us For Availability

14

Trim, Shelf (4) (Snap-On) WPL 942645 Contact Us For Availability

15

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

15

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

16

Box, Junction WPL 549947 Contact Us For Availability

17

Timer, Defrost WPL 943435 Contact Us For Availability

17

Insert, Nameplate WPL 945108 Contact Us For Availability

17

Cover, Tube WPL 839827 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Tape Strip (1/2 Wide) WPL 1104030 Contact Us For Availability

Tape Strip (3/4 Wide) WPL 1104031 Contact Us For Availability

Cover, Tube WPL 839826 Contact Us For Availability

19

WP944224 Whirlpool Refrigerator Support Backorder WPL WP944224 $3.70

20

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

20

Clip, Speed (3) WPL 533998 Contact Us For Availability

21

Connector, Screw-On WPL 547217 Contact Us For Availability

21

Handle, Center WPL 1104041 Contact Us For Availability

22

Shim, Hinge WPL 836151 Contact Us For Availability

22

Key WPL 941380 Contact Us For Availability

22

Baffle, Evaporator (2) WPL 839883 Contact Us For Availability

23

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

23

Hinge, Top WPL 842038 Contact Us For Availability

23

Lock WPL 941379 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Container WPL 1104054 Contact Us For Availability

Lacquer, Bright Aluminum (12 Oz. Spray Can) WPL 511881 Contact Us For Availability

Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

Enamel, Almond (1 Qt. WPL 978883 Contact Us For Availability

Gasket, Drain Pan WPL 849480 Contact Us For Availability

25

Shim, Hinge WPL 836196 Contact Us For Availability

25

Grommet (2) WPL 509812 Contact Us For Availability

26

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

26

Cover (Used W/ Service Compressor) WPL 549505 Contact Us For Availability

26

Bracket (Single) WPL 548264 Contact Us For Availability

27

Strap, Cover (Used W/Service Compressor) WPL 549342 Contact Us For Availability

27

Hinge (Bottom) WPL 836686 Contact Us For Availability

27

Grommet (3) WPL 548268 Contact Us For Availability

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Clip (2) WPL 548744 Contact Us For Availability

Screw (Repair) WPL 488949 Contact Us For Availability

29

Rail, Front WPL 941697 Contact Us For Availability

29

Tap Plate WPL 836162 Contact Us For Availability

29

Bracket (Double) WPL 548263 Contact Us For Availability

30

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

31

Clamp WPL 548508 Contact Us For Availability

31

Plate, Timer WPL 548705 Contact Us For Availability

32

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

32

Screw, 6-20 x 3/8 (2) WPL 488424 Contact Us For Availability

33

Condenser WPL 943480 Contact Us For Availability

33

Screw, 8 x 3/8 (2) WPL 488624 Contact Us For Availability

34

Clamp (4) WPL 548738 Contact Us For Availability

34

Insert, Grille WPL 836372 Contact Us For Availability

35

Grommet (4) WPL 943447 Contact Us For Availability

35

Bumper (2) WPL 546131 Contact Us For Availability

35

Duct, Air WPL 839888 Contact Us For Availability

36

Fitting, Drain WPL 839861 Contact Us For Availability

36

Screw, 8 x 1-1/8 (9) WPL 488876 Contact Us For Availability

37

WP4387489 Whirlpool Refrigerator Bi-Metal Def In Stock WPL WP4387489 $33.76

37

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

38

Clamp WPL 513584 Contact Us For Availability

38

Cover, Insulation WPL 836553 Contact Us For Availability

40

Knob, Thermostat WPL 981928 Contact Us For Availability

41

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

41

Evaporator WPL 1105084 Contact Us For Availability

41

Bracket, Pilot Light WPL 946731 Contact Us For Availability

42

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

42

Cleat, Cord WPL 653037 Contact Us For Availability

43

Heater, Defrost WPL 989698 Contact Us For Availability

43

Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability

43

Shield, Light WPL 848158 Contact Us For Availability

44

Container, Power Saver Switch WPL 845051 Contact Us For Availability

45

Exchanger, Heat WPL 1100838 Contact Us For Availability

45

Light, Pilot WPL 530584 Contact Us For Availability

45

Gasket, Container WPL 845052 Contact Us For Availability

46

Dampener (2) WPL 510769 Contact Us For Availability

46

Switch, Power Saver WPL 845049 Contact Us For Availability

47

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

47

Pilot Light Wire Assembly WPL 549538 Contact Us For Availability

47

Escutcheon, Power Saver WPL 934924 Contact Us For Availability

48

4389248 Whirlpool Refrigerator Thermostat Backorder WPL 4389248 $119.90

48

Clamp, Tube (2) WPL 510716 Contact Us For Availability

48

Guard, Fan WPL 850156 Contact Us For Availability

49

Pan, Drip WPL 945572 Contact Us For Availability

49

Escutcheon, Thermostat WPL 843953 Contact Us For Availability

50

Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability

52

482469 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482469 $88.24

53

Blade, Fan WPL 992920 Contact Us For Availability

54

Cover, Fan Orifice WPL 984684 Contact Us For Availability

55

NLA:SCREW Backorder WPL WPW10141645 $3.70

55

Gasket WPL 659202 Contact Us For Availability

56

Cover WPL 850457 Contact Us For Availability

56

Pan, Drain WPL 839818 Contact Us For Availability

57

Cover, Evaporator WPL 839846 Contact Us For Availability

58

Clip, Heater WPL 548459 Contact Us For Availability

58

Clip, Expansion (2) WPL 537095 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

WPL 978029 WPL 978029 Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability
