Model Whirlpool EV200FXXN00 VERTICAL FREEZER – Common Parts & Diagrams
05 - UNIT
03 - LINER, LIT/OPTIONAL

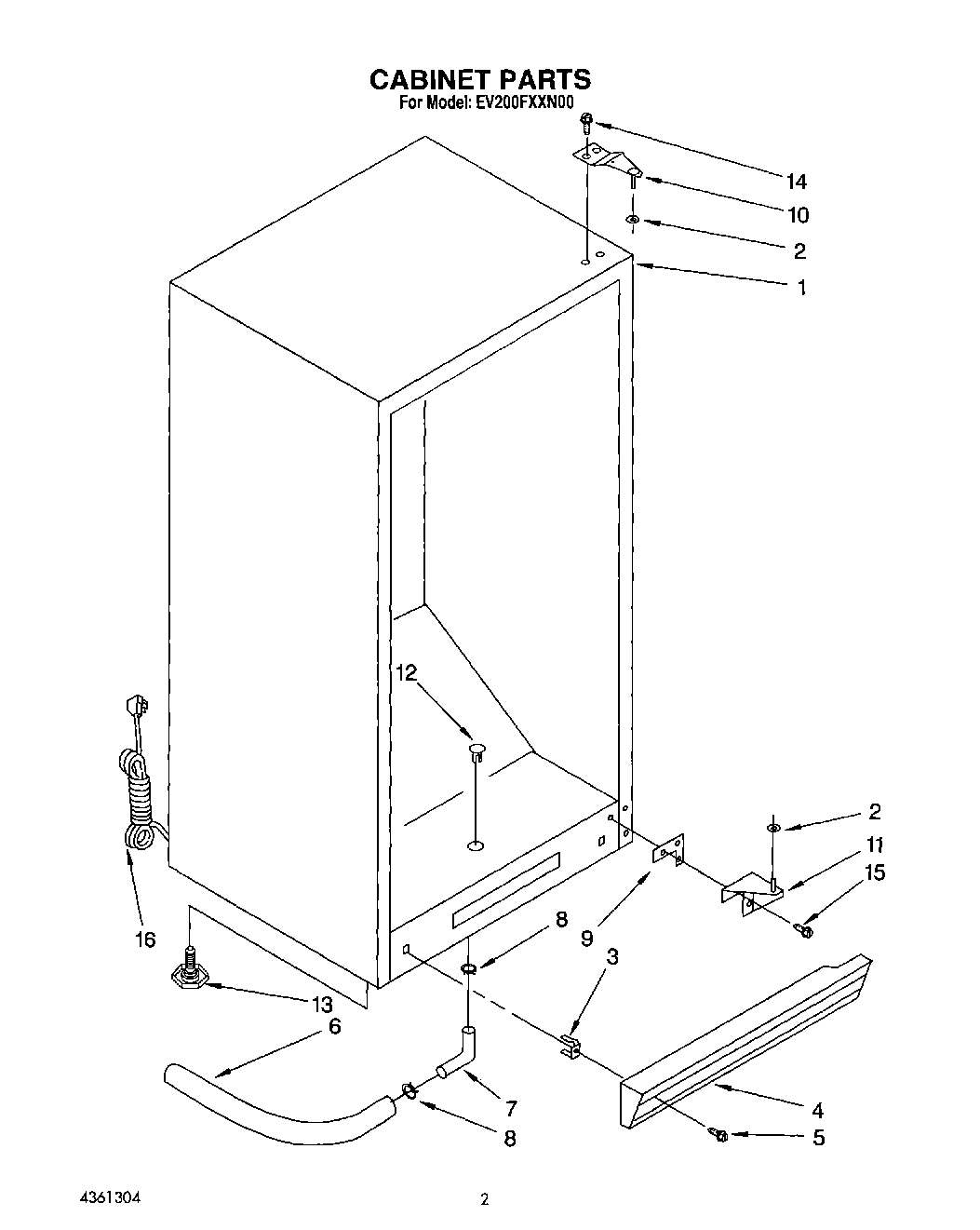

02 - CABINET

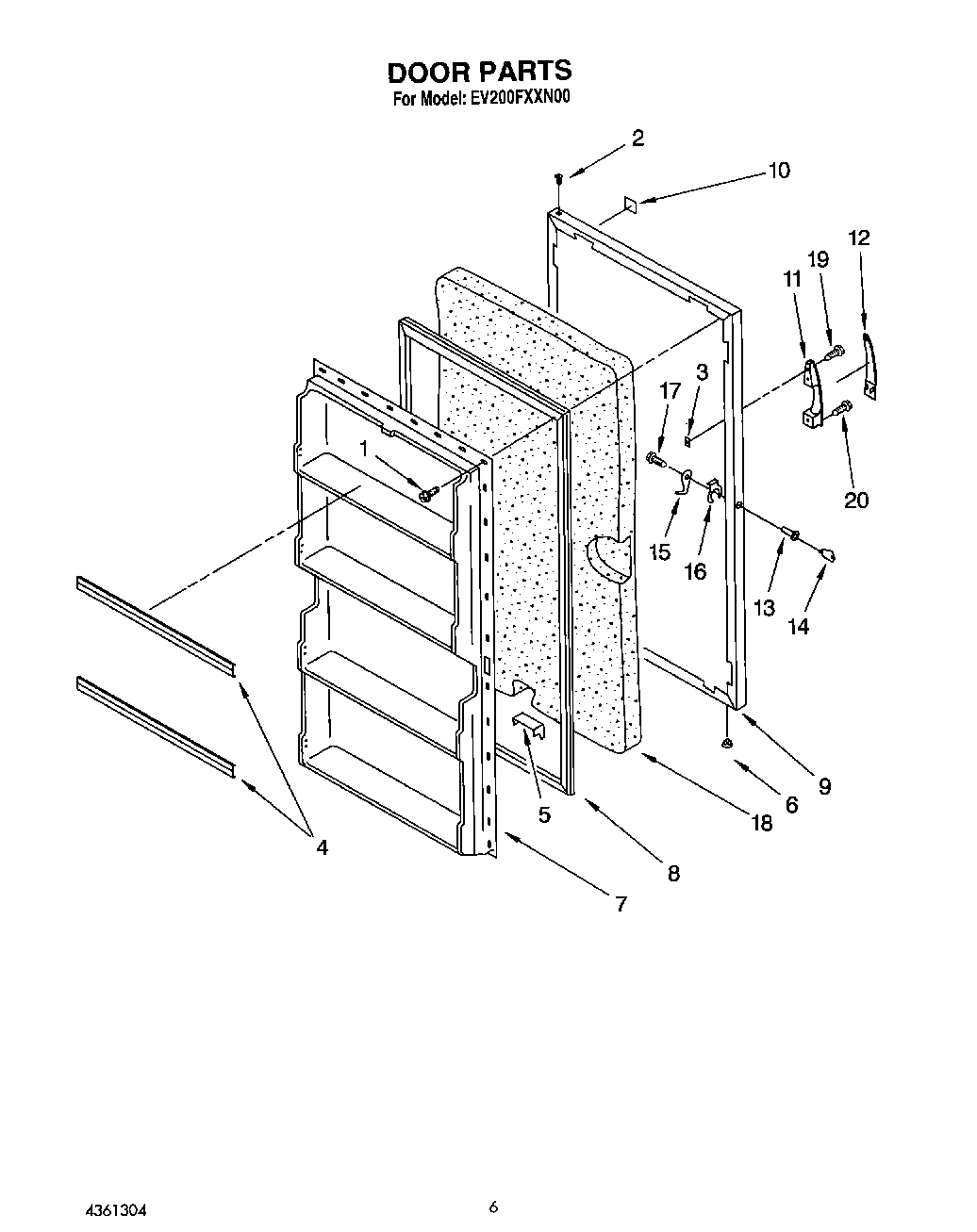

04 - DOOR
Common parts from model Whirlpool EV200FXXN00 VERTICAL FREEZER
Use & Care Guide WPL LIT4356955 Contact Us For Availability
Parts List WPL LIT4361304 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI56296A3 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI56295A8 Contact Us For Availability
2
Control Knob WPL 4356802 Contact Us For Availability
3
Anchor, Screw WPL 4356812 Contact Us For Availability
4
Thermostat WPL 4356808 Contact Us For Availability
4
Grille (Coffee) WPL 4356967 Contact Us For Availability
4
Door Shelf Trim (6) WPL 4356961 Contact Us For Availability
5
Screw WPL 4356809 Contact Us For Availability
5
Foam Block WPL 4356893 Contact Us For Availability
6
Drain Hose WPL 4356824 Contact Us For Availability
7
Gate WPL 4356959 Contact Us For Availability
7
Tube, Drain WPL 4356825 Contact Us For Availability
7
Interior Door WPL 4356968 Contact Us For Availability
8
Support, Fence, (R.H.) WPL 4356889 Contact Us For Availability
8
Hose Clamp WPL 4356827 Contact Us For Availability
9
Overload WPL 4356331 Contact Us For Availability
9
Shim, Bottom WPL 4356828 Contact Us For Availability
9
Exterior Door (Almond) WPL 4356954 Contact Us For Availability
10
Evaporator Top WPL 4356962 Contact Us For Availability
10
Screw WPL 4356891 Contact Us For Availability
10
Top, Hinge WPL 4356965 Contact Us For Availability
10
Nameplate WPL 4356940 Contact Us For Availability
11
Evaporator Shelf (One) WPL 4356966 Contact Us For Availability
11
Light Shield WPL 4356934 Contact Us For Availability
11
Bottom, Hinge WPL 4356953 Contact Us For Availability
11
Handle, Chrome WPL 4356895 Contact Us For Availability
12
Evaporator Shelf (Two) WPL 4356957 Contact Us For Availability
12
Drain Plug WPL 4356835 Contact Us For Availability
12
Handle, Insert (Almond) WPL 4356896 Contact Us For Availability
13
Evaporator Shelf (Three) WPL 4356958 Contact Us For Availability
15
Evaporator, Mounting Screw WPL 4356851 Contact Us For Availability
15
Socket, Lamp WPL 4356874 Contact Us For Availability
15
Lower, Hinge Screw WPL 4356822 Contact Us For Availability
16
Clip, Cover WPL 4356951 Contact Us For Availability
16
Power Cord WPL 4356969 Contact Us For Availability
16
Spring, Clip Mounting WPL 4356842 Contact Us For Availability
17
Cover WPL 4356946 Contact Us For Availability
18
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
18
Heat Exchanger WPL 4356956 Contact Us For Availability
18
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
18
Control Bulb Screw WPL 4356853 Contact Us For Availability
18
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
18
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
19
Evaporator Shelf (Four) WPL 4356960 Contact Us For Availability
19
Screw, Handle WPL 302717 Contact Us For Availability
20
Overload Spring WPL 4356945 Contact Us For Availability
20
Screw WPL 488839 Contact Us For Availability
× ![]()
