  • Whirlpool EV200FXBQ00

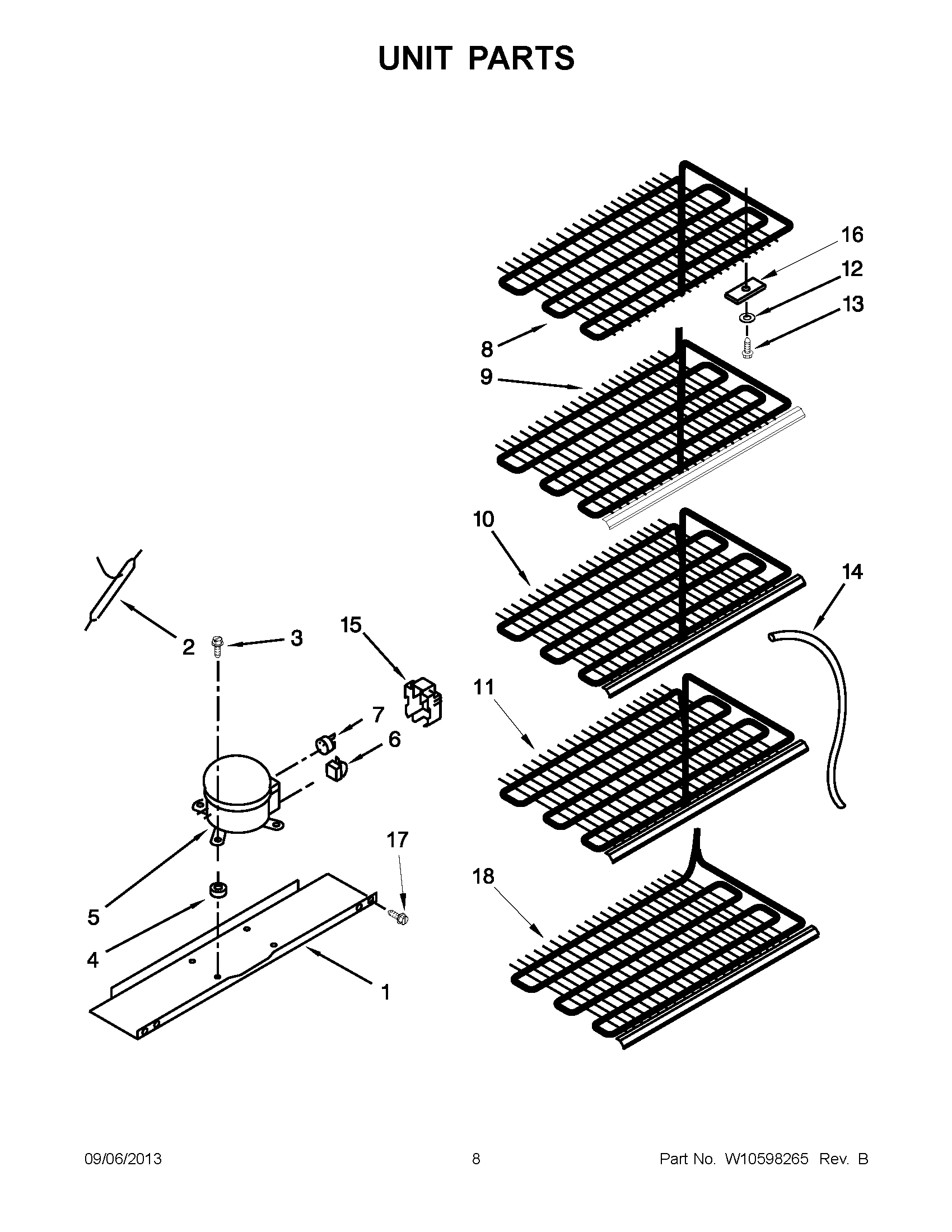

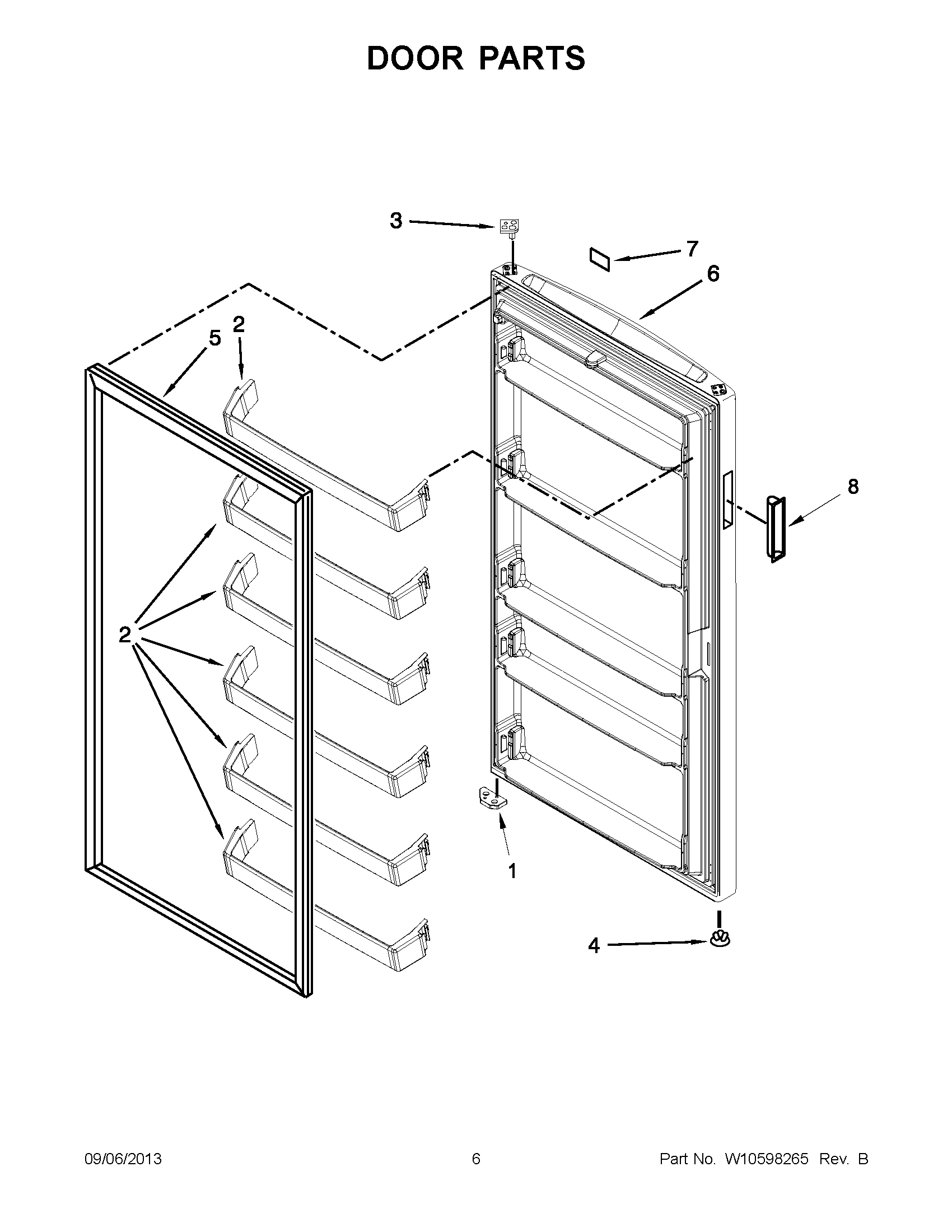

Model Whirlpool EV200FXBQ00 VERTICAL FREEZER – Common Parts & Diagrams

1
OWNERS MANUAL
OWNERS MANUAL WPL W10326799 Contact Us For Availability
View on Model
1
ENERGY GUIDE/TAG
ENERGY GUIDE/TAG WPL W10571654 Contact Us For Availability
View on Model
2
CABINET (NOT A SERVICEABLE PART)
CABINET (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability
View on Model
2
KNOB, CONTROL
KNOB, CONTROL WPL 382390001 Contact Us For Availability
View on Model
3
THERMOSTAT
THERMOSTAT WPL 483053001 Contact Us For Availability
View on Model
3
TRIM, TOE KICK (WHITE)
TRIM, TOE KICK (WHITE) WPL 60461006 Contact Us For Availability
View on Model
4
SCREW
SCREW WPL 324004092 Contact Us For Availability
View on Model
4
SCREW
SCREW WPL 24004107 Contact Us For Availability
View on Model
5
SUPPORT, RIGHT HAND
SUPPORT, RIGHT HAND WPL 480576201 Contact Us For Availability
View on Model
5
CORD, POWER
CORD, POWER WPL 482399001 Contact Us For Availability
View on Model
6
GATE
GATE WPL 380340110 Contact Us For Availability
View on Model
6
HINGE, TOP FC (WHITE)
HINGE, TOP FC (WHITE) WPL 281016105 Contact Us For Availability
View on Model
7
SHIELD, CORNER CONTROL
SHIELD, CORNER CONTROL WPL 382392001 Contact Us For Availability
View on Model
7
HINGE, BOTTOM (WHITE)
HINGE, BOTTOM (WHITE) WPL 482693001 Contact Us For Availability
View on Model
8
SWITCH, LIGHT
SWITCH, LIGHT WPL 232164001 Contact Us For Availability
View on Model
8
LEG, LEVELER (BLACK)
LEG, LEVELER (BLACK) WPL 382710001 Contact Us For Availability
View on Model
9
HOUSING, CORNER CONTROL
HOUSING, CORNER CONTROL WPL 482389002 Contact Us For Availability
View on Model
9
SCREW
SCREW WPL 180271103 Contact Us For Availability
View on Model
10
BULB, LIGHT
BULB, LIGHT WPL 134291002 Contact Us For Availability
View on Model
10
GROMMET, DRAIN
GROMMET, DRAIN WPL 281437002 Contact Us For Availability
View on Model
11
CLAMP, TUBE
CLAMP, TUBE WPL 180231101 Contact Us For Availability
View on Model
12
SUPPORT, LEFT HAND
SUPPORT, LEFT HAND WPL 480576202 Contact Us For Availability
View on Model
12
SCREW
SCREW WPL 180257102 Contact Us For Availability
View on Model
13
SCREW, EVAPORATOR MOUNTING
SCREW, EVAPORATOR MOUNTING WPL 324004109 Contact Us For Availability
View on Model
13
COVER, HINGE (WHITE)
COVER, HINGE (WHITE) WPL 380838003 Contact Us For Availability
View on Model
14
Heat Exchanger
Heat Exchanger WPL 4390809 Contact Us For Availability
View on Model
14
DRAIN PLUG
DRAIN PLUG WPL 180860 Contact Us For Availability
View on Model
16
CLAMP
CLAMP WPL 180308101 Contact Us For Availability
View on Model
17
SCREW
SCREW WPL 324838048 Contact Us For Availability
View on Model
18
EVAPORATOR, SHELF BOTTOM
EVAPORATOR, SHELF BOTTOM WPL 482197004 Contact Us For Availability
View on Model
NI
MISCELLANEOUS, KIT, FOAM SLAB (30`` X 32 1/2`
MISCELLANEOUS, KIT, FOAM SLAB (30`` X 32 1/2` WPL 876029 Contact Us For Availability
View on Model
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108``)
MISCELLANEOUS, TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
View on Model
NI
TORX SCREW WRENCH TORX KEY
TORX SCREW WRENCH TORX KEY WPL 1117510 Contact Us For Availability
View on Model
NI
MISCELLANEOUS, CLEANER, STAINLESS STEEL
MISCELLANEOUS, CLEANER, STAINLESS STEEL WPL 20000008 Contact Us For Availability
View on Model
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (11/4 OZ.)
MISCELLANEOUS, CEMENT, ALUMILASTIC (11/4 OZ.) WPL 542639 Contact Us For Availability
View on Model
