Model Whirlpool EV190NXWN02 VERTICAL FREEZER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

WPL 206925 WPL 206925 Contact Us For Availability

WPL LIT1114908 WPL LIT1114908 Contact Us For Availability

WPL LIT1114915 WPL LIT1114915 Contact Us For Availability

WPL LIT1127612 WPL LIT1127612 Contact Us For Availability

WPL LIT4316123 WPL LIT4316123 Contact Us For Availability

WPL LIT656493 WPL LIT656493 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI56219A6 Contact Us For Availability

1

Dampener (2) WPL 1118552 Contact Us For Availability

1

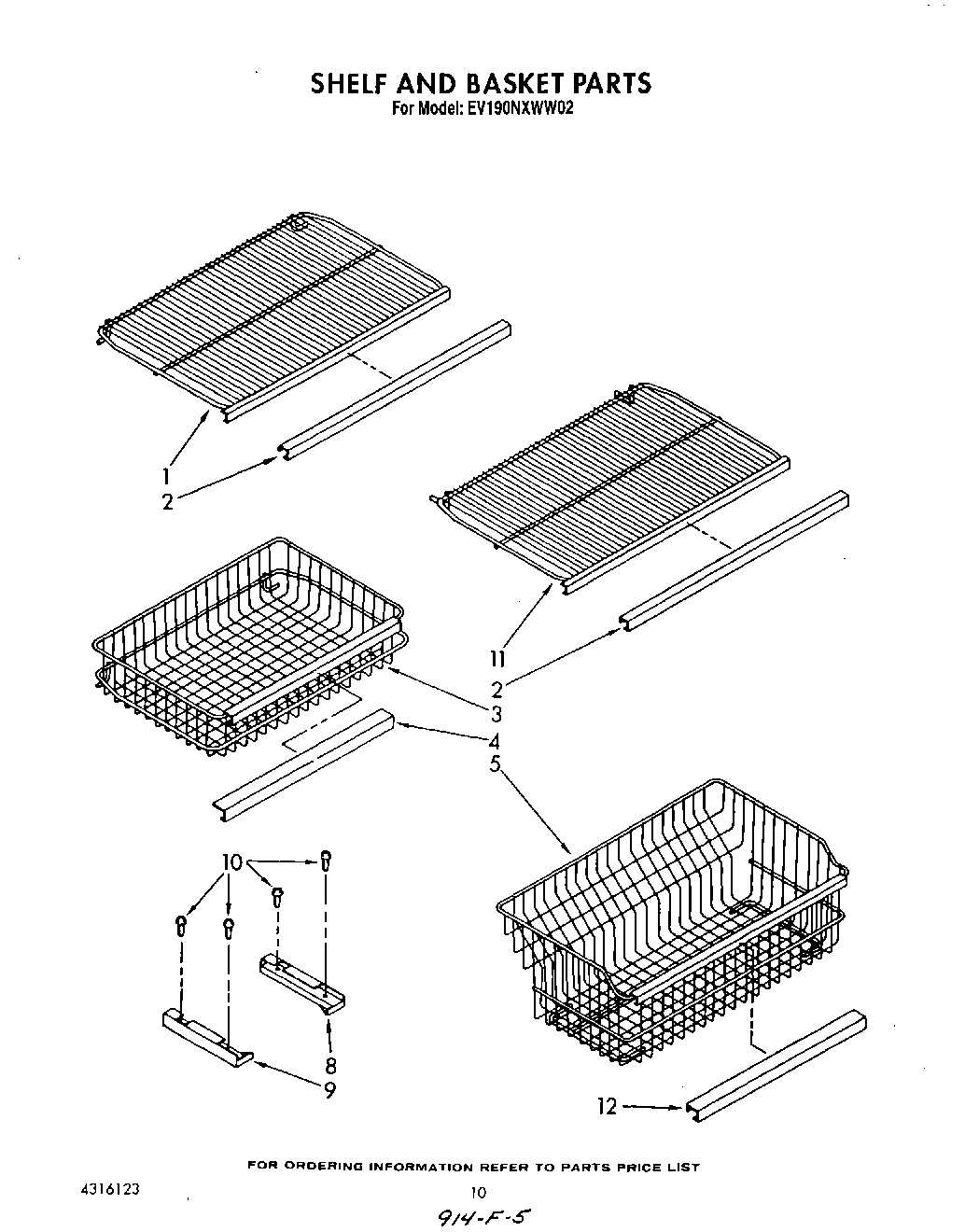

Shelf, Pullout WPL 1106724 Contact Us For Availability

1

Trim, Door Shelf WPL 1104199 Contact Us For Availability

2

Harness, Motor WPL 1114705 Contact Us For Availability

2

Bumper (2) WPL 1103640 Contact Us For Availability

2

Trim, Snap-On WPL 1103650 Contact Us For Availability

2

Panel, Interior WPL 1120639 Contact Us For Availability

3

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

3

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

3

Wire, Cover (Rear) WPL 1100600 Contact Us For Availability

3

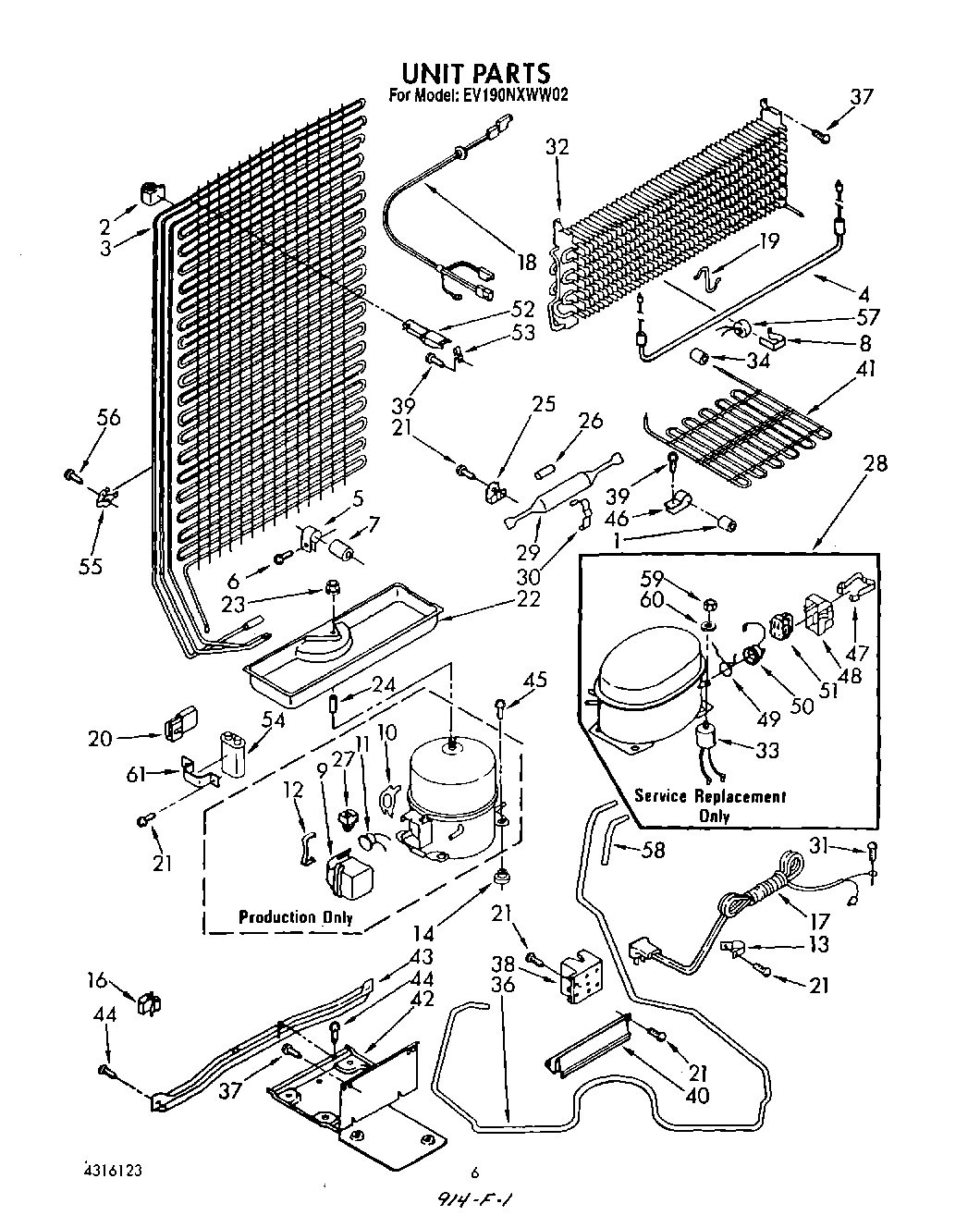

Condenser Assembly WPL 1100568 Contact Us For Availability

3

Basket, Pullout WPL 1106776 Contact Us For Availability

4

Wire, Cover (Front) WPL 1100601 Contact Us For Availability

4

Heater, Defrost WPL 1114706 Contact Us For Availability

4

Trim, Snap-On WPL 1103652 Contact Us For Availability

4

Gasket Retainer, Side (2) WPL 1120617 Contact Us For Availability

5

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

5

Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability

5

Tube Clamp WPL 510716 Contact Us For Availability

5

Basket, Lower WPL 1106924 Contact Us For Availability

6

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

6

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

6

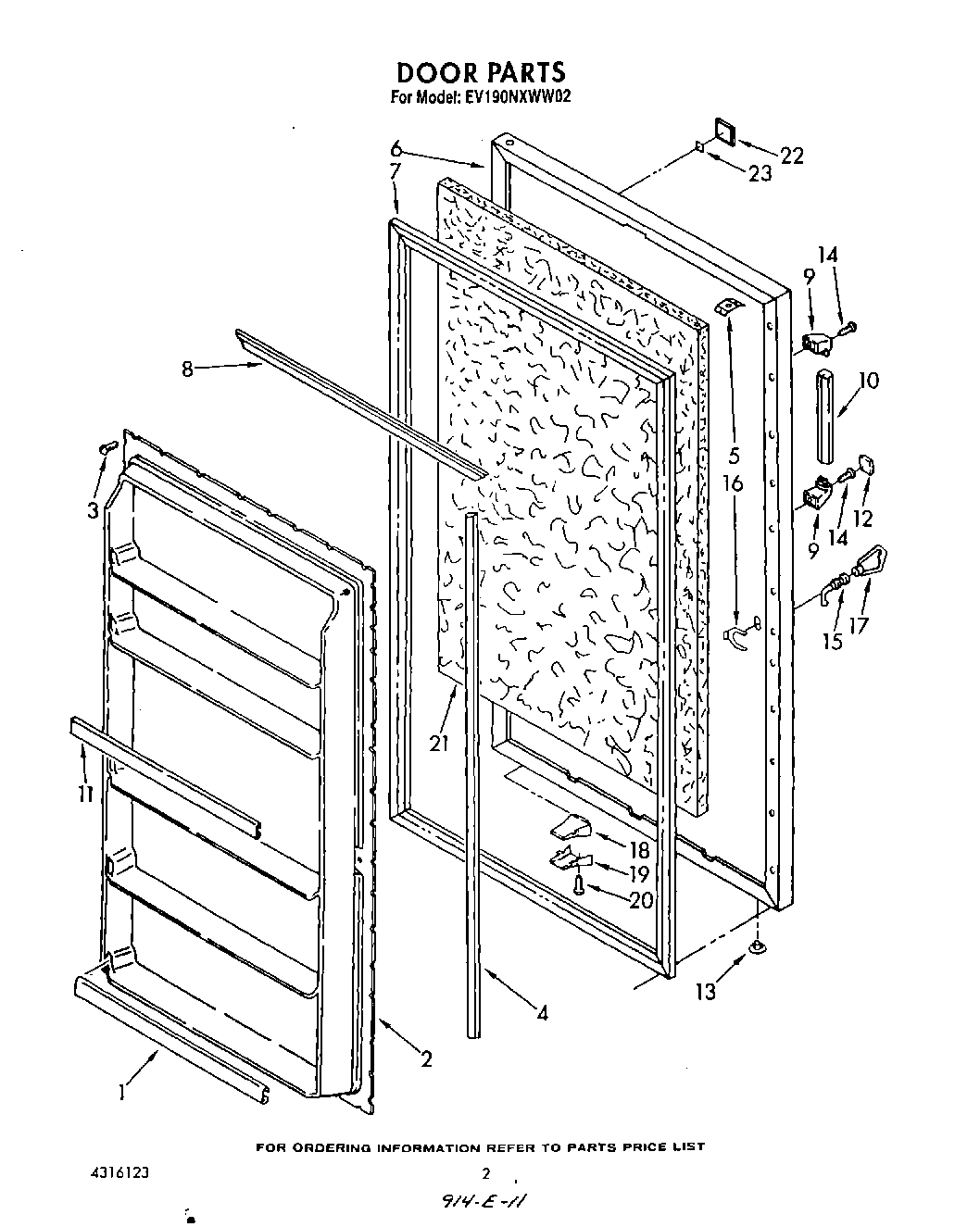

Door, Exterior (Also Order Item 21) (White) WPL 1111131 Contact Us For Availability

6

Door, Exterior (Also Order Item 21) (Almond) WPL 1111133 Contact Us For Availability

7

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

7

Spacer WPL 1100445 Contact Us For Availability

7

Gasket, Magnetic WPL 1114858 Contact Us For Availability

8

Wiring Assembly, Control Box WPL 1127871 Contact Us For Availability

8

Clamp WPL 513584 Contact Us For Availability

8

Slide, Basket (R.S) WPL 986382 Contact Us For Availability

8

Gasket Retainer, Top & Bottom WPL 1120616 Contact Us For Availability

9

Strike, Lock WPL 940167 Contact Us For Availability

9

Cover, Terminal WPL 943496 Contact Us For Availability

9

Slide, Basket (Left Side) WPL 986383 Contact Us For Availability

9

End, Handle WPL 1106767 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

Lock Strike, Back-Up WPL 940168 Contact Us For Availability

Spring, Overload WPL 943494 Contact Us For Availability

Handle, Center WPL 1104123 Contact Us For Availability

Extension, Drain Hole WPL 836123 Contact Us For Availability

Overload WPL 1108188 Contact Us For Availability

Shelf, Wire WPL 1106727 Contact Us For Availability

Trim, Door Shelf (4) WPL 1104198 Contact Us For Availability

Fitting, Drain WPL 942768 Contact Us For Availability

Strap, Cover WPL 943497 Contact Us For Availability

Trim, Snap-On WPL 1103648 Contact Us For Availability

Cover, End (2) WPL 1110070 Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

Light, Lens WPL 1100466 Contact Us For Availability

Hole, Plug (White) WPL 835974 Contact Us For Availability

Hole, Plug (Almond) WPL 989193 Contact Us For Availability

14

4389248 Whirlpool Refrigerator Thermostat Backorder WPL 4389248 $119.90

14

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

14

Screw, 8-15 x 1-5/8 WPL 488987 Contact Us For Availability

15

Control Box WPL 1100458 Contact Us For Availability

15

Lock WPL 940165 Contact Us For Availability

16

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $4.08

16

Timer, Defrost WPL 1127570 Contact Us For Availability

16

Clip, Lock WPL 983465 Contact Us For Availability

17

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

17

WP842177 Whirlpool Refrigerator Door Key In Stock WPL WP842177 $2.51

17

Cord, Service WPL 1100646 Contact Us For Availability

18

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

18

Cabinet, Evaporator Harness WPL 1114716 Contact Us For Availability

18

Transmitter, Light WPL 1103638 Contact Us For Availability

19

Control Knob, Thermostat WPL 1100467 Contact Us For Availability

19

Clip, Heater WPL 548459 Contact Us For Availability

19

Cover, Light Transmitter WPL 1103726 Contact Us For Availability

20

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

20

Receptacle WPL 943646 Contact Us For Availability

20

Screw WPL 489132 Contact Us For Availability

21

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

21

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

22

Motor, Fan WPL 1106739 Contact Us For Availability

22

Evaporator Tray WPL 1101002 Contact Us For Availability

22

Nameplate (Includes Item 23) WPL 942669 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285002 Whirlpool Nut Backorder WPL 285002 $7.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

KIT, FOAM SLAB (30`` X 32 1/2` WPL 876029 Contact Us For Availability

Screw, 8 x 1/2A WPL 488974 Contact Us For Availability

Transformer, Stepdown (230-115 Volt) WPL 515393 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL 991259 WPL 991259 Contact Us For Availability

24

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

24

Spacer WPL 1105130 Contact Us For Availability

25

4386951 Whirlpool Refrigerator Clip In Stock WPL 4386951 $3.51

25

939962 Whirlpool Refrigerator Rivet Backorder WPL 939962 $7.21

26

Electric Shield WPL 1100609 Contact Us For Availability

26

Restrictor Sleeve WPL 510446 Contact Us For Availability

27

Tap Plate WPL 2147312 Contact Us For Availability

27

Tube, Entry Cover (Bottom) WPL 1100585 Contact Us For Availability

28

Compressor (Includes Items 33, 47, 48, 49, 50 WPL 482982 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

29

Insert, Control Panel WPL 1100789 Contact Us For Availability

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

Cover, Glider Rail (White) WPL 2151421 Contact Us For Availability

Cover, Glider Rail (Almond) WPL 2151422 Contact Us For Availability

Clamp, Dryer WPL 1127590 Contact Us For Availability

31

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $27.58

31

Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability

32

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

32

Shim, Bottom Hinge WPL 943708 Contact Us For Availability

32

Evaporator Assembly WPL 1106705 Contact Us For Availability

33

Butt, Hinge (Bottom) WPL 1123880 Contact Us For Availability

33

Grommet WPL 531933 Contact Us For Availability

33

Capacitor WPL 482996 Contact Us For Availability

34

Screw, 8 x 15/16 (2) WPL 489168 Contact Us For Availability

34

Dampener (4) WPL 945593 Contact Us For Availability

35

Air, Duct WPL 1106737 Contact Us For Availability

36

Fan, Mounting Cover WPL 1106741 Contact Us For Availability

36

Heat Exchanger WPL 1106713 Contact Us For Availability

37

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

37

Evaporator, Cover WPL 1106742 Contact Us For Availability

38

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

38

Junction Box WPL 1100606 Contact Us For Availability

39

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

39

Drain, Pan WPL 1118717 Contact Us For Availability

40

Bracket, Precooler WPL 1115534 Contact Us For Availability

41

Heat, Shield WPL 1118718 Contact Us For Availability

41

Precooler, Assembly WPL 1115554 Contact Us For Availability

42

Terminal Block WPL 942842 Contact Us For Availability

42

Plate, Unit Mounting WPL 1115533 Contact Us For Availability

43

Unit Mounting Rail WPL 1118783 Contact Us For Availability

44

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

44

Heat, Probe WPL 849689 Contact Us For Availability

46

Clamp (2) WPL 1115557 Contact Us For Availability

47

Strap WPL 938384 Contact Us For Availability

48

Cover, Terminal WPL 1105015 Contact Us For Availability

49

Spring, Overload WPL 1114190 Contact Us For Availability

50

Overload WPL 483054 Contact Us For Availability

51

WP2262181 Whirlpool Refrigerator Start Relay In Stock WPL WP2262181 $50.51

52

Stand-Off, Cord WPL 1100636 Contact Us For Availability

53

Clip, Mounting WPL 1100707 Contact Us For Availability

54

Running Capacitor WPL 1118762 Contact Us For Availability

55

Tube Clip (2) WPL 1105406 Contact Us For Availability

57

WP4387499 Whirlpool Refrigerator Bimetallic D In Stock WPL WP4387499 $41.78

58

Sleeve, Top Heat Exchanger WPL 1114719 Contact Us For Availability

59

Nut WPL 489142 Contact Us For Availability

60

Washer WPL 489143 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP43449 Whirlpool Bracket Backorder WPL WP43449 $2.38

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
