Model Whirlpool EV190NXSW01 VERTICAL FREEZER – Common Parts & Diagrams
03 - CABINET
05 - LINER

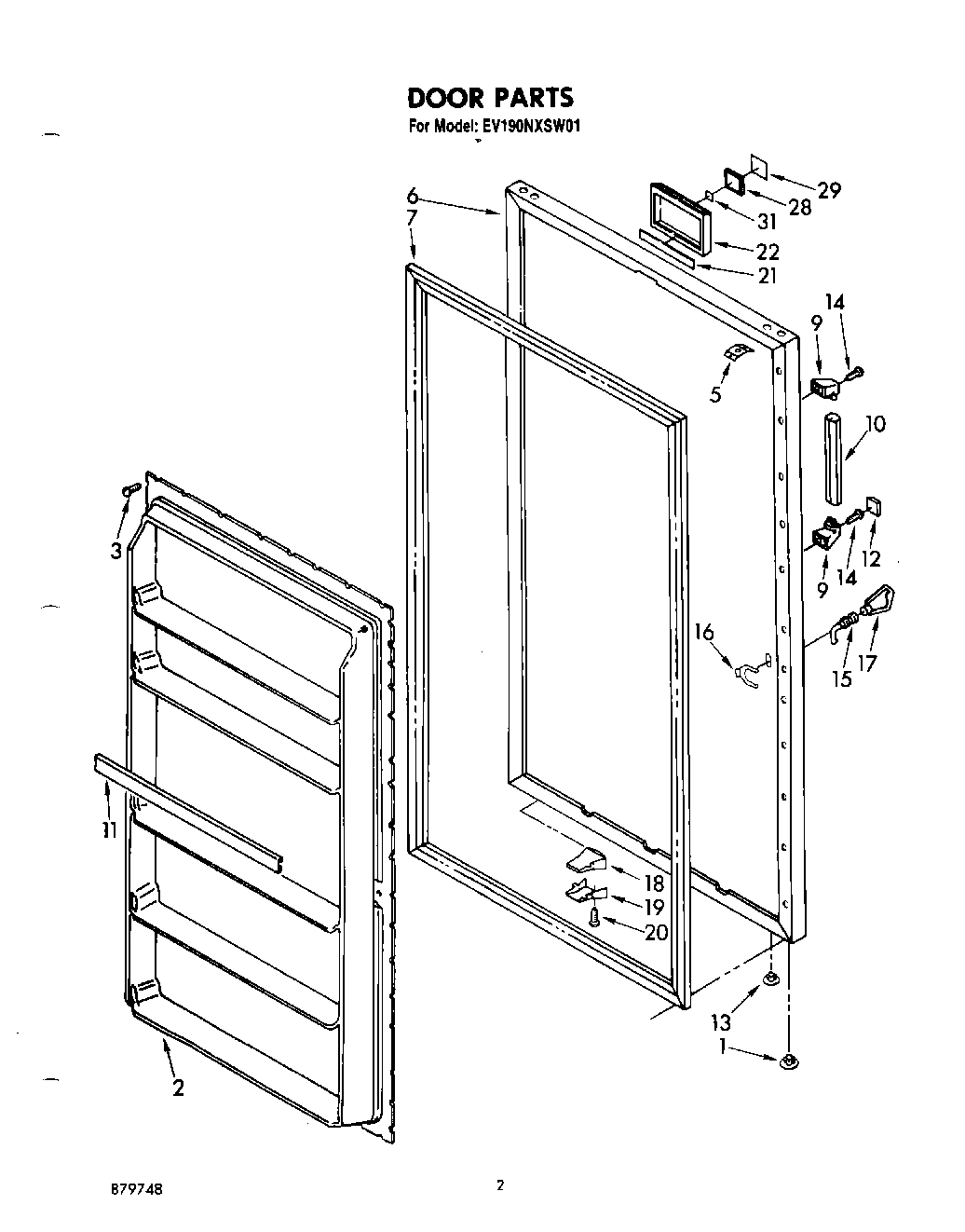

02 - DOOR , LIT/OPTIONAL

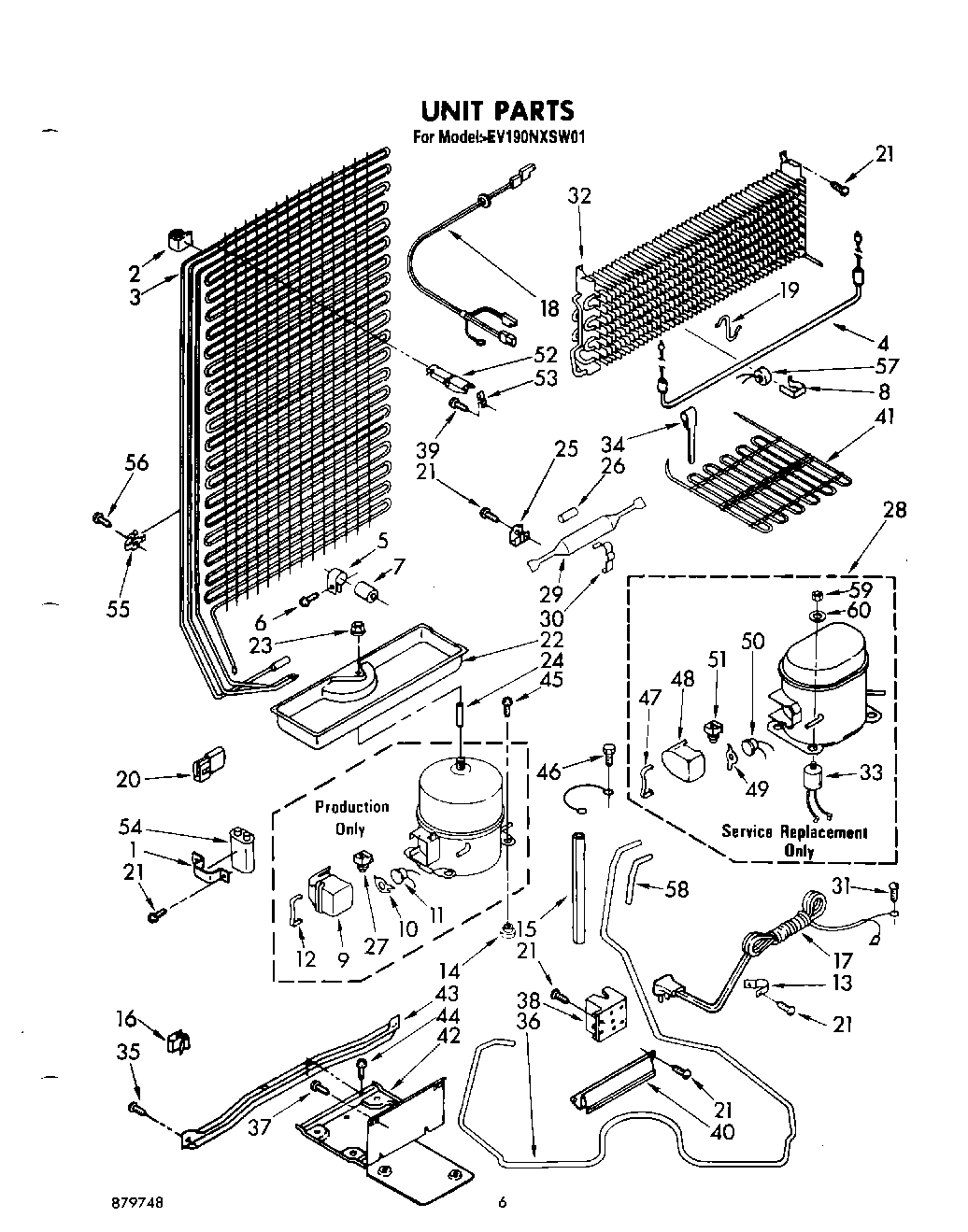

04 - UNIT

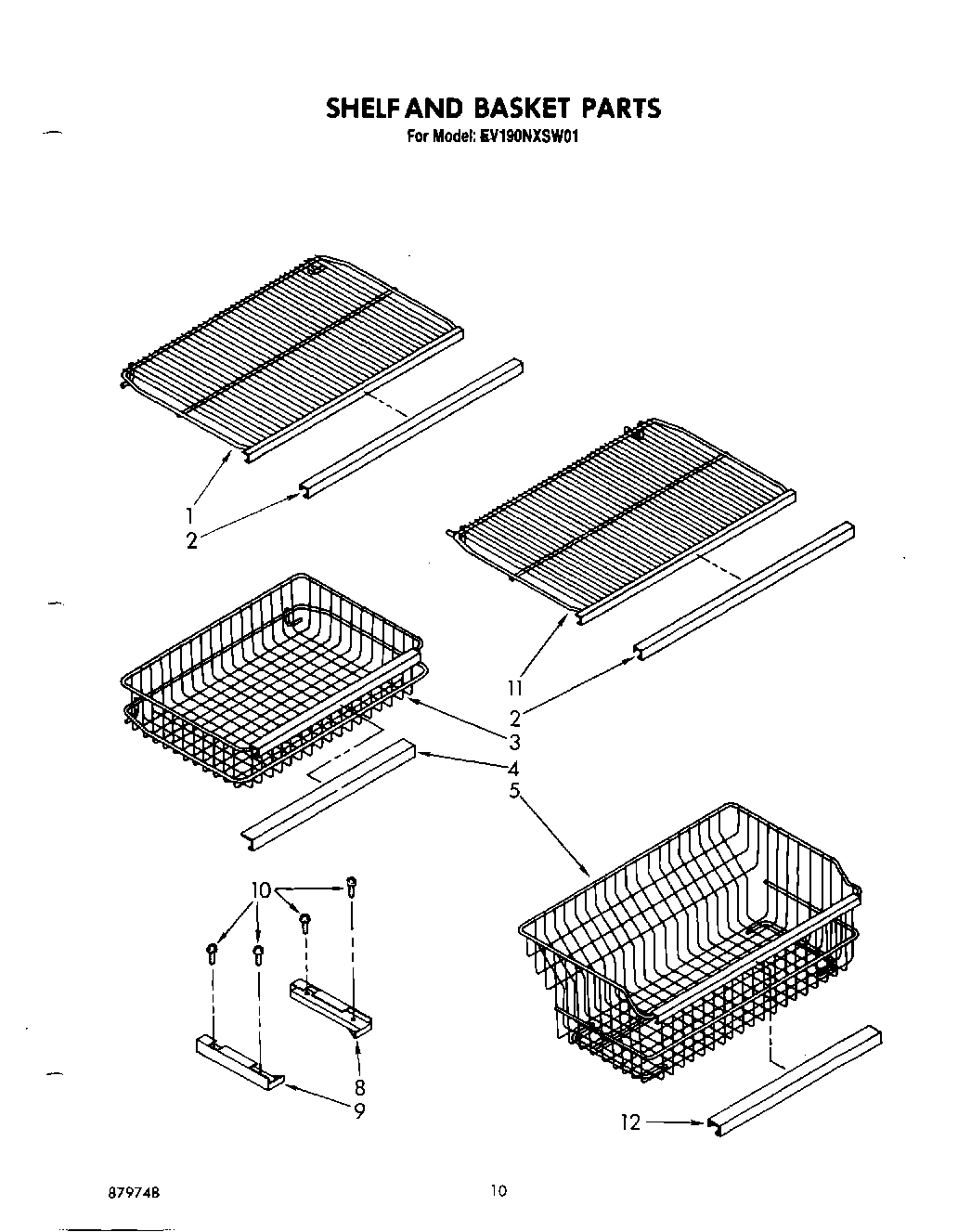

06 - SHELF AND BASKET
Common parts from model Whirlpool EV190NXSW01 VERTICAL FREEZER
WPL LIT1104044 WPL LIT1104044 Contact Us For Availability
WPL LIT1114710 WPL LIT1114710 Contact Us For Availability
WPL LIT1114828 WPL LIT1114828 Contact Us For Availability
WPL LIT1114830 WPL LIT1114830 Contact Us For Availability
WPL LIT656493 WPL LIT656493 Contact Us For Availability
WPL LIT879748 WPL LIT879748 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI56213A2 Contact Us For Availability
1
Hole, Plug WPL 835974 Contact Us For Availability
1
Shelf, Pullout WPL 1106724 Contact Us For Availability
2
Harness, Motor WPL 1114705 Contact Us For Availability
2
Panel, Interior WPL 1106761 Contact Us For Availability
2
Bumper (2) WPL 1103640 Contact Us For Availability
2
Trim, Snap-On WPL 1103650 Contact Us For Availability
3
Wire, Cover (Rear) WPL 1100600 Contact Us For Availability
3
Condenser & Precooler Assembly WPL 1100568 Contact Us For Availability
3
Basket, Pullout WPL 1106776 Contact Us For Availability
4
Wire, Cover (Front) WPL 1100601 Contact Us For Availability
4
Heater, Defrost WPL 1114706 Contact Us For Availability
4
Trim, Snap-On WPL 1103652 Contact Us For Availability
5
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
5
Tube Clamp WPL 510716 Contact Us For Availability
5
Basket, Lower WPL 1106924 Contact Us For Availability
6
Door, Exterior (White) WPL 1100594 Contact Us For Availability
6
Door, Exterior (Almond) WPL 1100616 Contact Us For Availability
7
Spacer WPL 1100445 Contact Us For Availability
7
Gasket, Magnetic WPL 1114800 Contact Us For Availability
7
dampener WPL 938368 Contact Us For Availability
8
Cabinet, Control Harness WPL 1114715 Contact Us For Availability
8
Clamp WPL 513584 Contact Us For Availability
8
Slide, Basket (R.S) WPL 986382 Contact Us For Availability
9
Strike, Lock WPL 940167 Contact Us For Availability
9
End, Handle WPL 1106767 Contact Us For Availability
9
Cover, Terminal (Used W/Original Compressor) WPL 943496 Contact Us For Availability
9
Slide, Basket (Left Side) WPL 986383 Contact Us For Availability
10
Lock Strike, Back-Up WPL 940168 Contact Us For Availability
10
Handle, Center WPL 1104123 Contact Us For Availability
10
Spring, Overload (Used W/Original Compressor) WPL 943494 Contact Us For Availability
11
Extension, Drain Hole WPL 836123 Contact Us For Availability
11
Trim, Door (4) WPL 1114825 Contact Us For Availability
11
Trim, Door (1) WPL 1114826 Contact Us For Availability
11
Overload (Used W/Original Compressor) WPL 1108188 Contact Us For Availability
11
Shelf, Wire WPL 1106727 Contact Us For Availability
12
Fitting, Drain WPL 942768 Contact Us For Availability
12
Cover, End (2) WPL 1110070 Contact Us For Availability
12
Strap, Cover (Used W/Original Compressor) WPL 943497 Contact Us For Availability
12
Trim, Snap-On WPL 1103648 Contact Us For Availability
13
Light, Lens WPL 1100466 Contact Us For Availability
13
Hole Plug (White) WPL 534927 Contact Us For Availability
14
Screw, 8-15 x 1-5/8 WPL 488987 Contact Us For Availability
15
Control Box WPL 1100458 Contact Us For Availability
15
Lock WPL 940165 Contact Us For Availability
15
Sleeve, Heat Exchanger WPL 1108536 Contact Us For Availability
16
Timer, Defrost WPL 1115416 Contact Us For Availability
16
Clip, Lock WPL 983465 Contact Us For Availability
17
Cord, Service WPL 1100646 Contact Us For Availability
18
Transmitter, Light WPL 1103638 Contact Us For Availability
18
Cabinet, Evaporator Harness WPL 1114716 Contact Us For Availability
19
Control Knob, Thermostat WPL 1100467 Contact Us For Availability
19
Cover, Light Transmitter WPL 1103726 Contact Us For Availability
19
Clip, Heater WPL 548459 Contact Us For Availability
20
Screw WPL 489132 Contact Us For Availability
20
Receptacle WPL 943646 Contact Us For Availability
21
Tape Strip (1/2 Wide) WPL 1104030 Contact Us For Availability
21
Tape Strip (3/4 Wide) WPL 1104031 Contact Us For Availability
22
Motor, Fan WPL 1106739 Contact Us For Availability
22
Container (White) WPL 1104052 Contact Us For Availability
22
Container (Almond) WPL 1104054 Contact Us For Availability
22
Evaporator Tray WPL 1101002 Contact Us For Availability
23
Screw, 8 x 1/2A WPL 488974 Contact Us For Availability
24
Spacer WPL 1105130 Contact Us For Availability
26
Electric Shield WPL 1100609 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
27
Tube, Entry Cover (Bottom) WPL 1100585 Contact Us For Availability
28
screw (repair) WPL 488706 Contact Us For Availability
28
Nameplate (Includes Items 29 & 31) WPL 945116 Contact Us For Availability
28
Compressor (Includes Items 47, 48, 49, 50, & WPL 482982 Contact Us For Availability
29
Insert, Control Panel WPL 1100789 Contact Us For Availability
29
Insert WPL 945108 Contact Us For Availability
30
Cover, Glider Rail (Almond) WPL 942822 Contact Us For Availability
30
Clamp WPL 547637 Contact Us For Availability
31
WPL 876029 WPL 876029 Contact Us For Availability
31
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
31
Leveler, Enamel (13 Oz. Spray Can) WPL 206925 Contact Us For Availability
31
Transformer, Stepdown (230-115 Volt) WPL 515393 Contact Us For Availability
31
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
31
Thinner WPL 799351 Contact Us For Availability
31
WPL 799833 WPL 799833 Contact Us For Availability
31
WPL 978883 WPL 978883 Contact Us For Availability
31
WPL 991259 WPL 991259 Contact Us For Availability
31
Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability
32
Shim, Bottom Hinge WPL 942812 Contact Us For Availability
32
Evaporator Assembly WPL 1106705 Contact Us For Availability
33
Butt, Hinge (Bottom) WPL 944776 Contact Us For Availability
33
Grommet WPL 531933 Contact Us For Availability
33
Capacitor WPL 483009 Contact Us For Availability
34
Screw, 8 x 15/16 (2) WPL 489168 Contact Us For Availability
34
Heat Prove WPL 849689 Contact Us For Availability
35
Air, Duct WPL 1106737 Contact Us For Availability
35
Screw, 1/4 x 28 (2) WPL 488973 Contact Us For Availability
36
Fan, Mounting Cover WPL 1106741 Contact Us For Availability
36
Heat Exchanger WPL 1106713 Contact Us For Availability
37
Evaporator, Cover WPL 1106742 Contact Us For Availability
38
Junction Box WPL 1100606 Contact Us For Availability
39
Drain, Pan WPL 1118717 Contact Us For Availability
39
Screw, 8 x 3/8 (2) WPL 488624 Contact Us For Availability
40
Bracket, Precooler WPL 1115534 Contact Us For Availability
41
Heat, Shield WPL 1118718 Contact Us For Availability
41
Precooler, Assembly WPL 1115554 Contact Us For Availability
42
Terminal Block WPL 942842 Contact Us For Availability
42
Plate, Unit Mounting WPL 942860 Contact Us For Availability
43
Rail, Unit Mounting WPL 943755 Contact Us For Availability
44
repair WPL 487883 Contact Us For Availability
47
Strap (Used W/Service Compressor) WPL 938384 Contact Us For Availability
48
Cover (Used W/Service Compressor) WPL 1108115 Contact Us For Availability
49
Spring, Overload (Used W/Service Compressor) WPL 1114190 Contact Us For Availability
50
Overload (Used W/Service WPL 483054 Contact Us For Availability
52
WPL 1100636 WPL 1100636 Contact Us For Availability
53
WPL 1100707 WPL 1100707 Contact Us For Availability
54
WPL 1108075 WPL 1108075 Contact Us For Availability
55
WPL 1105406 WPL 1105406 Contact Us For Availability
58
WPL 1114719 WPL 1114719 Contact Us For Availability
59
WPL 489142 WPL 489142 Contact Us For Availability
60
WPL 978029 WPL 978029 Contact Us For Availability
60
WPL 489143 WPL 489143 Contact Us For Availability
60
WPL 978028 WPL 978028 Contact Us For Availability
× ![]()
