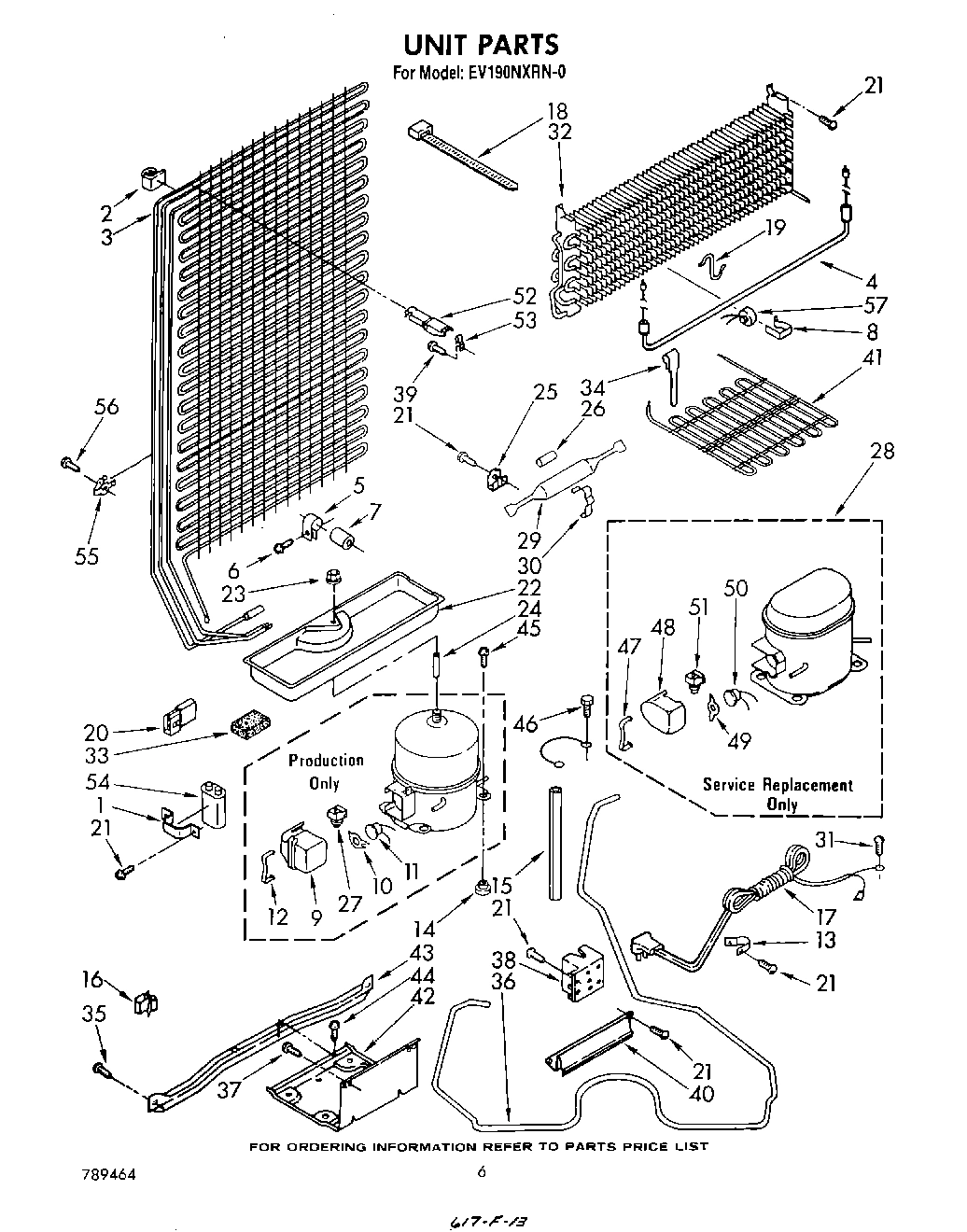

Model Whirlpool EV190NXRN0 VERTICAL FREEZER – Common Parts &amp; Diagrams

1

WP43449 Whirlpool Bracket Backorder WPL WP43449 $2.38

1

Liner (Not A Serviceable Part) WPL ARI56203A8 Contact Us For Availability

1

Cabinet, Wiring WPL 1106735 Contact Us For Availability

1

Shelf, Pullout WPL 1106724 Contact Us For Availability

2

Bumper (2) WPL 1103640 Contact Us For Availability

2

Trim, Snap-On WPL 1103650 Contact Us For Availability

3

Wire, Cover (Rear) WPL 1100600 Contact Us For Availability

3

Cabinet (Not A Serviceable Part) WPL ARI56202A6 Contact Us For Availability

3

Condenser & Precooler Assembly WPL 1100568 Contact Us For Availability

3

Basket, Pullout WPL 1106776 Contact Us For Availability

4

Wire, Cover (Front) WPL 1100601 Contact Us For Availability

4

Cover, Glider Rail (White) WPL 943552 Contact Us For Availability

4

Cover, Glider Rail (Almond) WPL 944831 Contact Us For Availability

4

Heater, Defrost WPL 1106711 Contact Us For Availability

4

Trim, Snap-On WPL 1103652 Contact Us For Availability

5

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

5

Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability

5

Grommet, Wiring WPL 938284 Contact Us For Availability

5

Tube Clamp WPL 510716 Contact Us For Availability

5

Basket, Lower WPL 1106924 Contact Us For Availability

6

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

6

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

7

Spacer WPL 1100445 Contact Us For Availability

7

Clamp WPL 939009 Contact Us For Availability

7

dampener WPL 938368 Contact Us For Availability

8

Clamp, Tube WPL 488937 Contact Us For Availability

8

Cover, Deck Rail (White) WPL 1109364 Contact Us For Availability

8

Cover, Deck Rail (Almond) WPL 1109368 Contact Us For Availability

8

Clamp WPL 513584 Contact Us For Availability

8

Slide, Basket (R.S) WPL 986382 Contact Us For Availability

9

Strike, Lock WPL 940167 Contact Us For Availability

9

Cover, Terminal (Used W/Original Compressor) WPL 943496 Contact Us For Availability

9

Slide, Basket (Left Side) WPL 986383 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

Lock Strike, Back-Up WPL 940168 Contact Us For Availability

Ferrule, Rail WPL 942737 Contact Us For Availability

Spring, Overload (Used W/Original Compressor) WPL 943494 Contact Us For Availability

Extension, Drain Hole WPL 836124 Contact Us For Availability

Leveler (2) WPL 944766 Contact Us For Availability

Overload (Used W/Original Compressor) WPL 1108188 Contact Us For Availability

Shelf, Wire WPL 1106727 Contact Us For Availability

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Fitting, Drain WPL 942768 Contact Us For Availability

Screw (Repair) WPL 488949 Contact Us For Availability

Strap, Cover (Used W/Original Compressor) WPL 943497 Contact Us For Availability

Trim, Snap-On WPL 1103648 Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

Hole Plug (White) WPL 534927 Contact Us For Availability

Light, Lens WPL 1100466 Contact Us For Availability

Shim, Top Hinge WPL 1100509 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

4389248 Whirlpool Refrigerator Thermostat Backorder WPL 4389248 $119.90

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

Screw, 8-15 x 1-5/8 WPL 488987 Contact Us For Availability

Lock WPL 940165 Contact Us For Availability

Control Box WPL 1100458 Contact Us For Availability

Shim, Hinge Top WPL 1100513 Contact Us For Availability

Sleeve, Heat Exchanger WPL 1108536 Contact Us For Availability

16

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $4.08

16

Clip, Lock WPL 983465 Contact Us For Availability

16

Timer, Defrost WPL 945486 Contact Us For Availability

17

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

17

WP842177 Whirlpool Refrigerator Door Key In Stock WPL WP842177 $2.51

17

Cord, Service WPL 1100646 Contact Us For Availability

18

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

18

Transmitter, Light WPL 1103638 Contact Us For Availability

18

Strap (2) WPL 851095 Contact Us For Availability

19

Cover, Light Transmitter WPL 1103726 Contact Us For Availability

19

Control Knob, Thermostat WPL 1100467 Contact Us For Availability

19

Clip, Heater WPL 548459 Contact Us For Availability

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

Screw WPL 489132 Contact Us For Availability

Receptacle WPL 943646 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

Tape Strip (1/2 Wide) WPL 1104030 Contact Us For Availability

Tape Strip (3/4 Wide) WPL 1104031 Contact Us For Availability

Screw WPL 488428 Contact Us For Availability

Container (White) WPL 1104052 Contact Us For Availability

Container (Almond) WPL 1104054 Contact Us For Availability

Fan, Motor WPL 1106740 Contact Us For Availability

Filler, Corner Wrap (White) WPL 1110684 Contact Us For Availability

Filler, Corner Wrap (Almond) WPL 1110685 Contact Us For Availability

Tray, Evaporator WPL 942875 Contact Us For Availability

23

285002 Whirlpool Nut Backorder WPL 285002 $7.58

23

Screw, 8 x 1/2A WPL 488974 Contact Us For Availability

23

Wire Assembly, Signal Light WPL 1100647 Contact Us For Availability

24

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

24

Bracket, Signal Light WPL 1103637 Contact Us For Availability

24

Spacer WPL 942816 Contact Us For Availability

25

4386951 Whirlpool Refrigerator Clip In Stock WPL 4386951 $3.51

25

939962 Whirlpool Refrigerator Rivet Backorder WPL 939962 $7.21

25

Light, Signal WPL 1103639 Contact Us For Availability

26

Electric Shield WPL 1100609 Contact Us For Availability

26

Restrictor Sleeve WPL 510446 Contact Us For Availability

27

WP2262181 Whirlpool Refrigerator Start Relay In Stock WPL WP2262181 $50.51

27

Tube, Entry Cover (Bottom) WPL 1100585 Contact Us For Availability

27

Tap Plate WPL 1111014 Contact Us For Availability

28

Nameplate (Includes Items 29 & 31) WPL 945116 Contact Us For Availability

28

screw (repair) WPL 488706 Contact Us For Availability

28

Compressor (Includes Items 47, 48, 49, 50, & WPL 482614 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

29

Insert WPL 945108 Contact Us For Availability

29

Insert, Control Panel WPL 1100789 Contact Us For Availability

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

Cover, Glider Rail (White) WPL 942818 Contact Us For Availability

Cover, Glider Rail (Almond) WPL 942822 Contact Us For Availability

Clamp WPL 547637 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $27.58

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

Transformer, Stepdown (230-115 Volt) WPL 515393 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

Thinner, Blend (1 Gal.) WPL 799351 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability

Tape Strip WPL 991259 Contact Us For Availability

Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability

32

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

32

Shim, Bottom Hinge WPL 942812 Contact Us For Availability

32

Evaporator Assembly WPL 1106705 Contact Us For Availability

33

Grommet WPL 531933 Contact Us For Availability

33

Butt, Hinge (Bottom) WPL 944776 Contact Us For Availability

33

Sound, Pad WPL 301774 Contact Us For Availability

34

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

34

Heat Prove WPL 849689 Contact Us For Availability

35

Air, Duct WPL 1106737 Contact Us For Availability

35

Screw, 1/4 x 28 (2) WPL 488973 Contact Us For Availability

36

Fan, Mounting Cover WPL 1106741 Contact Us For Availability

36

Heat Exchanger WPL 1106713 Contact Us For Availability

37

Evaporator, Cover WPL 1106742 Contact Us For Availability

38

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

38

Junction Box WPL 1100606 Contact Us For Availability

39

Drain, Pan WPL 1106745 Contact Us For Availability

39

Screw, 8 x 3/8 (2) WPL 488624 Contact Us For Availability

40

Mounting Bracket (Precooler) WPL 1105630 Contact Us For Availability

41

Heat, Shield WPL 1106746 Contact Us For Availability

41

Precooler WPL 1106702 Contact Us For Availability

42

Plate, Unit Mounting WPL 942860 Contact Us For Availability

43

Rail, Unit Mounting WPL 943755 Contact Us For Availability

44

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

44

repair WPL 487883 Contact Us For Availability

46

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

47

Strap (Used W/Service & Original Compressor) WPL 549342 Contact Us For Availability

48

Cover (Used W/Service & Original Compressor) WPL 549505 Contact Us For Availability

49

Spring, Overload (Used W/Service & Original C WPL 549086 Contact Us For Availability

50

WPL 753526 WPL 753526 Contact Us For Availability

51

WPL 989509 WPL 989509 Contact Us For Availability

52

WPL 1100636 WPL 1100636 Contact Us For Availability

53

WPL 1100707 WPL 1100707 Contact Us For Availability

54

WPL 1108075 WPL 1108075 Contact Us For Availability

55

WPL 1105406 WPL 1105406 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP4387499 Whirlpool Refrigerator Bimetallic D In Stock WPL WP4387499 $41.78

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

WPL 978029 WPL 978029 Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability
