Model Whirlpool EV190EXSW00 VERTICAL FREEZER – Common Parts & Diagrams

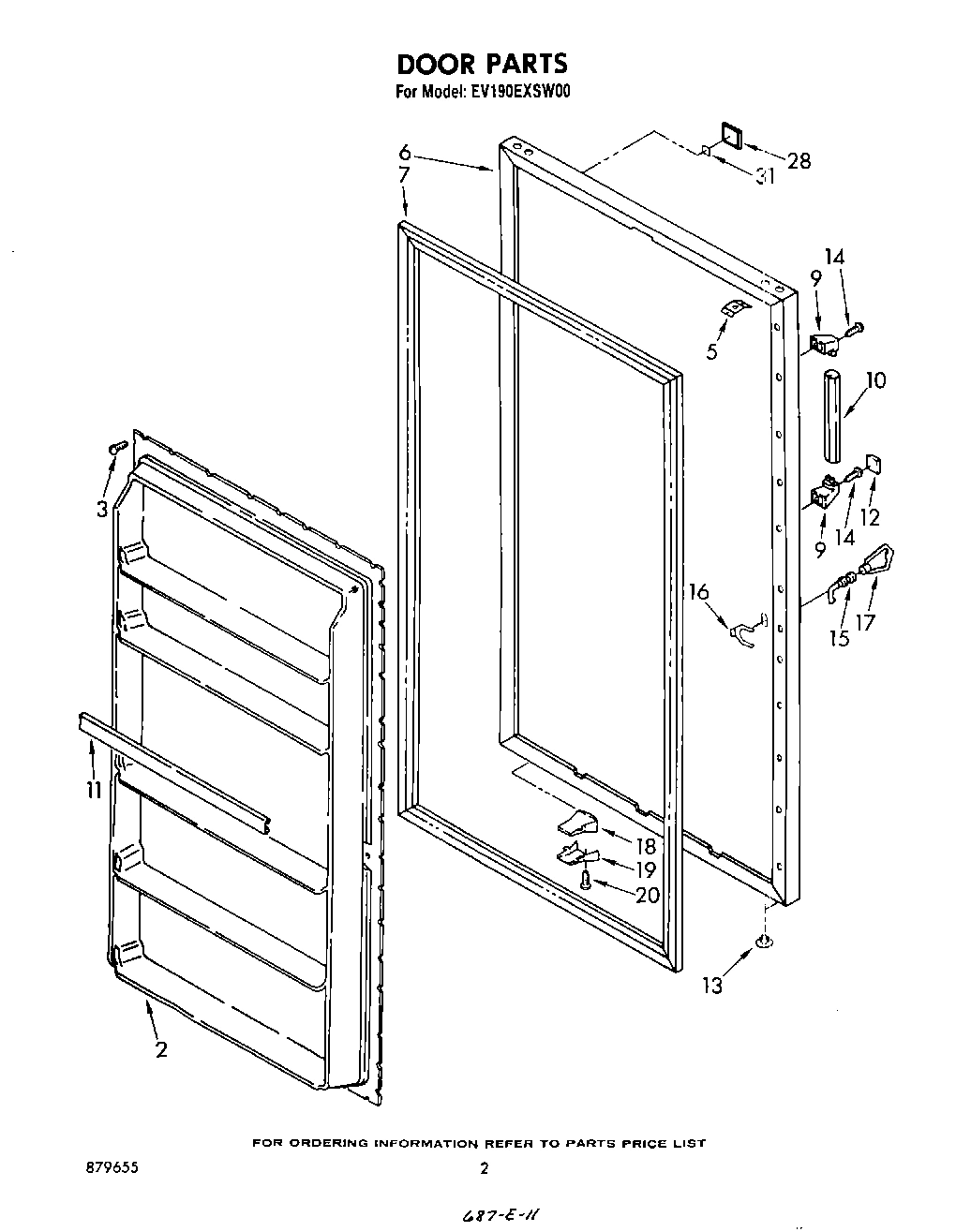

02 - DOOR , LIT/OPTIONAL

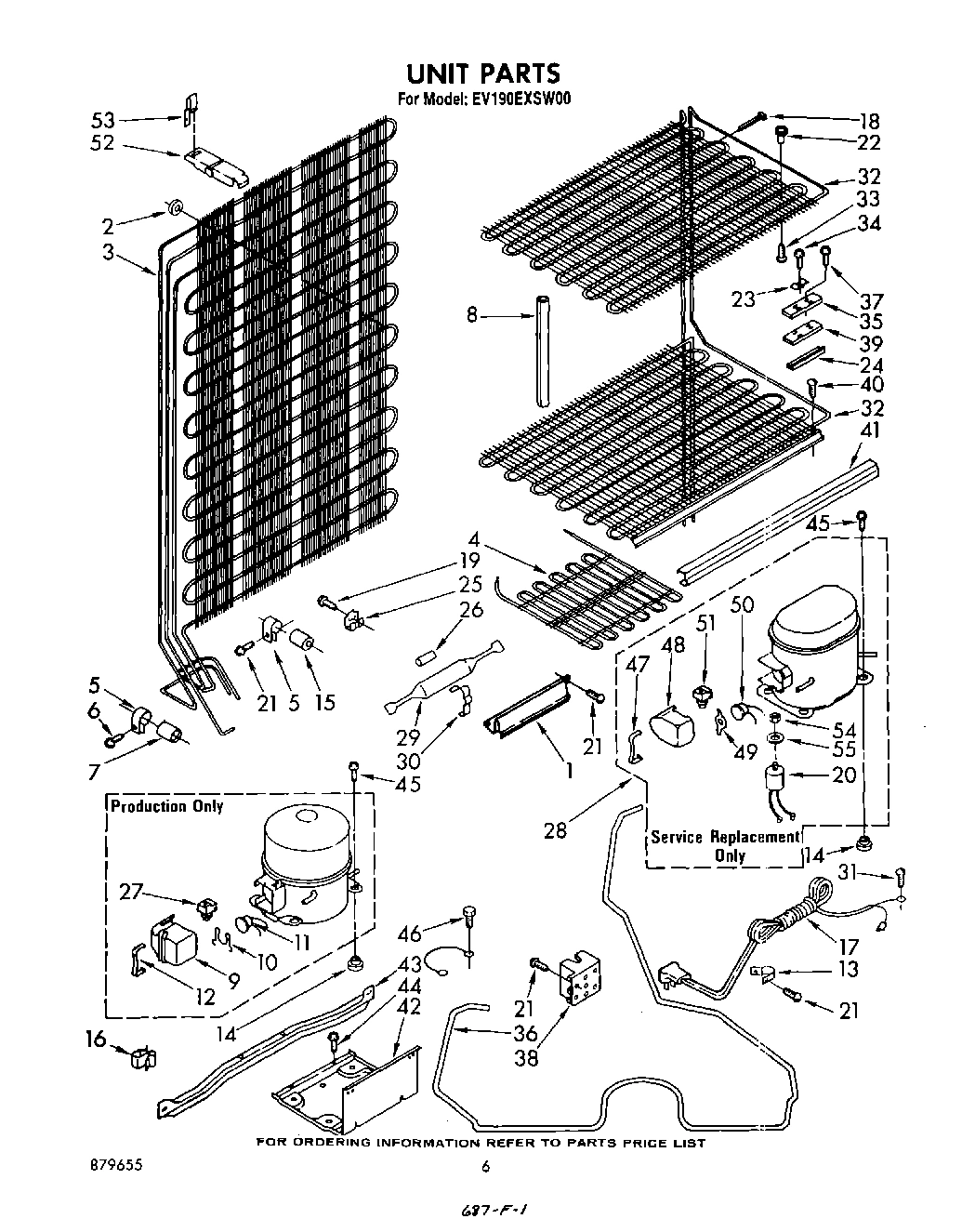

05 - UNIT
03 - CABINET

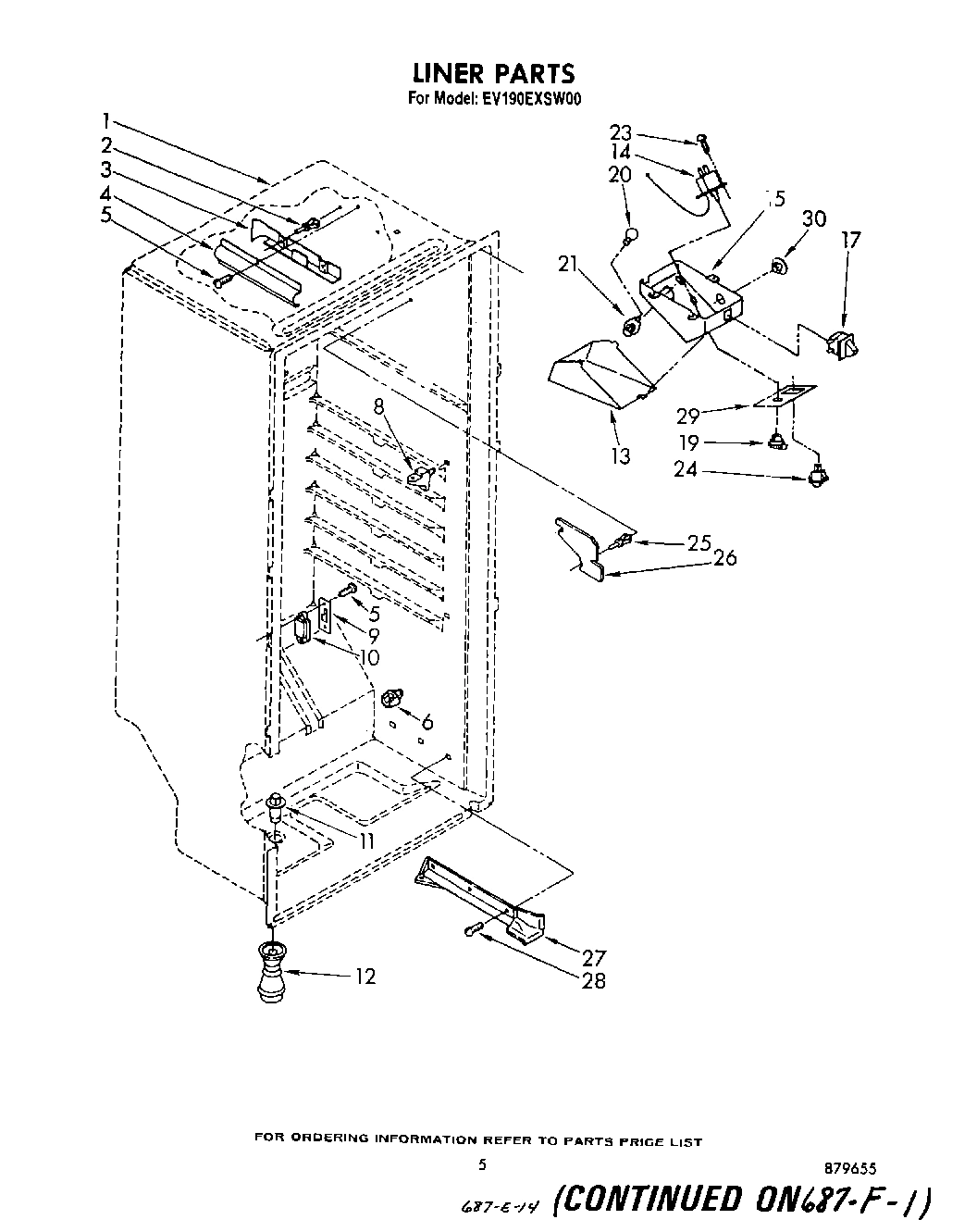

04 - LINER

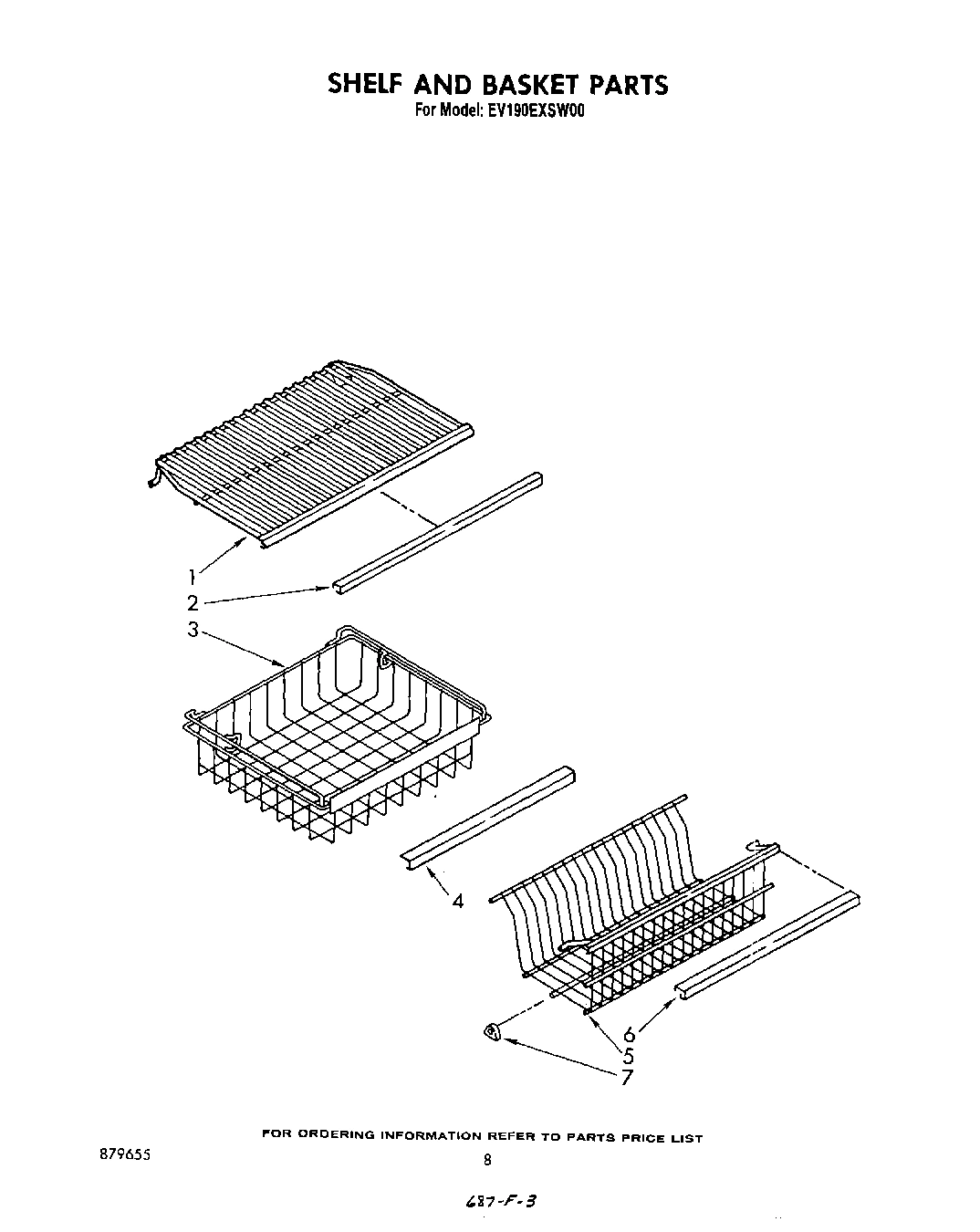

06 - SHELF AND BASKET
Common parts from model Whirlpool EV190EXSW00 VERTICAL FREEZER
1
Mounting Bracket (Precooler) WPL 1105630 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI56183A2 Contact Us For Availability
1
Shelf, Pullout WPL 1100629 Contact Us For Availability
2
Bumper (2) WPL 1103640 Contact Us For Availability
2
Trim, Snap-On WPL 1103650 Contact Us For Availability
3
Condenser Assembly WPL 1100568 Contact Us For Availability
3
Cabinet (Not A Serviceable Part) WPL ARI56182A8 Contact Us For Availability
3
Wire, Cover (Rear) WPL 1100600 Contact Us For Availability
3
Basket, Pullout WPL 1100632 Contact Us For Availability
4
Precooler, Assembly WPL 1105403 Contact Us For Availability
4
Cover, Glider Rail (Almond) WPL 942822 Contact Us For Availability
4
Cover, Glider Rail (White) WPL 943552 Contact Us For Availability
4
Wire, Cover (Front) WPL 1100601 Contact Us For Availability
4
Trim, Snap-On WPL 1103652 Contact Us For Availability
5
Tube Clamp WPL 510716 Contact Us For Availability
5
Grommet, Wiring WPL 940172 Contact Us For Availability
5
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
5
Trivet WPL 1103835 Contact Us For Availability
6
Stud, Shelf (R.S.) WPL 939063 Contact Us For Availability
6
Stud, Shelf (L.S.) WPL 939064 Contact Us For Availability
6
Trim, Snap-On WPL 1103648 Contact Us For Availability
7
Clamp WPL 939009 Contact Us For Availability
7
Grommet (2) WPL 216446 Contact Us For Availability
8
Cover, Connecting Lines (11.5 Inches) WPL 1103817 Contact Us For Availability
8
Cover, Connecting Lines (15 Inches) WPL 1103818 Contact Us For Availability
8
Cover, Connecting Lines (10 Inches) WPL 941447 Contact Us For Availability
8
Cover, Deck Rail (White) WPL 1109364 Contact Us For Availability
8
Cover, Deck Rail (Almond) WPL 1109368 Contact Us For Availability
8
Stud, Shelf (6) WPL 940142 Contact Us For Availability
9
Cover, Terminal (Used W/Original Compressor) WPL 943496 Contact Us For Availability
9
Strike, Lock WPL 940167 Contact Us For Availability
10
Spring, Overload (Used W/Original Compressor) WPL 943494 Contact Us For Availability
10
Lock Strike, Back-Up WPL 940168 Contact Us For Availability
11
Overload (Used W/Original Compressor) WPL 1100642 Contact Us For Availability
11
Leveler (2) WPL 944766 Contact Us For Availability
11
Drain, Ferrule Cap WPL 934607 Contact Us For Availability
12
Cover, End (2) WPL 1110070 Contact Us For Availability
12
Strap, Cover (Used W/Original Compressor) WPL 943497 Contact Us For Availability
12
Screw (Repair) WPL 488949 Contact Us For Availability
12
Fitting, Drain WPL 942768 Contact Us For Availability
13
Hole Plug (White) WPL 534927 Contact Us For Availability
13
Shim, Top Hinge WPL 1100509 Contact Us For Availability
13
Light, Lens WPL 1100466 Contact Us For Availability
14
Screw, 8-15 x 1-5/8 WPL 488987 Contact Us For Availability
15
Lock WPL 940165 Contact Us For Availability
15
Dampener WPL 945593 Contact Us For Availability
15
Shim, Hinge Top WPL 1100513 Contact Us For Availability
15
Control Box WPL 1100458 Contact Us For Availability
16
Clip, Lock WPL 983465 Contact Us For Availability
17
Cord, Service WPL 1100646 Contact Us For Availability
18
Transmitter, Light WPL 1103638 Contact Us For Availability
18
Strap (2) WPL 851095 Contact Us For Availability
18
Clip, Plug WPL 653035 Contact Us For Availability
19
Cover, Light Transmitter WPL 1103726 Contact Us For Availability
19
Screw, 6-32 x 1/2 WPL 486899 Contact Us For Availability
19
Control Knob, Thermostat WPL 1100467 Contact Us For Availability
20
Screw WPL 489132 Contact Us For Availability
20
Capacitor, Start WPL 482996 Contact Us For Availability
22
Spacer (3) WPL 1103816 Contact Us For Availability
22
Filler, Corner Wrap (White) WPL 1110684 Contact Us For Availability
22
Filler, Corner Wrap (Almond) WPL 1110685 Contact Us For Availability
23
Header Clamp Plate (2) WPL 510614 Contact Us For Availability
23
Wire Assembly, Signal Light WPL 1114708 Contact Us For Availability
23
Screw, 8 x 1/2A WPL 488974 Contact Us For Availability
24
Clip, Thermostat WPL 510754 Contact Us For Availability
24
Bracket, Signal Light WPL 1103637 Contact Us For Availability
25
Light, Signal WPL 1103639 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
26
Electric Shield WPL 1100609 Contact Us For Availability
27
Relay (Used W/Original Compressor) WPL 945431 Contact Us For Availability
27
Tap Plate WPL 944813 Contact Us For Availability
27
Tube, Entry Cover (Bottom) WPL 1100585 Contact Us For Availability
28
Nameplate WPL 1104899 Contact Us For Availability
28
Compressor WPL 482981 Contact Us For Availability
28
screw (repair) WPL 488706 Contact Us For Availability
29
Insert, Control Panel WPL 1100789 Contact Us For Availability
30
Clamp WPL 547637 Contact Us For Availability
30
Cover, Glider Rail (White) WPL 942818 Contact Us For Availability
31
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
31
Transformer, Stepdown (230-115 Volt) WPL 515393 Contact Us For Availability
31
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
31
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
31
Tape Strip WPL 991259 Contact Us For Availability
31
Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability
32
Evaporator Assembly (Shelf, Top) WPL 1100554 Contact Us For Availability
32
Evaporator Assembly (Shelf, 2nd) WPL 1100557 Contact Us For Availability
32
Evaporator Assembly (Shelf, 3rd) WPL 1100560 Contact Us For Availability
32
Evaporator Assembly (Shelf, Bottom) WPL 1100563 Contact Us For Availability
32
Shim, Bottom Hinge (White) WPL 942812 Contact Us For Availability
33
Butt, Hinge (Bottom) WPL 944776 Contact Us For Availability
34
Screw, 8-32 x 7/16 WPL 488054 Contact Us For Availability
35
Shim, Thermostat Plate WPL 987316 Contact Us For Availability
36
Heat Exchanger WPL 1100572 Contact Us For Availability
37
Screw, 8-32 x 5/8 WPL 488436 Contact Us For Availability
38
Junction Box WPL 1100606 Contact Us For Availability
39
Plate, Thermostat WPL 851289 Contact Us For Availability
40
Screw (Repair) WPL 489036 Contact Us For Availability
41
Trim, Shelf WPL 1103653 Contact Us For Availability
42
Plate, Unit Mounting WPL 942860 Contact Us For Availability
43
Rail, Unit Mou WPL 943755 Contact Us For Availability
44
WPL 487883 WPL 487883 Contact Us For Availability
47
WPL 938384 WPL 938384 Contact Us For Availability
48
WPL 1108115 WPL 1108115 Contact Us For Availability
49
WPL 1114190 WPL 1114190 Contact Us For Availability
50
WPL 483037 WPL 483037 Contact Us For Availability
52
WPL 1100636 WPL 1100636 Contact Us For Availability
53
WPL 1100707 WPL 1100707 Contact Us For Availability
54
WPL 488748 WPL 488748 Contact Us For Availability
55
WPL 978029 WPL 978029 Contact Us For Availability
55
WPL 489143 WPL 489143 Contact Us For Availability
55
WPL 978028 WPL 978028 Contact Us For Availability
× ![]()
