Model Whirlpool EV187NYRQ04 VERTICAL FREEZER – Common Parts & Diagrams

TAPE, VINYL (3/4 X 108``)
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
View on Model
Customer Touch-Up Material
Customer Touch-Up Material WPL ARI56101A9 Contact Us For Availability
View on Model
Important: The spray paint is not to be used
Important: The spray paint is not to be used WPL ARI56102A1 Contact Us For Availability
View on Model
R
R WPL ARI56103A5 Contact Us For Availability
View on Model
WPL  ARI56104A3
WPL ARI56104A3 WPL ARI56104A3 Contact Us For Availability
View on Model
1

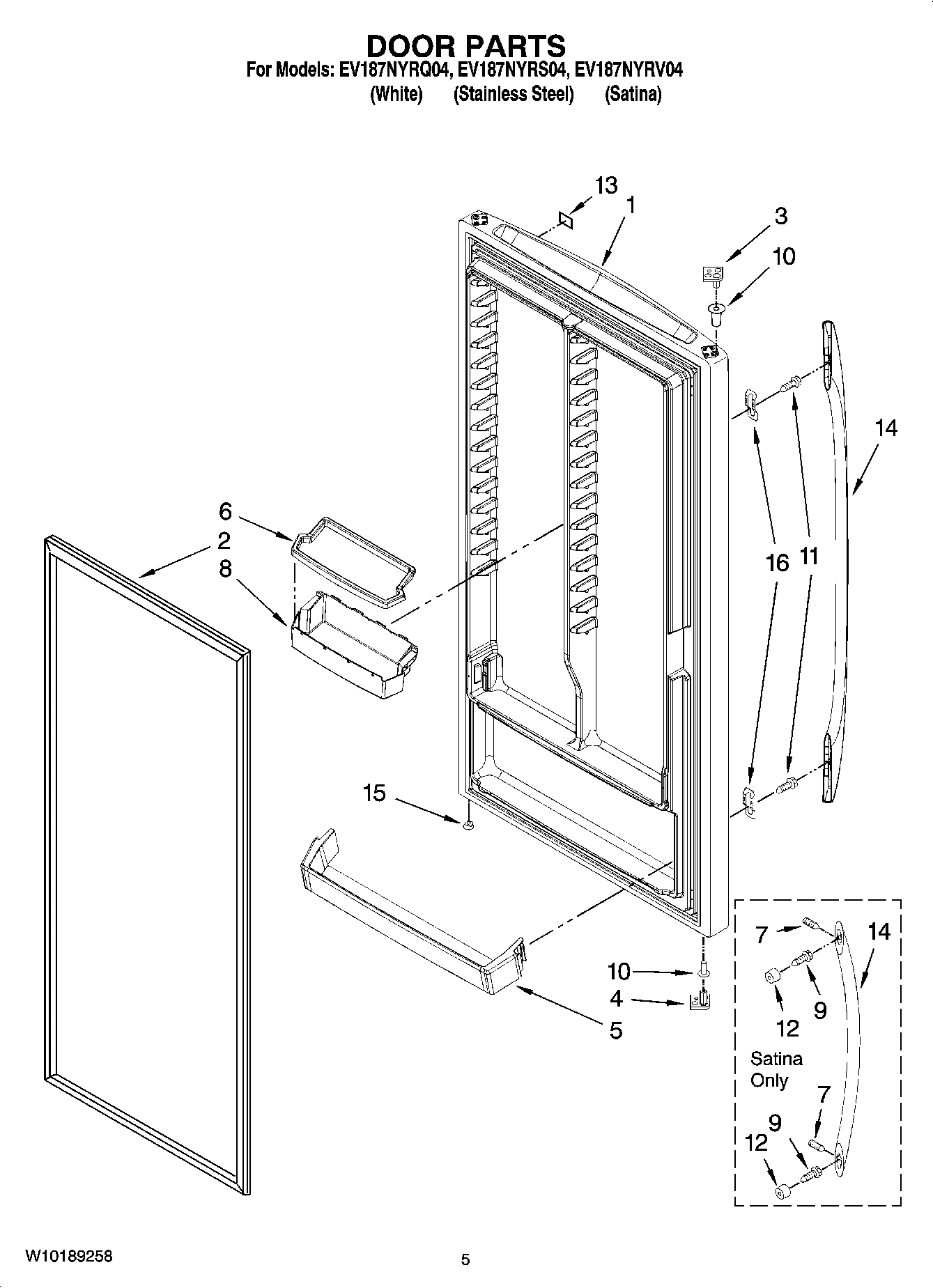

Door Assembly (Includes Interior Door Liner)
Door Assembly (Includes Interior Door Liner) WPL 8210360 Contact Us For Availability
View on Model
1
Door Assembly (Includes Interior Door Liner)
Door Assembly (Includes Interior Door Liner) WPL 8210367 Contact Us For Availability
View on Model
1
Door Assembly (Includes Interior Door Liner)
Door Assembly (Includes Interior Door Liner) WPL 8210368 Contact Us For Availability
View on Model
1
Cover, Evaporator
Cover, Evaporator WPL 4390662 Contact Us For Availability
View on Model
2
Basket, Middle
Basket, Middle WPL 4390818 Contact Us For Availability
View on Model
3
Rail, Basket (Left)
Rail, Basket (Left) WPL 4390820 Contact Us For Availability
View on Model
3
Motor, Fan
Motor, Fan WPL 4357004 Contact Us For Availability
View on Model
4
Grille (Includes 6 & 7) (Black)
Grille (Includes 6 & 7) (Black) WPL 8210294 Contact Us For Availability
View on Model
5
Knob, Thermostat
Knob, Thermostat WPL 4390619 Contact Us For Availability
View on Model
6
Cover, Bin
Cover, Bin WPL 8210383 Contact Us For Availability
View on Model
6
Plate, Evaporator Mount
Plate, Evaporator Mount WPL 4357123 Contact Us For Availability
View on Model
7
Screw, Set
Screw, Set WPL 8533976 Contact Us For Availability
View on Model
8
Bin, Door (6)
Bin, Door (6) WPL W10179592 Contact Us For Availability
View on Model
9
Shield, Light
Shield, Light WPL 4390743 Contact Us For Availability
View on Model
10
Bushing (Black)
Bushing (Black) WPL 4390869 Contact Us For Availability
View on Model
13
Nameplate (White)
Nameplate (White) WPL 4390656 Contact Us For Availability
View on Model
14
Relay
Relay WPL 4356738 Contact Us For Availability
View on Model
14
Handle (White)
Handle (White) WPL 2313345W Contact Us For Availability
View on Model
14
Handle (Brushed Aluminum (Includes Item 8))
Handle (Brushed Aluminum (Includes Item 8)) WPL 2317777S Contact Us For Availability
View on Model
14
Shelf, Middle
Shelf, Middle WPL 4390817 Contact Us For Availability
View on Model
15
Shelf, Top
Shelf, Top WPL 4390816 Contact Us For Availability
View on Model
16
Screw (1 1/2``)
Screw (1 1/2``) WPL 4390822 Contact Us For Availability
View on Model
18
Bracket, Light
Bracket, Light WPL W10135693 Contact Us For Availability
View on Model
19
Stop, Basket
Stop, Basket WPL 4390823 Contact Us For Availability
View on Model
19
Compressor Grommet
Compressor Grommet WPL 4356335 Contact Us For Availability
View on Model
20
Basket, Lower
Basket, Lower WPL 4390621 Contact Us For Availability
View on Model
20
Washer
Washer WPL 4356847 Contact Us For Availability
View on Model
23
Exchanger, Heat
Exchanger, Heat WPL 4357263 Contact Us For Availability
View on Model
24
Pan, Compressor
Pan, Compressor WPL 8210202 Contact Us For Availability
View on Model
25
Clip, Thermostat
Clip, Thermostat WPL 4356952 Contact Us For Availability
View on Model
30
Axle
Axle WPL 4390755 Contact Us For Availability
View on Model
32
Shield Heater
Shield Heater WPL 4356924 Contact Us For Availability
View on Model
33
Grommet
Grommet WPL 4357020 Contact Us For Availability
View on Model
34
REFRIGERANT CHARGE 5.8 oz. (R-134A)
REFRIGERANT CHARGE 5.8 oz. (R-134A) WPL ARI56100A2 Contact Us For Availability
View on Model
