Model Whirlpool EV181NZTQ02 VERTICAL FREEZER – Common Parts & Diagrams

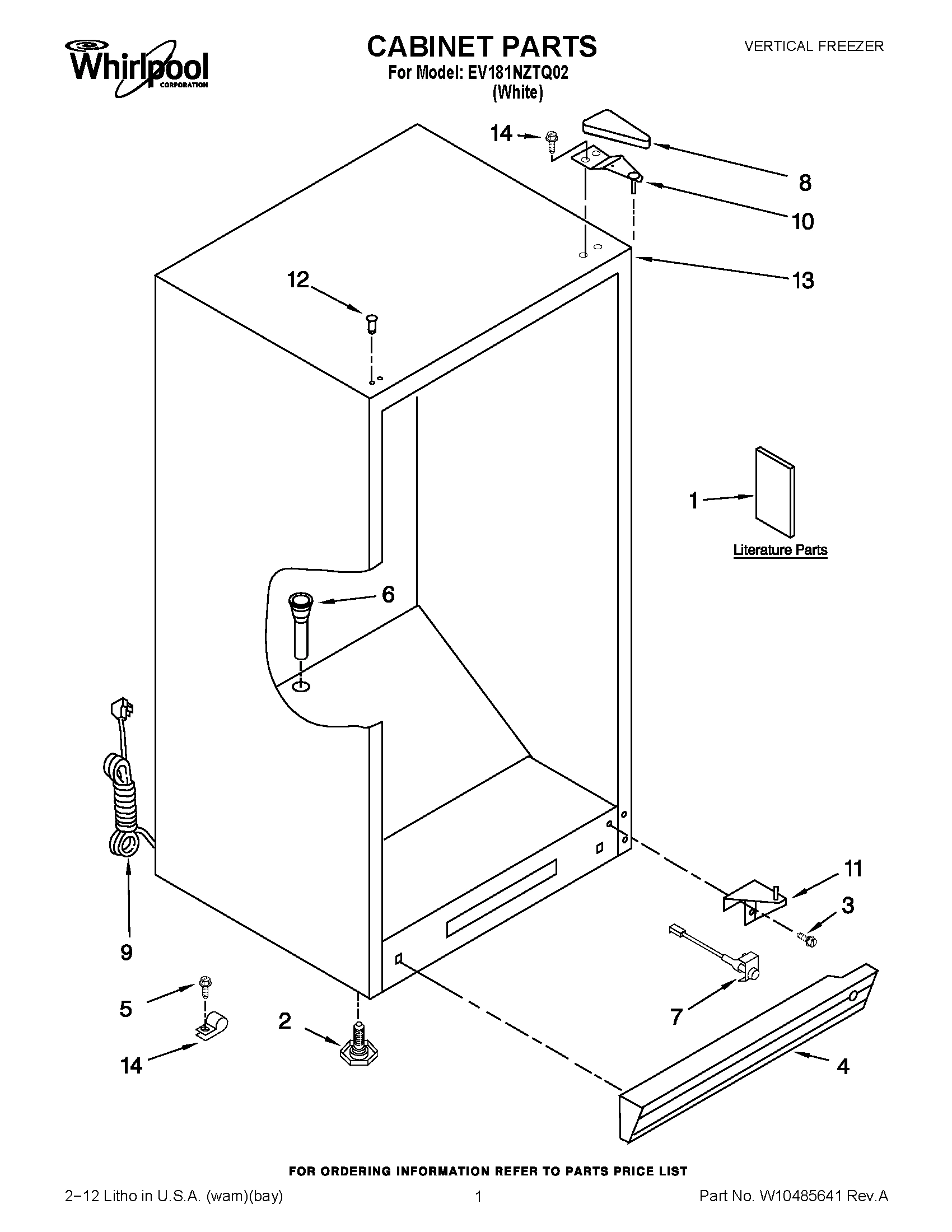

01 - CABINET PARTS

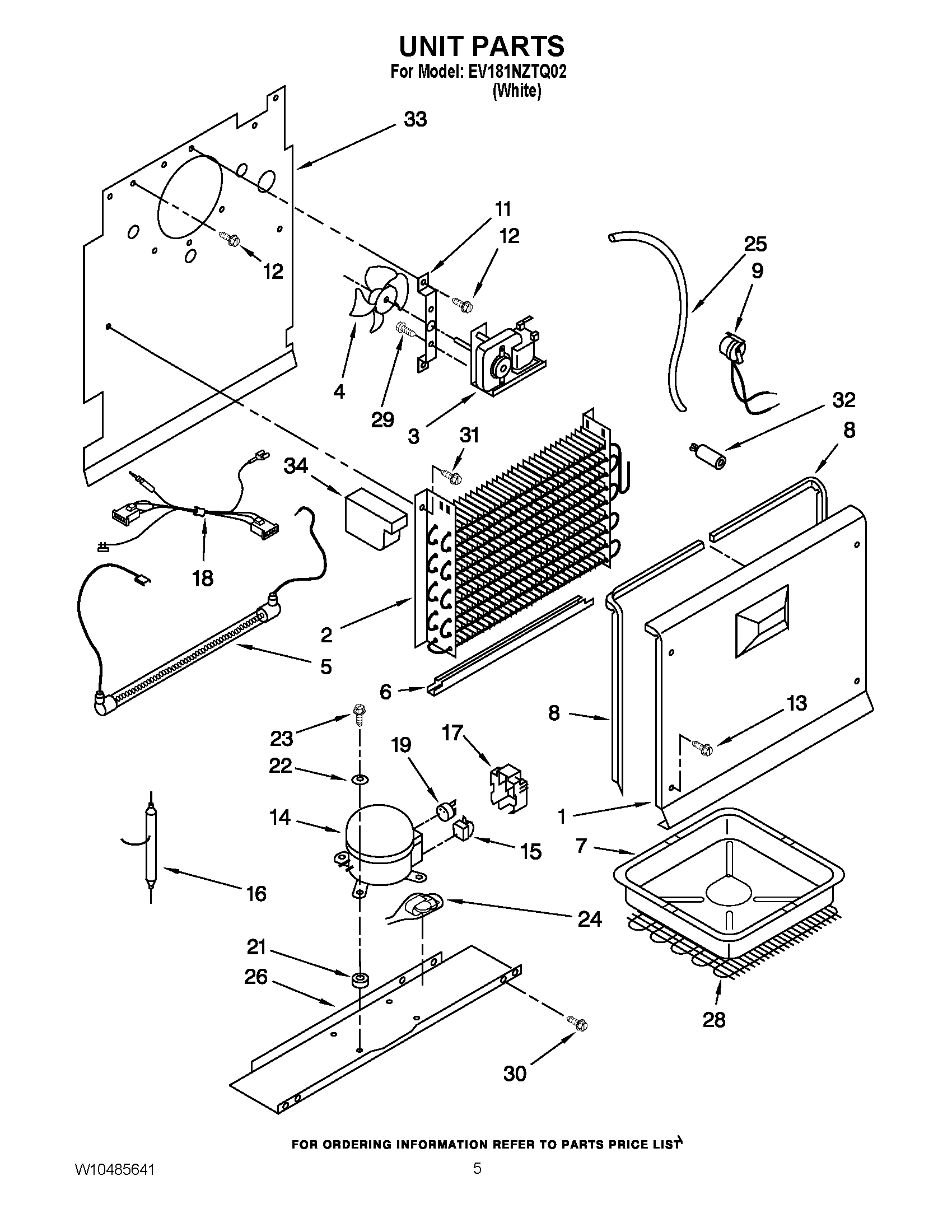

03 - UNIT PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)

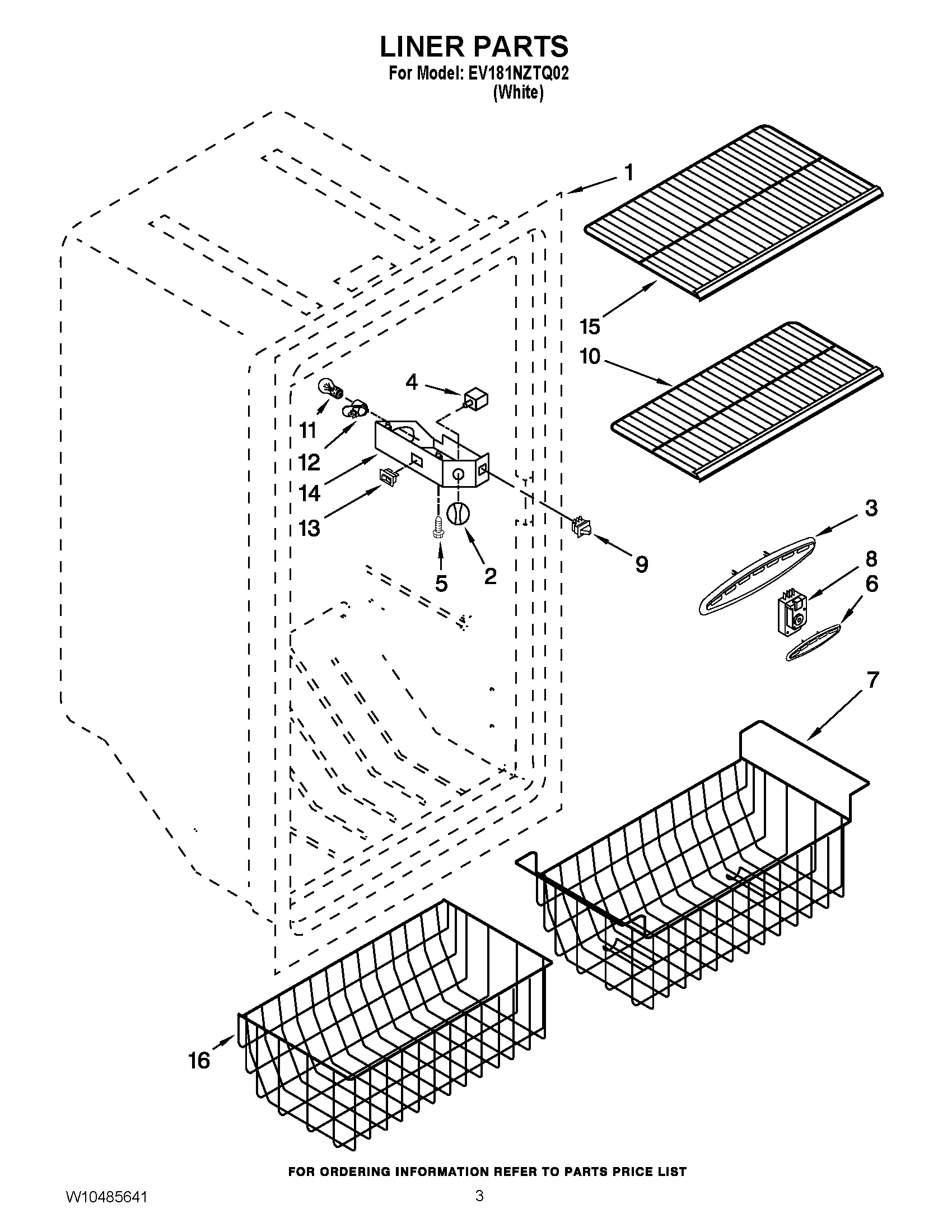

02 - LINER PARTS

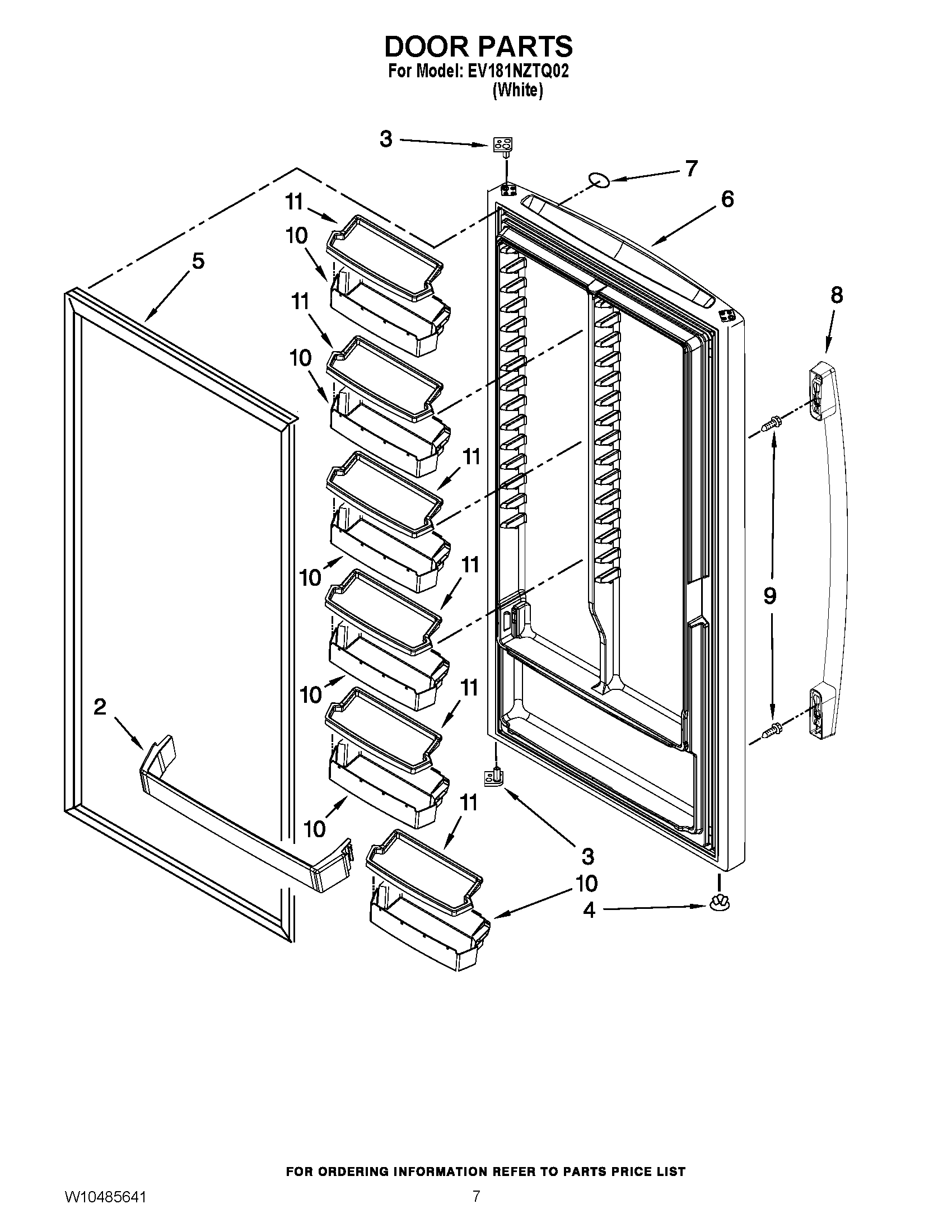

04 - DOOR PARTS
Common parts from model Whirlpool EV181NZTQ02 VERTICAL FREEZER
1
LINER (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability
1
COVER, EVAPORATOR WPL 482699001 Contact Us For Availability
2
EVAPORATOR WPL 481546 Contact Us For Availability
2
KNOB, CONTROL WPL 382390001 Contact Us For Availability
2
RAIL, DOOR WPL 465449001 Contact Us For Availability
3
MOTOR, FAN WPL 360336001 Contact Us For Availability
3
AIR DIFFUSER, UPR WPL 482556002 Contact Us For Availability
3
STOP, DOOR WPL 281124001 Contact Us For Availability
4
THERMOSTAT WPL 483053002 Contact Us For Availability
4
VENT PLUG WPL 324898007 Contact Us For Availability
5
HEATER, DEFROST WPL 380405003 Contact Us For Availability
5
SCREW WPL 324004092 Contact Us For Availability
5
GASKET, DOOR WPL 465151002 Contact Us For Availability
6
SHIELD, HEATER WPL 382697001 Contact Us For Availability
6
AIR DIFFUSER, LWR WPL 482573002 Contact Us For Availability
6
DOOR ASSEMBLY (INCLUDES INTERIOR DOOR PANEL) WPL 482827078 Contact Us For Availability
7
PAN, DRAIN WPL 482674001 Contact Us For Availability
7
BASKET, WIRE WPL 460064002 Contact Us For Availability
8
GASKET, COVER EVAPORATOR (RIGHT) WPL 360180001 Contact Us For Availability
8
GASKET, COVER EVAPORATOR (LEFT) WPL 360180002 Contact Us For Availability
8
TIMER, DEFROST WPL 381329 Contact Us For Availability
9
BI-METAL DEFROST WPL 181801001 Contact Us For Availability
9
SWITCH, LIGHT WPL 232164001 Contact Us For Availability
10
HINGE, TOP WPL 281016105 Contact Us For Availability
10
SHELF, LOWER WIRE WPL 460637001 Contact Us For Availability
10
BIN BODY WPL 465452002 Contact Us For Availability
11
HINGE, BOTTOM WPL 482693002 Contact Us For Availability
11
BRACKET, MOTOR WPL 280028101 Contact Us For Availability
11
BULB, LIGHT WPL 134291002 Contact Us For Availability
11
BIN COVER WPL 465453001 Contact Us For Availability
12
PLUG, HOLE WPL 160121001 Contact Us For Availability
12
SCREW, MOTOR WPL 380732004 Contact Us For Availability
13
SCREW (4) WPL W10451793 Contact Us For Availability
13
SWITCH, ALARM (ILLUMINATED) WPL 382642002 Contact Us For Availability
14
COMPRESSOR (INCLUDES ITEMS 15,16,17,19 & 21) WPL 432972143 Contact Us For Availability
14
BOX, CONTROL WPL 482389005 Contact Us For Availability
15
RELAY WPL 235154010 Contact Us For Availability
15
SHELF, UPPER WIRE WPL 460638001 Contact Us For Availability
16
DRIER WPL 334960001 Contact Us For Availability
16
BASKET, WIRE WPL 482880001 Contact Us For Availability
17
COVER WPL 335171003 Contact Us For Availability
18
HARNESS, FAN WPL 481785001 Contact Us For Availability
19
OVERLOAD WPL 234286037 Contact Us For Availability
22
WASHER WPL 380681103 Contact Us For Availability
23
BOLT, COMPRESSOR WPL 282082001 Contact Us For Availability
24
ALARM (BUZZER) WPL 382728001 Contact Us For Availability
25
EXCHANGER, HEAT WPL 282072003 Contact Us For Availability
26
PAN, COMPRESSOR WPL 482684003 Contact Us For Availability
28
CONDENSER WPL 482234002 Contact Us For Availability
29
SCREW WPL 324004079 Contact Us For Availability
30
SCREW WPL 324838048 Contact Us For Availability
31
SCREW WPL 324004109 Contact Us For Availability
32
GROMMET WPL 323995014 Contact Us For Availability
33
PLATE, EVAPORATOR MOUNT WPL 480504101 Contact Us For Availability
34
BLOCK, FOAM WPL 180252101 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN WPL 799344 Contact Us For Availability
× ![]()
